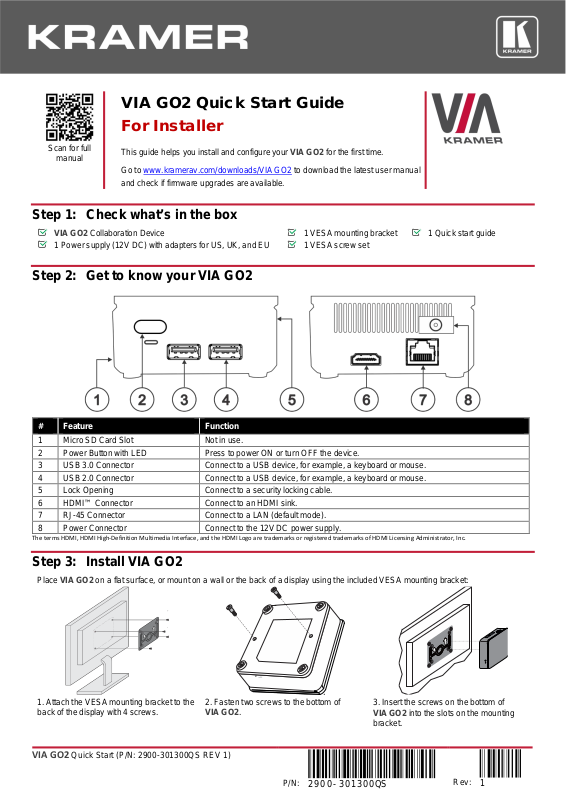

Page 1
VIA GO2
P/N:
2900- 301300QS
1
VIA GO2 Quick Start Guide
and check if firmware upgrades are available.
VIA GO2 Collaboration Device
1 VESA mounting bracket
1 Quick start guide
1 Power supply (12V DC) with adapters for US, UK, and EU
1 VESA screw set
1
Micro SD Card Slot
Not in use.
2
Power Button with LED
Press to power ON or turn OFF the device.
3
USB 3.0 Connector
Connect to a USB device, for example, a keyboard or mouse.
4
USB 2.0 Connector
Connect to a USB device, for example, a keyboard or mouse.
5
Lock Opening
Connect to a security locking cable.
6
HDMI™ Connector
Connect to an HDMI sink.
7
RJ-45 Connector
Connect to a LAN (default mode).
8
Power Connector
Connect to the 12V DC power supply.
Place VIA GO2 on a flat surface, or mount on a wall or the back of a display using the included VESA mounting bracket:
1. Attach the VESA mounting bracket to the
2. Fasten two screws to the bottom of
3. Insert the screws on the bottom of
bracket.
For Installer
Scan for full
manual
Step 1: Check what’s in the box
Step 2: Get to know your VIA GO2
This guide helps you install and configure your VIA GO2 for the first time.
Go to www.kramerav.com/downloads/VIA GO2
to download the latest user manual
# Feature Function
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Install VIA GO2
back of the display with 4 screws.
Quick Start (P/N: 2900-301300QS REV 1)
VIA GO2.
VIA GO2 into the slots on the mounting
Rev:
Page 2
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the Kramer Electronics power adapter that is provided with the unit.
Warning:
Disconnect the power and unplug the unit from the wall before installing.
See www.KramerAV.com for updated safety information.
Wi-Fi – Activate and configure the built-in Wi-Fi capability.
Et h
KeyboardKeyboard Mouse
USB
USB
Display
HDMI
LAN
Step 4: Connect t he inputs and outpu t s
Always switch OFF the power on each device before connecting it to your VIA GO2. For best results, we recommend that you
always use Kramer high-performance cables to connect AV equipment to VIA GO2. Using third-party cables may cause
damage!
1. Connect the keyboard
and mouse.
2. Connect an HDMI
display.
3. Connect to the LAN
(default mode).
If you wish to use a
Kramer active optical
pluggable HDMI
cable with your VIA
GO2, contact your
local Kramer office to
assist in purchasing
the correct cable.
Step 5: Connect the power
Connect the 12V DC power adapter to VIA GO2 and plug it into the mains electricity.
Step 6: Configure VIA GO2
A wizard guides you through configuration. If you choose to skip the wizard, follow these steps for configuration:
General Settings Configuration
1. On the Kramer VIA dashboard, click Features > Settings.
The settings login window appears.
2. Enter the User Name (default = su) and Password (default = supass) and
click Login.
The VIA Settings window appears.
The VIA Settings tabs are:
LAN Settings – Configure network parameters (default = DHCP)
System Controls – Manage your display and audio settings, set
the time, select your language, etc.
3. When you have finished configuring settings, click Reboot to apply all settings.
Change to AP Wi-Fi Mode
Set up the built-in Wi-Fi module as a secondary Access Point (for guests).
1. On the Wifi tab, click the switch next to Switch On or Off Wifi. The switch turns green and additional Wi-Fi settings appear.
2. Click AP Mode, and enter a new name in the SSID field and a new password or use the default name and password.
3. Select a Wi-Fi channel for the Access Point.
4. Select Enable Internet (if the primary LAN network is connected to the Internet) OR Activate Standalone Wifi (to create an
autonomous network without Inter net acce ss) and click Apply.
Switch to Client Wi-Fi Mode
Attach your VIA GO2 as a client device to your main network:
1. On the Wifi tab, click the switch next to Switch On or Off Wifi. The switch turns green and additional Wi-Fi settings appear.
2. Click Client Mode, select an available network from the drop -down.
3. Enter the required password and click Apply.
4. Disconnect the LAN cable (if connected) before rebooting the device.
Page 3
VIA GO2 Quick Start Guide
Go to www.kramerav.com/downloads/VIA GO2 to download the latest user manual.
For User
Scan for full
manual
Step 1: Connect your personal dev ice to the proper network
Connect your personal device to the same Wi-Fi network to which the VIA GO2 in your meeting room is con nected.
Step 2: Run or Download the Kramer VIA app
For Mac or PC:
1. Enter the Room Name of the VIA GO2 device into your computer’s browser.
This guide helps you participate in a meeting using VIA GO2.
The Welcome page of VIA GO2 appears.
2. Click Run VIA to execute the Kramer VIA app without downloading it. (Intended for guests who are using VIA only
temporarily.)
OR
Click Install VIA to download the Kramer VIA app onto your computer. (Intended for regular users of the VIA.)
For iOS or Android devices:
• Download and install the free Kramer VIA app from Apple App Store or Google Play or scan the QR code
above.
Step 3: Join the meeting using Kramer VIA App
1. Open the Kramer VIA app and, on the Welcome to VIA window, click Join
next to the name of the VIA device to which you want to connect.
The Login window appears.
2. In the Nickname field, enter a name for your device. This name appears on
the main display when you present content .
3. In the Room Code field, enter t he 4-digit code as it appears on the main
display (if enabled).
4. Click Join.
You are logged into the VIA meeting.
The VIA Dashboard (and taskbar icon for laptops) appears on your device
screen.
Page 4
Wireless Connection
Powerful Content Security
Video Streaming
Mobile Mirroring
VIA Site Management (VSM)
Digital Signage
Calendar Integration
VIA Pad Compatible
Do Not Disturb (DND)
Step 4: Using the V I A dashboard men u
• Tap the red button to present your screen to the meeting participants on the main
display.
• Tap Show Options > Features to access VIA GO2 features.
• Tap Show Options > Participants to see who else is connected.
Step 5: VIA GO2 Features
For a complete, updated list of available features go to: www.true-collaboration.com/products.html#.
Integrated YouTube Player
