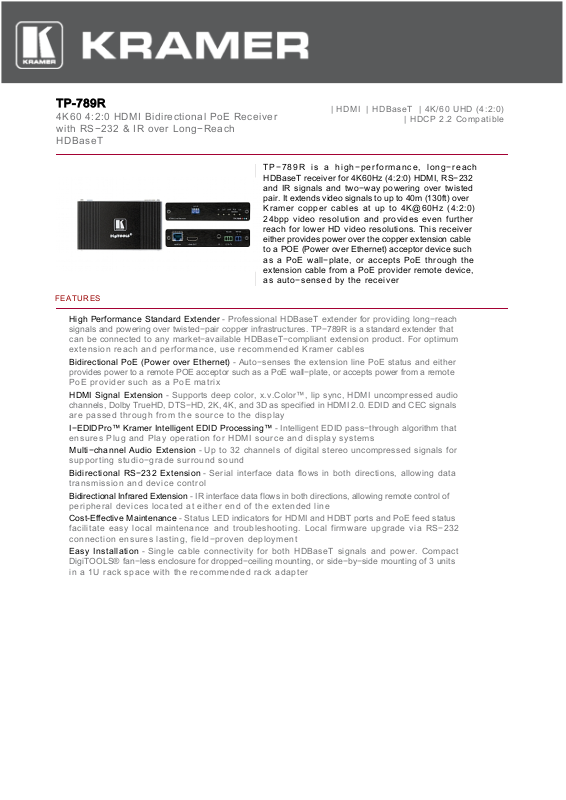

Kramer TP-789R Datasheet
TP-789R
4K60 4:2:0 HDMI Bidirectional PoE Receiver
|HDMI |HDBaseT |4K/60UHD(4:2:0)
|HDCP2.2Compatible
with RS−232 & IR over Long−Reach
HDBaseT
TP−789R is a high−performance, long−reach
HDBaseT receiver for 4K60Hz (4:2:0) HDMI, RS−232
and IR signals and two−way powering over twisted
pair. It extends video signals to up to 40m (130ft) over
Kramer copper cables at up to 4K@60Hz (4:2:0)
24bpp video resolution and provides even further
reach for lower HD video resolutions. This receiver
either provides power over the copper extension cable
to a POE (Power over Ethernet) acceptor device such
as a PoE wall−plate, or accepts PoE through the
extension cable from a PoE provider remote device,
as auto−sensed by the receiver
FEATURES
High Performance Standard Extender-Professional HDBaseT extender for providing long−reach
signals and powering over twisted−pair copper infrastructures. TP−789R is a standard extender that
can be connected to any market−available HDBaseT−compliant extension product. For optimum
extension reach and performance, use recommended Kramer cables
Bidirectional PoE (Power over Ethernet)-Auto−senses the extension line PoE status and either
provides power to a remote POE acceptor such as a PoE wall−plate, or accepts power from a remote
PoE provider such as a PoE matrix
HDMI Signal Extension-Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio
channels, Dolby TrueHD, DTS−HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals
are passed through from the source to the display
I−EDIDPro™ Kramer Intelligent EDID Processing™-Intelligent EDID pass−through algorithm that
ensures Plug and Play operation for HDMI source and display systems
Multi−channel Audio Extension-Up to 32 channels of digital stereo uncompressed signals for
supporting studio−grade surround sound
Bidirectional RS−232 Extension-Serial interface data flows in both directions, allowing data
transmission and device control
Bidirectional Infrared Extension-IR interface data flows in both directions, allowing remote control of
peripheral devices located at either end of the extended line
Cost-Effective Maintenance-Status LED indicators for HDMI and HDBT ports and PoE feed status
facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS−232
connection ensures lasting, field−proven deployment
Easy Installation-Single cable connectivity for both HDBaseT signals and power. Compact
DigiTOOLS® fan−less enclosure for dropped−ceiling mounting, or side−by−side mounting of 3 units
in a 1U rack space with the recommended rack adapter
TECHNICAL SPECIFICATIONS
Inputs
Outputs
Ports
Extension Line
Video
Extended RS-232:
Extended
Bidirectional IR:
User Interface
1 HDBT: On a female RJ−45 connector
1 HDMI: On a female HDMI connector
1 IR: On a 3.5mm mini jack connector for IR link extension
1 RS-232: On a 3−pin terminal block connector for serial link extension and device
firmware upgrade
Up to 40m (130ft) At 4k@60Hz (4:2:0)
Up to 70m (230ft) At full HD (1080p@60Hz)
Note When using Kramer HDBaseT cables
Standards Compliance HDBaseT 1.0
Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
Max Resolution: 4K@60Hz (4:2:0) 24bpp resolution
300 to 115200 baud rate
20kHz to 100kHz frequency
Indicators IN, OUT, LINK, PoE FEEDER and ON LED indicators
Power
Environmental
Conditions
STANDARDS
COMPLIANCE
Enclosure
Accessories
Product Dimension
Controls DIP−switches
Source: 48V DC, 1.36A
PoE Acceptor and Provider
Consumption: 350mA
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: −40° to +70°C (−40° to 158°F)
Humidity: 10% to 90%, RHL non−condensing
Safety: CE
Environmental: RoHs, WEEE
Size: Tool
Type: Aluminum
Cooling: Convection ventilation
Included: Power adapter, bracket set
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
Product Weight
Shipping Dimension
Shipping Weight
0.2kg (0.5lbs) approx
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
0.7kg (1.5lbs) approx
