Kramer RK-UT1 Quick Start

RK-UT1 Quick Start (P/N: 2900-300896QS REV 1)

P/N:

2 9 0 0 - 3 0 0 8 9 6 QS

Rev:

1

Scan for full manual

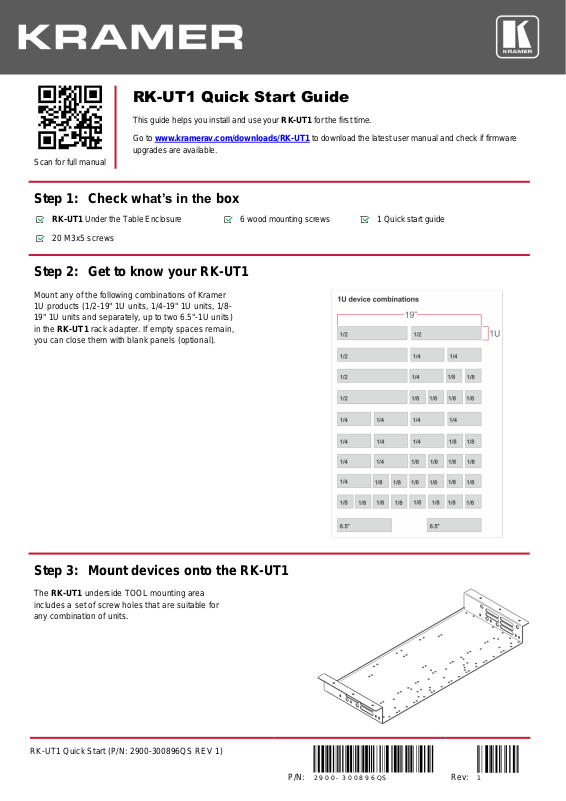

RK-UT1 Quick Start Guide

This guide helps you install and use your RK-UT1 for the first time.
Go to www.kramerav.com/downloads/RK-UT1 to download the latest user manual and check if firmware

upgrades are available.

RK-UT1 Under the Table Enclosure

6 wood mounting screws

1 Quick start guide

20 M3x5 screws

Mount any of the following combinations of Kramer
1U products (1/2-19" 1U units, 1/4-19" 1U units, 1/8­19" 1U units and separately, up to two 6.5"-1U units)
in the RK-UT1 rack adapter. If empty spaces remain,
you can close them with blank panels (optional).

The RK-UT1 underside TOOL mounting area
includes a set of screw holes that are suitable for
any combination of units.

Step 1: Check what’s in the box

Step 2: Get to know your RK-UT1

Step 3: Mount devices onto the RK-UT1

To mount a unit on the RK-UT1:

1. Place the first unit on the rack (for example, the
Kramer PA-120Z).

2. While holding the PA-120Z in place, flip over the
RK-UT1.

3. Attach the appropriate number of M3x5 screws
(supplied) through the holes on the RK-UT1 to the
underside of the PA-120Z.

4. Repeat steps 1 to 3 for all additional devices.

To install the RK-UT1 underneath a table:

1. Place the unit on the underside of a table and mark
the correct location (of the table mounting screw
holes).

2. Insert the six M4.2X18 wood screws (supplied) into
the six rim screw holes (three on each side) and
tighten them to attach the RK-UT1 to the table.

If your Kramer device does not have screw holes on its
underside, mount it via the screw holes on the sides of
the RK-UT1.

To mount a blank panel (optional) to cover any empty
rack spaces:

1. Place the blank panel in place.

2. Insert two M3x5 screws through the holes on the
RK-UT1 that fit the holes on the blank panel
(optional, not supplied).

Environmental
Conditions

Temperature Range

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Regulatory Compliance
Safety

CE

Environmental

RoHs, WEEE

Enclosure

Type

Aluminum

General

Net Dimensions

19-inch (W), 7-inch (D) 1U (H)

Shipping Dimensions (W, D, H)

49.5cm x 20.2cm x 5cm
(19.5" x 7.95" x 1.97")

Net Weight

2.18kg (4.8lbs)

Shipping Weight

2.88kg (6.35lbs) approx.

Accessories

Included

20 M3x5 screws, 6 M4.2X18 wood screws

Specifications are subject to change without notice at www.kramerav.com

Technical Specifications
