Page 1
Kramer Electronics, Ltd.
USER MANUAL
Model:
PT-101HDMI
HDMI Repeater
Page 2
Contents
i
Contents
1
Introduction 1
2
Getting Started 1
2.1
Quick Start 1
3
Overview 3
4
Your PT-101HDMI HDMI Repeater 4
5
Connecting a PT-101HDMI HDMI Repeater 5
6
Technical Specifications 6
Figures
Figure 1: PT-101HDMI HDMI Repeater 4
Figure 2: Connecting the PT-101HDMI HDMI Repeater 5
Tables
Table 1: PT-101HDMI HDMI Repeater Features 4
Table 2: Technical Specifications of the PT-101HDMI 6
Page 3
P/N: 2900 - 0003091 A1
ADDENDUM: PT-101HDMI User Manual
Item 1 in Table 1 in section 4 is replaced as follows:
# Feature Function
1 POWER LED Illuminates when receiving power. The POWER LED is colored:
Green, when the 12V DC power source is connected but no input signal is
received
Red, when an input signal is received and the 12V DC power source is
disconnected
Orange, when both the 12V DC power source is connected and an input
signal is received
Page 4
Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video, audio
and presentation professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 500-plus different
models now appear in 8 Groups1, which are clearly defined by function.
Congratulations on purchasing your PT-101HDMI HDMI Repeater, which is
ideal for:
Multi-media installations
Home cinema installations
The package includes the following items:
PT-101HDMI HDMI Repeater
Power adapter (12V DC Input)
This user manual2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables3

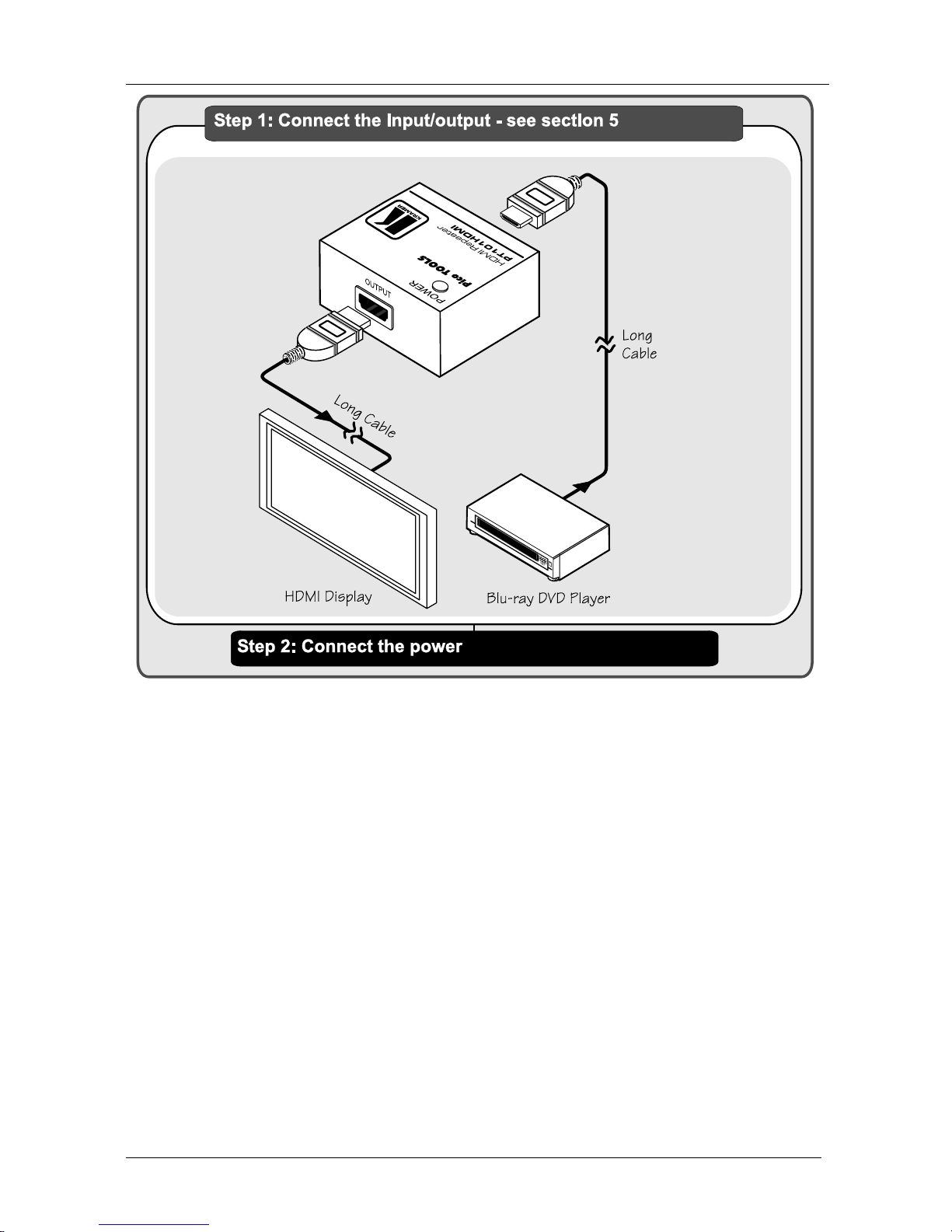

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
Page 5
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
Page 6
Overview
3
3 Overview
The Kramer Pico TOOLS PT-101HDMI:
Is a high quality repeater for HDMI 1.3a version signals that connects
between an HDMI source and an HDMI display
Extends the transmission range. For example, to up to 15m for 1080i
resolution
To achieve the best performance:
Connect only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching,
and elevated noise levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer
PT-101HDMI away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit1.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 For example: model number AD2512C, part number 2535-000251
Page 7
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your PT-101HDMI HDMI Repeater
4
4 Your PT-101HDMI HDMI Repeater
Figure 1 and Table 1 define the PT-101HDMI HDMI Repeater:

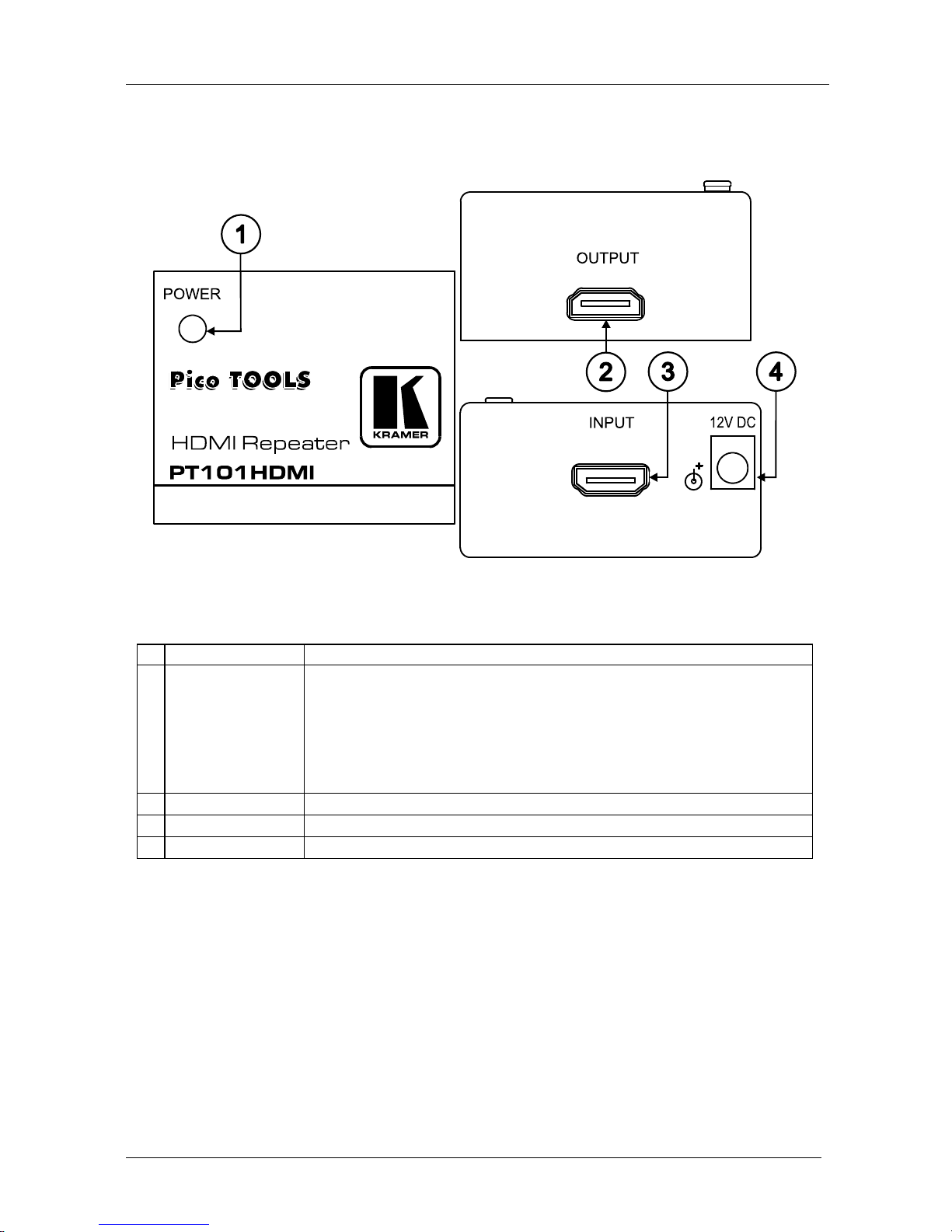

Figure 1: PT-101HDMI HDMI Repeater
Table 1: PT-101HDMI HDMI Repeater Features
# Feature Function
1 POWER LED Illuminates when receiving power. The POWER LED is colored:
Orange, when the 12V DC power source is connected but no input signal is
received
Dull red, when an input signal is received and the 12V DC power source is
disconnected
Lighter red when both the 12V DC power source is connected and an input
signal is received
2 OUTPUT Connector Connect to the HDMI acceptor
3 INPUT Connector Connect to the HDMI source
4 12V DC +12V DC connector for powering the unit
Page 8
Connecting a PT-101HDMI HDMI Repeater
5
5 Connecting a PT-101HDMI HDMI Repeater
To connect the PT-101HDMI, as illustrated in the example in Figure 2, do the
following:
1. Connect the HDMI source (for example, a blu-ray DVD player) to the
INPUT connector.
2. Connect the OUTPUT connector to an HDMI acceptor (for example, an
HDMI display).
3. Connect the 12V DC power adapter to the power socket on the
PT-101HDMI and connect the adapter to the mains electricity.
The PT-101HDMI can be powered from the HDMI source, but for
maximum performance we recommend using the power supply (supplied).

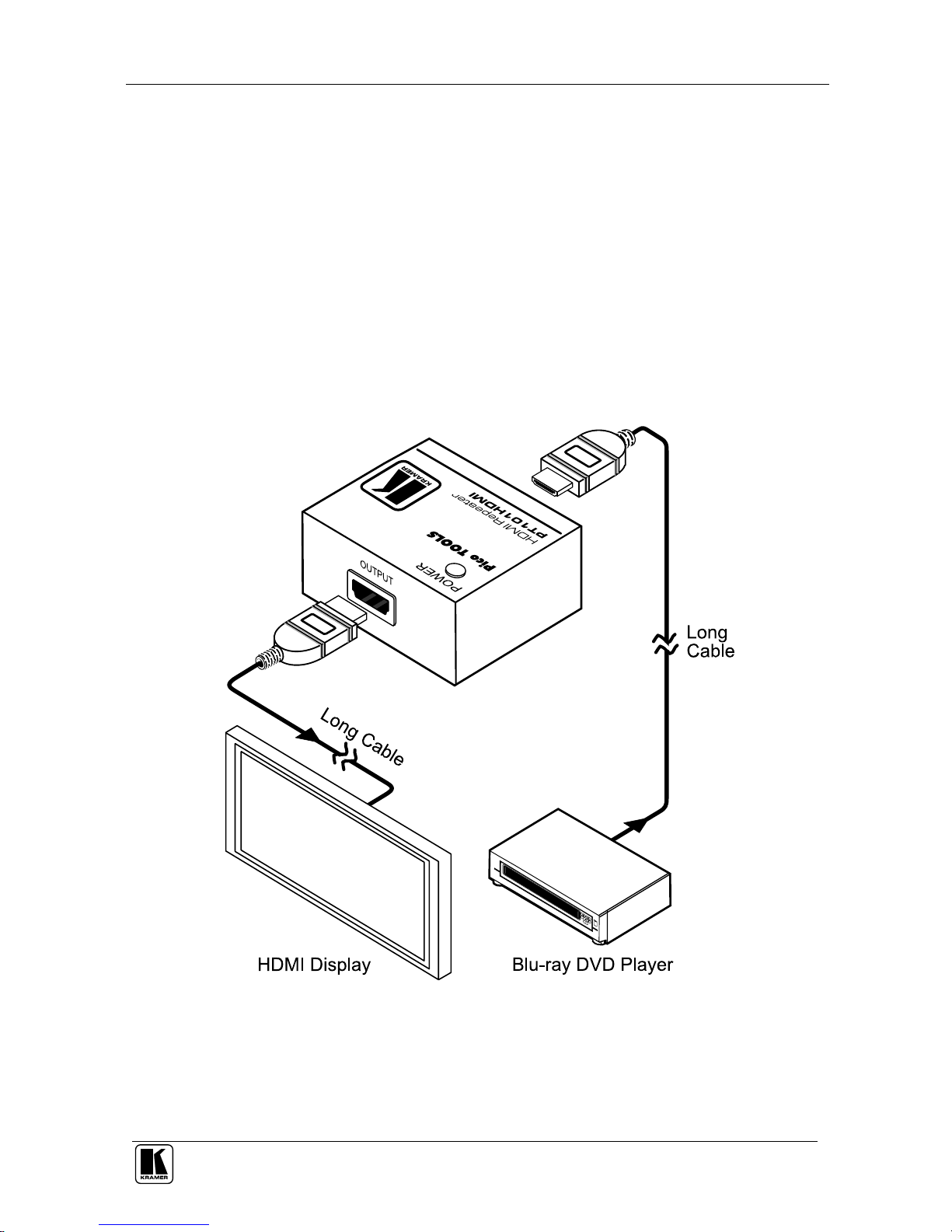

Figure 2: Connecting the PT-101HDMI HDMI Repeater
Page 9
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
6
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications1 of the PT-101HDMI
INPUT: 1 HDMI Connector
OUTPUT: 1 HDMI Connector
BANDWIDTH: Supports up to 2.25Gbps bandwidth
COMPLIANCE WITH
HDMI STANDARD:
Supports HDMI 1.3a
POWER SOURCE: 12VDC 120mA
DIMENSIONS: 6.22cm x 5.23cm x 3.20cm (2.5" x 2.1" x 1.3"), W, D, H
WEIGHT: 0.07 kg. (0.16 lbs.) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: Kramer HDMI cables2
1 Specifications are subject to change without notice
2 For best results, use Kramer cables such as the C-HDMI/HDMI series, the C-HDMI-DVI series and/or our HDMI over fiber
optics C-FOHM/FOHM series
Page 10
7
Page 11
Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com
P/N: 2900-000309 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
