Page 1
KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
MODULAR TBUS-3xl
Table Connection Bus
P/N: 2900-300062 Rev 2
Page 2
Page 3
TBUS-3xl – Contents i
Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Glossary 2
3 Overview 3
4 Your TBUS-3xl Enclosure 4
4.1 TBUS-3xl Optional Inner Frames 5
4.2 TBUS-3xl Accessories 5
4.3 Power Socket Options 6
4.4 Power Cord Options 7
5 Installing the TBUS-3xl 8
5.1 Assembling the Inner Frame 8
5.2 Installing the Inner Frame 10
5.3 Cutting an Opening in the Table 10
5.4 Inserting the TBUS-3xl through the Cut Out Opening 11
5.5 Connecting the Cables 12
5.6 Inserting Cables via the 4-cable Pass-through Insert 12
5.7 Inserting the Pass-through Cables 13
5.8 Adjusting the Height of the Inner frame 14
6 Using the TBUS-3xl 15
7 Technical Specifications of the Assembled TBUS-3xl 16
Figures
UFigure 1: TBUS-3xl inside a TableU 3
UFigure 2: TBUS-3xl Enclosure Top ViewU 4
UFigure 3: TBUS-3xl Inner Frame (P/N: 80-003099)U 9
UFigure 4: Cut out DimensionsU 10
UFigure 5: Inserting TBUS-3xl into the Prepared OpeningU 11
UFigure 6: 4-cable Pass-through Insert (P/N: 80-003199)U 13
UFigure 7: TBUS-3xl Boardroom InstallationU 15
Page 4
TBUS-3xl - Introduction 1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers, GROUP 2: Switchers and Matrix
Switchers, GROUP 3: Control Systems, GROUP 4: Format/Standards Converters,
GROUP 5: Range Extenders and Repeaters, GROUP 6: Specialty AV Products,
GROUP 7: Scan Converters and Scalers, GROUP 8: Cables and Connectors,
GROUP 9: Room Connectivity, GROUP 10: Accessories and Rack Adapters and
GROUP 11: Sierra Products.
Thank you for purchasing the Kramer TBUS-3xl enclosure, which is ideal for
boardrooms, conference and training rooms!
i
Note that the inner frame, power socket assembly, power cord and
other inserts for the TBUS-3xl enclosure are purchased separately.
Page 5
2 TBUS-3xl - Getting Started
2 Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high-performance high-resolution cables
i
Go to http://www.kramerelectronics.com to check for up-to-date
user manuals, a complete list of Kramer wall plates and module
connectors, application programs, and to check if firmware
upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
• Use only good quality connection cables to avoid interference, deterioration
in signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
• Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
• Position your Kramer TBUS-3xl away from moisture, excessive sunlight and
dust
2.2 Glossary
Inner frame
The inner frame fits into the TBUS enclosure
Universal socket
The Universal socket fits almost all power cords, worldwide
Insert
The insert is fitted in the inner frame. Go to our Web site to check for a
variety of single and dual sized inserts
Page 6
TBUS-3xl - Overview 3
3
3 Overview
The Kramer TBUS-3xl is a high-quality, anodized aluminum, table-mounted
connection bus enclosure for boardrooms and conference rooms. Its attractive
enclosure is designed to provide maximum connectivity in the smallest possible
footprint. The unit is sturdy, cost-effective, and easy to install.
The TBUS-3xl features:
• A modular design, letting you tailor the TBUS-3xl according to your
requirements
• A black anodized or brushed clear aluminum lid with a special opening for
cable pass-through (note, that other customized colors can also be ordered)
• Height adjustment screw holes to set the inner frame (ordered separately) to
the desired height
• Power socket openings that are suitable for any of the following power
sockets: for the USA, Germany (the Europlug), Belgium-France, Italy,
Australia, Israel, South Africa or “Universal” for use anywhere (see
compatibility restrictions in
Section 7
Order the power sockets separately from Kramer Electronics
)
TBUS-3xl is height-adjustable and the cover opens and closes manually, keeping
the cables and the connectors out of sight when not used.
Figure 1: TBUS-3xl inside a Table
!
Do not place heavy objects on top of the TBUS-3xl.
Page 7
4 TBUS-3xl - Your TBUS-3xl Enclosure
4 Your TBUS-3xl Enclosure
Figure 2: TBUS-3xl Enclosure Top View
# Feature Function
1 Black Anodized/Brushed
Clear Textured Lid
Includes an opening for cable pass-through; covers the inner
frame, leaving the table surface neat and tidy
2 Outer Rim Fits over the table surface.
A protective rubber guard protects the outer rim during
shipping. Remove it before installing the unit
3 Enclosure Inserted into the table cut out
4
Table Clamping Set
Rubber Protectors Protect the table surface when mounting the unit and ensure
soft tightening to the table underside (one for each clamp)
5 Locking Butterfly
Screws
Tighten to lock the mounting butterfly screw (one for each
clamp)
6 Mounting Butterfly
Screws
Tighten to secure the unit to the table surface (one for each
clamp)
7 Mounting Brackets
(2 units)
Fit in the bracket slits after inserting the enclosure into the
table – to secure the unit to the table surface (one for each
clamp)
8 Height Adjustment
Screw holes
The screw holes on each side panel are used for adjusting the
height of the inner frame
9 Bracket Slits For attaching the two mounting brackets on opposite sides
10 Tie Holes Insert the self-locking tie through the holes to fix the pass-
through cables to the inside walls of the unit
Page 8
TBUS-3xl - Your TBUS-3xl Enclosure 5
5

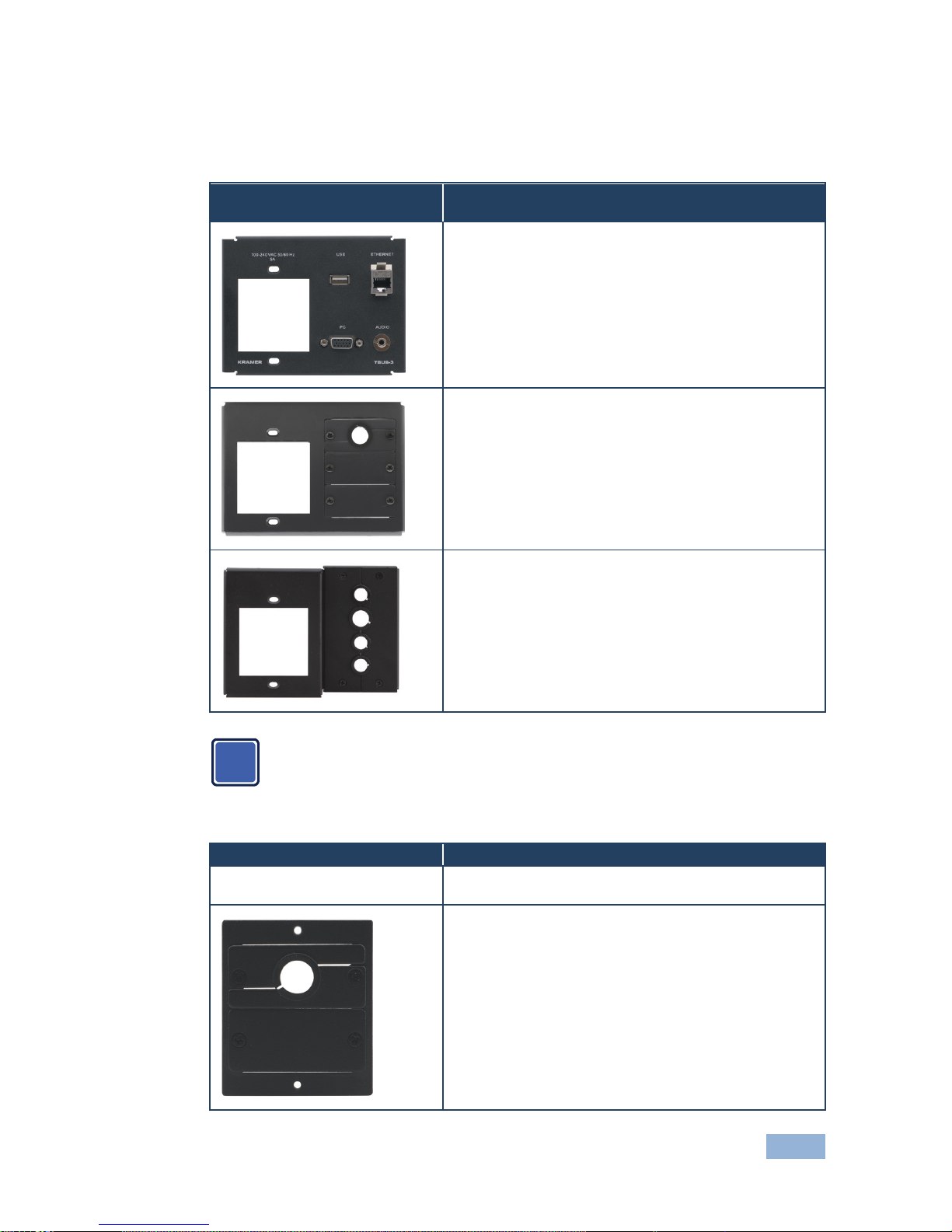

4.1 TBUS-3xl Optional Inner Frames
The following inner frames can be installed in the TBUS-3xl enclosure:
Inner Frames for TBUS-3xl Specifications (define what you can include in this
inner frame):
T3F-1S (P/N: 80-002999)
1 opening for 1 power socket
1 USB connector
1 VGA 15-pin HD connector
1 RJ-45 Ethernet connector
A 3.5mm mini jack AUDIO connector
T3F-13 (P/N: 80-003099)
1 opening for 1 power socket
2 blank inserts
1 cable pass-through insert
T3F-1C (P/N: 80-003199)
1 opening for 1 power socket
4-cable pass-through insert
i
Custom made inner frames can be designed if required.
Contact Kramer Electronics for more details.
4.2 TBUS-3xl Accessories
Accessories Description
Inserts You can install any wall plate devices as well as any of
the single or dual inserts—see our Web site for details.
T-2INSERT (P/N: 80-00006699)
The T-2INSERT kit can be installed inside a single
power socket opening and includes:
1 single cable pass-through insert
1 dual cable pass-through insert
Page 9
6 TBUS-3xl - Your TBUS-3xl Enclosure
4.3 Power Socket Options
A choice of power sockets per inner frame are available in several versions,
including power sockets for the USA, Germany (the Europlug), Belgium-France,
Italy, South Africa, Israel and Australia. A “Universal” socket for general use is also
available (see the compatibility restrictions in the table below).
Power Socket
Type
Power Specs Power Socket
Type
Power Specs
Universal:
TS/1U (80-000899)
100-240V AC, 50/60Hz,
5A
Maximum 5A per power
outlet
Fully compatible with power plugs in the
UK, India, Italy and Denmark, as well as
with the 2-prong Europlug.
Partially compatible (if the polarity is
reversed) with plugs in China, Switzerland,
Israel and the USA. The universal socket
does not supply grounding to plugs in
Central Europe and France and so you
should order country specific sockets
instead.
Not compatible with South African plugs.
Power Socket
Type
Power Specs Power
Socket Type
Power Specs
USA:
TS-1US (80-000999)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Italy:
TS-1IT (80-001499)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Germany and
EU:
TS-1DE (80-001299)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Australia:
TS-1AU (80-001599)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Belgium and
France:
TS-1FR (80-001399)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Israel:
TS-1IL (80-001799)
220V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
South Africa
TS-1ZA (80-001699)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Page 10
TBUS-3xl - Your TBUS-3xl Enclosure 7
7
4.4 Power Cord Options
You can order any of the following power cords to use with a modular TBUS:
Power Cord Type Description P/N
6ft/110V (North America) C-AC/US (110V) 91-000099
6ft/125V (Japan) C-AC/JP (125V) 91-000699
6ft/220V (Europe) C-AC/EU (220V) 91-000199
6ft/220V (Israel) C-AC/IL (220V) 91-000999
6ft/250V (UK) C-AC/UK (250V) 91-000299
6ft/250V (India) C-AC/IN (250V) 91-001099
6ft/250V/10A (China) C-AC/CN (250V) 91-001199
6ft/250V/10A (South Africa) C-AC/ZA (250V) 91-001299
Page 11
8 TBUS-3xl - Installing the TBUS-3xl
5 Installing the TBUS-3xl
To install the TBUS-3xl perform the following steps:
1. Assemble the inner frame (see
Section 5.1
2. Install the inner frame (see
).
Section 5.2
3. Cut an opening in the table (see
).
Section 5.3
4. Insert the unit through the opening and secure to the table (see
).
Section 5.4
5. Connect the cables (see
).
Section 5.5
6. Insert the cables via the 4-cable pass-through insert (see
).
Section 5.6
7. Insert the cables via a pass through insert (see
).
Section 5.7
8. Adjust the height of the inner frame (see ) Section 5.8
5.1 Assembling the Inner Frame
).
The modules mounted on the inner frame can include single inserts and/or dual
inserts as well as a power socket (in some models). This section describes how to
assemble these modules.
i
Each module kit comes with detailed assembly instructions.
Page 12
TBUS-3xl - Installing the TBUS-3xl 9
9
5.1.1 Mounting the Inserts
You can rearrange or remove any of the plates mounted on the inner frame and
replace them with Kramer passive wall plates or connector modules for interfacing
A/V type signals.
To mount a Kramer insert or connector module:
1. Unscrew the two screws that fasten the blank plate to the inner frame and
remove the blank plate.
2. Place the required Kramer insert over the opening, insert the two screws to
fix the Kramer insert in place, and tighten them.
Figure 3: TBUS-3xl Inner Frame (P/N: 80-003099)
#
Feature
Function
1 Blank Plates Three blank covers that can be replaced with wall
plates as required
2 Adjustable Height Screw Holes For adjusting the height of the Inner frame
5.1.2 Mounting the Power Socket Assemblies
To mount the power socket, place the power socket under the frame in its
appropriate place and tighten with the two screws (supplied).
i
Power socket kits come with assembly instructions.
Page 13
10 TBUS-3xl - Installing the TBUS-3xl
5.2 Installing the Inner Frame
To install the inner frame:
1. Place the inner frame inside the TBUS-3xl enclosure.
2. Set the required height using your fingers to bring the inner frame to the
desired position, screw and tighten it in place using the height adjustment
screws (supplied with the inner frame).
i
Inner frame kits come with assembly instructions.
5.3 Cutting an Opening in the Table
To cut an opening in the table:
1. Place the included cut out template (that is included with your TBUS-3xl) on
the surface of the table exactly where you want to install the TBUS-3xl.
2. Attach the template to the table with the included screws (if using the cut out
template).
3. Following the
inside edge of the template, cut a hole in the table surface
with a sabre or keyhole saw according to the dimensions shown in
Figure
(not to scale).
4
i
The thickness of the table should be 76.2mm / 3 inches or less.
Figure 4: Cut out Dimensions
Page 14
TBUS-3xl - Installing the TBUS-3xl 11
11
4. Unscrew and remove the template from the surface of the table and clean
the table surface.
Take care not to damage the table.
If needed, you can download a full-scale template from our Web site.
!
Kramer Electronics is not responsible for any damage caused to the
table.
5.4 Inserting the TBUS-3xl through the Cut Out Opening
To install TBUS-3xl in the opening:
1. Remove the protective rubber guard from around the outer rim of the
TBUS-3xl housing. Beware of the sharp edge!
2. Carefully insert the unit into the prepared opening (see
Figure 5).
3. Take the support brackets under the table and place them into the support
bracket grooves on both sides of the unit (see
Figure 2, item 7).
4. Verify proper alignment of the unit before tightening the mounting screws.
5. Tighten both mounting butterfly screws upward until they reach the table
surface (from underneath). Tighten firmly (see
Figure 5).
6. Tighten the locking butterfly screws downward until tight against the
mounting bracket.
Figure 5: Inserting TBUS-3xl into the Prepared Opening
Page 15
12 TBUS-3xl - Installing the TBUS-3xl
5.5 Connecting the Cables
When replacing blank inserts with connector inserts (for example, VGA, audio,
HDMI and so on):
1. Insert the cables to their appropriate connectors from underneath.
2. Secure the cables to the tie holes on the TBUS-3xl.
Do not secure the cables too tightly or too loosely. Leave a small amount of
slack.
After the TBUS-3xl is connected to mains power and the proper cables, it is ready for
use.
5.6 Inserting Cables via the 4-cable Pass-through Insert
To insert the cables via the 4-cable pass-through insert (for example, to pass
cables from beneath the table to several laptops) do the following:
1. Remove the four screws attaching the split pass-through bracket.
2. Remove the split grommet(s).
The split grommets are not shown in Figure 6
3. Insert the cable(s) through the rectangular opening.
4. Open the split grommet slightly and insert the required cables.
5. Place the split bracket around the grommet and position this assembly over
the inner frame.
6. Place the four screws appropriately and tighten the split bracket together
with the grommet and inserted cables to the inner frame.
7. Insert the self-locking ties through the tie holes to secure the cables to the
inside walls of the enclosure.
Page 16
TBUS-3xl - Installing the TBUS-3xl 13
13
Figure 6: 4-cable Pass-through Insert (P/N: 80-003199)
5.7 Inserting the Pass-through Cables
When replacing a blank insert with the pass-through insert, for example, to
connect a laptop, do the following:
1. Remove the two screws attaching the split pass-through bracket.
2. Remove the split grommet.
3. Insert the cable through the rectangular opening.
4. Open the split grommet slightly and insert the required cables.
5. Place the split bracket around the grommet and position this assembly over
the Inner Frame.
6. Place the two screws appropriately and tighten the split bracket together
with the grommet and inserted cables to the inner frame.
7. Insert the self-locking ties through the tie holes to secure the cables to the
inside walls of the enclosure.
Page 17
14 TBUS-3xl - Installing the TBUS-3xl
5.8 Adjusting the Height of the Inner frame
If needed, you can adjust the inner frame height to accommodate large or bulky
cables. To adjust, perform the following:
1. Remove the height adjustment screws, while supporting the surface from
underneath with your fingers.
2. Raise or lower the inner frame to the required height, insert the screws, and
tighten them in place.
Page 18
TBUS-3xl - Using the TBUS-3xl 15
15
6 Using the TBUS-3xl
Once the TBUS-3xl is installed, you can easily customize it to suit your own
requirements by plugging in the required A/V equipment, as illustrated in the
example in
Figure 7.
Figure 7: TBUS-3xl Boardroom Installation
Page 19
16 TBUS-3xl - Technical Specifications of the Assembled TBUS-3xl
7 Technical Specifications of the Assembled
TBUS-3xl
POWER SOURCE
(AC power limits):
Power Socket Assemblies
Universal 100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Fully compatible with power plugs in the UK, India, Italy
and Denmark, as well as with the 2-prong Europlug.
Partially compatible (if the polarity is reversed) with
plugs in China, Switzerland, Israel and the USA. The
universal socket does not supply grounding to plugs in
Central Europe and France (you should order country
specific sockets instead).
Not compatible with South African plugs.
USA 100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Germany and EU 100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Belgium and France 100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Italy 100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Australia 100-240V AC, 50/60Hz, 5A
Maximum 5A per power outlet
Israel
220V AC, 50/60Hz, 5A
Maximum 5A per power outlet
South Africa
220V AC, 50/60Hz, 5A
Maximum 5A per power outlet
FUSE RATING: T 6.3A 250V
OPERATING TEMPERATURE
RANGE:
+5 to +45 Deg. Centigrade
OPERATING HUMIDITY
RANGE:
10 to 90% RHL, non-condensing
STORAGE TEMPERATURE
RANGE:
-20 to +70Deg. C.
STORAGE HUMIDITY RANGE: 5 to 95% RHL, non-condensing
DIMENSIONS: Top plate: 176mm x 140.4mm (6.9" x 5.5") W, D
Enclosure: 136mm x 102mm x 130mm (5.4" x 4.0" x 5.1")
W, D, H
WEIGHT: TBUS-3: 0.8kg (1.76lbs) approx.
Table clamps: 0.26kg (0.57lbs)
Template: 0.12kg (0.27lbs)
ACCESSORIES: Power cord, six self-locking ties, template, template screws
OPTIONS: Inner frames, passive wall plates and interfaces, power
socket kits, power cord
Specifications are subject to change without notice at http://www.kramerelectronics.com
Page 20
TBUS-3xl 17
Page 21
Page 22
For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site:
E-mail:
www.kramerelectronics.com
info@kramerel.com
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
Loading...
