KRT-3 Quick Start (P/N: 2900-301022QS REV 1)
P/N:
2900- 301022QS
Rev:
1
Scan for full manual

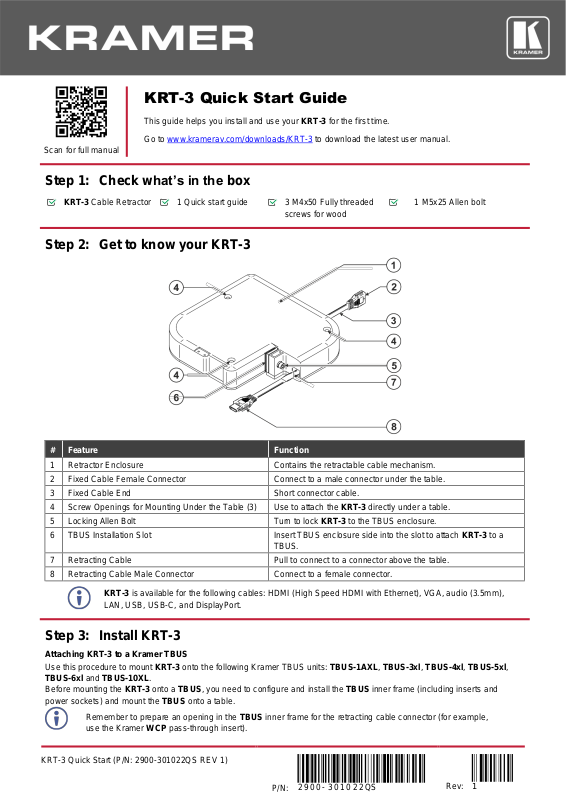

KRT-3 Quick Start Guide
This guide helps you install and use your KRT-3 for the first time.
Go to www.kramerav.com/downloads/KRT-3 to download the latest user manual.
Step 1: Check what’s in the box
KRT-3 Cable Retractor
1 Quick start guide
3 M4x50 Fully threaded
screws for wood
1 M5x25 Allen bolt
Step 2: Get to know your KRT-3
#
Feature
Function
1
Retractor Enclosure
Contains the retractable cable mechanism.
2
Fixed Cable Female Connector
Connect to a male connector under the table.
3
Fixed Cable End
Short connector cable.
4
Screw Openings for Mounting Under the Table (3)
Use to attach the KRT-3 directly under a table.
5
Locking Allen Bolt
Turn to lock KRT-3 to the TBUS enclosure.
6
TBUS Installation Slot
Insert TBUS enclosure side into the slot to attach KRT-3 to a
TBUS.
7
Retracting Cable
Pull to connect to a connector above the table.
8
Retracting Cable Male Connector
Connect to a female connector.
KRT-3 is available for the following cables: HDMI (High Speed HDMI with Ethernet), VGA, audio (3.5mm),
LAN, USB, USB-C, and DisplayPort.
Step 3: Install KRT-3
Attaching KRT-3 to a Kramer TBUS
Use this procedure to mount KRT-3 onto the following Kramer TBUS units: TBUS-1AXL, TBUS-3xl, TBUS-4xl, TBUS-5xl,
TBUS-6xl and TBUS-10XL.
Before mounting the KRT-3 onto a TBUS, you need to configure and install the TBUS inner frame (including inserts and
power sockets) and mount the TBUS onto a table.
Remember to prepare an opening in the TBUS inner frame for the retracting cable connector (for example,
use the Kramer WCP pass-through insert).
Page 2
To attach KRT-3 to a TBUS:
1. From under the table, slide the KRT-3 onto one of the side
walls of the TBUS.
Make sure that the fixed cable is directed downwards and
the retracting cable is directed upwards.
2. Use the appropriate Allen key to fix the KRT-3 by tightening
the Allen bolt firmly in place and pass the retracting cable
end through the cable pass-through bushing.
The KRT-3 is now firmly fixed in place.
Attaching KRT-3 (as a Standalone) to the Underside of a Table
The thickness of the table should be at least 18mm so as not to
damage the table. Kramer Electronics is not responsible for any
damage caused to the table.
To attach KRT-3 to the underside of a table:
1. Place the KRT-3 under the table in the desired location.
Make sure that the retracting cable faces the edge of the
table.
2. Pass the 3 M4x50 screws through the table screw openings
and tighten them to fix the retractor under the table.
