Kramer KIT-401 User Manual

P/N: 2900-301513 Rev 1 www.kramerAV.com

USER MANUAL

MODEL:

KIT-401
4K Auto-Switcher/Scaler Kit

Kramer Electronics Ltd.

KIT-401 – Contents

i

Contents

Introduction 1

Getting Started 1
Overview 2
Typical Applications 4

Defining KIT-401 4K Auto-Switcher/Scaler Kit 5

Defining KIT-401T 5
Defining KIT-400R 7

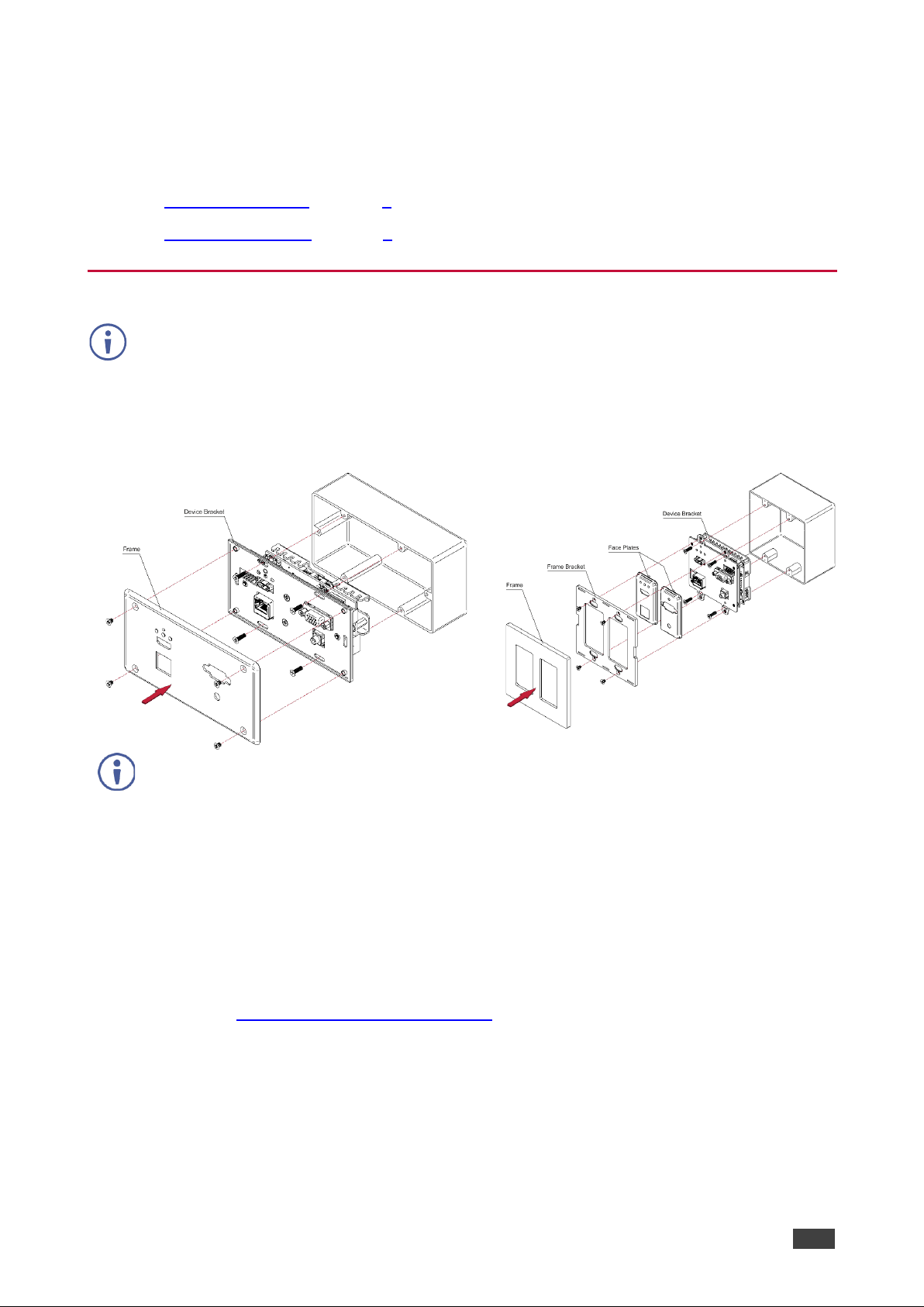

Mounting KIT-401 8

Mounting KIT-401T 8
Mounting KIT-400R 9

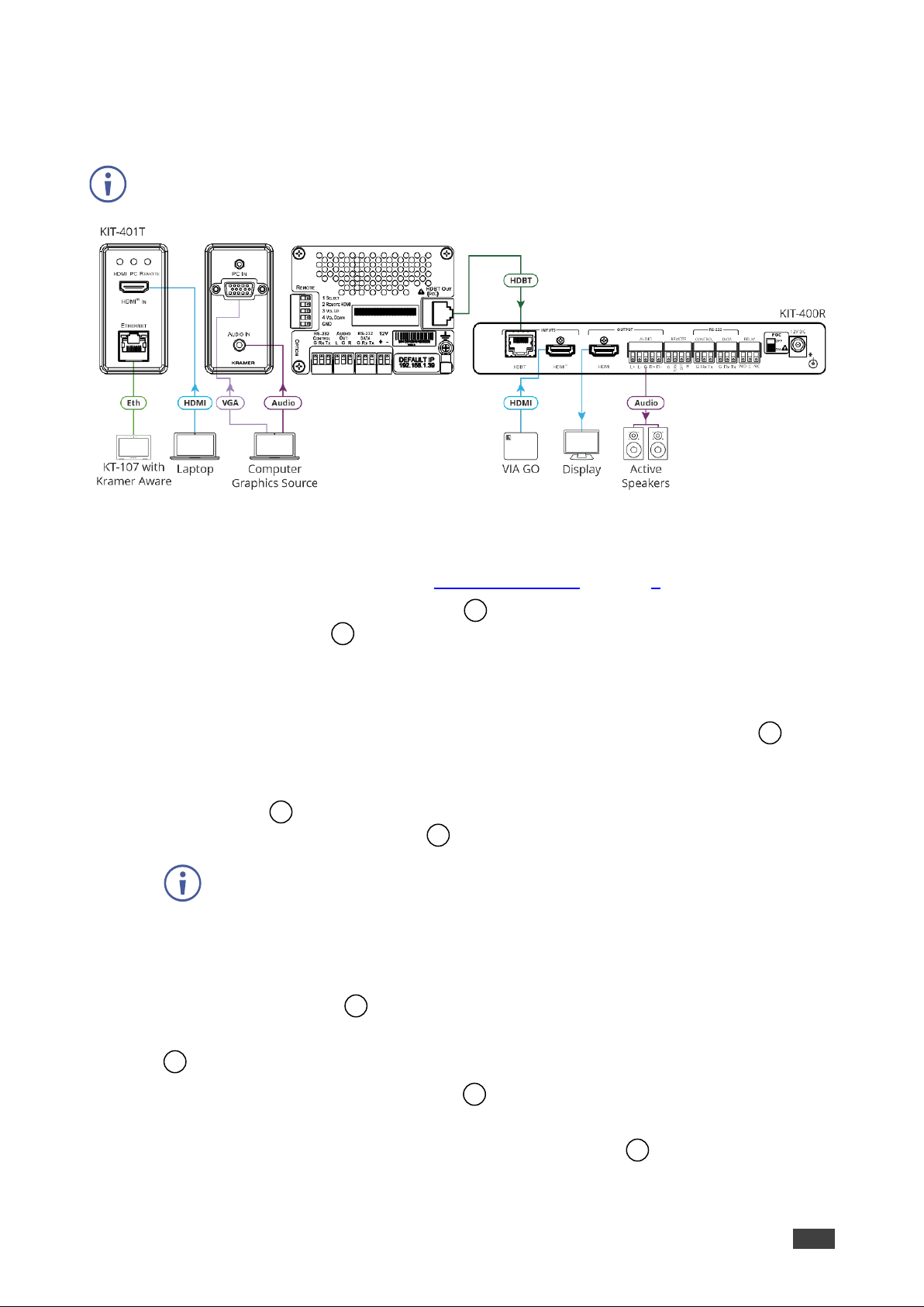

Connecting KIT-401 10

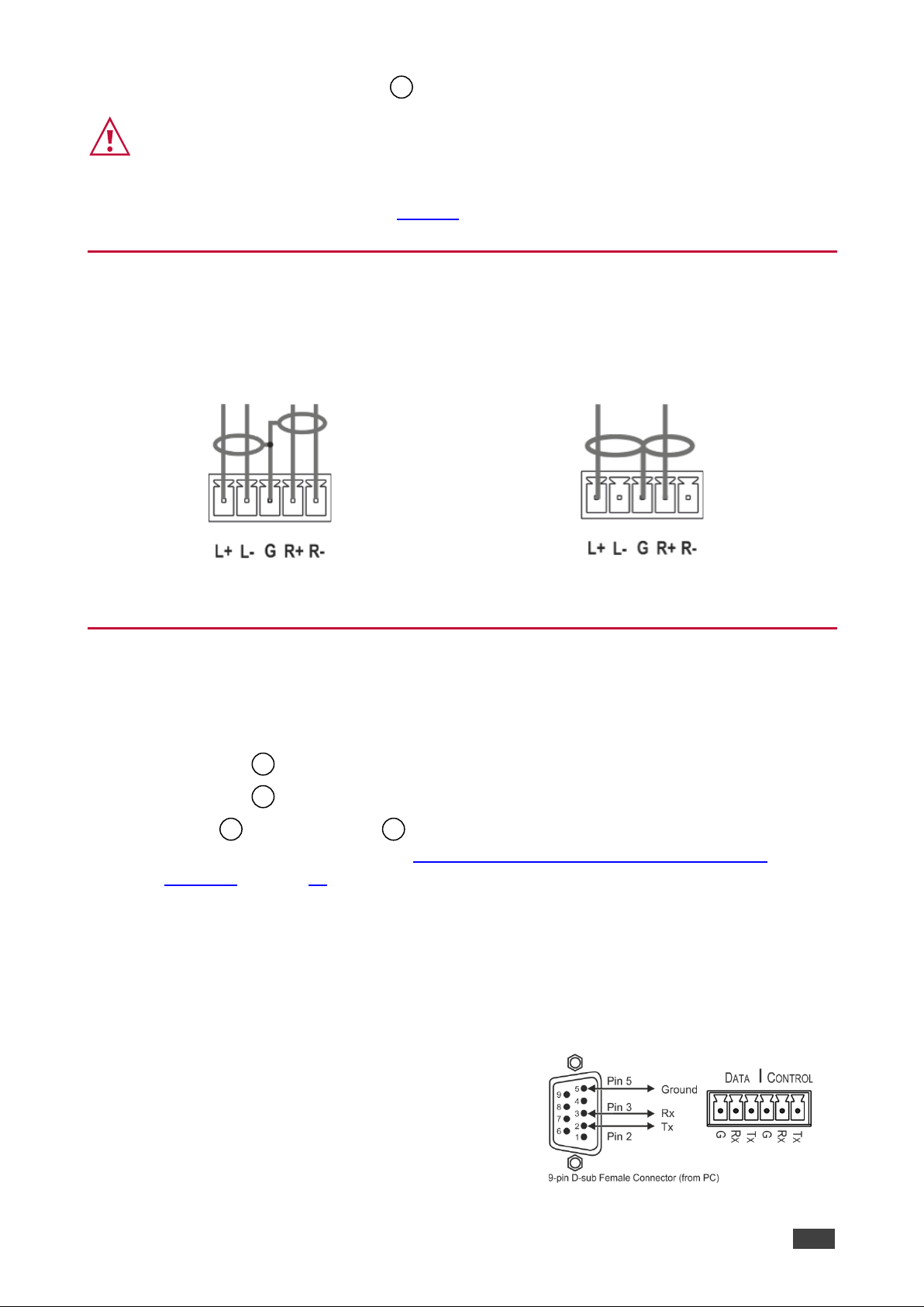

Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor 11
Connecting to KIT-401 via RS-232 11
Connecting an Occupancy Sensor to the TOGL Pin 12

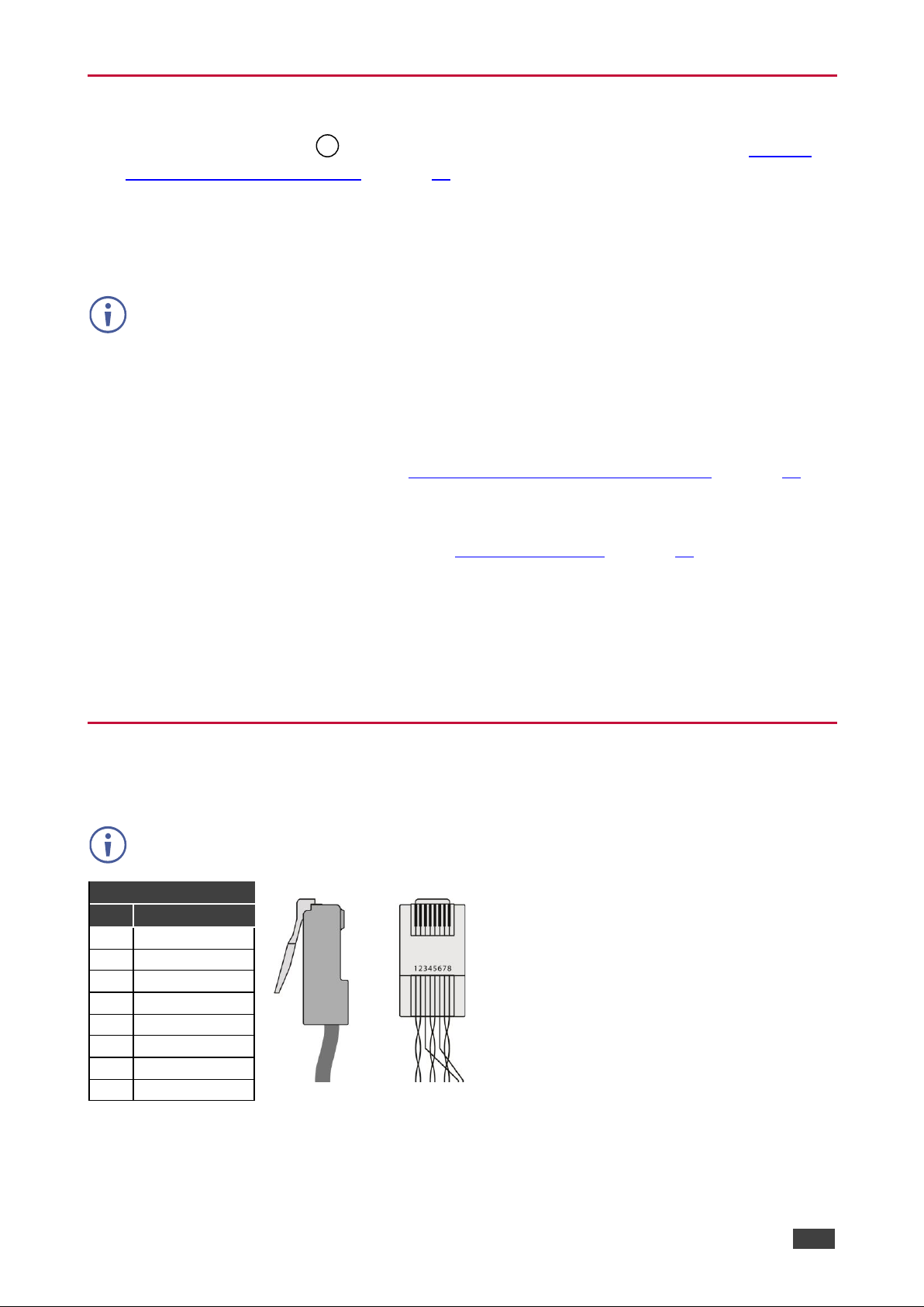

Wiring RJ-45 Connectors 12

Operating and Controlling KIT-401 13

Using Front Panel Buttons 13

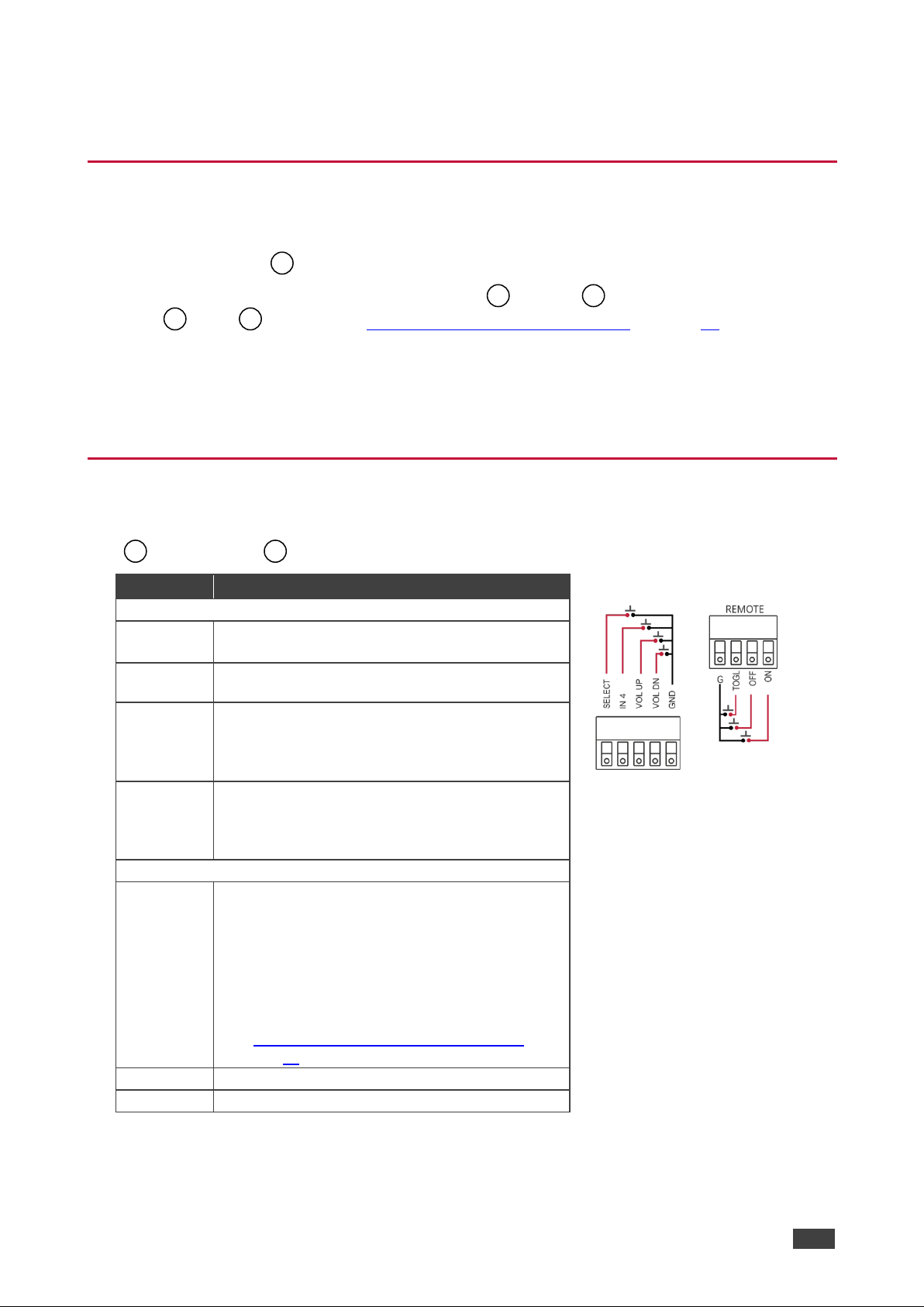

Using Remote Control Switches 13
Setting KIT-401T DIP-switches 14

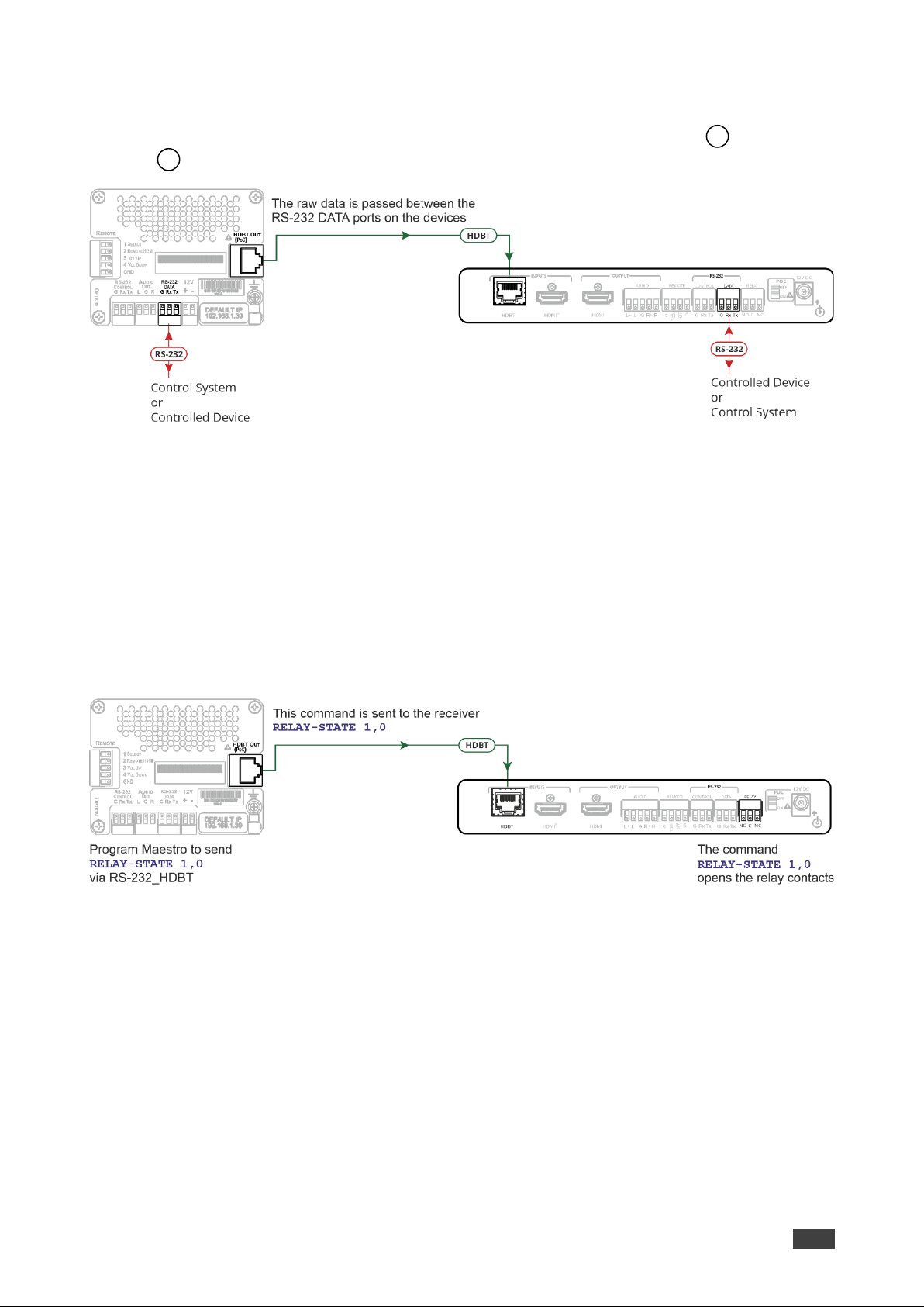

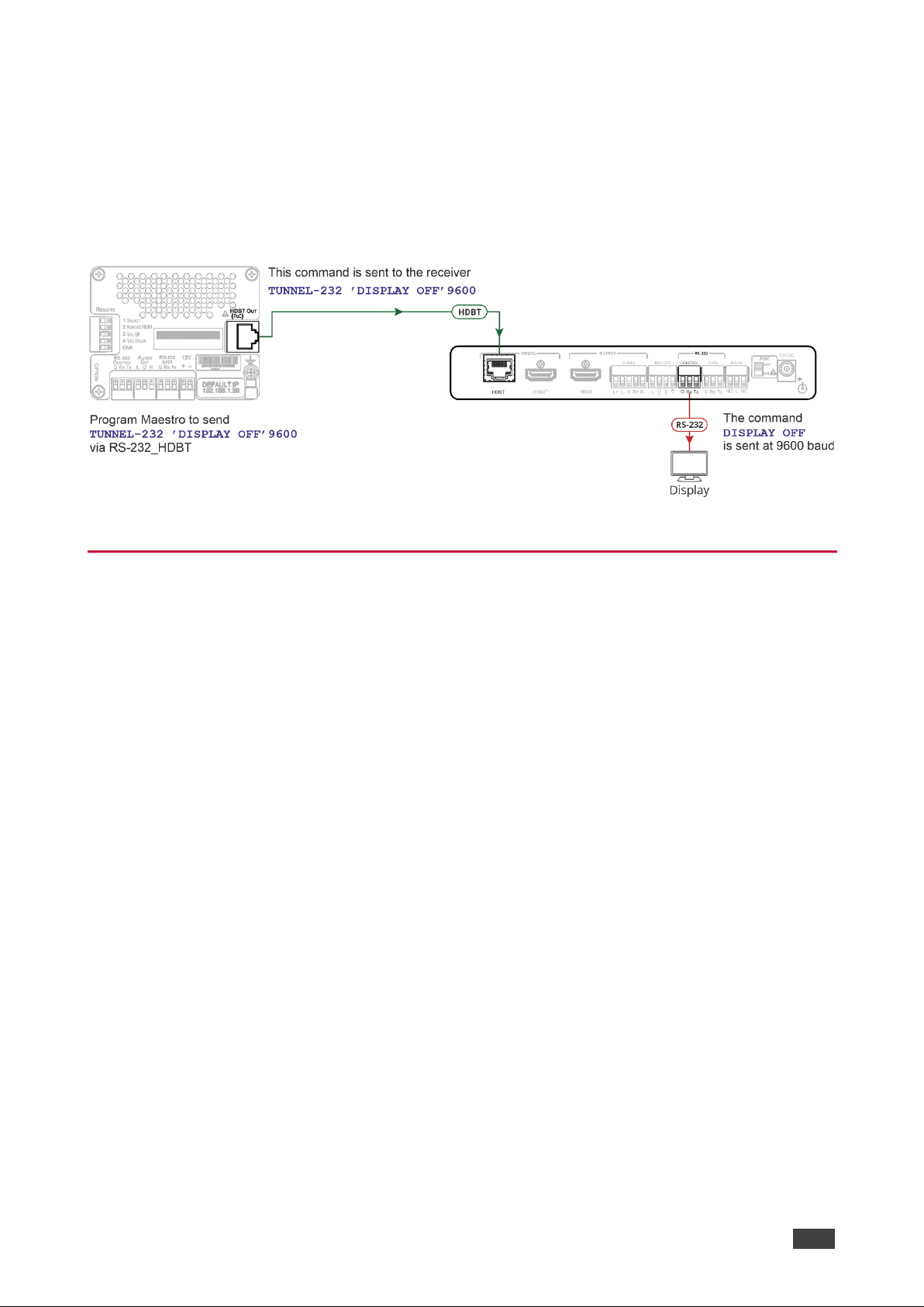

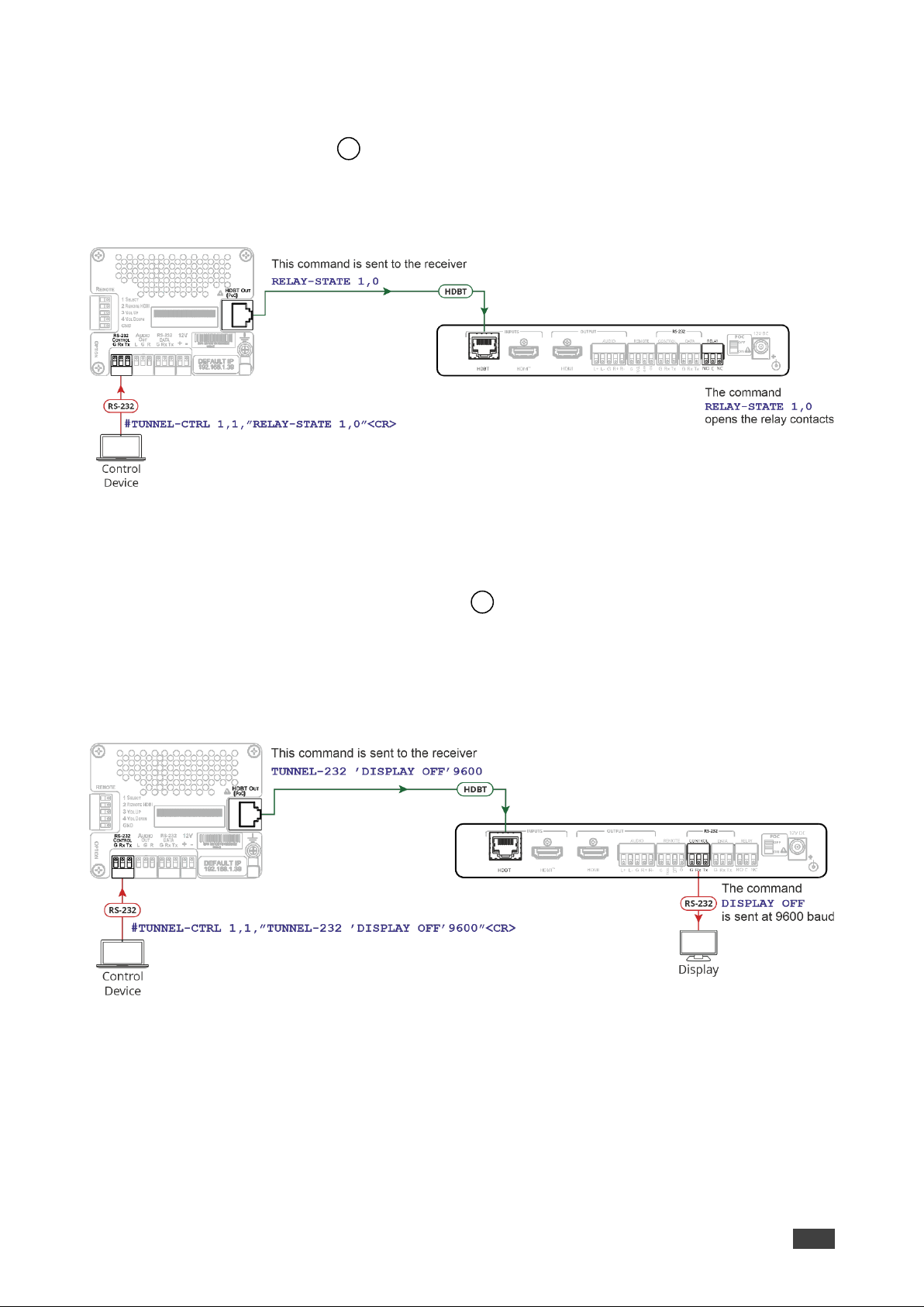

Tunneling RS-232 data between KIT-401T and KIT-400R 14
Using the OSD Menu on KIT-400R 17

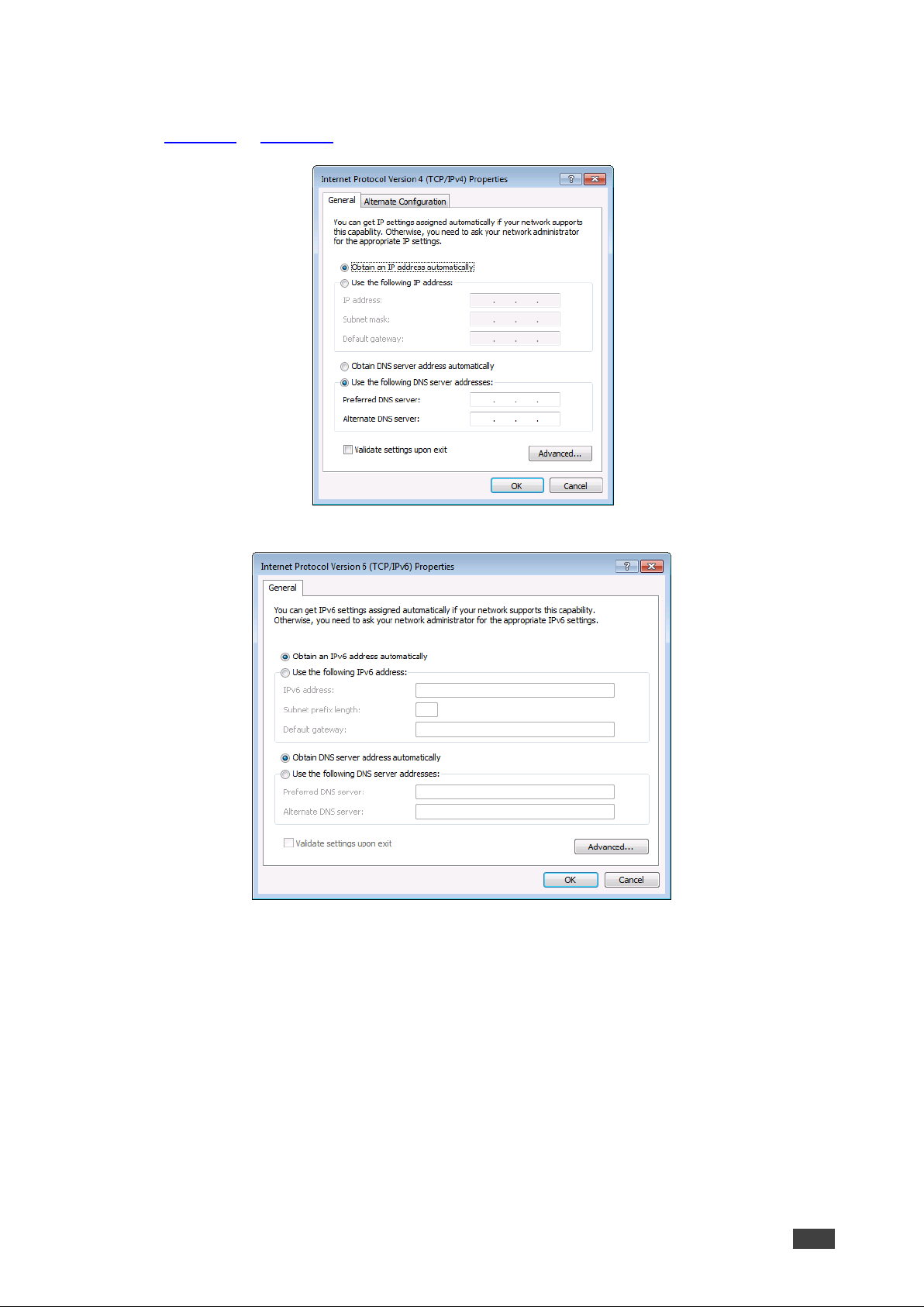

Operating via Ethernet 26

Using Embedded Webpages 29

Browsing Webpages 29
Switching and adjusting Port Signals 31

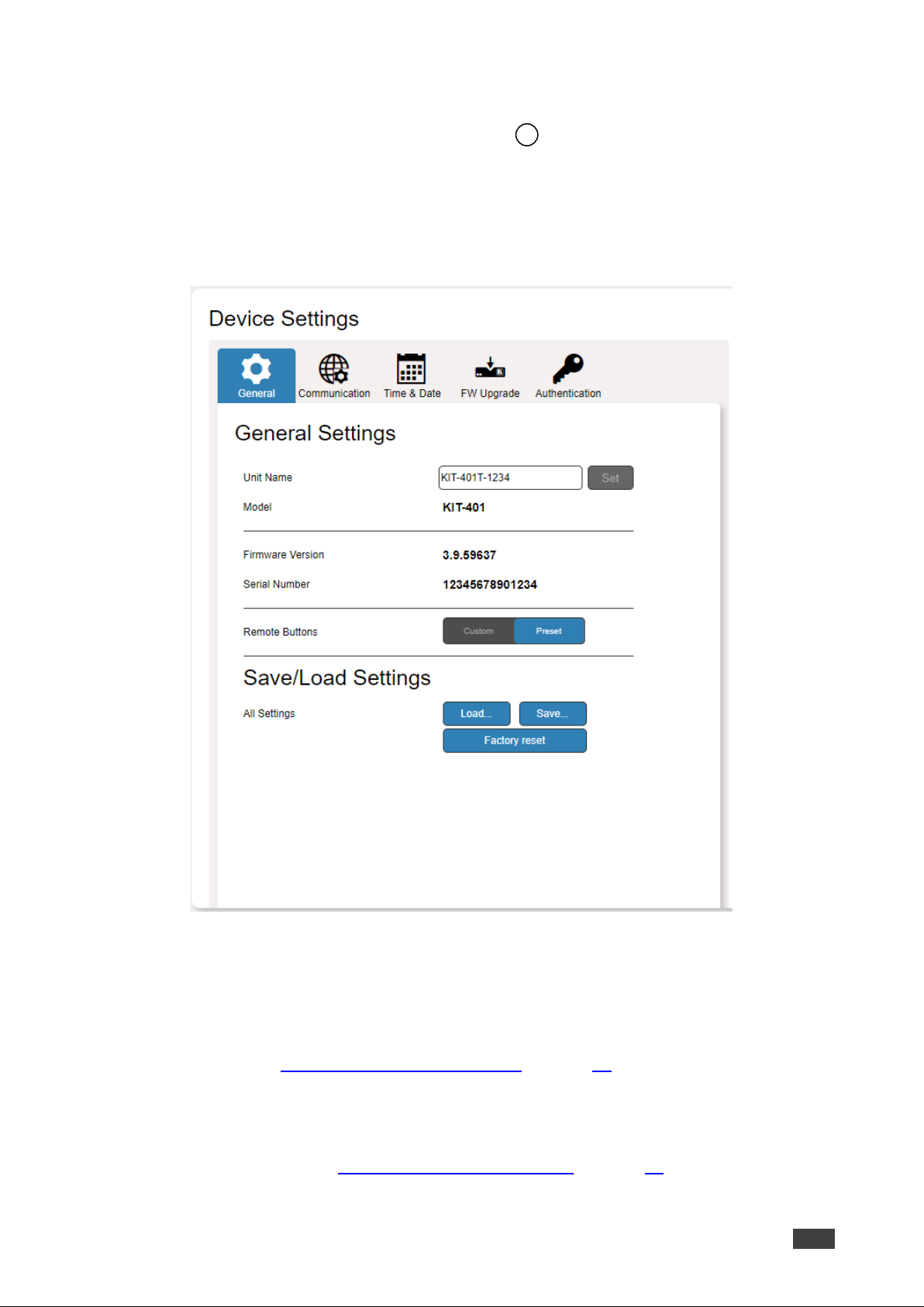

Defining General settings 32

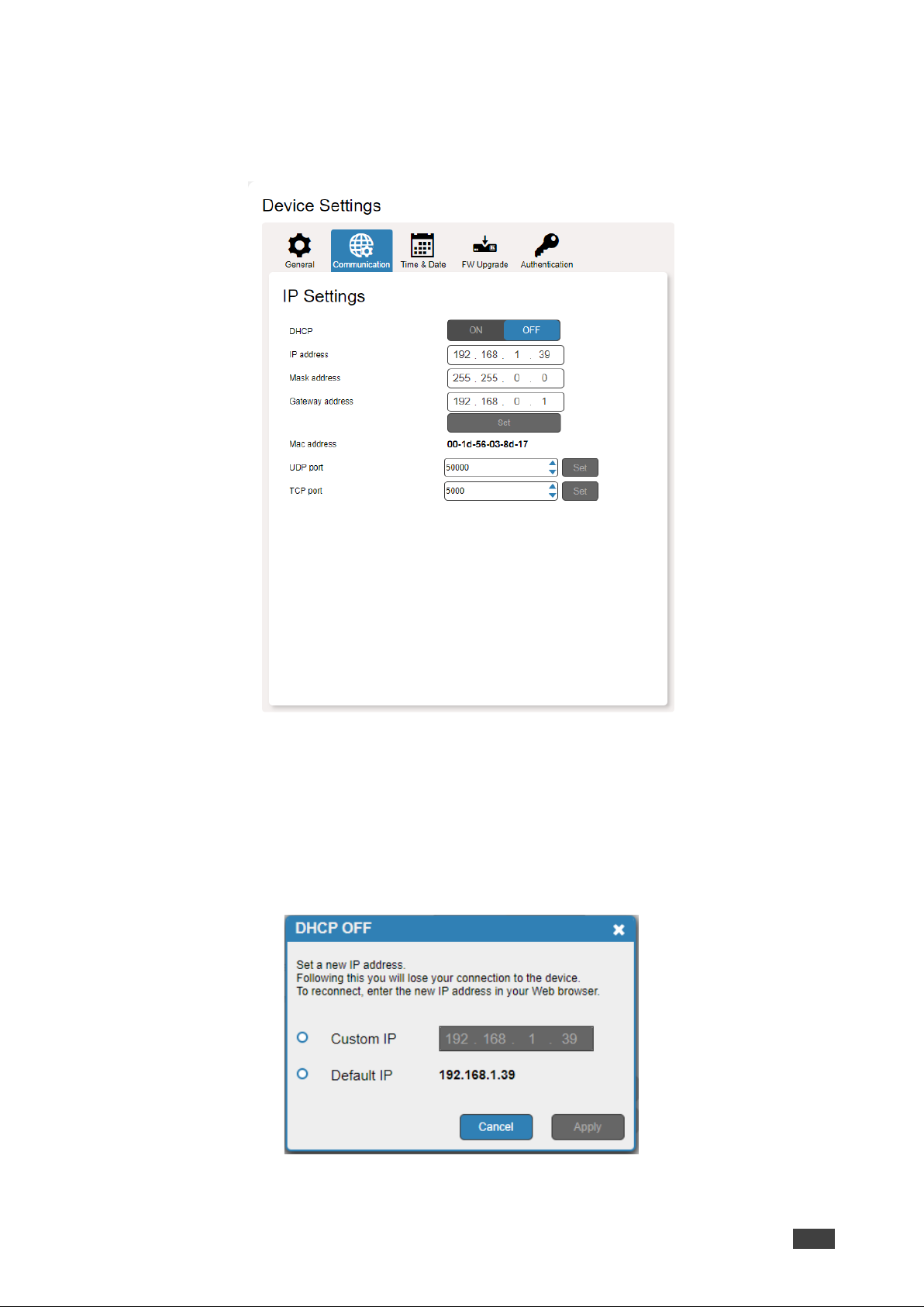

Configuring Network Settings 34

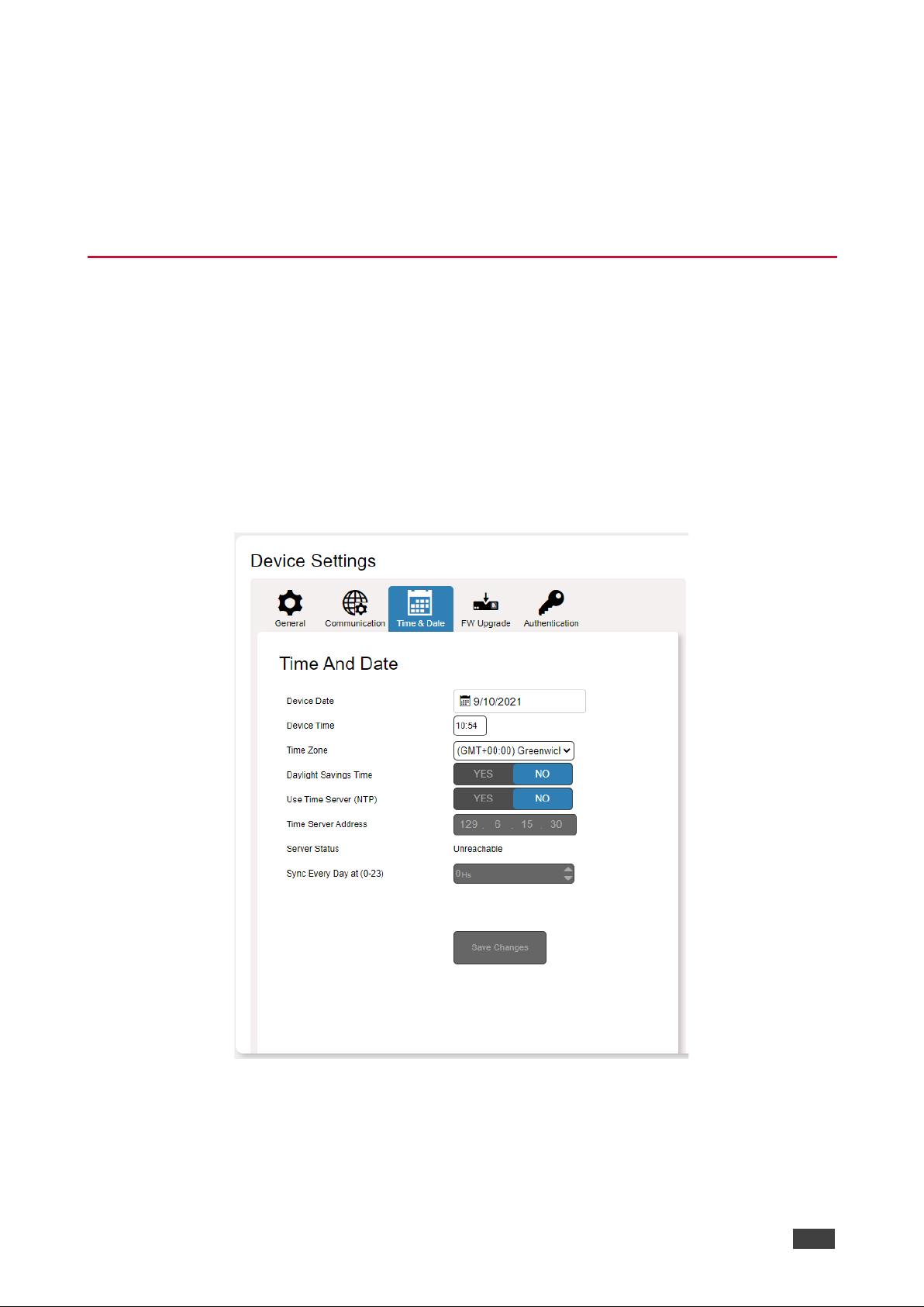

Defining Time and Date 36

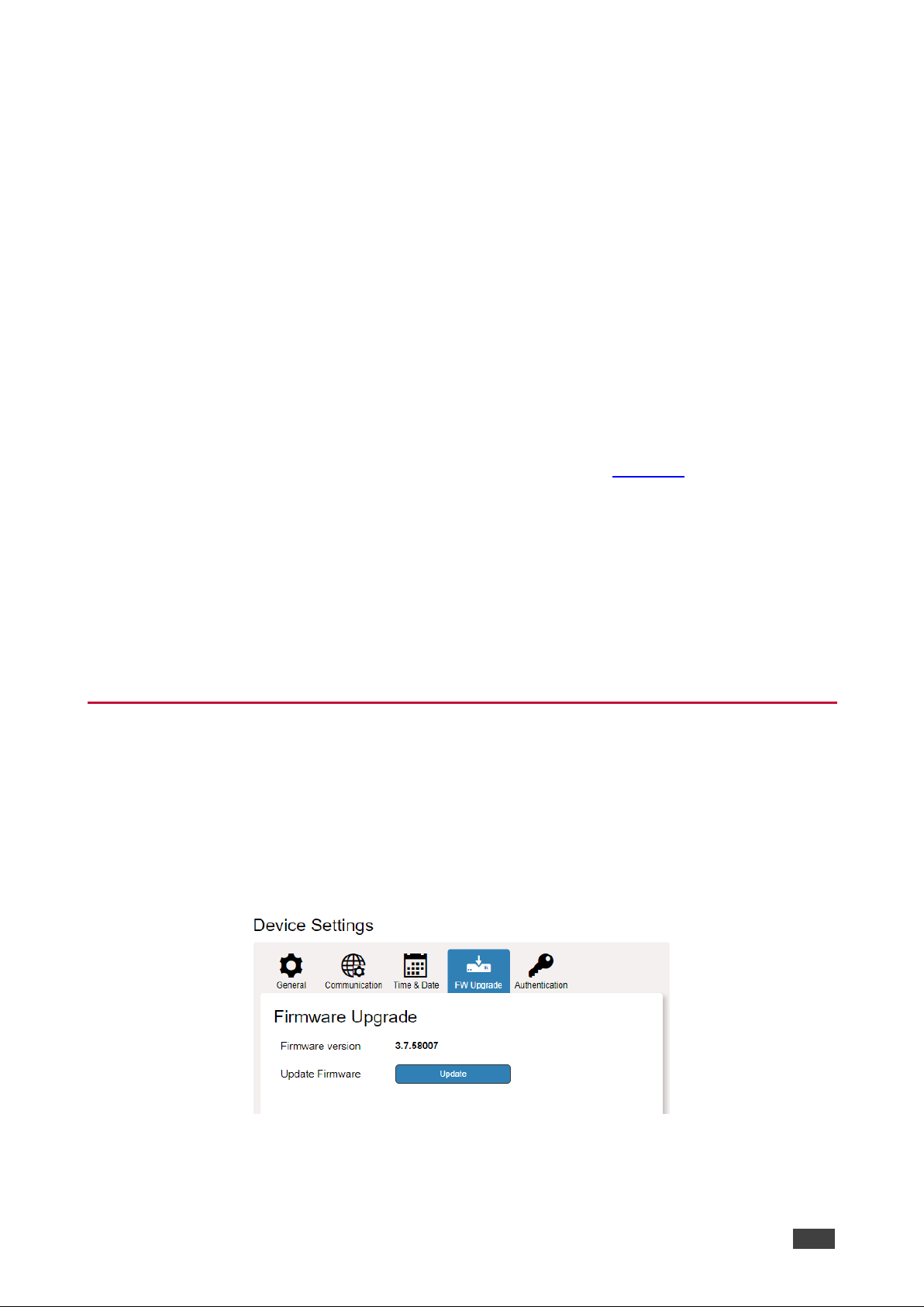

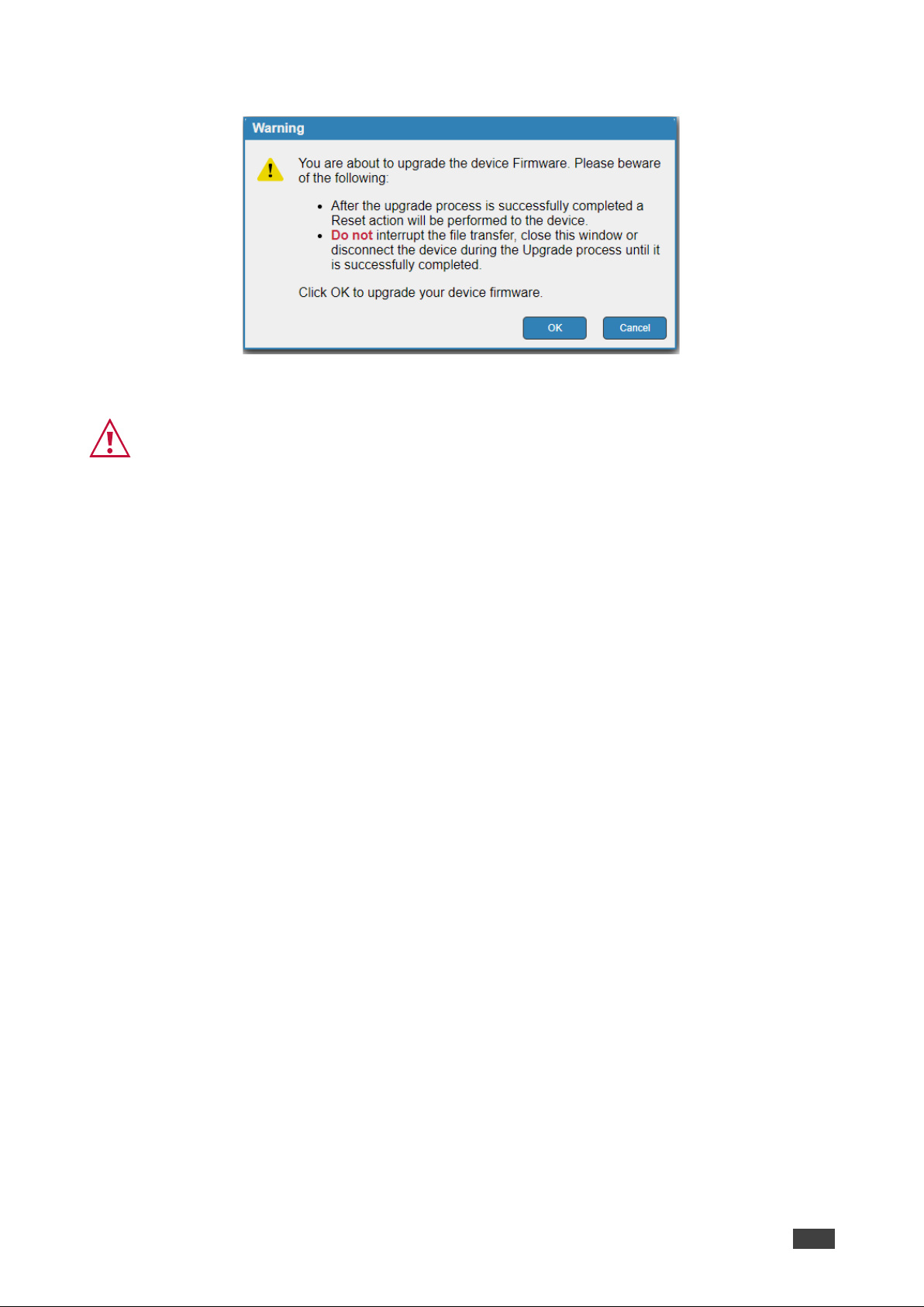

Upgrading the Firmware 37

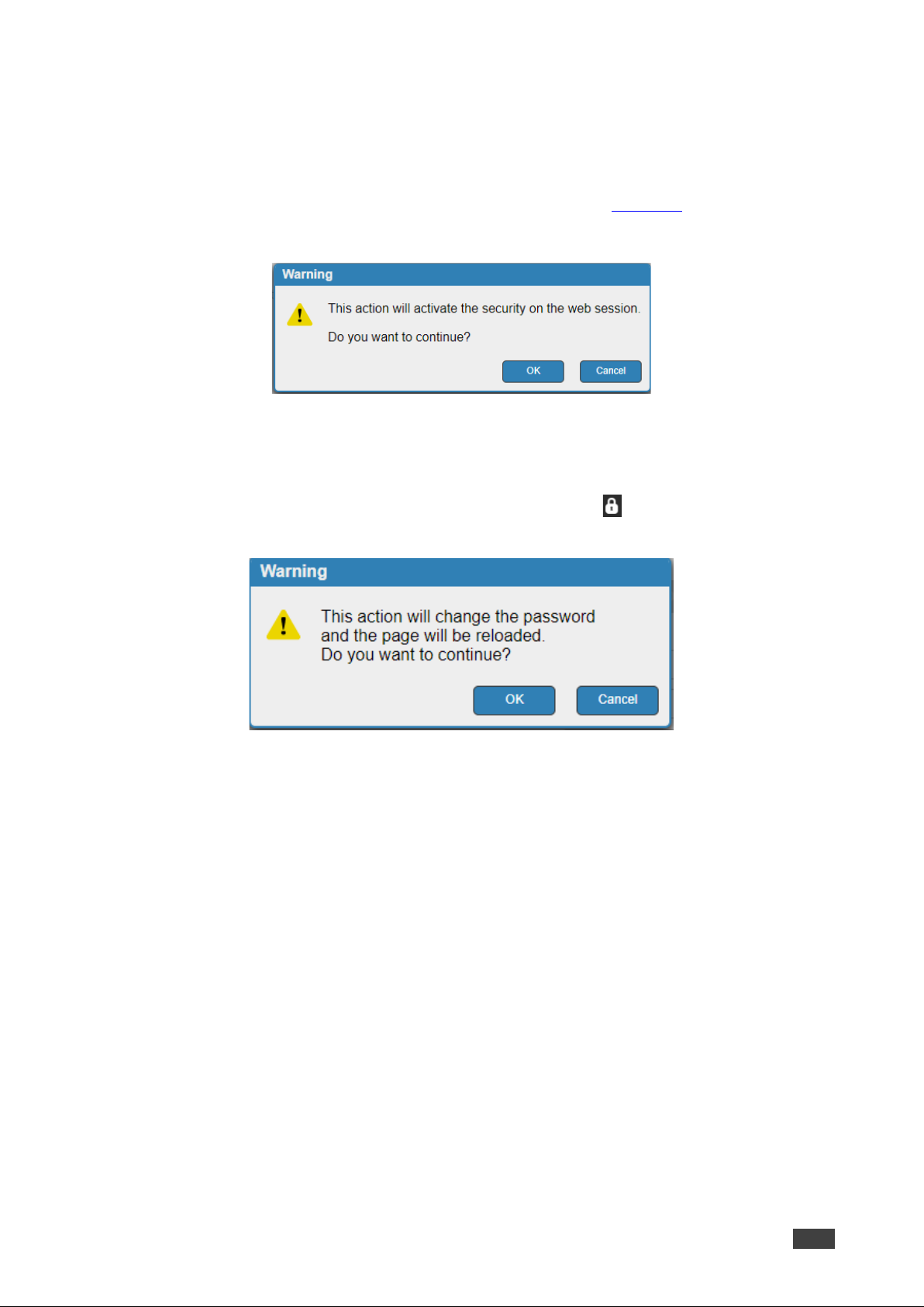

Setting Authentication 39

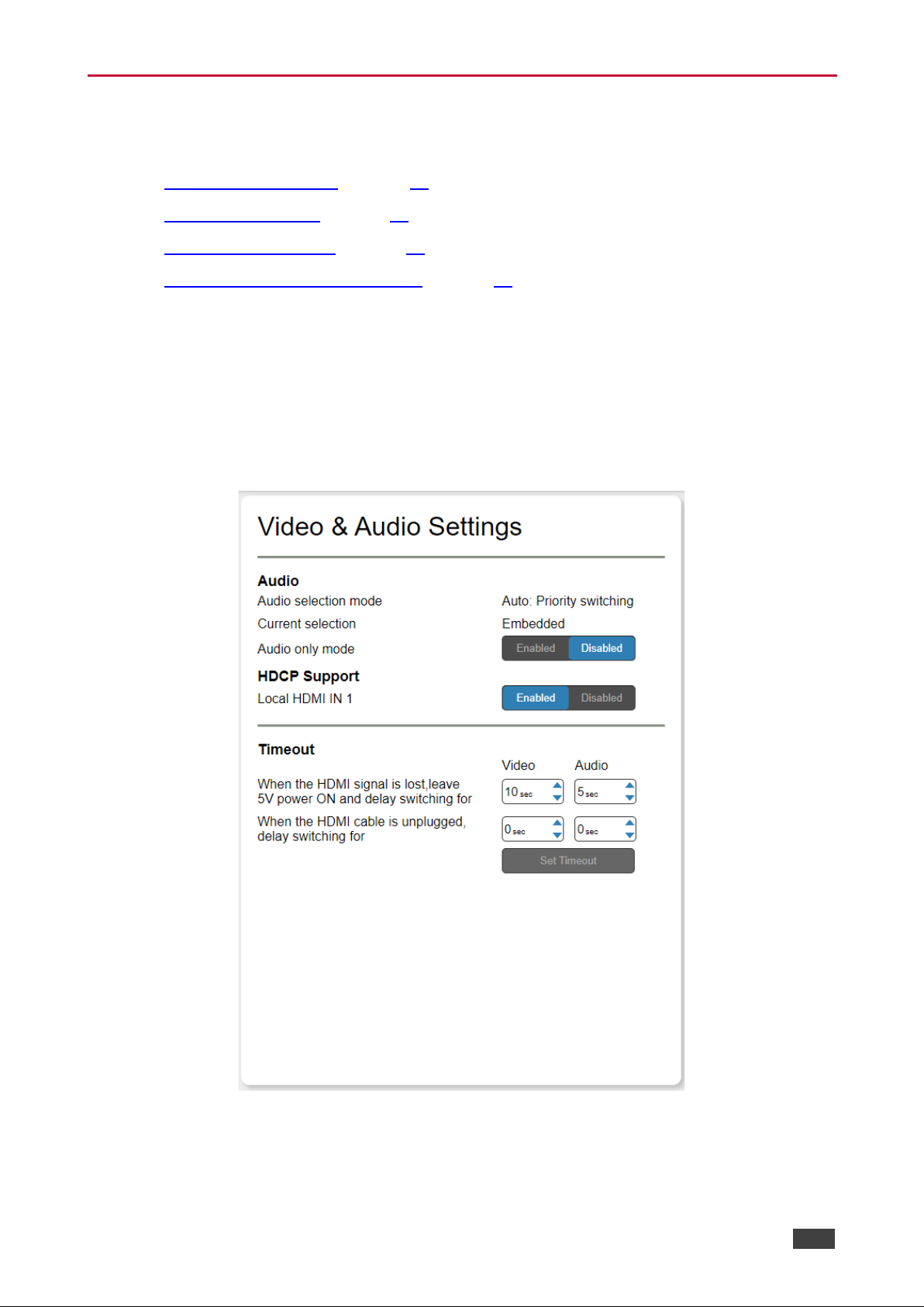

Defining Video and Audio Settings 41

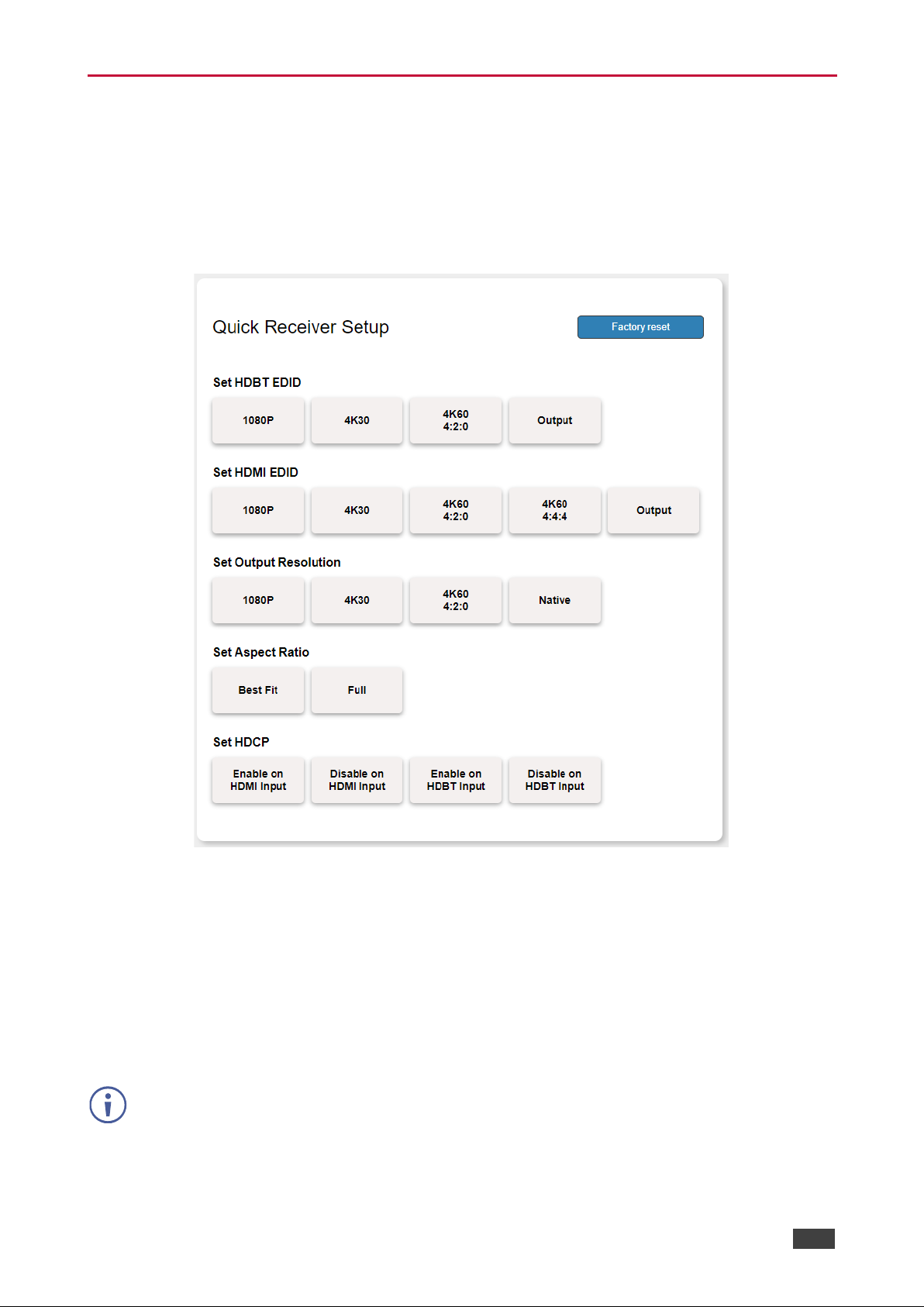

Defining Receiver Settings 43

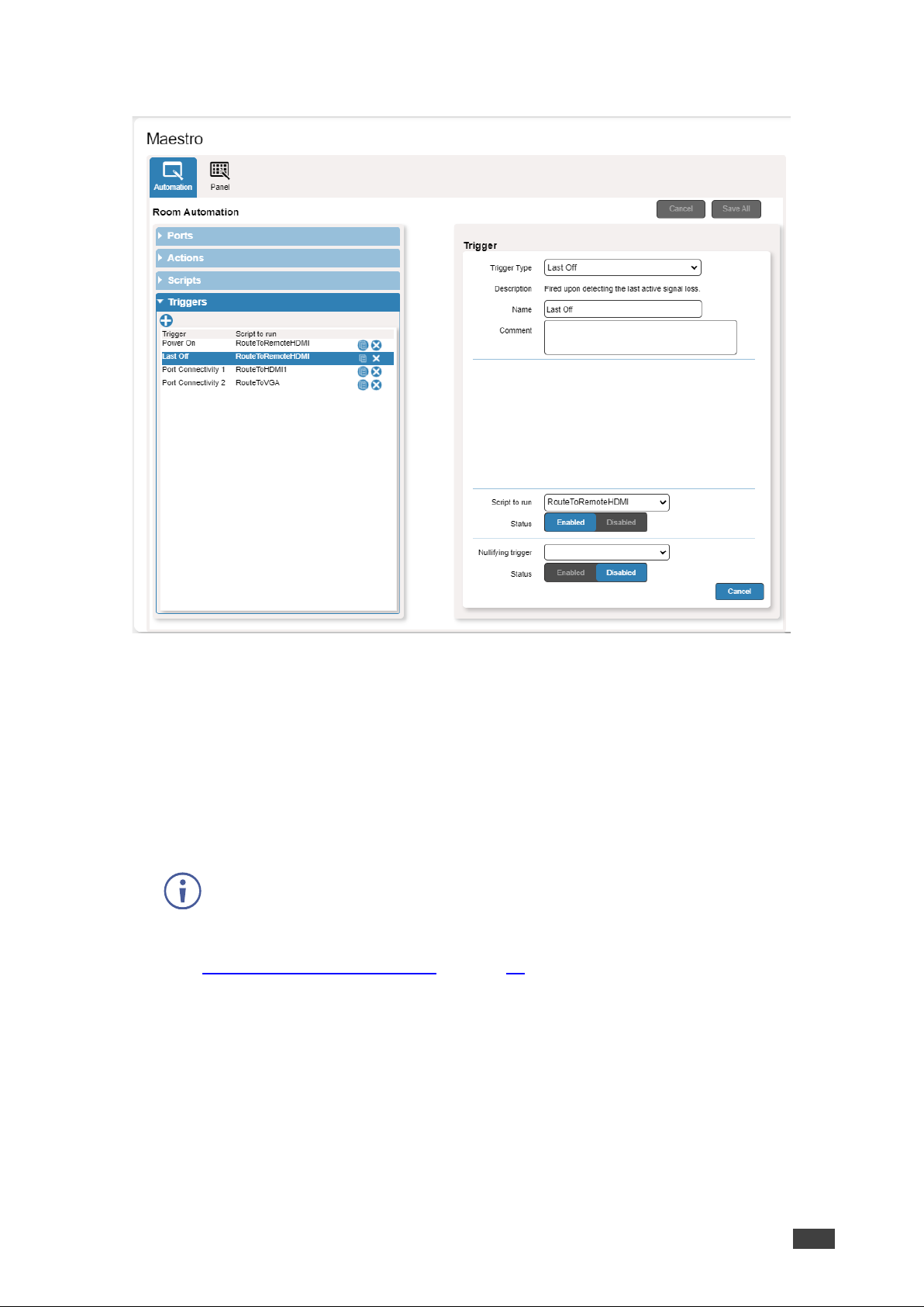

Configuring Device Automation 44

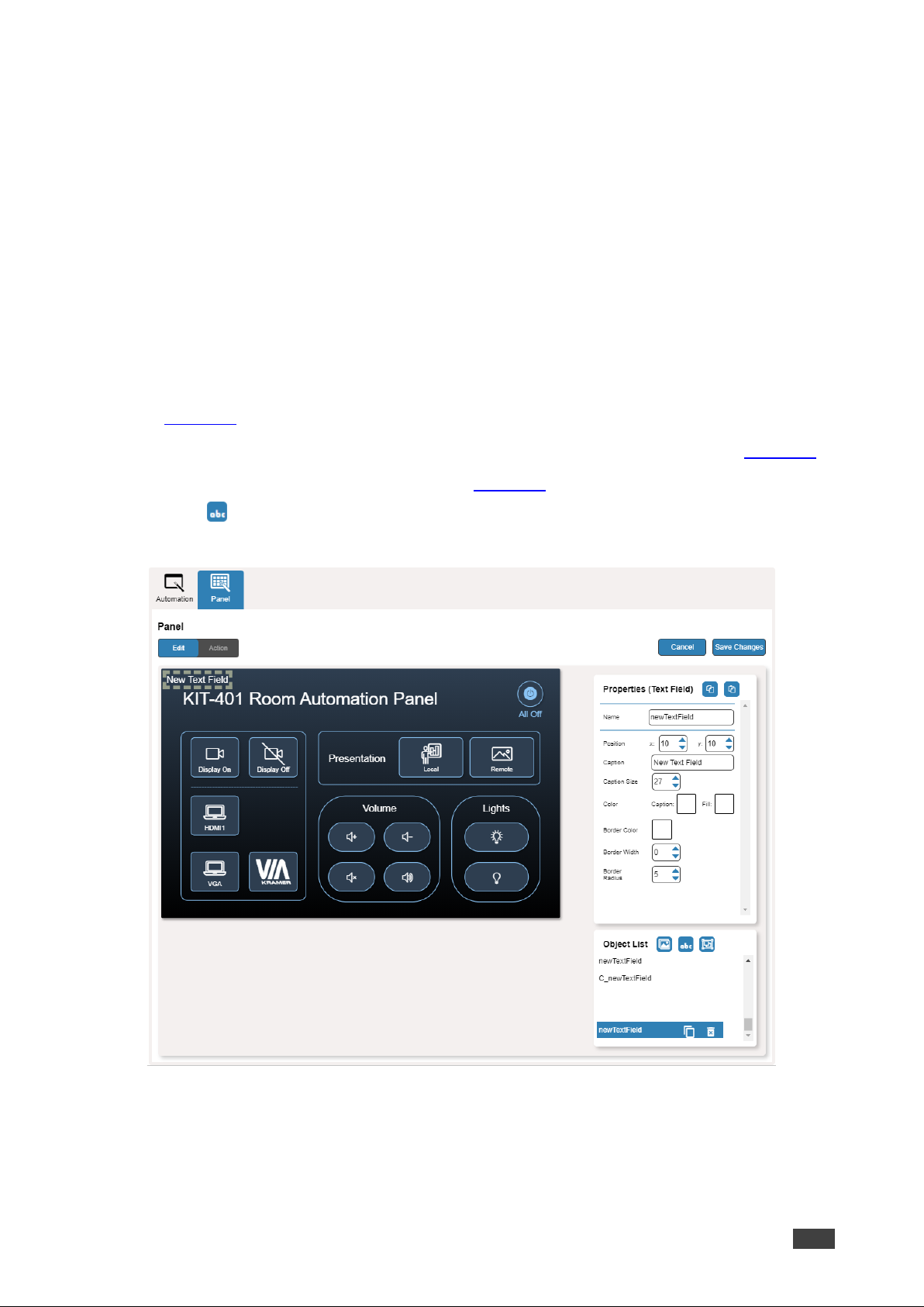

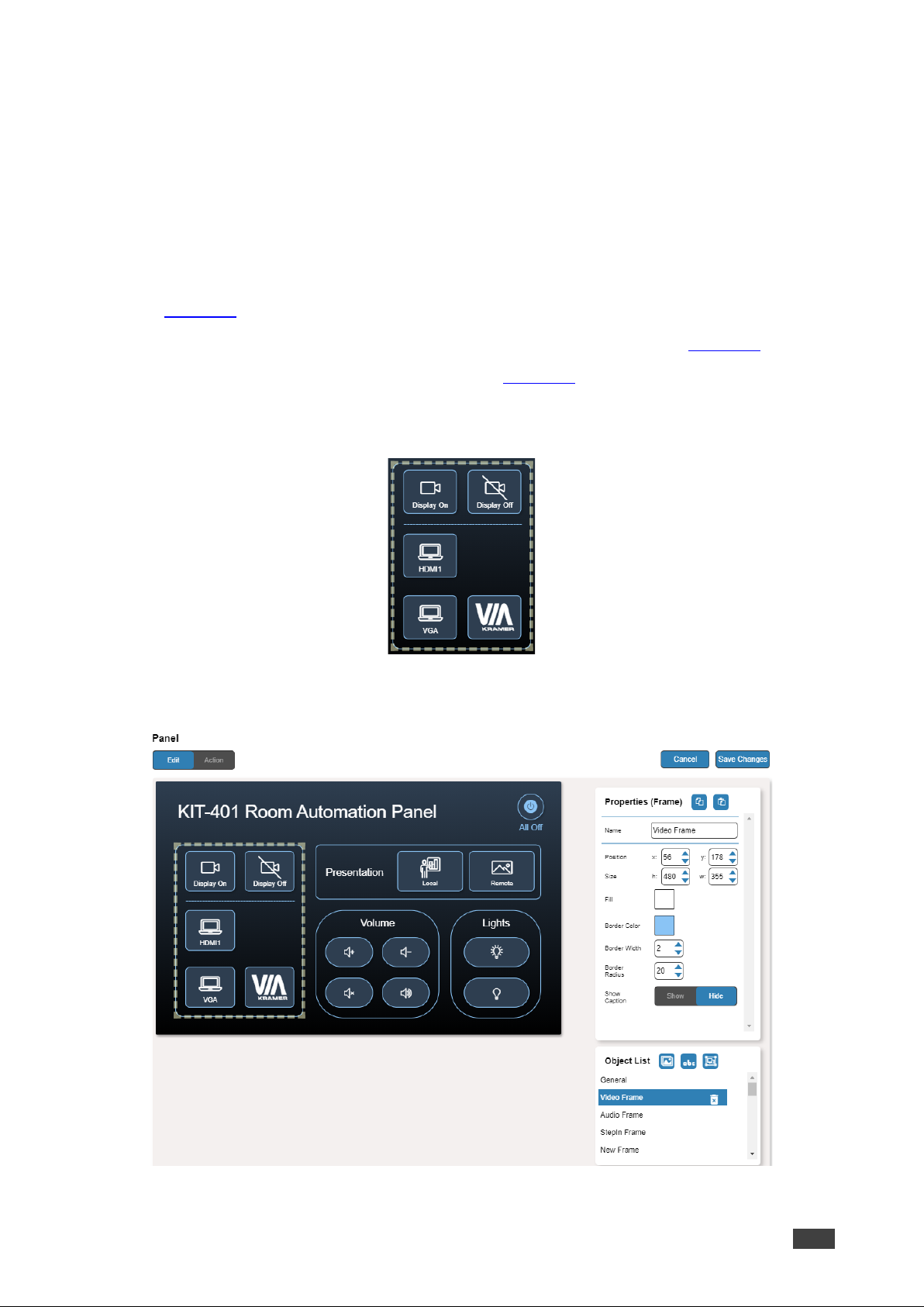

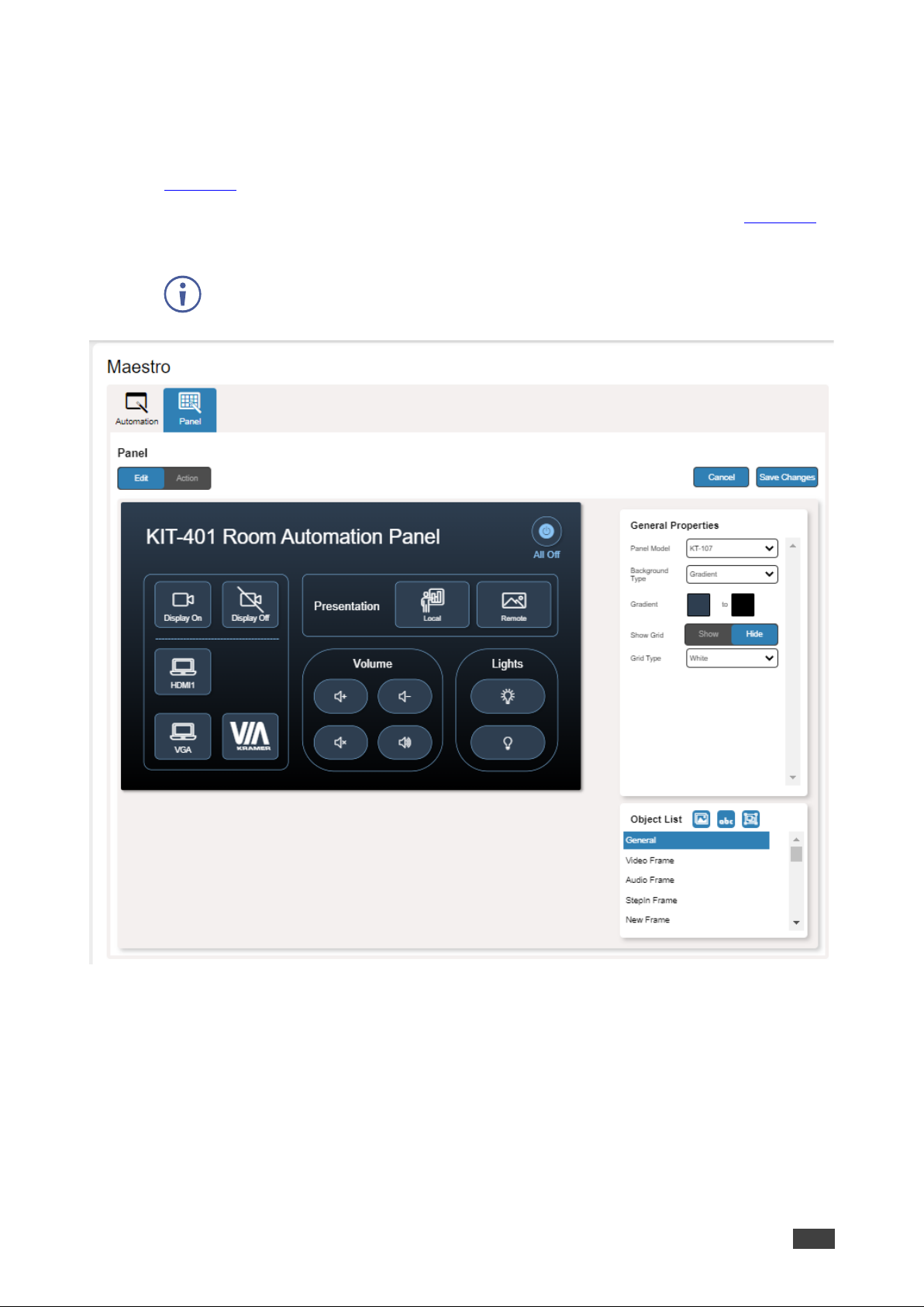

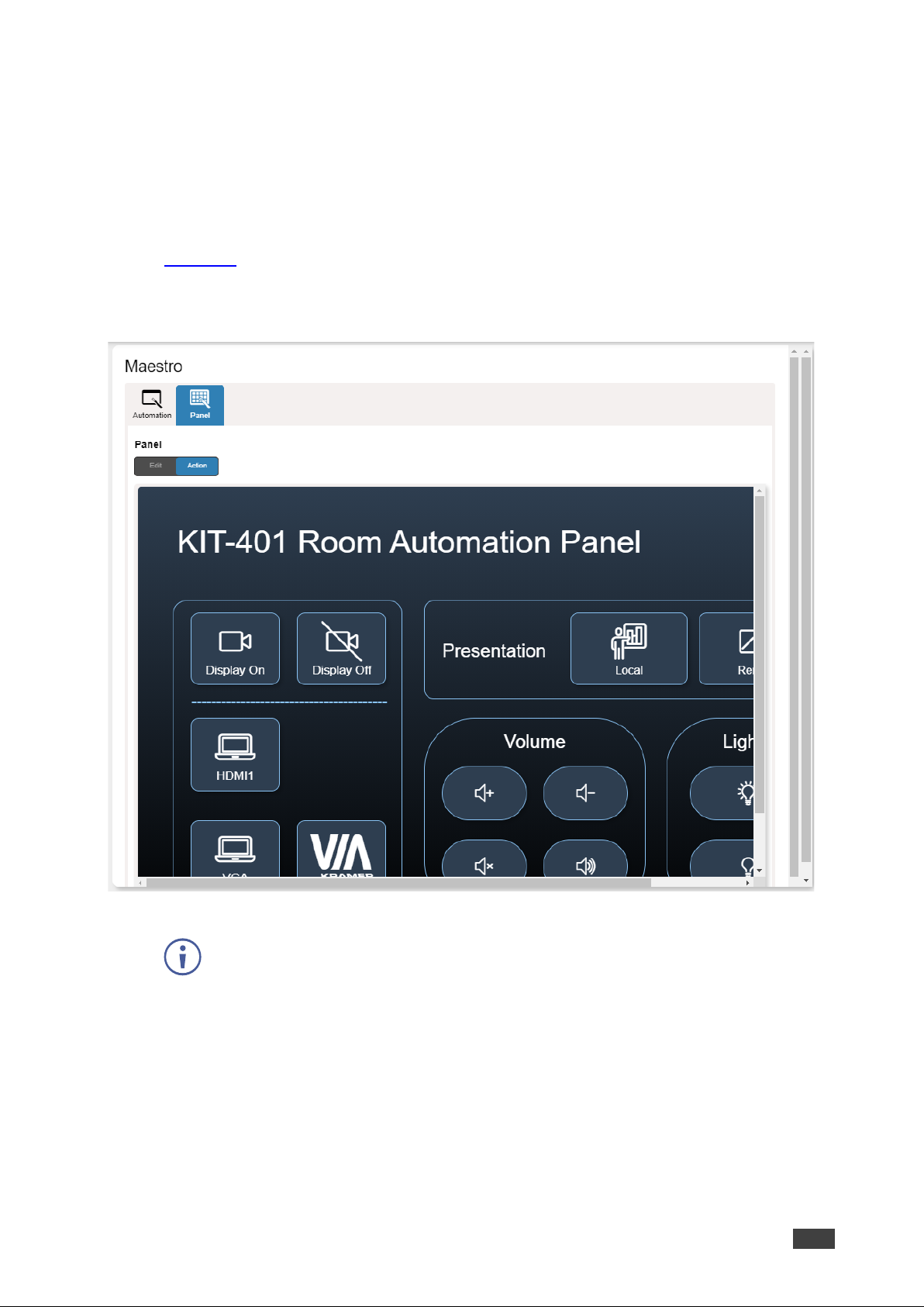

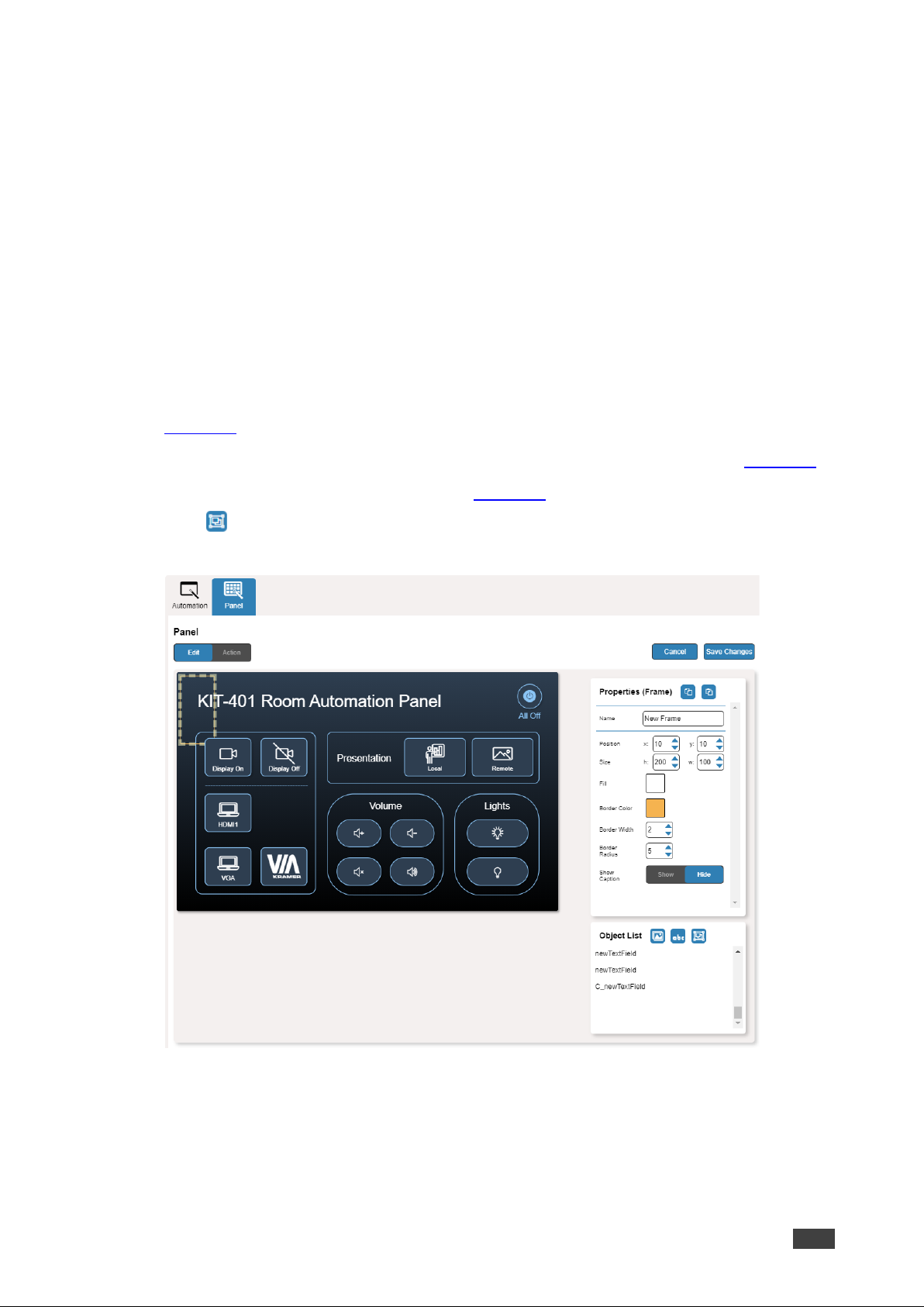

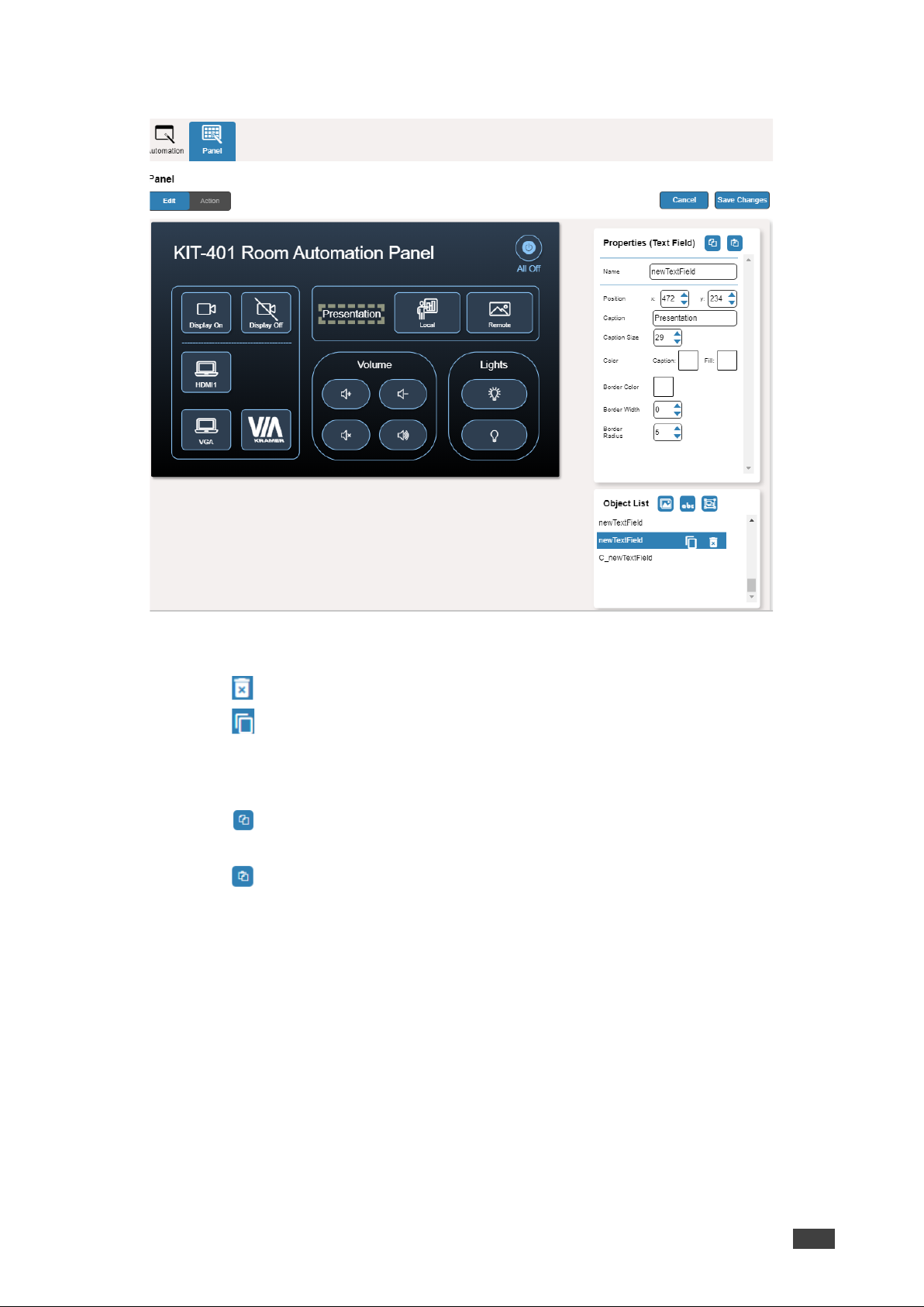

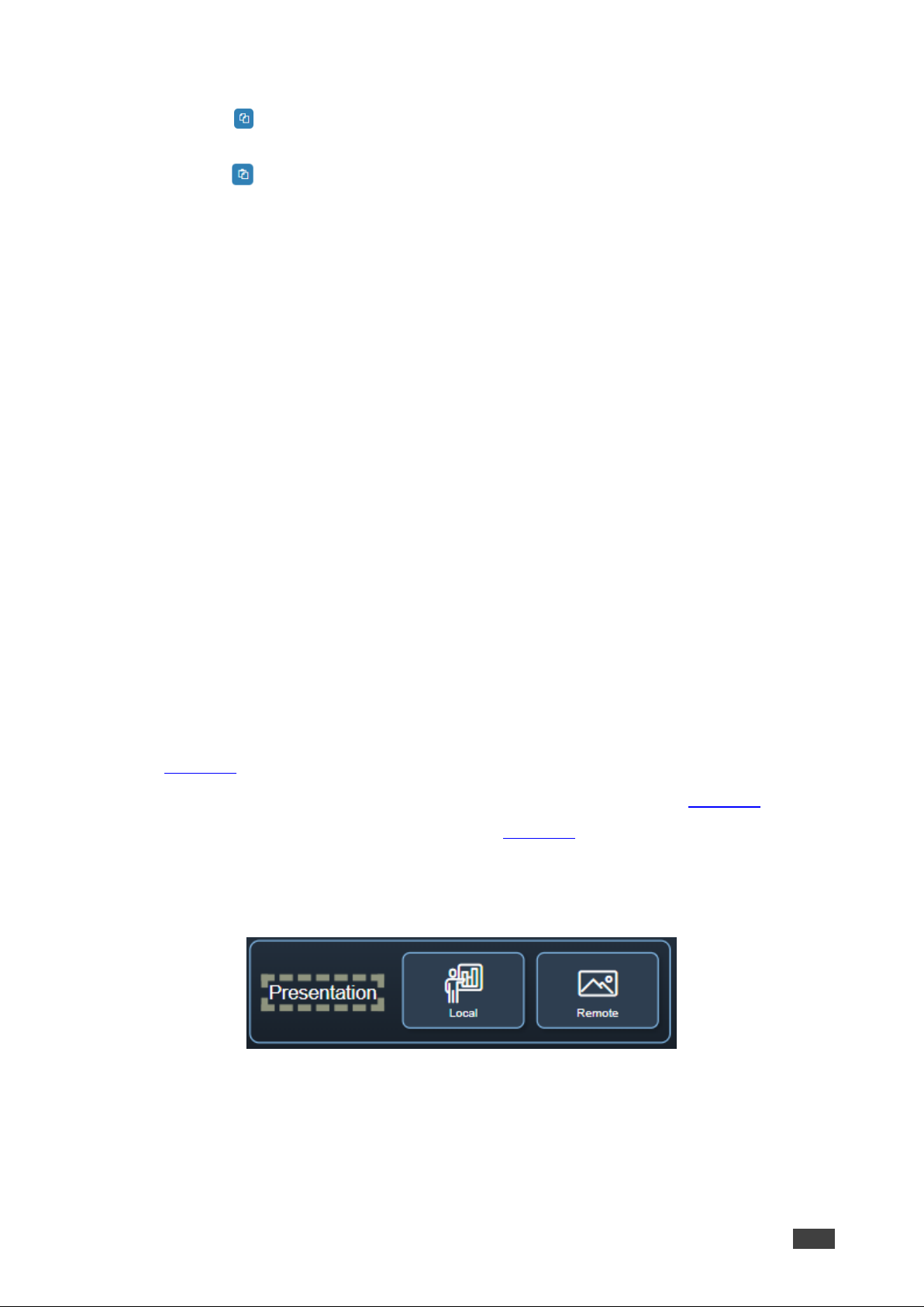

Operating via Room Automation Panel 47

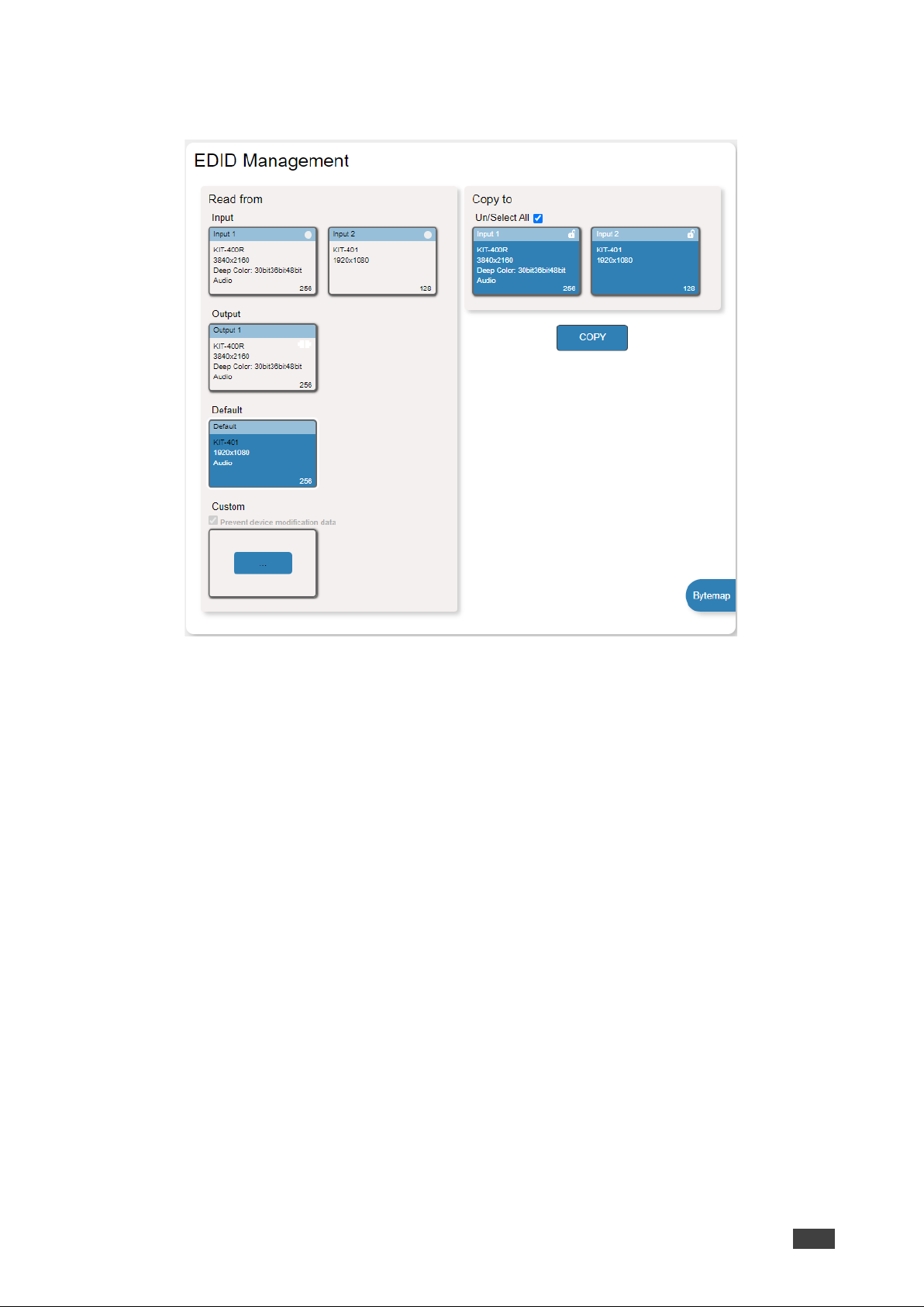

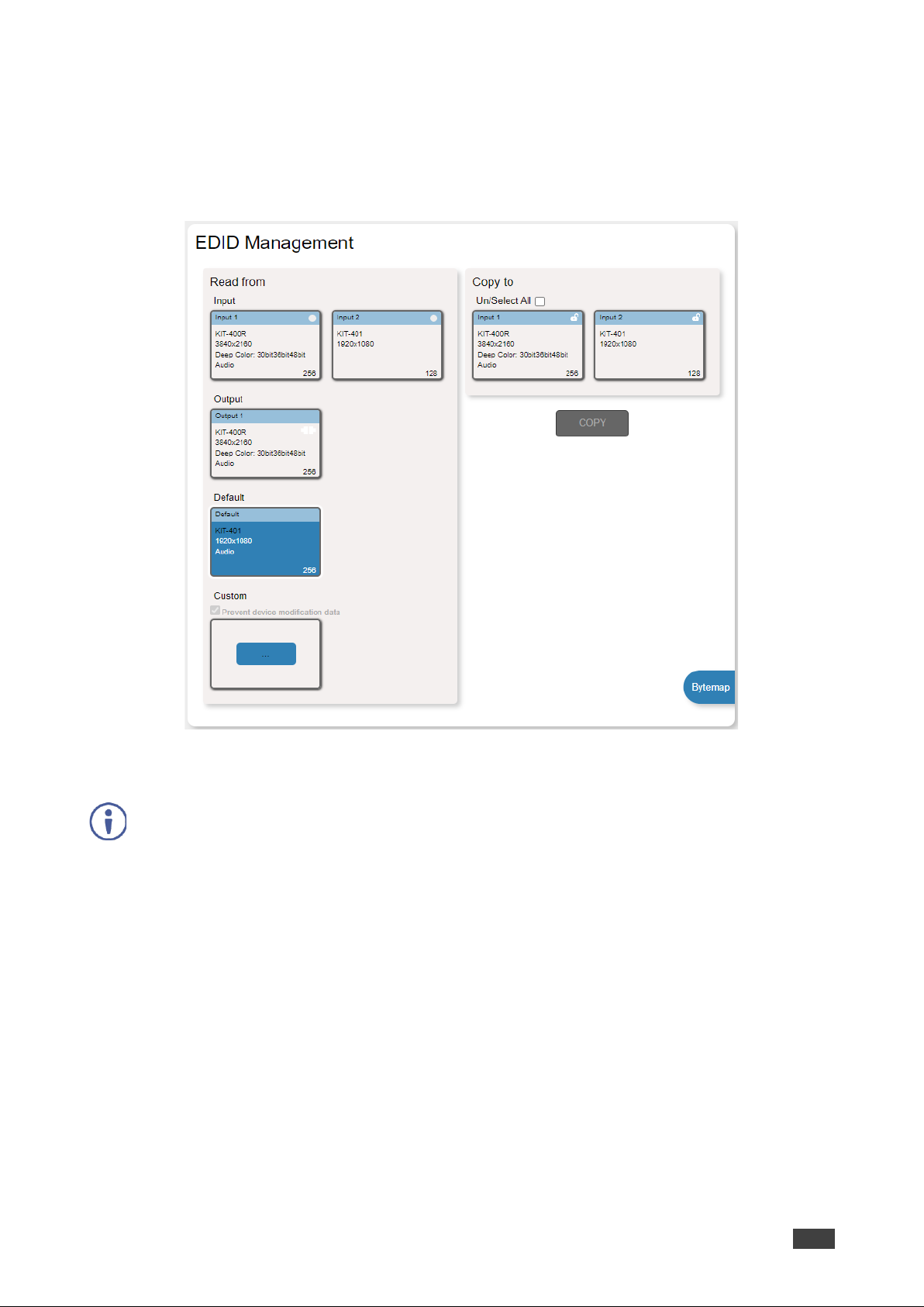

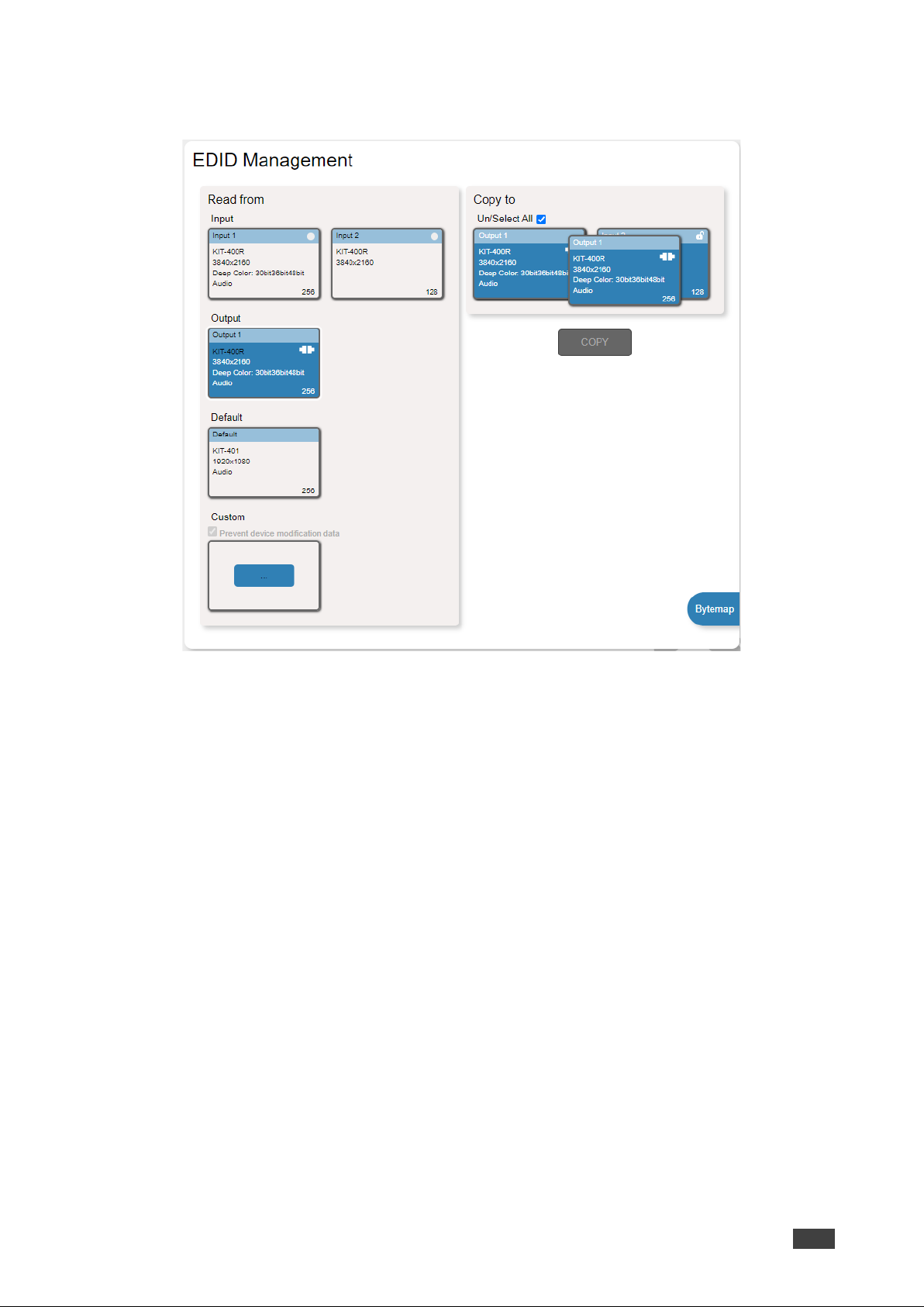

Managing EDID 60
Viewing About Page 66

Upgrading Firmware 67

Upgrading KIT-401T 67
Upgrading KIT-400R 67

Technical Specifications 68

Default Communication Parameters 70
KIT-400R Output Resolution Support 70
Default EDID 70

Protocol 3000 77

Understanding Protocol 3000 77
Protocol 3000 Commands 78
Result and Error Codes 94

Kramer Electronics Ltd.

KIT-401 – Introduction

1

Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!

Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.

• Review the contents of this user manual.

Go to www.kramerav.com/downloads/KIT-401 to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).

Achieving Best Performance

• Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).

• Do not secure the cables in tight bundles or roll the slack into tight coils.

• Avoid interference from neighboring electrical appliances that may adversely influence

signal quality.

• Position your Kramer KIT-401 away from moisture, excessive sunlight and dust.

Safety Instructions

Caution:

• This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.

• For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.

• To ensure continuous risk protection, replace fuses only according to the rating

specified on the product label which is located on the bottom of the unit.

Kramer Electronics Ltd.

KIT-401 – Introduction

2

Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/il/quality/environment.

Overview

Congratulations on purchasing your Kramer KIT-401 4K Auto-Switcher/Scaler Kit.

KIT-401 is a high-performance auto-switcher/scaler kit for 4K HDMI™ and VGA over long-

reach HDBaseT. The kit includes the KIT-401T wall-plate transmitter/switcher and the

KIT-400R receiver/scaler. The KIT-401T transmitter converts the user-selected input signal

into the transmitted HDBaseT signal. KIT-400R receiver receives the HDBaseT signal,
converts it to HDMI and up- or down-scales the picture to match the resolution of the HDMI
monitor. KIT-401 extends video signals to up to 40m (130ft) over CAT copper cables at up to
4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video
resolutions.

KIT-401 provides exceptional quality, advanced and user-friendly operation, and flexible

control.

Exceptional Quality

• HDMI Signal Extension – HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).

• EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling,

processing and pass-through algorithm that ensures Plug and Play operation.

Advanced and User-friendly Operation

• Automatic Room Control – Supports connection to an occupancy sensor and remote
switches, and includes a relay for driving room peripherals.

• Automatic Display Control – Supports CEC that enables automatically turning the display

on and off.

• Simple and Powerful Maestro Room Automation – Intuitive user interface enables you to

fully automate your meeting room elements. Configure lights, shades, devices and more
to be activated by an extensive range of triggers, including scheduling, input/output
connectivity, routing, and button pressing. By minimizing user intervention, Maestro
room automation saves meeting prep time and minimizes human error before
presentations.

• PoC (Power over Cable) – Power only one of the units. The other unit is powered via the

HDBaseT cable linking the receiver/transmitter pair.

Kramer Electronics Ltd.

KIT-401 – Introduction

3

• Easy Remote Device Control – Control devices connected to KIT-401 from the

user-friendly Kramer Aware interface on the KIT-401 embedded webpages and access
the interface using the Kramer Aware app on a compatible Kramer touch panel.

• Convenient Unit Control and Configuration Options – Local control via front panel source

and output switching buttons (on KIT-400R), DIP-switches for configuring audio
connection priority, and OSD menu. Distance control via user-friendly embedded
webpages via Ethernet, Protocol 3000 API, RS-232 serial commands transmitted by a
PC, touch screen system or other serial controller and relay switches.

• Bidirectional RS-232 Extension – Serial interface data flows in both directions, allowing

data transmission and device control.

• Auto-scanning of inputs.

• Efficient power-saving features.

• Field Upgradable – Via its USB port (KIT-401T and KIT-400R), or via Ethernet

(KIT-401T).

• Easy, Cost-effective Maintenance – Local firmware upgrade via USB connector.

• Easy and Elegant Installation – Installation is fast and cost-effective via a single CAT

cable, providing both video signal and power (PoC) connections.
The transmitter compactly fits into standard US, EU and UK 2 gang in-wall box size,
supporting decorative integration with room deployed user interfaces such as electrical
switches. The compact MegaTOOLS™ fan-less receiver enclosure for dropped-ceiling
mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended
rack adapter.

Flexible Connectivity

• Local Switching Control of 2 Local and 1 Remote Source – With auto-switching of the

live source to the HDMI display on the output at the receiver. The transmitter has an
HDMI and a VGA input, with a dedicated audio jack, and there is an additional HDMI
input on the receiver side.

• Audio De-embedding – Output the HDMI audio to a balanced stereo output on the

receiver side, and an unbalanced stereo output on the transmitter side.

Kramer Electronics Ltd.

KIT-401 – Introduction

4

Typical Applications

KIT-401 is ideal for the following typical applications:

• Classrooms and lecture halls.

• Meeting rooms.

• Training facilities.

• Collaborative classrooms.

• Any space where BYOD support is required.

Controlling your KIT-401

Control your KIT-401 via:

• Navigation buttons to access the OSD menu on KIT-400R.

• RS-232 serial commands transmitted by a touch screen system, PC, or other serial.

• The Ethernet using built-in user-friendly webpages.

• Kramer Aware app from a compatible Kramer touch panel.

Kramer Electronics Ltd.

KIT-401 – Defining KIT-401 4K Auto-Switcher/Scaler Kit

5

Defining KIT-401 4K Auto-Switcher/Scaler Kit

This section defines KIT-401T and KIT-400R.

Defining KIT-401T

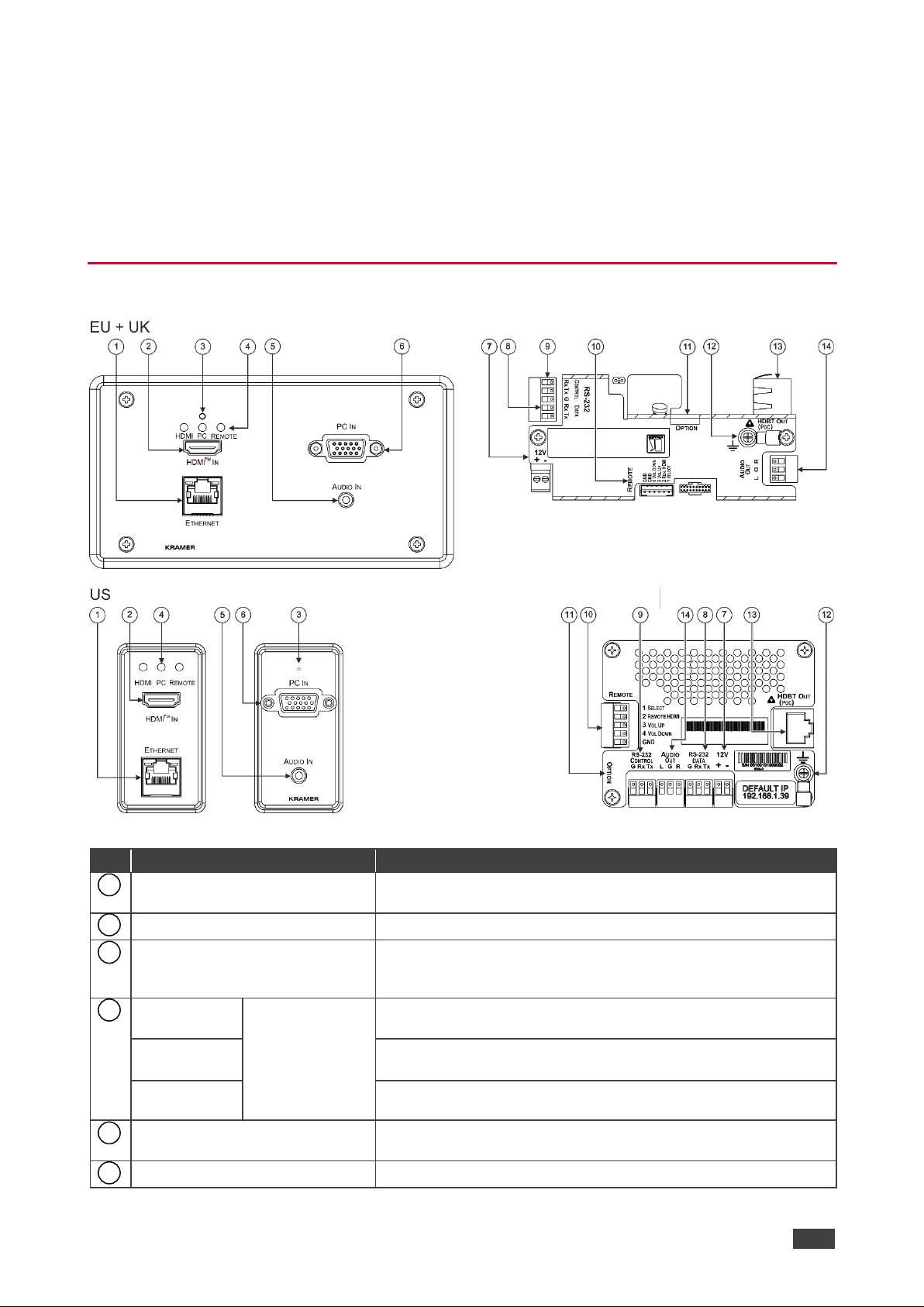

Figure 1: KIT-401T 4K HDMI/PC Auto Switcher Transmitter

#

Feature

Function

ETHERNET LAN RJ-45
Connector

Connect to the LAN (Ethernet traffic or PC controller).
HDMI™ IN Connector

Connect to an HDMI source.

RESET Button

Located behind the faceplate.
Sends a reset command to KIT-400R and then reboots

KIT-401T.

HDMI

LED Indicator

Lights green when the HDMI source is selected as the input.
Lights red when analog audio is selected.

PC Lights green when the PC source is selected as the input.
Lights red when analog audio is selected.

REMOTE

Lights green when the HDMI INPUT source on KIT-400R is
selected as the input.

AUDIO IN 3.5mm Mini Jack

Connect to an unbalanced, stereo audio source (for example,
the audio output of the laptop).

PC 15-pin HD Connector

Connect to a PC graphics source.

1 2 3 4 5

6

Kramer Electronics Ltd.

KIT-401 – Defining KIT-401 4K Auto-Switcher/Scaler Kit

6

#

Feature

Function

12V Power Supply 2-pin
Terminal Block Connector

Connect to the supplied power adapter (if required). Connect +
to +, - to -.

Connect power to either this terminal block or to the

KIT-400R 12V power connector (item 34). Do not

connect to both!

RS-232

DATA 3-pin Terminal
Block Connector

Connect to a serial data source or acceptor.

CONTROL 3-pin
Terminal Block

Connector

Connect to a serial controller or PC.

Remote Contact-closure 4-pin
Terminal Block Connector

Connect to contact closure switches (by momentary contact
between the desired pin and GND pin) to select an input, the
remote HDMI IN and audio volume (up or down), see Using

Remote Control Switches on page 13.

OPTION 4-way DIP-switch

Set the device behavior (see Setting KIT-401T DIP-switches
on page 14).

Ring Tongue Terminal
Grounding Screw

Connect to grounding wire (optional).

HDBT OUT (PoC) RJ-45
Connector

Connect to KIT-400R.

AUDIO OUT 3.5mm Mini Jack

Connect to the unbalanced, stereo audio acceptor (for example,
active speakers).

7

8

9

Kramer Electronics Ltd.

KIT-401 – Defining KIT-401 4K Auto-Switcher/Scaler Kit

7

Defining KIT-400R

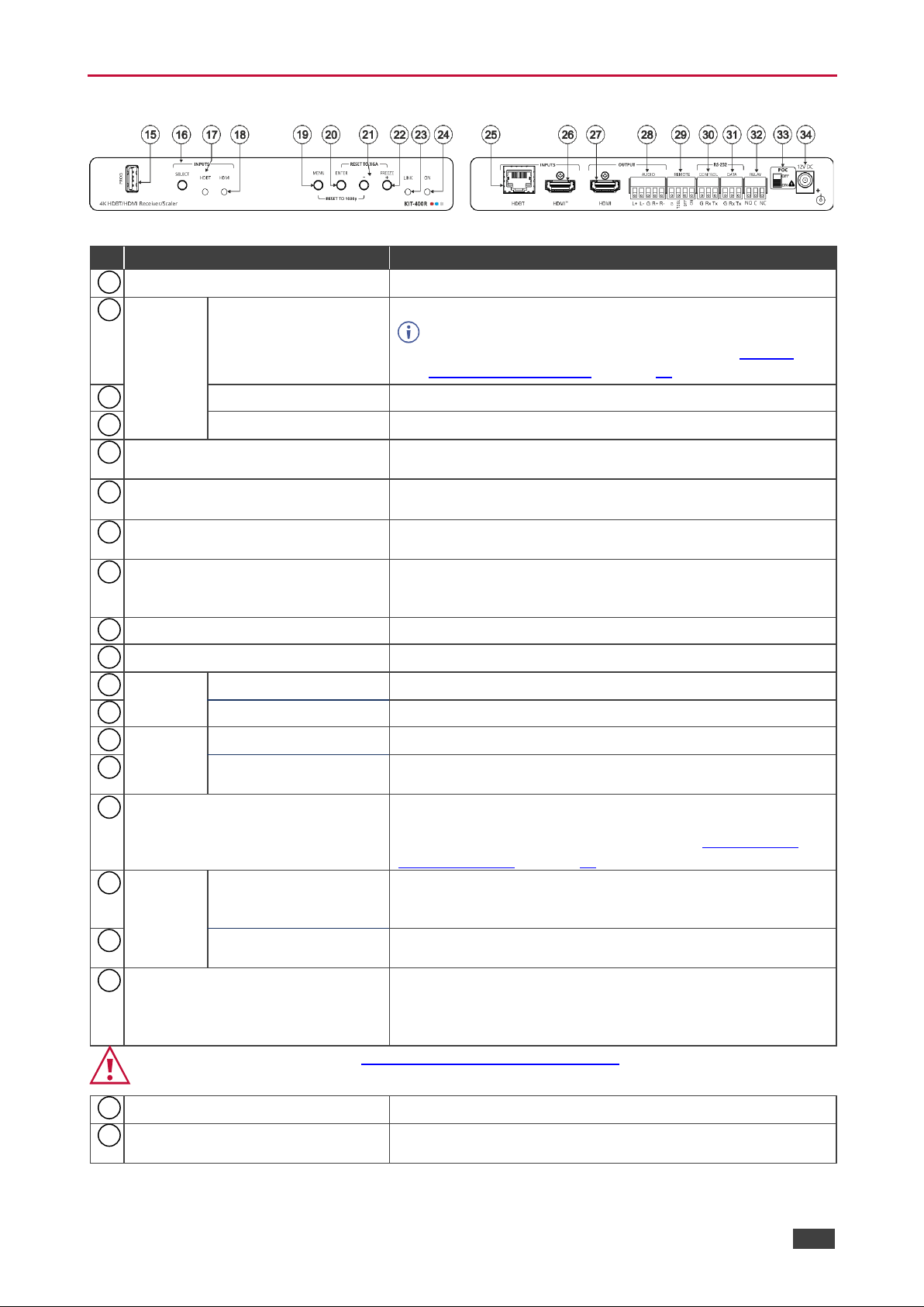

Figure 2: KIT-400R 4K HDBT/HDMI Receiver/Scaler

#

Feature

Function

PROG USB Connector

Connect to a USB stick to perform firmware upgrades.

INPUTS

SELECT Button

Press to select the input (HDBT or HDMI).

By default, the SELECT button is locked. You can unlock
it via the ADVANCED menu in the OSD (see Locking

KIT-400R Input Buttons on page 19).

HDBT LED

Lights blue when the HDBT input is selected.

HDMI LED

Lights blue when the HDMI input is selected.

MENU Button

Press to enter/exit the on-screen display (OSD) menu. Press
together with the – button to reset to 1080p.

ENTER Button

In OSD, press to choose the highlighted menu item. Press
together with the FREEZE/+ button to reset to XGA.

–

In OSD, press to move back through menus or decrement
parameter values.

FREEZE/+ Button

In OSD, press to move forward through menus or increment
parameter values. When not in OSD, press to freeze the
display.

LINK LED

Lights blue when a link is established with the transmitter.

ON LED

Lights green when device is powered.

INPUTS

HDBT RJ-45 Connector

Connect to KIT-401T.

HDMI Connector

Connect to an HDMI source.

OUTPUT

HDMI Connector

Connect to an HDMI acceptor.

AUDIO 5-pin Terminal
Block Connector

Connect to a balanced stereo audio acceptor.

REMOTE Contact-Closure 4-pin
Terminal Block Connector

Connect to contact closure switches, an occupancy sensor
and/or toggle switches (contact between the desired pin and
GND pin), to turn the display on or off. (See Using Remote

Control Switches on page 13).

RS-232

CONTROL 3-pin
Terminal Block
Connector

Connect to a serial controller or PC.
DATA 3-pin Terminal
Block Connector

Connect to a serial data source or acceptor.

RELAY 3-pin Terminal Block
Connector

Connections to the internal relay: Normally open (NO),
normally closed (NC), and common (C).
Connect to devices to be controlled by relay (for example, a
motorized projection screen).

Follow powering instructions in (see Connecting KIT-401 on page 10).
Failure to use PoC and power connector correctly may destroy the devices!

PoC (Power Over Cable) Switch

Set the PoC switch to ON on KIT-400R.

12V DC Connector

Connect to the supplied power adapter unless the power
adapter is connected to KIT-401T.

Kramer Electronics Ltd.

KIT-401 – Mounting KIT-401

8

Mounting KIT-401

KIT-401 includes the KIT-401T wall-plate and the KIT-400R TOOL. This section describes:

• Mounting KIT-401T on page 8.

• Mounting KIT-400R on page 9.

Mounting KIT-401T

Before mounting the KIT-401T you need to connect the HDBT cable (and power – if powering
via the transmitter).

Insert the device into the in-wall box. and connect the parts as shown in the illustrations
below:

EU/UK Version

US-D Version

DECORA® design frames are included in US-D models.

DECORA® is a registered trademark of Leviton Manufacturing Co., Inc.

We recommend that you use any of the following standard 2 gang in-wall junction boxes (or
their equivalent):

• US-D: 2 gang US electrical junction boxes.

• EU: 2 gang in-wall junction box, with a cut-hole diameter of 2x68mm and depth that

can fit in both the device and the connected cables (DIN 49073).

• UK: 2 gang in-wall junction box (BS 4662), 135x75mm (W, H) and depth that can fit in
both the device and the connected cables.

• EU/UK: 2 gang on-wall junction box (use the recommended Kramer on-wall box
available at www.kramerav.com/product/KIT-401T).

Kramer Electronics Ltd.

KIT-401 – Mounting KIT-401

9

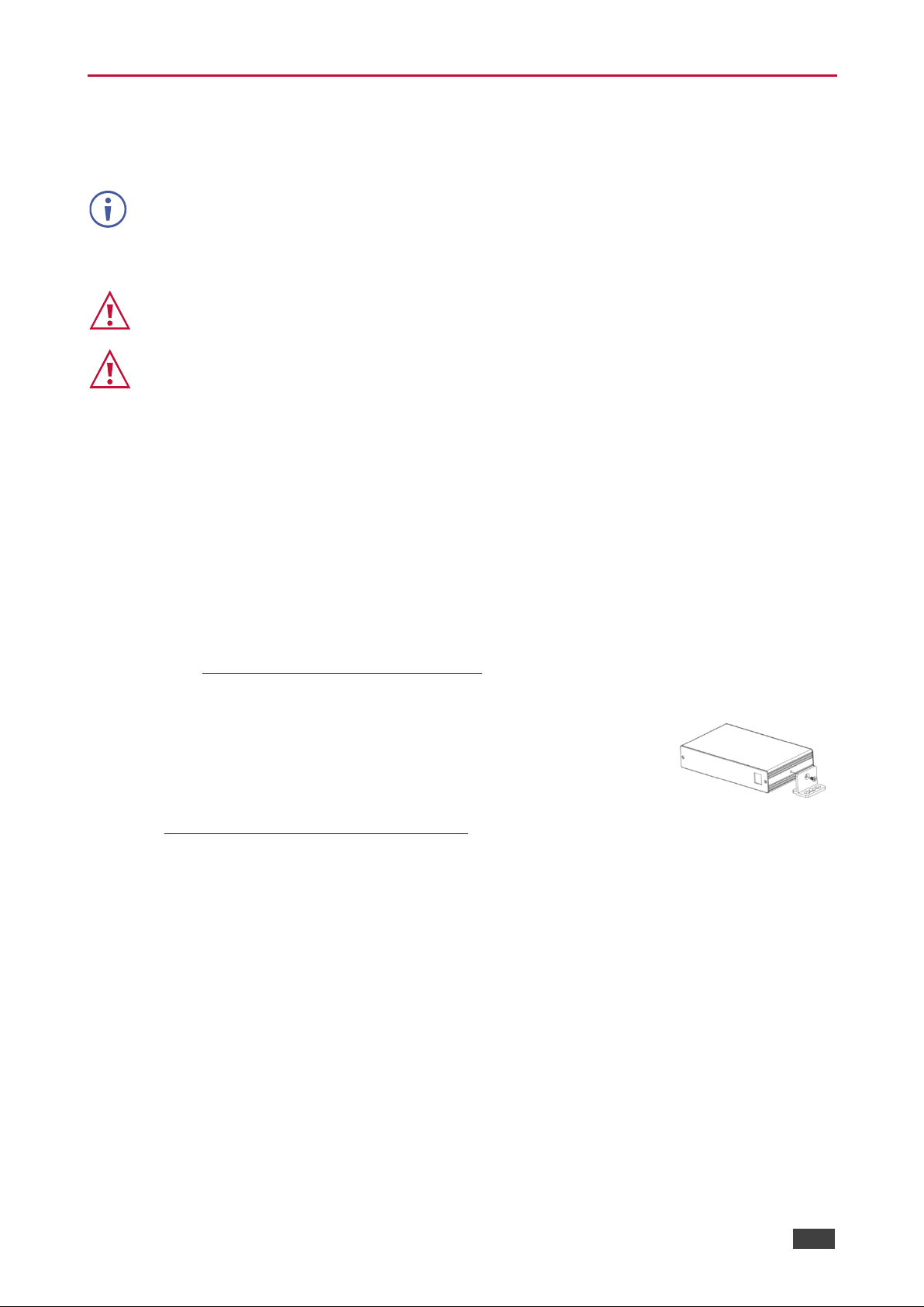

Mounting KIT-400R

This section provides instructions for mounting KIT-401. Before installing, verify that the
environment is within the recommended range:

• Operation temperature – 0 to 40C (32 to 104F).

• Storage temperature – -40 to +70C (-40 to +158F).

• Humidity – 10% to 90%, RHL non-condensing.

Caution:

• Mount KIT-401 before connecting any cables or power.

Warning:

• Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.

• Avoid uneven mechanical loading.

• Appropriate consideration of equipment nameplate ratings should be used for avoiding

overloading of the circuits.

• Reliable earthing of rack-mounted equipment should be maintained.

• Maximum mounting height for the device is 2 meters.

Mount KIT-401 in a rack:

• Use the recommended rack adapter
(see www.kramerav.com/product/KIT-401).

Mount KIT-401 on a surface using one of the following methods:

• Attach the rubber feet and place the unit on a flat surface.

• Fasten a bracket (included) on each side of the unit and attach it to

a flat surface. For more information go to

www.kramerav.com/downloads/KIT-401.

Kramer Electronics Ltd.

KIT-401 – Connecting KIT-401

10

Connecting KIT-401

Always switch off the power to each device before connecting it to your KIT-401. After
connecting your KIT-401, connect its power and then switch on the power to each device.

Figure 3: Connecting to the KIT-401

To connect KIT-401 as illustrated in the example in Figure 3:

1. Before Installing the wall plate (see Mounting KIT-401T on page 8):

▪ Connect the HDBT OUT RJ-45 port on the KIT-401T rear panel to the HDBT

INPUT RJ-45 port on the KIT-400R.

▪ If powering KIT-401 via the KIT-401T, connect the power adapter to KIT-401T.

2. Connect a source to the transmitter:

▪ Connect an HDMI source (for example, a laptop) to the HDMI IN connector on

the KIT-401T front panel.

▪ Connect a computer graphics source (for example, a PC) to the PC IN 15-pin HD

connector and an unbalanced audio source (for example, the PC audio output) to
the AUDIO IN 3.5mm mini jack on the KIT-401T front panel.

Although both sources may be connected simultaneously, in most applications only
one source would be plugged in. Typically, the user comes to the podium (for
example, when the KIT-401T is mounted on a podium) and plugs in his/her own
laptop to present.

3. Connect a control device (for example, KT-107 with Kramer Aware App) to the
ETHERNET RJ-45 port on the KIT-401T front panel.

4. Connect an HDMI source (for example, Kramer VIA GO) to the HDMI INPUT connector

on the KIT-400R.

5. Connect the HDMI OUTPUT connector on the KIT-400R to an HDMI acceptor (for
example, a display).

6. Connect the AUDIO OUTPUT 5-pin terminal block connector on the KIT-400R to a
balanced stereo audio source (for example, Kramer active speakers).

2

6 5 1

Kramer Electronics Ltd.

KIT-401 – Connecting KIT-401

11

7. Set POC switch on KIT-400R to ON.

Failure to use PoC and power connector correctly may destroy the devices!

8. Connect the power adapter to one of the devices (KIT-401T or KIT-400R) and to the
mains electricity (not shown in Figure 3).

Connecting the Output to a Balanced/Unbalanced

Stereo Audio Acceptor

The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:

Figure 4: Connecting to a Balanced Stereo Audio

Acceptor

Figure 5: Connecting to an Unbalanced Stereo Audio

Acceptor

Connecting to KIT-401 via RS-232

You can connect to the KIT-401 via an RS-232 connection using, for example, a PC.

KIT-401 features two RS-232 3-pin terminal block connectors:

• CONTROL - To control KIT-401 (for example, via a connected PC).

• CONTROL – To control KIT-400R (for example, via a connected PC).

• DATA ( for KIT-401T and KIT-400R) – To tunnel RS-232 data between the

transmitter and the receiver, see Tunneling RS-232 data between KIT-401T and

KIT-400R on page 14, (for example, to control the projector via RS-232 using a

controller at the transmitter side).

Connect the RS-232 terminal block on the rear panel of the KIT-401 to a PC/controller, as
follows:

From the RS-232 9-pin D-sub serial port connect:

• Pin 2 to the TX pin on the KIT-401 RS-232 terminal
block

• Pin 3 to the RX pin on the KIT-401 RS-232 terminal
block

• Pin 5 to the G pin on the KIT-401 RS-232 terminal

block

RS-232 Device KIT-401

9

8

Kramer Electronics Ltd.

KIT-401 – Connecting KIT-401

12

Connecting an Occupancy Sensor to the TOGL Pin

The KIT-400R TOGL pin function is defined via the KIT-400R OSD menu (see Defining

the TOGGLE PIN on KIT-400R on page 23). By default, the display toggles on or off when

momentarily connected. By setting the Toggle function, you can set the pin for level-triggering
rather than edge-triggering (i.e., constant contact connection rather than momentary
connection), allowing, for example, connection to an occupancy sensor that triggers the
toggle commands.

Instead of a push-to-make switch, TOGGLE may be configured to operate with a standard
SPST switch or for TTL level detection (for example, to use with an occupancy sensor).

You can use an occupancy sensor to turn on the display and auto sync off to turn it off once it
is not used, as described in the following example:

• An occupancy sensor is connected to the TOGL pin.

• The TOGL pin is set to ON (see Defining the TOGGLE PIN on KIT-400R on page 23) so

that the display is turned on when the occupancy sensor detects the presence of people
in the room. (Set the sensor to short the TOGL pin to ground upon detecting occupancy).

• Auto SYNC OFF is set to Enable (see Setting Sleep Mode on page 21) so that when the
room is no longer in use, the display turns off 2 minutes after an input signal is no longer
detected.

You can also set the TOGL pin to OFF so that when the sensor detects no people in the room
the display turns off. (Set the sensor to short the TOGL pin to ground when occupancy is not
detected).

Wiring RJ-45 Connectors

This section defines the HDBT pinout, using a straight pin-to -pin cable with RJ-45 connectors.

For HDBT cables, it is recommended that the cable ground shielding be connected/soldered
to the connector shield.

EIA /TIA 568B

PIN

Wire Color

1

Orange / White

2

Orange

3

Green / White

4

Blue

5

Blue / White

6

Green

7

Brown / White

8

Brown

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

13

Operating and Controlling KIT-401

Using Front Panel Buttons

Press the KIT-400R front panel buttons to:

• Locally select the HDMI or HDBT inputs (when the SELECT button is not locked).

• Control device operation, using the MENU , ENTER (when in the OSD menu), +

and – ,buttons (see Using the OSD Menu on KIT-400R on page 17).

• Freeze the image on the output, using FREEZE button.

• Reset to XGA, using ENTER and FREEZE+ buttons.

• Reset to 1080p, using MENU and – buttons.

Using Remote Control Switches

The following table describes the function of the remote contact closure switches on KIT-401T

and KIT-400R .

Pin Name

Function

KIT-401T

KIT-400R

KIT-401T

SELECT

Short press – Select the input.
Long press – Adjust the VGA phase shift.

REMOTE
HDMI

Select the HDMI IN input on KIT-400R.

VOL UP

Increase the analog audio output level.
Short press – Increase volume by one step.
Long Press – Increase the volume from 0 to
100% in 10 seconds.

VOL DN

Decrease the analog audio output level.
Short press – Decrease volume by one step.

Long Press – Decrease the volume from 100% to
0 in 10 seconds.

KIT-400R

TOGL

For connection to an occupancy sensor, or to a
single ON/OFF switch.
Configurable via the OSD for connection to a
button which toggles between display on and
display off (instead of using two separate buttons
for on and off), or turning the display on and off
according to whether a switch is open or closed
(for example, when using an occupancy sensor).
See Defining the TOGGLE PIN on KIT-400R
on page 23.

OFF

Turn off the display.

ON

Turn on the display.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

14

Setting KIT-401T DIP-switches

A switch that is down is on; a switch that is up is off. By default, all the switches are set to off
(up).

DIP-switches 1 and 2 are both set to OFF (up).

Figure 6: KIT-401T SETUP DIP-Switches

After changing a DIP-switch you must power cycle the device to implement the change.

Audio Switching Selection

Use DIP-switches 3 and 4 to define the audio input source.

DIP-switch 3

DIP-switch 4

Audio Input Selection

Off (up)

Off (up)

Automatic – Priority selection: Embedded HDMI  analog Audio In
(high to low priority).

Off (up)

On (down)

Automatic – Priority selection: Analog Audio In  embedded HDMI
(high to low priority).

On (down)

Off (up)

Embedded HDMI.

On (down)

On (down)

Analog Audio In.

Tunneling RS-232 data between KIT-401T and

KIT-400R

KIT-401 tunnels RS-232 data between the transmitter and receiver in any of the following

ways:

• Controlling Via a Control System on page 14.

• Controlling a Sink Device Via the DATA Ports on page 16.

• Controlling Via Maestro on the Transmitter on page 16.

Controlling Via a Control System

You can control the receiver and/or a connected sink device via a control system that is
connected to the CONTROL port on the KIT-401T.

When sending a command to the receiver from the Maestro internal port or from any of the
transmitter communication ports (RS-232 or TCP/UDP), note that – in addition to abiding by
the standard P3K conventions – the data within the quotation marks (“ ” or ‘ ’) may not include
the symbols #, and <CR>(/x0d).

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

15

Controlling the Receiver

To control the receiver via a control system at the transmitter, connect the control system to
the CONTROL RS-232 port and send a device protocol command via the TUNNEL-CTRL
command. For example, to open the relay contacts (RELAY-STATE 1,0), send the #TUNNEL­CTRL 1,1,”RELAY-STATE 1,0”<CR> command from the control system, via HDBT to the

KIT-400R.

Figure 7: Controlling the Receiver via a Control System

Controlling a Sink Device Connected to the Receiver

For applications where the control system controls a device at the KIT-400R sink, connect the
control system to the CONTROL RS-232 port and send a device protocol command via
the TUNNEL-CTRL command.

For example, to turn the display off (DISPLAY OFF), send the #TUNNEL-CTRL
1,1,”TUNNEL-232 ‘DISPLAY OFF’9600”<CR> command from the control system, via HDBT
to the KIT-400R.

Figure 8: Controlling a Sink Device Connected to the Receiver

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

16

Controlling a Sink Device Via the DATA Ports

Raw data can pass between the DATA ports on the transmitter and receiver ( for KIT-401T
and KIT-400R) directly to/from a controlled device and control system.

Figure 9: Controlling a Sink Device on the Receiver via the Data Ports

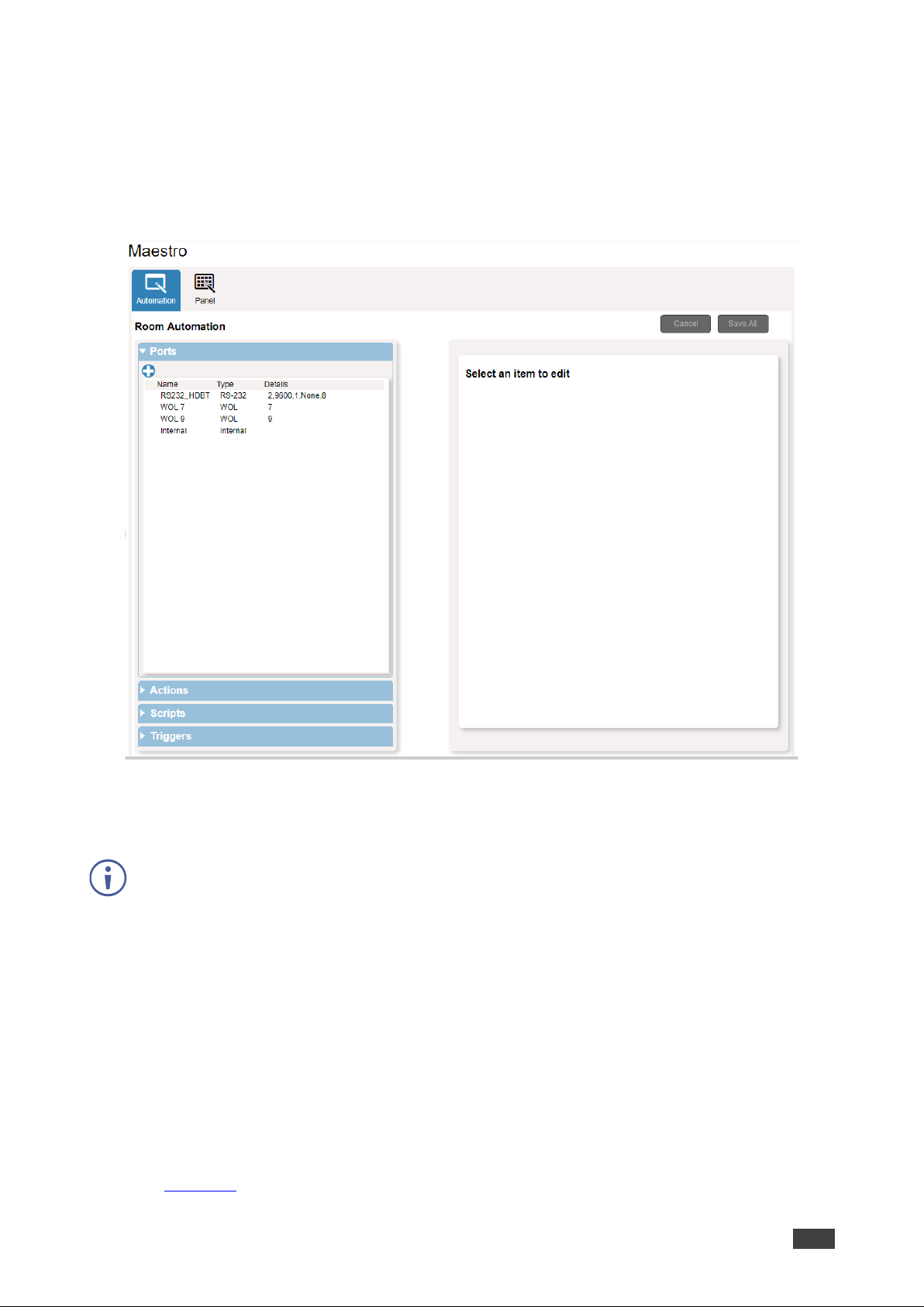

Controlling Via Maestro on the Transmitter

You can control the receiver and/or a connected sink device via the KIT-401T Kramer
Maestro.

Controlling the Receiver

To control the receiver via Maestro at the transmitter, send a command via the RS232_HDBT
port in Maestro. For example, to open the relay contacts (RELAY-STATE 1,0), send the
RELAY-STATE 1,0 command from Maestro, via HDBT to the KIT-400R.

Figure 10: Controlling the Receiver via Maestro

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

17

Controlling a Sink Device Connected to the Receiver

You can control a sink device via KIT-401T Maestro. To control the sink device via Maestro at
the transmitter, send a command via the RS232_HDBT port in Maestro.

For example, to turn the display off (DISPLAY OFF), send the #TUNNEL-CTRL
1,1,”TUNNEL-232 ‘DISPLAY OFF’9600”<CR> command from Maestro, via HDBT to the

KIT-400R.

Figure 11: Controlling a Sink Device on the Receiver via Maestro

Using the OSD Menu on KIT-400R

KIT-400R enables controlling and defining the device parameters via the OSD, using the front

panel MENU buttons.

To enter and use the OSD menu buttons:

1. Press MENU.

2. Press:

▪ ENTER to accept changes and to change the menu settings.
▪ Arrow buttons to move through the OSD menu, which is displayed on the video

output.

▪ EXIT to exit the menu.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

18

The default OSD timeout is set to 10 seconds.

Use the OSD menu to perform the following operations:

• Adjusting Image Parameters on page 18.

• Selecting an Input Signal on page 19.

• Setting Output Parameters on page 19.

• Setting Audio Parameters on page 20.

• Setting OSD Parameters on page 20.

• Setting HDCP on page 21.

• Setting Sleep Mode on page 21.

• Setting Switching Mode on page 22.

• Setting FREEZE Button Functionality on page 22.

• Managing EDID via OSD on page 22.

• Defining the TOGGLE PIN on KIT-400R on page 23.

• Manually Switching the Relay on page 24.

• Defining CEC Functionality on page 24.

• Defining Power-up State on page 25.

• Viewing Device Information on page 25.

• Performing a Reset on page 25.

Adjusting Image Parameters

KIT-400R enables adjusting the image parameters such as contrast, brightness and so on.

To adjust the image parameters:

1. On the front panel press MENU. The menu appears.

2. Click Picture and define the image parameters according to the information in the
following table:

Menu Item

Function

Contrast

Set the contrast.

Brightness

Set the brightness.

Finetune

Video

HUE – set the color hue.

SATURATION – set the color saturation.

SHARPNESS – set the sharpness of the picture.

NR (Noise Reduction) – select the noise reduction filter: Off
(default), Low, Middle or High.

Color

Set the Red, Green and Blue shades.

Image parameters are adjusted.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

19

Selecting an Input Signal

Select the KIT-400R input source via the OSD menu.

To set the input source:

1. On the front panel press MENU. The menu appears.

2. Click INPUT and select the SOURCE

3. Press ENTER and select HDMI or HDBT.

An input signal is selected.

Locking KIT-400R Input Buttons

KIT-400R enables locking the input select buttons.

To set the input source:

1. On the front panel press MENU. The menu appears.

2. Click INPUT and select INPUT BUTTON LOCK.

3. Press ENTER and select ON or OFF.

Input select buttons are locked.

Setting Output Parameters

KIT-400R enables setting output parameters such as the size of the image and output

resolution via the OSD MENU buttons.

To set the output parameters:

1. On the front panel press MENU. The menu appears.

2. Click OUTPUT and define the output parameters according to the information in the
following table:

Menu Item

Function

Size

Set the size of the image: Over Scan, Full, Best Fit (default), Pan Scan, Letter Box, Under
2, Under 1, Follow In.

Resolution

Select the output resolution (default, Native HDMI):

640x480 @60Hz

1600x1200 @60Hz

3440x1440 @30Hz

1920x1080P @50Hz

800x600 @60Hz

1680x1050 @60Hz

3440x1440 @60Hz

1920x1080P @60Hz

1024x768 @60Hz

1920x1200 @60Hz RB

720x480P @60Hz

2560x1080P @50Hz

1280x768 @60Hz

2560x1600 @60Hz RB

720x576P @50Hz

2560x1080P @60Hz

1280x800 @60Hz

1920x1080 @60Hz

1280x720P @50Hz

3840x2160P @24Hz

1280x1024 @60Hz

1280x720 @60Hz

1280x720P @60Hz

3840x2160P @25Hz

1360x768 @60Hz

2048x1080 @50Hz

1920x1080P @24Hz

3840x2160P @30Hz

1400x1050 @60Hz

2048x1080 @60Hz

1920x1080P @25Hz

3840x2160P @50Hz

1440x900 @60Hz

2560x1440 @60Hz RB

1920x1080P @30Hz

3840x2160P @60Hz

Output parameters are defined.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

20

Setting Audio Parameters

KIT-400R enables defining the audio delay time and the output volume.

To set the audio:

1. On the front panel press MENU. The menu appears.

2. Click Audio and define the audio parameters according to the information in the
following table:

Menu Item

Function

DELAY

Set the audio delay time (lip sync) to off, 40ms (default),110ms or 150ms.

AUDIO VOLUME

Set the AUDIO OUT output volume (default is 80 = 0dB).

Audio parameters are defined.

Setting OSD Parameters

KIT-400R enables adjusting OSD parameters for your convenience via the OSD MENU

buttons.

To set the OSD parameters:

1. On the front panel press MENU. The menu appears.

2. Click OSD and define the OSD parameters according to the information in the following
table:

Menu Item

Function

H-POSITION

Set the horizontal position of the OSD.

V-POSITION

Set the vertical position of the OSD.

TIMER

Set the timeout period to Off or up to 60 seconds (default 10).

TRANSPARENCY

Set the OSD background between 100 (transparent) and 0 (opaque).

DISPLAY

Select the information displayed on-screen during operation:
Info (default) –Information appears for 10 seconds.
On –Information appears constantly.
Off – Information does not appear.

OSD parameters are set.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

21

Setting HDCP

KIT-400R enables setting the HDCP on the input and on the output via the front panel MENU

buttons.

To set the HDCP on the inputs and output:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and define the HDCP parameters according to the information in the
following table:

Menu Item

Function

HDCP ON HDBT
INPUT

Set HDCP support ON (default) or OFF.
Note that:

1. HDCP must be enabled (ON) to support HDCP encrypted
sources.

2. Sources such as Mac computers always encrypt their outputs
when detecting that the sink supports HDCP. If the content does
not require HDCP, you can prevent these sources from
encrypting by disabling (OFF) HDCP on the input.

HDCP ON HDMI
INPUT

HDCP (OUT)

Select FOLLOW OUTPUT (default) or FOLLOW INPUT on HDMI
OUT.

Select FOLLOW OUTPUT (recommended) for the scaler to match its
HDCP output to the HDCP setting of the acceptor to which it is
connected.
Select FOLLOW INPUT to change its HDCP output setting according
to the HDCP of the input (recommended when the output is connected
to a splitter/switcher).

HDCP is set on the input/output.

Setting Sleep Mode

Auto Sync Off turns off the output after a period of not detecting a valid video signal on the
input(s) until a valid input is again detected or any keypad button is pressed.

KIT-400R enables configuring the Auto Sync Off delay time when a connected display enters

sleep mode.

To set Auto Sync Off:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select Auto Sync Off.

3. Define Auto Sync Off according to the information in the following table:

Menu Item

Function

Disable

Leave outputs active always.

Enable

Disable outputs after ~ 2 minutes of no input detection.

Sleep mode is defined.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

22

Setting Switching Mode

KIT-401 enables configuring for automatic switching of the input source upon signal loss or

when a source is plugged in.

To set the switching mode:

1. On the front panel press MENU. The menu appears.

2. Click ADVANCED and select AUTO SCAN.

3. Click ENTER and select ENABLE to allow auto scanning or DISABLE (default) for
manual switching.

Switching mode is defined.

Setting FREEZE Button Functionality

KIT-401 enables defining the function of the FREEZE front panel button . For example, the FREEZE

button can be defined to freeze the image and mute the audio or only freeze the image.

To set the functionality of the FREEZE front panel button:

1. On the front panel press MENU. The menu appears.

2. Click ADVANCED and select FREEZE.

3. Set panel lock mode according to the information in the following table:

Menu Item

Function

FREEZE + MUTE

Press FREEZE to mute the audio output and freeze the image.

ONLY FREEZE

Press FREEZE to freeze the image.

ONLY MUTE

Press FREEZE to mute the output audio.

FREEZE button mode is defined.

Managing EDID via OSD

KIT-400R enables managing the EDID via the OSD menu buttons.

To manage the EDID:

1. On the front panel press MENU. The menu appears.

2. Click ADVANCED, select EDID Manage

3. Press ENTER and define the EDID parameters according to the information in the
following table:

Menu Item

Function

HDBT EDID

For the HDBT input, select a built-in EDID file and press enter:
Def.1080P, Def. 4K2K(3G), Def. 4K2K(3G 4:2:0) (default), USER
1, USER 2 or Output.

HDMI EDID

For the HDMI input, select a built-in EDID file and press enter:
Def.1080P, Def. 4K2K(3G), Def. 4K2K(6G) (default), USER 1,
USER 2 or Output.

The selected built-in EDID file is saved on the selected input.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

23

Uploading EDID from an External File

To select the EDID from an external file:

1. Upload the EDID file to a memory stick.
The EDID file name should be USER_EDID1.bin or USER_EDID2.

2. On the front panel press MENU. The OSD menu appears.

3. Click ADVANCED and select EDID UPLOAD.

4. Select USER EDID.

The external EDID file is saved to the device.

Defining the TOGGLE PIN on KIT-400R

KIT-400R enables defining the TOGGLE pin functionality. For example, you can define

this pin to select one of the 2 inputs, turn the display on or off and so on.

To define the TOGGLE PIN functionality:

1. On the front panel press MENU. The menu appears.

2. Click Toggle Pin and define the TOGGLE pin functionality according to the information
in the following table:

Menu Item

Function

EDGE

Set for edge triggering (momentary connection):
Toggles between switching the display on and off (using CEC commands)
each time the TOGL pin is momentarily connected to ground.

ON

Sends a CEC signal to turn the display ON when the TOGL pin is shorted
to ground.

Select ON when using together with an occupancy sensor that is set
up to short the sensor wire to ground when detecting the presence of

people in the room (see Connecting an Occupancy Sensor to the

TOGL Pin on page 12).

OFF

Sends a CEC signal to turn the display OFF when the TOGL pin is shorted
to the ground.

Select OFF when using together with an occupancy sensor that is set
up to short the sensor wire to ground when detecting no people in the

room (see Connecting an Occupancy Sensor to the TOGL Pin
on page 12).

INPUT
SELECT

Set to select between inputs (HDBT or HDMI).

TOGGLE pin functionality is defined.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

24

Manually Switching the Relay

You can manually set the state of the relay in KIT-400R via the OSD.

To define the relay functionality:

1. On the front panel press MENU. The menu appears.

2. Click Advanced.

3. Click Relay and define its state according to the information in the following table:

Menu Item

Function

ON

Turn the relay ON.

When on, the relay’s coil is energized, meaning C and NO are

shorted, and there is an open circuit between C and NC.

OFF

Turn the relay OFF
When off, the relay’s coil is not energized, meaning C and NC are
shorted, and there is an open circuit between C and NO.

Relay is manually switched.

Defining CEC Functionality

KIT-400R can be set to initiate and send CEC commands to the connected display, or to pass

CEC commands from its HDMI input to the connected display.

To set the CEC (Consumer Electronic Control) functionality:

1. On the front panel press MENU. The menu appears.

2. Click Advanced and select Output CEC Bypass.

3. Press ENTER and select:

▪ OFF – KIT-400R automatically sends CEC commands to shut down the output

display after a timeout period when no input signal is found and to power up the
display when the input returns.

▪ ON – CEC commands pass from the HDMI input to the display. (KIT-400R does not

automatically send CEC on and off commands).

KIT-400R either passes CEC commands between its HDMI input and the display, or it

initiates and sends on and off commands to the display.

CEC is enabled/disabled.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

25

Defining Power-up State

KIT-400R enables defining which input is selected when the device is powered up.

To define the power up state:

1. On the front panel press MENU. The menu appears.

2. Select ADVANCED.

3. Click POWER UP STATE.

4. Press ENTER and define the selected input:

Menu Item

Function

Select HDMI

KIT-400R’s HDMI input is selected when the unit is powered up.

Select HDBT

KIT-400R’s HDBT input is selected when the unit is powered up.

Last Selected

When powered up, KIT-400R switches to the input which was
selected before being powered down.

Power-up state mode is defined.

Viewing Device Information

Device information includes the selected source, the input and output resolutions, and the
software version.

To view the information:

1. On the front panel press MENU. The menu appears.

2. Click INFORMATION and view the input source selection and its resolution, the output
resolution and the software version.

Performing a Reset

KIT-400R enables performing factory reset via the front panel MENU buttons.

To reset the device:

1. On the front panel press MENU. The menu appears.

2. Click Factory and select RESET ALL.
Wait for completion of factory reset (resolution is set to Native).

Device is reset.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

26

Operating via Ethernet

You can connect to KIT-401T via Ethernet using either of the following methods:

• Directly to the PC using a crossover cable (see Connecting Ethernet Port Directly to a

PC on page 26).

• Via a network hub, switch, or router, using a straight-through cable (see Connecting

Ethernet Port via a Network Hub on page 28).

Note: If you want to connect via a router and your IT system is based on IPv6, speak to your
IT department for specific installation instructions.

Connecting Ethernet Port Directly to a PC

You can connect the Ethernet port of KIT-401 directly to the Ethernet port on your PC using a
crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying KIT-401
with the factory configured default IP address.

After connecting KIT-401 to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.

2. Click Change Adapter Settings.

3. Highlight the network adapter you want to use to connect to the device and click Change
settings of this connection.

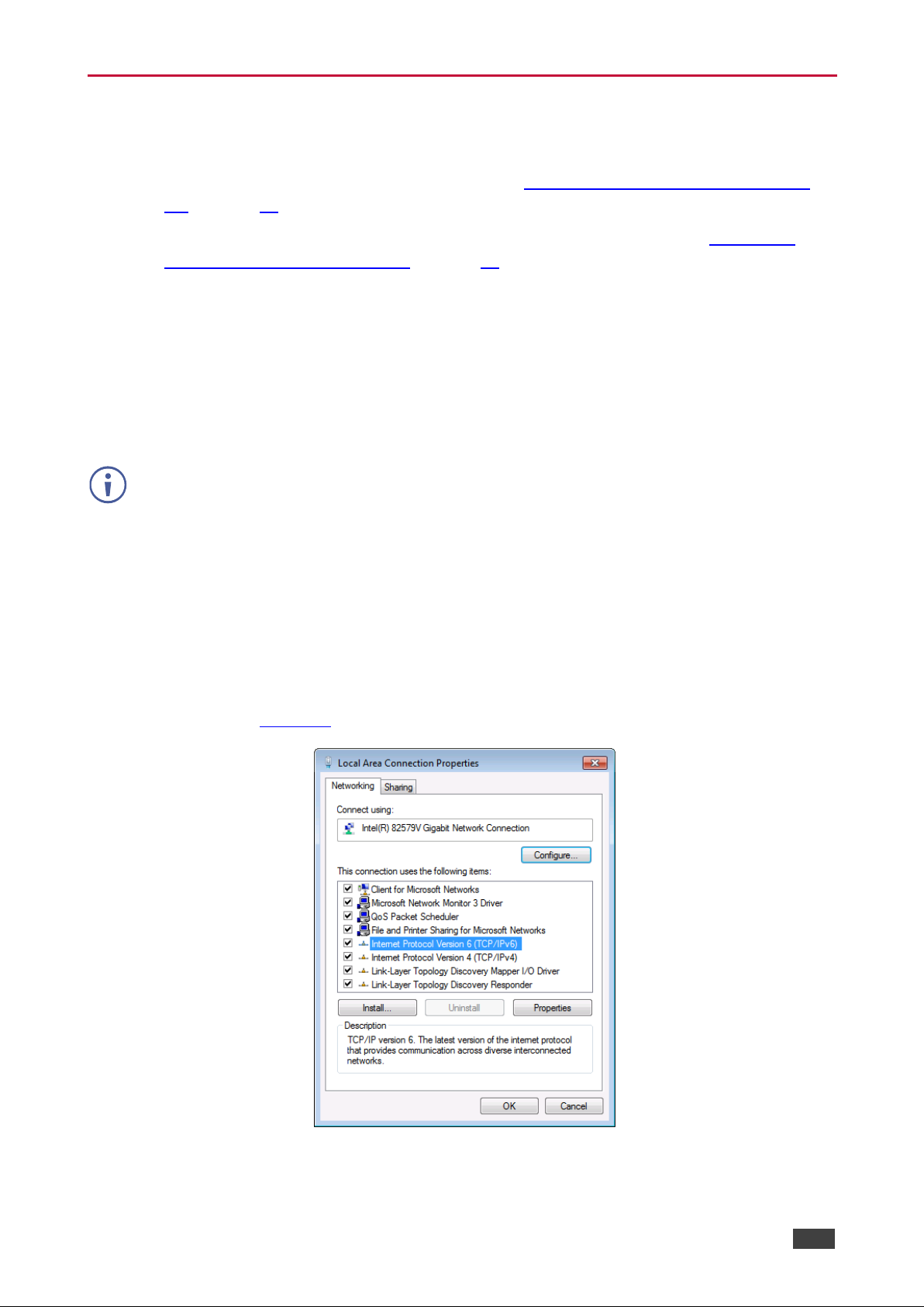

The Local Area Connection Properties window for the selected network adapter appears
as shown in Figure 12.

Figure 12: Local Area Connection Properties Window

4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4
(TCP/IPv4) depending on the requirements of your IT system.

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

27

5. Click Properties.
The Internet Protocol Properties window relevant to your IT system appears as shown in

Figure 13 or Figure 14.

Figure 13: Internet Protocol Version 4 Properties Window

Figure 14: Internet Protocol Version 6 Properties Window

Kramer Electronics Ltd.

KIT-401 – Operating and Controlling KIT-401

28

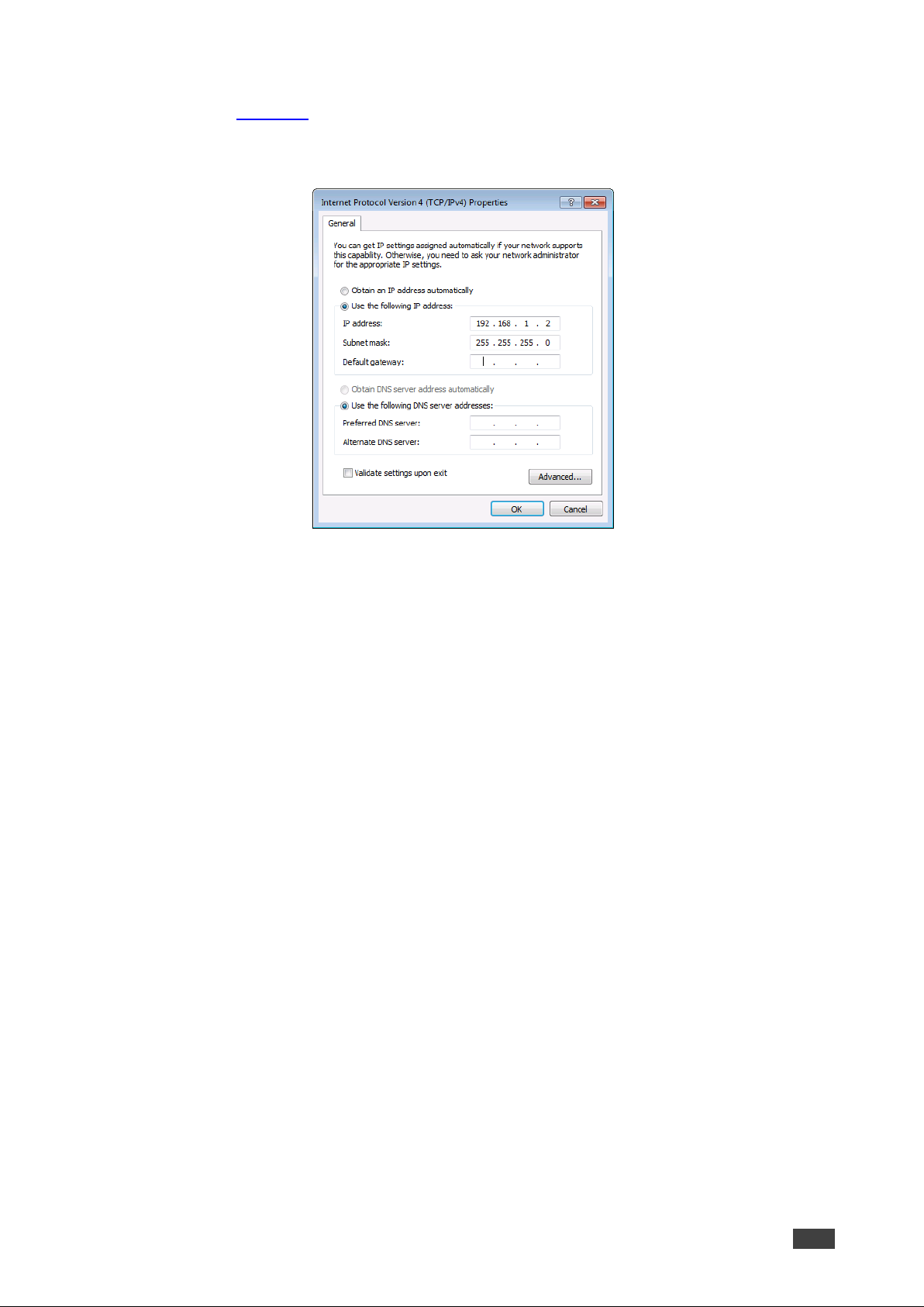

6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 15.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.

Figure 15: Internet Protocol Properties Window

7. Click OK.

8. Click Close.

Connecting Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of KIT-401 to the Ethernet port on a network hub or using
a straight-through cable with RJ-45 connectors.

Configuring Ethernet Port

You can set the Ethernet parameters via the embedded webpages.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

29

Using Embedded Webpages

The webpages enable you to control KIT-401 via the Ethernet. The webpages include all the
OSD items and are accessed using a Web browser and an Ethernet connection.

Browsing Webpages

Before attempting to connect:

• Perform the procedures described in Operating via Ethernet on page 26.

• Ensure that your browser is supported.

The following operating systems and Web browsers are supported:

Operating Systems

Browser

Windows 7

IE

Firefox

Chrome

Safari

Windows 10

IE

Edge

Firefox

Chrome

Mac

Safari

iOS

Safari

Android

N/A

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

30

To browse the KIT-401 webpages:

1. Open your Internet browser.

2. Type the IP address of the device in the address bar of your browser. For example, the
default IP address:

The Authentication window appears (if set, security is enabled):

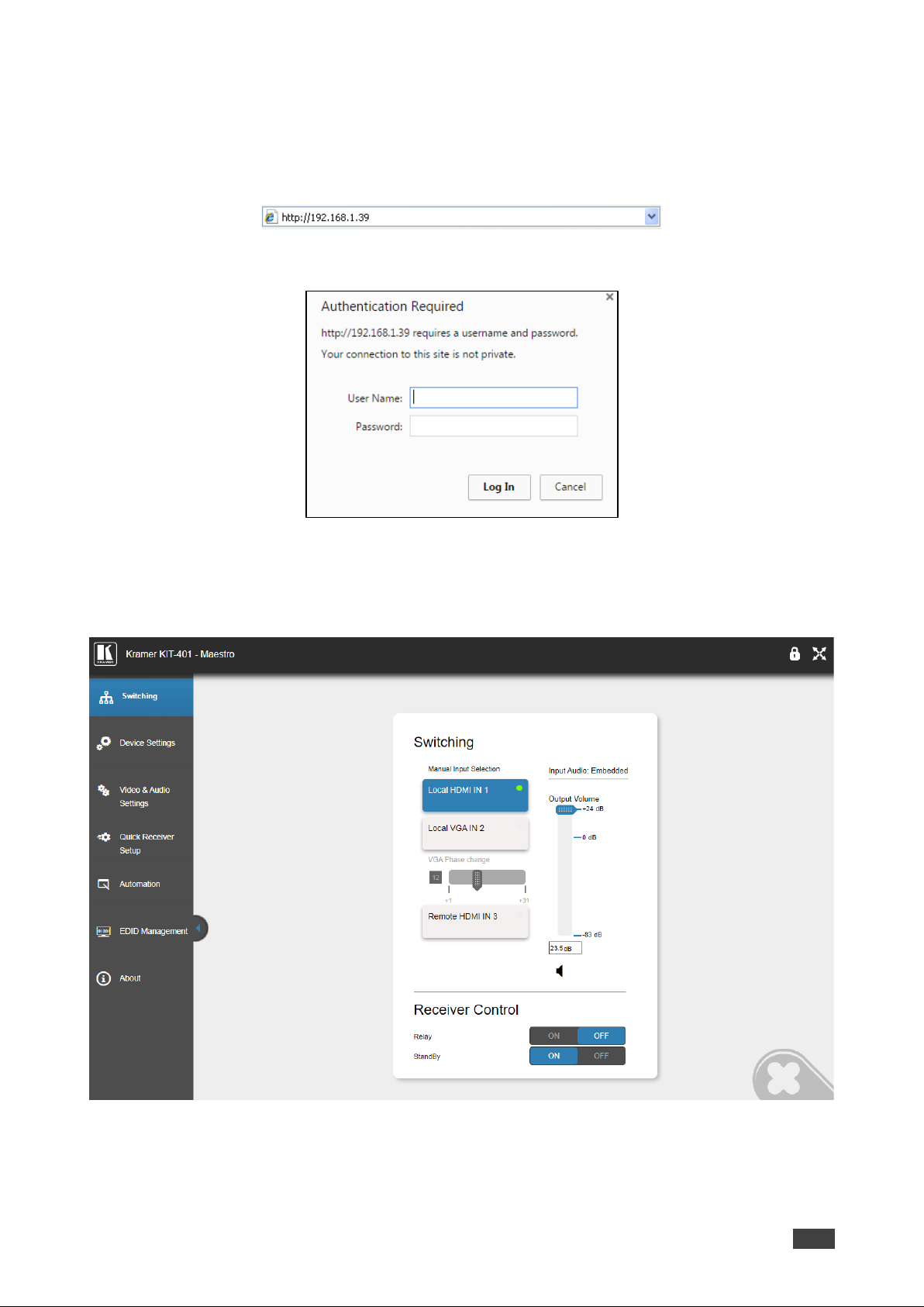

Figure 16: Using the Embedded Webpages – Authentication

3. Enter the User Name and Password (Admin/Admin) and click OK.
The Switching page appears:

Figure 17: Switching Page with Navigation List on Left

4. Click the desired webpage or click the arrow to hide the navigation list.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

31

KIT-401T webpages enable performing the following actions:

• Switching and adjusting Port Signals on page 31.

• Defining General settings on page 32.

• Configuring Network Settings on page 34.

• Defining Time and Date on page 36.

• Upgrading the Firmware on page 37.

• Setting Authentication on page 39.

• Defining Video and Audio Settings on page 41.

• Defining Receiver Settings on page 43.

• Configuring Device Automation on page 44.

• Managing EDID on page 60.

• Viewing About Page on page 66.

Switching and adjusting Port Signals

The Switching webpage enables performing the following functions:

• Selecting an Input Manually on page 31.

• Viewing the Audio Input Source on page 32.

• Adjusting the Audio Output Volume on page 32.

• Controlling Receiver Parameters on page 32.

Selecting an Input Manually

Select one of 4 inputs to switch to the output.

A green dot, on an input button, indicates that it is connected to an active source, as shown in
the example in Figure 17, for HDMI IN 1.

To select an input manually:

1. In the Navigation pane, click Switching. The Switching page appears (see Figure 17).

2. Click any of the following buttons:

▪ Local HDMI IN 1.
▪ Local VGA IN 2.

When selecting the VGA input, adjust the phase of the VGA input sampling by
entering the value or using the slider.

▪ Remote HDMI IN 3.

The remote HDMI IN input is located on the KIT-400R.

An input is selected.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

32

Viewing the Audio Input Source

The audio input source is defined via DIP-switches 3 and 4 on the KIT-401T (see Setting

KIT-401T DIP-switches on page 14). You can view the input audio source in the Switching

page.

1. In the Navigation pane, click Switching. The Switching page appears (Figure 17).

2. View the input audio source according to DIP-switch setup.

The input audio source is viewed.

Adjusting the Audio Output Volume

KIT-401T enables adjusting the audio output volume via the embedded webpages.

To adjust the audio output volume:

1. In the Navigation pane, click Switching. The Switching page appears (Figure 17).

2. Do any of the following:

▪ Enter the audio volume value.
▪ Use the slider to set the volume.
▪ Click to mute the audio

Audio output volume is adjusted.

Controlling Receiver Parameters

Using the KIT-401T Switching webpage, you can control KIT-400R’s relay, and you can put

KIT-400R into standby mode or wake it from standby mode.

To control KIT-400R parameters:

1. In the Navigation pane, click Switching. The Switching page appears (Figure 17).

2. Do the following:

▪ Click ON or OFF to energize or release the relay.
▪ Click ON/OFF to put the device in standby mode or wake it from standby mode.

KIT-400R parameters are set.

Defining General settings

KIT-401T enables performing the following actions:

• Changing the device name (click Set to save the name).

• Defining Remote Buttons Functionality on page 33.

• Saving and Loading Settings on page 34.

• Performing a Factory Reset on page 34.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

33

Defining Remote Buttons Functionality

KIT-401T includes remote contact closure switches . You can define the functionality of

these buttons via the embedded webpages.

To define the contact closure switches behavior:

1. In the Navigation pane, click Device Settings. The Switching page appears, showing
the General settings tab.

Figure 18: Device Settings Page – General Settings Tab

2. Select Remote Button behavior:

▪ Preset (default) – The remote contact-closure switches connected to the 5-pin

terminal block connector on KIT-401T operate according to their preset functions
(SELECT, REMOTE HDMI, VOL UP and VOL DN), as printed on the panel of the
device See Using Remote Control Switches on page 13.

▪ Custom – The remote contact-closure switches connected to the 5-pin terminal

block connector on KIT-401T are defined by the user for use as Maestro Triggers to
send Maestro Script (e.g., closing the lights and opening a projector screen upon
HDMI trigger). See Configuring Device Automation on page 44.

Remote contact closure switches behavior is defined.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

34

Saving and Loading Settings

KIT-401T enables you to save a configuration to recall it in the future.

Saving a Configuration

To save the current configuration:

1. Configure the device as required.

2. In the Navigation pane, click Device Settings. The Switching page opens (Figure 18).

3. Click Save. The Save File window appears.

When using Chrome, the file is automatically saved in the Downloads folder.

The current configuration is saved.

Loading a Configuration

To load a configuration:

1. In the navigation pane click Device Settings. The Switching page opens (Figure 18).

2. Click Upload. An Explorer window opens.

3. Select the required file and click Open.

The device is configured according to the saved preset.

Performing a Factory Reset

To reset the device to its factory default values:

1. In the Navigation pane, click Device Settings.
The Device Settings page appears (Figure 18).

2. Click Factory reset.
The following message appears. A communication warning message appears.

3. Click OK to start factory reset and follow the instructions on-screen.

The device resets to its default parameters.

Configuring Network Settings

KIT-401 enables you to configure network settings for your device.

For proper settings and before changing to DHCP, consult your Network administrator.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

35

To configure network settings:

1. Click Device Settings from the Navigation Pane. The Device Settings page appears.

2. Click the Communication tab. The Communication tab appears.

Figure 19: Device Settings Page – Communication Tab

3. Change the network settings as required.

–OR–

If you want the device to obtain an IP address via DHCP server, click DHCP ON.
If DHCP is ON and you want to turn it off:
a. Click DHCP OFF. The DHCP OFF message appears.

Figure 20: Setting DHCP Off

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

36

b. Check a Custom IP (and enter the address) or use the default IP.
c. Click Apply.

4. Verify that the TCP/UDP port is correct.

5. Click Set.

The webpage logs out and the browser reloads with the new network information.

Defining Time and Date

KIT-401T enables setting a device Time and Date locally or by Syncing the Device Time and

Date to any server around the world.

Setting Time and Date Locally

To set the device time and date locally:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.

2. Select the Time & Date tab. The Time & Date tab appears.

Figure 21: Device Settings Page – Time and Date Tab

3. Set Use Time Server (NTP) to NO.
Device Time & Date Fields are enabled, and network fields are disabled.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

37

4. If required, change the:

▪ Device date.
▪ Device time.
▪ Time zone.

5. Select the time zone.

6. Set daylight savings time status (YES or NO).

7. Click Save Changes.

The device date and time is set.

Syncing Time and Date Via a Server

To sync device time and date to a server:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.

2. Select the Time & Date tab. The Time & Date tab appears (Figure 21).

3. Set Use Time Server (NTP) to YES.
Device Time & Date Fields are disabled, and network fields are enabled.

4. Enter the time server address.

5. Define the daily sync time from the drop-down box.

6. Click Save Changes.

The devices date and time are synchronized to the server address entered.

Upgrading the Firmware

KIT-401T enables updating the firmware via the embedded webpages.

To upgrade the firmware:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.

2. Select the FW Upgrade tab. The FW Upgrade tab appears.

Figure 22: Device Settings Page – FW Upgrade Tab

3. Click Update.
The Windows browser opens.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

38

4. Browse to the required file and click Open. The following warning appears.

Figure 23: Device Settings Page – FW Upgrade Warning

5. Click OK. The firmware files are uploaded, and a progress bar is displayed.

Do not interrupt the process or the KIT-401 may be damaged.

6. When the process is complete reboot the device.

KIT-401T firmware is upgraded.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

39

Setting Authentication

KIT-401T enables activating device security and defining logon authentication details. The

upper right corner of the webpage displays or indicating whether authentication is
required.

By default, the webpages are secured (username and password are both: Admin).

Disabling Authentication

To undo authentication:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.

2. Select the Authentication. The Authentication tab appears.

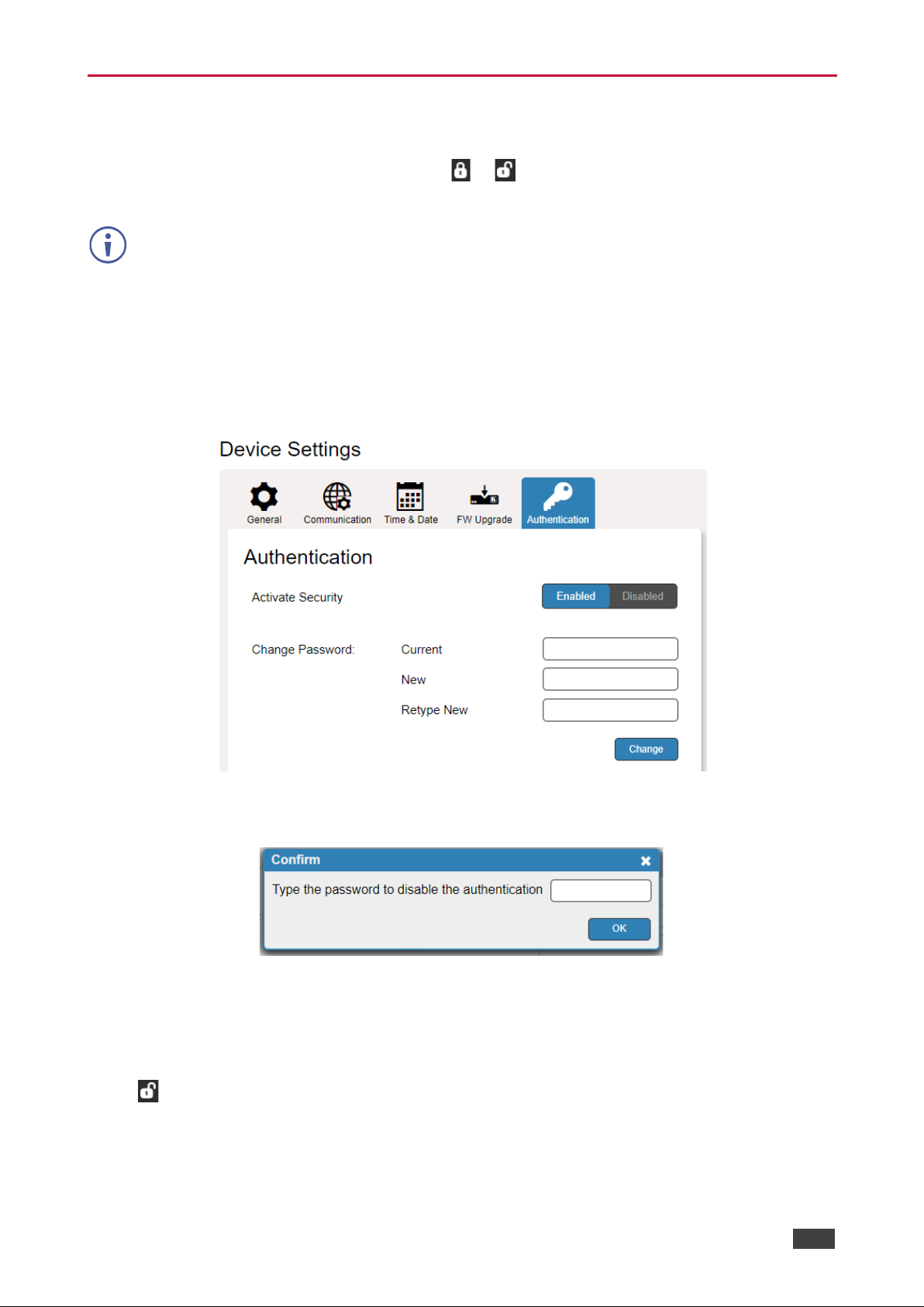

Figure 24: Device Settings Page – Authentication Tab

3. Click the Disabled button for Active Security. A confirmation message appears.

Figure 25: Authentication Tab – Confirmation Message.

4. Enter current password.

5. Click OK.

The webpage refreshes, the password fields disappear, and the upper right icon changes to

.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

40

Enabling Authentication

To set authentication:

1. In the Navigation pane, click Device Settings. The Device Settings page appears.

2. Select the Authentication. The Authentication tab appears (Figure 24).

3. Click the Enabled button for Active Security. The following warning appears.

Figure 26: Authentication Tab – Activating Security Message

4. Click OK.

5. Type the current password and new password twice.

6. Click the Change button. The upper right icon changes to and the following warning
appears.

Figure 27: Authentication Page – Changing the Password Message

The webpage refreshes and the password fields are visible, and a confirmation message

appears.

7. Click OK.

The password has changed, and the page is reloaded.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

41

Defining Video and Audio Settings

KIT-401T enables performing the following actions:

• Viewing Audio Settings on page 41.

• Enabling Audio Only on page 42.

• Setting HDCP Support on page 42.

• Setting Audio and Video Timeouts on page 42.

Viewing Audio Settings

View the audio selection mode.

To view the audio selection mode:

1. In the Navigation pane, click Video & Audio Settings. The Device Settings page
appears.

Figure 28: Video & Audio Settings Page

2. View the audio selection mode and the current selection.

Audio selection mode is viewed.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

42

Enabling Audio Only

KIT-401T enables passing only the audio signal via the embedded webpages.

To enable/disable audio only:

1. In the Navigation pane, click Video & Audio Settings. The Video & Audio Settings page
appears (see Figure 28).

2. Click Enabled to enable audio only; and click Disabled for AV switching.

Audio only mode is set.

Setting HDCP Support

Enable or disable HDCP support for the HDMI input on the KIT-401T.

To enable/disable HDCP support on the HDMI input:

1. In the Navigation pane, click Video & Audio Settings. The Video & Audio page appears
(see Figure 28).

2. Click Enabled next to Local HDMI IN 1, to enable HDCP support or Disabled to disable
HDCP support.

HDCP support is set.

Setting Audio and Video Timeouts

KIT-401T enables setting the video and audio timeout settings via the embedded webpages.

To set the video / audio timeouts:

1. In the Navigation pane, click Video and Audio Settings. The Video & Audio Settings
page appears (see Figure 28).

2. Set the timeout in seconds for delaying:

▪ Switching upon signal loss when 5V power is left on.
▪ Switching in case a cable is unplugged.

3. Click Set Timeout.

Video and audio timeouts are set.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

43

Defining Receiver Settings

KIT-401T enables quickly setting up KIT-400R via the embedded webpages.

To set KIT-400R parameters:

1. In the Navigation pane, click Quick Receiver Setup. The Video & Audio Settings page
appears.

Figure 29: Quick Receiver Setup Page

2. Perform the following actions on KIT-400R:

▪ Select the HDBT input EDID.
▪ Select the HDMI input EDID.
▪ Set the HDMI output resolution.
▪ Set the output aspect ratio.
▪ Enable or disable HDCP support on the HDBT and HDMI inputs.

The selected button momentarily turns blue.

KIT-400R basic parameters are set.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

44

Configuring Device Automation

Use the Automation page to access Kramer Maestro V1.5 room automation. Maestro is a
powerful tool that enables you to configure single-trigger room element automation scenarios
without the need for complicated programming. To use room automation, you need to define
triggers that, upon an event, will execute scripts which include a sequence of actions
(commands, which can appear in different scenarios) that will be carried out via any defined
ports.

Download the Kramer Maestro User Manual from the Kramer web site at

www.kramerav.com/downloads/KIT-401 to learn how to use Kramer Maestro.

Note that all the ports, actions and triggers that are relevant to KIT-401 are included in the

Kramer Maestro, as well as ports, actions and triggers that are relevant to other Kramer

devices.

The Panel tab in the Automation page is currently unavailable.

This section describes the following actions:

• Accessing Kramer Maestro on page 45.

• Disabling Auto-Switching on page 45.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

45

Accessing Kramer Maestro

KIT-401T enables accessing Kramer Maestro via the embedded webpages.

To access Kramer Maestro:

1. In the Navigation pane, click Automation. The Maestro page appears.

Figure 30: Automation Page

2. Configure the ports, actions, scripts and triggers, as described in the Kramer Maestro
User Manual.

The baud-rate for the RS232_HDBT port is 9600.

Once the triggers are defined, the trigger activates the scripts configured in the automation
page. For example, when using the Scheduling trigger, you can activate a series of actions
following a preset schedule.

Disabling Auto-Switching

By default, KIT-401T is configured for Last-Connected auto-switching. You can disable the
auto-switching via the embedded webpages.

To disable the auto-switching:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

46

2. Click Triggers. The Triggers area opens. The Triggers area lists 4 default triggers.

Figure 31: [Figure Caption]

3. Select Last Off trigger.

4. In the Trigger area, next to Script to run, click Disabled.

5. Repeat the last 2 steps for the next two triggers:

▪ Port Connectivity 1.
▪ Port Connectivity 2.

6. Click Save All.

We recommend keeping the Power On trigger.

7. On the KIT-401T rear panel, set both video DIP-switches 1 and 2 to ON (down),
(see Setting KIT-401T DIP-switches on page 14).

8. Power-cycle the device.

Auto-switching is disabled.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

47

Enabling Auto Switching

If the auto-switching was disabled (for example, by following the procedure described above),
you can enable it once again.

To enable the auto-switching:

1. On the KIT-401T rear panel, set both video DIP-switches 1 and 2 to Off (up),
(see Setting KIT-401T DIP-switches on page 14).

2. Power-cycle the device.

3. In the Navigation pane click Device Settings and perform Factory reset (see Performing

a Factory Reset on page 34).

4. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

5. Click Triggers. The Triggers area opens.

6. Select Last Off trigger.

7. In the Trigger area, next to Script to run, click Enabled.

8. Repeat the last 2 steps for the next two triggers:

▪ Port Connectivity 1.
▪ Port Connectivity 2.

9. Click Save All.

10. Make sure all 4 default triggers are enabled.

11. On the KIT-401T rear panel, set both video DIP-switches 1 and 2 to OFF (up)
(see Setting KIT-401T DIP-switches on page 14).

12. Power-cycle the device.

Auto-switching is enabled.

Operating via Room Automation Panel

You can control KIT-401 via any of Kramer’s touch panels (for example, KT-1010) which
include the Kramer Aware app.

KIT-401 enables performing the following actions:

• Viewing and carrying out actions via the control panel in the Automation Page.

• Editing the device control panel.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

48

Viewing and Executing Actions Via Device Control Panel

Before connecting to a designated touch panel, you can view the default control panel and
ensure the buttons are active and are suited for your needs.

To view and execute actions via the control panel:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab (by-default, in Action mode). The default KIT-401 Device Control
Panel appears.

Figure 32:Automation Page – Panel Tab

The resolution of the panel fits the designated touch-panel, therefore it appears in
large-scale.

3. Perform the following actions:

▪ Click All Off to turn the device on/off.
▪ Click Display On / Display Off to send a CEC command to the display on the

KIT-400R.

▪ Click HDMI 1, VGA and so on, to select an input.
▪ Click any of the default available buttons, as needed.

KIT-401 panel is viewed, and the relevant commands are carried out.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

49

Configuring the Device Control Panel

The default device control panel items can be configured to suit your needs. Each item on the
panel can be modified and new items can be added. The Edit Panel window includes a
display of the current device control panel, the properties area to the right, the Object List
below and three Add buttons to add new items to the panel next to the Object List.

The KIT-401T Device Panel Control Panel enables performing the following actions:

• Selecting Panel Model on page 50.

• Setting the Panel Background on page 51.

• Defining Panel Configuration Grid on page 51.

• Modifying a Button on page 51.

• Modifying Text on page 53.

• Modifying a Frame on page 55.

• Adding a New Button on page 56.

• Adding a New Text Field on page 58.

• Adding a New Frame on page 59.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

50

Selecting Panel Model

To select the panel model:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The default KIT-401 Device Control Panel appears (see Figure 32).

3. Click Edit. Edit Panel window appears, showing the General Properties area.

You can also access General Properties by clicking the background panel area.

Figure 33: Automation Page – Editing Panel Window

4. From Panel Model drop-down list (in General Properties), define the panel model.
If Custom is selected, set Panel Size (in pixels).

5. Click Save Changes.

Panel model is defined.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

51

Setting the Panel Background

You can select the background color and configure the background pattern.

To configure the panel background:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The default KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. Edit Panel window appears (see Figure 33).

4. In General Properties area set the Background Type:

▪ Solid – Click Background Color button to select the color.
▪ Gradient – Click Gradient color buttons to select the gradient.
▪ Pattern – Select the pattern colors, type, and sizes.
▪ Image – Click Upload Image button to select an image file.

Defining Panel Configuration Grid

The background grid helps align each configured item in the panel. You can show and hide
the grid and select its color for your convenience.

To define the grid:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The default KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. Edit Panel window appears (see Figure 33).

4. Click Show to show grid.

5. From Grid Type drop-down box, select the grid color.

The configuration grid is defined.

Modifying a Button

The default device control panel includes several buttons (for example, the Volume Up button)
that can be modified.

To modify a button:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. Edit Panel window appears (see Figure 33).

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

52

4. Click the relevant button (in this example, VolumeUp appears in the Object List).
Volume Up button is selected in the device control panel.

Figure 34: Edit Panel – Volume Up button Selected

The Properties (Button) and VolumeUp Object list appear:

Figure 35: Edit Panel – Properties (Button) Area

5. Next to VolumeUp, do any of the following:

▪ Click to remove the button.
▪ Click to duplicate the button.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

53

6. In the Properties (Button) area, perform any of the following actions:

▪ Click to copy the selected button properties (Fill, Icon Color, Label Size and Color

Border Color, Border Width and Color, and Border Radius).

▪ Click to paste button properties to a selected frame.
▪ Change the button name.
▪ Select the script to run when this button is pressed.
▪ Set the position of the button by moving the button (or by entering the x, y position).
▪ Enter button Size to change h and w button size (or use up/down arrows).
▪ Click the Fill color button to change the button color.
▪ Change the button Icon and select its Color.
▪ Click Show/Hide to show or hide the frame.
▪ Enter Border Width to change the button border width (or use up/down arrows).
▪ Click border Color button to select border color.
▪ Enter Border Radius to change the border edge radius (or use up/down arrows).

7. Click Save Changes.

This button is configured.

Modifying Text

The default control panel includes Text (for example, Presentation). You can modify a button,
using the Panel Edit tab.

To modify the text:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. Edit Panel window appears (see Figure 33).
(In this example, VolumeUp appears in the Object List).

4. Click the relevant Text Field, for example, Presentation (in this example, newTextField
appears in the Object List).

Figure 36: Edit Panel – Text Field Selected

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

54

The Properties (Text Field) and NewTextField Object list appear:

Figure 37: Edit Panel – Properties (Text Field) Area

5. Next to newTextField, do any of the following:

▪ Click to remove the text field.
▪ Click next to duplicate the text field.

6. In the Properties (Text Field) area, perform any of the following actions:

7. Perform any of the following actions:

▪ Click to copy the selected text field properties (Caption Size, Caption and Fill

Color, Border Width and Color, and Border Radius).

▪ Click to paste button properties to a selected Text Field.
▪ Change the text field name.
▪ Set the position of the button by moving the button (or by entering the x, y position).
▪ Enter the caption.
▪ Enter Caption Size (or use up/down arrows).
▪ Click the Caption and Fill colors to change them.
▪ Change the button Icon and select its Color.
▪ Click Border Color button to select border color.
▪ Enter Border Width to change the border width (or use up/down arrows).
▪ Enter Border Radius to change the border edge radius (or use up/down arrows).

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

55

8. Click Save Changes.

Presentation text field is configured.

Modifying a Frame

The default device control panel includes several frames (for example, the Video Frame) that
can be modified via the Edit Panel tab.

To modify a frame:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. Edit Panel window appears (see Figure 33).

4. Click the relevant frame (in this example, Video Frame appears in the Object List).
Video frame is selected in the control panel.

Figure 38: Edit Panel – Video Frame Selected

The Properties (Frame) and Video Frame Object list appear:

Figure 39: Edit Panel – Properties (Button) Area

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

56

5. Click next to Video Frame to remove the frame from the panel.

6. In the Properties (Frame) area, perform any of the following actions:

▪ Click to copy the selected frame properties (Fill, Border Color, Border Width and

Border Radius).

▪ Click to paste frame properties to a selected frame.
▪ Change the frame Name.
▪ Set the position of the frame by moving it (or by entering the x, y coordinates).
▪ Enter frame size (or click Size up/down arrows to change h and w frame size).
▪ Click the Fill color button to change the frame color.
▪ Click the Border Color button to change the border color.
▪ Enter Border Width to change the border width (or use up/down arrows).
▪ Enter Border Radius to change the border edge radius (or use up/down arrows).
▪ Click Show/Hide to show or hide the frame.

7. Click Save Changes.

The frame is configured.

Adding a New Button

The buttons in the device control panel are designed to carry out an assigned script to run
when that button is pressed.

To add a new button:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The default KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. The Edit panel appears (see Figure 33).

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

57

4. Click (add a button object) to add a new button to the panel. A new button is added
to the top left side of the panel.

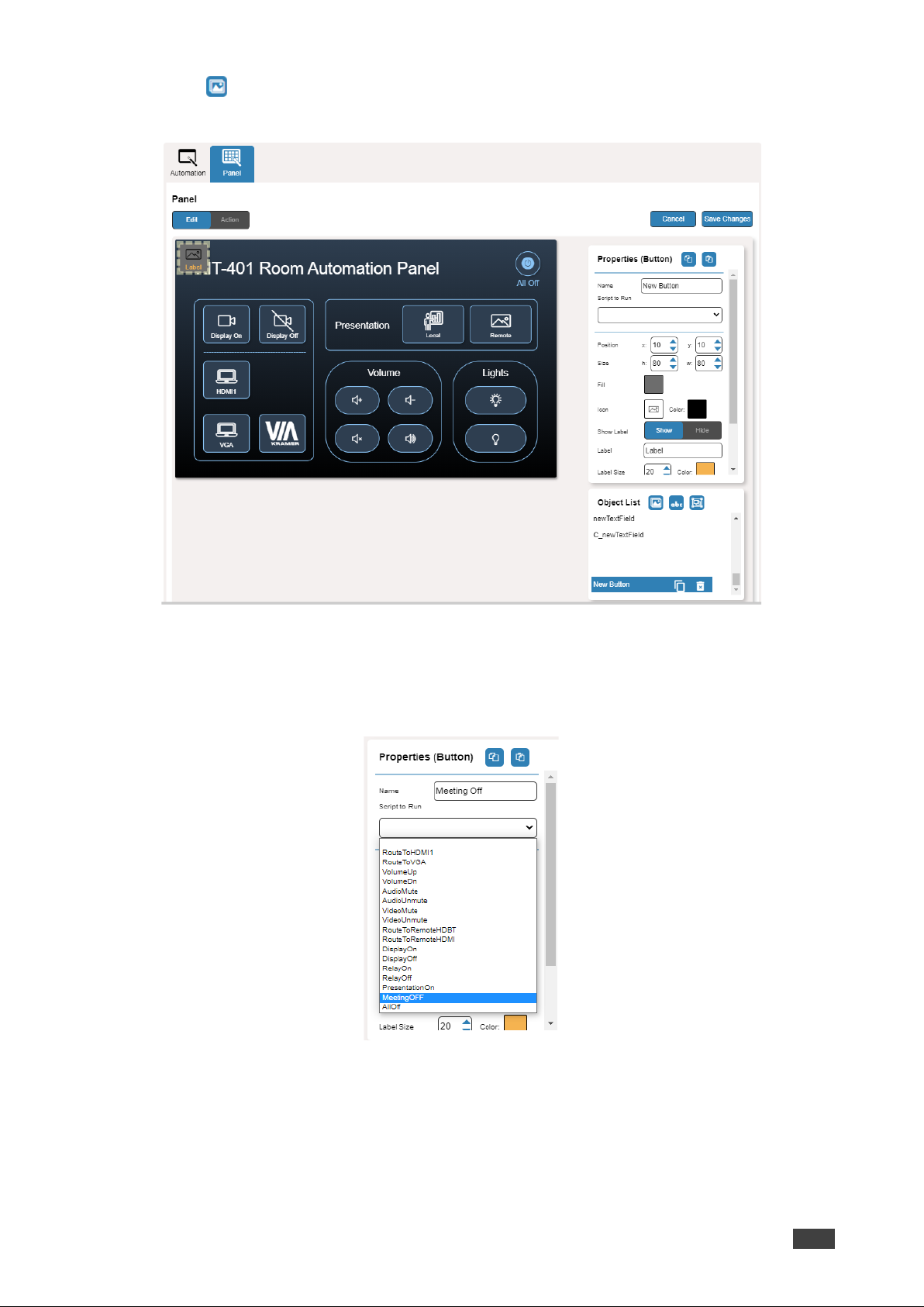

Figure 40: Adding a new Button

5. Enter the button name. For example, use “Meeting Off” to turn off the devices in the
room when a meeting ends.

6. Assign a script (for example, MeetingOFF) to this button from the drop-down list.

Figure 41: New Button – Assigning a Script

7. Design the button appearance by selecting the button:

▪ Position and size.
▪ Background fill.
▪ Icon and icon color.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

58

8. Click Show/Hide to show or hide the button.
When showing the Caption, define label text, size and color.

9. Enter the Label, label size and color.

10. Define the border width, color and radius.

11. Click Save Changes.

A new button is added.

Adding a New Text Field

The Text Field in the device control panel is designed to give a title to a group of buttons.

To add a new text field:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The default KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. The Edit panel appears (see Figure 33).

4. Click (add a text field) to add a new text field to the panel. A new text field is added
to the top left side of the panel.

Figure 42: Adding a new Text Field

5. Enter the text field name. For example, use “Meeting Space” to define meetings on/off
area.

6. Enter the text caption.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

59

7. Design the text field appearance by selecting its:

▪ Position and size.
▪ Caption color and background fill.
▪ Border width, color and radius.

8. Click Save Changes.

A new text field is added.

Adding a New Frame

The frame in the device control panel is designed to encircle a group of buttons.

To add a new frame:

1. In the Navigation pane, click Automation. The Automation page appears (see

Figure 30).

2. Click the Panel tab. The default KIT-401 Device Control Panel appears (see Figure 32).

3. Click EDIT. The Edit panel appears (see Figure 33).

4. Click (add a frame) to add a new frame to the panel. A new frame is added to the top
left side of the panel.

Figure 43: Adding a new Frame

5. Enter the frame name. For example, use “Meeting frame” to define meetings on/off area.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

60

6. Design the frame appearance by selecting its:

▪ Position and size.
▪ Border color and background fill.
▪ Border width and radius.

7. Click Show/Hide to show or hide the frame. When showing the Caption, define:

▪ Caption text and size.
▪ Caption text color, background color and border color.
▪ Caption offset.

8. Click Save Changes.

A new frame is added.

Managing EDID

You can copy EDID to any of the inputs in any of the following ways:

• Copying EDID from an Output on page 61.

• Copying EDID from an Input on page 64.

• Copying Default EDID on page 66.

• Loading a Custom EDID File on page 66.

You can also load a customized EDID file from your PC.
The selected EDID can be copied to the selected input/s.

View the currently selected EDID source Bytemap by clicking Bytemap on the right side.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

61

Copying EDID from an Output

To copy an EDID from an output to an input:

1. In the Navigation pane, click EDID Management. The EDID Management page
appears.

Figure 44: EDID Management Page

2. Under Read from, select Output 1 if not selected.

Make sure that that output is connected to an acceptor.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

62

3. Select the input/s (or all the inputs) to which the EDID is to be copied (for example, Input
1 and Input 2).

Figure 45: EDID Management Page – Select the Inputs (Copy to)

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

63

4. Click COPY.
The Output 1 EDID is copied to the selected inputs.

Figure 46: EDID Management Page – EDID Copied from Output

EDID is copied from the output to the selected input/s.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

64

Copying EDID from an Input

To copy an EDID from an input to an input:

1. In the Navigation pane, click EDID Management. The EDID Management page appears
(see Figure 44).

2. Under Read from Input, select an input (for example, Input 1).

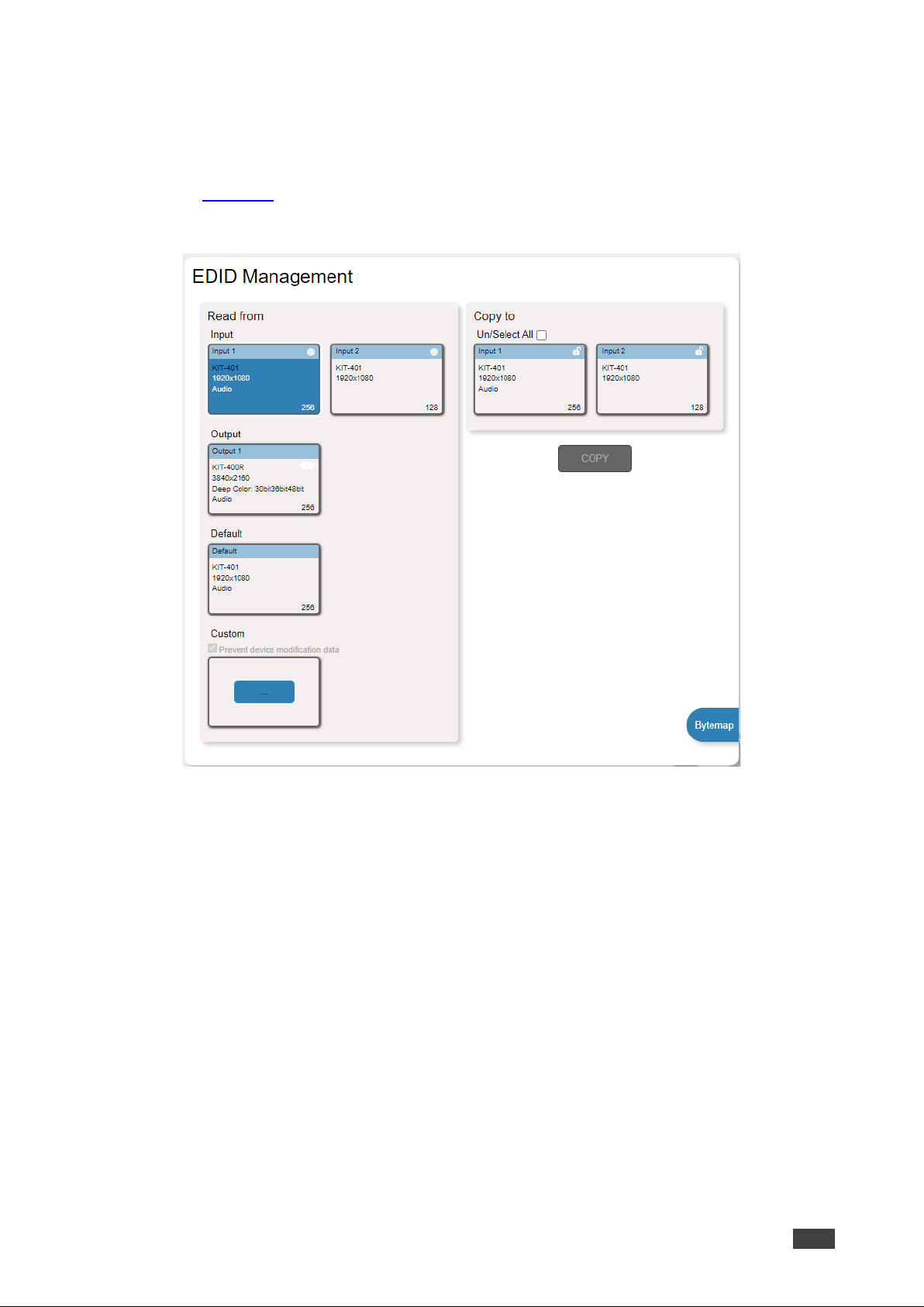

Figure 47: EDID Management Page – Copy from Input

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

65

3. Select the input/s to which the EDID is to be copied (for example, Input 2).

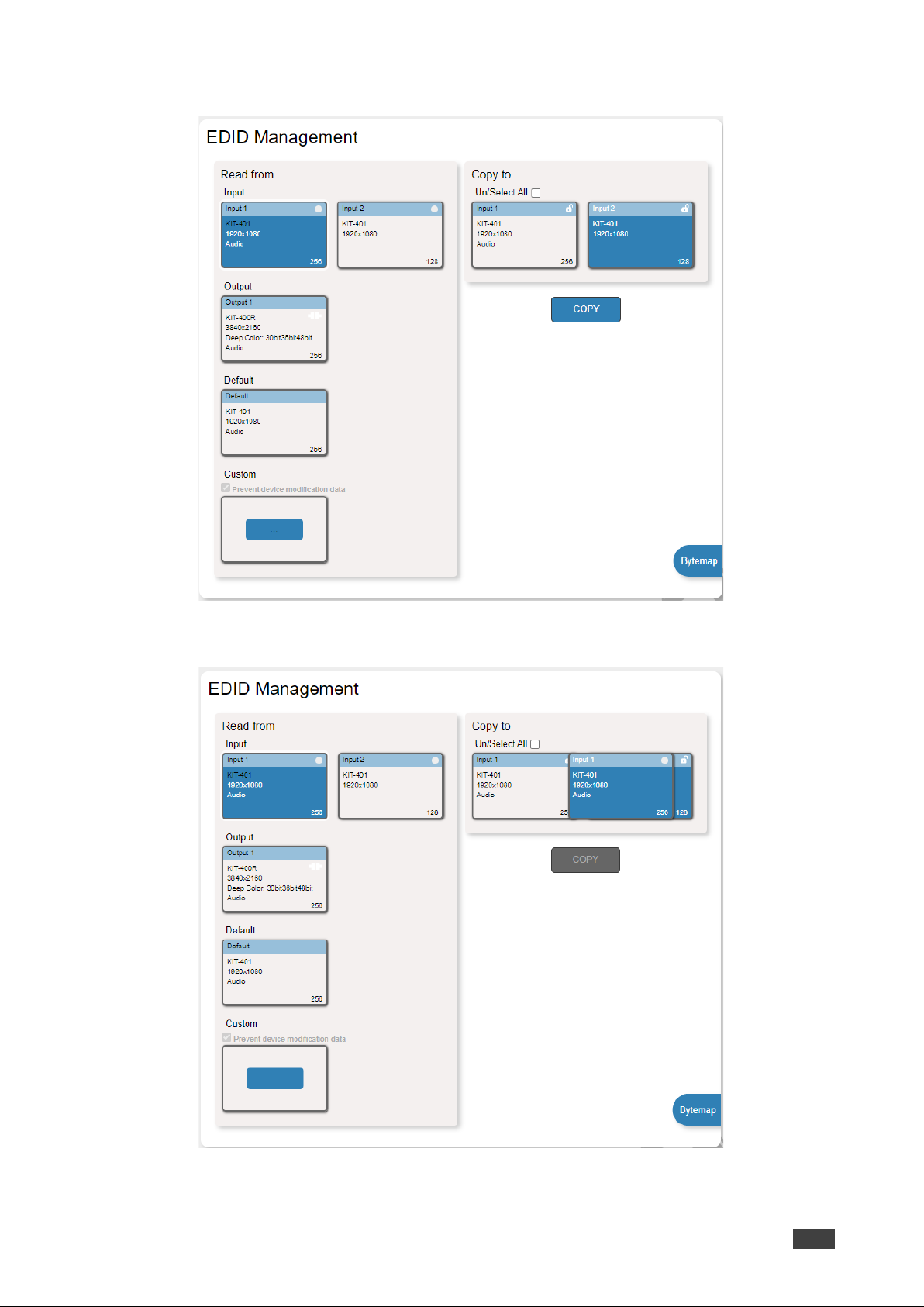

Figure 48: EDID Management Page – Select an EDID Input (Read From)

4. Click COPY.

Figure 49: EDID Management Page – EDID Copied from Input

EDID is copied from a selected input to the selected input/s.

Kramer Electronics Ltd.

KIT-401 – Using Embedded Webpages

66

Copying Default EDID

To read the EDID from the default EDID:

1. In the Navigation pane, click EDID. The EDID Management page appears (see Figure

44).

2. Click Default.

3. Select the input/s (or all the inputs) to which the default EDID is to be copied.

4. Click Copy and follow the instructions on-screen.

Default EDID is copied to the selected inputs.

Loading a Custom EDID File

To load a custom EDID file:

1. In the Navigation pane, click EDID. The EDID Management page appears (see Figure

44).

2. In the File area click custom button.

3. Select the EDID file.

4. Select the input/s (or all the inputs) to which the EDID is copied.

5. Click Copy and follow the instructions on-screen.

Custom EDID is copied to the selected inputs.

Viewing About Page

The KIT-401T About page lets you view the Webpage version and Kramer Electronics Ltd
details.

Figure 50: About Page

Kramer Electronics Ltd.

KIT-401 – Upgrading Firmware

67

Upgrading Firmware

This section describes the following update procedures:

• Upgrading KIT-401T on page 67.

• Upgrading KIT-400R on page 67.

Upgrading KIT-401T

Upgrade KIT-401T via:

• The KIT-401T webpages (see Upgrading the Firmware on page 37).

• K-UPLOAD software (Upgrading KIT-401T via K-UPLOAD on page 67).

Upgrading KIT-401T via K-UPLOAD

Use the Kramer K-UPLOAD software to upgrade the firmware via the KIT-401T PROG micro
USB port or via Ethernet.

The latest version of K-UPLOAD and installation instructions can be downloaded from our
website at: www.kramerav.com/support/product_downloads.asp.

Note that in order to use the micro USB port, you need to install the Kramer USB driver,
available at: www.kramerav.com/support/product_downloads.asp.

Upgrading KIT-400R

KIT-400R can be upgraded via a memory stick.

To upgrade KIT-400R firmware:

1. Save the new firmware xxx.bin file to the parent directory on a memory stick.

The memory stick should only include this file.

2. Power the device.

3. Make sure that a display is connected to the device.

4. Plug the memory stick into the PROG USB port on the device front panel.

5. Press and hold both the MENU button and the ENTER button until input LEDs flash and
then release.
Firmware upgrade is now in process. During upgrade, the LEDs flash and once
complete, one of the INPUT LEDs turns on and a signal bar appears on the output.

6. Check that the OSD Information screen shows the latest FW version.

7. In the OSD, go to FACTORY menu, press ENTER, select RESET ALL and press

ENTER again.

KIT-400R is updated.

1

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

68

Technical Specifications

KIT-401T

Inputs
1 HDMI

On female HDMI connector

1 VGA

On a 15-pin HD connector

1 Unbalanced Stereo Audio

On a 3.5mm mini jack

Outputs

1 HDBaseT

On an RJ-45 connector

1 Unbalanced Stereo Audio

On a 3.5mm mini jack

Ports

1 Ethernet

On an RJ-45 connector

1 Control RS-232

On a 3-pin terminal block connector

1 Data RS-232

On a 3-pin terminal block connector

1 Remote Contact-Closure

On a 4-pin terminal block connector

1 Service USB

On a mini-USB connector for firmware
upgrade

KIT-400R

Inputs

1 HDBaseT

On an RJ-45 connector

1 HDMI

On female HDMI connectors

Outputs

1 HDMI

On female HDMI connectors

1 Balanced Audio

On a 5-pin terminal block connector

Ports

1 Control RS-232

On a 3-pin terminal block connector

1 Data RS-232

On a 3-pin terminal block connector

1 Remote Contact-Closure

On a 4-pin terminal block connector

1 Relay

On a 3-pin terminal block connector

1 Program USB

On a USB-A connector for firmware upgrade

KIT-401T and KIT-400R

Video

Max Data Rate (on the HDMI ports)

KIT-400R: 18Gbps
KIT-401T: 10.2Gbps

Max Resolution (on HDMI ports)

KIT-400R: 4K@60Hz (4:4:4)
KIT-401T: 4K@60Hz (4:2:0)

HDMI Support

4K60, CEC, xvYCC color

Content Protection

KIT-400R: HDCP 1.4 and 2.2
KIT-401T: HDCP 1.4

Extension Line
Up to 40m (130ft)

At 4K@60Hz (4:2:0)

Up to 70m (230ft)

At full HD (1080p@60Hz)

Extended RS-232

Baud Rate

300 to 115200

User Interface
Controls

Input select button, DIP-switches, remote
contact-closure switches, relay switches.
Kramer API via
RS-232 serial commands transmitted by a
PC, touch screen system or other serial
controller, embedded webpages via LAN for
configuration and control

Indicators

Power, link, input selection LEDs

Power
Consumption

12V DC, 2.2A

Source

12V DC, 5A

Environmental
Conditions

Operating Temperature

0° to +40°C (32° to 104°F)

Storage Temperature

-40° to +70°C (-40° to 158°F)

Humidity

10% to 90%, RHL non-condensing

Standards
Compliance

Safety

CE, FCC

Environmental

RoHs, WEEE

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

69

Enclosure

Size

KIT-401T: 2 Gang wall-plate
KIT-400R: MegaTOOLS®

Type

Aluminum

Cooling

Convection Ventilation

General

Net Dimensions (W, D, H)

KIT-401T: 2 Gang (EU or US)
KIT-400R: 18.8cm x 14.5cm x 2.5cm

(7.38" x 5.7" x 1.00")

Shipping Dimensions (W, D, H)

19.4cm x 27.2cm x 11.3cm
(7.6" x 10.7" x 4.4")

Net Weight

KIT-401: 0.8kg (1.8lbs)

Shipping Weight

KIT-401: 1.7kg (3.7lbs)

Accessories

Included

1 Power adapter, cable adapter and cord, 4
rubber feet, 2 bracket sets (for KIT-400R), 1
frame or frame kit and installation accessories
(for KIT-401T)

Specifications are subject to change without notice at www.kramerav.com

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

70

Default Communication Parameters

RS-232

Baud Rate:

115,200

Data Bits:

8

Stop Bits:

1

Parity:

None

Command Format:

ASCII

Example (route video IN 2 to video HDBT OUT):

#ROUTE1,1,2<CR>

Ethernet

To reset the IP settings to the factory reset values go to: Menu->Setup -> Factory Reset-> press Enter to
confirm

IP Address:

192.168.1.39

Subnet mask:

255.255.0.0

Default gateway:

192.168.0.1

Default TCP Port #:

5000

Default UDP Port #:

50000

Default username:

Admin

Default password:

Admin

Full Factory Reset

Front panel:

There is no option for factory reset from front panel.

Protocol 3000:

“#factory” command.

Webpages:

Device Settings page, Soft Factory Reset resets all parameters to factory default except
for network parameters.

KIT-400R Output Resolution Support

KIT-400R supports the following resolutions.

640x480 @60Hz

1600x1200 @60Hz

3440x1440 @30Hz

1920x1080P @50Hz

800x600 @60Hz

1680x1050 @60Hz

3440x1440 @60Hz

1920x1080P @60Hz

1024x768 @60Hz

1920x1200 @60Hz RB

720x480P @60Hz

2560x1080P @50Hz

1280x768 @60Hz

2560x1600 @60Hz RB

720x576P @50Hz

2560x1080P @60Hz

1280x800 @60Hz

1920x1080 @60Hz

1280x720P @50Hz

3840x2160P @24Hz

1280x1024 @60Hz

1280x720 @60Hz

1280x720P @60Hz

3840x2160P @25Hz

1360x768 @60Hz

2048x1080 @50Hz

1920x1080P @24Hz

3840x2160P @30Hz

1400x1050 @60Hz

2048x1080 @60Hz

1920x1080P @25Hz

3840x2160P @50Hz

1440x900 @60Hz

2560x1440 @60Hz RB

1920x1080P @30Hz

3840x2160P @60Hz

Default EDID

This section includes the:

• KIT-401T Default EDID on page 71.

• KIT-400R Default EDID for HDMI on page 72.

• KIT-400R Default EDID for HDBT on page 74.

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

71

KIT-401T Default EDID

Monitor

Model name............... KIT-401

Manufacturer............. KMR

Plug and Play ID......... KMR1200

Serial number............ n/a

Manufacture date......... 2015, ISO week 255

Filter driver............ None

-------------------------

EDID revision............ 1.3

Input signal type........ Digital

Color bit depth.......... Undefined

Display type............. RGB color

Screen size.............. 520 x 320 mm (24.0 in)

Power management......... Standby, Suspend, Active off/sleep

Extension blocs.......... 1 (CEA-EXT)

-------------------------

DDC/CI................... n/a

Color characteristics

Default color space...... Non-sRGB

Display gamma............ 2.20

Red chromaticity......... Rx 0.674 - Ry 0.319

Green chromaticity....... Gx 0.188 - Gy 0.706

Blue chromaticity........ Bx 0.148 - By 0.064

White point (default).... Wx 0.313 - Wy 0.329

Additional descriptors... None

Timing characteristics

Horizontal scan range.... 30-83kHz

Vertical scan range...... 56-76Hz

Video bandwidth.......... 170MHz

CVT standard............. Not supported

GTF standard............. Not supported

Additional descriptors... None

Preferred timing......... Yes

Native/preferred timing.. 1920x1080p at 60Hz (16:10)

Modeline............... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync

Detailed timing #1....... 1280x720p at 60Hz (16:10)

Modeline............... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync

Standard timings supported
720 x 400p at 70Hz - IBM VGA
720 x 400p at 88Hz - IBM XGA2
640 x 480p at 60Hz - IBM VGA
640 x 480p at 67Hz - Apple Mac II
640 x 480p at 72Hz - VESA
640 x 480p at 75Hz - VESA
800 x 600p at 56Hz - VESA
800 x 600p at 60Hz - VESA
800 x 600p at 72Hz - VESA
800 x 600p at 75Hz - VESA
832 x 624p at 75Hz - Apple Mac II
1024 x 768i at 87Hz - IBM
1024 x 768p at 60Hz - VESA
1024 x 768p at 70Hz - VESA
1024 x 768p at 75Hz - VESA
1280 x 1024p at 75Hz - VESA
1152 x 870p at 75Hz - Apple Mac II
1280 x 1024p at 75Hz - VESA STD
1280 x 1024p at 85Hz - VESA STD
1600 x 1200p at 60Hz - VESA STD
1024 x 768p at 85Hz - VESA STD
800 x 600p at 85Hz - VESA STD
640 x 480p at 85Hz - VESA STD
1152 x 864p at 70Hz - VESA STD
1280 x 960p at 60Hz - VESA STD

EIA/CEA-861 Information

Revision number.......... 3

IT underscan............. Supported

Basic audio.............. Supported

YCbCr 4:4:4.............. Supported

YCbCr 4:2:2.............. Supported

Native formats........... 1

Detailed timing #1....... 1920x1080p at 60Hz (16:10)

Modeline............... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync

Detailed timing #2....... 1920x1080i at 60Hz (16:10)

Modeline............... "1920x1080" 74.250 1920 2008 2052 2200 1080 1084 1094 1124 interlace +hsync +vsync

Detailed timing #3....... 1280x720p at 60Hz (16:10)

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

72

Modeline............... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync

Detailed timing #4....... 720x480p at 60Hz (16:10)

Modeline............... "720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync

CE audio data (formats supported)
LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz

CE video identifiers (VICs) - timing/formats supported
1920 x 1080p at 60Hz - HDTV (16:9, 1:1) [Native]
1920 x 1080i at 60Hz - HDTV (16:9, 1:1)
1280 x 720p at 60Hz - HDTV (16:9, 1:1)
720 x 480p at 60Hz - EDTV (16:9, 32:27)
720 x 480p at 60Hz - EDTV (4:3, 8:9)
720 x 480i at 60Hz - Doublescan (16:9, 32:27)
720 x 576i at 50Hz - Doublescan (16:9, 64:45)
640 x 480p at 60Hz - Default (4:3, 1:1)
NB: NTSC refresh rate = (Hz*1000)/1001

CE vendor specific data (VSDB)
IEEE registration number. 0x000C03

CEC physical address..... 1.0.0.0

Maximum TMDS clock....... 165MHz

CE speaker allocation data

Channel configuration.... 2.0

Front left/right......... Yes

Front LFE................ No

Front center............. No

Rear left/right.......... No

Rear center.............. No

Front left/right center.. No
Rear left/right center... No

Rear LFE................. No

Report information

Date generated........... 11/3/2020

Software revision........ 2.60.0.972

Data source.............. File - NB: improperly installed

Operating system......... 6.2.9200.2

Raw data
00,FF,FF,FF,FF,FF,FF,00,2D,B2,00,12,00,00,00,00,FF,19,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26,
10,50,54,FF,FF,80,81,8F,81,99,A9,40,61,59,45,59,31,59,71,4A,81,40,02,3A,80,18,71,38,2D,40,58,2C,
45,00,07,44,21,00,00,1E,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,00,00,00,FC,00,4B,
49,54,2D,34,30,30,0A,20,20,20,20,20,01,1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,01,83,
02,03,1B,F1,23,09,07,07,48,90,05,04,03,02,07,16,01,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71,
38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01,
1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21,
00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47

KIT-400R Default EDID for HDMI

Monitor

Model name............... KIT-400R

Manufacturer............. KMR

Plug and Play ID......... KMR060D

Serial number............ 49

Manufacture date......... 2018, ISO week 6

Filter driver............ None

-------------------------

EDID revision............ 1.3

Input signal type........ Digital

Color bit depth.......... Undefined

Display type............. Monochrome/grayscale

Screen size.............. 360 x 360 mm (20.0 in)

Power management......... Standby, Suspend

Extension blocs.......... 1 (CEA-EXT)

-------------------------

DDC/CI................... n/a

Color characteristics

Default color space...... Non-sRGB

Display gamma............ 2.40

Red chromaticity......... Rx 0.611 - Ry 0.329

Green chromaticity....... Gx 0.313 - Gy 0.559

Blue chromaticity........ Bx 0.148 - By 0.131

White point (default).... Wx 0.320 - Wy 0.336

Additional descriptors... None

Timing characteristics

Horizontal scan range.... 15-136kHz

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

73

Vertical scan range...... 23-61Hz

Video bandwidth.......... 600MHz

CVT standard............. Not supported

GTF standard............. Not supported

Additional descriptors... None

Preferred timing......... Yes

Native/preferred timing.. 3840x2160p at 60Hz (16:9)

Modeline............... "3840x216 0 " 594.000 3840 4016 4104 4400 2160 2168 2178 2250 +hsync +vsync

Detailed timing #1....... 1920x1080p at 60Hz (16:9)

Modeline............... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync

Standard timings supported
640 x 480p at 60Hz - IBM VGA
640 x 480p at 72Hz - VESA
640 x 480p at 75Hz - VESA
800 x 600p at 56Hz - VESA
800 x 600p at 60Hz - VESA
800 x 600p at 72Hz - VESA
800 x 600p at 75Hz - VESA
1024 x 768p at 60Hz - VESA
1024 x 768p at 70Hz - VESA
1024 x 768p at 75Hz - VESA
1280 x 1024p at 75Hz - VESA
1600 x 1200p at 60Hz - VESA STD
1280 x 1024p at 60Hz - VESA STD
1400 x 1050p at 60Hz - VESA STD
1920 x 1080p at 60Hz - VESA STD
640 x 480p at 85Hz - VESA STD
800 x 600p at 85Hz - VESA STD
1024 x 768p at 85Hz - VESA STD
1280 x 1024p at 85Hz - VESA STD

EIA/CEA-861 Information

Revision number.......... 3

IT underscan............. Supported

Basic audio.............. Supported

YCbCr 4:4:4.............. Supported

YCbCr 4:2:2.............. Supported

Native formats........... 0

Detailed timing #1....... 1440x900p at 60Hz (16:10)

Modeline............... "144 0 x90 0 " 106.500 1440 1520 1672 1904 900 903 909 934 -hsync +vsync

Detailed timing #2....... 1366x768p at 60Hz (16:9)

Modeline............... "1366x768" 85.500 1366 1436 1579 1792 768 771 774 798 +hsync +vsync

Detailed timing #3....... 1920x1200p at 60Hz (16:10)

Modeline............... "1920x1200" 154.000 1920 1968 2000 2080 1200 1203 1209 1235 +hsync -vsync

CE video identifiers (VICs) - timing/formats supported
1920 x 1080p at 60Hz - HDTV (16:9, 1:1)
1920 x 1080p at 50Hz - HDTV (16:9, 1:1)
1280 x 720p at 60Hz - HDTV (16:9, 1:1)
1280 x 720p at 50Hz - HDTV (16:9, 1:1)
1920 x 1080i at 60Hz - HDTV (16:9, 1:1)
1920 x 1080i at 50Hz - HDTV (16:9, 1:1)
720 x 480p at 60Hz - EDTV (4:3, 8:9)
720 x 576p at 50Hz - EDTV (4:3, 16:15)
720 x 480i at 60Hz - Doublescan (4:3, 8:9)
720 x 576i at 50Hz - Doublescan (4:3, 16:15)
1920 x 1080p at 30Hz - HDTV (16:9, 1:1)
1920 x 1080p at 25Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
NB: NTSC refresh rate = (Hz*1000)/1001

CE audio data (formats supported)
LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz

CE speaker allocation data

Channel configuration.... 2.0

Front left/right......... Yes

Front LFE................ No

Front center............. No

Rear left/right.......... No

Rear center.............. No

Front left/right center.. No
Rear left/right center... No

Rear LFE................. No

CE vendor specific data (VSDB)

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

74

IEEE registration number. 0x000C03

CEC physical address..... 1.0.0.0

Supports AI (ACP, ISRC).. No

Supports 48bpp........... Yes

Supports 36bpp........... Yes

Supports 30bpp........... Yes

Supports YCbCr 4:4:4..... Yes

Supports dual-link DVI... No

Maximum TMDS clock....... 300MHz

Audio/video latency (p).. n/a
Audio/video latency (i).. n/a
HDMI video capabilities.. Yes

EDID screen size......... No additional info

3D formats supported..... Not supported

Data payload............. 030C001000783C20008001020304

CE vendor specific data (VSDB)
IEEE registration number. 0xC45DD8

CEC physical address..... 0.1.7.8

Supports AI (ACP, ISRC).. Yes

Supports 48bpp........... No

Supports 36bpp........... No

Supports 30bpp........... No

Supports YCbCr 4:4:4..... No

Supports dual-link DVI... No

Maximum TMDS clock....... 35MHz

Reserved video related data

Data payload............. 0F000003

Report information

Date generated........... 11/3/2020

Software revision........ 2.60.0.972

Data source.............. File - NB: improperly installed

Operating system......... 6.2.9200.2

Raw data
00,FF,FF,FF,FF,FF,FF,00,2D,B2,0D,06,31,00,00,00,06,1C,01,03,80,24,24,8C,C2,90,20,9C,54,50,8F,26,
21,52,56,2F,CF,00,A9,40,81,80,90,40,D1,C0,31,59,45,59,61,59,81,99,08,E8,00,30,F2,70,5A,80,B0,58,
8A,00,BA,88,21,00,00,1E,02,3A,80,18,71,38,2D,40,58,2C,45,00,BA,88,21,00,00,1E,00,00,00,FC,00,4B,
49,54,2D,34,30,30,52,0A,20,20,20,20,00,00,00,FD,00,17,3D,0F,88,3C,00,0A,20,20,20,20,20,20,01,E1,
02,03,3B,F0,52,10,1F,04,13,05,14,02,11,06,15,22,21,20,5D,5E,5F,60,61,23,09,07,07,83,01,00,00,6E,
03,0C,00,10,00,78,3C,20,00,80,01,02,03,04,67,D8,5D,C4,01,78,80,07,E4,0F,00,00,03,9A,29,A0,D0,51,
84,22,30,50,98,36,00,10,0A,00,00,00,1C,66,21,56,AA,51,00,1E,30,46,8F,33,00,10,09,00,00,00,1E,28,
3C,80,A0,70,B0,23,40,30,20,36,00,10,0A,00,00,00,1A,00,00,00,00,00,00,00,00,00,00,00,00,00,00,E0

KIT-400R Default EDID for HDBT

Monitor

Model name............... KIT-400R

Manufacturer............. KMR

Plug and Play ID......... KMR031D

Serial number............ 49

Manufacture date......... 2018, ISO week 6

Filter driver............ None

-------------------------

EDID revision............ 1.3

Input signal type........ Digital

Color bit depth.......... Undefined

Display type............. Monochrome/grayscale

Screen size.............. 360 x 360 mm (20.0 in)

Power management......... Standby, Suspend, Active off/sleep

Extension blocs.......... 1 (CEA-EXT)

-------------------------

DDC/CI................... n/a

Color characteristics

Default color space...... Non-sRGB

Display gamma............ 2.40

Red chromaticity......... Rx 0.611 - Ry 0.329

Green chromaticity....... Gx 0.313 - Gy 0.559

Blue chromaticity........ Bx 0.148 - By 0.131

White point (default).... Wx 0.320 - Wy 0.336

Additional descriptors... None

Timing characteristics

Horizontal scan range.... 15-136kHz

Vertical scan range...... 23-61Hz

Video bandwidth.......... 300MHz

CVT standard............. Not supported

GTF standard............. Not supported

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

75

Additional descriptors... None

Preferred timing......... Yes

Native/preferred timing.. 3840x2160p at 30Hz (16:9)

Modeline............... "3840x2160" 297.000 3840 4016 4104 4400 2160 2168 2178 2250 +hsync +vsync

Detailed timing #1....... 1920x1080p at 60Hz (16:9)

Modeline............... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync

Standard timings supported
640 x 480p at 60Hz - IBM VGA
640 x 480p at 72Hz - VESA
640 x 480p at 75Hz - VESA
800 x 600p at 56Hz - VESA
800 x 600p at 60Hz - VESA
800 x 600p at 72Hz - VESA
800 x 600p at 75Hz - VESA
1024 x 768p at 60Hz - VESA
1024 x 768p at 70Hz - VESA
1024 x 768p at 75Hz - VESA
1280 x 1024p at 75Hz - VESA
1600 x 1200p at 60Hz - VESA STD
1280 x 1024p at 60Hz - VESA STD
1400 x 1050p at 60Hz - VESA STD
1920 x 1080p at 60Hz - VESA STD
640 x 480p at 85Hz - VESA STD
800 x 600p at 85Hz - VESA STD
1024 x 768p at 85Hz - VESA STD
1280 x 1024p at 85Hz - VESA STD

EIA/CEA-861 Information

Revision number.......... 3

IT underscan............. Supported

Basic audio.............. Supported

YCbCr 4:4:4.............. Supported

YCbCr 4:2:2.............. Supported

Native formats........... 0

Detailed timing #1....... 1440x900p at 60Hz (16:10)

Modeline............... "1440x900" 106.500 1440 1520 1672 1904 900 903 909 934 -hsync +vsync

Detailed timing #2....... 1366x768p at 60Hz (16:9)

Modeline............... "1366x768" 85.500 1366 1436 1579 1792 768 771 774 798 +hsync +vsync

Detailed timing #3....... 1920x1200p at 60Hz (16:10)

Modeline............... "1920x1200" 154.000 1920 1968 2000 2080 1200 1203 1209 1235 +hsync -vsync

CE video identifiers (VICs) - timing/formats supported
1920 x 1080p at 60Hz - HDTV (16:9, 1:1)
1920 x 1080p at 50Hz - HDTV (16:9, 1:1)
1280 x 720p at 60Hz - HDTV (16:9, 1:1)
1280 x 720p at 50Hz - HDTV (16:9, 1:1)
1920 x 1080i at 60Hz - HDTV (16:9, 1:1)
1920 x 1080i at 50Hz - HDTV (16:9, 1:1)
720 x 480p at 60Hz - EDTV (4:3, 8:9)
720 x 576p at 50Hz - EDTV (4:3, 16:15)
720 x 480i at 60Hz - Doublescan (4:3, 8:9)
720 x 576i at 50Hz - Doublescan (4:3, 16:15)
1920 x 1080p at 30Hz - HDTV (16:9, 1:1)
1920 x 1080p at 25Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
1920 x 1080p at 24Hz - HDTV (16:9, 1:1)
NB: NTSC refresh rate = (Hz*1000)/1001

CE audio data (formats supported)
LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz

CE speaker allocation data

Channel configuration.... 2.0

Front left/right......... Yes

Front LFE................ No

Front center............. No

Rear left/right.......... No

Rear center.............. No

Front left/right center.. No
Rear left/right center... No

Rear LFE................. No

CE vendor specific data (VSDB)
IEEE registration number. 0x000C03

CEC physical address..... 1.0.0.0

Supports AI (ACP, ISRC).. No

Supports 48bpp........... Yes

Supports 36bpp........... Yes

Supports 30bpp........... Yes

Kramer Electronics Ltd.

KIT-401 – Technical Specifications

76

Supports YCbCr 4:4:4..... Yes

Supports dual-link DVI... No

Maximum TMDS clock....... 300MHz

Audio/video latency (p).. n/a
Audio/video latency (i).. n/a
HDMI video capabilities.. Yes

EDID screen size......... No additional info

3D formats supported..... Not supported

Data payload............. 030C001000783C20008001020304

Reserved video related data

Data payload............. 0E6160

Report information

Date generated........... 11/3/2020

Software revision........ 2.60.0.972

Data source.............. File - NB: improperly installed

Operating system......... 6.2.9200.2

Raw data
00,FF,FF,FF,FF,FF,FF,00,2D,B2,1D,03,31,00,00,00,06,1C,01,03,80,24,24,8C,E2,90,20,9C,54,50,8F,26,
21,52,56,2F,CF,00,A9,40,81,80,90,40,D1,C0,31,59,45,59,61,59,81,99,04,74,00,30,F2,70,5A,80,B0,58,
8A,00,BA,88,21,00,00,1E,02,3A,80,18,71,38,2D,40,58,2C,45,00,BA,88,21,00,00,1E,00,00,00,FC,00,4B,
49,54,2D,34,30,30,52,0A,20,20,20,20,00,00,00,FD,00,17,3D,0F,88,1E,00,0A,20,20,20,20,20,20,01,4A,
02,03,30,F0,50,10,1F,04,13,05,14,02,11,06,15,22,21,20,5D,5E,5F,23,09,07,07,83,01,00,00,6E,03,0C,
00,10,00,78,3C,20,00,80,01,02,03,04,E3,0E,61,60,9A,29,A0,D0,51,84,22,30,50,98,36,00,10,0A,00,00,
00,1C,66,21,56,AA,51,00,1E,30,46,8F,33,00,10,09,00,00,00,1E,28,3C,80,A0,70,B0,23,40,30,20,36,00,
10,0A,00,00,00,1A,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,52

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

77

Protocol 3000

• Understanding Protocol 3000 on page 77.

• Protocol 3000 Commands on page 78.

• Result and Error Codes on page 94.

Kramer devices can be operated using Kramer Protocol 3000 commands sent via serial or
Ethernet ports.

Understanding Protocol 3000

Protocol 3000 commands are a sequence of ASCII letters, structured according to the
following.

• Command format:

Prefix

Command Name

Constant (Space)

Parameter(s)

Suffix

#

Command



Parameter

<CR>

• Feedback format:

Prefix

Device ID

Constant

Command Name

Parameter(s)

Suffix

~

nn

@

Command

Parameter

<CR><LF>

• Command parameters – Multiple parameters must be separated by a comma (,). In
addition, multiple parameters can be grouped as a single parameter using brackets
([ and ]).

• Command chain separator character – Multiple commands can be chained in the
same string. Each command is delimited by a pipe character (|).

• Parameters attributes – Parameters may contain multiple attributes. Attributes are
indicated with pointy brackets (<…>) and must be separated by a period (.).

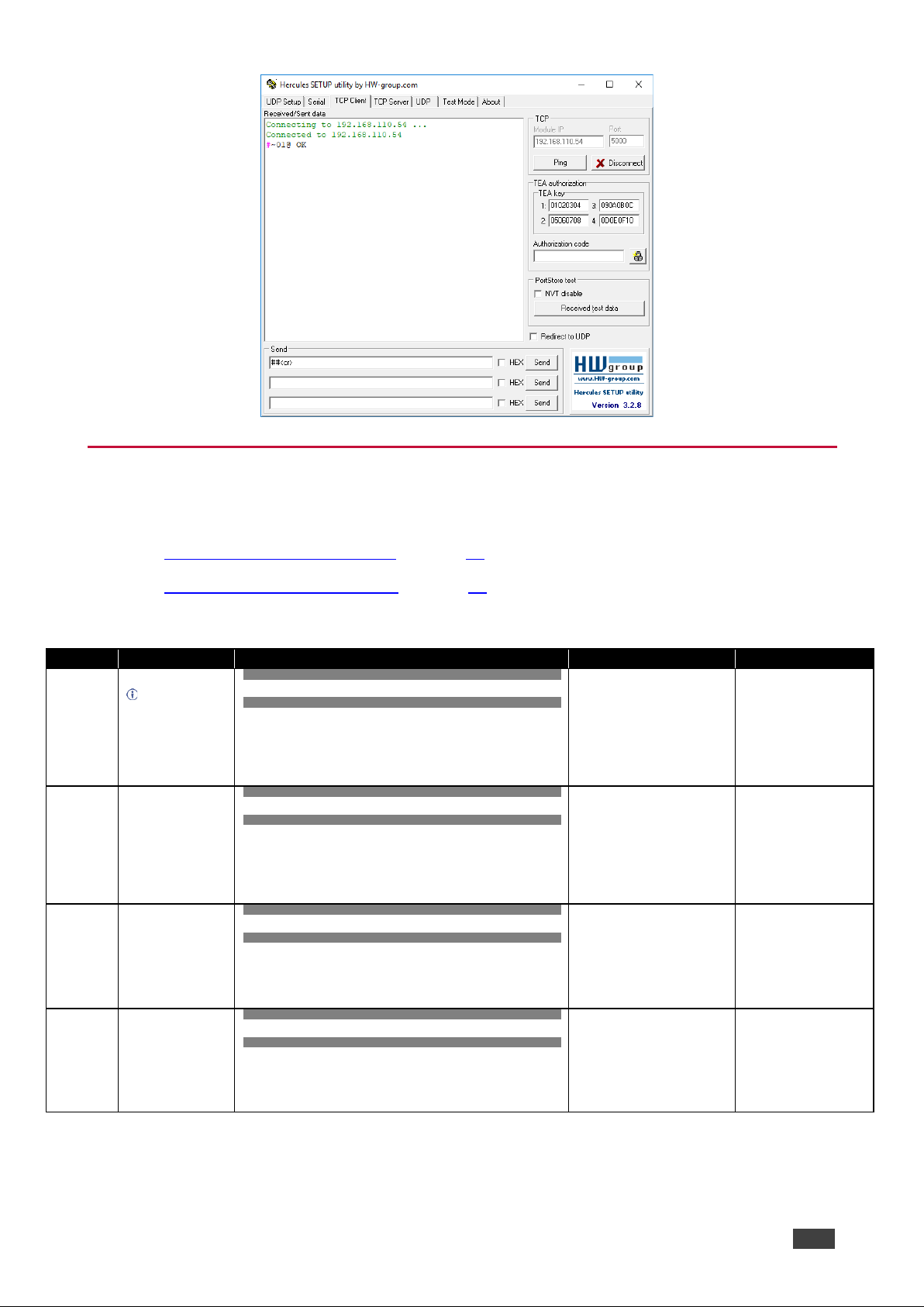

The command framing varies according to how you interface with KIT-401. The following
figure displays how the # command is framed using terminal communication software (such
as Hercules):

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

78

Protocol 3000 Commands

This section includes the:

• KIT-401T Protocol Commands on page 78.

• KIT-400R Protocol Commands on page 87.

KIT-401T Protocol Commands

Function

Description

Syntax

Parameters/Attributes

Example

#

Protocol handshaking.

Validates the
Protocol 3000
connection and gets the
machine number.

Step-in master products
use this command to
identify the availability
of a device.

COMMAND

#<CR>

FEEDBACK

~nn@ok<CR><LF>

#<CR>

AUD-EMB?

Get audio in video
embedding status.

COMMAND

#AUD-EMB? in_index,out_index<CR>

FEEDBACK

~nn@AUD-EMB in_index,out_index,emb_mode<CR><LF>

in_index – Number that indicates

the specific input:

1 – IN 1
2 – IN 2

out_index – Number that

indicates the specific output:

1 – HDBT OUT

emb_mode – Embedding status

0 – Analog
1 – Embedded

Get IN 1 audio embedding
status:

#AUD-EMB? 1,1<CR>

AUD-LVL

Set volume level.

COMMAND

#AUD-LVL io_mode, io_index,vol_level<CR>

FEEDBACK

~nn@AUD-LVL io_mode,io_index,vol_level<CR><LF>

io_mode – Input/Output

1 – Output

io_index – Number that indicates

the specific input or output port:

1 – AUDIO OUT

vol_level – Volume level -83db

to 24dB;

++ (increase current value by 1dB);

-- (decrease current value by 1dB)

Set AUDIO OUT level
to -50dB:

#AUD-LVL 1,1,-50<CR>

AUD-LVL?

Get volume level.

COMMAND

#AUD-LVL? io_mode,io_index<CR>

FEEDBACK

~nn@AUD-LVL io_mode,io_index,vol_level<CR><LF>

io_mode – Input/Output

1 – Output

io_index – Number that indicates

the specific input or output port:

1 – AUDIO OUT

vol_level – Volume level -83db

to 24dB;

++ (increase current value by 1dB);

-- (decrease current value by 1dB)

Get AUDIO OUT level

#AUD-LVL? 1,1<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

79

Function

Description

Syntax

Parameters/Attributes

Example

AUD-LVL­RANGE?

Get audio level min and
max range.

In most devices min
and max audio level is
a function of HW
implementation and the
SET command is
usually not
implemented.

COMMAND

#AUD-LVL-RANGE?io_mode,io_index<CR>

FEEDBACK

~nn@AUD-LVL-RANGEio_mode,io_index,min_vol,max_vol<CR><L

F>

io_mode – Input/Output

1 – Output

io_index – Number that indicates

the specific output port:: 1

min_vol – -83dB
max_vol – 24dB audio level

Get audio level min and max
range for output 1 channel 2:

#AUD-LVL-RANGE?1,2<C

R>

AUD-ONLY

Enable/disable audio
only mode.

COMMAND

#AUD-ONLY channel,mode<CR>

FEEDBACK

~nn@AUD-ONLY channel,mode<CR><LF>

channel –Output

1 – Output

mode – audio only mode:

0 – Off
1 – On

Set audio only state to off:

#AUD-ONLY 1,0<CR>

AUD-ONLY?

Get audio only state.

COMMAND

#AUD-ONLY? channel<CR>

FEEDBACK

~nn@AUD-ONLY channel,mode<CR><LF>

channel –Output

1 – Output

mode – audio only mode:

0 – Off
1 – On

Get audio only state

#AUD-ONLY? 1<CR>

AUD­SIGNAL?

Get audio input signal
status.

COMMAND

#AUD-SIGNAL? in_index<CR>

FEEDBACK

~nn@AUD-SIGNAL in_index,status<CR><LF>

in_index – Number that indicates

the specific input:

1 – IN 1

status – On/Off

0 – Off (no signal)
1 – On (signal present)

Get the status of input 1:

#AUD-SIGNAL? 1<CR>

AV-SW­MODE?

Get input auto switch
mode.

COMMAND

#AV-SW-MODE? layer,output_id<CR>

FEEDBACK

~nn@AV-SWI TCH-MODElayer,output_id,mode<CR><LF>

layer – Layer enumeration:

1 – Video
2 – Audio

Output_id – 1
mode –

0 – manual
1 – priority switch
2 – last connected switch

Get the input audio switch
mode:

# AV-SW-MODE? 1,1<CR>

AV-SW­TIMEOUT

Set auto switching
timeout.

COMMAND

#AV-SW-TIMEOUT switching_mode,time_out<CR>

FEEDBACK

~nn@AV-SW-TIMEOUTswitching_mode,time_out<CR><LF>

switching_mode – Switching

mode

0 – Video signal lost
2 – Audio signal lost
4 – Disable 5V on video output if

no input signal detected
5 – Video cable unplugged
6 – Audio cable unplugged

time_out – Timeout in seconds

0 - 60000

Set the auto switching
timeout to 5 seconds in the
event of 5V disable when no
input signal is detected:

#AV-SW-TIMEOUT 4,5<CR

>

AV-SW­TIMEOUT?

Get auto switching
timeout.

COMMAND

#AV-SW-TIMEOUT?switching_mode<CR>

FEEDBACK

~nn@AV-SW-TIMEOUTswitching_mode,time_out<CR><LF>

switching_mode – Switching

mode

0 – Video signal lost
2 – Audio signal lost

4 – Disable 5V on video output if

no input signal detected
5 – Video cable unplugged
6 – Audio cable unplugged

time_out – Timeout in seconds

0 - 60000

Get the Disable 5V on video
output if no input signal
detected timeout:

#AV-SW-TIMEOUT?4<CR>

BEACON­INFO?

Get beacon information,
including IP address,
UDP control port, TCP
control port, MAC
address, model, name.

There is no Set
command. Get
command initiates a
notification.

COMMAND

#BEACON-INFO? port_id<CR>

FEEDBACK

~nn@BEACON-INFOport_id,ip_string,udp_port,tcp_port,mac_

address,model,name<CR><LF>

port_id – ID of the Ethernet port
ip_string – Dot-separated

representation of the IP address

udp_port – UDP control port
tcp_port – TCP control port
mac_address – Dash-separated

mac address

model – Device model
name – Device name

Get beacon information:

#BEACON-INFO? <CR>

BUILD­DATE?

Get device build date.

COMMAND

#BUILD-DATE? <CR>

FEEDBACK

~nn@BUILD-DATE date,time<CR><LF>

date – Format: YYYY/MM/DD

where

YYYY = Year
MM = Month
DD = Day

time – Format: hh:mm:ss where

hh = hours
mm = minutes
ss = seconds

Get the device build date:

#BUILD-DATE?<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

80

Function

Description

Syntax

Parameters/Attributes

Example

CPEDID

Copy EDID data from
the output to the input
EEPROM.

Destination bitmap
size depends on device
properties (for 64 inputs
it is a 64-bit word).

Example: bitmap
0x0013 means inputs
1,2 and 5 are loaded
with the new EDID.

In certain products
Safe_mode is an
optional parameter. See
the HELP command for
its availability.

COMMAND

#CPEDIDedid_io,src_id,edid_io,dest_bitmap<CR>

or

#CPEDIDedid_io,src_id,edid_io,dest_bitmap,safe_mode<CR>

FEEDBACK

~nn@CPEDIDedid_io,src_id,edid_io,dest_bitmap<CR><LF>

~nn@CPEDIDedid_io,src_id,edid_io,dest_bitmap,safe_mode<

CR><LF>

edid_io – EDID source type

(usually output)

0 – Input
1 – Output
2 – Default EDID

src_id – Number of chosen

source stage
for input source:

1 – IN 1
2 – IN 2
3 – IN 3

for output source:

1 – HDBT OUT

for default source:

0 – Default EDID source

edid_io – EDID destination type

(usually input)

0 – Input

1 – Output

2 – Default EDID

dest_bitmap – Bitmap

representing destination IDs.

Format: XXXX…X, where X is hex

digit. The binary form of every hex
digit represents corresponding
destinations.

0 – indicates that EDID data is not

copied to this destination.

1 – indicates that EDID data is

copied to this destination.

safe_mode – Safe mode

0 – device accepts the EDID as is

without trying to adjust

1 – device tries to adjust the EDID

(default value if no parameter
is sent)

Copy the EDID data from the
HDBT OUT (EDID source) to
the Input:

#CPEDID1,1,0,0 x1<CR>

Copy the EDID data from the
default EDID source to the
Input:

#CPEDID2,0,0,0 x1<CR>

DISPLAY?

Get output HPD status.

COMMAND

#DISPLAY?out_index<CR>

FEEDBACK

~nn@DISPLAYout_index,status<CR><LF>

out_index – Number that

indicates the specific output:

1 – HDBT OUT

status – HPD status according to

signal validation

0 – Signal or sink is not valid

1 – Signal or sink is valid

2 – Sink and EDID is valid

Get the HDBT OUT HPD
status of Output 1:

#DISPLAY?1<CR>

DPSW­STATUS?

Get the DIP-switch
state.

COMMAND

#DPSW-STATUS? dip_id<CR>

FEEDBACK

~nn@DPSW-STATUSdip_id,status<CR><LF>

dip_id – 1 to 4 (number of DIP

switches)

1 – Video switch 1

2 – Video switch 2

3 – Audio switch 3

4 – Audio switch 4

status – Up/down

0 – Up

1 – Down

get the DIP-switch 2 status:

#DPSW-STATUS? 2<CR>

ETH-PORT

Set Ethernet port
protocol.

If the port number
you enter is already in
use, an error is
returned.
The port number must
be within the following
range: 0-(2^16-1).

COMMAND

#ETH-PORT port_type,port_id<CR>

FEEDBACK

~nn@ETH-PORT port_type,port_id<CR><LF>

port_type – TCP/UDP
port_id – TCP/UDP port number

(0 – 65535)

Set the Ethernet port
protocol for TCP to port
12457:

#ETH-PORT 0,12457<CR>

ETH-PORT?

Get Ethernet port
protocol.

COMMAND

#ETH-PORT? port_type<CR>

FEEDBACK

~nn@ETH-PORT port_type,port_id<CR><LF>

port_type – TCP/UDP

0 – TCP
1 – UDP

port_id – TCP / UDP port number

(0 – 65535)

Get the Ethernet port
protocol for UDP:

#ETH-PORT? 1<CR>

FACTORY

Reset device to factory
default configuration.

This command
deletes all user data
from the device. The
deletion can take some
time.

Your device may
require powering off
and powering on for the
changes to take effect.

COMMAND

#FACTORY<CR>

FEEDBACK

~nn@FACTORYok<CR><LF>

Reset the device to factory
default configuration:

#FACTORY<CR>

FPGA-VER?

Get current FPGA
version.

COMMAND

#FPGA-VER? fpga_id<CR>

FEEDBACK

~nn@FPGA-VER fpga_id,expected_ver,ver<CR><LF>

fpga_id – FPGA id
expected_ver – Expected FPGA

version for current firmware

ver – Actual FPGA version

Get current FPGA version:

#FPGA-VER? 1<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

81

Function

Description

Syntax

Parameters/Attributes

Example

HDCP-MOD

Set HDCP mode.

Set HDCP working
mode on the device
input:

HDCP supported ­HDCP_ON [default].

HDCP not supported ­HDCP OFF.

HDCP support changes
following detected sink ­MIRROR OUTPUT.

When you define 3 as
the mode, the HDCP
status is defined
according to the
connected output in the
following priority: OUT
1, OUT 2. If the
connected display on
OUT 2 supports HDCP,
but OUT 1 does not,
then HDCP is defined
as not supported. If
OUT 1 is not
connected, then HDCP
is defined by OUT 2.

COMMAND

#HDCP-MOD in_index,mode<CR>

FEEDBACK

~nn@HDCP-MOD in_index,mode<CR><LF>

in_index – Number that indicates

the specific input:

1 – IN 1
2 – IN 2
3 – IN 3

mode – HDCP mode:

0 – HDCP Off
3 – HDCP defined according to

the connected output (MAC
mode)

Set the input HDCP-MODE
of IN 1 to Off:

#HDCP-MOD 1,0<CR>

HDCP-MOD?

Get HDCP mode.

Set HDCP working
mode on the device
input:

HDCP supported ­HDCP_ON [default].

HDCP not supported ­HDCP OFF.

HDCP support changes
following detected sink ­MIRROR OUTPUT.

COMMAND

#HDCP-MOD? in_index<CR>

FEEDBACK

~nn@HDCP-MOD in_index,mode<CR><LF>

in_index – Number that indicates

the specific input:

1 – IN 1
2 – IN 2
3 – IN 3

mode – HDCP mode:

0 – HDCP Off
3 – HDCP defined according to

the connected output (MAC
mode)

Get the input HDCP-MODE
of IN 1 HDMI:

#HDCP-MOD? 1<CR>

HDCP­STAT?

Get HDCP signal
status.

io_mode =1 – get
the HDCP signal status
of the sink device
connected to the
specified output.

io_mode =0 – get the
HDCP signal status of
the source device
connected to the
specified input.

COMMAND

#HDCP-STAT? io_mode,in_index<CR>

FEEDBACK

~nn@HDCP-STAT io_mode,in_index,status<CR><LF>

io_mode – Input/Output

0 – Input
1 – Output

io_index – Number that indicates

the specific number of inputs or
outputs (based on io_mode):
for Input:

1 – IN 1
2 – IN 2
3 – IN 3

for output:

1 – HDBT OUT

status – Signal encryption status -

valid values On/Off

0 – HDCP Off
1 – HDCP On

Get the output HDCP­STATUS of IN 1:

#HDCP-STAT? 0,1<CR>

HELP

Get command list or
help for specific
command.

COMMAND

#HELP<CR>

#HELPcmd_name<CR>

FEEDBACK

1. Multi-line:

~nn@Devicecmd_name,cmd_name…<CR><LF>

To get help for command use: HELP (COMMAND_NAME)<CR><LF>

~nn@HELPcmd_name:<CR><LF>

description<CR><LF>

USAGE:usage<CR><LF>

cmd_name – Name of a specific

command

Get the command list:

#HELP<CR>

To get help for
AV-SW-TIMEOUT:

HELPav-sw-timeout<CR

>

LOCK-EDID

Lock last read EDID.

COMMAND

#LOCK-EDID in_index,lock_mode<CR>

FEEDBACK

~nn@LOCK-EDID in_index,lock_mode<CR><LF>

in_index – Number that indicates

the specific input:

1 – IN 1
2 – IN 2
3 – IN 3

lock_mode – On/Off

0 – Off unlocks EDID
1 – On locks EDID

Lock the last read EDID from
the HDMI In 2 input:

#LOCK-EDID 2,1<CR>

LOCK­EDID?

Get EDID lock state.

COMMAND

#LOCK-EDID? in_index,<CR>

FEEDBACK

~nn@LOCK-EDID in_index,lock_mode<CR><LF>

in_index – Number that indicates

the specific input:

1 – IN 1
2 – IN 2
3 – IN 3

lock_mode – On/Off

0 – Off unlocks EDID
1 – On locks EDID

Get EDID lock state for Input
2:

#LOCK-EDID? 2<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

82

Function

Description

Syntax

Parameters/Attributes

Example

LOGIN

Set protocol
permission.

The permission
system works only if
security is enabled with

the “SECUR”

command.
LOGIN allows the user

to run commands with
an End User or
Administrator
permission level.

When the permission
system is enabled,
LOGIN enables running
commands with the
User or Administrator

permission level

When set, login must
be performed upon

each connection

It is not mandatory to
enable the permission
system in order to use
the device

In each device, some
connections allow
logging in to different
levels. Some do not
work with security at all.

Connection may logout
after timeout.

COMMAND

#LOGINlogin_level,password<CR>

FEEDBACK

~nn@LOGINlogin_level,passwordok<CR><LF>

or

~nn@LOGINerr004<CR><LF>

(if bad password entered)

login_level – Level of

permissions required (User or
Admin)

password – Predefined password

(by PASS command). Default
password is an empty string

Set the protocol permission
level to Admin (when the
password defined in the
PASS command is 33333):

#LOGINadmin,33333<CR

>

LOGIN?

Get current protocol
permission level.

The permission
system works only if
security is enabled with

the “SECUR”

command.
For devices that

support security,
LOGIN allows the user
to run commands with
an End User or
Administrator
permission level.

In each device, some
connections allow
logging in to different
levels. Some do not
work with security at all.

Connection may logout
after timeout.

COMMAND

#LOGIN?<CR>

FEEDBACK

~nn@LOGINlogin_level<CR><LF>

login_level – Level of

permissions required (User or
Admin)

Get current protocol
permission level:

#LOGIN?<CR>

LOGOUT

Cancel current
permission level.

Logs out from End
User or Administrator
permission levels to Not
Secure.

COMMAND

#LOGOUT<CR>

FEEDBACK

~nn@LOGOUTok<CR><LF>

#LOGOUT<CR>

MODEL?

Get device model.

This command
identifies equipment
connected to KIT-401
and notifies of identity
changes to the
connected equipment.
The Matrix saves this
data in memory to
answer REMOTE-INFO
requests.

COMMAND

#MODEL?<CR>

FEEDBACK

~nn@MODELmodel_name<CR><LF>

model_name – String of up to 19

printable ASCII chars

Get the device model:

#MODEL?<CR>

MUTE

Set audio mute.

COMMAND

#MUTEout_index,mute_mode<CR>

FEEDBACK

~nn@MUTEout_index,mute_mode<CR><LF>

out_index – Number that

indicates the specific output:

1 – AUDIO OUT

mute_mode – On/Off

0 – Off
1 – On

Set Output 1 to mute:

#MUTE1, 1<CR>

MUTE?

Get audio mute.

COMMAND

#MUTE?out_index<CR>

FEEDBACK

~nn@MUTEout_index,mute_mode<CR><LF>

out_index – Number that

indicates the specific output:

1 – AUDIO OUT

mute_mode – On/Off

0 – Off
1 – On

Get mute status of output 1

#MUTE1?<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

83

Function

Description

Syntax

Parameters/Attributes

Example

NAME

Set machine (DNS)
name.

The machine name
is not the same as the
model name. The
machine name is used
to identify a specific
machine or a network in
use (with DNS feature
on).

COMMAND

#NAMEmachine_name<CR>

FEEDBACK

~nn@NAMEmachine_name<CR><LF>

machine_name – String of up to 15

alpha-numeric chars (can include
hyphen, not at the beginning or end)

Set the DNS name of the
device to room-442:

#NAMEroom-442<CR>

NAME?

Get machine (DNS)
name.

The machine name
is not the same as the
model name. The
machine name is used
to identify a specific
machine or a network in
use (with DNS feature
on).

COMMAND

#NAME?<CR>

FEEDBACK

~nn@NAMEmachine_name<CR><LF>

machine_name – String of up to 15

alpha-numeric chars (can include
hyphen, not at the beginning or end)

Get the DNS name of the
device:

#NAME?<CR>
NAME-RST

Reset machine (DNS)
name to factory default.

Factory default of
machine (DNS) name is

“KRAMER_” + 4 last

digits of device serial
number.

COMMAND

#NAME-RST<CR>

FEEDBACK

~nn@NAME-RST ok<CR><LF>

Reset the machine name
(S/N last digits are 0102):

#NAME­RSTkramer_0102<CR>

NET­CONFIG

Set a network
configuration.

Parameters [DNS1]
and [DNS2]are
optional.

For Backward
compatibility, the id
parameter can be
omitted. In this case,
the Network ID, by
default, is 0, which is
the Ethernet control
port.

If the gateway
address is not
compliant to the subnet
mask used for the host
IP, the command will
return an error. Subnet
and gateway
compliancy specified by
RFC950.

COMMAND

#NET-CONFIG netw_id,net_ip,net_mask,gateway,[dns1],[dns2

]<CR>

FEEDBACK

~nn@NET-CONFIG netw_id,net_ip,net_mask,gateway<CR><LF>

netw_id – Network ID–the device

network interface (if there are more
than one). Counting is 0 based,

meaning the control port i s ‘0’,
additional ports are 1,2,3….

net_ip – Network IP
net_mask – Network mask
gateway – Network gateway

Set the device network
parameters to IP address

192.168.113.10, net mask

255.255.0.0, and gateway

192.168.0.1:

#NET-CONFIG 0,192.168
.113.10,255.255.0.0,1

92.168.0.1<CR>

NET­CONFIG?

Get a network
configuration.

COMMAND

#NET-CONFIG? netw_id<CR>

FEEDBACK

~nn@NET-CONFIG netw_id,net_ip,net_mask,gateway<CR>< LF>

netw_id – Network ID–the device

network interface (if there are more
than one). Counting is 0 based,

meaning the control port i s ‘0’,
additional ports are 1,2,3….

net_ip – Network IP
net_mask – Network mask
gateway – Network gateway

Get network configuration:

#NET-CONFIG? id<CR>

NET-DHCP

Set DHCP mode.

Only 1 is relevant
for the mode value. To
disable DHCP, the user
must configure a static
IP address for the
device.

Connecting Ethernet to
devices with DHCP
may take more time in
some networks.

To connect with a
randomly assigned IP
by DHCP, specify the
device DNS name (if
available) using the

NAME command. You
can also get an
assigned IP by direct
connection to USB or
RS-232 protocol port, if
available.

For proper settings
consult your network
administrator.

For Backward
compatibility, the id
parameter can be
omitted. In this case,
the Network ID, by
default, is 0, which is
the Ethernet control
port.

COMMAND

#NET-DHCP netw_id,dhcp_state<CR>

FEEDBACK

~nn@NET-DHCP netw_id,dhcp_state<CR><LF>

netw_id – Network ID–the device

network interface (if there are more
than one). Counting is 0 based,

meaning the control port i s ‘0’,
additional ports are 1,2,3….

dhcp_state –

1 – Try to use DHCP. (If

unavailable, use the IP
address set by the factory or
the net- ip command).

Enable DHCP mode for port
1, if available:

#NET-DHCP 1,1<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

84

Function

Description

Syntax

Parameters/Attributes

Example

NET-DHCP?

Get DHCP mode.

For Backward
compatibility, the id
parameter can be
omitted. In this case,
the Network ID, by
default, is 0, which is
the Ethernet control
port.

COMMAND

#NET-DHCP? netw_id<CR>

FEEDBACK

~nn@NET-DHCP netw_id,dhcp_mode<CR><LF>

netw_id – Network ID–the device

network interface (if there are more
than one). Counting is 0 based,

meaning the control port i s ‘0’,
additional ports are 1,2,3….

dhcp_mode –

0 – Do not use DHCP. Use the IP

set by the factory or using the
net-ip or net-config
command.

1 – Try to use DHCP. If

unavailable, use the IP set by
the factory or using the net-
ip or net-config command.

Get DHCP mode for port 1:

#NET-DHCP? 1<CR>

NET-GATE

Set gateway IP.

A network gateway
connects the device via

another network and
maybe over the
Internet. Be careful of
security issues. For
proper settings consult
your network
administrator.

COMMAND

#NET-GATE ip_address<CR>

FEEDBACK

~nn@NET-GATE ip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Set the gateway IP address
to 192.168.0.1:

#NET­GATE192.168.000.001<

CR>

NET-GATE?

Get gateway IP.

A network gateway
connects the device via
another network and
maybe over the
Internet. Be aware of
security problems.

COMMAND

#NET-GATE? <CR>

FEEDBACK

~nn@NET-GATE ip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Get the gateway IP address:

#NET-GATE? <CR>

NET-IP

Set IP address.

For proper settings
consult your network
administrator.

COMMAND

#NET-IPip_address<CR>

FEEDBACK

~nn@NET-IP ip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Set the IP address to

192.168.1.39:

#NET­IP192.168.001.039<CR

>

NET-IP?

Get IP address.

COMMAND

#NET-IP? <CR>

FEEDBACK

~nn@NET-IP ip_address<CR><LF>

ip_address – Format:

xxx.xxx.xxx.xxx

Get the IP address:

#NET-IP? <CR>

NET-MAC?

Get MAC address.

For backward
compatibility, the id
parameter can be
omitted. In this case,
the Network ID, by
default, is 0, which is
the Ethernet control
port.

COMMAND

#NET-MAC? id<CR>

FEEDBACK

~nn@NET-MAC id,mac_address<CR><LF>

id – Network ID–the device

network interface (if there are more
than one). Counting is 0 based,

meaning the control port i s ‘0’,
additional ports are 1,2,3….

mac_address – Unique MAC

address. Format: XX-XX-XX-XX­XX-XX where X is hex digit

#NET-MAC? id<CR>

NET-MASK

Set subnet mask.

For proper settings
consult your network

administrator.

COMMAND

#NET-MASK net_mask<CR>

FEEDBACK

~nn@NET-MASK net_mask<CR><LF>

net_mask – Format:

xxx.xxx.xxx.xxx

Set the subnet mask to

255.255.0.0:

#NET­MASK255.255.000.000<

CR>

NET-MASK?

Get subnet mask.

COMMAND

#NET-MASK? <CR>

FEEDBACK

~nn@NET-MASK net_mask<CR><LF>

net_mask – Format:

xxx.xxx.xxx.xxx

Get the subnet mask:

#NET-MASK?<CR>

PASS

Set password for login
level.

The default
password is an empty

string.

COMMAND

#PASSlogin_level,password<CR>

FEEDBACK

~nn@PASSlogin_level,password<CR><LF>

login_level – Level of login to

set (End User or Administrator).

password – Password for the

login_level. Up to 15 printable ASCII
chars

Set the password for the
Admin protocol permission
level to 33333:

#PASSadmin,33333<CR>

PASS?

Get password for login
level.

The default
password is an empty
string.

COMMAND

#PASS?login_level<CR>

FEEDBACK

~nn@PASSlogin_level,password<CR><LF>

login_level – Level of login to

set (End User or Administrator).

password – Password for the

login_level. Up to 15 printable ASCII
chars

Get the password for the
Admin protocol permission
level:

#PASS?admin<CR>

PRIORITY?

Get input priority.

COMMAND

#PRIORITY?layer<CR>

FEEDBACK

~nn@PRIORITYlayer,PRIORITY1,PRIORITY2<CR><LF>

layer – Layer enumeration:

1 – Video
2 – Audio

PRIORITY1 – priority for input 1
PRIORITY2 – priority for input 2

Get video input priority:

#PASS?1<CR>

PROG-BTN­MOD

Set programmable
button mode.

COMMAND

#PROG-BTN-MOD mode<CR>

FEEDBACK

~nn@PROG-BTN-MODmode<CR><LF>

mode – On/Off

0 – Default behavior
1 – Programmable

Set programmable button to
default behavior:

#PROG-BTN-MOD 0<CR>

PROG-BTN­MOD?

Get programmable
button mode.

COMMAND

#PROG-BTN-MOD?<CR>

FEEDBACK

~nn@PROG-BTN-MODmode<CR><LF>

mode – On/Off

0 – Default behavior
1 – Programmable

Get programmable button
state:

#PROG-BTN-MOD ?<CR>

PROT-VER?

Get device protocol
version.

COMMAND

#PROT-VER? <CR>

FEEDBACK

~nn@PROT-VER 3000:version<CR><LF>

version – XX.XX where X is a

decimal digit

Get the device protocol
version:

#PROT-VER? <CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

85

Function

Description

Syntax

Parameters/Attributes

Example

RESET

Reset device.

To avoid locking the
port due to a USB bug
in Windows, disconnect
USB connections
immediately after
running this command.
If the port was locked,
disconnect and
reconnect the cable to
reopen the port.

COMMAND

#RESET<CR>

FEEDBACK

~nn@RESETok<CR><LF>

Reset the device:

#RESET<CR>

ROUTE

Set layer routing.

This command
replaces all other
routing commands.

COMMAND

#ROUTElayer_type,out_index,in_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index<CR><LF>

layer_type Layer Enumeration

1 – Video
3 – Data

out_index

for video layer:

1 – HDBT OUT

for video layer:

1 – HDBT OUT
2 – KIT-401 data port
3 – KIT-401 internal control port

in_index – Source id

for video layer:

1 – IN 1
2 – IN 2
3 – IN 3

for video layer:

1 – HDBT OUT
2 – KIT-401 data port
3 – KIT-401 internal control port

Route video IN 2 to video
HDBT OUT:

#ROUTE1,1,2<CR>

ROUTE?

Get layer routing.

This command
replaces all other
routing commands.

COMMAND

#ROUTE?layer_type,out_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index,in_index<CR><LF>

layer_type Layer Enumeration

1 – Video
3 – Data

out_index

for video layer:

1 – HDBT OUT

for data layer:

1 – HDBT OUT
2 – KIT-401 data port
3 – KIT-401 internal control port

in_index – Source id

for video layer:

1 – IN 1
2 – IN 2
3 – IN 3

for video layer:

1 – HDBT OUT
2 – KIT-401 data port
3 – KIT-401 internal control port

Get the layer routing:

#ROUTE?1,1<CR>

SECUR

Start/stop security.

The permission
system works only if
security is enabled with

the “SECUR”

command.

COMMAND

#SECURsecurity_state<CR>

FEEDBACK

~nn@SECURsecurity_state<CR><LF>

security_state – Security state

0 – OFF (disables security)
1 – ON (enables security)

Enable the permission
system:

#SECUR0<CR>

SECUR?

Get current security
state.

The permission
system works only if
security is enabled with

the “SECUR”

command.

COMMAND

#SECUR?<CR>

FEEDBACK

~nn@SECURsecurity_state<CR><LF>

security_state – Security state

0 – OFF (disables security)
1 – ON (enables security)

Get current security state:

#SECUR?<CR>

SIGNAL?

Get input signal status.

COMMAND

#SIGNAL?in_index<CR>

FEEDBACK

~nn@SIGNALin_index,status<CR><LF>

in_index – Number that indicates

the specific input:

1 – IN 1
2 – IN 2
3 – IN 3

status – Signal status according

to signal validation:

0 – Off
1 – On

Get the input signal lock
status of IN 1:

#SIGNAL?1<CR>

SN?

Get device serial

number.

COMMAND

#SN?<CR>

FEEDBACK

~nn@SNserial_num<CR><LF>

serial_num – 14 decimal digits,

factory assigned

Get the device serial
number:

#SN?<CR>

TIME

Set device time and
date.

The year must be 4
digits.

The device does not
validate the day of
week from the date.

Time format - 24 hours.
Date format - Day,

Month, Year.

COMMAND

#TIMEday_of_week,date,data<CR>

FEEDBACK

~nn@TIMEday_of_week,date,data<CR><LF>

day_of_week – One of

{SUN,MON,TUE,WED,THU,FRI,SA
T}

date – Format: DD-MM-YYYY.
data – Format: hh:mm:ss where

hh = hours
mm = minutes
ss = seconds

Set device time and date to
December 5, 2018 at
2:30pm:

#TIMEmon 05-12 ­2018,14:30:00<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

86

Function

Description

Syntax

Parameters/Attributes

Example

TIME?

Get device time and
date.

The year must be 4
digits.

The device does not
validate the day of
week from the date.

Time format - 24 hours.
Date format - Day,

Month, Year.

COMMAND

#TIME?<CR>

FEEDBACK

~nn@TIMEday_of_week,date,data<CR><LF>

day_of_week – One of

{SUN,MON,TUE,WED,THU,FRI,SA
T}

date – Format: YYYY/MM/DD

where

YYYY = Year
MM = Month
DD = Day

data – Format: hh:mm:ss where

hh = hours
mm = minutes
ss = seconds

Get device time and date:

#TIME?<CR>

TIME-LOC

Set local time offset
from UTC/GMT.

If the time server is
configured, device time
calculates by adding
UTC_off to UTC time
(that it got from the time
server) + 1 hour if
daylight savings time is
in effect.

TIME command sets
the device time without
considering these
settings.

COMMAND

#TIME-LOC utc_off,dst_state<CR>

FEEDBACK

~nn@TIME-LOC utc_off,dst_state<CR><LF>

utc_off – Offset of device time

from UTC/GMT (without daylight
time correction)

dst_state – Daylight saving time

state

0 – no daylight saving time
1 – daylight saving time

Set local time offset to 3 with
no daylight-saving time:

#TIME-LOC 3,0<CR>

TIME-LOC?

Get local time offset
from UTC/GMT.

If the time server is
configured, device time
calculates by adding
UTC_off to UTC time
(that it got from the time
server) + 1 hour if
daylight savings time is
in effect.

TIME command sets
the device time without
considering these
settings.

COMMAND

#TIME-LOC? <CR>

FEEDBACK

~nn@TIME-LOC utc_off,dst_state<CR><LF>

utc_off – Offset of device time

from UTC/GMT (without daylight
time correction)

dst_state – Daylight saving time

state

0 – no daylight saving time
1 – daylight saving time

Get local time offset from
UTC/GMT:

#TIME-LOC?<CR>

TIME-SRV

Set time server.

This command is
needed for setting UDP
timeout for the current
client list.

COMMAND

#TIME-SRV mode,time_server_ip,sync_hour<CR>

FEEDBACK

~nn@TIME-SRV mode,time_server_ip,sync_hour,server_status

<CR><LF>

mode – On/Off

0 – Off
1 – On

time_server_ip – Time server IP

address

sync_hour – Hour in day for time

server sync

server_status – On/Off

Set time server with IP
address of 128.138.140.44
to ON:

#TIME­SRV1, 128.138.140.44,

0,1<CR>

TIME-SRV?

Get time server.

This command is
needed for setting UDP
timeout for the current
client list.

COMMAND

#TIME-SRV? <CR>

FEEDBACK

~nn@TIME-SRV mode,time_server_ip,sync_hour,server_status

<CR><LF>

mode – On/Off

0 – Off
1 – On

time_server_ip – Time server IP

address

sync_hour – Hour in day for time

server sync

server_status – On/Off

Get time server:

#TIME-SRV?<CR>

TUNNEL­CTRL

Send an asynchronous
command to a remote
device.

COMMAND

#TUNNEL-CTRL stage,stage_id,”command”<CR>

FEEDBACK

~nn@TUNNEL-CTRLstage,stage_id,”command”<CR><LF>

stage – 1
stage_id – 1

“command” – command to send to

the receiver

Set the receiver relay state
to open from the transmitter:

#TUNNEL­CTRL1, 1,”RELAY-

STATE1, 0”<CR>

Send a command from the
transmitter to the receiver’s
RS-232 port (using the
receiver command TUNNEL-

232):
#TUNNEL­CTRL1, 1,”TUNNEL-

232’cmnd
arg,a rg’9600” <CR>

VERSION?

Get firmware version
number.

COMMAND

#VERSION?<CR>

FEEDBACK

~nn@VERSIONfirmware_version<CR><LF>

firmware_version –

XX.XX.XXXX where the digit groups
are: major.minor.build version

Get the device firmware
version number:

#VERSION?<CR>

VGA-PHASE

Set ADC (VGA)
sampling phase.

Response answers
with absolute value
after decreasing or
increasing value.

COMMAND

#VGA-PHASE in_id, value<CR>

FEEDBACK

~nn@VGA-PHASE in_id,value<CR><LF>

in_id – Indicates the ID of the

input:

3 – IN 3

value – Phase parameter in LSB

units (1 to 30)

++ increase current value
– decrease current value

Increase the current value of
the ADC (VGA) sampling
phase:

#VGA-PHASE 3,++<CR>

VGA­PHASE?

Get ADC (VGA)
sampling phase.

Response answers
with absolute value

after decreasing or
increasing value.

COMMAND

#VGA-PHASE? in_id<CR>

FEEDBACK

~nn@VGA-PHASE in_id,value<CR><LF>

in_id – Indicates the ID of the

input:

3 – IN 3

value – Phase parameter in LSB

units (1 to 30)

++ increase current value
– decrease current value

Get ADC (VGA) sampling
phase:

#VGA-PHASE? 3<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

87

Function

Description

Syntax

Parameters/Attributes

Example

VMUTE

Set enable/disable
video on output.

Video mute
parameter 2 (blank
picture) is not
supported.

COMMAND

#VMUTEout_index,flag<CR>

FEEDBACK

~nn@VMUTEout_index,flag<CR><LF>

out_index – Number that

indicates the specific output:
1-N (N= the total number of outputs)

flag – Video Mute

0 – Video disabled
1 – Video enabled
2 – Blank picture

Disable the video output on
OUT 2:

#VMUTE2,0<CR>

VMUTE?

Get video on output
status.

Video mute
parameter 2 (blank

picture) is not
supported.

COMMAND

#VMUTE?out_index<CR>

FEEDBACK

~nn@VMUTEout_index,flag<CR><LF>

out_index – Number that

indicates the specific output:

1 – HDBT OUT

flag – Video Mute

0 – Video disabled
1 – Video enabled
2 – Blank picture

Get video on output status:

#VMUTE?2<CR>

KIT-400R Protocol Commands

Function

Description

Syntax

Parameters/Attributes

Example

#

Protocol handshaking.

Validates the
Protocol 3000
connection and gets the
machine number.

Step-in master products
use this command to
identify the availability
of a device.

COMMAND

#<CR>

FEEDBACK

~nn@ok<CR><LF>

#<CR>

AUD-LVL

Set volume level.

COMMAND

#AUD-LVL io_mode, io_index,vol_level<CR>

FEEDBACK

~nn@AUD-LVL io_mode,io_index,vol_level<CR><LF>

io_mode – Input/Output

1 – Output

io_index – Number that indicates

the specific input or output port: 1

vol_level – Volume level 0 to 100

++ (increase current value by 1dB);

-- (decrease current value by 1dB)

Set audio level to 50:

#AUD-LVL 1,1,50<CR>

AUD-LVL?

Get volume level.

COMMAND

#AUD-LVL? io_mode,io_index<CR>

FEEDBACK

~nn@AUD-LVL io_mode,io_index,vol_level<CR><LF>

io_mode – Input/Output

1 – Output

io_index – Number that indicates

the specific input or output port: 1

vol_level – Volume level 0 to 100

Get audio output level

#AUD-LVL? 1,1<CR>

AV-SW­MODE

Set input auto switch
mode (per output).

COMMAND

#AV-SW-MODE layer_type,out_index,connection_mode<CR>

FEEDBACK

~nn@AV-SW-MODE layer_type,out_index,connection_mode<CR><

LF>

layer_type – Number that

indicates the signal type:

1 – Video

out_index – Number that

indicates the specific output: 1

connection_mode – Connection

mode

0 – manual
2 – last connected switch

Set input auto switch mode
(per output) to Manual:

#AV-SW-MODE 1,1,0<CR>

AV-SW­MODE?

Get input auto switch
mode (per output).

COMMAND

#AV-SW-MODE? layer_type,out_index<CR>

FEEDBACK

~nn@AV-SW-MODE layer_type,out_index,connection_mode<CR><

LF>

layer_type – Number that

indicates the signal type:

1 – Video

out_index – Number that

indicates the specific output: 1

connection_mode – Connection

mode

0 – manual
2 – last connected switch

Get the input audio switch
mode:

#AV-SW-MODE? 1,1<CR>

BUILD­DATE?

Get device build date.

COMMAND

#BUILD-DATE? <CR>

FEEDBACK

~nn@BUILD-DATE date,time<CR><LF>

date – Format: YYYY/MM/DD

where

YYYY = Year
MM = Month
DD = Day

time – Format: hh:mm:ss where

hh = hours
mm = minutes
ss = seconds

Get the device build date:

#BUILD-DATE?<CR>

CEC

Set display to ON/OFF

COMMAND

#CECstate<CR>

FEEDBACK

~nn@CECstate<CR><LF>

state – CEC state

0 – Off
1 – On

Set display to OFF via CEC:

#CEC-ON<CR>

CEC-PASS

Set CEC device bypass.

COMMAND

#CEC-PASS state<CR>

FEEDBACK

~nn@CEC-PASS state<CR><LF>

state – CEC state

0 – Off
1 – On

Set bypass device state:

#CEC-PASS 1<CR>

CEC-PASS?

Get CEC device bypass
state.

COMMAND

#CEC-PASS? <CR>

FEEDBACK

~nn@CEC-PASS state<CR><LF>

state – CEC state

0 – Off
1 – On

Get bypass device state:
#CEC-PASS?<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

88

Function

Description

Syntax

Parameters/Attributes

Example

CPEDID

Copy EDID data from
the output to the input
EEPROM.

Destination bitmap
size depends on device
properties (for 64 inputs
it is a 64-bit word).

Example: bitmap
0x0013 means inputs
1,2 and 5 are loaded
with the new EDID.

In certain products
Safe_mode is an
optional parameter. See
the HELP command for
its availability.

COMMAND

#CPEDIDedid_io,src_id,edid_io,dest_bitmap<CR>

or

#CPEDIDedid_io,src_id,edid_io,dest_bitmap,safe_mode<CR>

FEEDBACK

~nn@CPEDIDedid_io,src_id,edid_io,dest_bitmap<CR><LF>

~nn@CPEDIDedid_io,src_id,edid_io,dest_bitmap,safe_mode<

CR><LF>

edid_io – EDID source type

(usually output)

1 – Output

src_id – Number of chosen

source stage
For HDBT:

1 – Def. 1080P
2 – Def. 4K2K(3G)
3 – Def. 4K2K(3G-4:2:0)
4 – User1
5 – User2
6 – Output

For HDMI:

1 – Def. 1080P
2 – Def. 4K2K(3G)
3 – Def. 4K2K(3G-4:2:0)
4 – Def. 4K2K(6G)
5 – User1
6 – User2

7 – Output

edid_io – EDID destination type

(usually input)

0 – Input

dest_bitmap – Bitmap

representing destination IDs.

Format: XXXX…X, where X is hex

digit. The binary form of every hex
digit represents corresponding
destinations.

0x01 – for HDBT.

0x02 – for HDMI

safe_mode – Safe mode

0 – device accepts the EDID as is

without trying to adjust

1 – device tries to adjust the EDID

(default value if no parameter
is sent)

Copy the EDID data from the
Output 1 (EDID source) to
the Input:

#CPEDID1,1,0,0 x1<CR>

Copy the EDID data from the
default EDID source to the
Input:

#CPEDID2,0,0,0 x1<CR>

DISPLAY?

Get output HPD status.

COMMAND

#DISPLAY?out_index<CR>

FEEDBACK

~nn@DISPLAYout_index,status<CR><LF>

out_index – Number that

indicates the specific output: 1

status – HPD status according to

signal validation

0 – Signal or sink is not valid

1 – Signal or sink is valid

Get the output HPD status of
Output 1:

#DISPLAY?1<CR>

HDCP-MOD

Set HDCP mode.

Set HDCP working
mode on the device
input:

HDCP supported ­HDCP_ON [default].

HDCP not supported ­HDCP OFF.

HDCP support changes
following detected sink ­MIRROR OUTPUT.

When you define 3 as
the mode, the HDCP
status is defined
according to the
connected output in the
following priority: OUT
1, OUT 2. If the
connected display on
OUT 2 supports HDCP,
but OUT 1 does not,
then HDCP is defined
as not supported. If
OUT 1 is not
connected, then HDCP
is defined by OUT 2.

COMMAND

#HDCP-MOD stage,stage_id,mode<CR>

FEEDBACK

~nn@HDCP-MOD stage,stage_id,mode<CR><LF>

stage – Input/Output

0 – Input
1 – Output

stage_id –

Input number:

1 – HDBT IN
2 – HDMI IN
Output number
1 – HDMI OUT

mode – HDCP mode

Input:

0 – Off
1 – On

Output:

2 – Follow input
3 – Follow output

Set the HDBT input HDCP­MODE of HDBT input to Off:

#HDCP-MOD 0,1,0<CR>

HDCP-MOD?

Get HDCP mode.

Set HDCP working
mode on the device
input:

HDCP supported ­HDCP_ON [default].

HDCP not supported ­HDCP OFF.

HDCP support changes
following detected sink ­MIRROR OUTPUT.

COMMAND

#HDCP-MOD? stage, stage_id<CR>

FEEDBACK

~nn@HDCP-MOD stage,stage_id,mode<CR><LF>

stage – Input/Output

0 – Input
1 – Output

stage_id –

Input number:

1 – HDBT IN
2 – HDMI IN
Output number
1 – HDMI OUT

mode – HDCP mode

Input:

0 – Off
1 – On

Output:

2 – Follow input
3 – Follow output

Get the input HDCP-MODE
of HDMI input:

#HDCP-MOD? 0,2<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

89

Function

Description

Syntax

Parameters/Attributes

Example

HELP

Get command list or
help for specific
command.

COMMAND

#HELP<CR>

#HELPcmd_name<CR>

FEEDBACK

1. Multi-line:

~nn@Devicecmd_name,cmd_name…<CR><LF>

To get help for command use: HELP (COMMAND_NAME)<CR><LF>

~nn@HELPcmd_name:<CR><LF>

description<CR><LF>

USAGE:usage<CR><LF>

cmd_name – Name of a specific

command

Get the command list:

#HELP<CR>

To get help for
AV-SW-TIMEOUT:

HELPav-sw-timeout<CR

>

IMAGE­PROP

Set the image size.

COMMAND

#IMAGE-PROP scaler_index,prop<CR>

FEEDBACK

~nn@IMAGE-PROP scaler_index,prop<CR><LF>

scaler_index – Scaler number: 1
prop –

0 – Overscan
1 – Full
2 – Best fit
3 – Panscan
4 – Letterbox
5 – Underscan 2
6 – Underscan 1
7 – Follow in

Set the image size to
Letterbox:

#IMAGE-PROP 1,4<CR>

IMAGE­PROP?

Get the image size.

COMMAND

#IMAGE-PROP? scaler_index<CR>

FEEDBACK

~nn@IMAGE-PROP scaler_index,prop<CR><LF>

scaler_index – Scaler number: 1
prop –

0 – Overscan
1 – Full
2 – Best fit
3 – Panscan
4 – Letterbox
5 – Underscan 2
6 – Underscan 1
7 – Follow in

Get mute status of the output

#IMAGE-PROP? 1<CR>

LOCK-FP

Lock the front panel.

COMMAND

#LOCK-FP lock/unlock<CR>

FEEDBACK

~nn@LOCK-FP lock/unlock<CR><LF>

lock/unlock –

0 – Unlock
1 – Lock

Lock front panel buttons:

#LOCK-FP 1<CR>

LOCK-FP?

Get the front panel lock
state.

COMMAND

#LOCK-FP? <CR>

FEEDBACK

~nn@LOCK-FP lock/unlock<CR><LF>

lock/unlock –

0 – Unlocked
1 – Locked

Get front panel lock state

#LOCK-FP? <CR>

MODEL?

Get device model.

This command
identifies equipment
connected to KIT-401
and notifies of identity
changes to the
connected equipment.
The Matrix saves this
data in memory to
answer REMOTE-INFO
requests.

COMMAND

#MODEL?<CR>

FEEDBACK

~nn@MODELmodel_name<CR><LF>

model_name – String of up to 19

printable ASCII chars

Get the device model:

#MODEL?<CR>

MUTE

Set audio mute.

COMMAND

#MUTEout_index,mute_mode<CR>

FEEDBACK

~nn@MUTEout_index,mute_mode<CR><LF>

out_index – Number that

indicates the specific output: 1

mute_mode – On/Off

0 – Off
1 – On

Set the output to mute:

#MUTE1, 1<CR>

MUTE?

Get audio mute.

COMMAND

#MUTE?out_index<CR>

FEEDBACK

~nn@MUTEout_index,mute_mode<CR><LF>

out_index – Number that

indicates the specific output: 1

mute_mode – On/Off

0 – Off
1 – On

Get mute status of the output

#MUTE?1 <CR>

PROT-VER?

Get device protocol
version.

COMMAND

#PROT-VER? <CR>

FEEDBACK

~nn@PROT-VER 3000:version<CR><LF>

version – XX.XX where X is a

decimal digit

Get the device protocol
version:

#PROT-VER? <CR>

RELAY­STATE

Set relay state.

COMMAND

#RELAY-STATE relay_id,state<CR>

FEEDBACK

~nn@RELAY-STATErelay_id,state<CR><LF>

relay_id – Relay number: 1
state – Relay state

0 – (open)
1 – (close)

Set relay 1 to closed:

#RELAY-STATE 1,1<CR>

RELAY­STATE?

Get relay state.

COMMAND

#RELAY-STATE? relay_id<CR>

FEEDBACK

~nn@RELAY-STATErelay_id,relay_state<CR><LF>

relay_id – Relay number 1
relay_state – Relay state

0 – (open)
1 – (close)

Get relay state:

#RELAY-STATE? 1<CR>

RESET

Reset device.

To avoid locking the
port due to a USB bug
in Windows, disconnect
USB connections
immediately after
running this command.
If the port was locked,
disconnect and
reconnect the cable to
reopen the port.

COMMAND

#RESET<CR>

FEEDBACK

~nn@RESETok<CR><LF>

Reset the device:

#RESET<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

90

Function

Description

Syntax

Parameters/Attributes

Example

ROUTE

Set layer routing.

This command
replaces all other
routing commands.

COMMAND

#ROUTElayer_type,out_index,in_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index<CR><LF>

layer_type Layer Enumeration

1 – Video

out_index

1,* – Output

in_index – Source id

1 –HDBT Input
2 –HDMI Input

Route HDBT to the output:

#ROUTE1,1,1<CR>

ROUTE?

Get layer routing.

This command
replaces all other
routing commands.

COMMAND

#ROUTE?layer_type,out_index<CR>

FEEDBACK

~nn@ROUTElayer_type,out_index,in_index<CR><LF>

layer_type Layer Enumeration

1 – Video

out_index

1,* – Output

in_index – Source id

1 –HDBT Input
2 –HDMI Input

Get the layer routing:

#ROUTE?1,*<CR>

SCLR-AS

Set auto-sync features.

Sets the auto sync
features for the
selected scaler.

COMMAND

#SCLR-AS scaler_index,sync_speed<CR>

FEEDBACK

~nn@SCLR-AS scaler_index,sync_speed<CR><LF>

scaler_index – Scaler Number:

1 – Scaler

sync_speed – 0, 1 or 2

0 – off
1 – fast
2 – slow

Set auto-sync features:

#SCLR-AS 1,1<CR>

SCLR-AS?

Get auto-sync features.

Gets the auto sync
features for the
selected scaler.

COMMAND

#SCLR-AS? scaler_index<CR>

FEEDBACK

~nn@SCLR-AS scaler_index,sync_speed<CR><LF>

scaler_index – Scaler Number:

1 – Scaler

sync_speed – 0, 1 or 2

0 – off
1 – fast
2 – slow

Get auto-sync features:

#SCLR-AS? 1<CR>

SCLR­AUDIO­DELAY

Set the scaler audio
delay.

Sets the audio delay
for the selected audio
output.

COMMAND

#SCLR-AUDIO-DELAYscaler_index,delay<CR>

FEEDBACK

~nn@SCLR-AUDIO-DELAYscaler_index,delay<CR><LF>

scaler_index – Audio output

number

1 – Scaler

delay –

0 – Off
1 – 40ms
2 – 110ms
3 – 150ms

Set the scaler audio delay to
40ms:

#SCLR-AUDIO-DELAY1,1

<CR>

SCLR­AUDIO­DELAY?

Get the scaler audio
delay.

Gets the audio
delay for the selected
audio output.

COMMAND

#SCLR-AUDIO-DELAY?scaler_index<CR>

FEEDBACK

~nn@SCLR-AUDIO-DELAYscaler_index,delay<CR><LF>

scaler_index – Audio output

number

1 – Scaler

delay –

0 – Off
1 – 40ms
2 – 110ms
3 – 150ms

Get the scaler audio delay:

#SCLR-AUDIO-DELAY?1<

CR>

SIGNAL?

Get input signal status.

COMMAND

#SIGNAL?in_index<CR>

FEEDBACK

~nn@SIGNALin_index,status<CR><LF>

in_index – Number that indicates

the specific input:

1 –HDBT Input
2 –HDMI Input

status – Signal status according

to signal validation:

0 – Off (signal or sink is not valid)
1 – On (signal or sink is valid)

Get the input signal lock
status of IN 1:

#SIGNAL?1<CR>

SN?

Get device serial

number.

COMMAND

#SN?<CR>

FEEDBACK

~nn@SNserial_num<CR><LF>

serial_num – 14 decimal digits,

factory assigned

Get the device serial
number:

#SN?<CR>

TUNNEL­232

Send a command to
output on the reciever ’s
RS-232 port.

COMMAND

#TUNNEL-232 ’payload’baud<CR>

FEEDBACK

~nn@TUNNEL-232 ’payload’baud<CR><LF>

payload – the data that will be

output on the receiver’s RS-232
port.

baud – 9600, 19200, 38400, 57600,

115200

Send a command to the
transmitter instructing the
receiver to output the data
“disp_off” on its RS-232 port
at 9600 baud:

#TUNNEL­CTRL1,1,"TUNNEL-232

'disp _off'9600"<CR>

VERSION?

Get firmware version
number.

COMMAND

#VERSION?<CR>

FEEDBACK

~nn@VERSIONfirmware_version<CR><LF>

firmware_version –

XX.XX.XXXX where the digit groups
are: major.minor.build version

Get the device firmware
version number:

#VERSION?<CR>

VFRZ

Set freeze on selected
output.

COMMAND

#VFRZout_index,freeze_flag<CR>

FEEDBACK

~nn@VFRZout_index,freeze_flag<CR><LF>

out_index – Number that

indicates the specific output: 1

freeze_flag –

0 – Off
1 – On
2 – Freeze Only
3 – Freeze and Mute
4 – Mute Only

Set freeze on the output:

#VFRZ1, 1<CR>

VFRZ?

Get output freeze
status.

COMMAND

#VFRZ?out_index<CR>

FEEDBACK

~nn@VFRZout_index,freeze_flag<CR><LF>

out_index – Number that

indicates the specific output: 1

freeze_flag –

0 – Off
1 – On
2 – Freeze Only
3 – Freeze and Mute
4 – Mute Only

Get output freeze status:

#VFRZ?1<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

91

Function

Description

Syntax

Parameters/Attributes

Example

VID-RES

Set output resolution.

“Set” command wi th
is_native=ON sets
native resolution on
selected output
(resolution index sent =

0). Device sends as
answer actual VIC ID of
native resolution.

To use “custom
resolutions” (entries

100-105 In View
Modes), define them
using the DEF-RES
command.

COMMAND

#VID-RES io_mode, io_index,is_native,resolution<CR>

FEEDBACK

~nn@VID-RES io_mode,io_index,is_native,resolution<CR><LF

>

io_mode – Input/Output

1 – Output

io_index –1
is_native – Native resolution flag

1 – On

resolution – Resolution index:

0 – NATIVE
1 – 640x480 60
2 – 800x600 60
3 – 1024x768 60
4 – 1280x768 60
5 – 1280x800 60
6 – 1280x1024 60
7 – 1360x768 60
8 – 1400x1050 60
9 – 1440x900 60
10 – 1600x1200 60
11 – 1680x1050 60
12 – 1920x1200 60 RB
13 – 2560x1600 60 RB
14 – 1920x1080 60
15 – 1280x720 60
16 – 2048x1080 50
17 – 2048x1080 60
18 – 2560x1440 60 RB
19 – 3440x1440 30
20 – 3440x1440 60
21 – 720x480P 60
22 – 720x576P 50
23 – 1280x720P 50
24 – 1280x720P 60
25 – 1920x1080P 24
26 – 1920x1080P 25
27 – 1920x1080P 30
28 – 1920x1080P 50
29 – 1920x1080P 60
30 – 2560x1080P 50
31 – 2560x1080P 60
32 – 3840x2160P 24
33 – 3840x2160P 25
34 – 3840x2160P 30
35 – 3840x2160P 50
36 – 3840x2160P 60

Set output resolution:

#VID-RES 1,1,1,1<CR>

VID-RES?

Get output resolution.

“Get” command with
is_native=ON returns
native resolution VIC,
with is_native=OFF
returns current
resolution.

To use “custom
resolutions” (entries

100-105 In View
Modes), define them
using the DEF-RES
command.

COMMAND

#VID-RES? io_mode,io_index,is_native<CR>

FEEDBACK

~nn@VID-RES? io_mode,io_index,is_native,resolution<CR><L

F>

io_mode – Input/Output

0 – Input
1 – Output

io_index – Number that indicates

the specific input or output port:
1-N (N= the total number of input or
output ports)

is_native – Native resolution flag

1 – On

resolution – Resolution index:

0 – NATIVE
1 – 640x480 60
2 – 800x600 60
3 – 1024x768 60
4 – 1280x768 60
5 – 1280x800 60
6 – 1280x1024 60
7 – 1360x768 60
8 – 1400x1050 60
9 – 1440x900 60
10 – 1600x1200 60
11 – 1680x1050 60
12 – 1920x1200 60 RB
13 – 2560x1600 60 RB
14 – 1920x1080 60
15 – 1280x720 60
16 – 2048x1080 50
17 – 2048x1080 60
18 – 2560x1440 60 RB
19 – 3440x1440 30
20 – 3440x1440 60
21 – 720x480P 60
22 – 720x576P 50
23 – 1280x720P 50
24 – 1280x720P 60
25 – 1920x1080P 24
26 – 1920x1080P 25
27 – 1920x1080P 30
28 – 1920x1080P 50
29 – 1920x1080P 60
30 – 2560x1080P 50
31 – 2560x1080P 60
32 – 3840x2160P 24
33 – 3840x2160P 25
34 – 3840x2160P 30
35 – 3840x2160P 50
36 – 3840x2160P 60

Set output resolution:

#VID-RES? 1,1,1<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

92

Function

Description

Syntax

Parameters/Attributes

Example

VMUTE

Set enable/disable
video on output.

Video mute
parameter 2 (blank
picture) is not
supported.

COMMAND

#VMUTEout_index,flag<CR>

FEEDBACK

~nn@VMUTEout_index,flag<CR><LF>

out_index – Number that

indicates the specific output: 1

flag – Video Mute

0 – Video disabled+5V low
1 – Video enabled +5V high
2 – Blank picture + 5V high

Disable the video output:

#VMUTE1,0<CR>

VMUTE?

Get video on output
status.

Video mute
parameter 2 (blank
picture) is not
supported.

COMMAND

#VMUTE?out_index<CR>

FEEDBACK

~nn@VMUTEout_index,flag<CR><LF>

out_index – Number that

indicates the specific output: 1

flag – Video Mute

0 – Video enabled
1 – Video disabled
2 – Blank picture

Get video on output status:

#VMUTE?1<CR>

X-AUD-LVL

Set audio level of a
specific signal.

This is an Extended
Protocol 3000
command.

COMMAND

#X-AUD-LVL <direction_type>. <port_format>. <port_index>.

<sign al_type>. <index>,audio_level<CR>

FEEDBACK

~nn@X-AUD-LVL <direction_type>. <port_format>.

<port _index>. <signal_type>. <index>,audio_level<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI
o ANALOG_AUDIO

▪ <port_index> – The port

number as printed on the front
or rear panel:1

▪ <signal_type> – Signal ID

attribute:

o AUDIO

▪ <index> – Indicates a specific

channel number when there
are multiple channels of the

same type

audio_level – Audio level (range

between 0 to +100) depending of
the ability of the product

Set the output audio level to
10:

#X-AUD-LVL out.hdmi.1
.audio.1,10<CR>

X-AUD­LVL?

Get audio level of a
specific signal.

This is an Extended
Protocol 3000
command.

COMMAND

#X-AUD-LVL? <direction_type>. <port_format>. <port_index>.

<sign al_type>. <index><CR>

FEEDBACK

~nn@X-AUD-LVL <direction_type>. <port_format>.

<port _index>. <signal_type>. <index>,audio_level<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI
o ANALOG_AUDIO

▪ <port_index> – The port

number as printed on the front
or rear panel:1

▪ <signal_type> – Signal ID

attribute:

o AUDIO

▪ <index> – Indicates a specific

channel number when there
are multiple channels of the
same type

audio_level – Audio level (range

between 0 to +100) depending of
the ability of the product

Get the audio level of a
specific signal:

#X-AUD-LVL? out.hdmi.

1.audio.1<CR>

X-ROUTE

Send routing command
to matrix.

It is recommended
to use the command
#SIGNALS-LIST to get

the list of all signal IDs
available in the system
and which can be used
in this command.

Video 1 is the default
port in this command
and is implied even if
not written:

#X­ROUTEout.sdi.5,i

n.sdi.1<CR>

is interpreted as:

#X­ROUTEout.sdi.5.v

ideo.1,in.sdi.1.v
ideo.1<CR>

This is an Extended
Protocol 3000
command.

COMMAND

#X-ROUTE <direction_type1>. <port_type1>. <port_index1>.

<sign al_type1>. <index1>,<direction_type2> . <port_type2>.
<port _index2>. <signal_type2>. <index2><CR>

FEEDBACK

~nn@X-ROUTE <direction_type1>. <port_type1>.

<port _index1>. <signal_type1>. <index1>,<direction_type2>.
<port _type2>. <port_index2>. <signal_type2>.
<inde x2><CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o IN – Input
o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI
o HDBT

▪ <port_index> – The port

number as printed on the front

or rear panel:
For inputs:
1 –HDBT Input
2 –HDMI Input
For output:
1 –HDMI Output
▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – Indicates a specific

channel number when there

are multiple channels of the

same type: 1

Route HDBT IN to HDMI
OUT:

#X-ROUTE out.hdmi.1.v

ideo.1,in.hdbt.1.vide
o.1<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

93

Function

Description

Syntax

Parameters/Attributes

Example

X-ROUTE?

Get routing status.

It is recommended
to use the command
#SIGNALS-LIST to get
the list of all signal IDs
available in the system
and which can be used
in this command.

VIDEO.1 are the default
<signal_type> and
<index> in this

command and are
implied even if not
written:

#X­ROUTEout.sdi.5,i

n.sdi.1<CR>

is interpreted as:

#X­ROUTEout.sdi.5.v

ideo.1,in.sdi.1.v
ideo.1<CR>

This is an Extended
Protocol 3000
command.

COMMAND

#X-ROUTE? <direction_type1>. <port_type1>. <port_index1>.

<sign al_type1>. <index1><CR>

FEEDBACK

~nn@X-ROUTE <direction_type1>. <port_type1>.

<port _index1>. <signal_type1>. <index1>,<direction_type2>.
<port _type2>. <port_index2>. <signal_type2>.
<inde x2><CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o IN – Input
o OUT – Output

▪ <port_format> – Type of

signal on the port:

o HDMI
o HDBT

▪ <port_index> – The port

number as printed on the front

or rear panel:
For inputs:
1 –HDBT Input
2 –HDMI Input
For output:
1 –HDMI Output
▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – Indicates a specific

channel number when there

are multiple channels of the

same type: 1

Get the routing status:

#X-ROUTE? out.hdmi.1.

video.1<CR>

X-SIGNAL?

Get input signal status.

This is an Extended
Protocol 3000
command.

COMMAND

#X-SIGNAL? <direction_type>. <port_format>. <port_index>.

<sign al_type>. <index><CR>

FEEDBACK

~nn@X-SIGNAL <direction_type>. <port_format>.

<port _index>. <signal_type>. <index>,status<CR><LF>

The following attributes comprise
the signal ID:

▪ <direction_type> –

Direction of the port:

o IN – Input

▪ <port_format> – Type of

signal on the port:

o HDMI
o HDBT

▪ <port_index> – The port

number as printed on the front
or rear panel:
1 – HDBT Input
2 – HDMI Input

▪ <signal_type> – Signal ID

attribute:

o VIDEO

▪ <index> – Indicates a specific

channel number when there
are multiple channels of the
same type: 1

status – Input Signal Status

0 – No signal
1 – There is a signal

Get the HDMI input signal
status:

#X­SIGNAL? in.hdmi.2.vid

eo.1<CR>

Kramer Electronics Ltd.

KIT-401 – Protocol 3000

94

Result and Error Codes

Syntax

In case of an error, the device responds with an error message. The error message syntax:

• ~NN@ERR XXX<CR><LF> – when general error, no specific command

• ~NN@CMD ERR XXX<CR><LF> – for specific command

• NN – machine number of device, default = 01

• XXX – error code

Error Codes

Error Name

Error Code

Description

P3K_NO_ERROR

0

No error

ERR_PROTOCOL_SYNTAX

1

Protocol syntax

ERR_COMMAND_NOT_AVAILABLE

2

Command not available

ERR_PARAMETER_OUT_OF_RANGE

3

Parameter out of range

ERR_UNAUTHORIZED_ACCESS

4

Unauthorized access

ERR_INTERNAL_FW_ERROR

5

Internal FW error

ERR_BUSY

6

Protocol busy

ERR_WRONG_CRC

7

Wrong CRC

ERR_TIMEDOUT

8

Timeout

ERR_RESERVED

9

(Reserved)

ERR_FW_NOT_ENOUGH_SPACE

10

Not enough space for data (firm ware, FPGA…)

ERR_FS_NOT_ENOUGH_SPACE

11

Not enough space – file system

ERR_FS_FILE_NOT_EXISTS

12

File does not exist

ERR_FS_FILE_CANT_CREATED

13

File can’t be created

ERR_FS_FILE_CANT_OPEN

14

File can’t open

ERR_FEATURE_NOT_SUPPORTED

15

Feature is not supported

ERR_RESERVED_2

16

(Reserved)

ERR_RESERVED_3

17

(Reserved)

ERR_RESERVED_4

18

(Reserved)

ERR_RESERVED_5

19

(Reserved)

ERR_RESERVED_6

20

(Reserved)

ERR_PACKET_CRC

21

Packet CRC error

ERR_PACKET_MISSED

22

Packet number isn't expected (missing packet)

ERR_PACKET_SIZE

23

Packet size is wrong

ERR_RESERVED_7

24

(Reserved)

ERR_RESERVED_8

25

(Reserved)

ERR_RESERVED_9

26

(Reserved)

ERR_RESERVED_10

27

(Reserved)

ERR_RESERVED_11

28

(Reserved)

ERR_RESERVED_12

29

(Reserved)

ERR_EDID_CORRUPTED

30

EDID corrupted

ERR_NON_LISTED

31

Device specific errors

ERR_SAME_CRC

32

File has the same CRC – not changed

ERR_WRONG_MODE

33

Wrong operation mode

ERR_NOT_CONFIGURED

34

Device/chip was not initialized

The warranty obligations of Kram er Elec tronics Inc. (“Kramer Electronics ”) f or this product are lim ited to the t erms set fort h below:

What is Covered

This limited warranty covers defects in materials and workmanship in t his product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or
maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier),
lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or
removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics
to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not
cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology
and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology
with which the product may be used.

How Long this Coverage Lasts

The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:

1. All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year
warranty for firmware and software updates; all Kramer VIA accessories, adapters, tags, and dongles are covered by a standard one (1) year

warranty.

2. Kramer fiber optic cables, adapter-size fiber optic extenders, pluggable optical modules, active cables, cable retractors, ring mounted
adapters, portable power chargers, Kramer speakers, and Kramer touch panels are covered by a standard one (1) year warranty. Kramer

7-inch touch panels purchased on or after April 1st, 2020 are covered by a standard two (2) year warranty.

3. All Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products
are covered by a standard three (3) year warranty.

4. All Sierra Video MultiViewers are covered by a standard five (5) year warranty.

5. Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for
three (3) years).

6. K-Touch software is covered by a standard one (1) year warranty for software updates.

7. All Kramer passive cables are covered by a lifetime warranty.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of
this product.

What Kramer Electronics Will Do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem nec essary to satisfy a proper claim under
this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and
labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs
necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same
function as the original product. If a direct or similar replacement product is supp lied, the original product’s end warranty date remains
unchanged and is transferred to the replacement product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought
under this limited warranty.

What Kramer Electronics Will Not Do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics
products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume
all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or
into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any
programming required for a specific installation of this product.

How to Obtain a Remedy Under This Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the
Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web
site at www.kramerav.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase f rom an authorized Kramer Electronics
reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number).
You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.
If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for
shipping. Cartons not bearing a return authorization number will be refused.

Limitation of Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID
FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL
THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation
of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT
PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR
EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.
IF ANY PROD UC T TO W HI CH THIS LIM ITED WARR ANTY APPLI ES IS A “CONSU MER PROD UC T” UNDER THE M AGNUSON -MOSS WARRANTY ACT (15
U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND
ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE,
SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or st ate to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer
Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer
Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product
registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

www.KramerAV.com
[e-mail]

P/N:

2900-301513

Rev:

1

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

For the latest information on our products and a list of Kramer distributors, visit our website where
updates to this user manual may be found.

We welcome your questions, comments, and feedback.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
All brand names, product names, and trademarks are the property of their respective owners.
