User's & Administrator’s Manual

KAC-BAR-81 MTR on Android™ Video Collaboration Bar with KAC-SCD-10 Meeting Room Controller

Version 2.2.311

Page 2

KAC-TCH-10

RX-PAD

KAC-CU-200

RXV-200

KAC-BAR-81

RXV-81

KAC-CAM-50M

RXVCam50M

KAC-CAM-CC-10

RXVCam10CC

KAC-SPK-15

RX-15

KAC-SPK-40

RX-40

KAC-SCD-10

RX-PANEL

In this Manual, the following marketing names are interchangeable:

Page 3

User's & Administrator's Manual Contents

Table of Contents

1 Introduction.................................................................................................................. 9

1.1 Highlights ........................................................................................................................ 9

1.2 Benefits ......................................................................................................................... 10

1.3 Hardware Features ....................................................................................................... 10

1.4 Bundles ......................................................................................................................... 10

1.5 Specifications ................................................................................................................ 11

1.6 Security Guidelines ....................................................................................................... 13

1.6.1 Microsoft Teams Security Guidelines ................................................................................ 13

1.6.2 Android Level Security Hardening ..................................................................................... 13

Google Play Services ......................................................................................... 13

Running Android in Kiosk Mode ......................................................................... 13

Screen Lock ........................................................................................................ 14

AudioCodes Private Key..................................................................................... 14

Android Debug Bridge (ADB) ............................................................................. 14

App Signing ........................................................................................................ 14

Web Browser ...................................................................................................... 14

Remote Configuration Management .................................................................. 14

AudioCodes Device Manager Validation ............................................................ 14

Sandboxing ......................................................................................................... 15

Keystore ............................................................................................................. 15

Device Certificate ............................................................................................... 15

Data Protection ................................................................................................... 15

Device File System ............................................................................................. 15

Debugging Interface ........................................................................................... 15

1.6.3 Android Security Updates .................................................................................................. 15

1.6.4 AudioCodes Root CA Certificate ....................................................................................... 16

1.7 Certificate Enrollment using SCEP ................................................................................ 17

1.8 Provisioning Certificates in .pfx Format ......................................................................... 18

2 Connecting to RXV81 ................................................................................................ 19

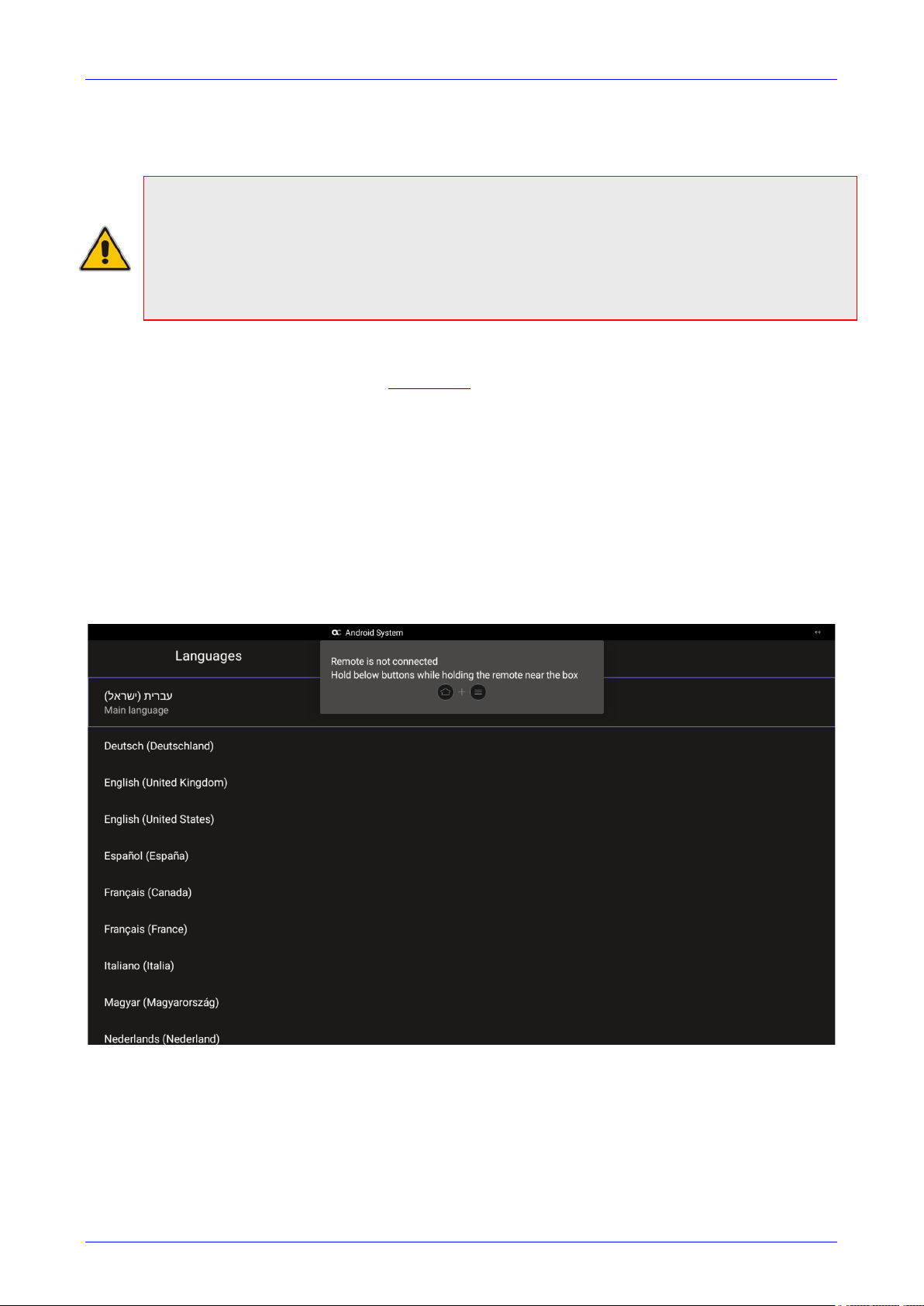

2.1 Pairing with the RC ....................................................................................................... 19

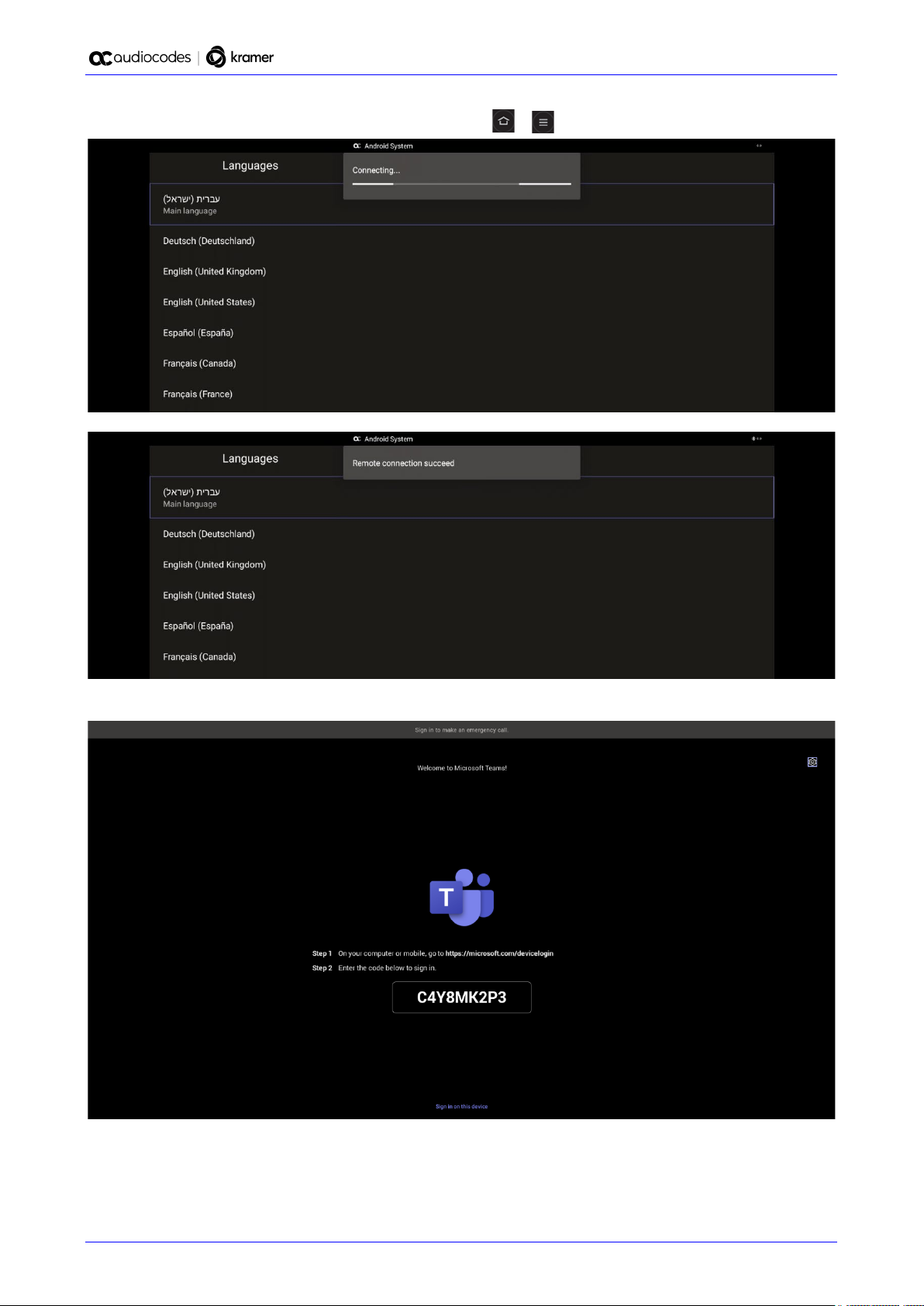

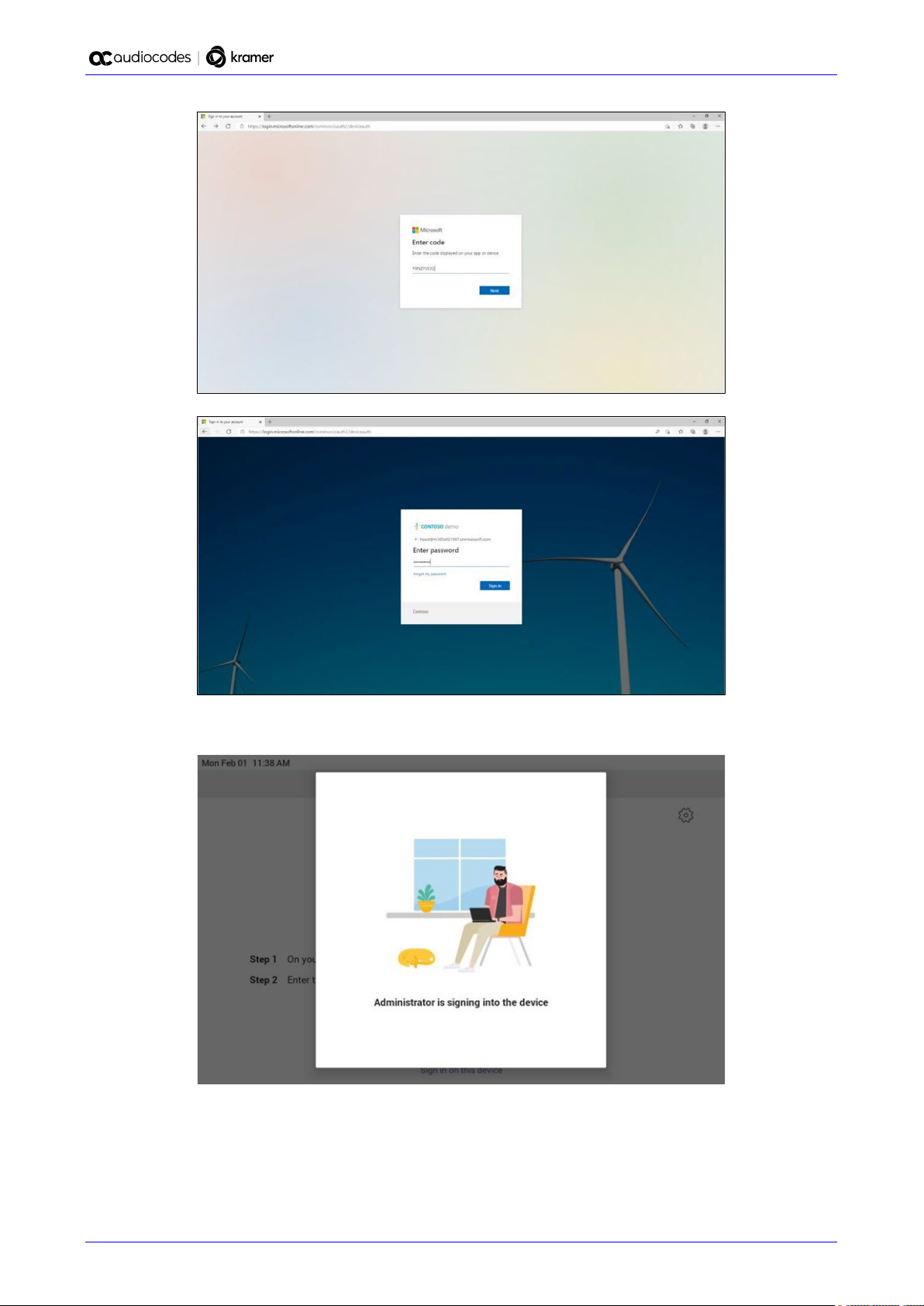

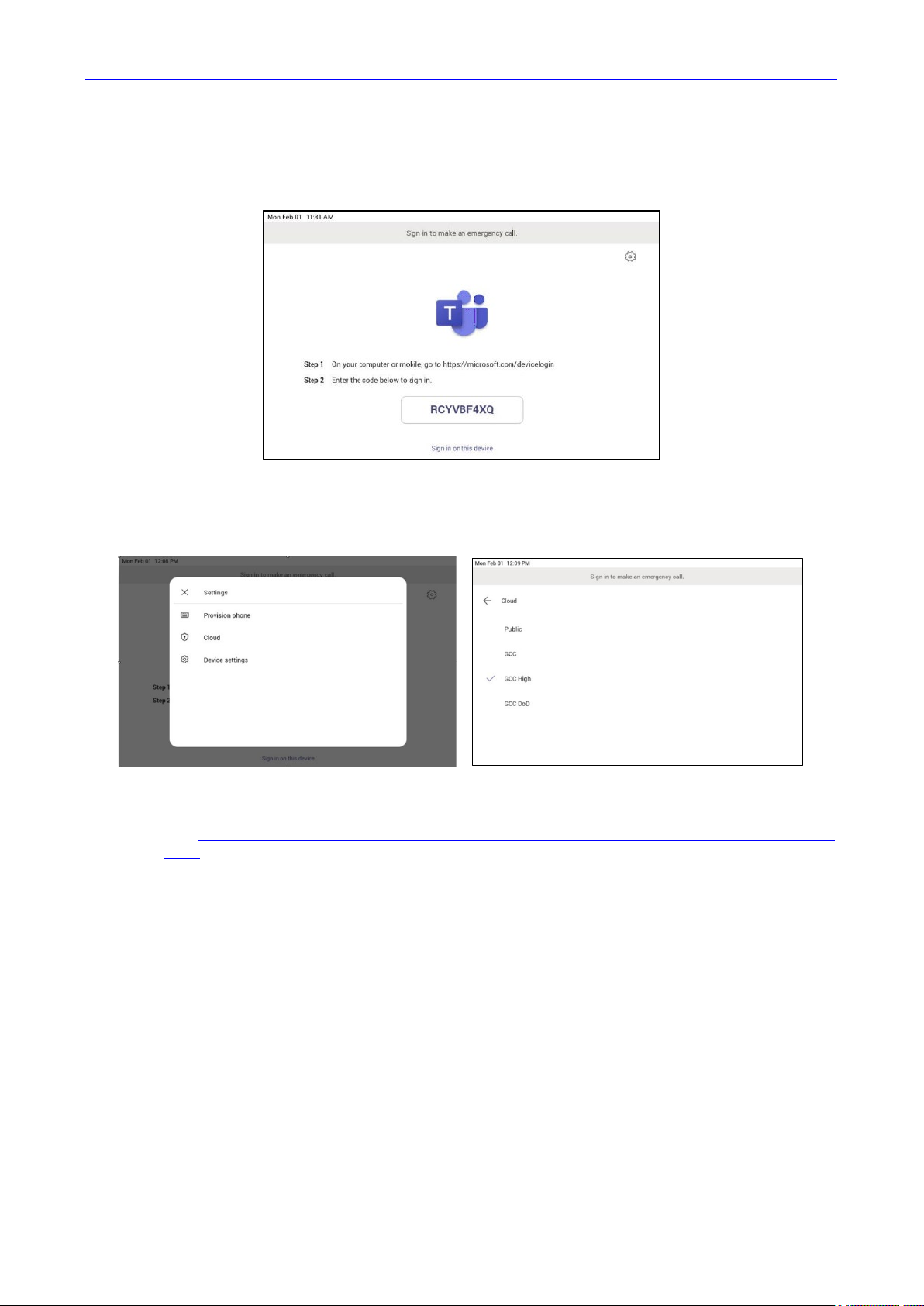

2.2 Signing in ...................................................................................................................... 21

2.2.1 Multi-Cloud Sign-in ............................................................................................................. 21

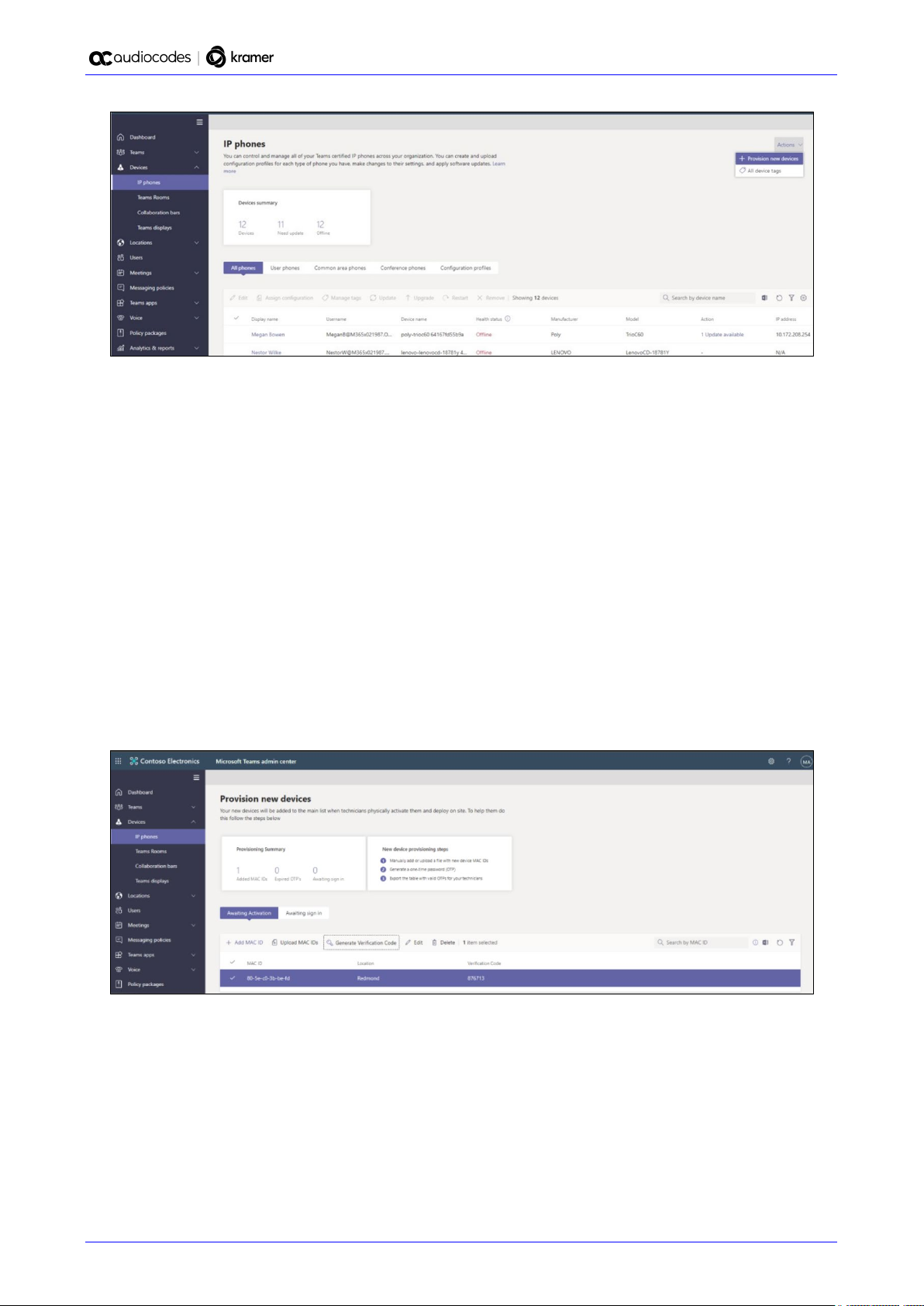

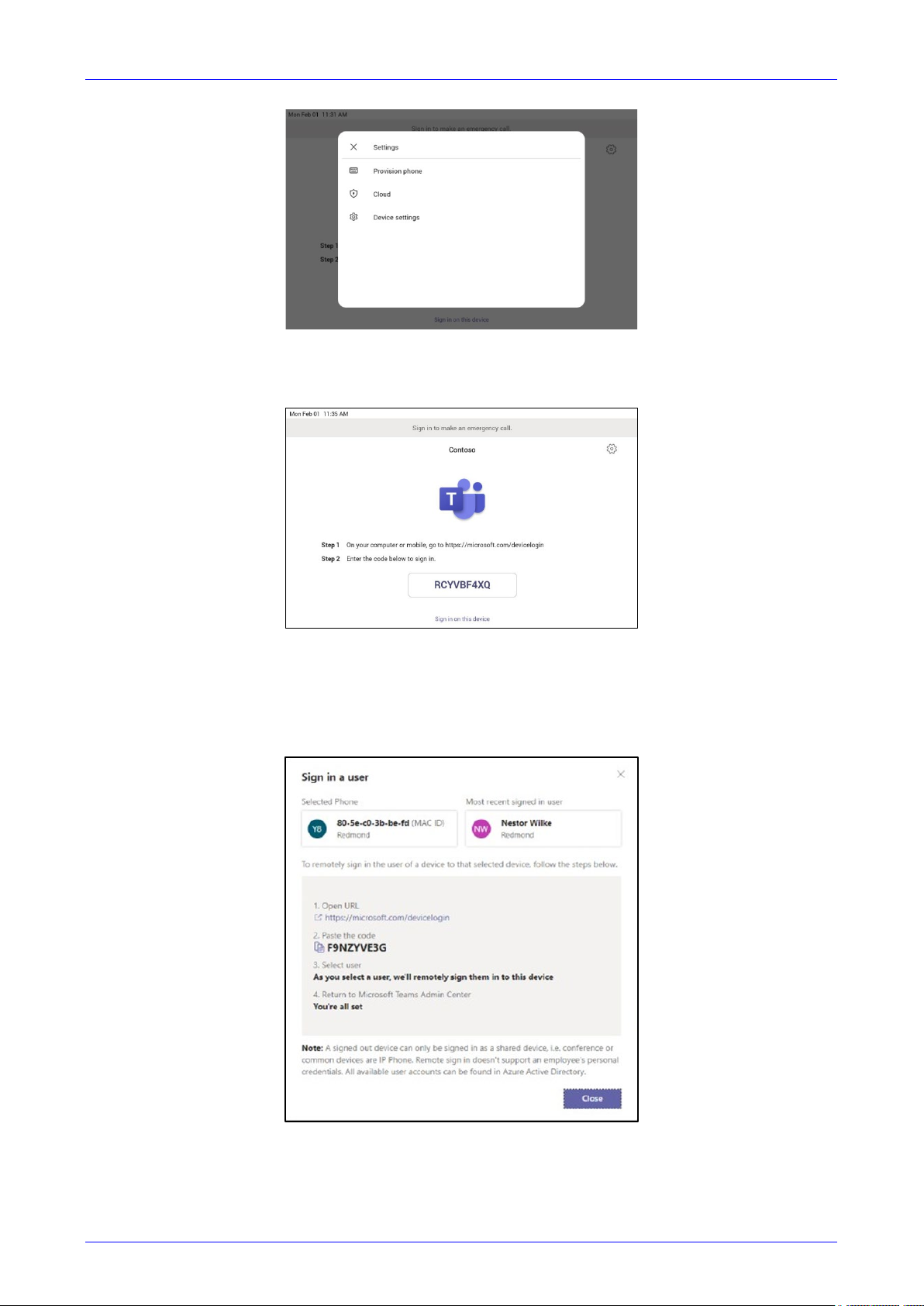

2.2.2 Remote Provisioning and Sign in from Teams Admin Center ........................................... 21

3 Using General RXV81 Functions .............................................................................. 25

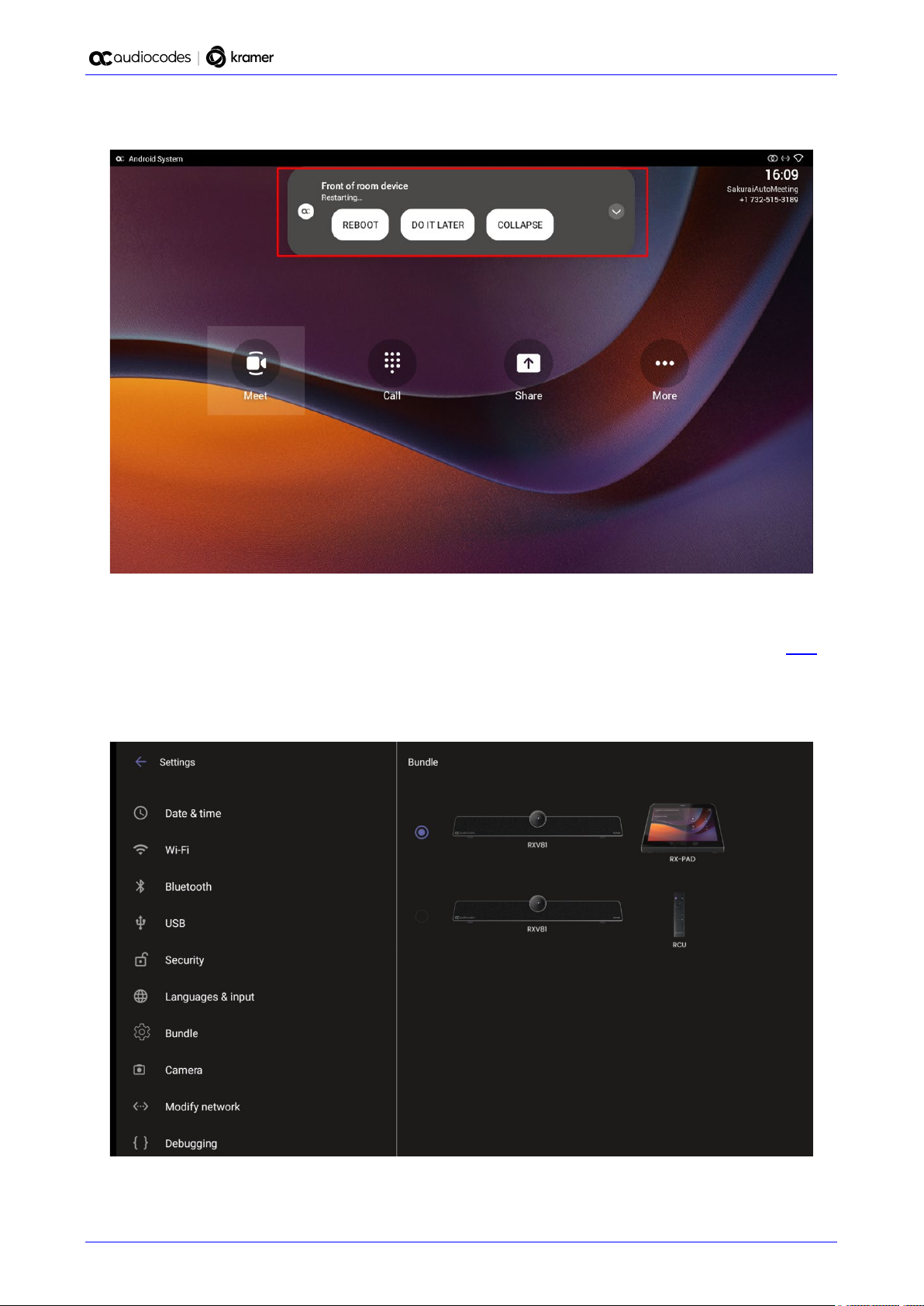

3.1 Managing Notification Messages ................................................................................... 25

3.2 Configuring a Bundle ..................................................................................................... 26

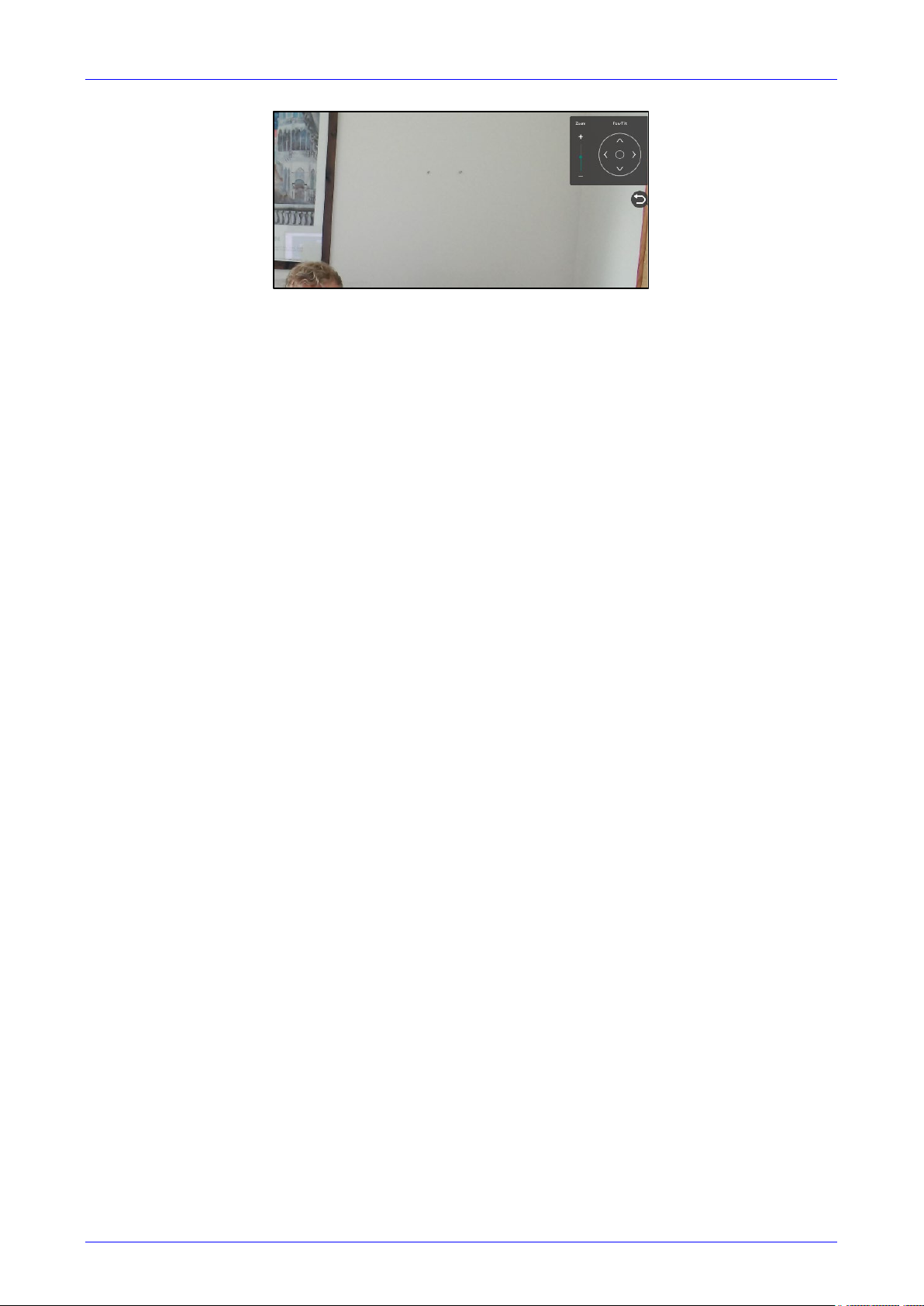

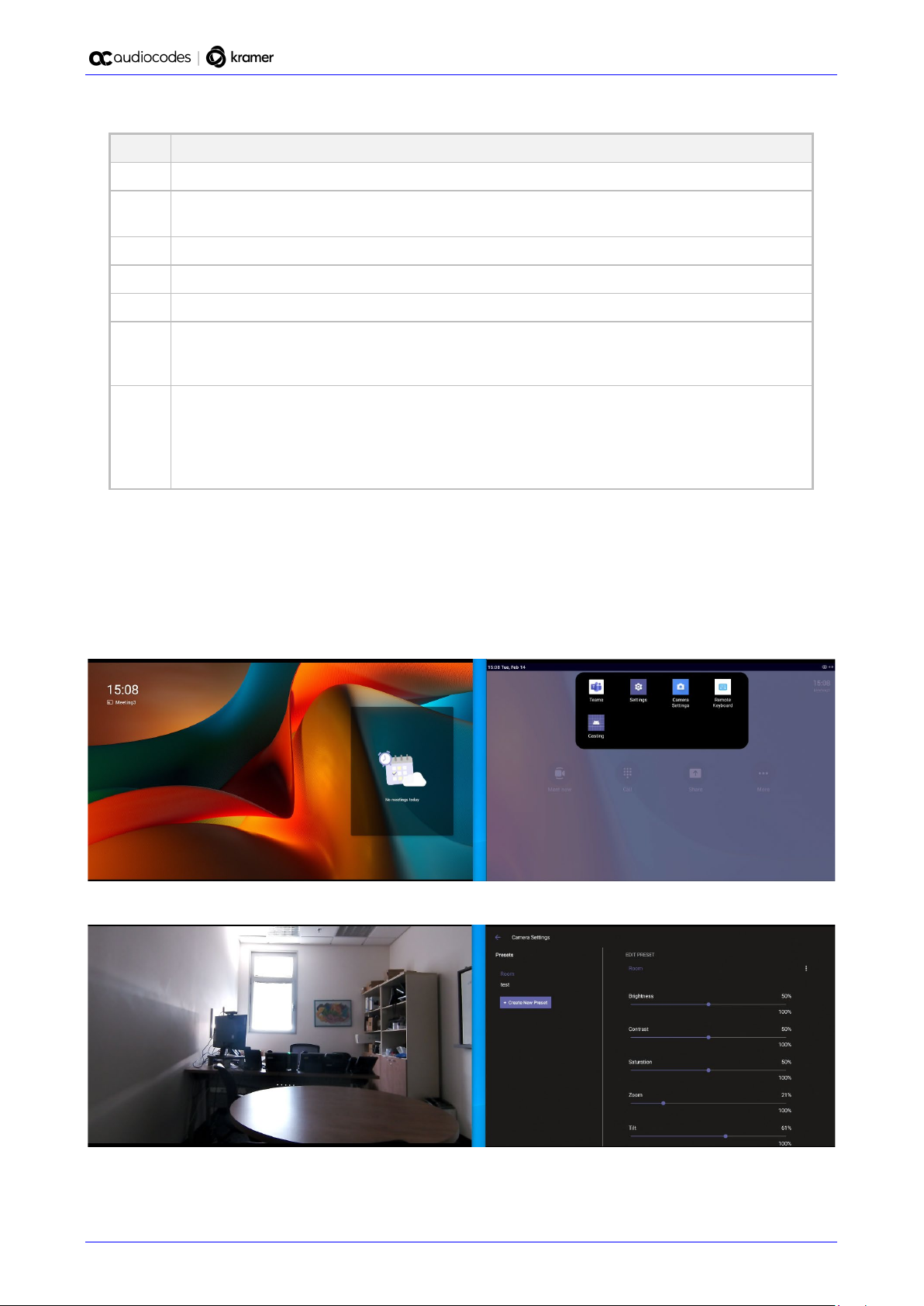

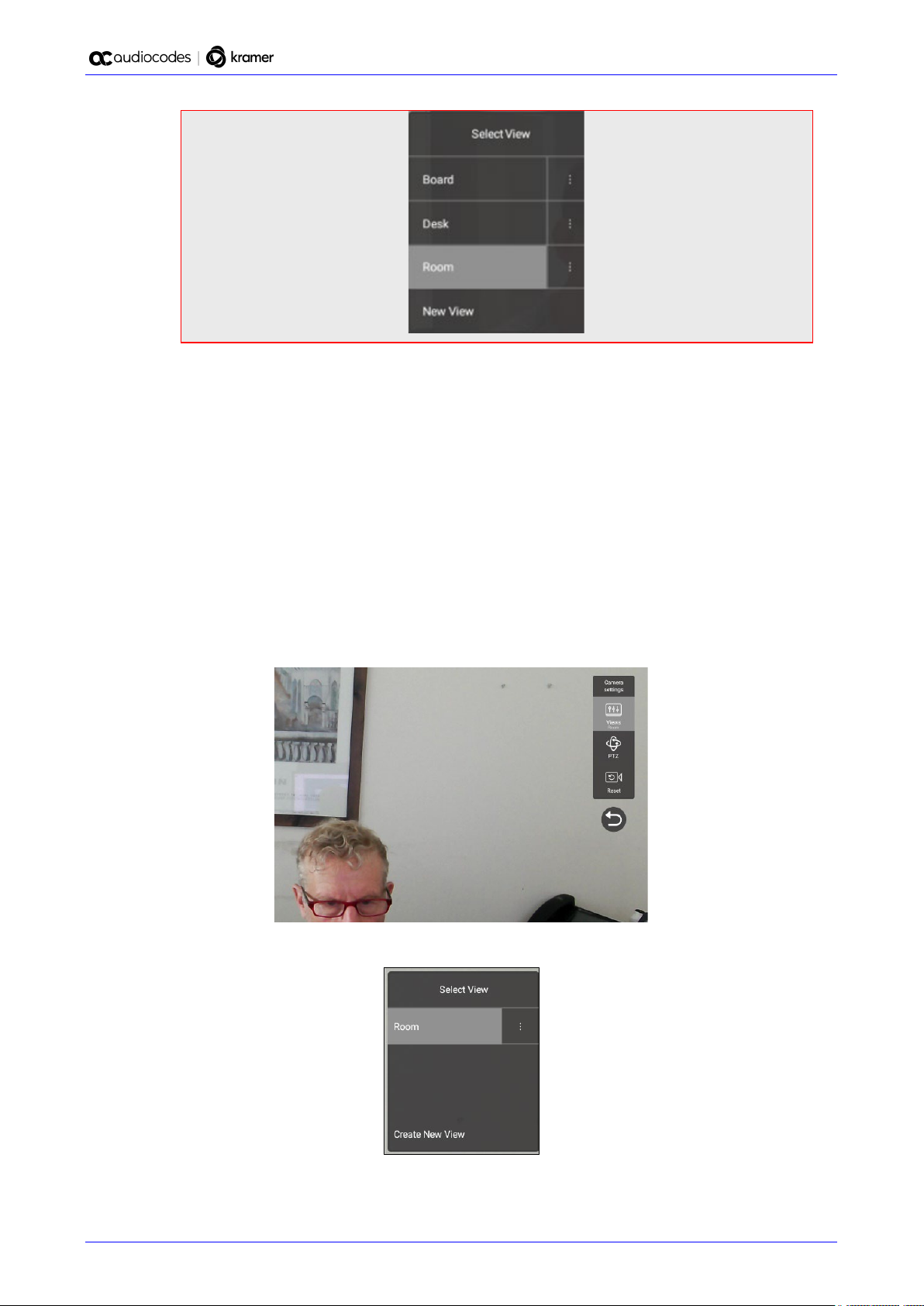

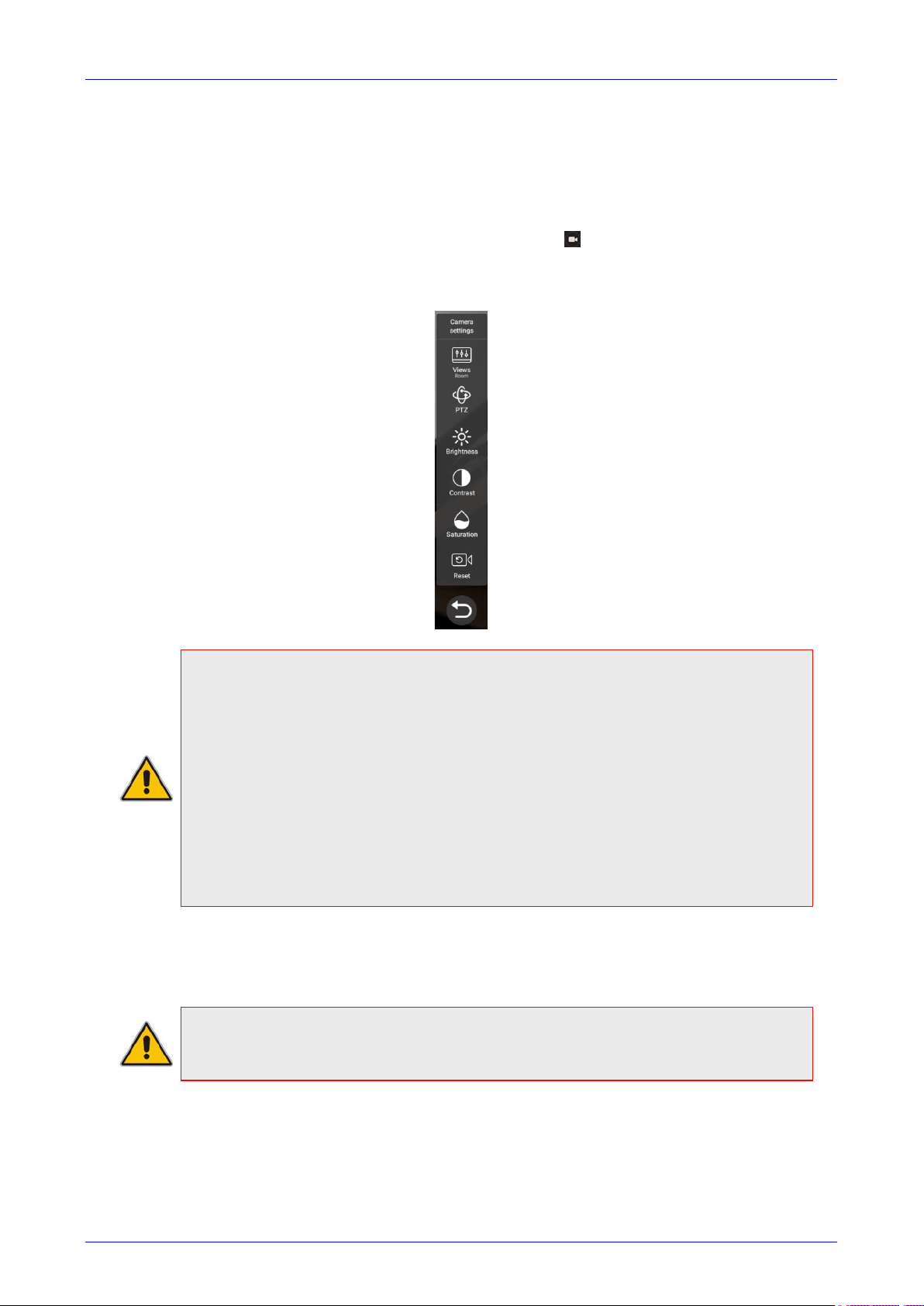

3.3 Modifying RXV81 Camera Settings ............................................................................... 27

3.4 Starting a New Meeting ................................................................................................. 30

3.5 Dialing a Number .......................................................................................................... 33

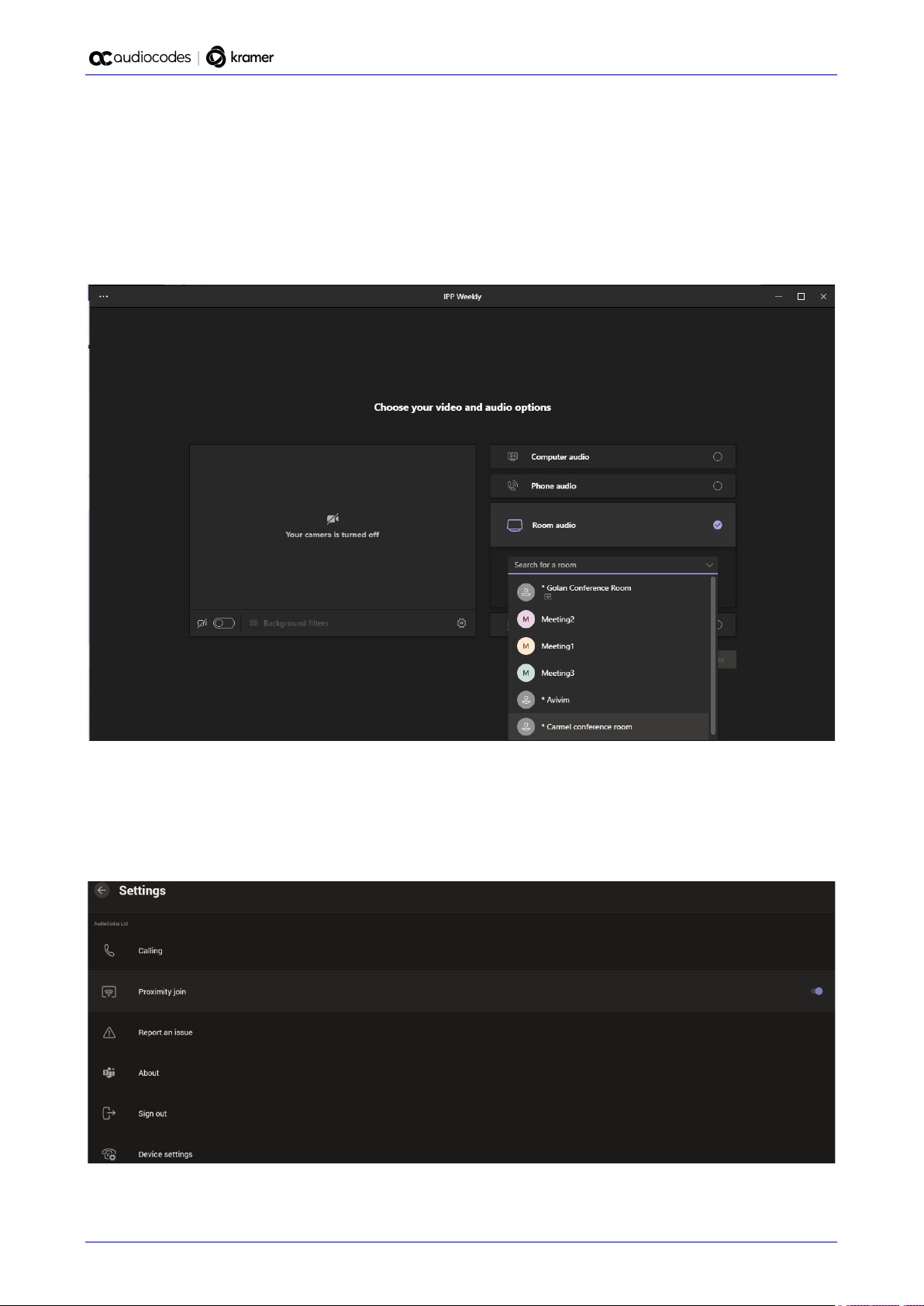

3.6 Enabling Proximity Join ................................................................................................. 34

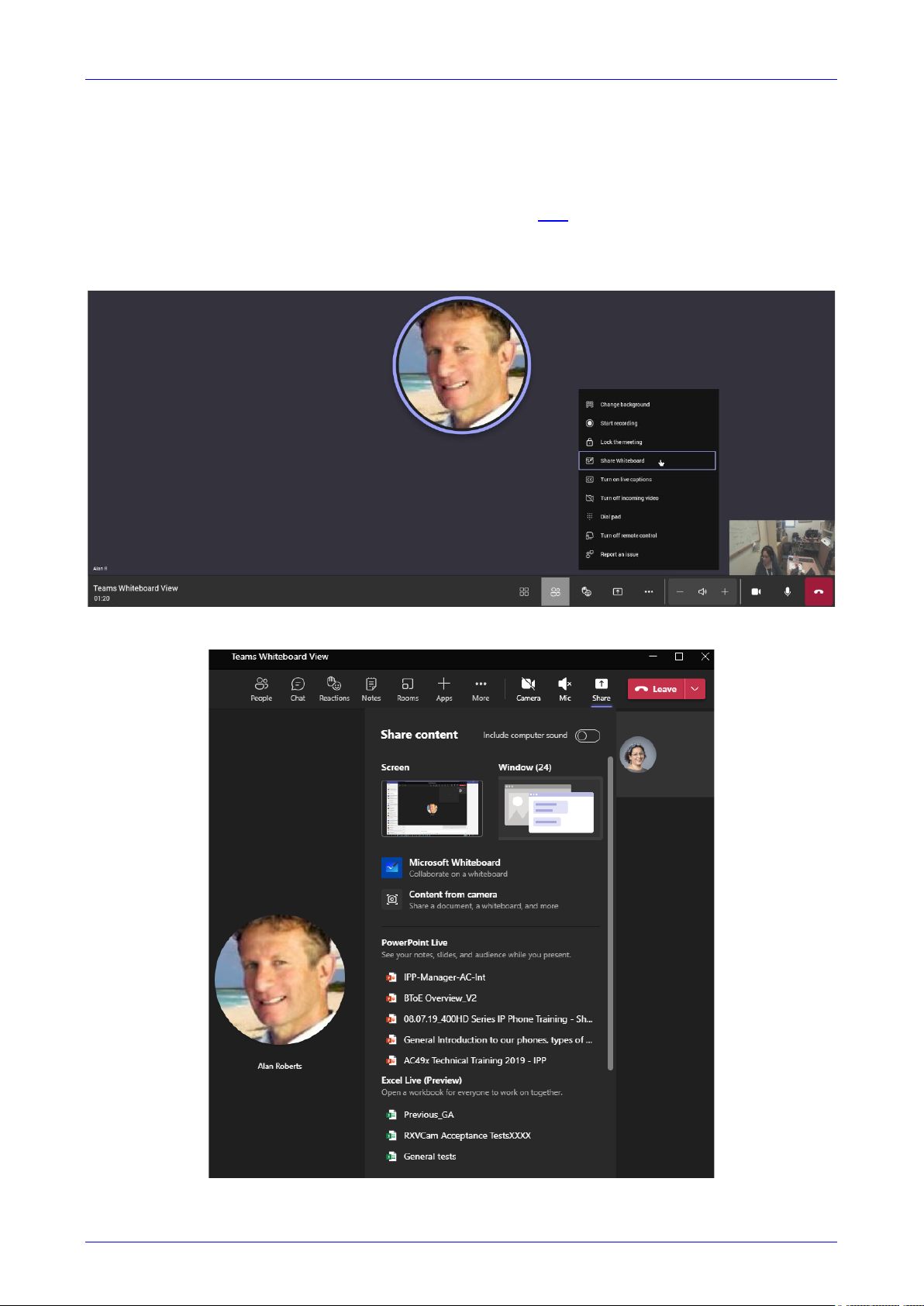

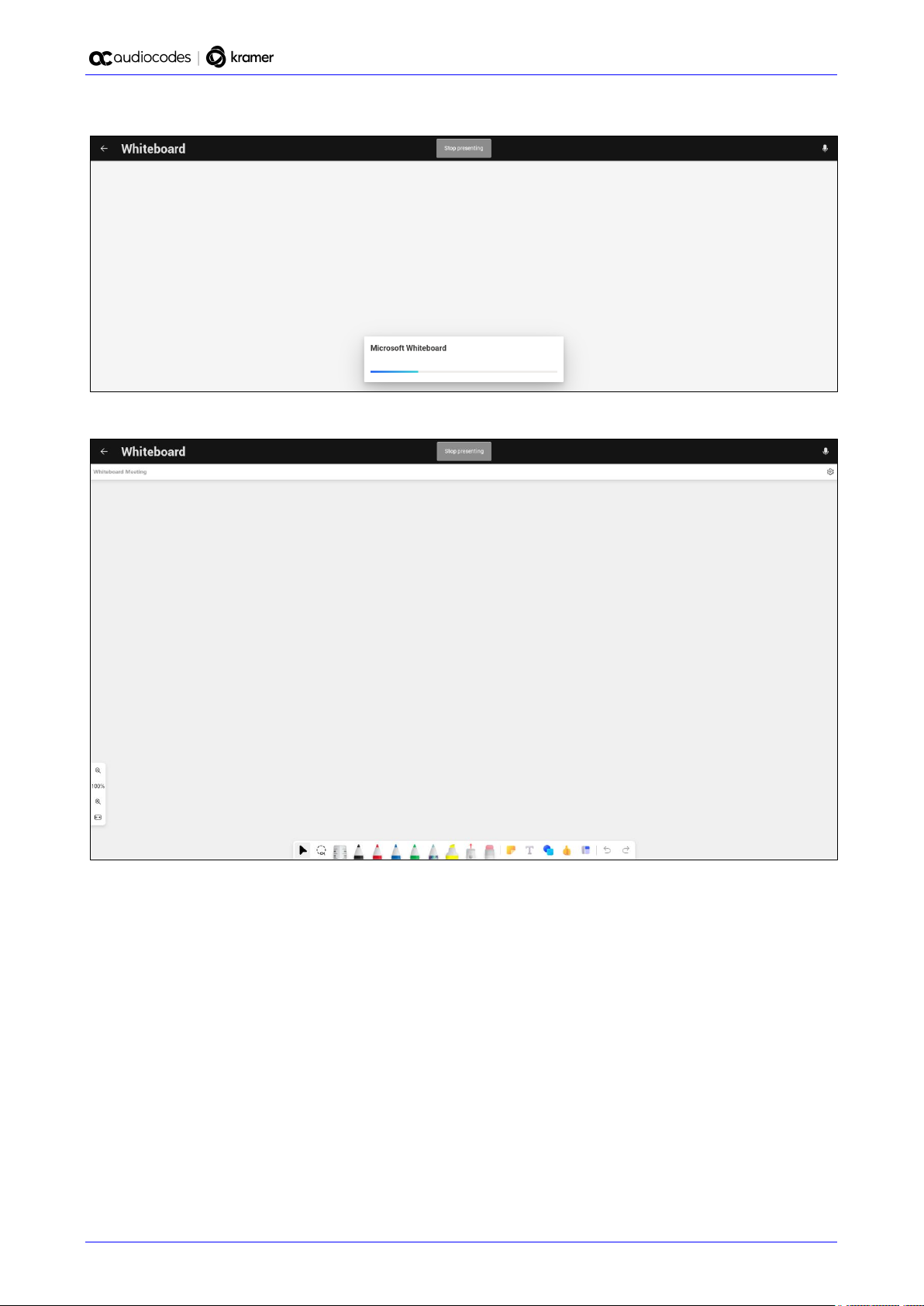

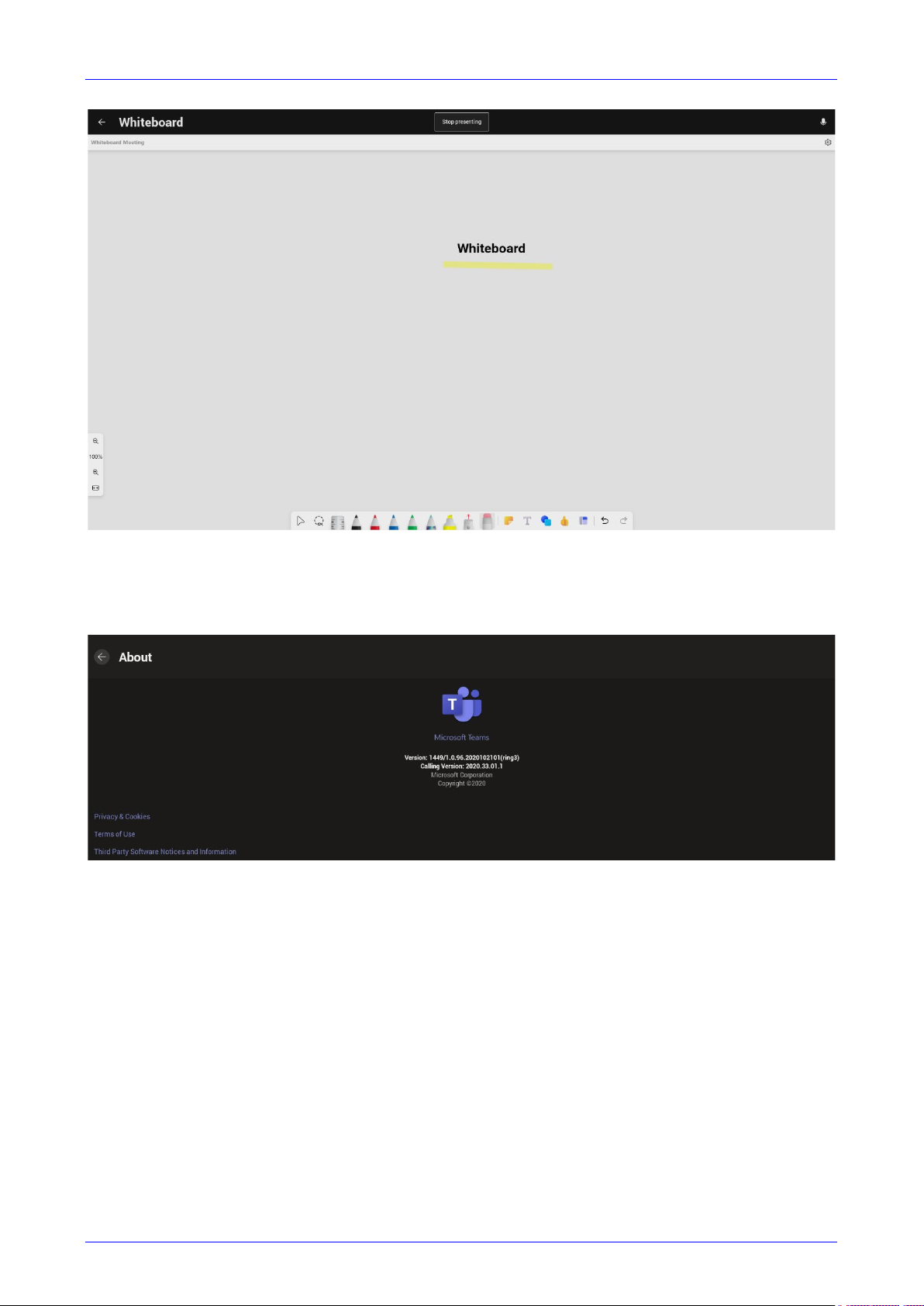

3.7 Sharing a Whiteboard ................................................................................................... 35

3.8 About Microsoft Teams ................................................................................................. 37

3.9 Signing out .................................................................................................................... 38

4 RXV81 Settings .......................................................................................................... 39

4.1 Device Admin Settings .................................................................................................. 42

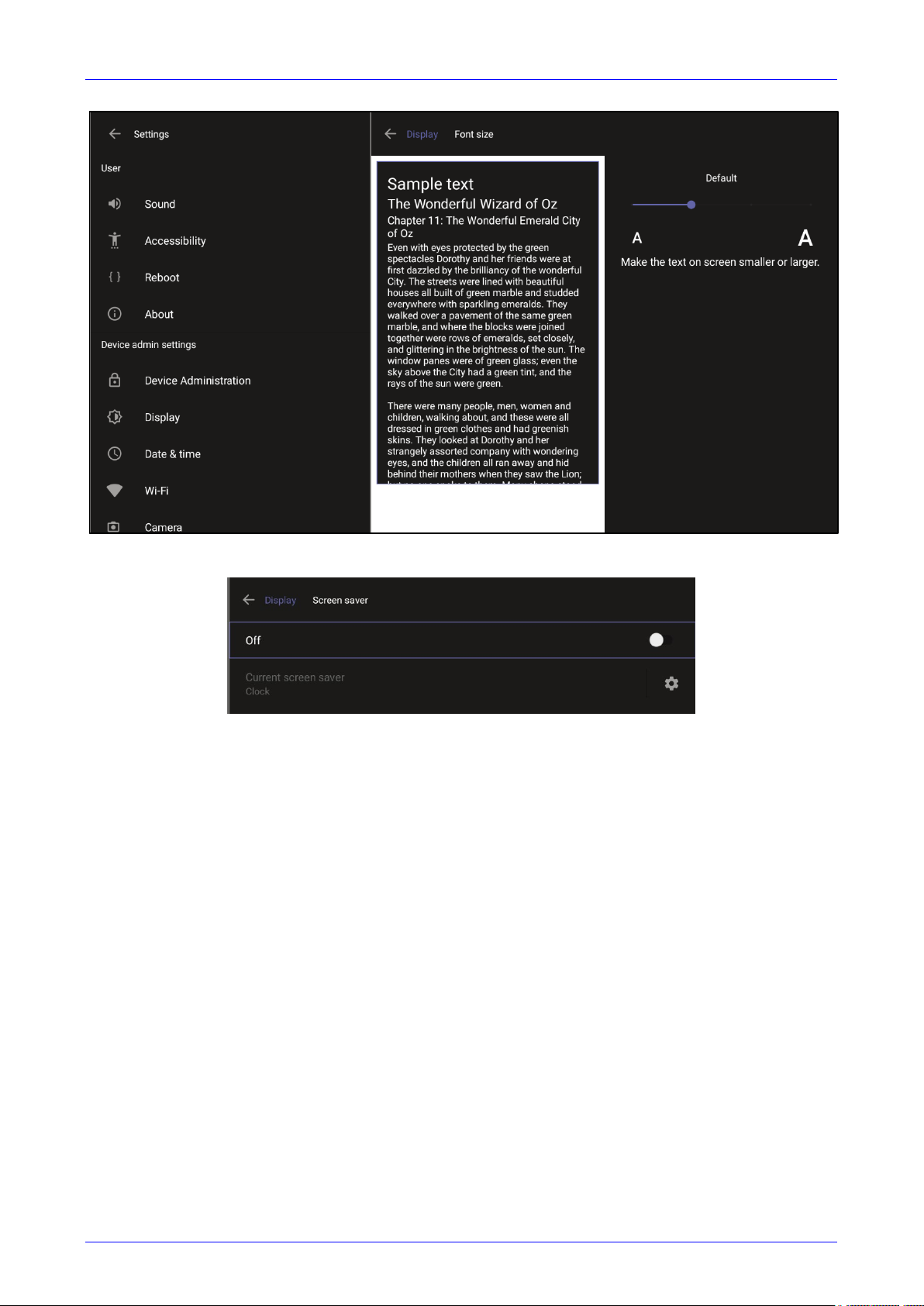

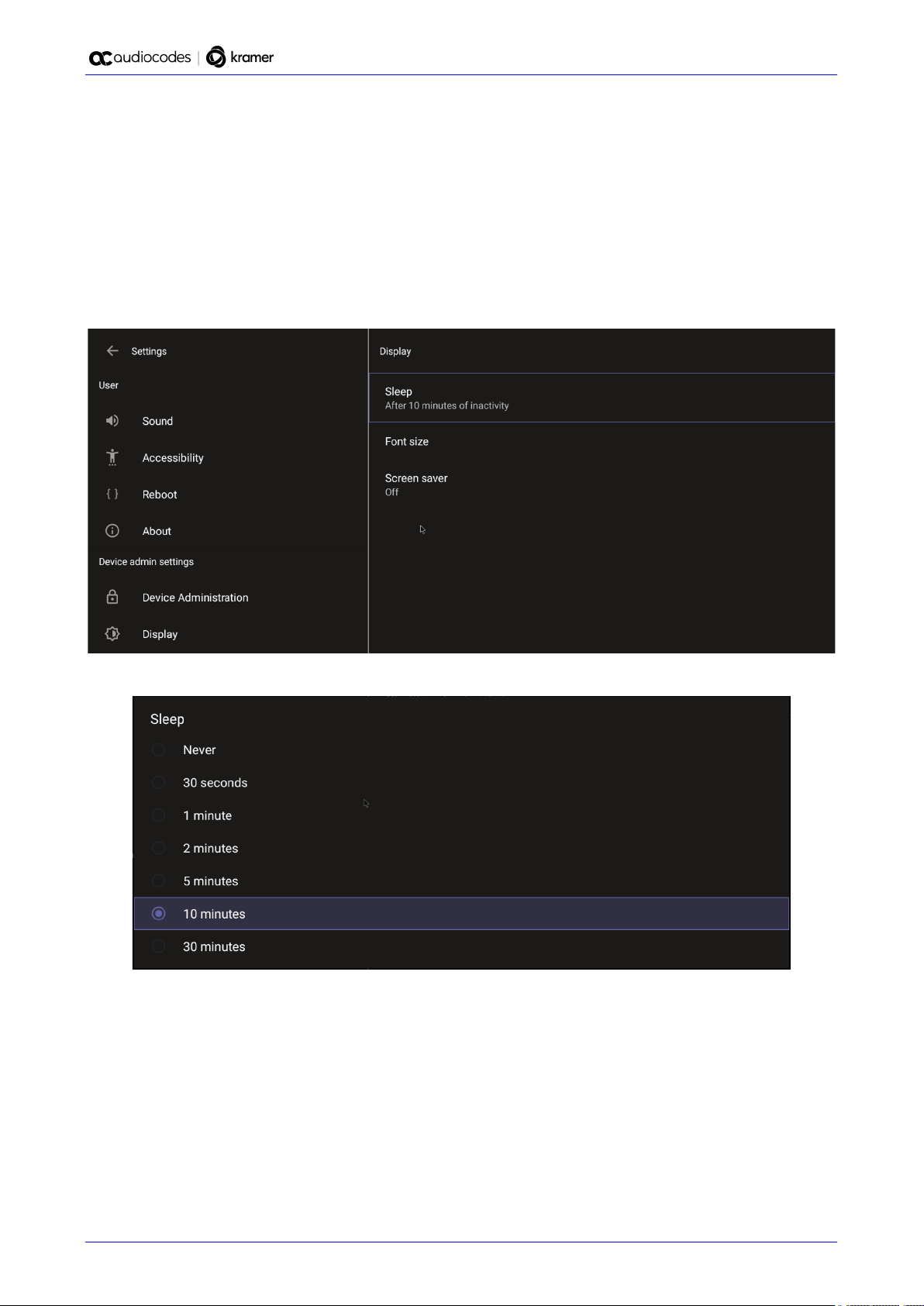

4.1.1 Configuring Display ............................................................................................................ 42

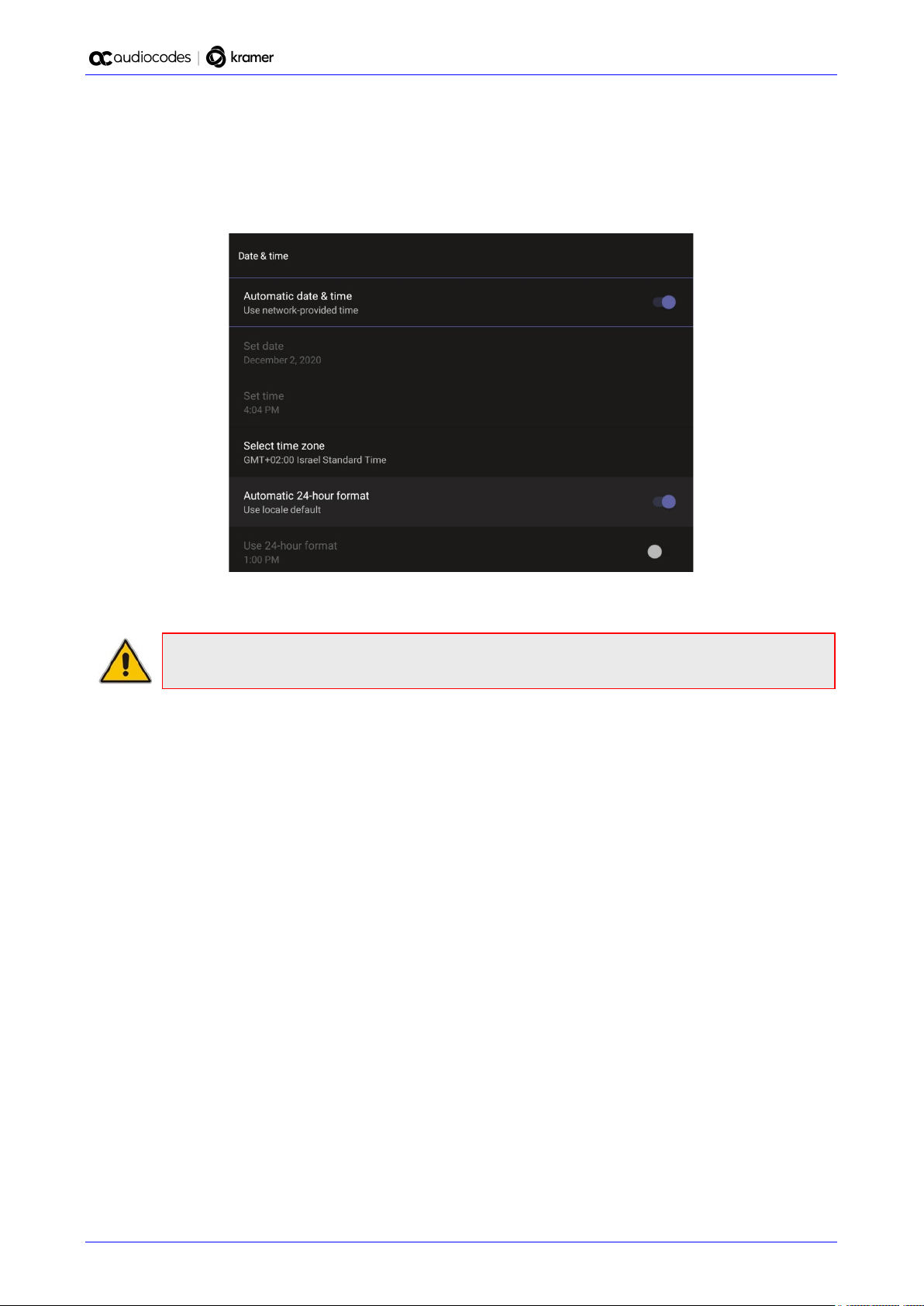

4.1.2 Configuring Date & Time ................................................................................................... 44

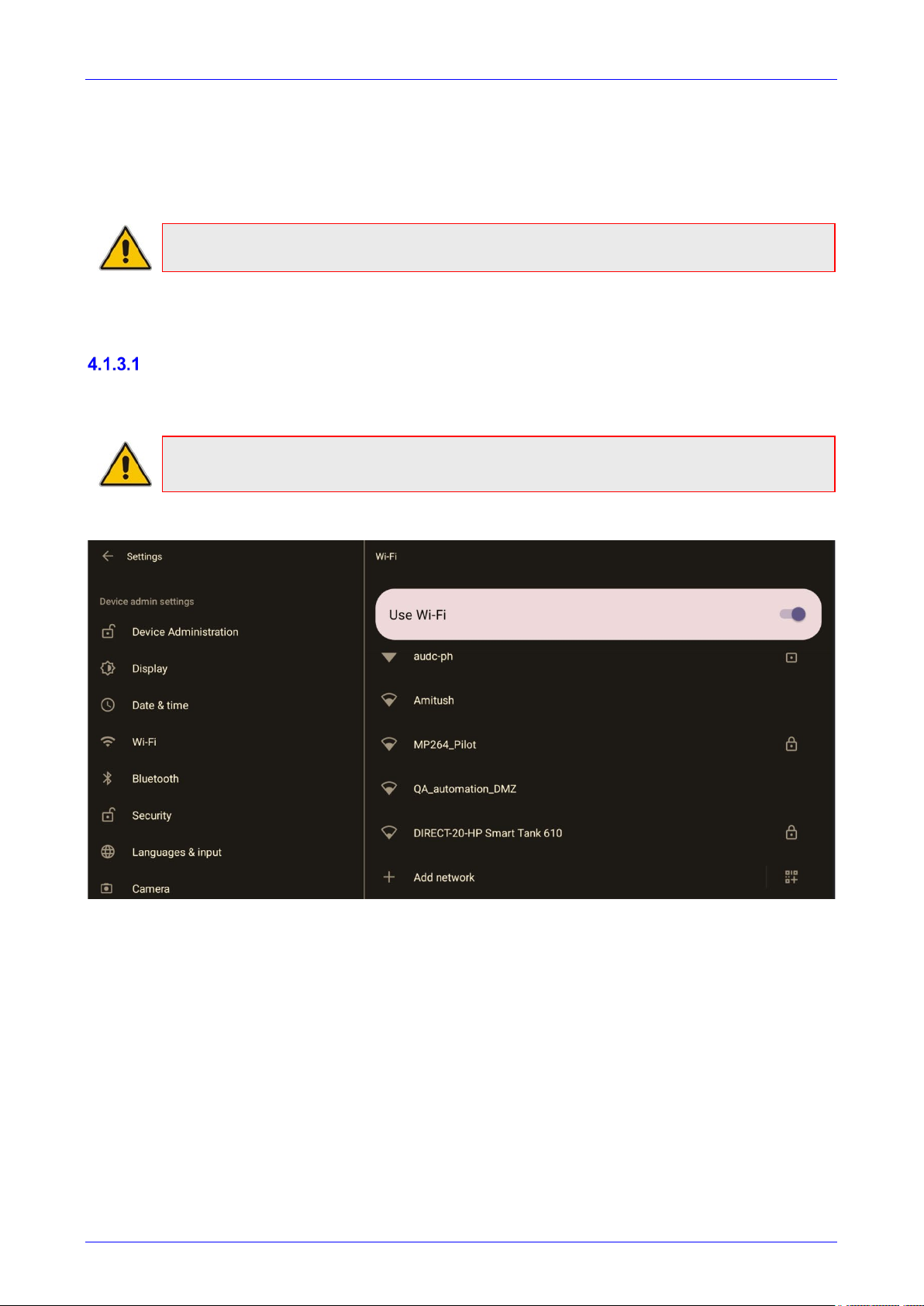

4.1.3 Configuring Wi-Fi ............................................................................................................... 45

Version 2.2 3 RXV81 MTR on Android Video Collaboration Bar

Page 4

RXV81 MTR on Android Video Collaboration Bar

Connecting to an Available Wi-Fi Network ......................................................... 45

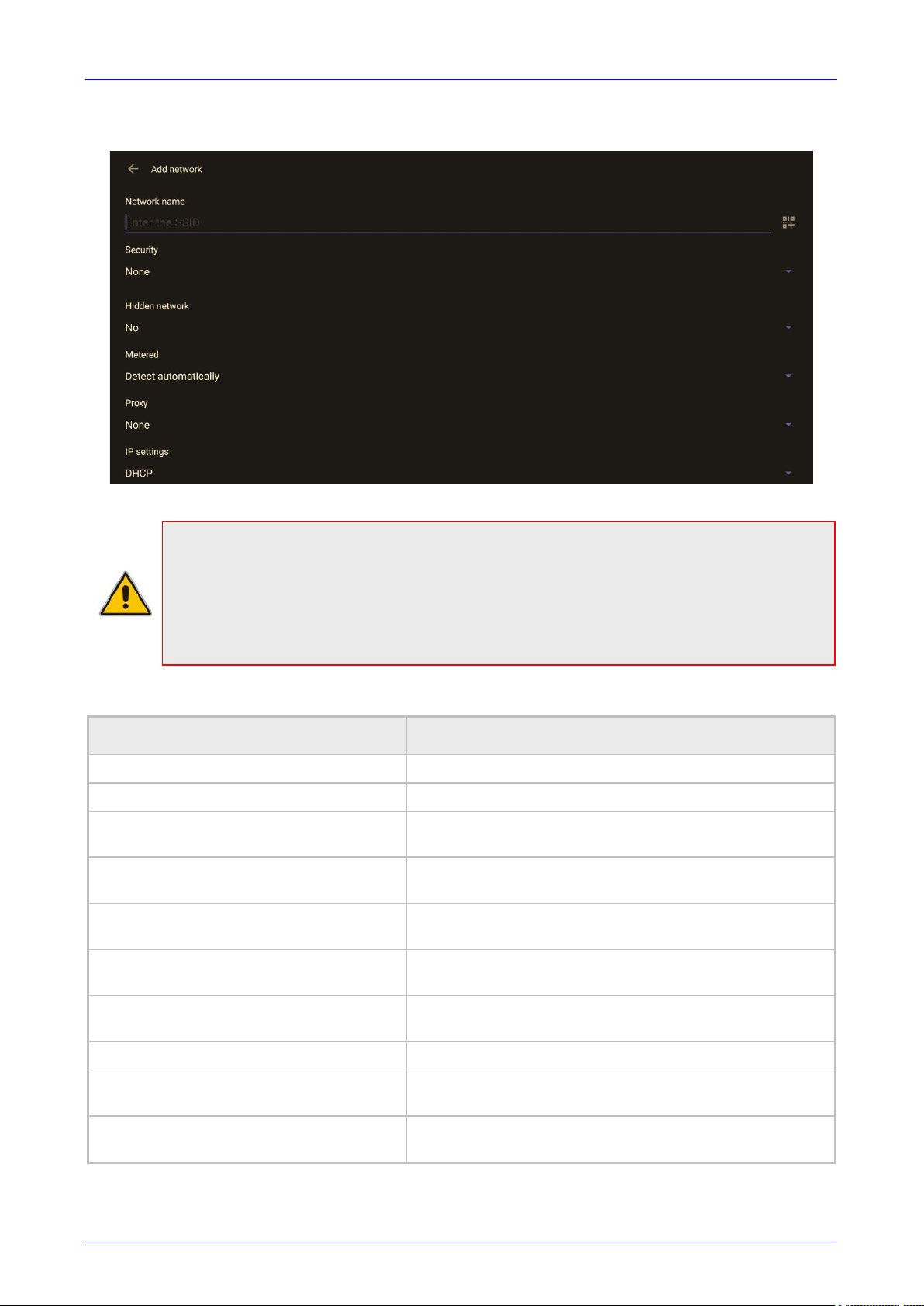

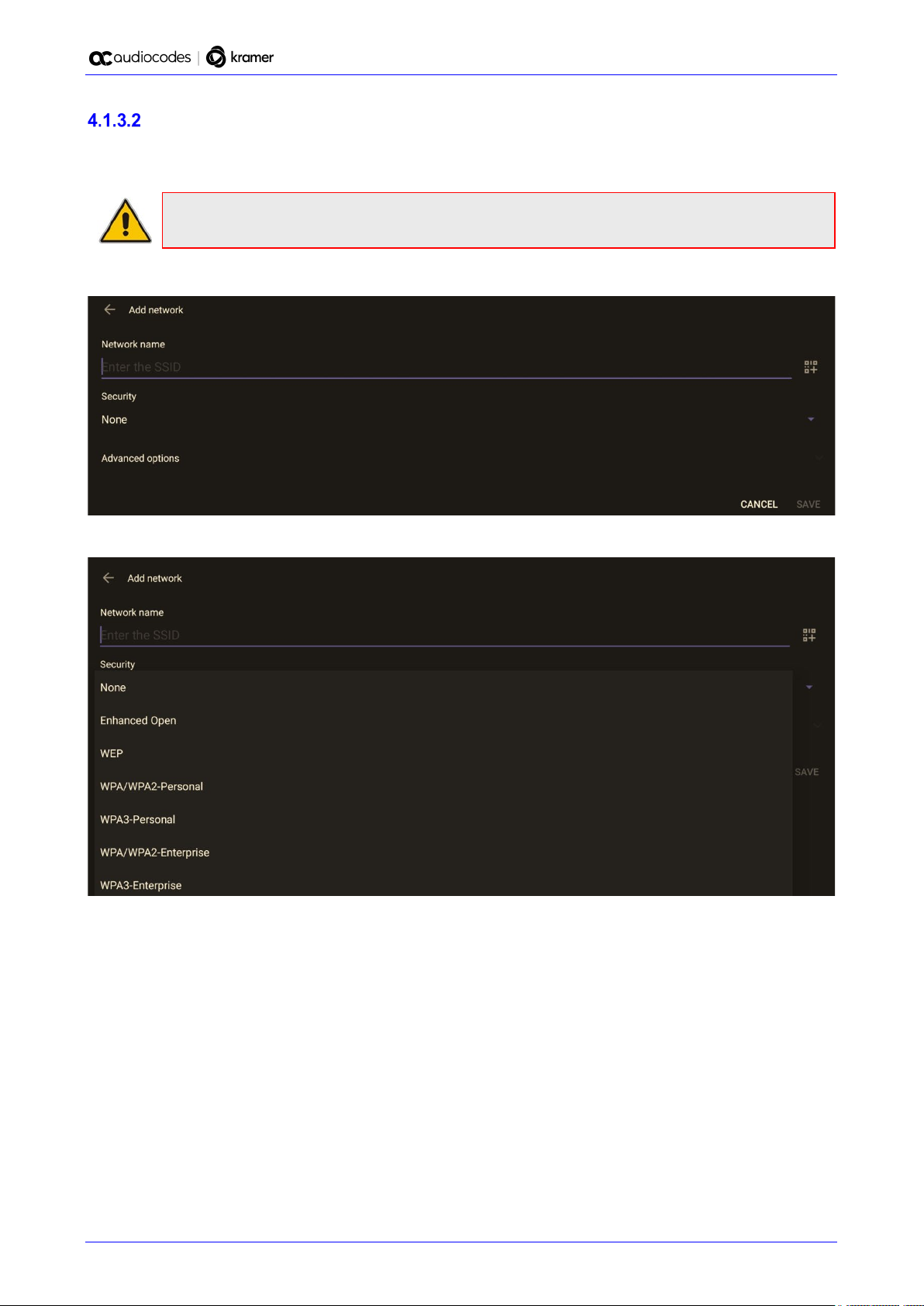

Manually Connecting to a Wi-Fi Network ........................................................... 46

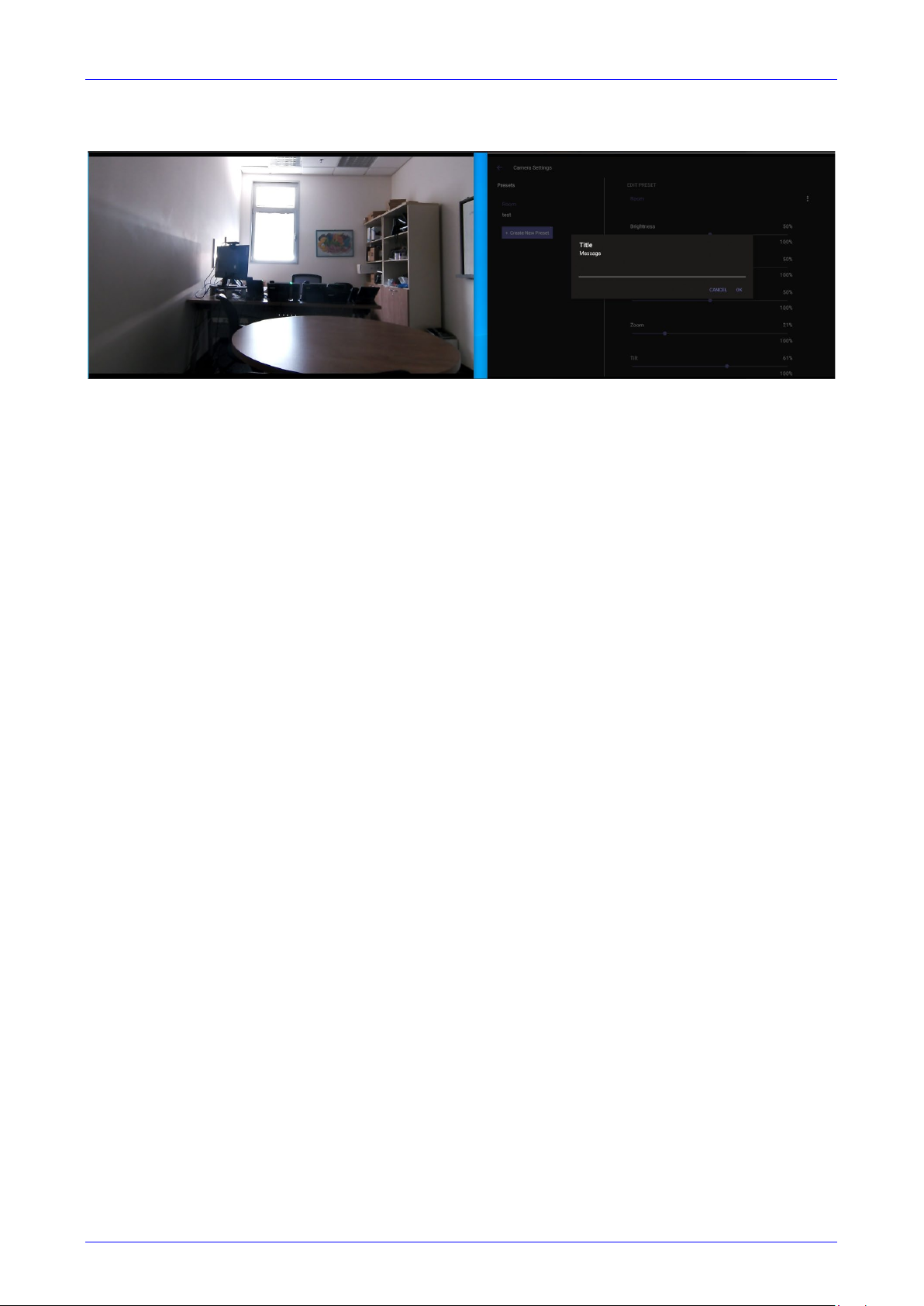

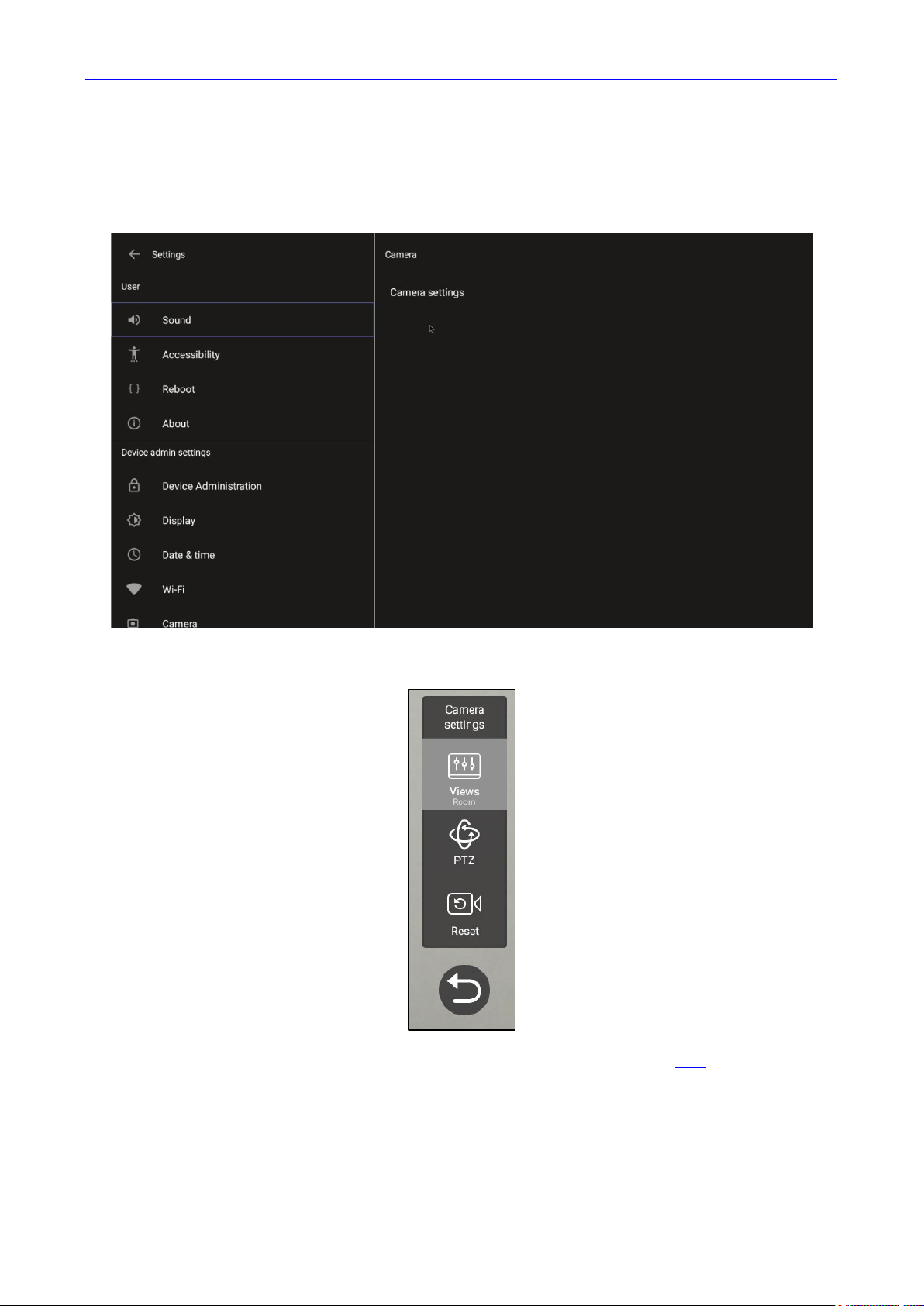

4.1.4 Configuring Camera Settings ............................................................................................. 49

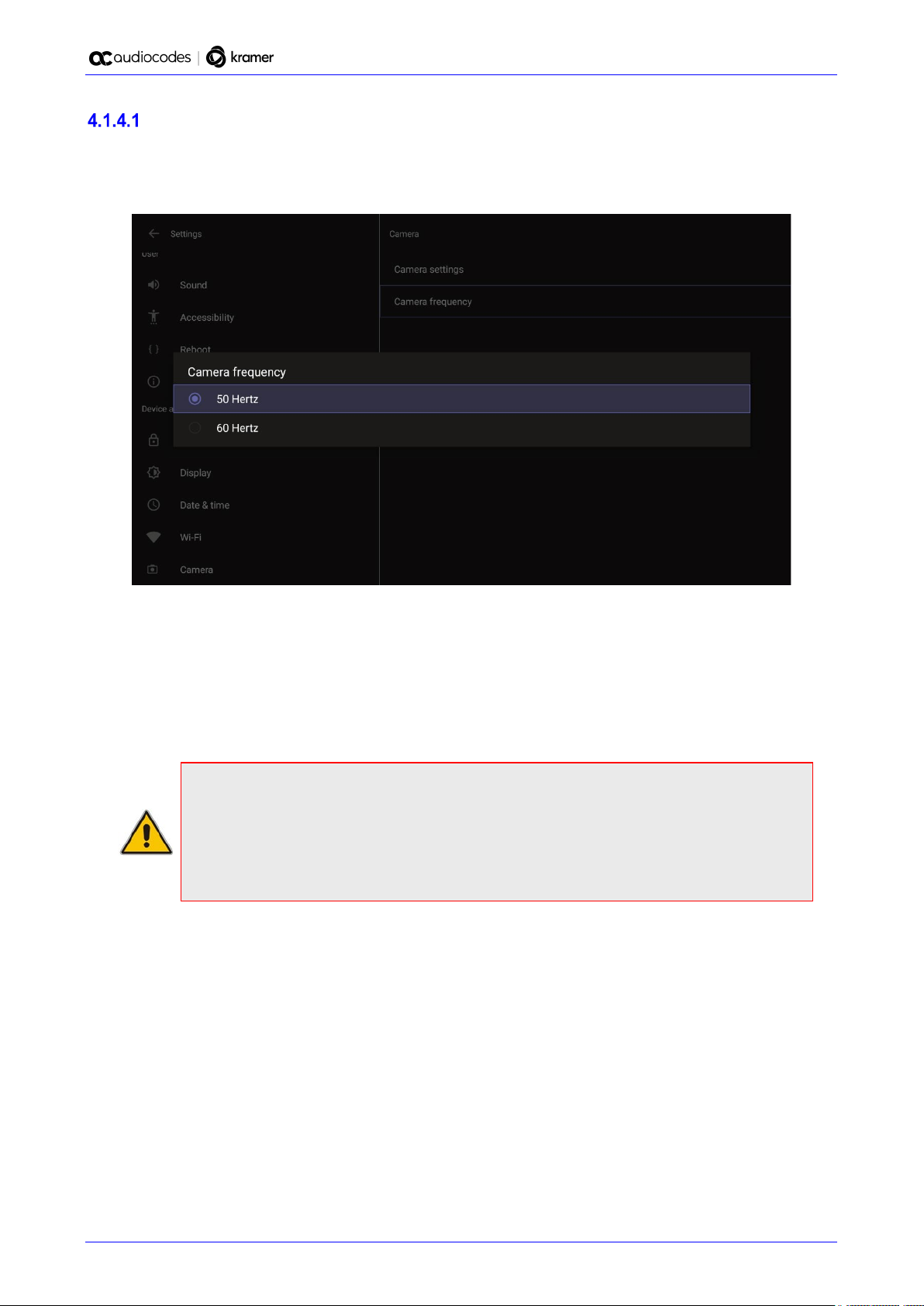

Configuring Camera Frequency ......................................................................... 50

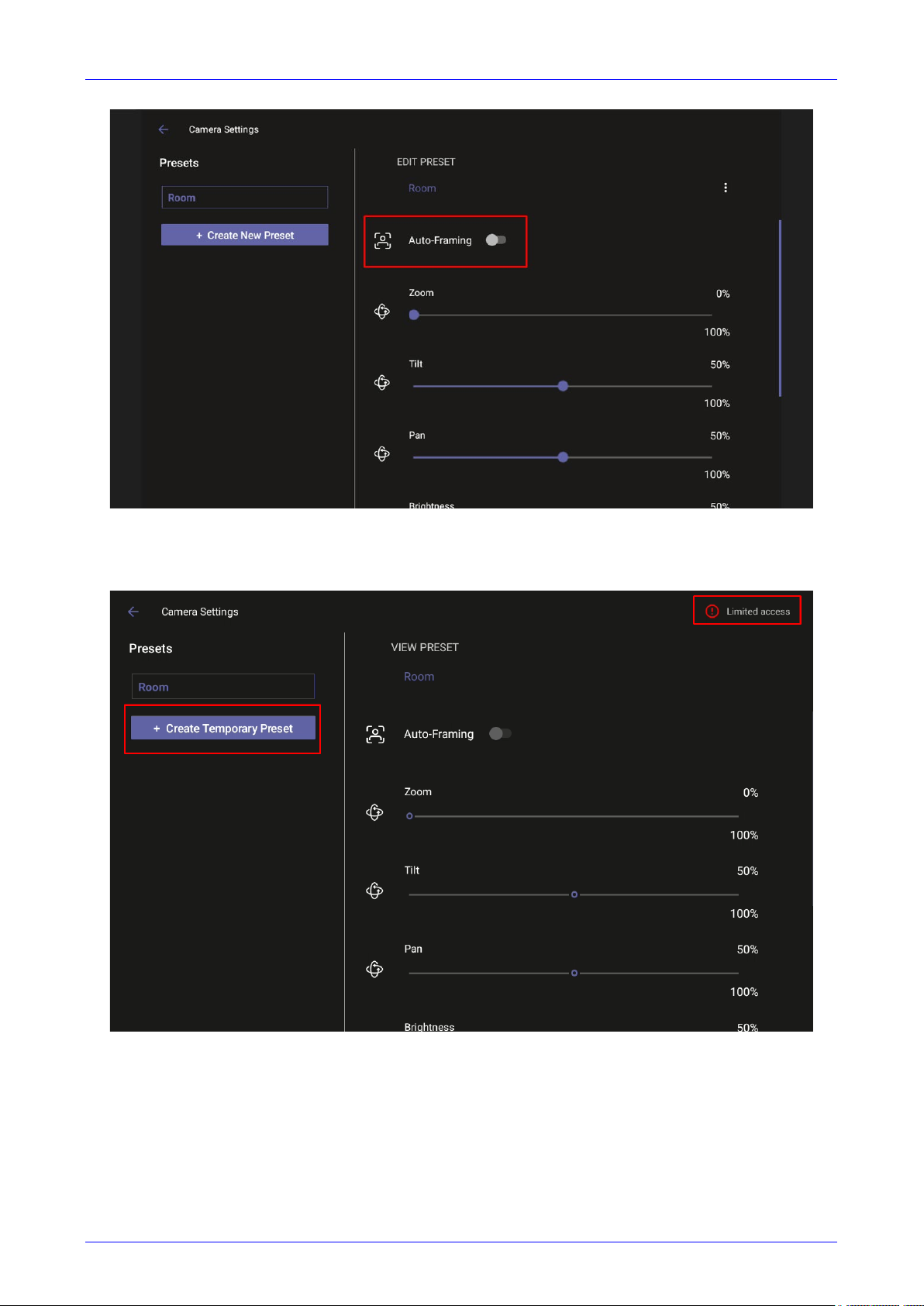

4.1.5 Auto Framing ..................................................................................................................... 50

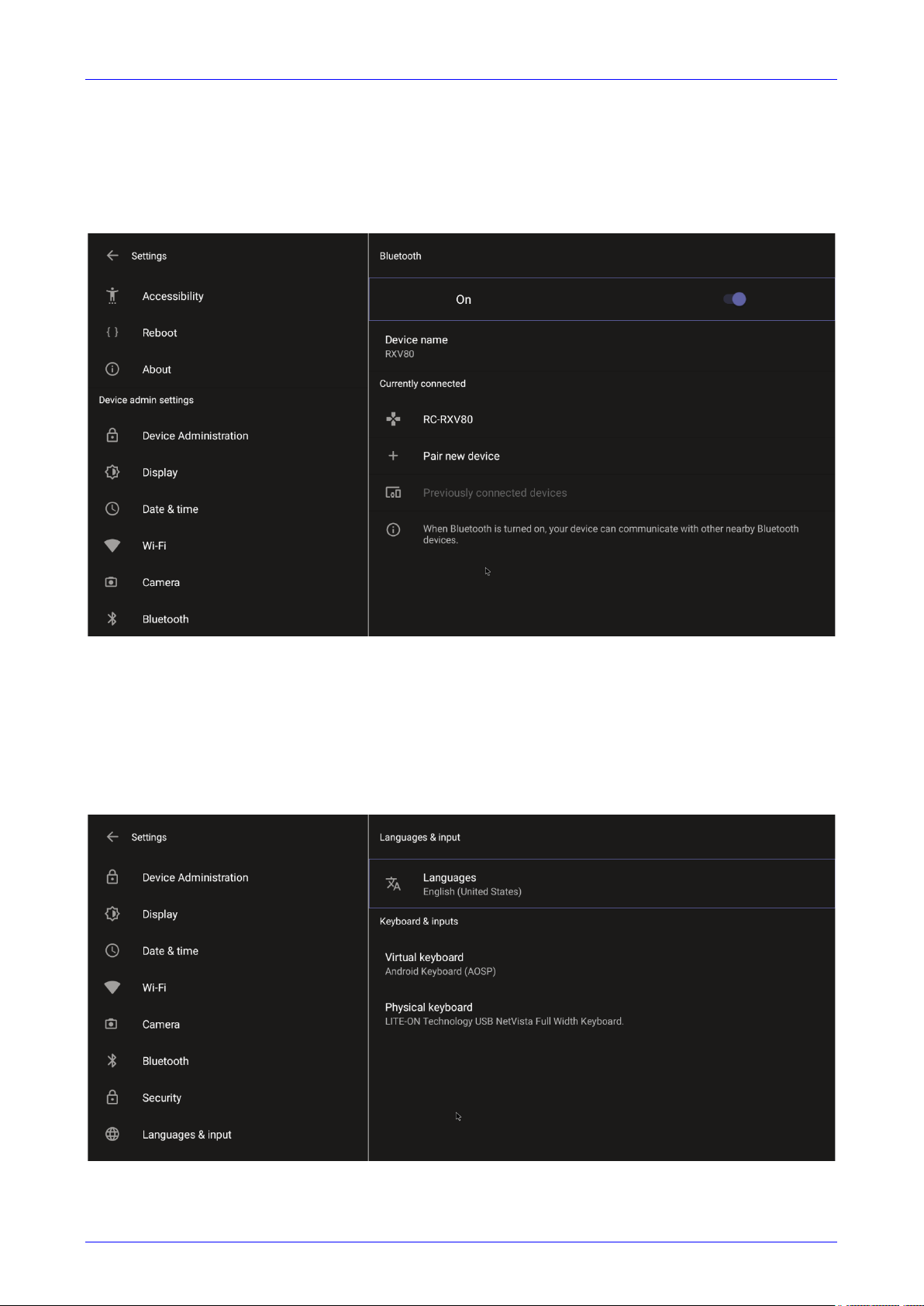

4.1.6 Pairing RC with RXV81 via Bluetooth ................................................................................ 53

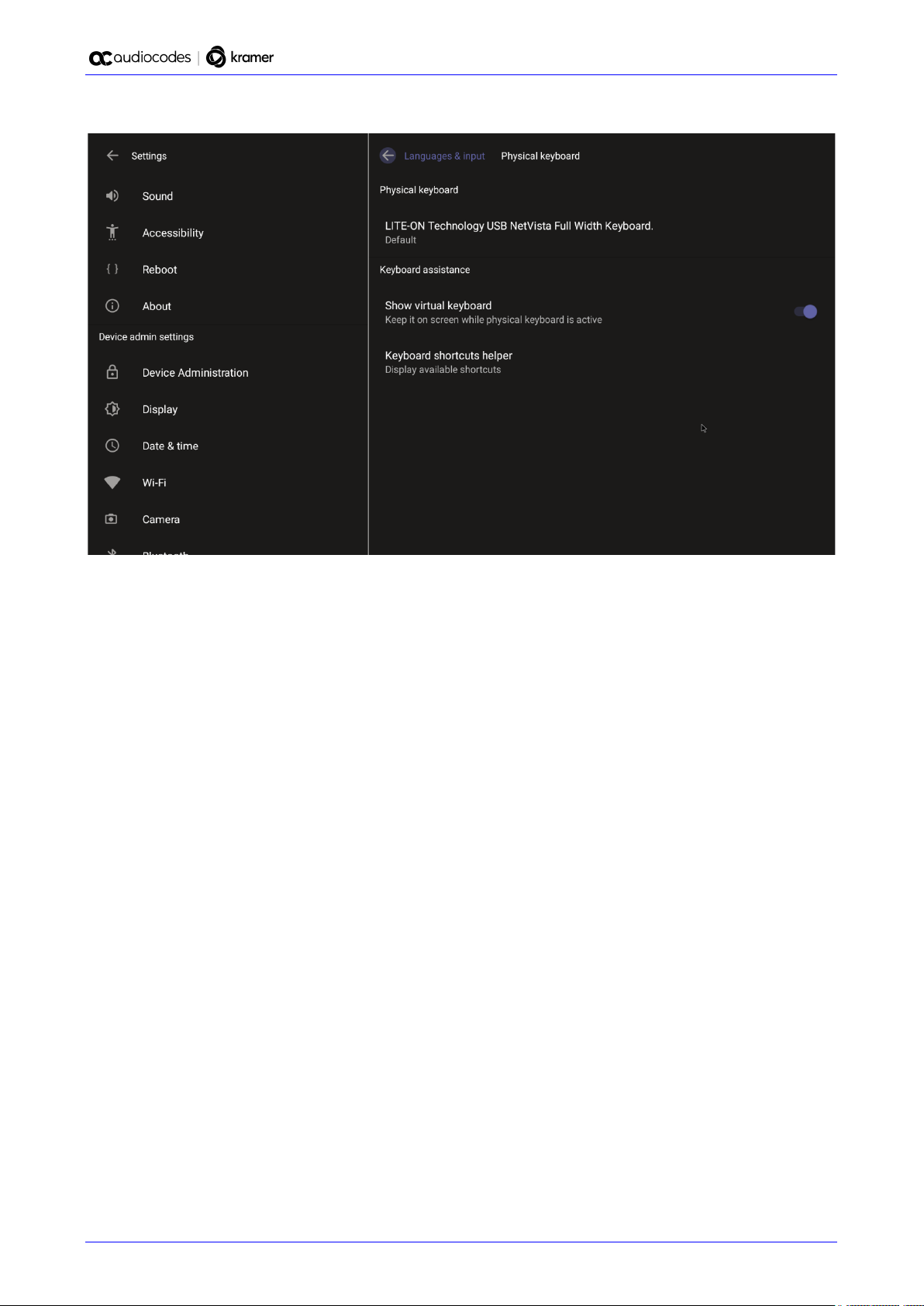

4.1.7 Configuring UI Language & Input ...................................................................................... 53

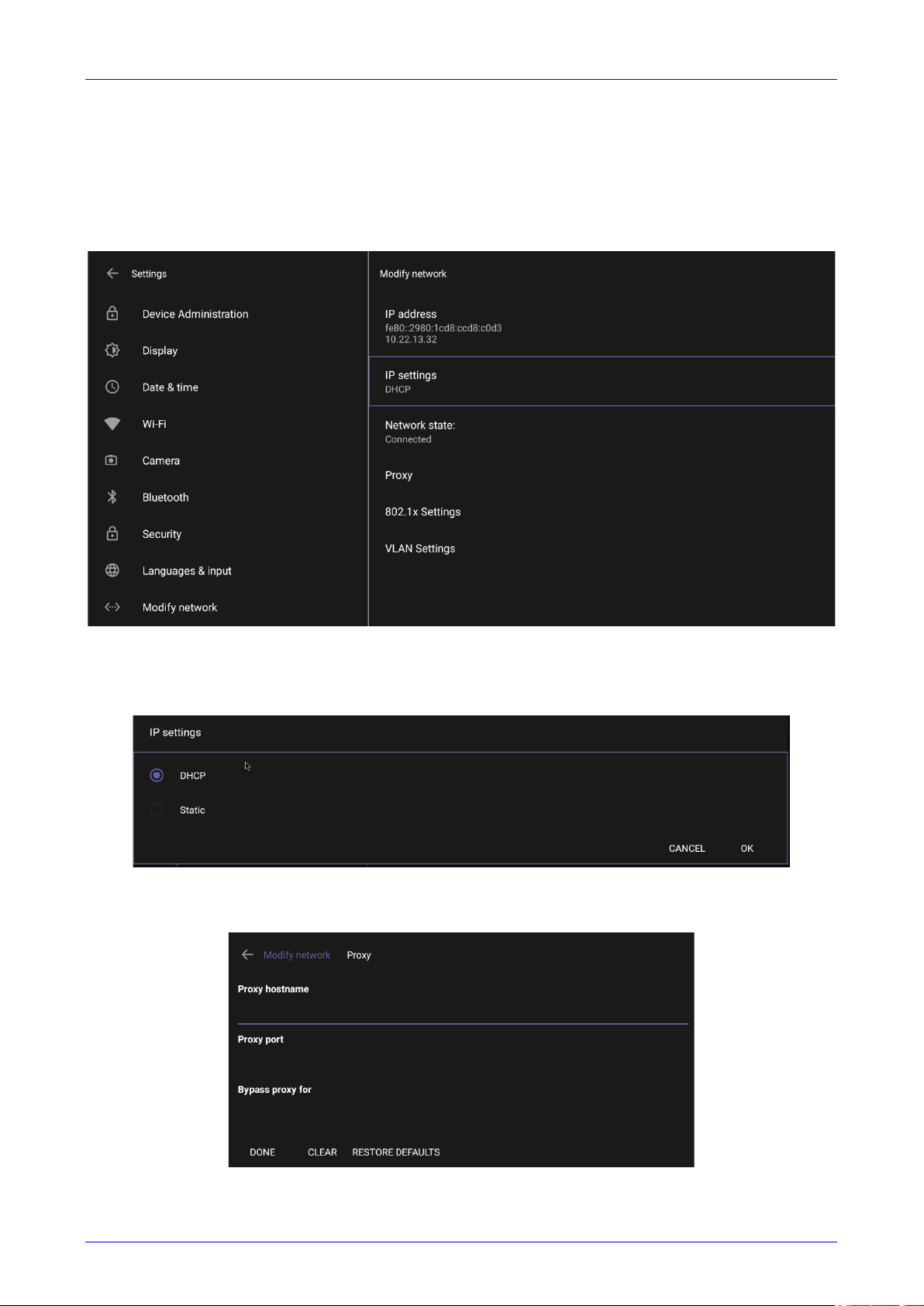

4.1.8 Modifying IP Network Settings ........................................................................................... 55

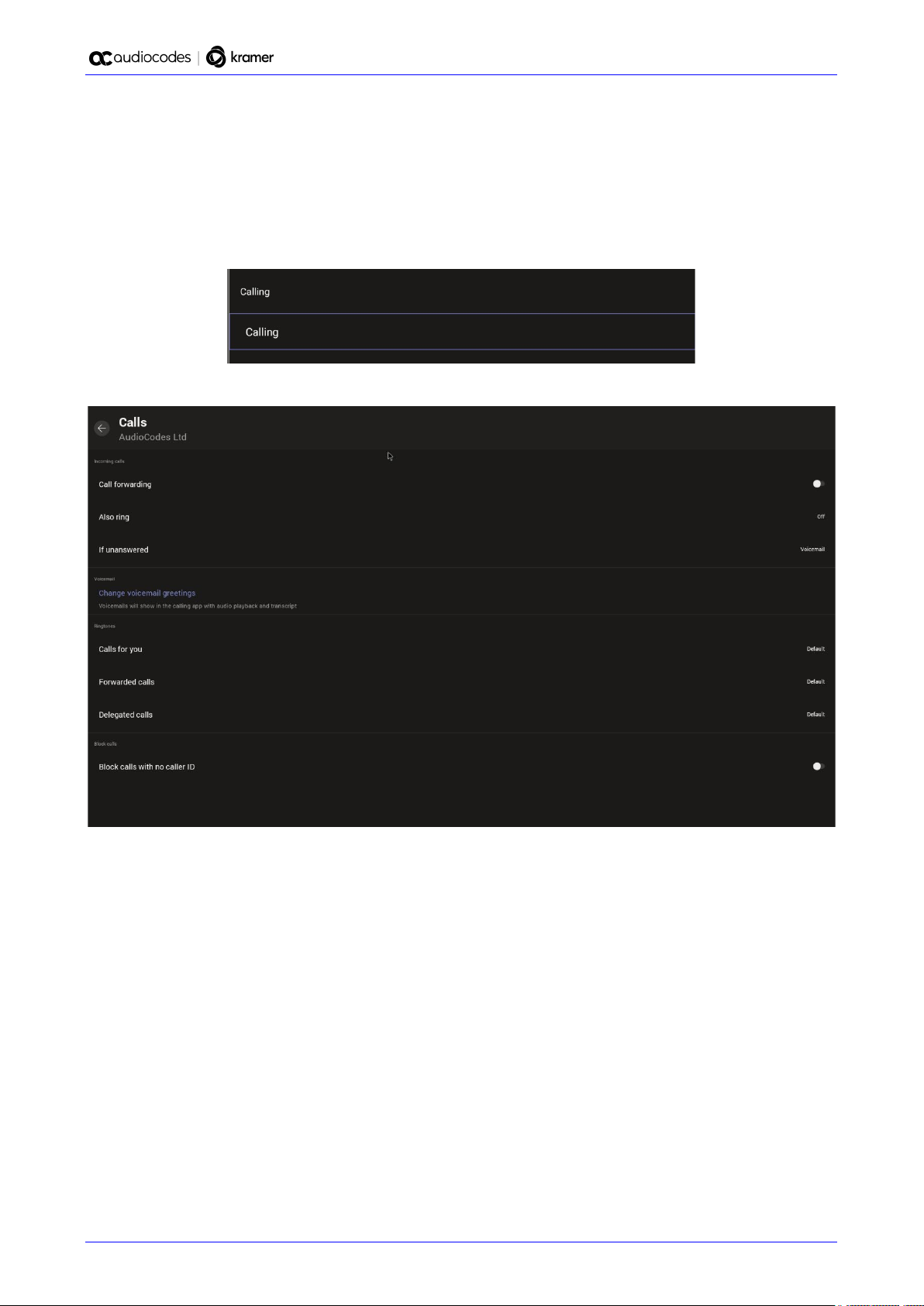

4.1.9 Configuring Call Settings ................................................................................................... 58

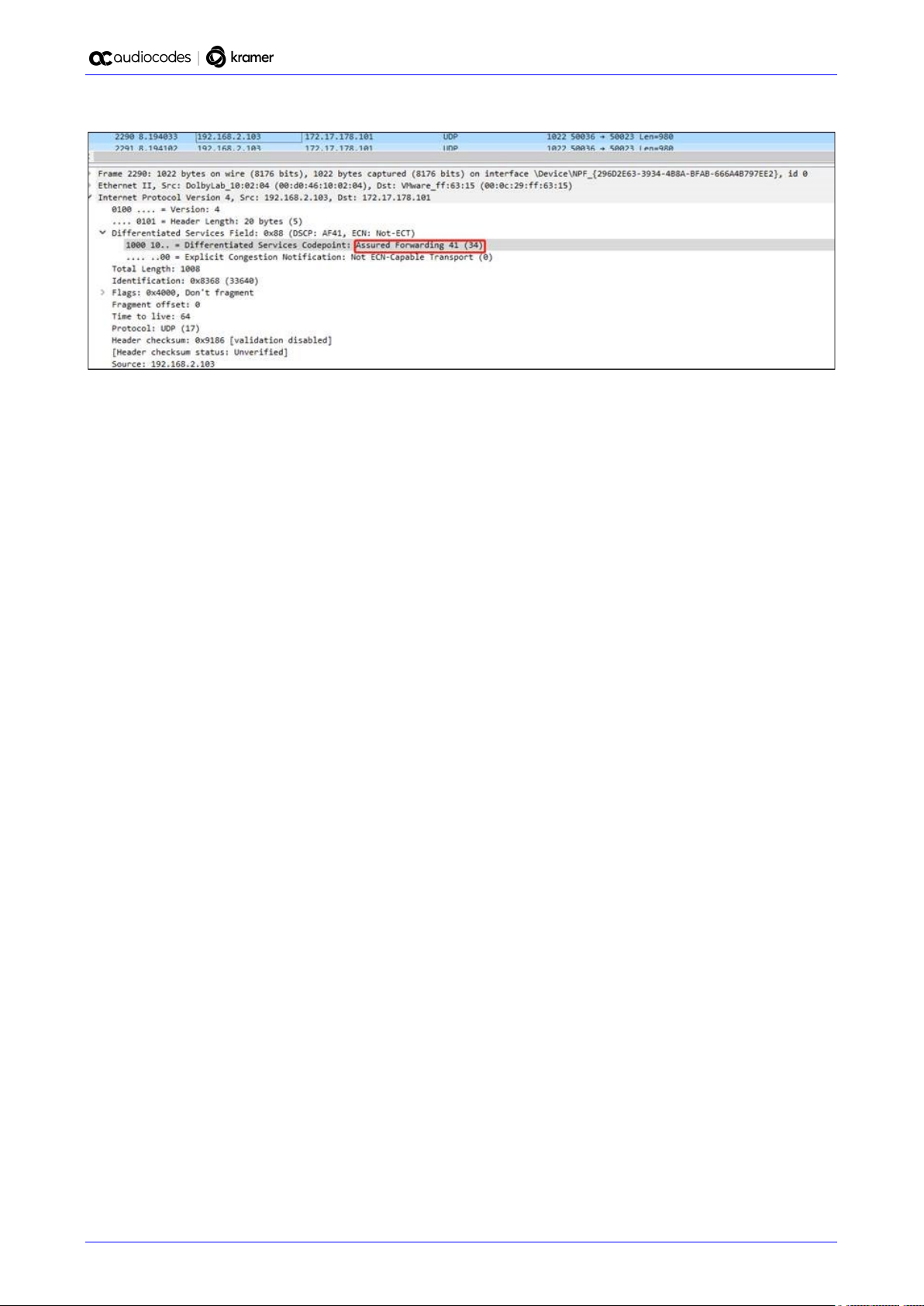

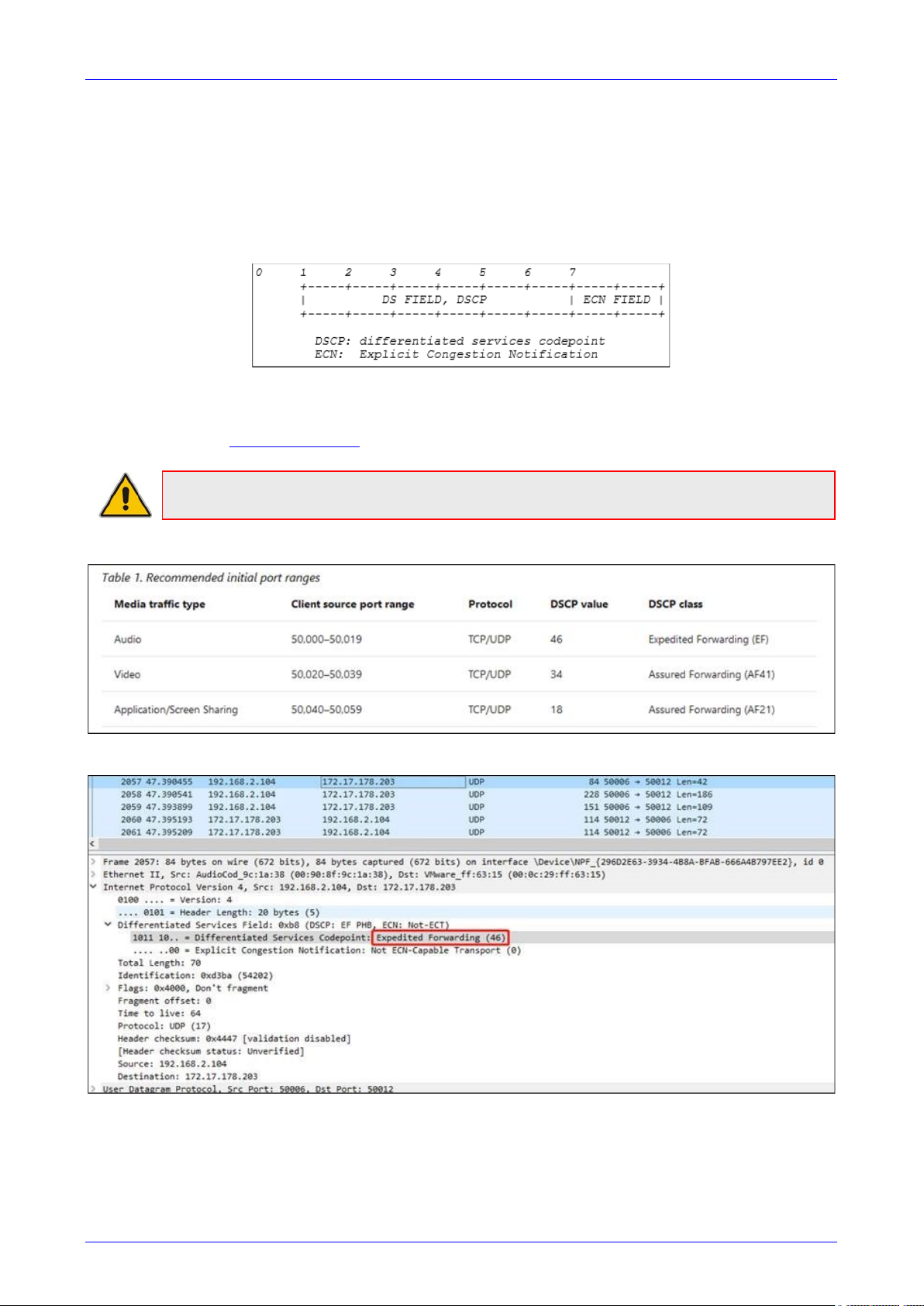

4.1.10 Configuring DSCP for QoS ................................................................................................ 59

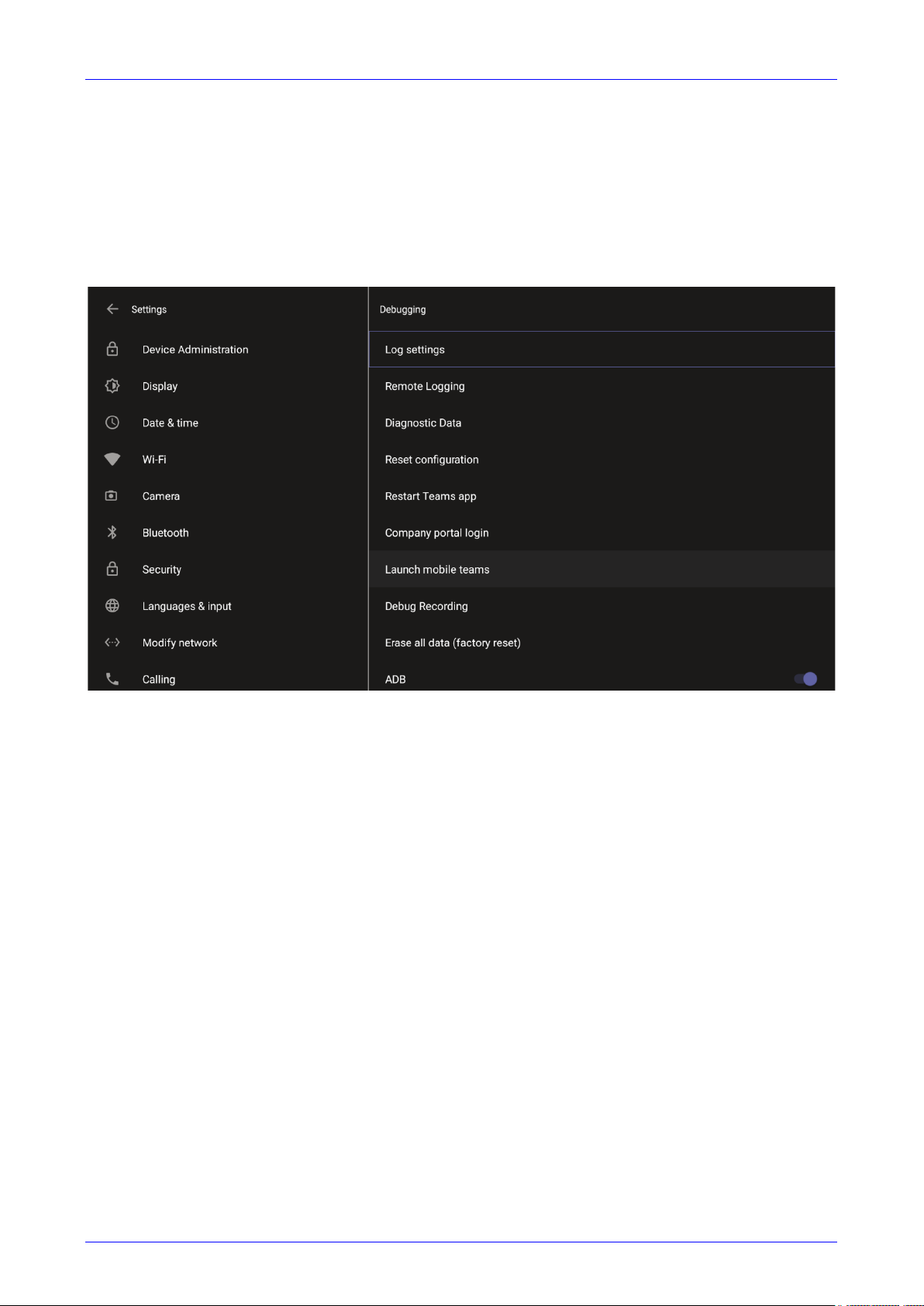

4.1.11 Debugging .......................................................................................................................... 61

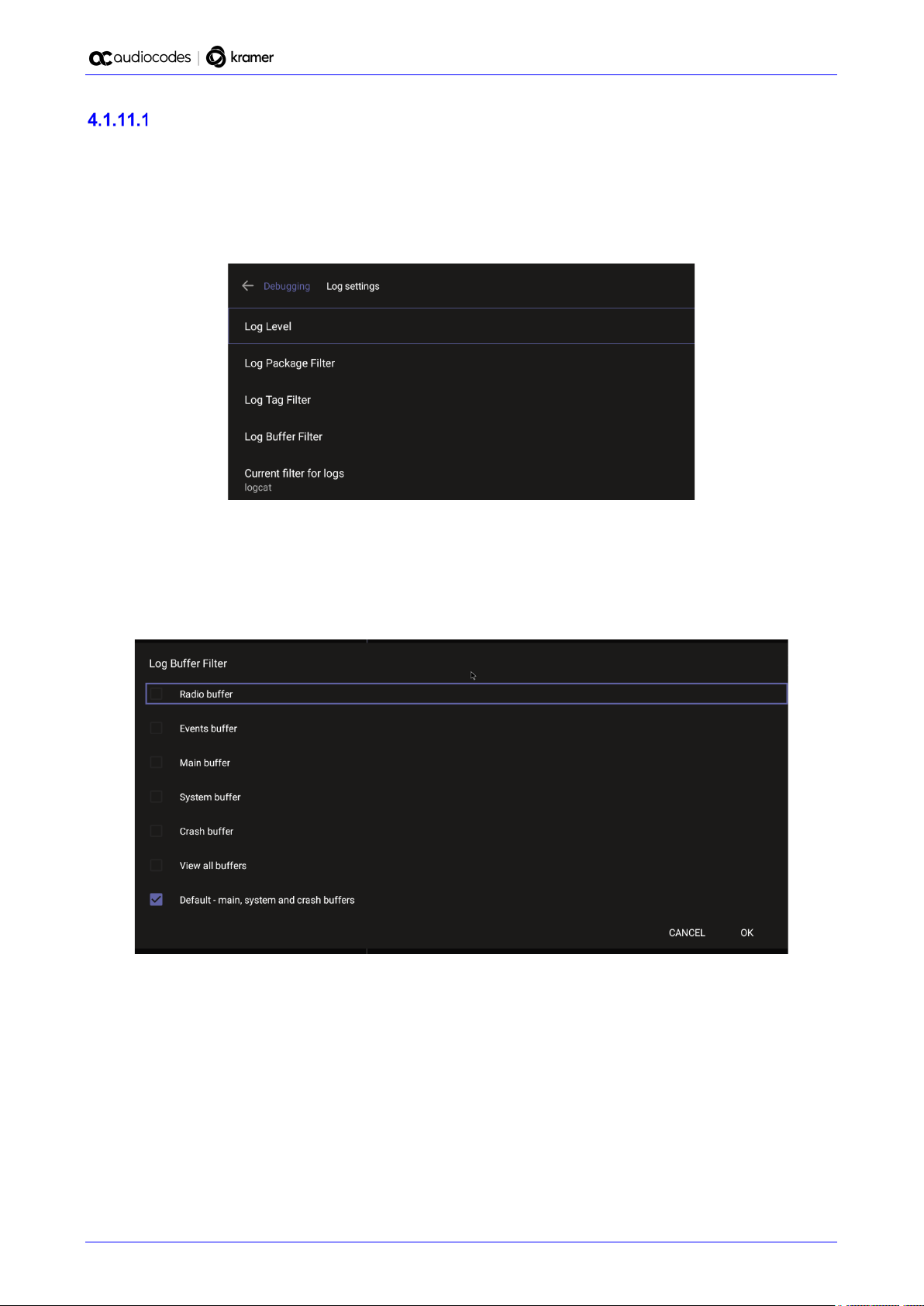

Log Settings | Collecting Logs ............................................................................ 62

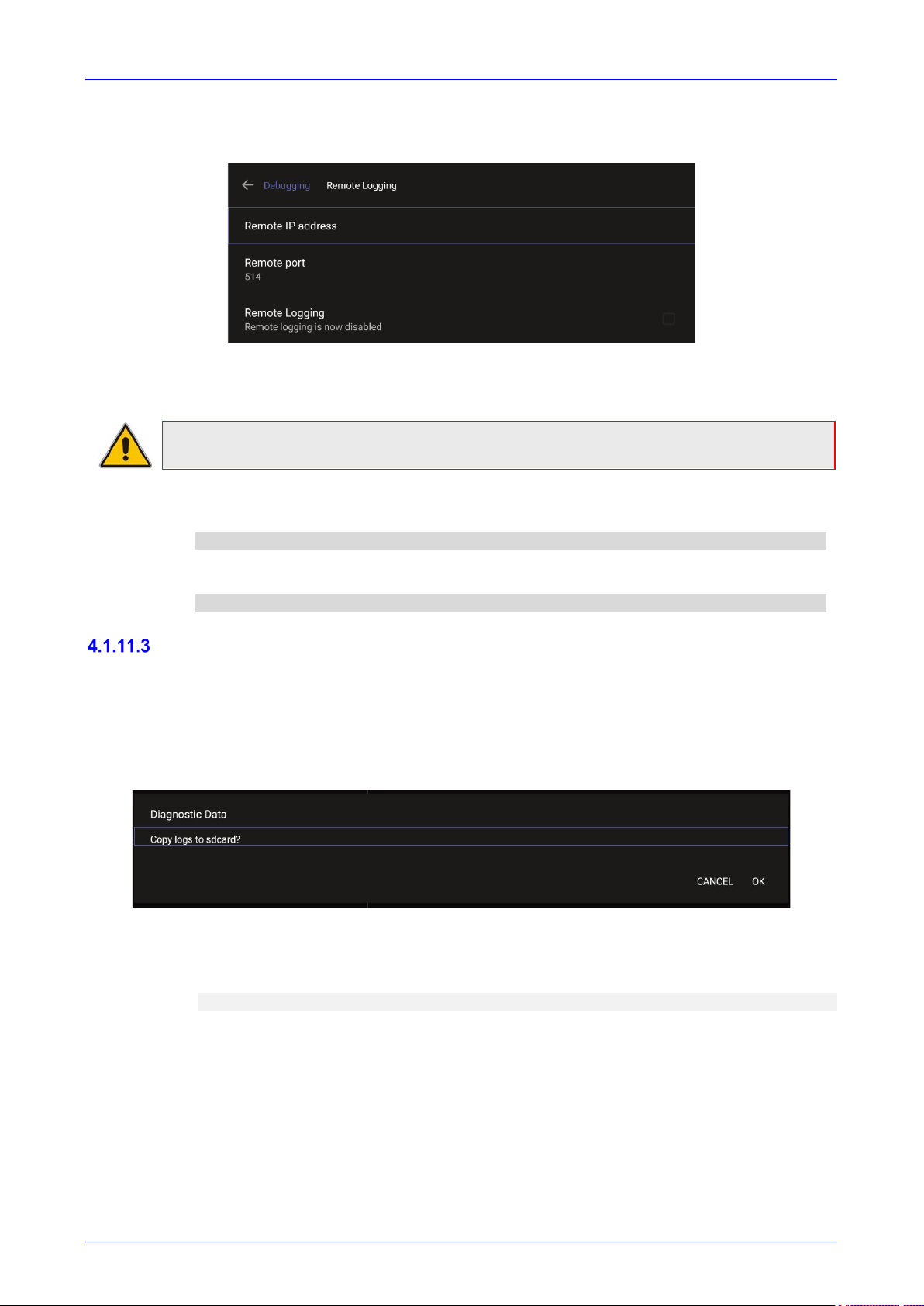

Remote Logging ................................................................................................. 64

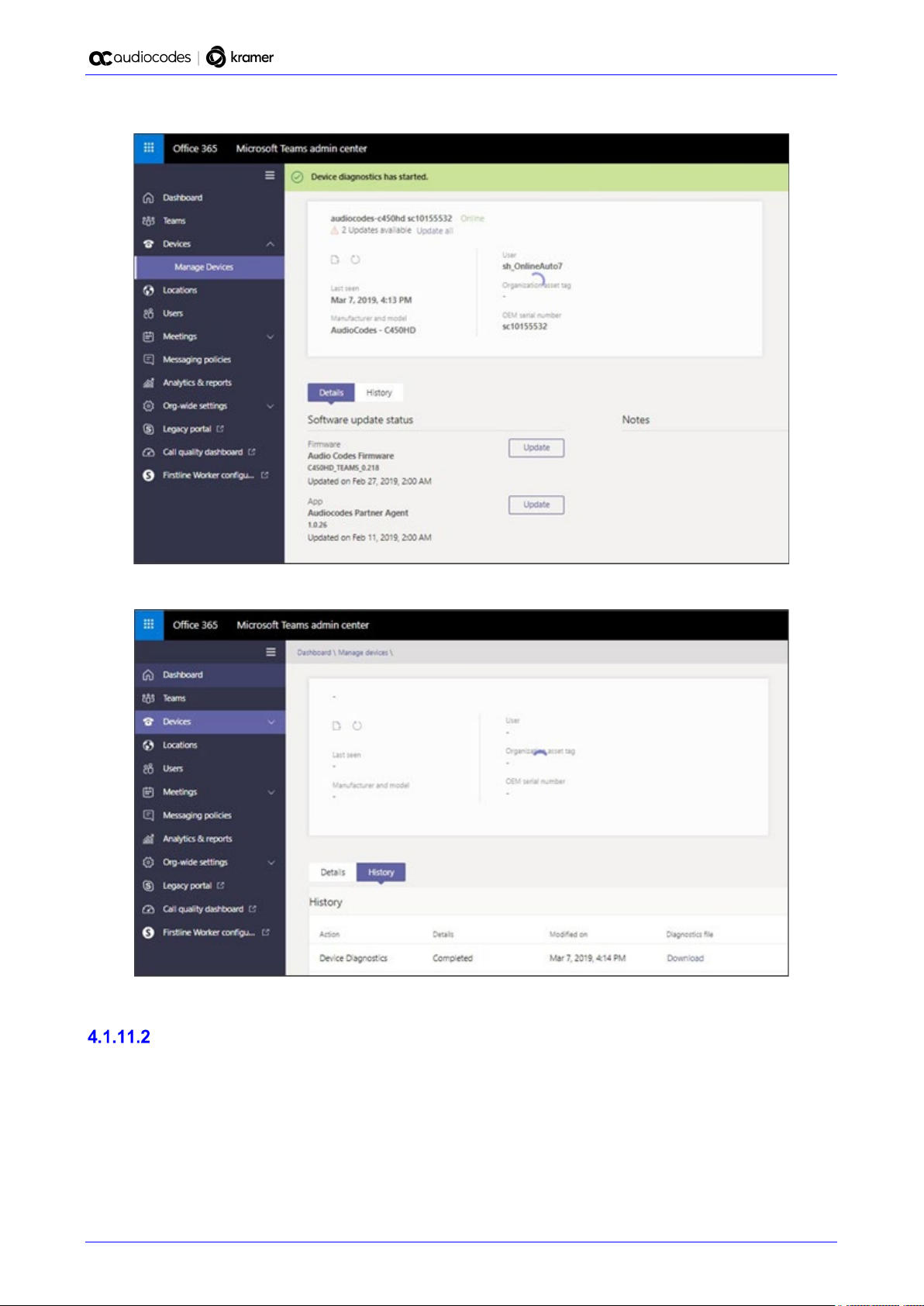

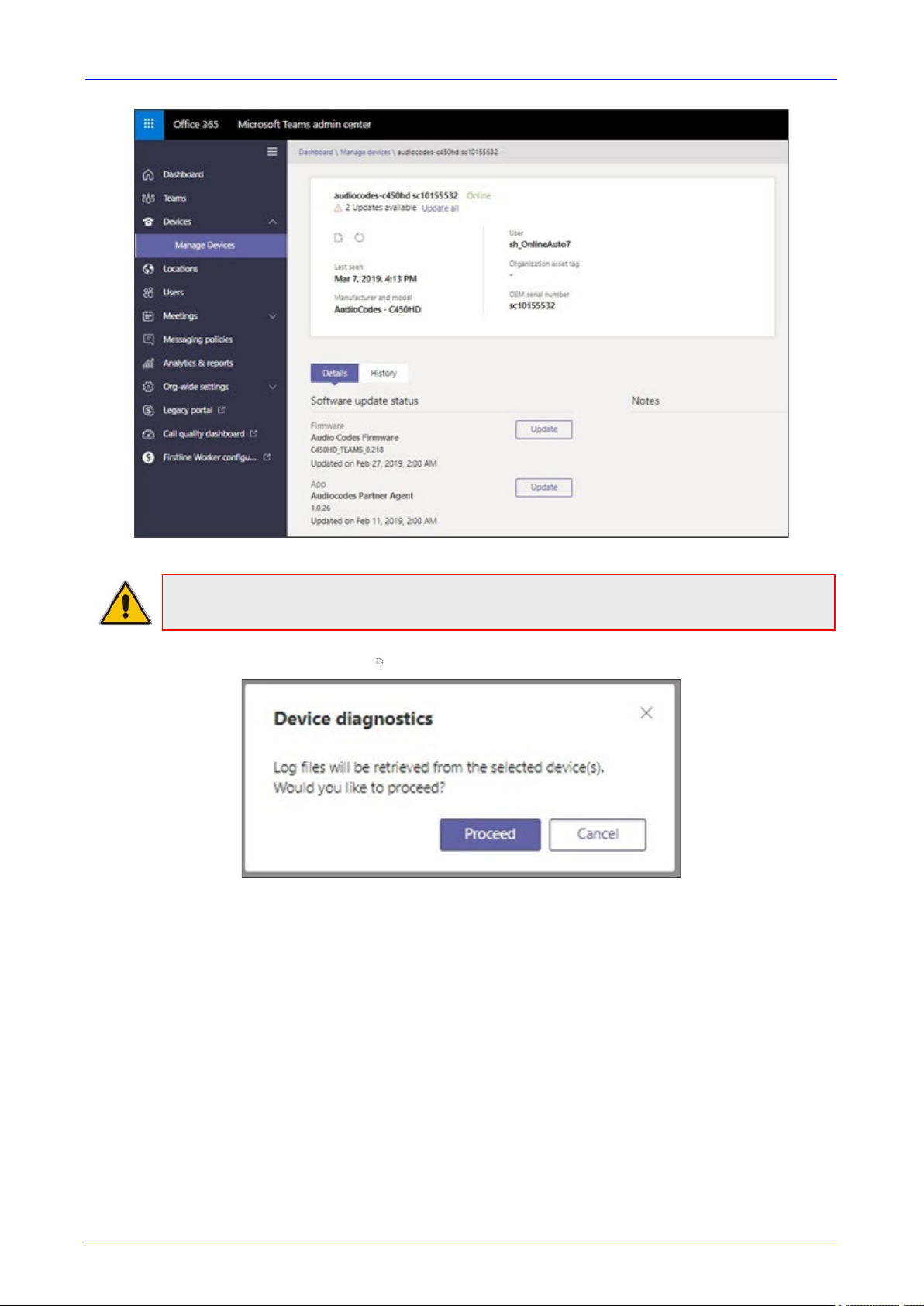

Diagnostic Data .................................................................................................. 65

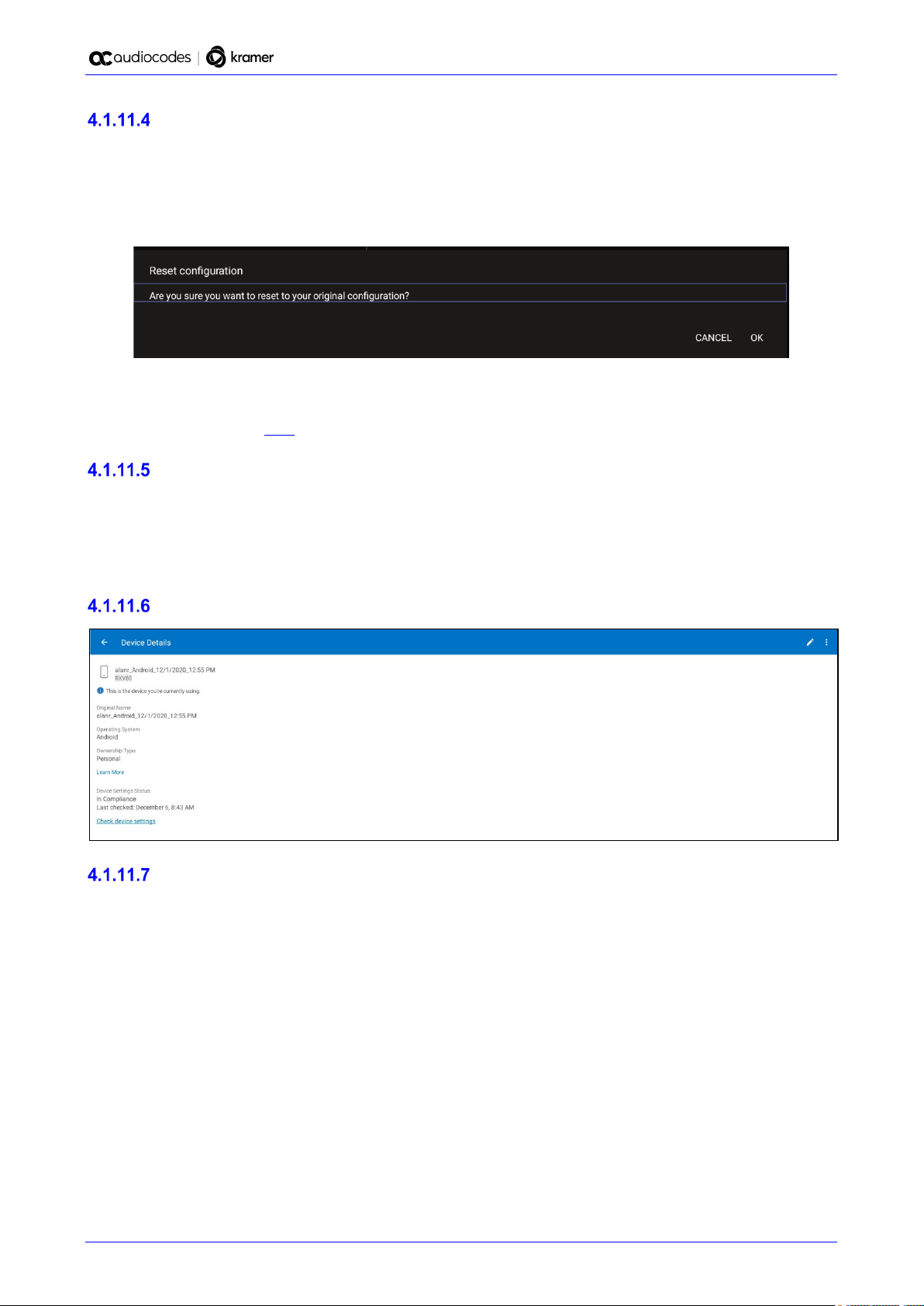

Reset configuration ............................................................................................. 66

Restart Teams app ............................................................................................. 66

Company Portal Login ........................................................................................ 66

Getting Company Portal Logs ............................................................................ 66

Launch Mobile Teams ........................................................................................ 67

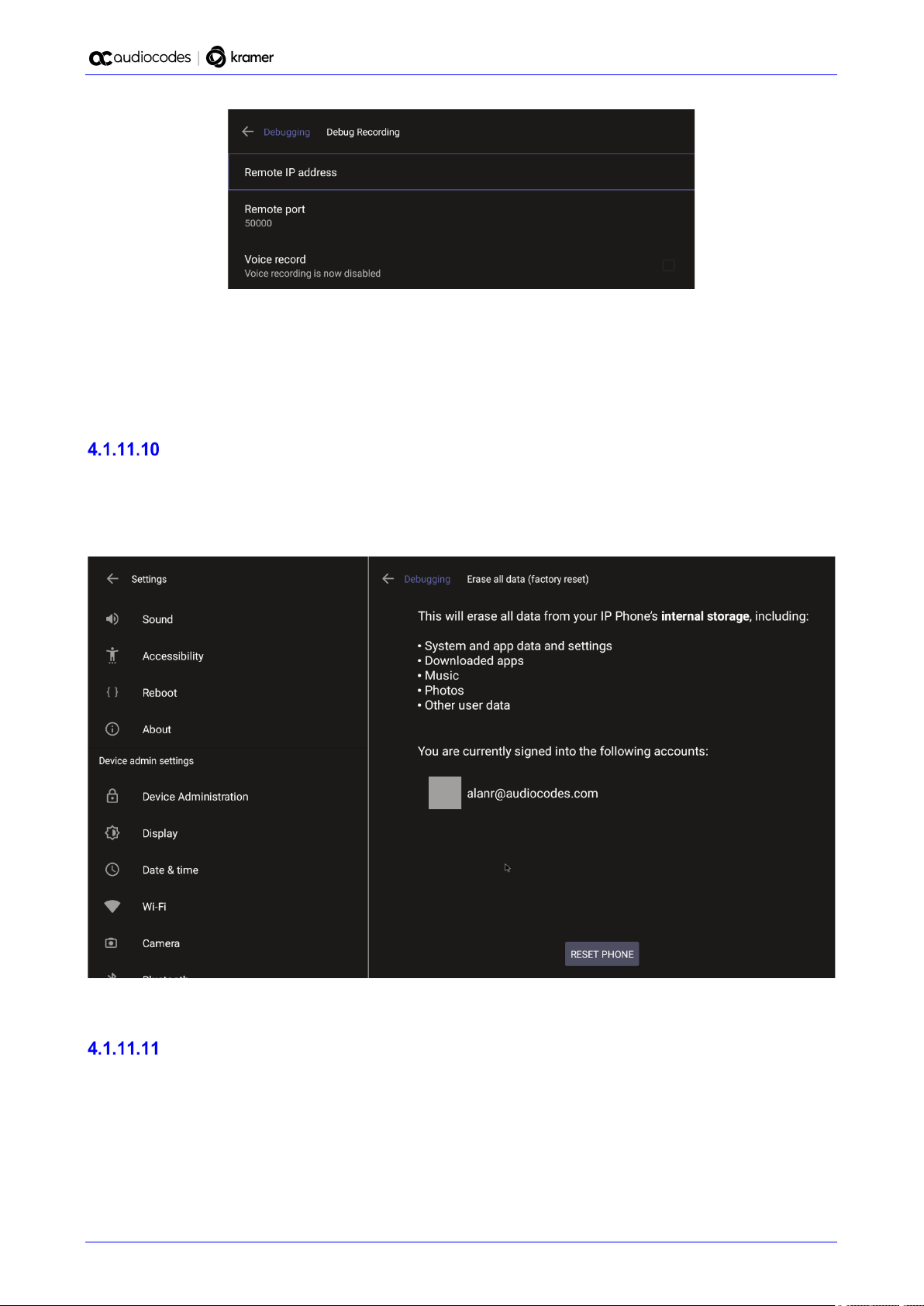

Debug Recording ................................................................................................ 67

Erase all data (factory reset) .............................................................................. 68

Screen Capture .................................................................................................. 68

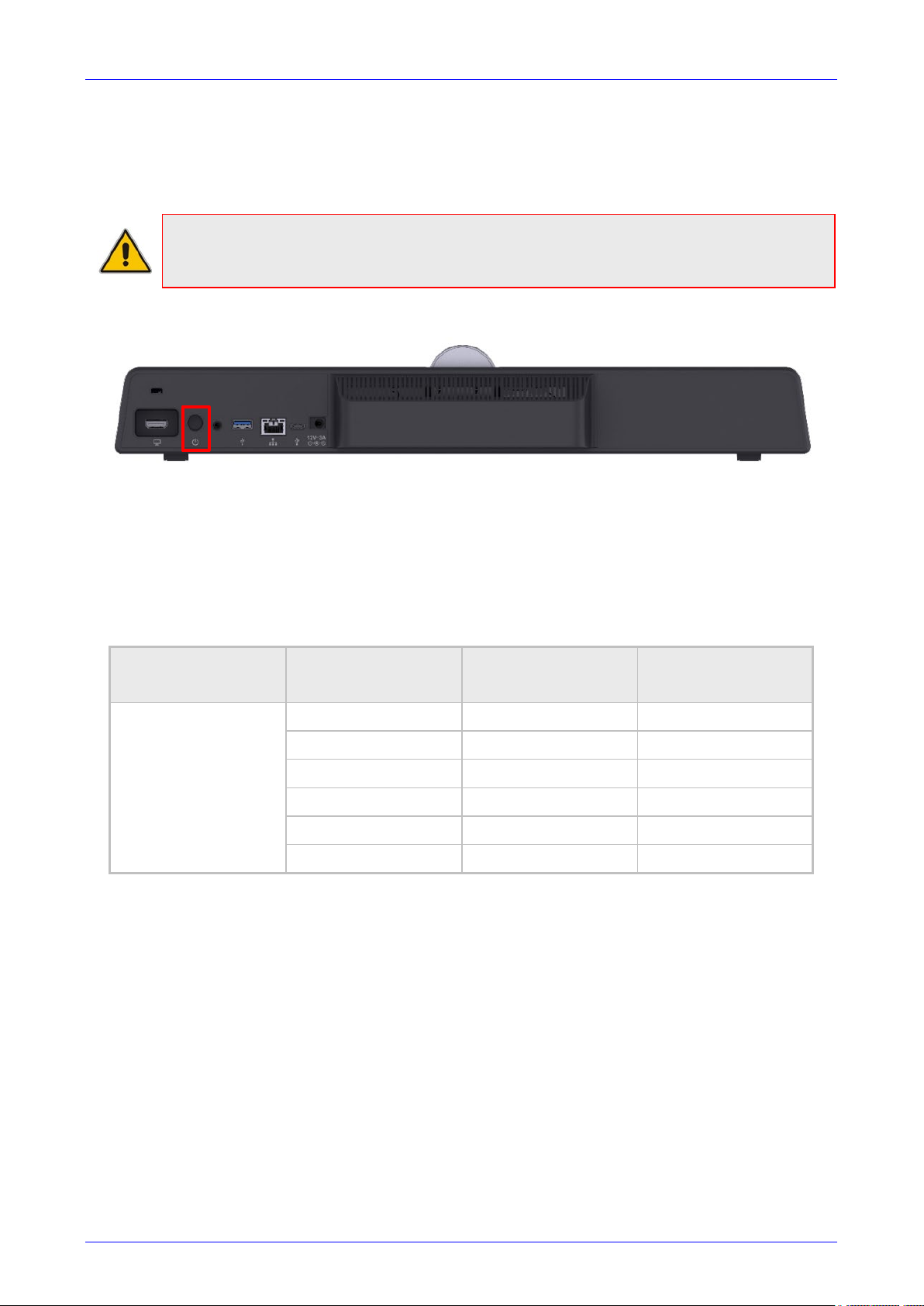

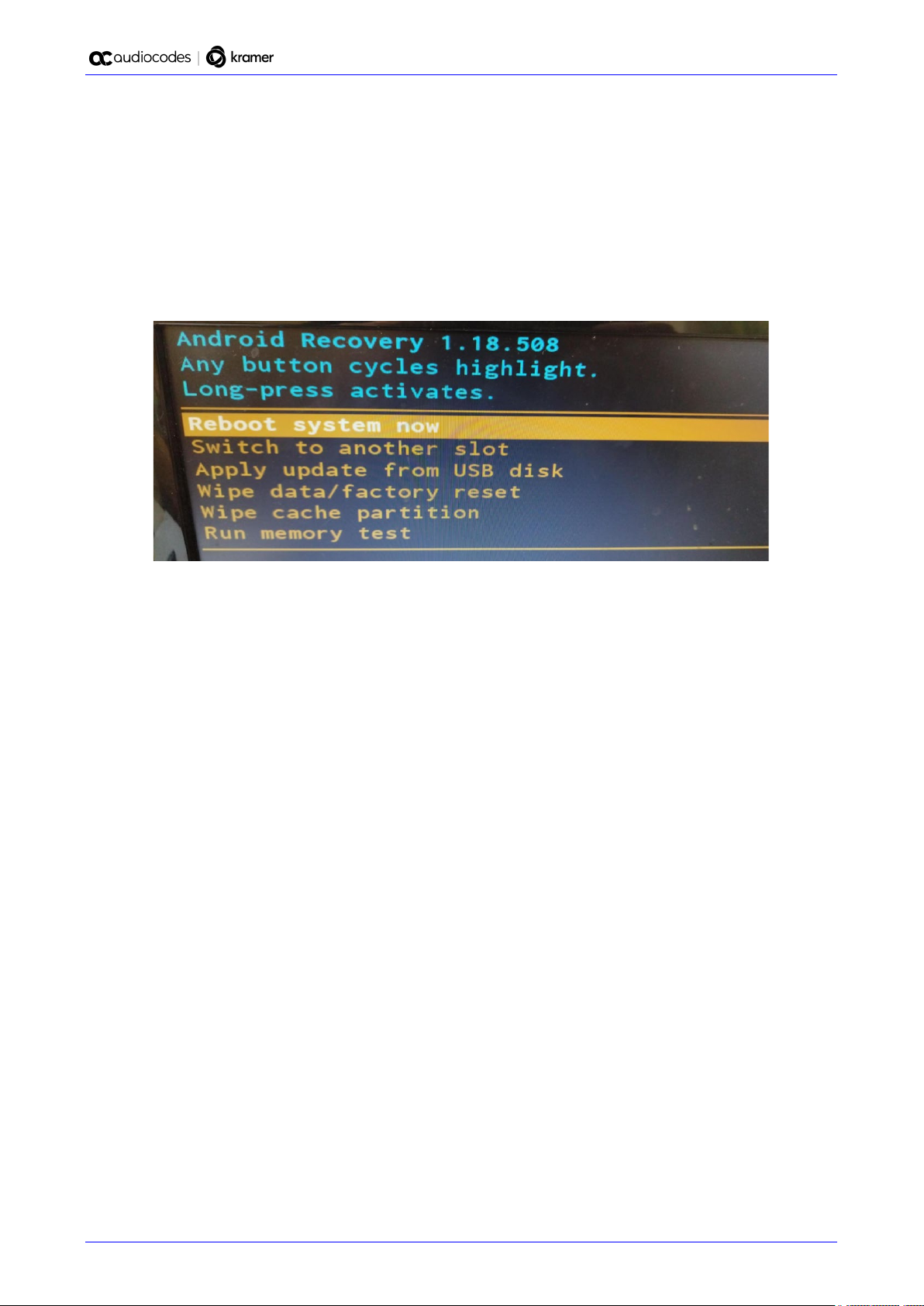

4.2 Performing Recovery Operations using Power Button ................................................... 69

4.3 Restoring RXV81 Firmware via USB Disk ..................................................................... 70

4.4 User Settings ................................................................................................................ 71

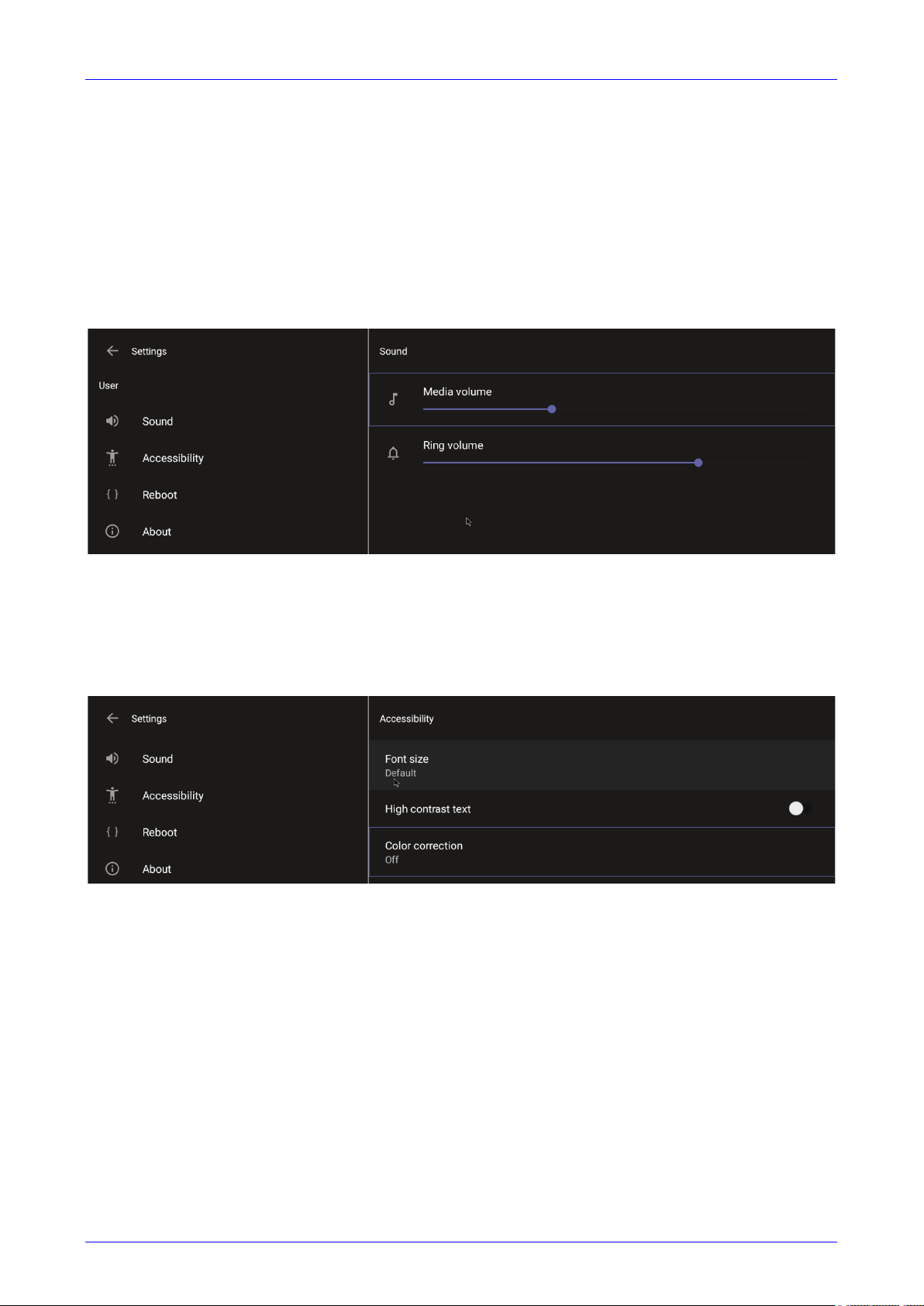

4.4.1 Setting the Volume ............................................................................................................. 71

4.4.2 Configuring Accessibility Settings ...................................................................................... 71

4.4.3 Setting Live Captions ......................................................................................................... 71

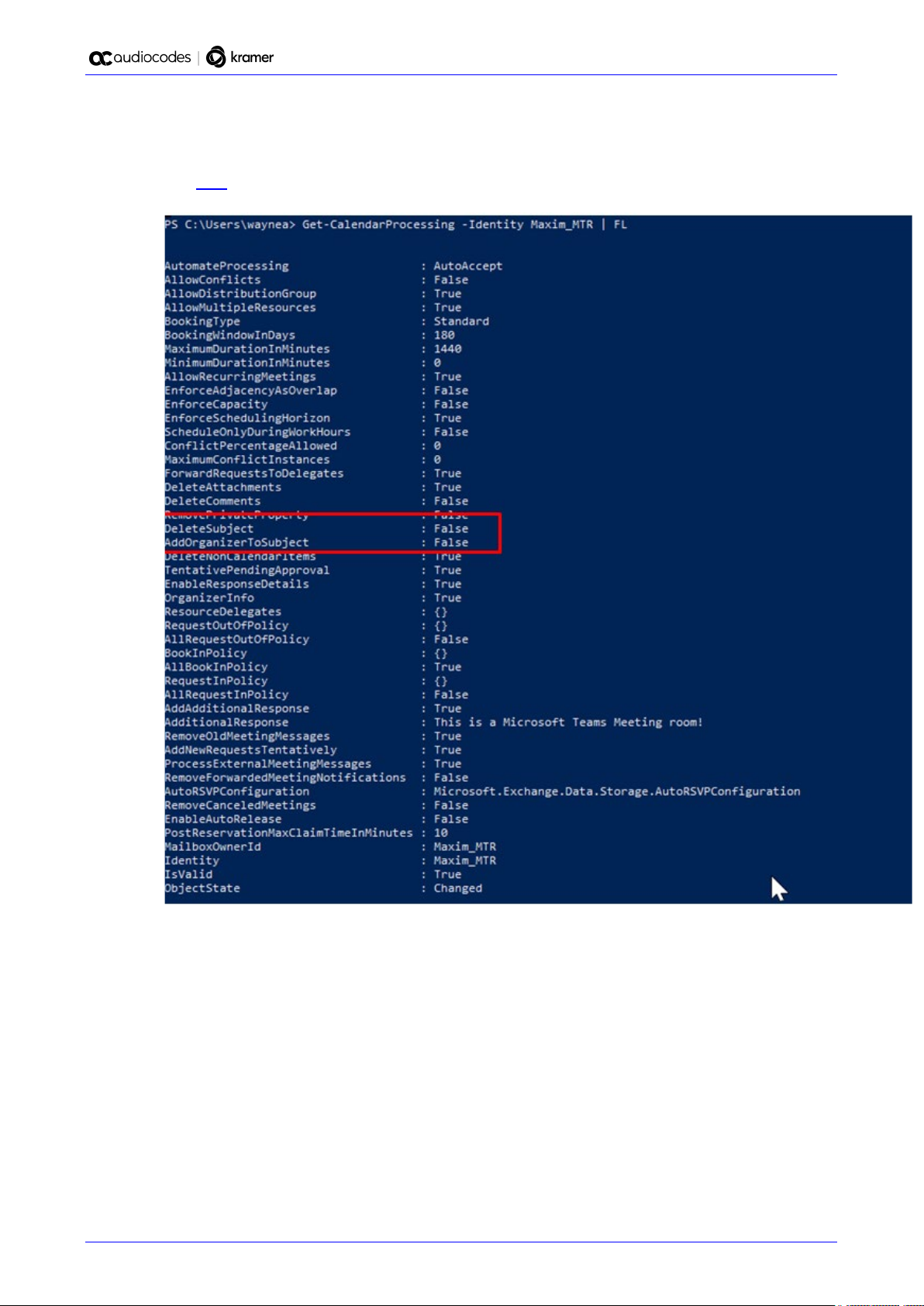

4.4.4 Enabling Display of Meeting Name using Exchange Online PowerShell .......................... 72

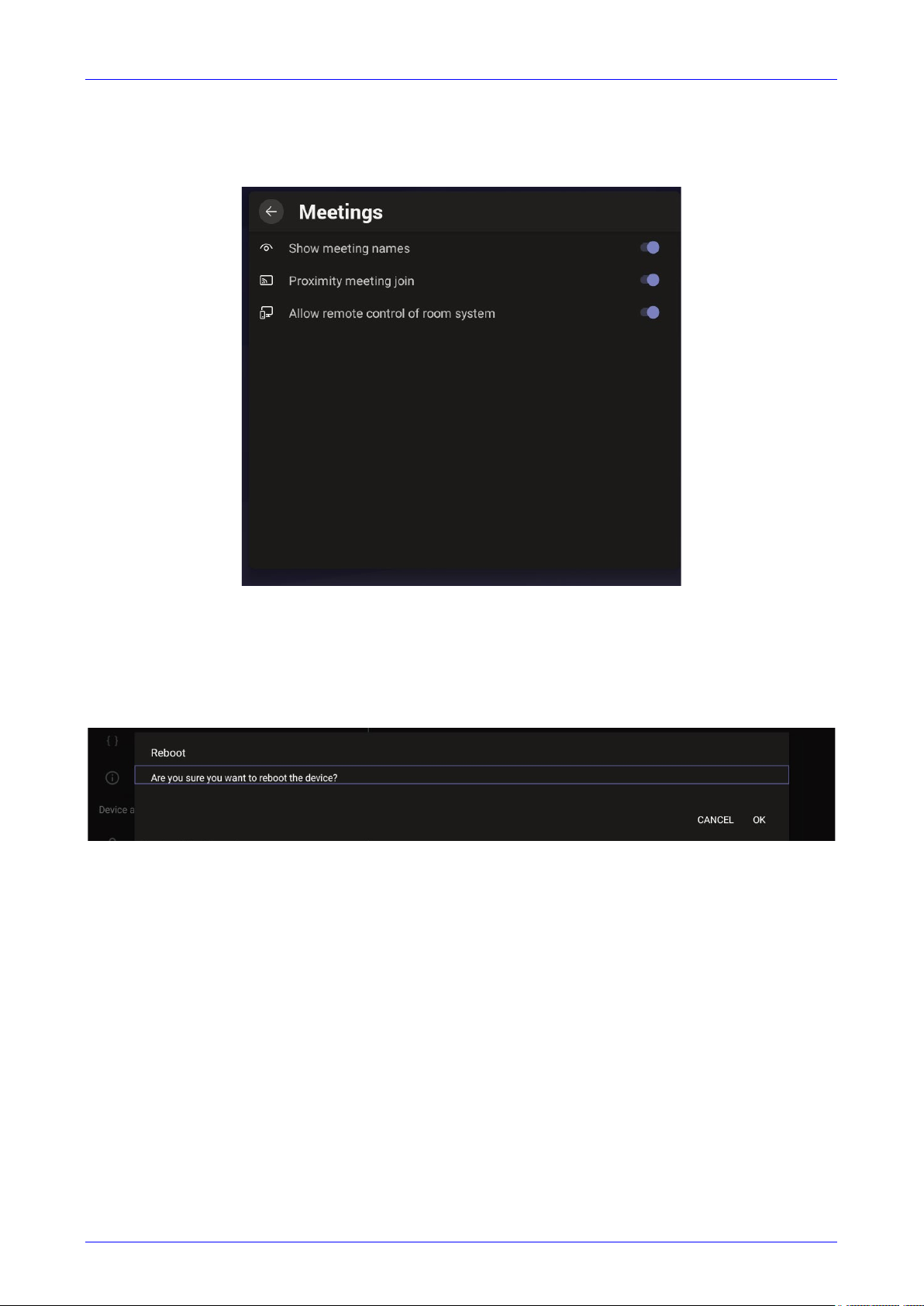

4.4.5 Hiding Names and Meeting Titles ...................................................................................... 73

4.4.6 Rebooting the RXV81 ........................................................................................................ 73

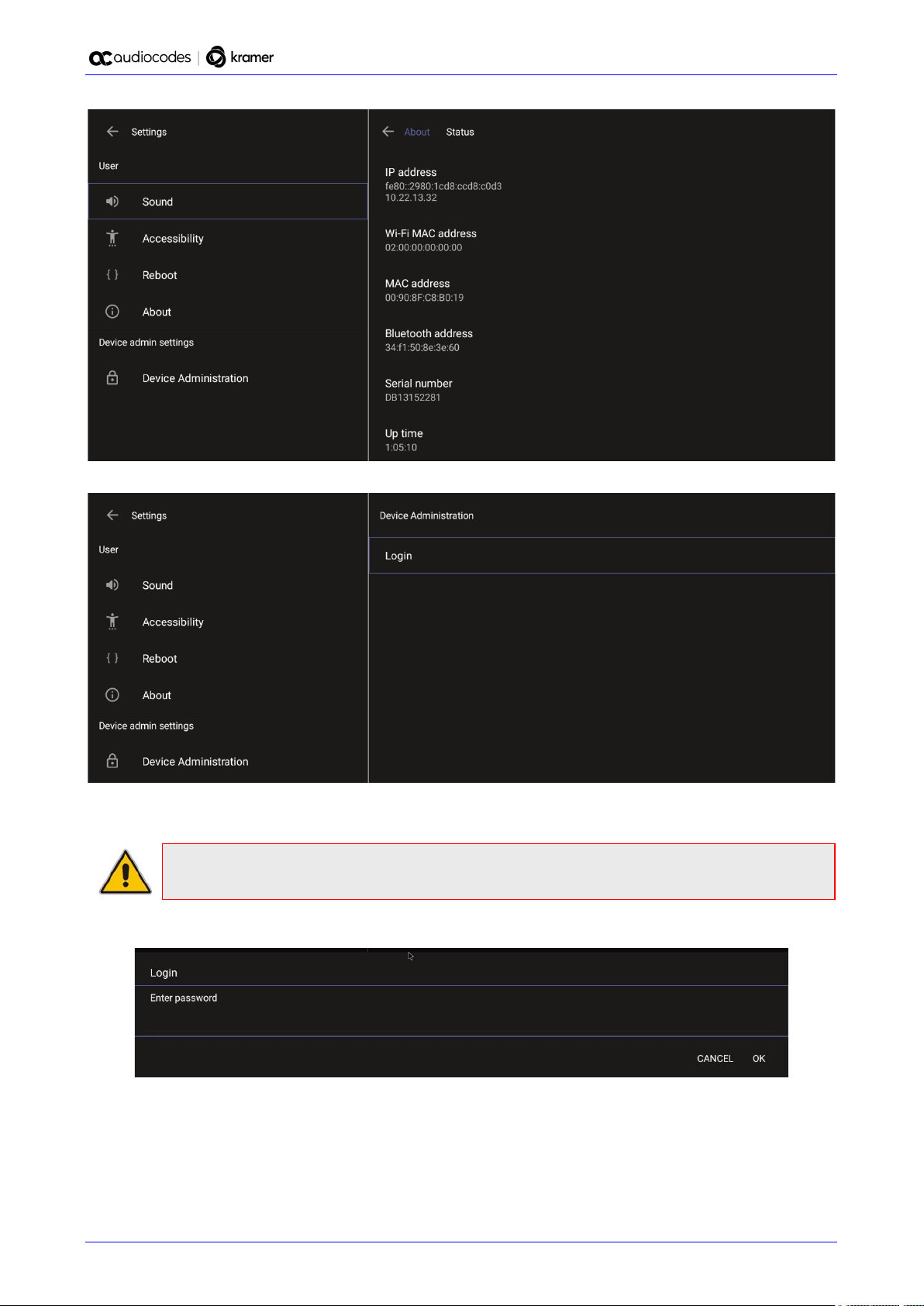

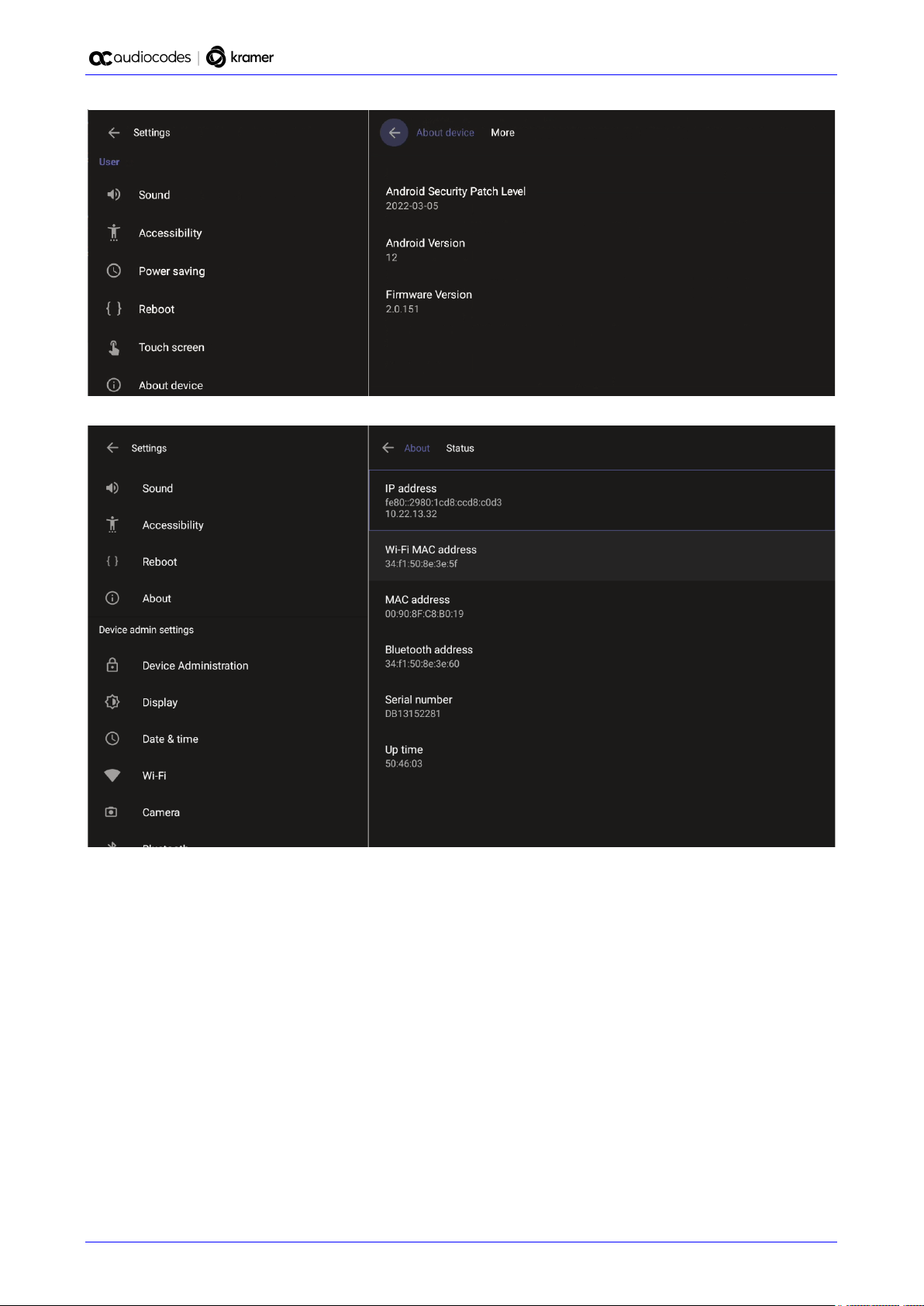

4.4.7 Viewing About RXV81........................................................................................................ 73

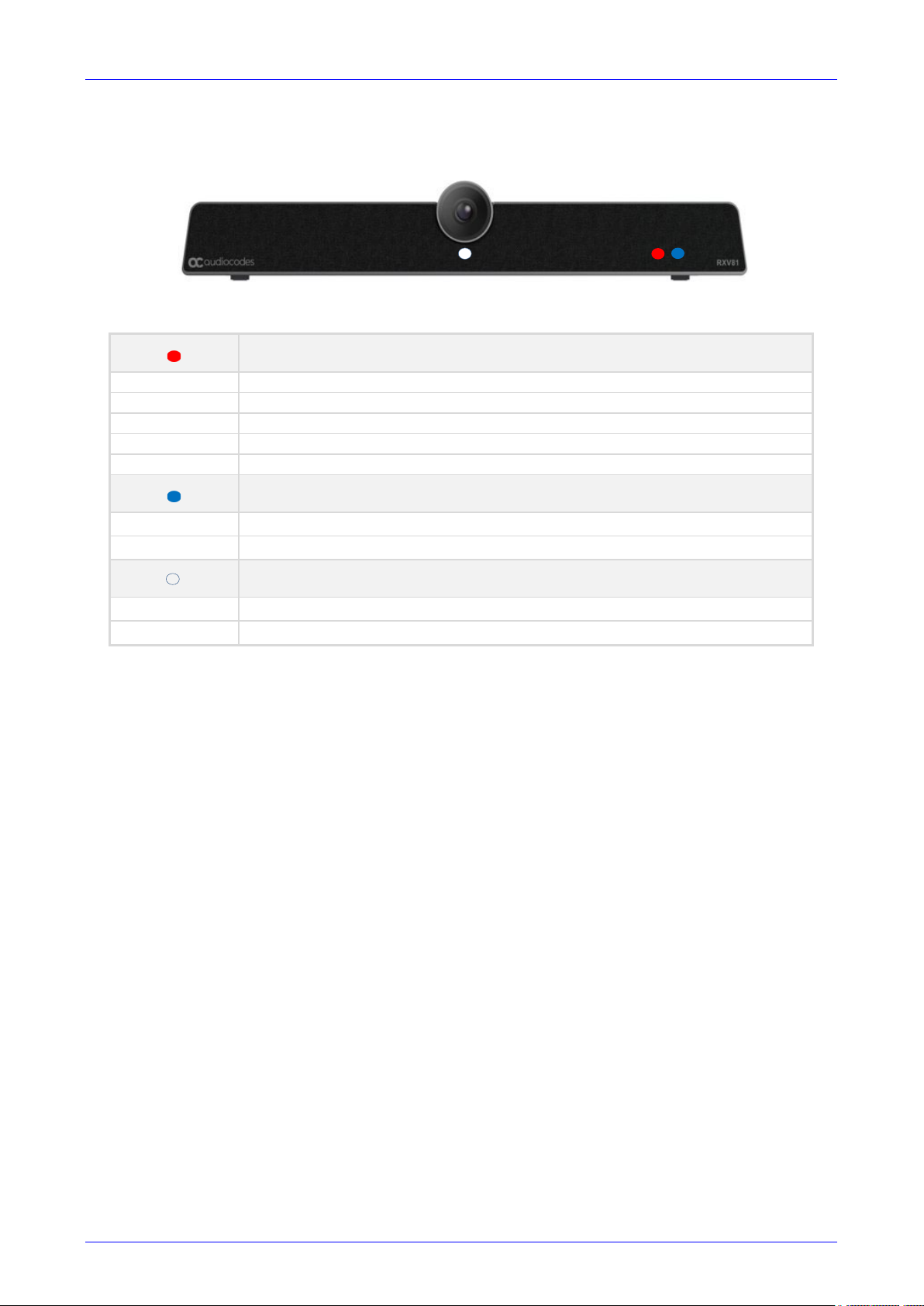

5 Viewing RXV81 Status LEDs..................................................................................... 75

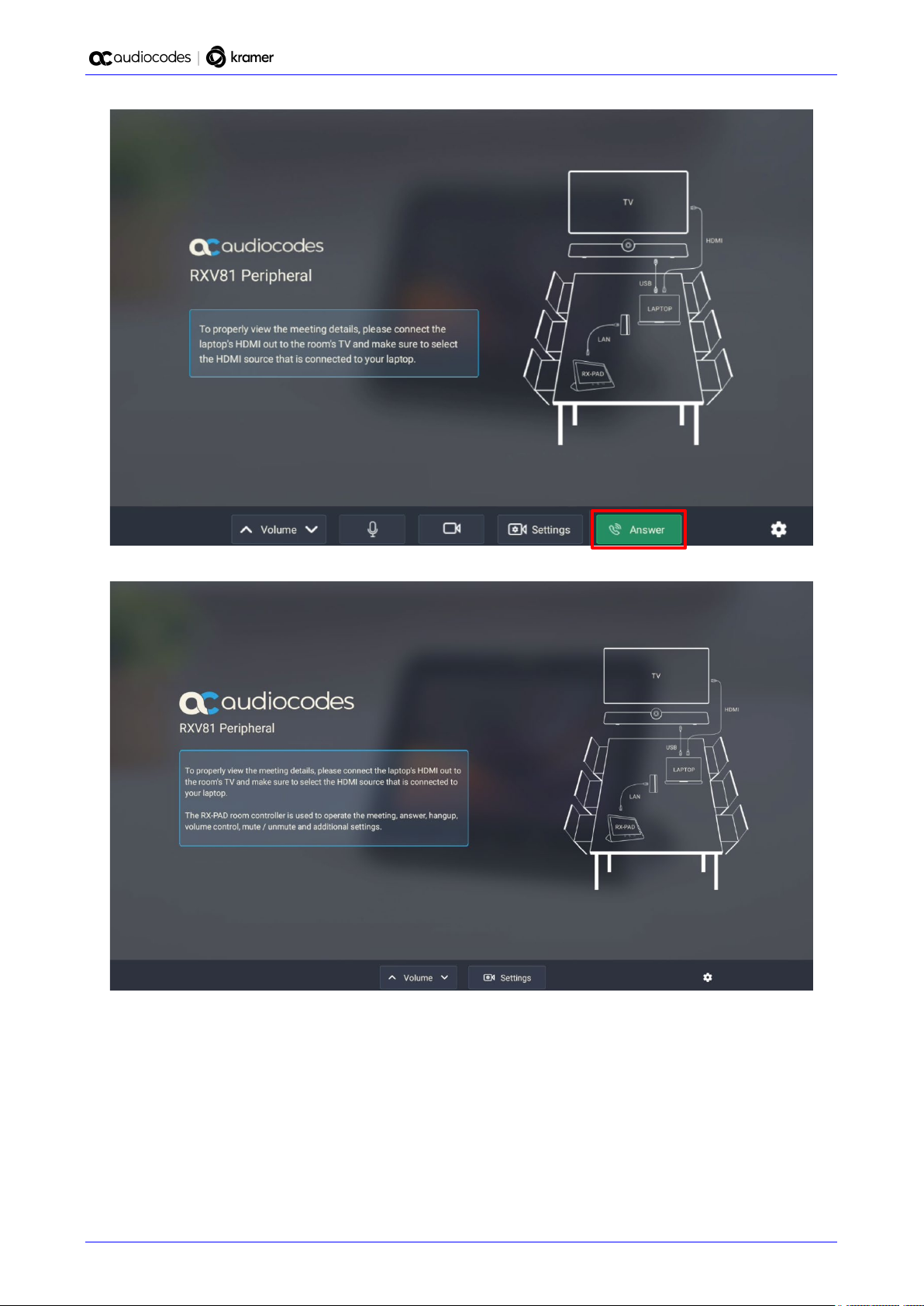

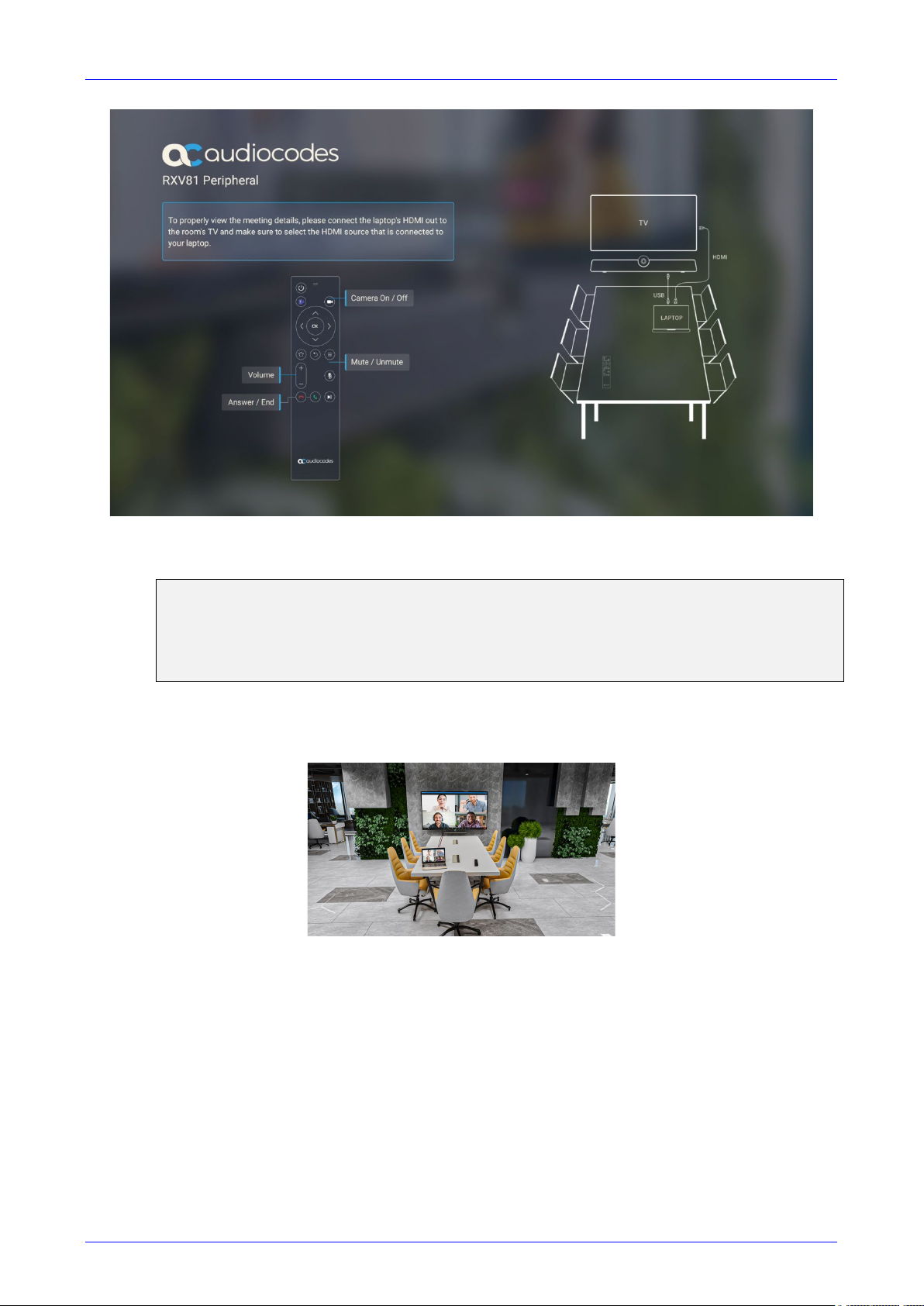

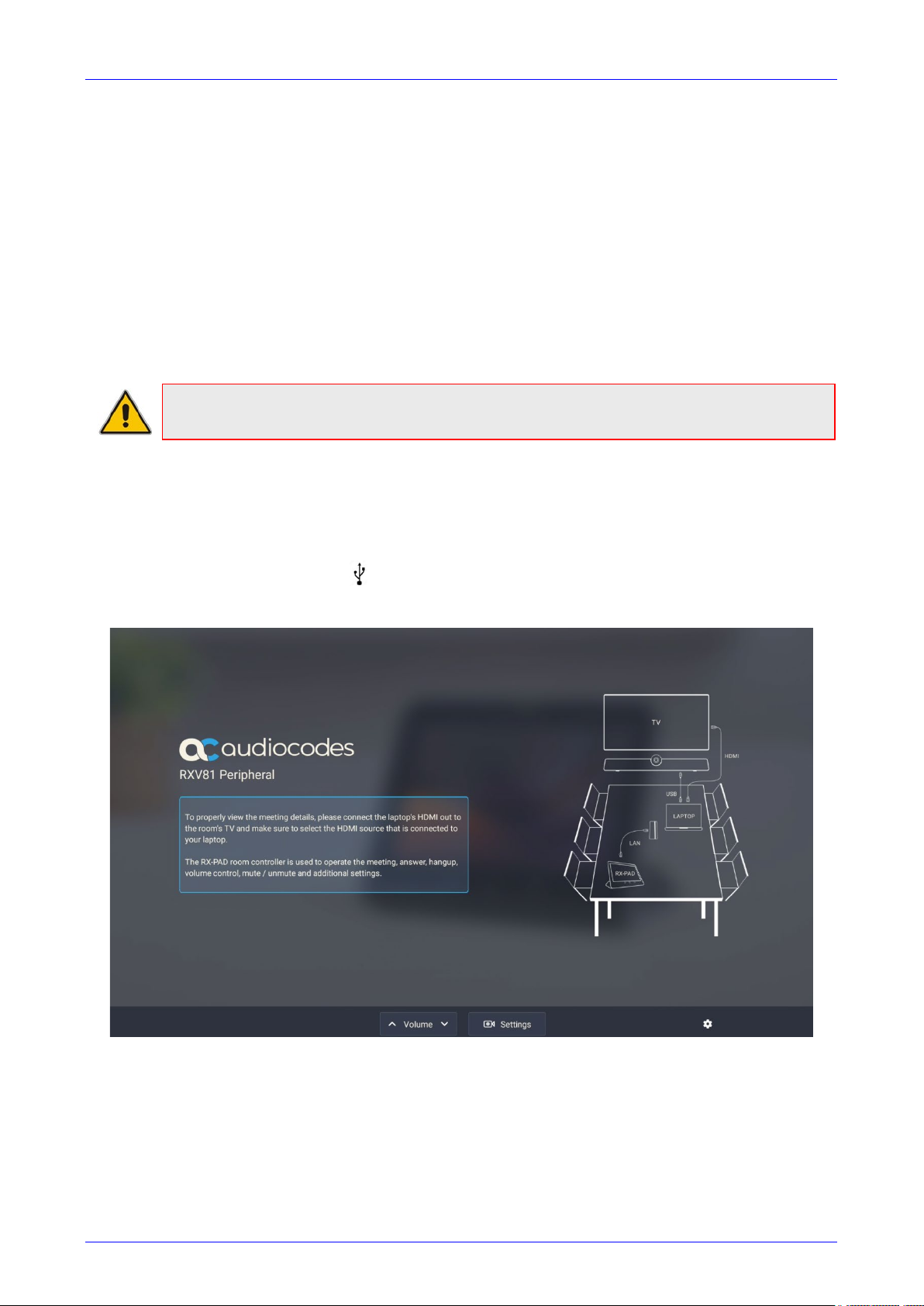

6 Using RXV81 in Ad Hoc Peripheral Mode ................................................................ 77

7 Updating the RXV81 MTR Remotely ........................................................................ 81

8 Replacing RC Batteries ............................................................................................. 83

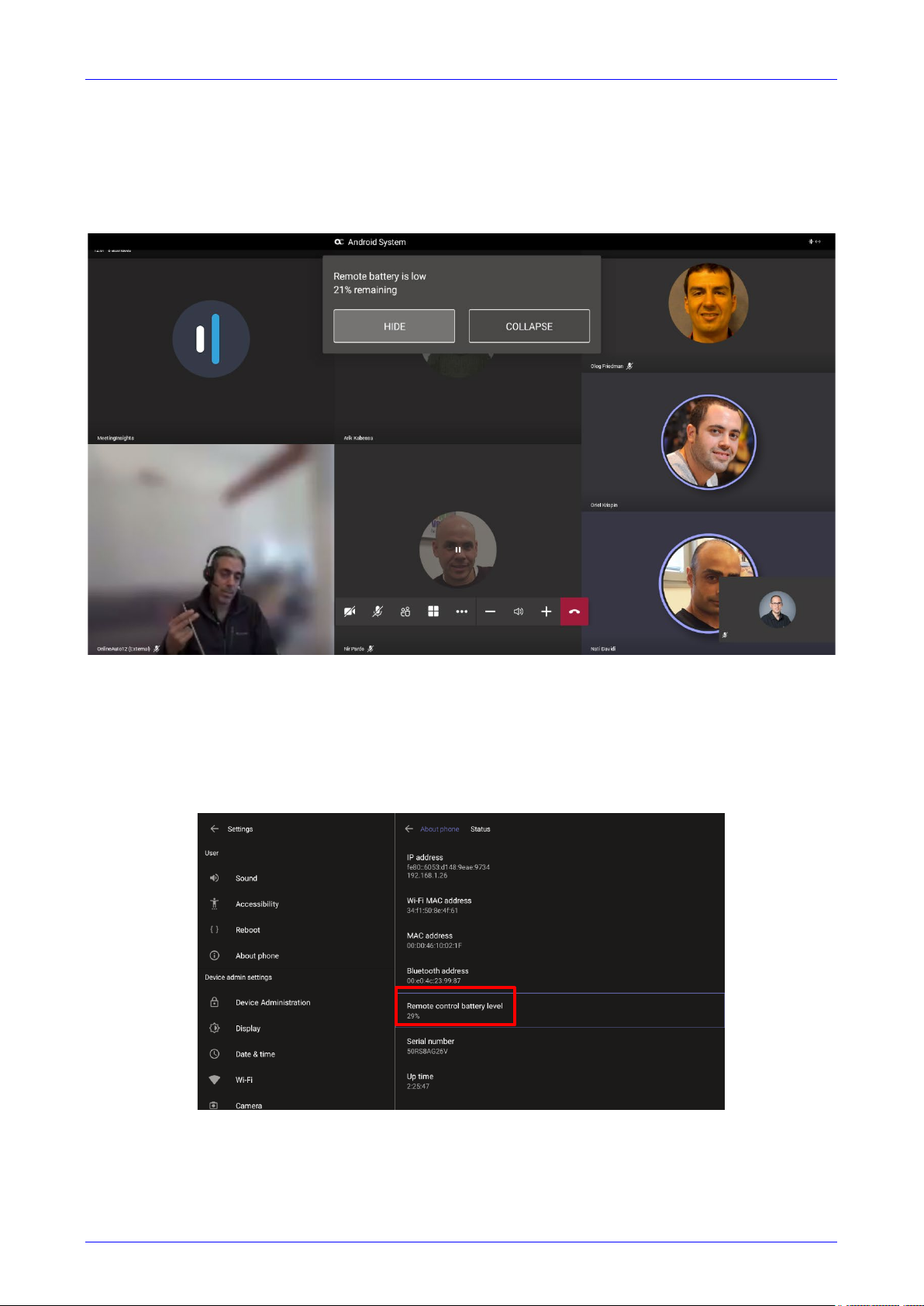

8.1 Assessing RC Battery Level .......................................................................................... 83

8.2 Restarting / Rebooting the RXV81 ................................................................................ 84

8.3 Powering Down/Up the RXV81 ..................................................................................... 84

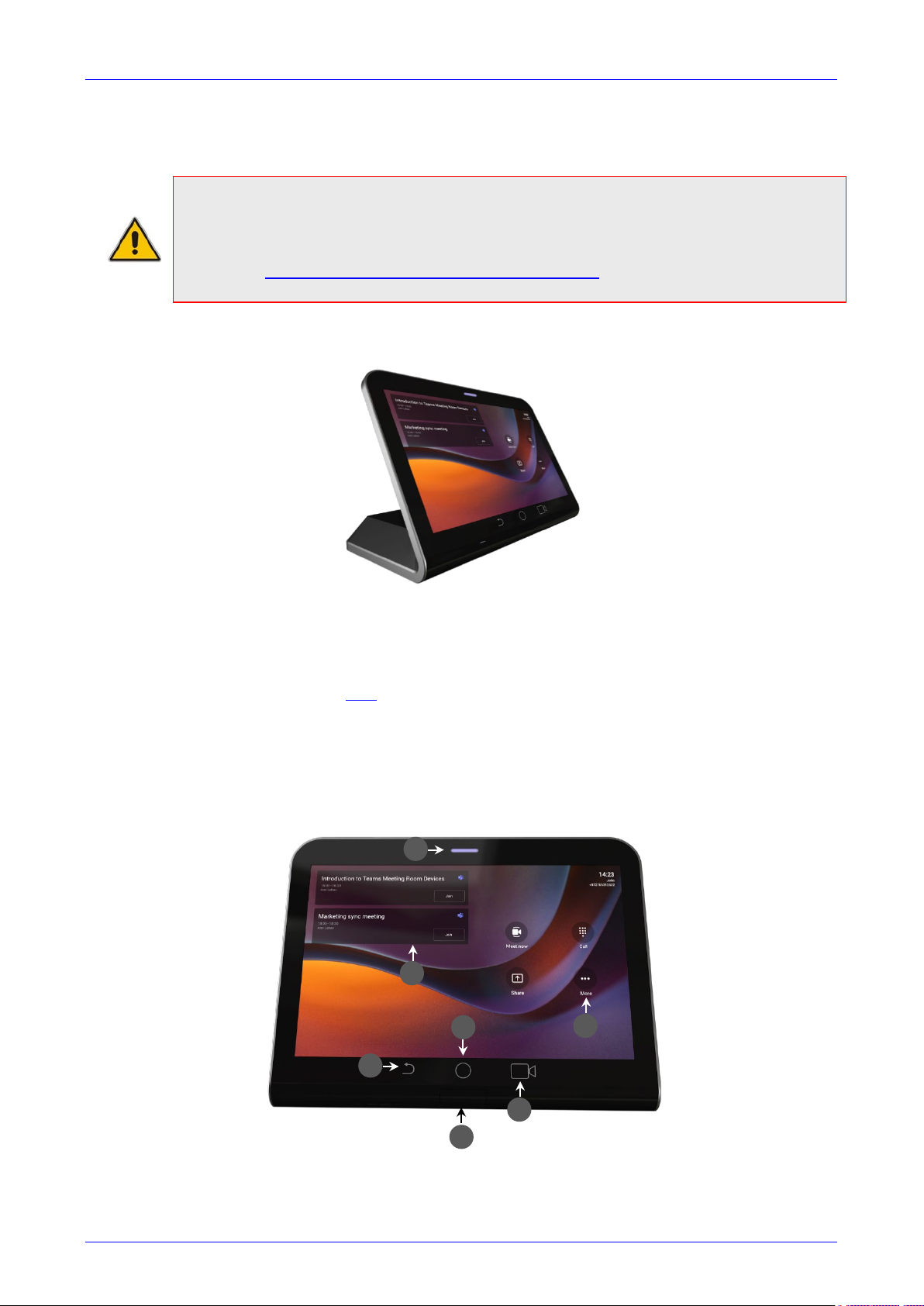

9 RX-PAD Meeting Room Controller ........................................................................... 85

9.1 Using RX-PAD .............................................................................................................. 85

9.2 Using RX-PAD to Adjust RXV81 Camera Settings ........................................................ 86

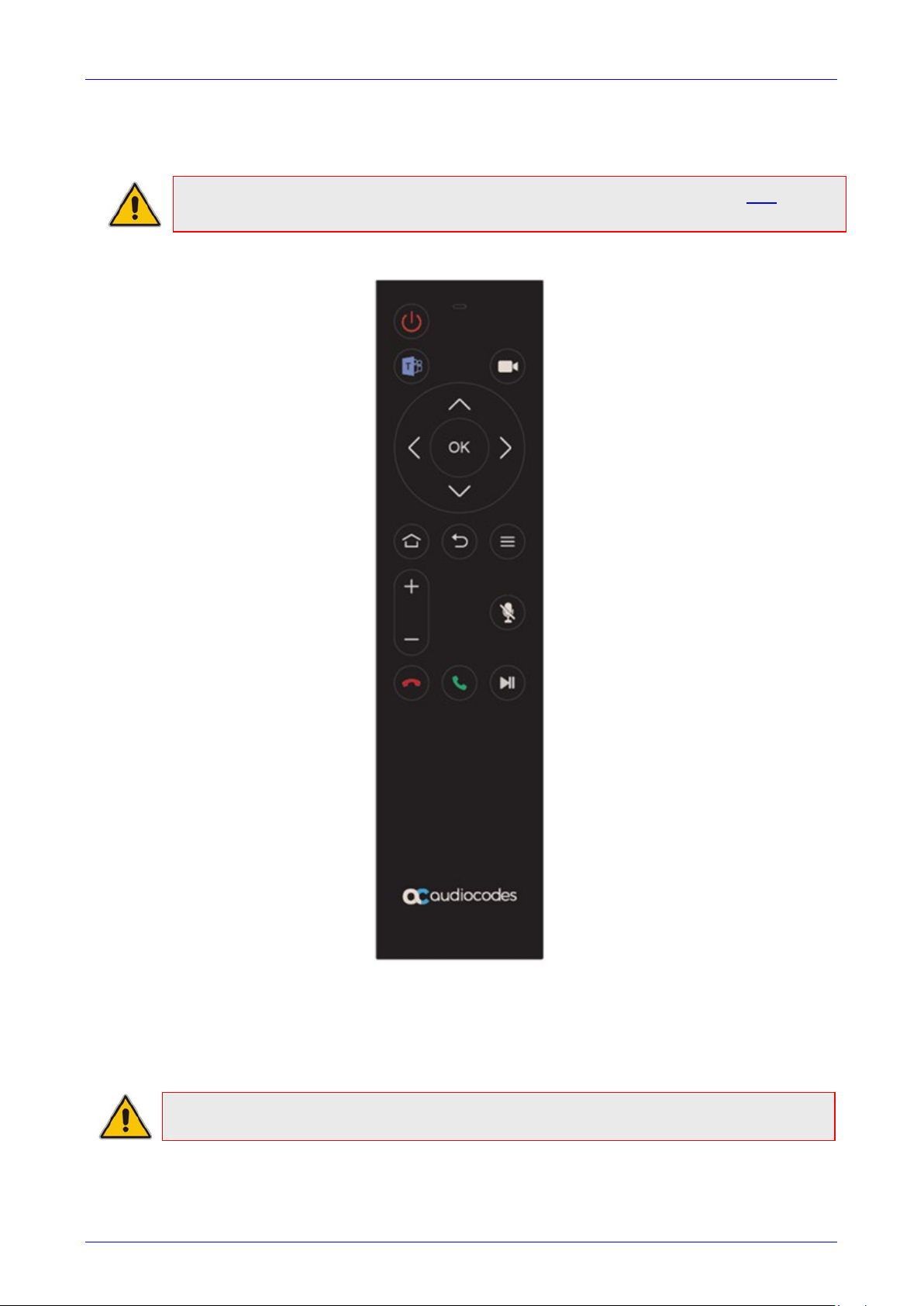

10 Remote Controller (RC) ............................................................................................. 89

11 Android-based Teams Devices Parameters ............................................................ 91

User's & Administrator's Manual 4 Document #: LTRT-18256

Page 5

User's & Administrator's Manual Contents

List of Figures

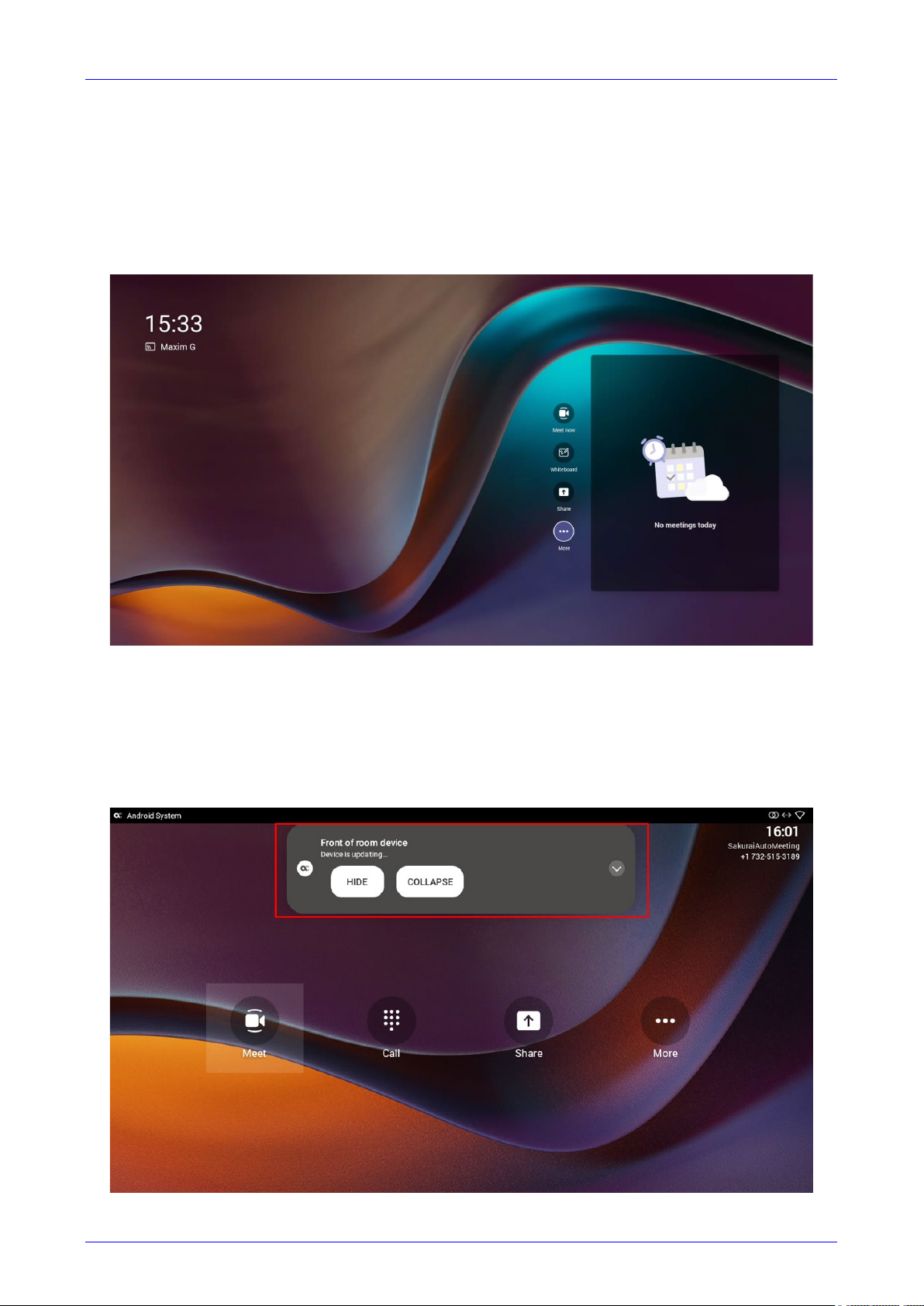

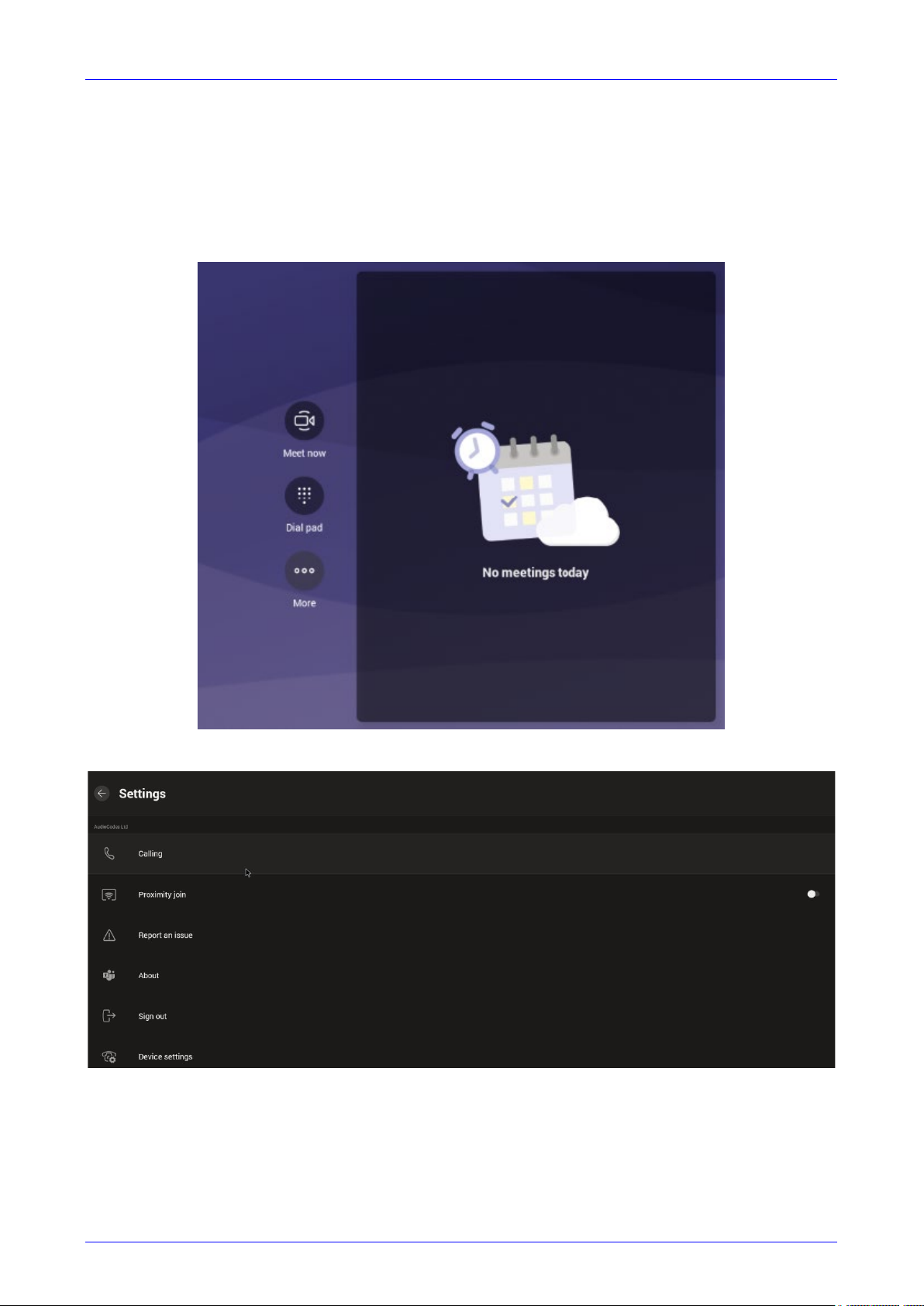

Figure 3-1: Home Page .................................................................................................................................... 25

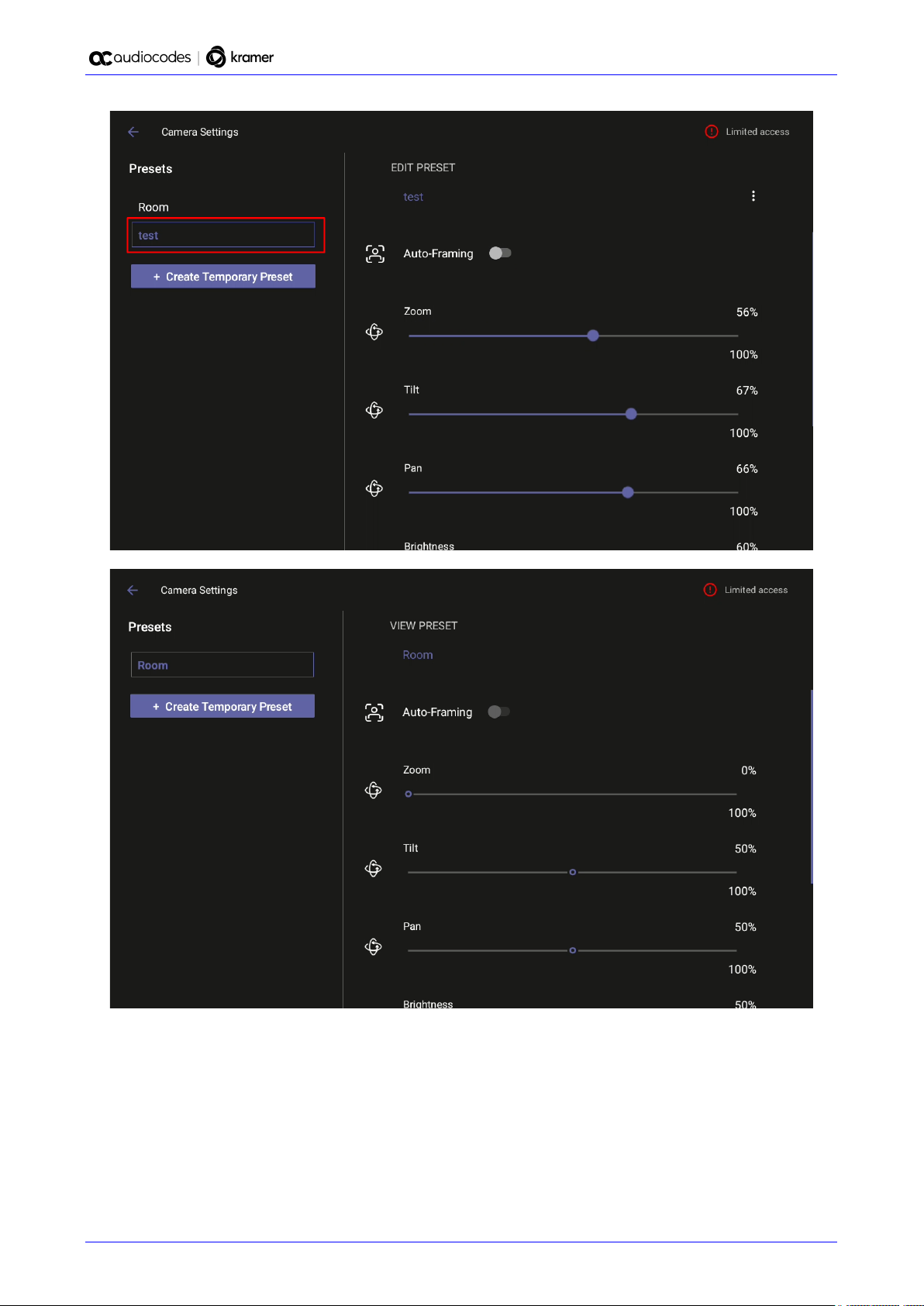

Figure 3-2: RXV81 Camera Settings ................................................................................................................ 27

Figure 3-3: Camera settings ............................................................................................................................. 28

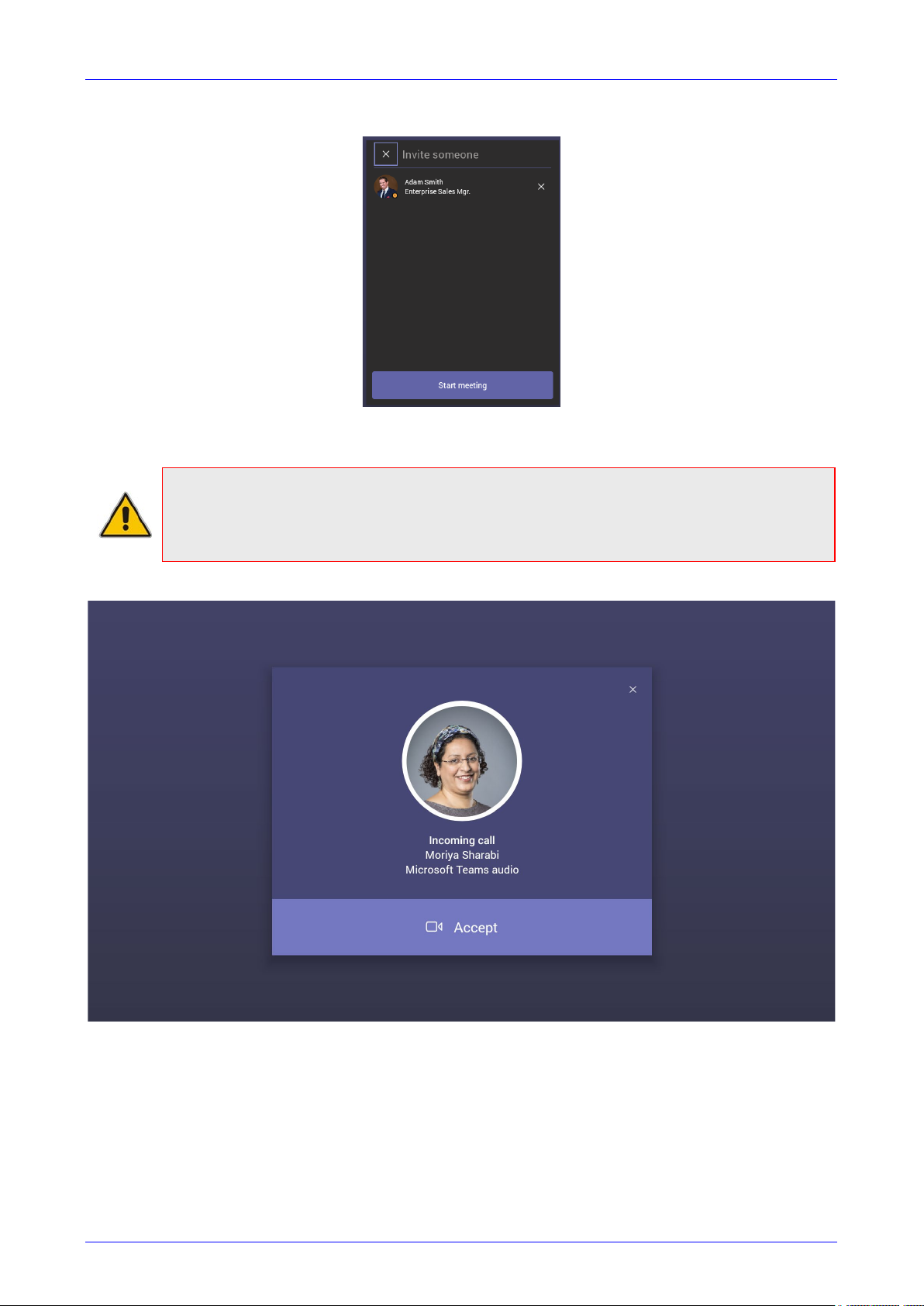

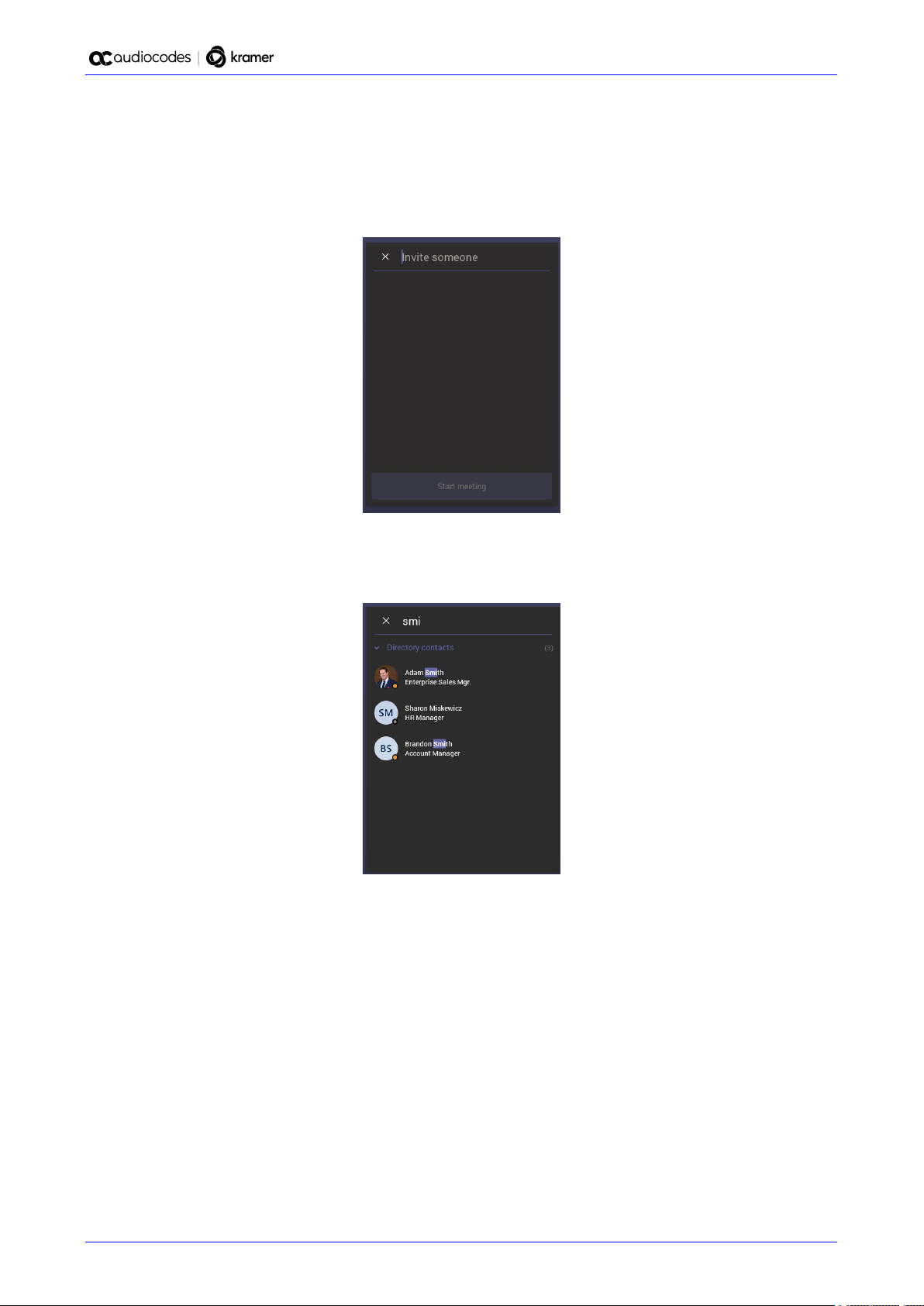

Figure 3-4: New meeting – Invite someone ...................................................................................................... 30

Figure 3-5: New meeting – Enter the name of a person .................................................................................. 30

Figure 3-6: New meeting – Select the name of a person ................................................................................. 31

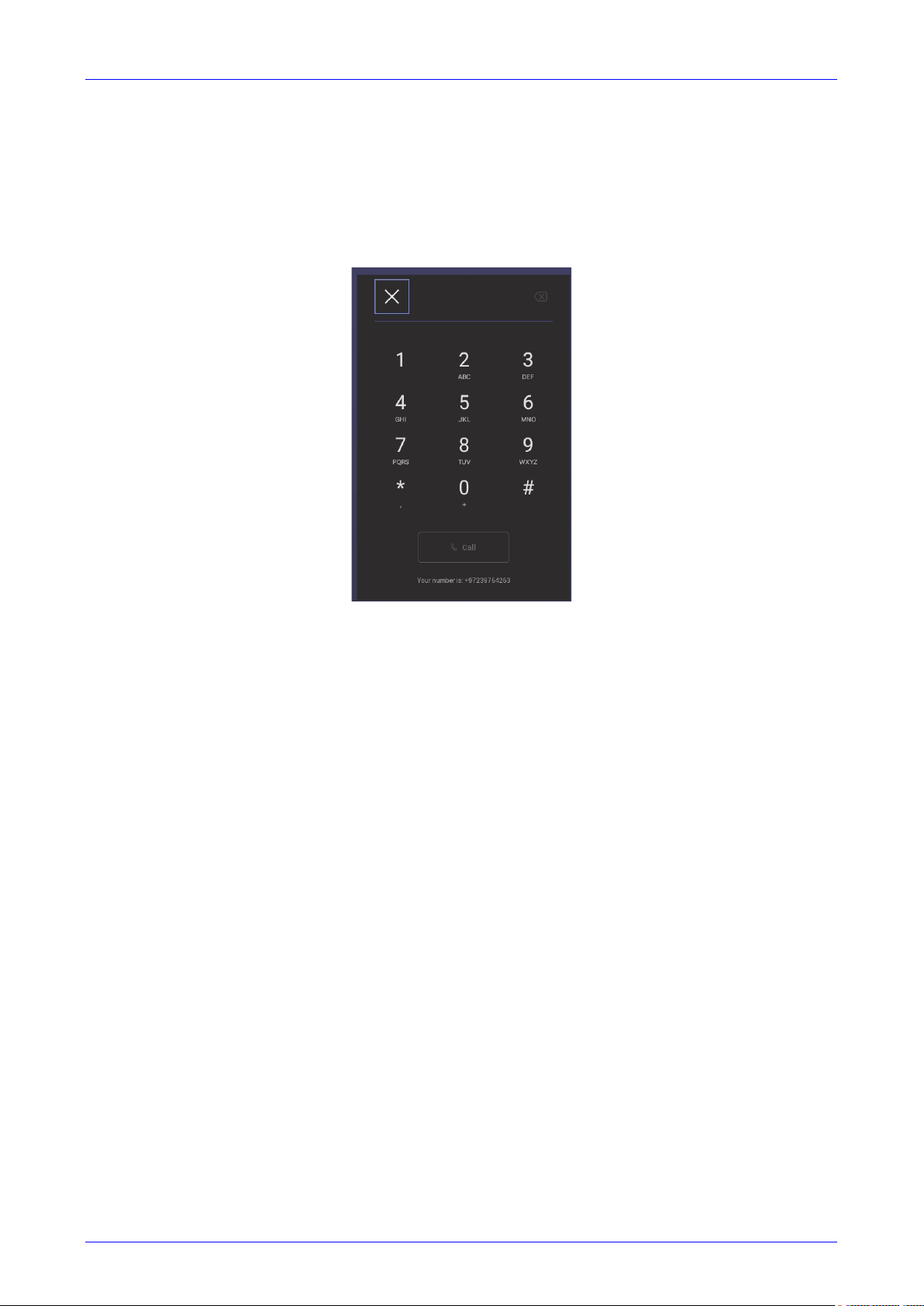

Figure 3-7: Dial pad .......................................................................................................................................... 33

Version 2.2 5 RXV81 MTR on Android Video Collaboration Bar

Page 6

RXV81 MTR on Android Video Collaboration Bar

List of Tables

Table 1-1: RXV81 Bundles ............................................................................................................................... 10

Table 1-2: Specifications .................................................................................................................................. 11

Table 1-3: SCEP Parameters ........................................................................................................................... 17

Table 4-1: Configuration File Wi-Fi Parameters ............................................................................................... 47

Table 4-2: Recovery Operation Options using the RXV81’s Power Button ..................................................... 69

Table 5-1: Viewing RXV81 LEDs to Determine Status ..................................................................................... 75

Table 9-1: Reference to Using RX-PAD ........................................................................................................... 86

User's & Administrator's Manual 6 Document #: LTRT-18256

Page 7

User's & Administrator's Manual Contents

One Voice Operation Center (OVOC) User’s Manual

Notice

Information contained in this document is believed to be accurate and reliable at the time of printing. However, due to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be downloaded from https://www.audiocodes.com/library/technical-

documents.

This document is subject to change without notice.

Date Published: Oct-12-2023

WEEE EU Directive

Pursuant to the WEEE EU Directive, electronic and electrical waste must not be disposed of with unsorted waste. Please contact your local recycling authority for disposal of this product.

Customer Support

Customer technical support and services are provided by AudioCodes or by an authorized AudioCodes Service Partner. For more information on how to buy technical support for AudioCodes products and for contact information, please visit our Web site at

https://www.audiocodes.com/services-support/maintenance-and-support

Stay in the Loop with AudioCodes

Abbreviations and Terminology

Each abbreviation, unless widely used, is spelled out in full when first used.

Documentation Feedback

AudioCodes continually strives to produce high quality documentation. If you have any comments (suggestions or errors) regarding this document, please fill out the Documentation Feedback form on our Web site at http://online.audiocodes.com/documentation-feedback

1 Introduction

AudioCodes’ RXV81 is a standalone Microsoft Teams Rooms on Android™ (MTR) video bar that takes advantage of plug-and-play simplicity to deliver a familiar and exceptionally productive Microsoft Teams meeting experience.

Outstanding image clarity and enhanced voice quality ensure that remote participants can see and hear everyone in the room and can also participate in full Teams video and content sharing sessions.

The RXV81 stands out with its video and audio capabilities, embedded speaker and a 6-element microphone array, as well as Full HD and ePTZ with 5x zoom. These combine seamlessly to make every meeting interactive and personable.

Stylishly designed and quick to set up, the RXV81 is by default a standalone MTR specifically designed for huddle rooms and small shared rooms, as well as for managers’ and executives’ personal offices in today’s busy hybrid workplaces. When used as a standalone MTR, video and sharing are displayed on the TV screen and meetings are controlled via AudioCodes’ RX-PAD Meeting Room Controller or the remote control (RC).

In addition to standalone mode, the RXV81 can be used in ad hoc peripheral mode. In this mode, customers connect the RXV81 to a BYOD (Bring Your Own Device) (PC/laptop) running a UC client; the BYOD displays meeting video and content and meetings are controlled via the BYOD (join, accept, manage participants). Audio/video (camera ePTZ, mic mute) can be controlled via the UC client or the RC (camera on / off, mute, volume).

Deployment is straightforward with its robust mounting element and minimal cable connections. The RXV81 is supported by AudioCodes’ Device Manager, a plugin of the AudioCodes One Voice

Operations Center (OVOC), allowing IT managers to remotely oversee and upgrade all deployed devices with ease from anywhere.

1.1 Highlights

RXV81 feature highlights:

 Plug-and-Play Simplicity for Fast Setup.

An easy-to-use mounting element and minimal cable connections enable quick and simple deployment.

 [Optional] RX-PAD Meeting Room Controller

 [Optional] Bluetooth Remote Controller

Leverages Bluetooth for full control and bi-directional communication. Intuitive. Illuminated ‘Mute’ and ‘Teams’ buttons.

 Intuitive Meeting Experience.

Fast access to meetings with one click to join using Microsoft Teams Room Android.

 High Quality Video and Audio.

Outstanding Full HD image clarity and superb surround sound ensures that everyone in the meeting room is seen and heard.

 Wide-angle 4K Camera (12M Storage)

Covers a 110° viewing angle capturing every seat in the room even in tight spaces with challenging lighting conditions. D: 120º/ H: 110º/ V: 75º

 Easy to Manage from Anywhere.

Enhance the meeting experience with centralized device management and monitoring from any location.

 Peripheral Mode.

The RXV81 can be used on an ad hoc basis as a USB A/V peripheral for any UC client.

Version 2.2 9 RXV81 MTR on Android Video Collaboration Bar

Page 10

RXV81 MTR on Android Video Collaboration Bar

1.2 Benefits

 Intuitive meeting experiences with one click to join using the Microsoft Teams Rooms on

Android application.

 An easy-to-use mounting element and minimal cable connections enable quick and simple

deployment.

 Superior audio via a full-room pickup with no need for an additional external USB

microphone or speaker.

 Effortlessly manage meetings using the dedicated Bluetooth remote control or RX-PAD

Meeting Room Controller.

 Managed using AudioCodes’ One Voice Operations Center (OVOC) Device Manager or

Microsoft’s Teams admin center (TAC).

1.3 Hardware Features

 The RXV81 can be used on an ad hoc basis as a USB A/V peripheral for any UC client  Wide-angle lens with 110° field of view (FoV) covers every seat in the meeting room. D:

120º/ H: 110º/ V: 75º

 Adjustable camera position with ePTZ support - 5x zoom - digital 5x zoom in. Manually

vertically (up/down) adjustable ±15º.

 6-element microphone array with 4.5 m pickup range for mid-size rooms and a 10W speaker

for superb sound

 Stylish design and finish.  Built-in dual band Wi-Fi and Bluetooth.  High Dynamic Range (HDR) automatically ON - Wide Dynamic Range (WDR).

1.4 Bundles

The RXV81 is available in two bundles.

Name of Bundle Details

TEAMS-RXV81

TEAMS-RXV81-B10

Table 1-1: RXV81 Bundles

 Managers offices  RXV81 main unit  Smart BT Remote Controller

 Shared rooms  5-6 participants  RX-PAD Meeting Room Controller

User's & Administrator's Manual 10 Document #: LTRT-18256

Page 11

User's & Administrator's Manual 1. Introduction

C (device) marked 2 to connect to PC/MAC BYOD device

 Calendar integration (with meeting preview) and one click to join

  Simple sign-in interface from browser or smartphone with a code

1.5 Specifications

The following table shows the RXV81 specifications.

Table 1-2: Specifications

Feature Details

Video capabilities

Audio

Device Interfaces

Network Provisioning

 Ultra HD 4k image sensor  Super-wide angle horizontal field of view: 110°  Lens: Fixed focus  ePTZ capable, digital 5x zoom in  Output resolution: 1080p  Frame rate: 30 fps  Manually adjustable, vertically (up/down) ±15º  High Dynamic Range (HDR) automatically ON - Wide Dynamic Range

(WDR).

 Full duplex, noise suppression, acoustic Echo Cancellation, voice

separation

 6x beamforming microphone array  Voice pickup range: 4.5m (15ft)  10W speaker

 HDMI output to TV  Power/reset button  USB 3.0 Type A (host) marked 1 to allow touch LCD or connectivity to

wireless KB via BT USB dongle

 Ethernet: 10/100/1000 Mbps (RJ-45) network interface  USB2.0 Type-

(peripheral mode)

 3 status LEDs indicating camera on/off, mute on, call state, device

health

 Wi-Fi (dual band support)  Bluetooth 5.0  12V/3A DC power input  Remote Controller (Bluetooth managed)  RX-PAD Meeting Room Controller

 TCP/IP (IPv4), DHCP/ static IP; Time and date synchronization via

SNTP; VLAN support; QoS support: IEEE 802.1p/Q tagging (VLAN)

 Layer 3 TOS and DSCP RTCP support: (RFC 1889)  IP address configuration: TCP/IP (IPv4), DHCP/static IP Time and date

synchronization: SNTP

 QoS support: IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP

RTCP support: (RFC 1889)

 Android 12

Security

 Encryption: TLS (Transport Layer Security), SRTP encryption for

media, AES256

 Network Access Control: IEEE 802.1x  Built-in certificate

Management

 AudioCodes Device Manager, a plugin of AudioCodes One Voice

Operations Center (OVOC)

Microsoft Teams Features (Android MTR)

Teams meetings

Meet now option

Version 2.2 11 RXV81 MTR on Android Video Collaboration Bar

Page 12

Feature Details

 ‘Direct guest join’ to allow joining a third-party meeting  

        



  



 

RXV81 Device Feature Set

RXV81 MTR on Android Video Collaboration Bar

‘Cast info’ from mobile to the RXV81 screen over Bluetooth ‘Room remote’ using Teams mobile app allowing to control the

RXV81

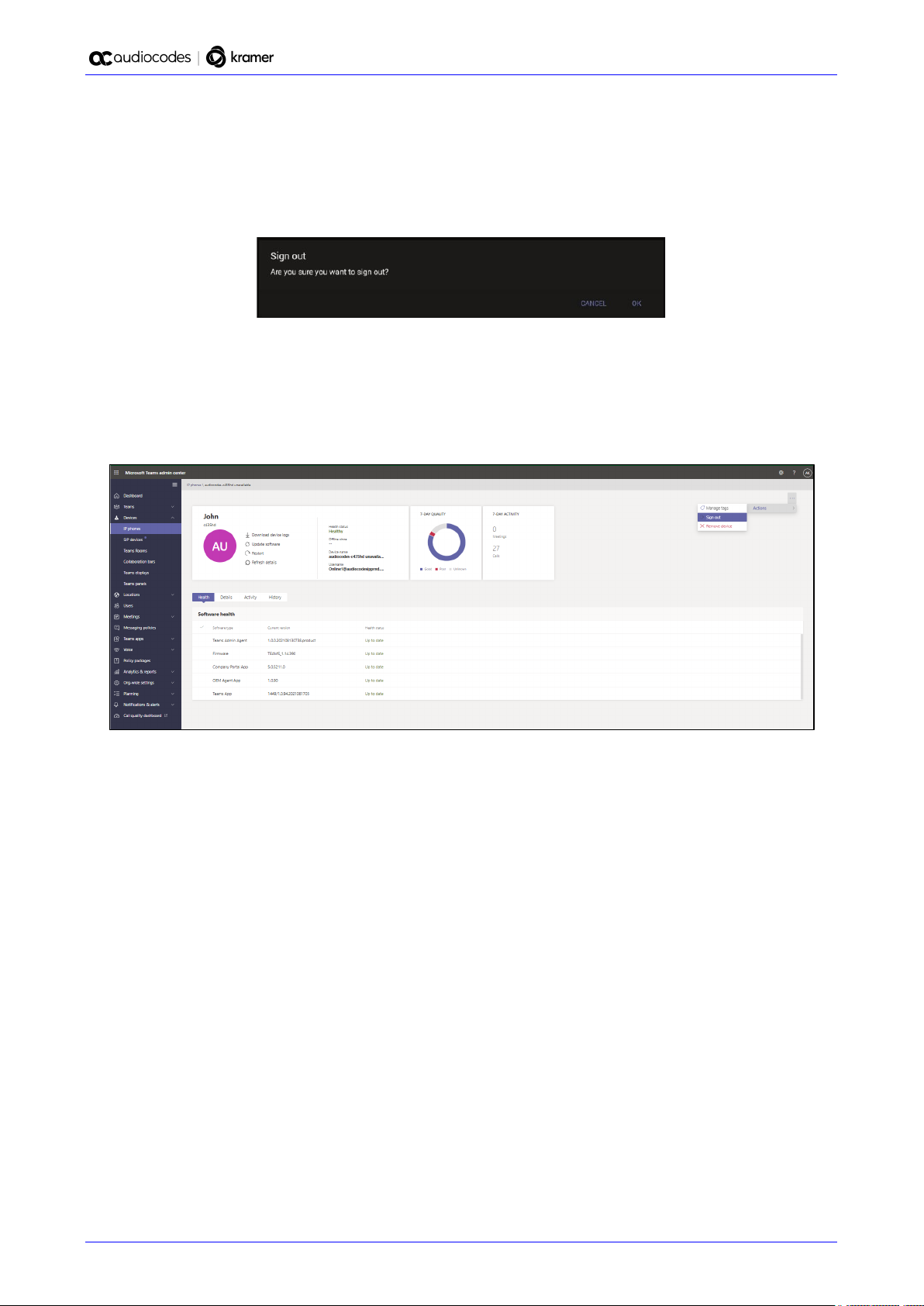

Remote sign-out from Microsoft Teams admin center (TAC). Hide names and meeting titles for individual devices Meeting stage Multi-spotlight Docked meeting controls Reactions Control camera/mic for attendees Live Captions in regular one-on-one calls and in Teams meetings Whiteboard support when signed in with personal account (short

term roadmap for whiteboard support with room account)

Multi-cloud sign-in support

 Remote provisioning and sign-in from TAC

 Camera settings with different privileges for user and Admin  In idle (Admin) and during a call/meeting (all users), long-pressing the

camera button on the RC allows:

Defining/editing a new preset Moving to different presets Changing all settings options

 Video quality: Resolution of 1080p on the decoder side and 720p on the

encoding side

 RXV81 integration with AudioCodes OVOC-DM  RXV81 Alerts to AudioCodes OVOC-Device Manager:

Notification sent to screen/TV and to Device Manager if Remote

Control

is disconnected or if it’s malfunctioning

Notification sent to screen/TV and to Device Manager if Remote

Control

battery voltage level falls low, indicating what percentage

level remains unused

Remote Control flashes if the connection to the RXV81 fails.

 Camera frequency set per power supply:

110V – 60Hz 220V – 50Hz

 Shortcut keys for administrators to manually perform recovery operations  Ad Hoc Peripheral Mode allows connecting the RXV81 via USB to the

PC as a peripheral device (Feature in Preview)

User's & Administrator's Manual 12 Document #: LTRT-18256

Page 13

User's & Administrator's Manual 1. Introduction

1.6 Security Guidelines

The RXV81 is an AudioCodes Native Teams Android-based device purpose-built and customized for Teams calling and meeting and designed to enhance security as part of the default use.

Though customers might see Android-based systems as prone to security issues, security is much less a concern on devices that are purpose-built for Teams meeting and calling.

When analyzing the security of the device there are two levels that should be addressed:

 Authentication and security with regards to Teams connectivity and use  Android level / system of the device

1.6.1 Microsoft Teams Security Guidelines

 Following are AudioCodes’ recommendations with regards to device security:

• Use “sign-in with other device option” – using this mode the user does not type the

password on the device, instead obtains a code to be used to sign-in on his PC/laptop; the device obtains a private token that enables it to access Teams cloud; this token, unlike a password, allows only that device which obtained it to reuse it. The token is stored on the secured file system.

• Leverage Multi-Factor-authentication (MFA) to improve the security of the sign in.

• IT can consider reducing the expiration time of the sign in for devices which are

connected remotely (outside the organization network) vs devices in the organization premise.

 Visit Microsoft technical pages and learn more on security guidelines and policies for

Microsoft Teams adoption:

• Overview of security and compliance - Microsoft Teams | Microsoft Docs

• Identity models and authentication for Microsoft Teams - Microsoft Teams | Microsoft

Docs

• Sign in to Microsoft Teams - Microsoft Teams | Microsoft Docs

1.6.2 Android Level Security Hardening

This section describes the major changes performed on the system/Android level that were incorporated into the device to improve its security.

Google Play Services

Goggle Play services were removed from the device software – no access is allowed to any Google store or Play services.

 The device update of the Android software and application is done via special software

components that either connect into Teams Admin Center or to AudioCodes Device Manager over secured channel.

Running Android in Kiosk Mode

Android Kiosk Lockdown software is the software that locks down the Android devices to just allow the essential apps by disabling access to the Home/Launcher. Using Android Kiosk Lockdown software, the Android devices can be converted into public kiosk terminals or secured work devices.

 Only specific Microsoft apps and AudioCodes signed apps that were certified and approved

in the certification process can run under the Kiosk mode; even if a malicious user managed to install a new un-authorized app on the file system – the launcher on the device will only run those specific approved apps and this cannot be changed in run time (only with new software code that is provided by AudioCodes).

Version 2.2 13 RXV81 MTR on Android Video Collaboration Bar

Page 14

RXV81 MTR on Android Video Collaboration Bar

Screen Lock

AudioCodes Native Teams devices use a screen lock mechanism to prevent any malicious user/users from gaining access to Calendar information and / or Active Directory list of employees and / or triggering unauthorized Teams calls from the device. After enabling screen lock, the device automatically locks after a preconfigured period; a code is required to unlock the device and resume full operation.

AudioCodes Private Key

The system software on the device is signed with AudioCodes private key – users can replace the complete software only with new software that is also signed by the AudioCodes private key. This prevents the user from replacing the complete OTA package of the device with any new system software unless this software has been fully signed by AudioCodes.

Android Debug Bridge (ADB)

AudioCodes disables the Android Debug Bridge (ADB) application and keeps the Teams app running in the front all the time, which means there is no way to install other Apps from unknown sources and sideloading.

App Signing

Android requires that all apps are digitally-signed with a developer key before installation; currently the device verifies that the apps are signed by Microsoft. App signing prevents malicious user/users from replacing a Microsoft-signed app with an app that "pretends" to be Microsoft but which lacks the private key that is known only to Microsoft.

Web Browser

The device does not include a Web browser – users cannot browse to the public internet or internal intranet– all Web services are customized to connect to O365 services and AudioCodes managed services such as One Voice Operations Center (OVOC).

Without a web browser, malicious user/users will not be able to access the device and browse from it as a trusted device into the customer network.

Remote Configuration Management

The Native Teams device does not have an embedded WEB server – configuration and management is performed using one of the following remote interfaces:

 Microsoft Teams Admin Center (for Native Teams devices) over HTTPS protocols – this is

enabled after successful sign-in authentication process.

 AudioCodes Device Manager (part of AudioCodes OVOC suite) over HTTPS.  Debugging interface over SSH. Note that SSH MUST be disabled by default and enabled

only per specific case for debugging-purposes only.

AudioCodes Device Manager Validation

The IP phone validates the AudioCodes Device Manager identity using known root CA:

 The device is shipped with known Root CAs installed. See AudioCodes Root CA Certificate.

 For the initial connection phase, the AudioCodes Device Manager should access the device

using a known CA.

 Once a successful secured connection has been established between the device and the

Device Manager, the user can replace the root CA on the Device Manager and on the phone and re-establish the connection leveraging any private root CA.

User's & Administrator's Manual 14 Document #: LTRT-18256

Page 15

User's & Administrator's Manual 1. Introduction

Sandboxing

AudioCodes Native Teams devices use Android Application Sandbox so that each application can access its own data and is isolated from other applications. This prevents a malicious app from accessing the code or the data of other applications in the system.

Keystore

With AudioCodes Native Teams devices, the certificate keys are encrypted on the device file system.

Device Certificate

AudioCodes Native Teams devices are shipped with a unique certificate which is signed by AudioCodes Root CA.

Data Protection

AudioCodes Native Teams devices run Android which has integral procedures for protecting and securing user data.

Device File System

The device file system is encrypted on the RXV81 device – customers may enforce a policy of device encryption via Microsoft Intune.

Debugging Interface

 The device leverages SSH as a debugging interface.  AudioCodes recommends that customers disable SSH on the device – this can be done via

the AudioCodes Device Manager (OVOC).

 AudioCodes recommends changing the Admin password from the default, which can be

done via Teams Admin Center or AudioCodes Device Manager (OVOC).

 When debugging of a specific device is required, the user can enable SSH on specific

device/s, access SSH with the new Admin password for debugging phase and disable SSH once debugging has been completed.

1.6.3 Android Security Updates

In addition to all the above, AudioCodes regularly adopts and integrates the Android security updates. For reference see https://source.android.com/security/bulletin/2019-10-01

Version 2.2 15 RXV81 MTR on Android Video Collaboration Bar

Page 16

RXV81 MTR on Android Video Collaboration Bar

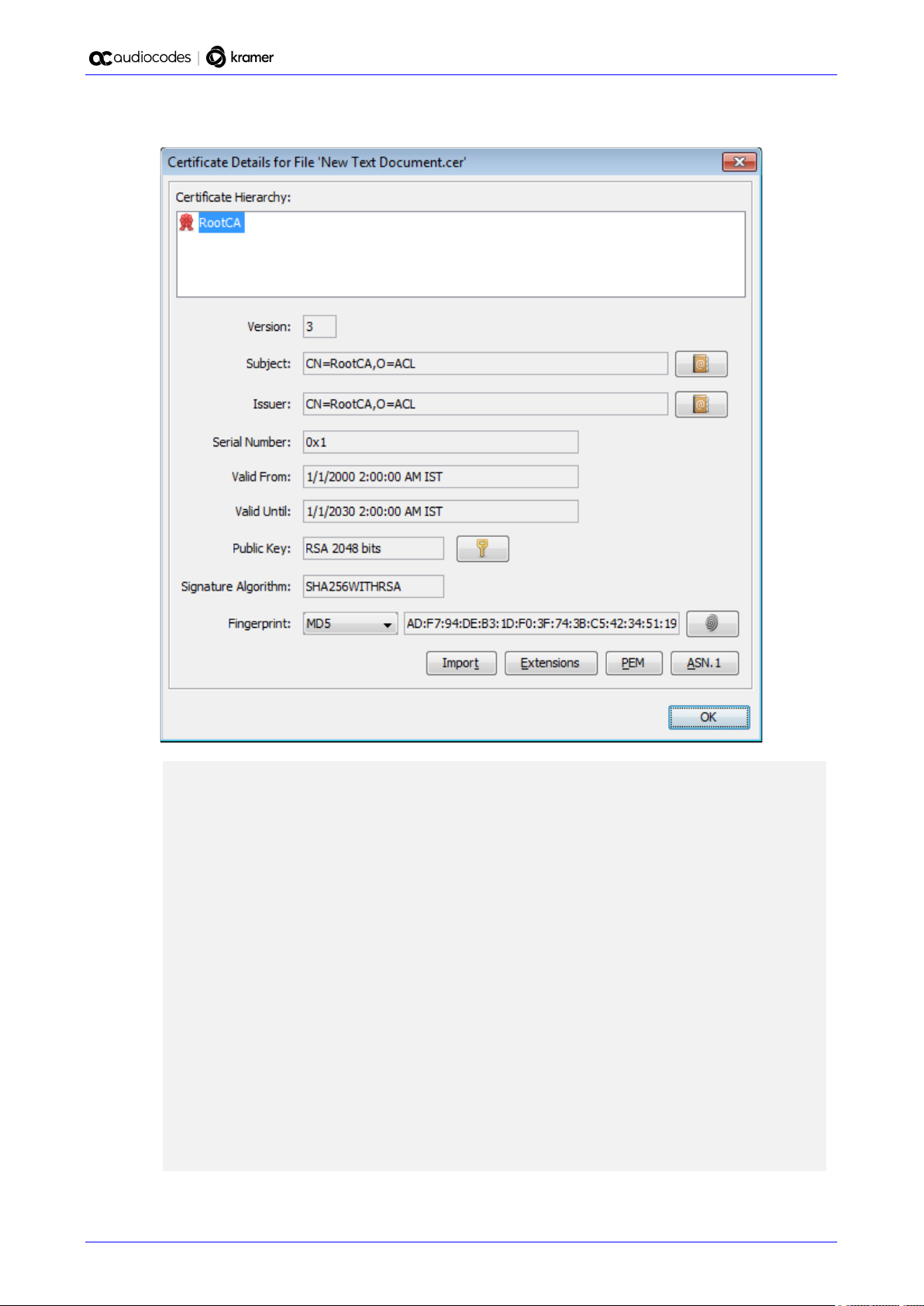

1.6.4 AudioCodes Root CA Certificate

-----BEGIN CERTIFICATE----MIIDMTCCAhmgAwIBAgIBATANBgkqhkiG9w0BAQsFADAfMQwwCgYDVQQKEwNBQ0wx DzANBgNVBAMTBlJvb3RDQTAeFw0wMDAxMDEwMDAwMDBaFw0zMDAxMDEwMDAwMDBa MB8xDDAKBgNVBAoTA0FDTDEPMA0GA1UEAxMGUm9vdENBMIIBIjANBgkqhkiG9w0B AQEFAAOCAQ8AMIIBCgKCAQEA6GK495KUCXAm/UE17G4/cjnZN4LNaxYEYzbfZL0a EhgSKYt/LQ+iUcDhojsneusNgrcGkpwKklKsGsvGWmSRNULV01CW+TX2VJN73+hh V0uzhyOIYAUhbDaoqNM6Kp5b7sJ1ew4Ig9kfd/ma9Czl5koESLlw/inLj/r+rD96 mUcPElWrKspv7Qy4I14fsK/yMArixRopTL1munVVPpSFM9Jh8IY3JHyr5CQJXKKs EhGAJsnHaRqsR2Su3X/WtslgEF+cvP34pxhlhFL29nMfnaFATSS3rgGaFlSvl1ZS esLMqkWjp9cqGYrvt7K61sYnvMMb+o/KbWqVokXb+Fr7bwIDAQABo3gwdjAMBgNV HRMEBTADAQH/MB0GA1UdDgQWBBQDXySn9hz15lDraZ+iXddZGReB+zBHBgNVHSME QDA+gBQDXySn9hz15lDraZ+iXddZGReB+6EjpCEwHzEMMAoGA1UEChMDQUNMMQ8w DQYDVQQDEwZSb290Q0GCAQEwDQYJKoZIhvcNAQELBQADggEBAI0rUywommWWJnH3 JOfKiS3+VnX5hJITZymvWanMXUz/6FonHccPXEBYTrUYwhiWx3dwELAFXDFKkxMp 0KKWZ4F39cAOLRjqhzya+xUeeJ9HQZCXYAJ6XgvTfN2BtyZk9Ma8WG+H1hNvvTZY QLbWsjQdu4eFniEufeYDke1jQ6800LwMlFlc59hMQCeJTenRx4HdJbJV86k1gBUE A7fJT1ePrRnXNDRz6QtADWoX3OmN7Meqen/roTwvLpEP22nYwvB28dq3JetlQKwu XC4gwI/o8K2wo3pySLU9Y/vanxXCr0/en5l3RDz1YpYWmQwHA8jJIu8rxdhr+VNQ Zv6R/Ys=

-----END CERTIFICATE----

User's & Administrator's Manual 16 Document #: LTRT-18256

Page 17

User's & Administrator's Manual 1. Introduction

Default

(CAROOT.crt.) will be initiated when 90 percent of

1.7 Certificate Enrollment using SCEP

The device supports certificate enrollment using Simple Certificate Enrollment Protocol (SCEP) using Microsoft’s Network Device Enrollment Service (NDES) server without using AudioCodes' OVOC, thereby allowing device certificates and CA certificate provisioning to be scaled to multiple devices.

After devices are provisioned with a SCEP-related configuration, they receive a CA certificate from the NDES (via parameter ‘security/ca_certificate/0/uri’), issue a Certificate Signing Request (CSR) to the NDES and receive a device certificate signed by the CA certificate (the one that the device received from NDES).

Network administrators must configure the following three parameters:

 security/SCEPEnroll/ca_fingerprint

 security/SCEPEnroll/password_challenge  security/SCEPServerURL

The next table shows the parameter descriptions.

Table 1-3: SCEP Parameters

Parameter Description

security/SCEPEnroll/ca_fingerprint Define the thumbprint (hash value) for the CA

certificate. Default value: NULL. Network admins must set its value to (for

example):

3EBE50003ABF1DF5E6B5A3230B02B856

security/SCEPEnroll/password_challenge Define the enrollment challenge password.

value: NULL. Network admins must set its value to (for

example):

7A7F9FC4BB7625F0935E67EA6D6322ED

security/SCEPServerURL Define the NDES server’s URL. Default: NULL.

Network admins must set its value to (for example):

https://ndes_derver

security/SCEPEnroll/renewal/advancethreshold Define the renewal advance threshold of the

device certificate. Configure between 50 and 100 (in units of

percentage) Default: 80 This indicates that a renewal of the certificate

(device.crt) will be initiated when 80 percent of its validity is reached.

security/SCEPEnroll/rollover/advancethreshold Specify the threshold of the CA Root certificate’s

validity at which to initiate a renewal. Configure between 50 and 100 (in units of

percentage). Default: 90 This indicates a renewal of the certificate

Version 2.2 17 RXV81 MTR on Android Video Collaboration Bar

its validity is reached.

Page 18

RXV81 MTR on Android Video Collaboration Bar

1.8 Provisioning Certificates in .pfx Format

Device certificates can be provisioned in .pfx format (combining .crt and key). The following parameter values can consequently be configured in the devices’ Configuration File:

 /security/device_certificate_url = <url>/certificate.pfx

 /security/device_private_key_url = NULL  security/device_certificate/password=<pfx password>

The feature is also supported by AudioCodes’ Android Phone Utility.

Note:

• Certificate loading is performed using HTTP; prior to version 1.19, it was performed using

SCP.

• The HTTP port is 8000.

• Make sure the port is not blocked by the organization’s firewall.

User's & Administrator's Manual 18 Document #: LTRT-18256

Page 19

User's & Administrator's Manual 2. Connecting to RXV81

2 Connecting to RXV81

Note: See the RXV81 MTR on Android Video Collaboration Bar with RX-PAD or RCU Quick Guide

shipped with the product or available from AudioCodes for information about the hardware of the RXV81, including:

• Package contents

• Mounting

• Cabling

After mounting and cabling the RXV81 device as shown in the Deployment Guide, pair it with the

 Remote Controller (see the next section)  RX-PAD (see Pairing RX-PAD with Teams Rooms on Android AudioCodes Devices)

2.1 Pairing with the RC

The instructions here show how to pair the RXV81 with the RC. Applies to users who acquired the TEAMS-RXV81 bundle.

 To pair the RXV81 with the RC:

1. After cabling, remove the RC from its packaging and insert the batteries supplied into it.

2. View in the display the message:

Remote is not connected. Hold below buttons while holding the remote near the box.

Version 2.2 19 RXV81 MTR on Android Video Collaboration Bar

Page 20

RXV81 MTR on Android Video Collaboration Bar

3. On the RC, simultaneously press and hold + until RC and RXV81 are connected.

4. Use the remote control to navigate to and select a language; the sign-in screen is displayed.

User's & Administrator's Manual 20 Document #: LTRT-18256

Page 21

User's & Administrator's Manual 2. Connecting to RXV81

2.2 Signing in

Users are provided by default with the option to sign in from any browser or smartphone with a prominent device code. If you choose to sign in from the device, you can enter your username and password on-screen via the device keyboard.

2.2.1 Multi-Cloud Sign-in

For authentication into specialized clouds, the network administrator can choose the Settings gear on the sign-in page to see the options that are applicable to their tenant.

2.2.2 Remote Provisioning and Sign in from Teams Admin Center

See Remote provisioning and sign in for Teams Android devices - Microsoft Teams | Microsoft

Docs for more information.

IT admins can remotely provision and sign in to a Teams device. To provision a device remotely, the network administrator needs to upload the MAC IDs of the

devices being provisioned and create a verification code. The entire process can be completed remotely from the Teams admin center.

Step 1: Add a device MAC address

Provision the device by imprinting a MAC address on it.

1. Sign in to the Teams admin center.

2. Expand Devices.

3. Select Provision new device from the Actions tab.

Version 2.2 21 RXV81 MTR on Android Video Collaboration Bar

Page 22

RXV81 MTR on Android Video Collaboration Bar

In the ‘Provision new devices’ window, you can either add the MAC address manually or upload a file.

Manually add a device MAC address

1. From the Awaiting Activation tab, select Add MAC ID.

2. Enter the MAC ID.

3. Enter a location, which helps technicians identify where to install the devices.

4. Select Apply when finished.

Upload a file to add a device MAC address

1. From the Awaiting Activation tab, select Upload MAC IDs.

2. Download the file template.

3. Enter the MAC ID and location, and then save the file.

4. Select the file, and then select Upload.

Step 2: Generate a verification code

You need to generate a verification code for the devices. The verification code is generated in bulk or at the device level and is valid for 24 hours.

 From the Awaiting Activation tab, select an existing MAC ID. A password is created for the

MAC address and is shown in the Verification Code column.

You'll need to provide the list of MAC IDs and verification codes to the field technicians. You can export the detail directly in a file and share the file with the technician who is doing the actual installation work.

Step 3: Provisioning on the device

Once the device is powered up and connected to the network, the technician provisions the device by choosing the ‘Settings’ gear on the top right of the new ‘Sign in’ page and selecting Provision phone.

User's & Administrator's Manual 22 Document #: LTRT-18256

Page 23

User's & Administrator's Manual 2. Connecting to RXV81

The technician is then expected to enter the device-specific Verification code that was provided in the Teams admin center on the phone’s user interface. Once the device is provisioned successfully, the tenant name will be available on the sign in page.

Step 4: Sign in remotely

The provisioned device appears in the Awaiting sign in tab. Initiate the remote sign-in process by selecting the individual device.

1. Select a device from the Awaiting sign in tab.

2. Follow the instructions in Sign in a user, and then select Close.

The tenant admin is expected to complete authentication on the device from any browser or smartphone.

Version 2.2 23 RXV81 MTR on Android Video Collaboration Bar

Page 24

RXV81 MTR on Android Video Collaboration Bar

When the tenant admin is signing in from Teams Admin Center, the user interface on the device is blocked to prevent other actions on the phone.

User's & Administrator's Manual 24 Document #: LTRT-18256

Page 25

User's & Administrator's Manual 3. Using General RXV81 Functions

3 Using General RXV81 Functions

This section shows how to use general RXV81 functions.

 To get started:

1. After signing in, view the RXV81 home page.

Figure 3-1: Home Page

3.1 Managing Notification Messages

Notification messages that pop up on the RXV81 device are seamlessly mirrored in the bundled RX-PAD. When a message pops up in the RXV81 GUI, the same is displayed in RX-PAD. The feature streamlines user experience, allowing users to conveniently confirm messages directly from RX-PAD and manage notifications intuitively and efficiently.

The figure below shows the notification message Device is updating on RX-PAD.

Version 2.2 25 RXV81 MTR on Android Video Collaboration Bar

Page 26

RXV81 MTR on Android Video Collaboration Bar

If the alert is an action, you can perform the action using RX-PAD, for example, REBOOT / DO IT LATER / COLLAPSE, as shown in the figure below.

3.2 Configuring a Bundle

Admins can configure an RXV81 bundle. Information about available bundles can be seen here.

 To configure a bundle:

 Use the RX-PAD Keypad app that controls RXV81 to navigate to the Bundles page. Admin

must be logged in to access the page.

User's & Administrator's Manual 26 Document #: LTRT-18256

Page 27

User's & Administrator's Manual 3. Using General RXV81 Functions

3.3 Modifying RXV81 Camera Settings

You can modify the RXV81 camera settings relating to the look and feel of the video user interface, to suit your preferences.



To access the

 On the remote controller, long-press the camera icon  In RX-PAD, long-press the camera icon on the device.

RXV81

camera settings:

Figure 3-2: RXV81 Camera Settings

Note:

• During a call, all users who are signed into the RXV81 – Admins and personal users -

can change Camera settings, including the presets. All have the permissions required to do so. When the call ends, the RXV81 reverts to its preconfigured presets.

• Using a Teams shared account, only the Admin can access Camera Settings in idle

and edit camera presets; the user can only move between the defined presets during a video call/meeting. The user can change Camera Settings during the meeting but the changes are not saved.

• Changing camera settings during a meeting can be done without turning off the video

to remote parties.

• The option to access Camera settings from the RXV81’s Device Settings still exists;

administrator permissions will be required in this case.

• The Camera settings option allows saving different camera settings to be used in a

video call so that users can switch easily between predefined camera settings (camera presets) per user requirements in the call.

Note: Users can toggle between the presets, a convenient way to move from one preset

to another, to view each preset and to reconfigure a preset. Click the Camera Views option and in the Select View menu that opens, choose the required preset.

Version 2.2 27 RXV81 MTR on Android Video Collaboration Bar

Page 28

RXV81 MTR on Android Video Collaboration Bar

• For example, if a preset is configured to zoom in and focus on the whiteboard in a room,

users in a video call/meeting can switch to it and later switch back to the full room preset or any other predefined preset. It’s recommended to have a few presets configured for locations frequently zoomed in and focused on:

♦ Full room view to capture all participants and action in a meeting room ♦ Presenter or single user / desk view to focus on a single user in the room,

usually the presenter

♦ Whiteboard view if there’s a whiteboard in the room ♦ Sunlight or dark modes if direct sunlight enters the room at specific times of the

day/year

Camera settings can be changed during a meeting without turning off the video to remote parties.

 To add a camera preset when in idle mode:

1. Long-press the camera button to access Camera settings.

Figure 3-3: Camera settings

2. Navigate to and select Views to create a view; you can create up to three views.

3. Navigate to and select PTZ to define pan, tilt, and zoom settings for each view.

User's & Administrator's Manual 28 Document #: LTRT-18256

Page 29

User's & Administrator's Manual 3. Using General RXV81 Functions

4. Navigate to and select Reset for the camera settings to return to their defaults.

Version 2.2 29 RXV81 MTR on Android Video Collaboration Bar

Page 30

RXV81 MTR on Android Video Collaboration Bar

3.4 Starting a New Meeting

 To start a new meeting:

1. In the home screen, navigate to and select the Meet Now option.

Figure 3-4: New meeting – Invite someone

2. In the ‘Invite someone’ field, enter the name of a person to invite; after entering the first letters

in the name, matching contacts from directory are displayed.

Figure 3-5: New meeting – Enter the name of a person

3. Select the name of the person to invite.

User's & Administrator's Manual 30 Document #: LTRT-18256

Page 31

User's & Administrator's Manual 3. Using General RXV81 Functions

Figure 3-6: New meeting – Select the name of a person

4. Invite someone else – or others – and then select Start meeting.

Note: The server allocates a meeting ID number and sends an invite message to all

participant devices. All devices simultaneously indicate an incoming call (the ‘Calling’ screen is displayed). The server manages every aspect of the call.

5. Select Accept. Note that according to the icon in the ‘Incoming call’ screen shown in the

preceding figure, the caller has video capability.

Version 2.2 31 RXV81 MTR on Android Video Collaboration Bar

Page 32

RXV81 MTR on Android Video Collaboration Bar

User's & Administrator's Manual 32 Document #: LTRT-18256

Page 33

User's & Administrator's Manual 3. Using General RXV81 Functions

3.5 Dialing a Number

You can manually dial someone’s phone number.

 To dial a phone number:

1. In the home screen, navigate to and select the Dial pad option.

Figure 3-7: Dial pad

2. Enter the digits of the destination to call and select Call.

Version 2.2 33 RXV81 MTR on Android Video Collaboration Bar

Page 34

RXV81 MTR on Android Video Collaboration Bar

3.6 Enabling Proximity Join

‘Proximity Join’ allows you to discover and add a nearby, available Microsoft Teams Room, i.e., the RXV81, in this case, to any meeting. It’s also possible to accept the incoming meeting on the console of the room.

The feature functions in combination with Bluetooth and ‘Bluetooth Beaconing’, an integral feature in Microsoft Teams Rooms (MTRs). The MTR device is RXV81. If you bring a laptop or a Teams Mobile Client near the RXV81, it’ll offer the RXV81 as the room audio device. The figure below shows how to select the room audio device.

After you select the room audio device, the meeting is opened without any audio device on your PC client, and then the room meeting device (RXV81) gets a request to join the meeting.

 To enable ‘Proximity join’:

 In the Settings screen, navigate to and select Proximity join. If it’s disabled, it’ll become

enabled and vice versa.

User's & Administrator's Manual 34 Document #: LTRT-18256

Page 35

User's & Administrator's Manual 3. Using General RXV81 Functions

3.7 Sharing a Whiteboard

Teams meetings on the RXV81 allow participants to open a virtual whiteboard – a digital canvas on which they can sketch, illustrate, collaborate, brainstorm, plan, and share perspectives with one another in real time. The focus switches away from the presenting participant to the whiteboard. For more information about this Microsoft feature, see here

 To share the Whiteboard:

1. From the Settings menu, select Share Whiteboard.

2. Alternatively, access the Whiteboard from Share content:

Version 2.2 35 RXV81 MTR on Android Video Collaboration Bar

Page 36

RXV81 MTR on Android Video Collaboration Bar

3. View the following Microsoft Whiteboard initializing indication:

4. View the Whiteboard in the Teams desktop application or in Teams client:

5. Edit the Whiteboard; every participant with privileges can edit it.

User's & Administrator's Manual 36 Document #: LTRT-18256

Page 37

User's & Administrator's Manual 3. Using General RXV81 Functions

3.8 About Microsoft Teams

Information about the Microsoft Teams application can be viewed by navigating to and selecting the Settings screen’s About option shown in the preceding figure.

Version 2.2 37 RXV81 MTR on Android Video Collaboration Bar

Page 38

RXV81 MTR on Android Video Collaboration Bar

3.9 Signing out

You can sign out of the application as one user and optionally sign in again as another.

 To sign out:

 Navigate to Teams admin settings > Teams sign out and confirm in the prompt below.

Optionally, remote sign-out can be performed from Microsoft Teams admin center (TAC). Admins can provision the RXV81 from the TAC, remotely sign in, and also sign out.

 To sign out of the RXV81 using Microsoft TAC:

 Navigate to the TAC screen shown in the figure below and from the … menu located in the

uppermost right corner of the screen, select Actions and then Sign out.

User's & Administrator's Manual 38 Document #: LTRT-18256

Page 39

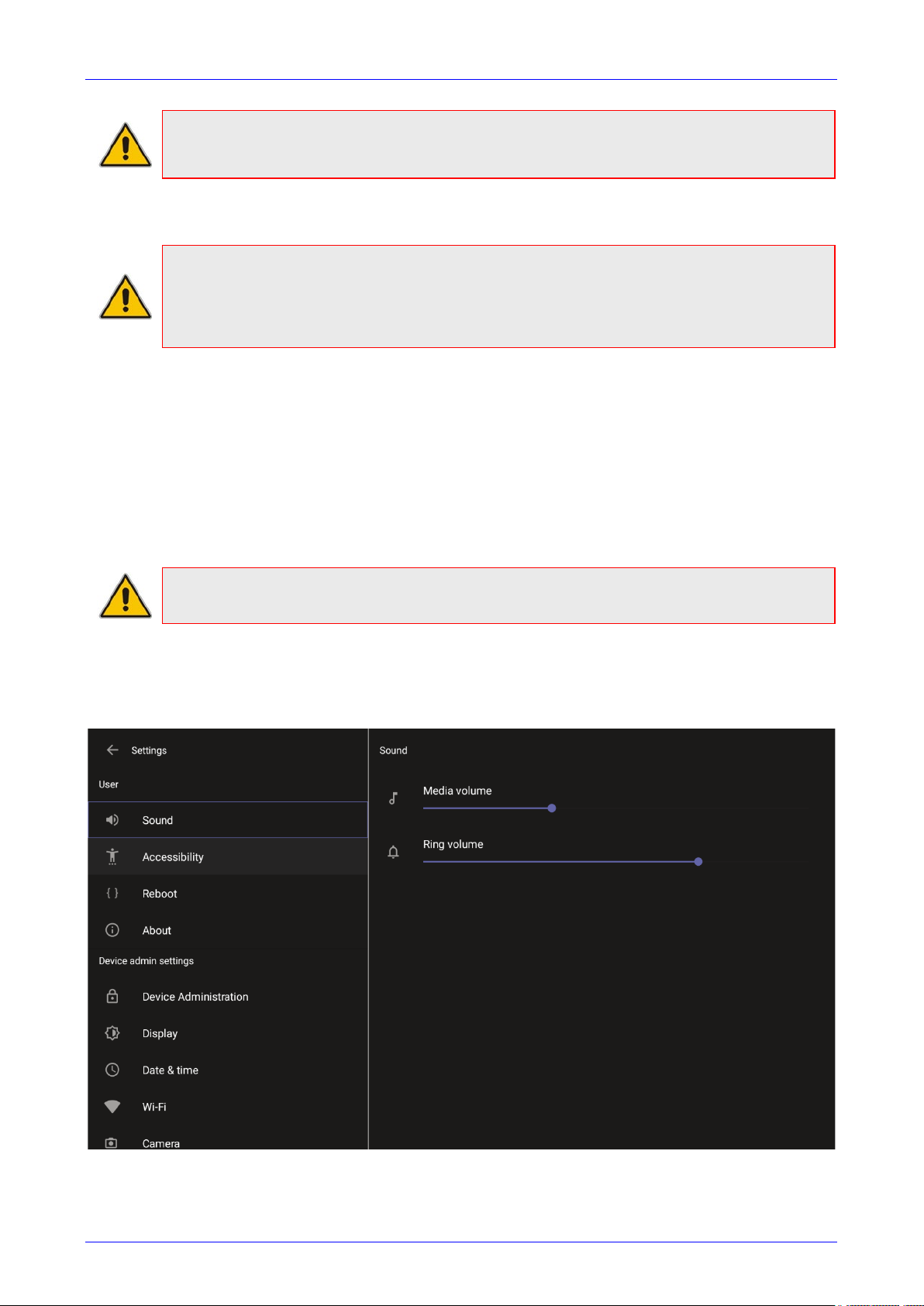

User's & Administrator's Manual 4. RXV81 Settings

4 RXV81 Settings

The section familiarizes you with the RXV81’s settings. RXV81s are delivered configured with their default settings. Customers can customize them to suit enterprise requirements.

 To access device settings:

1. In the home screen, navigate to and select the More option.

2. Navigate to and select Settings.

3. Navigate to and select Device settings.

Version 2.2 39 RXV81 MTR on Android Video Collaboration Bar

Page 40

RXV81 MTR on Android Video Collaboration Bar

4. Navigate to and select Device Administration.

5. Log in as administrator.

Note: Logging in as Administrator is required for debugging options. It’s password

protected. Default: 1234. After logging in as Admin, you can log out | change password.

6. Select Login.

7. Enter the password (1234) in the 'Enter password' field; use the virtual keyboard to enter the

password.

User's & Administrator's Manual 40 Document #: LTRT-18256

Page 41

User's & Administrator's Manual 4. RXV81 Settings

Note: The virtual keyboard pops up for all ‘Settings’ fields to allow inputting characters and /

or numbers. Two virtual keyboard types can be displayed: Numeric or QWERTY.

8. Select OK; you’re prompted to change password.

Note:

• The default password must be changed before access to the device via SSH is allowed.

• The default password can be changed per device from the GUI, or via bulk configuration of

multiple devices using Microsoft’s TAC or AudioCodes’ Device Manager.

9. Enter a password; you’re prompted to verify the password you entered. Criteria required for

a strong password are provided (for strengthened security) in order to Log in as Administrator:

• The password length must be greater than or equal to 8.

• The password must contain one or more uppercase characters.

• The password must contain one or more lowercase characters.

• The password must contain one or more numeric values.

• The password must contain one or more special characters.

Note: These virtual keyboards are also displayed when the admin needs to enter an IP

address to debug, or when they need to enter their PIN lock for the security setting.

After logging in, the Settings screen now also displays the settings under the section 'Device admin settings'.

10. Click OK; the Settings screen now also displays ‘Device admin settings’, in addition to the

‘User’ settings.

Version 2.2 41 RXV81 MTR on Android Video Collaboration Bar

Page 42

RXV81 MTR on Android Video Collaboration Bar

4.1 Device Admin Settings

After logging in as Device Administration as shown in the previous section, you can configure Device Administration settings: Display, Date & Time, Wi-Fi, Camera.

4.1.1 Configuring Display

Modify these settings to suit your preferences related to the look and feel of the user interface.



To configure Display settings:

Under

‘Device admin settings’,

navigate to and select

Display

Under ‘Display’, navigate to and select

Navigate to and select the time to lapse before the interface ‘goes to sleep’. Default: 10 minutes.

Navigate to and select

Font size

Sleep

User's & Administrator's Manual 42 Document #: LTRT-18256

Page 43

User's & Administrator's Manual 4. RXV81 Settings

Navigate to and select

Screen saver

Off

to switch it on and then choose the screen saver.

Version 2.2 43 RXV81 MTR on Android Video Collaboration Bar

Page 44

RXV81 MTR on Android Video Collaboration Bar

4.1.2 Configuring Date & Time

Date and time are automatically retrieved from the deployed Network Time Protocol (NTP) server.



To configure Date & Time:

Under

‘Device admin settings’,

navigate to and select

Date & Time

2. Navigate to and select Use 24-hour format [Allows you to select the Time format].

Note: The device automatically detects time zone via geographical location (Automatic Time

Zone Detection).

User's & Administrator's Manual 44 Document #: LTRT-18256

Page 45

User's & Administrator's Manual 4. RXV81 Settings

4.1.3 Configuring Wi-Fi

The RXV81 can connect to an Access Point via Wi-Fi. Network administrators can configure Wi-Fi parameters for the RXV81. The parameters are concealed from the user's view. Users can enable | disable Wi-Fi in the device’s user interface.

Note: Wi-Fi cannot be enabled | disabled using SSH command.

The Wi-Fi connection is transparent to users; which frequency is used, 2.4 GHz or 5 GHz, is made for users by the device; users cannot disable one or the other.

Connecting to an Available Wi-Fi Network

 To connect to an available Wi-Fi network:

Note: Make sure to first disconnect your Ethernet cable. If it's connected, the device will not

be able to connect to a Wi-Fi network.

Under ‘Settings’, navigate to

Wi-Fi

and enable

Use Wi-Fi

2. View a list of available connections.

3. Select the Wi-Fi network you want and enter the password.

4. View the network you selected 'Connected'.

Version 2.2 45 RXV81 MTR on Android Video Collaboration Bar

Page 46

RXV81 MTR on Android Video Collaboration Bar

Manually Connecting to a Wi-Fi Network

 To manually connect to a Wi-Fi network:

Note: Make sure to first disconnect your Ethernet cable. If it's connected, the device will not

be able to connect to a Wi-Fi network.

1. Under Wi-Fi,

select Add network and then enter the SSID of the network to add manually.

2. From the 'Security' drop-down, select a security key strength (encryption method).

User's & Administrator's Manual 46 Document #: LTRT-18256

Page 47

User's & Administrator's Manual 4. RXV81 Settings

3. Optionally meter the selected network. Leave the setting at its default value of Detect

automatically if you don't want to meter the network. Select a Metered option to meter it.

Note:

• 'Proxy' and 'DHCP' will automatically be configured by the network.

• Enabling the setting Turn on Wi-Fi automatically allows the device to automatically

connect in the future to the highest signal-quality network remembered by the device.

• As an alternative to manually configuring Wi-Fi settings via the device’s user interface, you

can configure the Wi-Fi settings described in Table 4-1, using the Configuration File.

Table 4-1: Configuration File Wi-Fi Parameters

Parameter Description

network/wireless/adavanced_ options/dns1 Defines the IP of the wireless DNS1.

network/wireless/adavanced_ options/dns2 Defines the IP of the wireless DNS2.

network/wireless/adavanced_ options/gateway

network/wireless/adavanced_ options/hidden_network

network/wireless/adavanced_ options/ip_addr

network/wireless/adavanced_ options/ip_settings

Defines the IP address of the wireless gateway

Defines the name of the wireless hidden network.

Defines the IP address of the static Wi-Fi network if you’re operating with a static Wi-Fi network.

Used to define DHCP.

network/wireless/adavanced_ options/network_prefix_length

network/wireless/adavanced_ options/proxy Defines the proxy wireless server source.

network/wireless/adavanced_ options/proxy/auto_config/pac_url

network/wireless/adavanced_ options/proxy/manual/exclusion_list

Version 2.2 47 RXV81 MTR on Android Video Collaboration Bar

Defines the network prefix length to be used.

Defines the URL of the PAC file.

Defines the list of IP addresses that will be blocked.

Page 48

RXV81 MTR on Android Video Collaboration Bar

Parameter Description

network/wireless/adavanced_ options/proxy/manual/proxy_ hostname

network/wireless/adavanced_ options/proxy/manual/proxy_port

network/wireless/anon_identity Defines the anonymous wireless users who won’t be seen.

network/wireless/ca_cert Defines which CA certificate to use.

network/wireless/client_cert Defines which client certificate to use.

network/wireless/domain Defines the domain name.

network/wireless/eap_method Defines the EAP method.

network/wireless/identity Defines the identity of the user.

network/wireless/password Defines the password of the network.

network/wireless/phase2_method NONE,MSCHAPV2,GTC,PAP,MSCHAP

network/wireless/security Defines the security method (encryption protocol).

Defines the name of the proxy host.

Defines the proxy port.

Defines the encryption method. Phase 2 applies only to the

802.1x EAP method.

User's & Administrator's Manual 48 Document #: LTRT-18256

Page 49

User's & Administrator's Manual 4. RXV81 Settings

4.1.4 Configuring Camera Settings

Settings controlling the look and feel of the video UI can be set to suit individual preferences.



To configure Camera settings:

Under

‘Device admin settings’,

navigate to and select

Camera

2. Navigate to and select Camera settings; the video stream is played and the following is

displayed on the right side of the screen:

3. Create and edit presets using PTZ control. For more information, see here

Version 2.2 49 RXV81 MTR on Android Video Collaboration Bar

Page 50

RXV81 MTR on Android Video Collaboration Bar

Configuring Camera Frequency

The Camera frequency (under Device settings) must be set per the power supply as follows:

 110V – 60Hz  220V – 50Hz

4.1.5 Auto Framing

An Auto-Framing option is available under Camera Settings.

 To enable Auto-Framing on RXV81 paired with RX-PAD, use the camera hard key to access

the Camera Settings page.

 For RXV81 paired with the Remote Controller unit (RCU), long-press the RCU’s camera

button to access the Camera Settings page.

Note:

• Admin users can create a permanent camera settings preset including enable /

disable of Auto Framing.

• End users can either select a preconfigured preset which includes enable / disable of

Auto Framing or create a temporary preset during a meeting (which will be deleted at the end of the meeting) and can enable / disable Auto Framing.

User's & Administrator's Manual 50 Document #: LTRT-18256

Page 51

User's & Administrator's Manual 4. RXV81 Settings

When Auto-Framing is enabled, PTZ (Pan Tilt Zoom) functions are disabled. End users without administrator permissions can create temporary presets in the Camera Settings

page as shown in the figures below.

If this end user leaves the meeting, the temporary presets will be erased when they later reenter Camera Settings or if another end user later enters; temporary presets are only for that meeting they were configured for; new presets can be configured for the new meeting.

Version 2.2 51 RXV81 MTR on Android Video Collaboration Bar

Page 52

RXV81 MTR on Android Video Collaboration Bar

User's & Administrator's Manual 52 Document #: LTRT-18256

Page 53

User's & Administrator's Manual 4. RXV81 Settings

4.1.6 Pairing RC with RXV81 via Bluetooth

Bluetooth is currently used to pair the RC with RXV81.

 To pair a new device:

Under

‘Device admin settings’,

navigate to and select

Bluetooth.

Navigate to and select

Pair new device.

4.1.7 Configuring UI Language & Input

This setting allows users to customize inputting to suit personal requirements.

 To set language and input:

Under

‘Device admin settings’,

navigate to and select

Languages & input.

Version 2.2 53 RXV81 MTR on Android Video Collaboration Bar

Page 54

RXV81 MTR on Android Video Collaboration Bar

2. Navigate to and select Physical keyboard.

3. Navigate to and select Show virtual keyboard.

User's & Administrator's Manual 54 Document #: LTRT-18256

Page 55

User's & Administrator's Manual 4. RXV81 Settings

4.1.8 Modifying IP Network Settings

This setting enables the Admin user to determine IP network information and to modify IP network settings.

 To modify network settings:

Under

‘Device admin settings’,

navigate to and select

Modify network.

2. Navigate to and select:

IP Address [Read Only]

•

IP Settings [DHCP or Static IP]

•

Network state [Read Only]

•

Proxy

Version 2.2 55 RXV81 MTR on Android Video Collaboration Bar

Page 56

RXV81 MTR on Android Video Collaboration Bar

♦ Manually (from the screen shown in the preceding figure). Allows you to configure

the RXV81 with an HTTP proxy server. Configure the proxy hostname and proxy port and then navigate to and select Done.

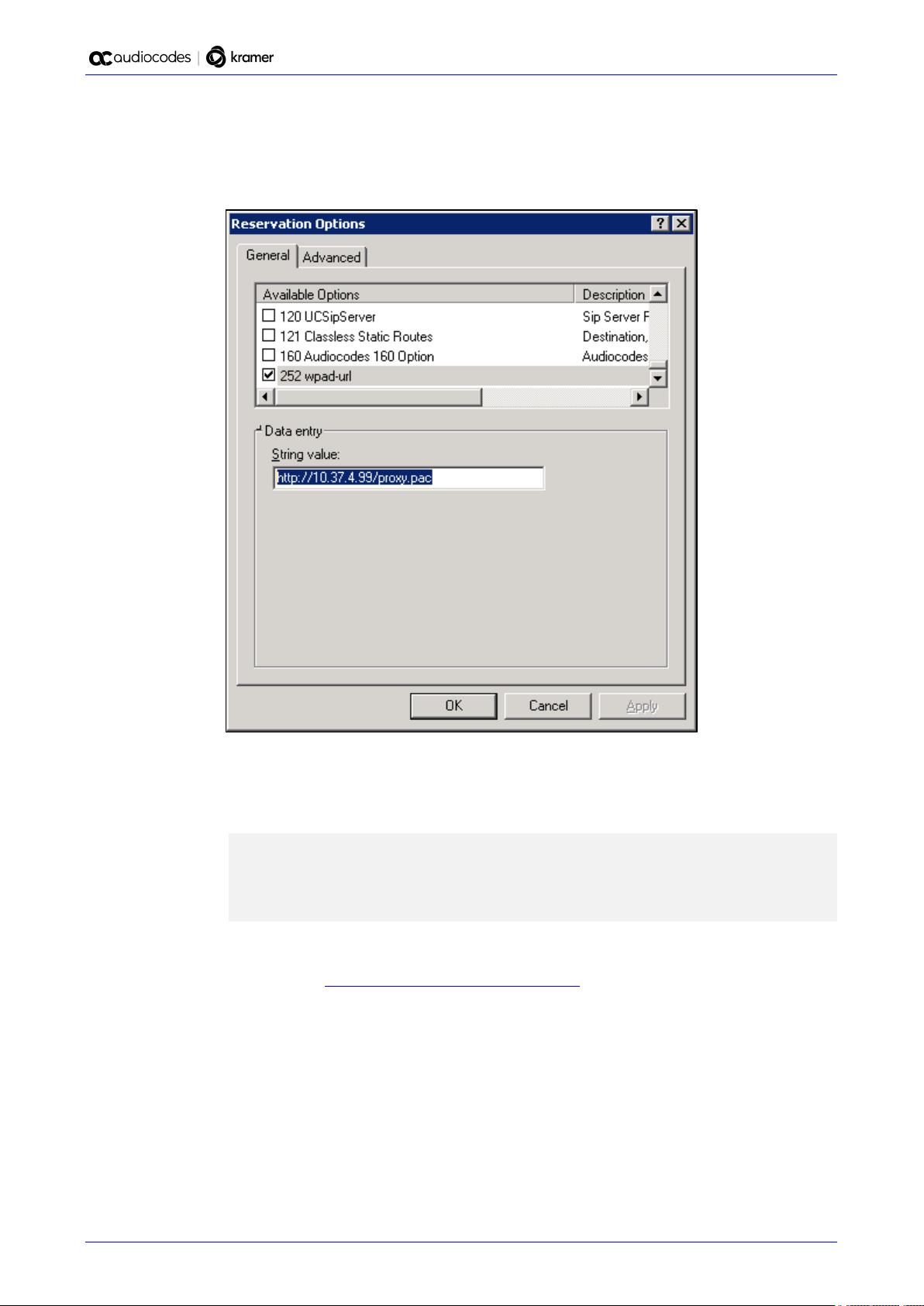

♦ DHCP Option 252 (recommended). Option 252 provides a DHCP client with a URL

to use to configure its proxy settings:

The proxy setting is provided in a Proxy Auto-Configuration (PAC) file that contains a set of rules coded in JavaScript which allows a web browser to determine whether to send web traffic directly to the Internet or to be sent via a proxy server. PAC files control how the phone handles HTTP, HTTPS, and FTP traffic. Example of a basic PAC file:

function FindProxyForURL(url, host)

{

return "PROXY 10.13.2.40:3128";

}

•

802.1x Settings [Allows enabling 802.1x]

802.1X Authentication is the IEEE Standard for Port-based Network Access Control (PNAC). See https://1.ieee802.org/security/802-1x/

for more information.

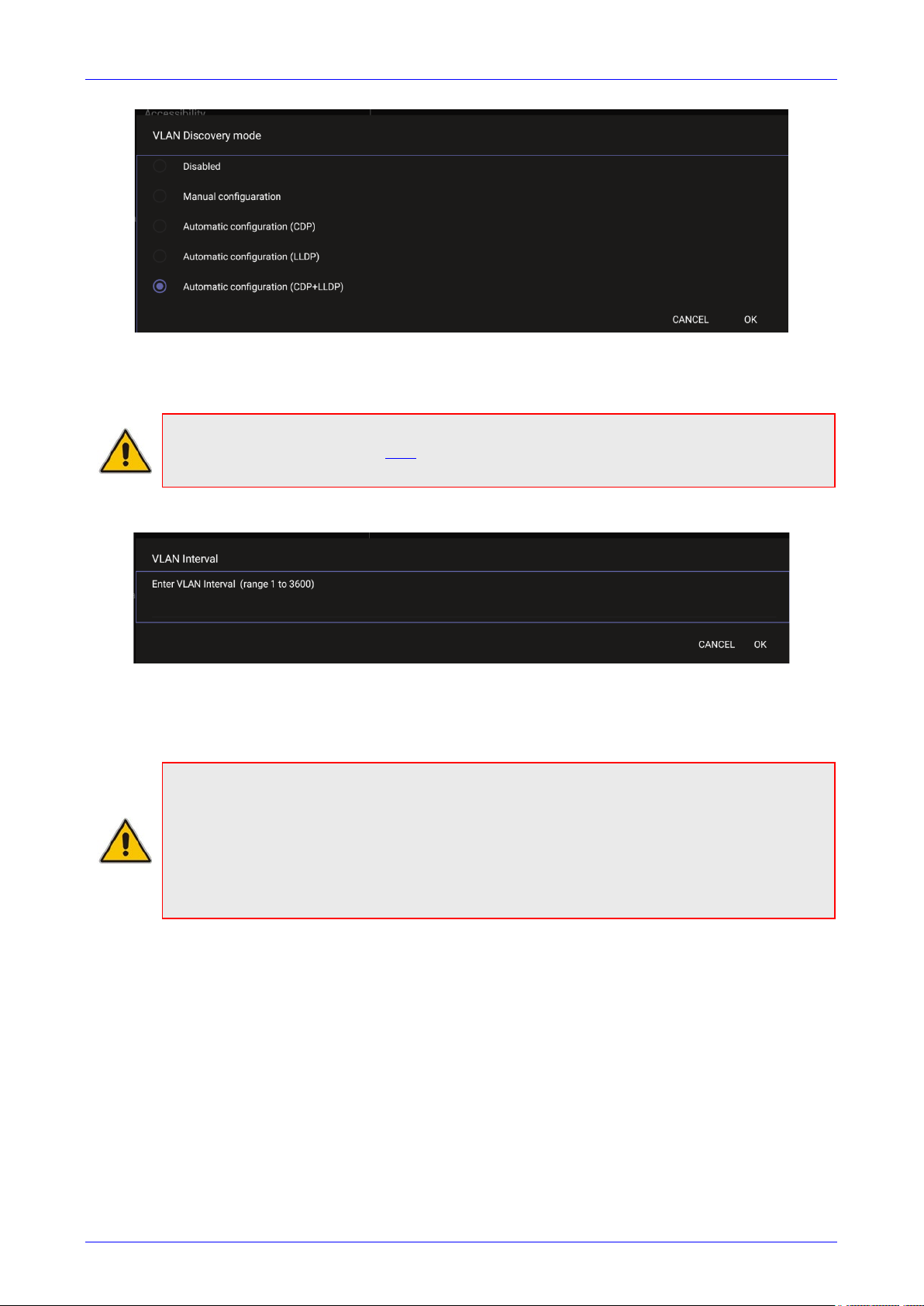

• VLAN Settings

♦ Allows you to configure ‘VLAN Discovery mode’ to Manual configuration, Automatic

configuration (CDP), Automatic configuration (LLDP) or Automatic configuration (CDP+LLDP)]

User's & Administrator's Manual 56 Document #: LTRT-18256

Page 57

User's & Administrator's Manual 4. RXV81 Settings

Cisco Discovery Protocol (CDP) is a Cisco proprietary Data Link Layer protocol Link Layer Discovery Protocol (LLDP) is a standard, layer two discovery protocol

Note: The VLAN configuration is by default data VLAN rather than voice VLAN, in compliance

with the requirement specified here for the device not to advertise itself as a voice device. The default CDP/LLDP configuration is data VLAN.

♦ Allows you to configure ‘VLAN Interval’.

'VLAN interval' refers to CDP/LLDP advertisements' periodic interval. Default: 30 seconds. You can increase or decrease the intervals between the CDP/LLDP packets that are sent, based on network traffic and topology.

Note:

• In versions before 1.19, if network VLAN mode ‘/network/lan/vlan/mode’ was set to LLDP,

the device retrieved the VLAN and LLDP switch information (for location purposes) from LLDP.

• From version 1.19, LLDP switch information (for location purposes) is retrieved when

parameter network/lan/lldp/enabled=1 (even when VLAN is retrieved from CDP or VLAN is disabled or VLAN is Manual).

Version 2.2 57 RXV81 MTR on Android Video Collaboration Bar

Page 58

RXV81 MTR on Android Video Collaboration Bar

4.1.9 Configuring Call Settings

This setting enables the user to configure call-associated functionalities to suit personal preferences.

 To configure call settings:

From the home page, navigate to and select

Settings.

2. Navigate to and select Calling.

and then navigate to and select

• In the Calls screen, navigate to and select:

♦ Call forwarding to enable automatically redirecting incoming calls to another

destination.

♦ Also ring to configure other phones to ring on incoming calls; only displayed if Call

forwarding is disabled.

♦ If unanswered to configure the destination to which unanswered calls will be sent;

only displayed if Call forwarding is disabled. Select either Off, Voicemail, Contact or number.

♦ Calls for you to configure the ringtone played on your phone when calls come in. ♦ Forwarded calls ♦ Delegated calls to configure the ringtone played to delegates. ♦ Block calls with no caller ID to block calls that do not have a Caller ID.

User's & Administrator's Manual 58 Document #: LTRT-18256

Page 59

User's & Administrator's Manual 4. RXV81 Settings

4.1.10 Configuring DSCP for QoS

The RXV81 Teams application supports DS (Differentiated Services) containing a differentiated Services Code Point (DSCP) value and an ECN (Explicit Congestion Notification) value, for monitoring Quality of Service (QoS).

DSCP is part of the IP header that defines the type of routing service to tag outgoing voice packets originated from the device. It informs routers that this packet must receive a specific QoS. Values can be set in decimal (e.g., 184) or hexadecimal (e.g., 0xb8). The default value is 0xb8 (184).

The DSCP value for audio is 0x46. The DSCP value for video is 0x34 (screen sharing is not supported). See also Microsoft's website

Note: The DSCP value can be adjusted on the server; it cannot be adjusted on the client.

for more information.

The figure below shows the recommended port ranges.

The figure below shows the recommended DSCP setting for Audio.

Version 2.2 59 RXV81 MTR on Android Video Collaboration Bar

Page 60

RXV81 MTR on Android Video Collaboration Bar

The figure below shows the recommended DSCP setting for Video.

User's & Administrator's Manual 60 Document #: LTRT-18256

Page 61

User's & Administrator's Manual 4. RXV81 Settings

4.1.11 Debugging

Admin users can perform debugging for troubleshooting purposes. A bug report is available to allow admins to perform efficient debugging. The report also includes information such as pack up time, ps, top, meminfo and df commands (information about file system disk space usage) for optimized debugging.

 To perform debugging:

1. In the Settings screen under ‘Device administration’, select Debugging.

2. Use the following debugging features available to Admin users:

• Log settings (see Log Settings)

• Remote Logging (see under Remote Logging)

• Diagnostic Data (see under Diagnostic Data)

• Reset configuration (see under Reset configuration)

• Restart Teams app (see under Restart Teams app)

• Company portal login (see under Company Portal Login)

• Launch mobile teams (see under Launch Mobile Teams)

• Debug Recording (see under Debug Recording)

• Erase all data (see under Erase all data (factory reset)

• Screen Capture (see under Screen Capture)

Version 2.2 61 RXV81 MTR on Android Video Collaboration Bar

Page 62

RXV81 MTR on Android Video Collaboration Bar

Log Settings | Collecting Logs

Device diagnostics (Logcat) can be collected using the Microsoft Admin Portal. For support purposes, general logs can be collected also using the Microsoft Admin Portal. The logs can help debug Teams application issues and also for issues related to the device.

 To configure log settings:

1. In the Debugging screen, select Log settings.

2. Navigate to and select Log Level and then select either

• Verbose, Debug, Info, Warning, Error, Assert -or-None

3. Navigate to and select Log Package Filter and enter the filter.

4. Navigate to and select Log Tag Filter and enter the filter.

5. Navigate to and select Log Buffer Filter.

6. Navigate to and select Current filter for logs.

 To collect logs:

Reproduce the issue

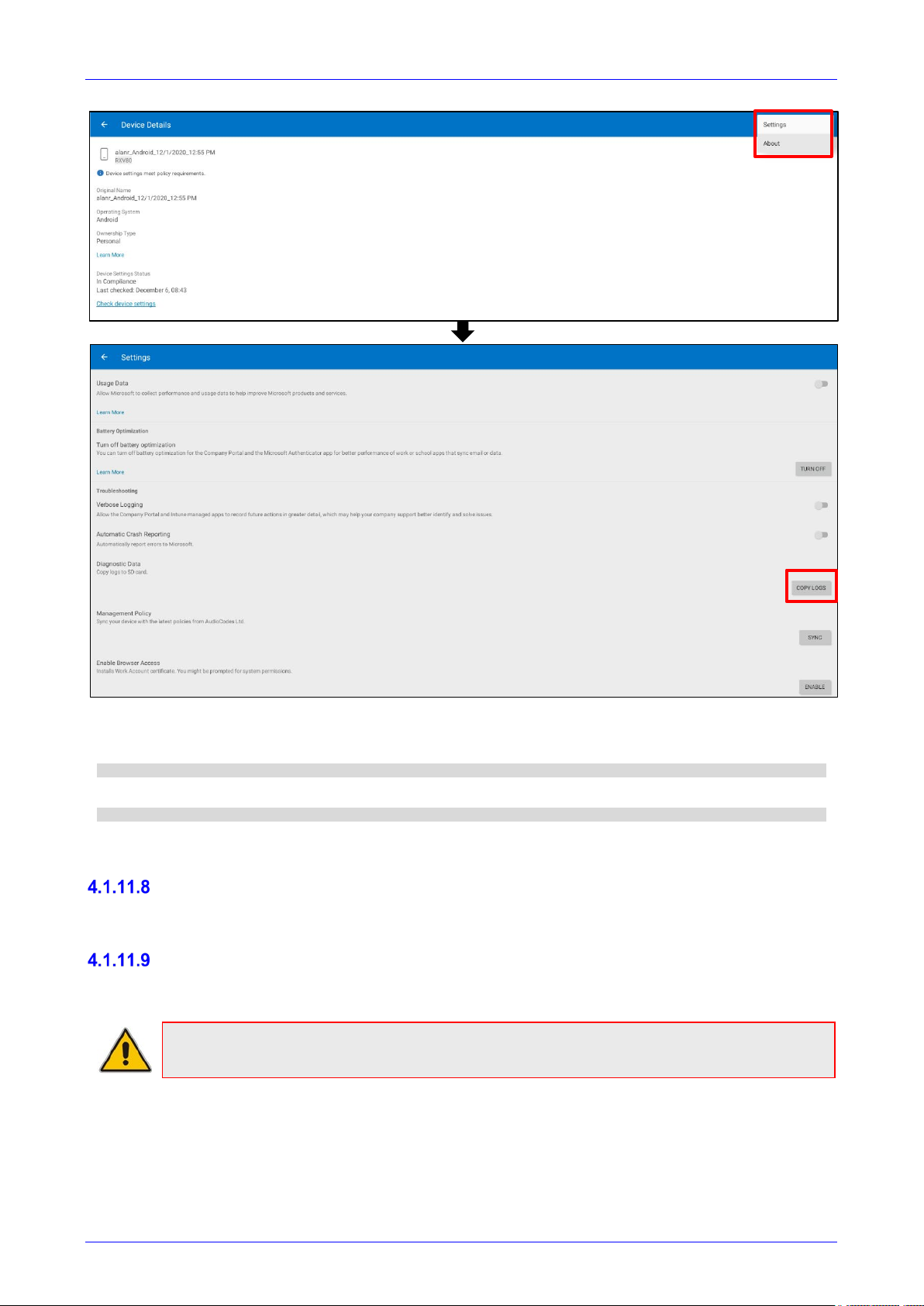

2. Access Microsoft Admin Portal and under the Devices

User's & Administrator's Manual 62 Document #: LTRT-18256

tab click the Diagnostics icon.

Page 63

User's & Administrator's Manual 4. RXV81 Settings

Note: The preceding figure is for illustrative purposes. It shows an AudioCodes phone. The same

screen is displayed for the RXV81.

Click the Diagnostics icon.

Version 2.2 63 RXV81 MTR on Android Video Collaboration Bar

Page 64

Click

RXV81 MTR on Android Video Collaboration Bar

Proceed

; the logs are uploaded to the server.

5. Click the History

6. Click Download

tab.

to download the logs.

Remote Logging

Remote Logging via Syslog provides the same log level as Device Diagnostics (performed via the Microsoft Admin Portal) with some additional information that may be relevant to device issues (not Teams application issues).

Diagnostics via the Microsoft Admin Portal are saved to the device sdcard and collected after the event. Remote Logging via Syslog is different. The logs are collected in real time.

User's & Administrator's Manual 64 Document #: LTRT-18256

Page 65

User's & Administrator's Manual 4. RXV81 Settings

 To enable Remote Logging via Syslog:

7. Navigate to and select Remote logging.

8. Configure the ‘Remote IP address’ and ‘Remote port’ and enable ‘Remote Logging’; the device

starts sending logs to the Syslog server.

Note: Network administrators can also enable Syslog using Secure Shell (SSH) protocol.

 To enable Syslog using SSH protocol, type the following command at the shell prompt:

setprop persist.ac.rl_address <syslog_server_ip>:<port>.

 To disable Syslog using SSH, type the following command at the shell prompt:

setprop persist.ac.rl_address ""

Diagnostic Data

Admin users who need to get logs from the device can dump the logs to the phone’s Secure Digital (SD) Card and then later collect them using Secure Copy Protocol (SCP) based on Secure Shell (SSH) protocol. Whenever an issue occurs, the Admin can dump the logs into the SD Card.

 To use the tool:

1. Navigate to and select Diagnostic Data.

2. Navigate to and select OK to confirm ‘Copy logs to sdcard’; the RXV81 creates all necessary

logs and copies them to the its SD Card / Logs folder.

3. Get the logs using SCP notation as follows:

scp -r admin@host_IP:/sdcard/logs/ .

Following are the relevant logs (version and ID may be different to those shown here):

 dmesg.log  dumpstate-TEAMS_1.3.16-undated.txt  dumpstate_log-undated-2569.txt

 logcat.log

Version 2.2 65 RXV81 MTR on Android Video Collaboration Bar

Page 66

RXV81 MTR on Android Video Collaboration Bar

Reset configuration

Admin users can opt to ‘clean up’ their configuration history and return the RXV81 to an Out of Box Experience (OOBE). If the Teams app isn't running well, this might help.

 To reset the configuration:

1. Navigate to and select Reset configuration.

2. Navigate to and select OK; all data is erased and default factory settings are restored but sign-

in is retained.

Restart Teams app
