ITEM NO. __________________________________________________
PROJECT __________________________________________________
LOCATION ________________________________________________
DATE _______________________QTY. __________________________

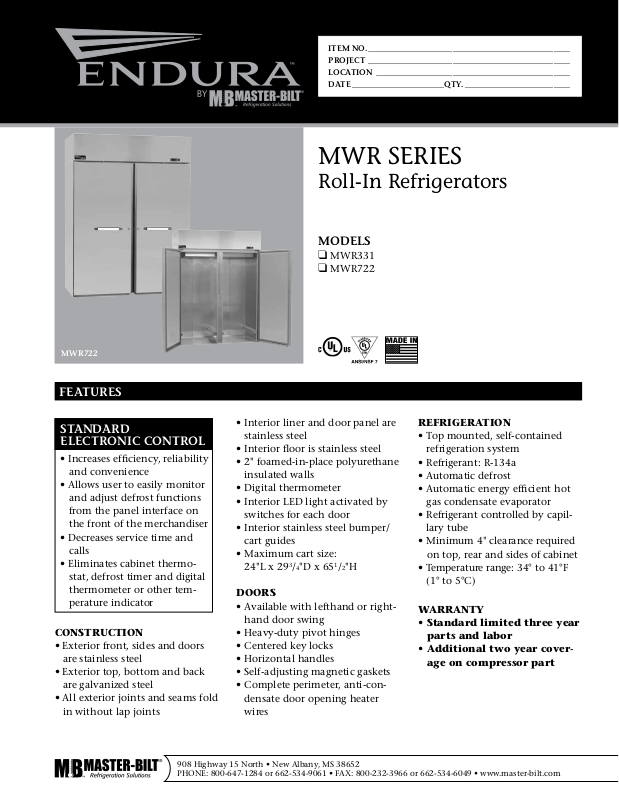

MWR SERIES
Roll-In Refrigerators
MODELS
❑
MWR331
❑ MWR722
MWR722
FEATURES
FEATURES
STANDARD
ELECTRONIC CONTROL
• Increases efficiency, reliability
and convenience
• Allows user to easily monitor
and adjust defrost functions
from the panel interface on
the front of the merchandiser
• Decreases service time and
calls
• Eliminates cabinet thermostat, defrost timer and digital
thermometer or other temperature indicator
CONSTRUCTION
• Exterior front, sides and doors
are stainless steel
• Exterior top, bottom and back
are galvanized steel
• All exterior joints and seams fold
in without lap joints
• Interior liner and door panel are
stainless steel
• Interior floor is stainless steel
• 2" foamed-in-place polyurethane
insulated walls
• Digital thermometer
• Interior LED light activated by
switches for each door
• Interior stainless steel bumper/
cart guides
• Maximum cart size:
24"L x 29
DOORS
• Available with lefthand or righthand door swing
• Heavy-duty pivot hinges
• Centered key locks
• Horizontal handles
• Self-adjusting magnetic gaskets
• Complete perimeter, anti-condensate door opening heater
wires
3
/4"D x 651/2"H
REFRIGERATION
• Top mounted, self-contained
refrigeration system
• Refrigerant: R-134a
• Automatic defrost
• Automatic energy efficient hot
gas condensate evaporator
• Refrigerant controlled by capillary tube
• Minimum 4" clearance required
on top, rear and sides of cabinet
• Temperature range: 34° to 41°F
(1° to 5°C)
WARRANTY
• Standard limited three year
parts and labor
• Additional two year cover-
age on compressor part
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MWR SERIES
ROLL-IN REFRIGERATORS
DIMENSIONS
(in.)
MODEL
MWR331 31
MWR722 631/2361/8843/41613 918 2153 115 11.8 1/2 2 73.4 126.3
L D H L D H
3
/4361/8843/4806 918 2153 115 7.7 1/3 1 34.2 64.0
MWR331
PLAN VIEW
DIMENSIONS
(mm)
VOLTS AMPS
MWR722
PLAN VIEW
UNIT
H.P.
NO. OF
DOORS
CAP.
CU. FT.
SHIP
CU. FT.
SIDE VIEW
(ALL)
SHIP
WT.
LB/KG
596/271
690/314
LISTINGS HOOKUP
Via plug in, 10 foot long flexible
three wire 14/3 cord with molded
plug.
NEMA 5-15P
BID SPECIFICATIONS
Item no. MWR_______________
Provide____________( ) Roll-In
Refrigerator(s), Master-Bilt model no.
MWR________.
Roll-in refrigerator will will be equipped
with an electronically controlled monitoring system and will feature stainless steel
exterior front, sides and doors. The exterior
top, bottom and back will be galvanized
steel while the interior liner and door panel will be stainless steel. The interior floor
will be 22 ga. stainless steel.
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
Additionally, a digital thermometer will
be provided as well as an interior LED light
activated by switches for each door. Interior stainless steel bumper/cart guides will
also be furnished.
Doors will feature heavy-duty pivot
hinges and centered key locks. Anti-condensate door opening heater wires line the
complete perimeter of each door.
The refrigeration system will be top
mounted and self-contained. The refrigerant will be R-134a and the temperature
range will be 34° to 41°F (1° to 5°C). The refrig-eration system will also feature automatic defrost and an automatic energy efficient
hot gas condensate evaporator. Refrigerant
will be controlled by capillary tube.
Roll-in to have standard limited three
year parts and labor with additional two
year coverage on compressor part.
Roll-in to be UL and C-UL listed and UL
EPH classified.
©2013 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
1328-12/12-web
