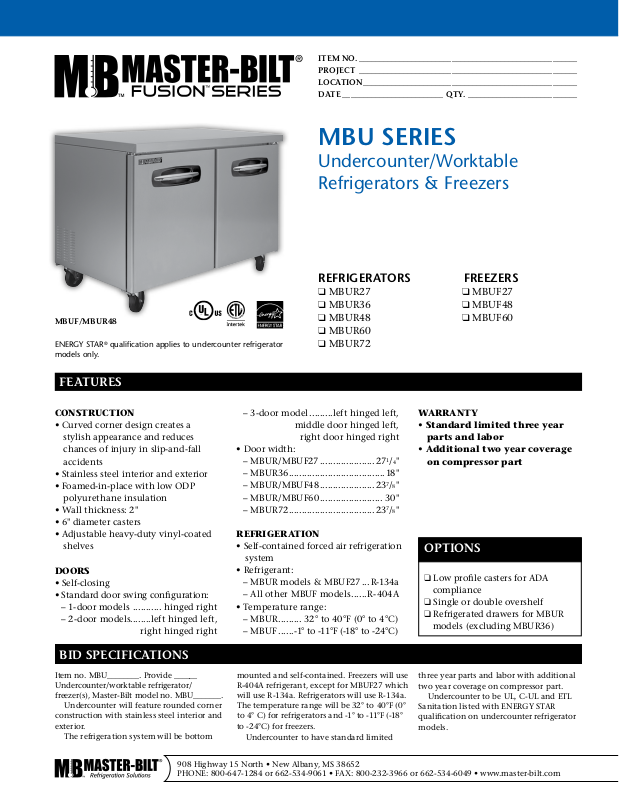

MBUF/MBUR48
ENERGY STAR® qualification applies to undercounter refrigerator
models only.
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
MBU SERIES
Undercounter/Worktable
Refrigerators & Freezers
REFRIGERATORS FREEZERS
❑ MBUR27 ❑ MBUF27
❑ MBUR36 ❑ MBUF48
❑ MBUR48 ❑ MBUF60
❑ MBUR60
❑ MBUR72
FEATURES
CONSTRUCTION
• Curved corner design creates a
stylish appearance and reduces
chances of injury in slip-and-fall
accidents.
• Stainless steel interior and exterior
• Foamed-in-place with low ODP
polyurethane insulation
• Wall thickness: 2"
• 6" diameter casters
• Adjustable heavy-duty vinyl-coated
shelves
DOORS
• Self-closing
• Standard door swing configuration:
– 1-door models ........... hinged right
– 2-door models........left hinged left,
right hinged right
BID SPECIFICATIONS
Item no. MBU________. Provide ______
Undercounter/worktable refrigerator/
freezer(s), Master-Bilt model no. MBU_______.
Undercounter will feature rounded corner
construction with stainless steel interior and
exterior.
The refrigeration system will be bottom
– 3-door model .........left hinged left,
middle door hinged left,
right door hinged right
• Door width:
– MBUR/MBUF27 ..................... 27
– MBUR36 .....................................18"
– MBUR/MBUF48 ..................... 23
– MBUR/MBUF60 ........................ 30"
– MBUR72 ................................. 23
REFRIGERATION
• Self-contained forced air refrigeration
system
• Refrigerant:
– MBUR models & MBUF27 ... R-134a
– All other MBUF models ...... R-404A
• Temperature range:
– MBUR ......... 32° to 40°F (0° to 4°C)
– MBUF ......-1° to -11°F (-18° to -24°C)
mounted and self-contained. Freezers will use
R-404A refrigerant, except for MBUF27 which
will use R-134a. Refrigerators will use R-134a.
The temperature range will be 32° to 40°F (0°
to 4° C) for refrigerators and -1° to -11°F (-18°
to -24°C) for freezers.
Undercounter to have standard limited
1
7
7
/4"
/8"
/8"
WARRANTY
• Standard limited three year
parts and labor
• Additional two year coverage
on compressor part
OPTIONS
❑ Low profile casters for ADA
compliance
❑ Single or double overshelf
❑ Refrigerated drawers for MBUR
models (excluding MBUR36)
three year parts and labor with additional
two year coverage on compressor part.
Undercounter to be UL, C-UL and ETL
Sanitation listed with ENERGY STAR
qualification on undercounter refrigerator
models.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
Page 2
TECHNICAL SPECIFICATIONS
DIMENSIONS
(in.)
MODEL
REFRIGERATORS
MBUR27 27
MBUR36 36
MBUR48 481/430 357/81226 762 911 115 7.9 3/8 2 2 13.0 35.9 280/127
MBUR60 603/830 357/81534 762 911 115 7.9 3/8 2 2 16.5 44.2 333/151
MBUR72 72
FREEZERS
MBUF27 27
MBUF48 481/430 357/81226 762 911 115 8.9 1/2 2 2 13.0 35.9 298/135
MBUF60 603/830 357/81534 762 911 115 8.9 1/2 2 2 16.5 44.2 350/159
*Height includes casters.
MBUR/MBUF27
PLAN VIEW
1
/230 357/8699 762 911 115 3.2 1/5 1 1 7.0 21.1 199/90
3
/830 357/8924 762 911 115 3.6 1/5 2 2 9.4 26.6 242/110
3
/830 357/81838 762 911 115 8.1 3/8 3 3 20.0 52.2 384/175
1
/230 357/8699 762 911 115 8.3 3/8 1 1 7.0 21.1 207/94
MBUR36
PLAN VIEW
DIMENSIONS
(mm)
MBUR/MBUF48
PLAN VIEW
VOLTS AMPS
UNIT
H.P.
NO. OF
DOORS
MBUR/MBUF60
PLAN VIEW
NO. OF
SHELVES
CAP.
CU. FT.
MBUR72
PLAN VIEW
SHIP
CU. FT.
SHIP
WT.
(LB/KG)L D H* L D H*
MBUR/MBUF27
ELEVATION
VIEW
LISTINGS
MBUR36
ELEVATION
VIEW
ENERGY STAR®
qualification applies
only to undercounter
refrigerator models.
MBUR/MBUF48
ELEVATION
MBUR/MBUF60
ELEVATION
VIEW
ALL MODELS
SIDE VIEW
HOOKUP
All models via plug in, 9 foot long flexible
three wire 14/3 cord with molded plug.
VIEW
MBUR72
ELEVATION
VIEW
NEMA 5-15P
2
Page 3

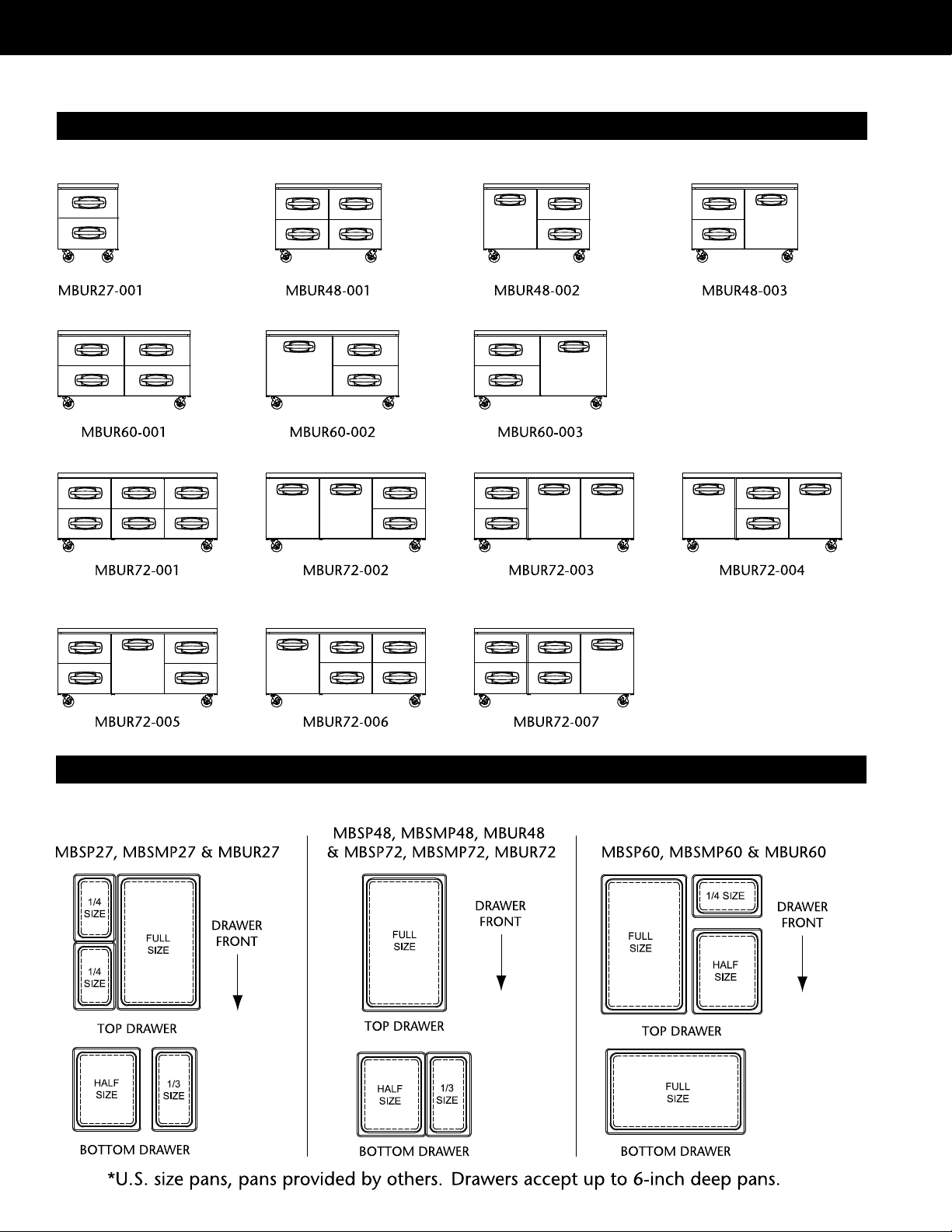

OPTIONAL REFRIGERATED DRAWER CONFIGURATIONS
MBUR models only, not available on MBUR36.
PAN CONFIGURATIONS FOR REFRIGERATED DRAWERS
MBUR models only, not available on MBUR36.
3
Page 4
MBU SERIES
UNDERCOUNTER/WORKTABLE
REFRIGERATORS & FREEZERS
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
©2014 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
1357-6/14-web
