ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________

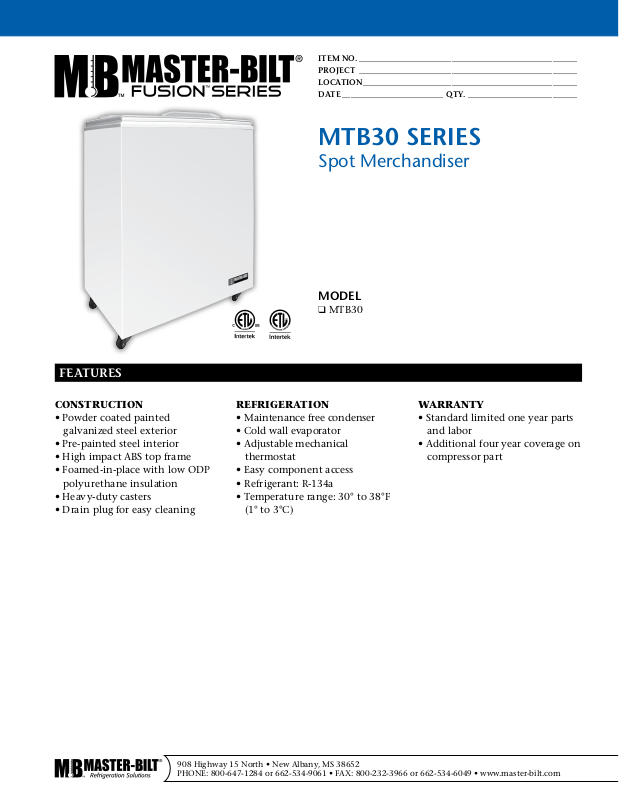

MTB30 SERIES
Spot Merchandiser
MODEL
❑ MTB30
FEATURES
CONSTRUCTION.
• Powder coated painted
galvanized steel exterior
• Pre-painted steel interior
• High impact ABS top frame
• Foamed-in-place with low ODP
polyurethane insulation
• Heavy-duty casters
• Drain plug for easy cleaning
REFRIGERATION
• Maintenance free condenser
• Cold wall evaporator
• Adjustable mechanical
thermostat
• Easy component access
• Refrigerant: R-134a
• Temperature range: 30° to 38°F
(1° to 3°C)
WARRANTY
• Standard limited one year parts
and labor
• Additional four year coverage on
compressor part
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
MTB30 SERIES
SPOT MERCHANDISER
TECHNICAL SPECIFICATIONS
DIMENSIONS
DIMENSIONS (in.)
MODEL
MTB30 291/2177/163515/16749 443 913 115 3.0 1/6 1 13.6 92/42
*Height includes casters.
(mm)
VOLTS AMPS UNIT H.P.
12-13/16"
NO. OF
LIDS
SHIP
CU. FT.
24-5/8"
SHIP WT.
(LB/KG)L D H* L D H*
16-1/2"
13-1/16"
2-11/16"
17-11/16"
25-1/16"
13-1/16"
11-15/16"
29-1/2"
INCLUDING LID
PLAN VIEW SIDE VIEW ELEVATION VIEW
LISTINGS HOOKUP
Via plug in, 10 foot long flexible three wire
cord with molded plug.
17-7/16"
31-3/4"
1-3/4"
35-15/16"
29-1/8"
NEMA 5-15P
BID SPECIFICATIONS
Item no. MTB30________. Provide ______
Spot Merchandiser(s), Master-Bilt model no.
MTB30.
Merchandiser will be constructed of
powder coated painted galvanized steel
exterior with pre-painted steel interior.
Other standard features will include a high
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
impact ABS top frame, heavy-duty casters
and a drain plug for easy cleaning
The refrigeration system will be selfcontained. Refrigerant will be R-134a. The
operating temperature will be 30° to 38°F
(1° to 3°C).
Merchandiser to have standard limited
©2014 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
one-year parts and labor warranty with
additional four-year on compressor part.
Merchandiser to be ETL listed in the U.S.
and Canada and ETL Sanitation listed.
1447-6/14-web
