MSC-41A
Standard features
include baskets,
basket dividers,
external thermometer and lock.
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________

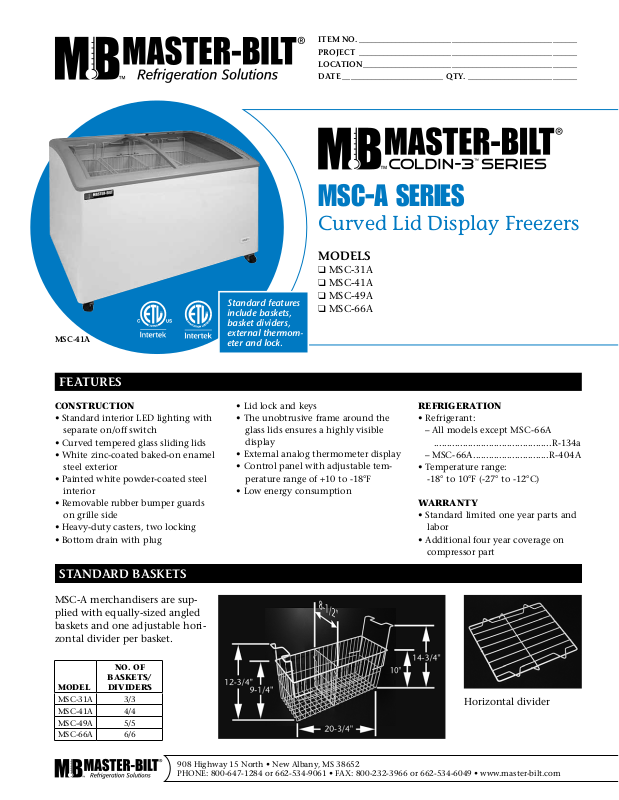

MSC-A SERIES
Curved Lid Display Freezers
MODELS
❑ MSC-31A
❑ MSC-41A
❑ MSC-49A
❑ MSC-66A
FEATURES
CONSTRUCTION
• Standard interior LED lighting with
separate on/off switch
• Curved tempered glass sliding lids
• White zinc-coated baked-on enamel
steel exterior
• Painted white powder-coated steel
interior
• Removable rubber bumper guards
on grille side
• Heavy-duty casters, two locking
• Bottom drain with plug
STANDARD BASKETS
MSC-A merchandisers are supplied with equally-sized angled
baskets and one adjustable horizontal divider per basket.
NO. OF
BASKETS/
MODEL
MSC-31A 3/3
MSC-41A 4/4
MSC-49A 5/5
MSC-66A 6/6
DIVIDERS
• Lid lock and keys
• The unobtrusive frame around the
glass lids ensures a highly visible
display
• External analog thermometer display
• Control panel with adjustable temperature range of +10 to -18°F
• Low energy consumption
REFRIGERATION
• Refrigerant:
– All models except MSC-66A
.............................................R-134a
– MSC-66A .............................R-404A
• Temperature range:
-18° to 10°F (-27° to -12°C)
WARRANTY
• Standard limited one year parts and
labor
• Additional four year coverage on
compressor part
Horizontal divider
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
COLDIN-3™ MSC-A SERIES
CURVED LID DISPLAY FREEZERS
TECHNICAL SPECIFICATIONS
DIMENSIONS
(in.)
MODEL
MSC-31A 31 273/8331/2787 695 851 115 2.3 1/3 8.3 6.0 20.7 155/70
MSC-41A 41 27
MSC-49A 49 273/8331/21245 695 851 115 1.9 3/8 14.5 10.5 31.1 212/96
MSC-66A 66
1
3
/8331/21041 695 851 115 1.9 3/8 11.5 8.5 26.7 188/85
/2273/8331/21676 695 851 115 5.5 3/4 20.5 15.3 42.1 270/123
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
GROSS
CU. FT.
NET
CU. FT.
SHIP
CU. FT.
SHIP
WT.
LB/KGL D H L D H
SIDE VIEWELEVATION VIEW
LISTINGS HOOKUP
Via plug in, 61/2 foot long,
flexible 3 wire 14AWG/3 cord with
molded plug.
NEMA 5-15P
BID SPECIFICATIONS
Item no. MSC-_____A
Provide____________( ) Curved Lid
Display Freezer(s) Master-Bilt model MSC_____A.
Freezer to be constructed of a white zinccoated baked-on enamel on steel exterior
with painted white powder-coated steel
interior. Freezer to be furnished with stan-
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
dard LED interior lighting. Also standard
with baskets, basket dividers, thermometer
and lock. Additionally, it will be provided
with heavy-duty casters and a defrost water
drain. Lids will contain tempered safety
glass.
Refrigeration system will use R-134a
refrigerant in all models except MSC-66A
which will contain R404A. The temperature range will be -18° to 10°F (-27° to
-12°C).
Freezer to have standard limited one
year parts and labor with additional four
year coverage on compressor part.
Freezer to be ETL listed in the U.S. and
Canada and ETL Sanitation listed.
©2014 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
1408-10/14-web
