ITEM NO. __________________________________________________
PROJECT __________________________________________________
LOCATION ________________________________________________
DATE _______________________QTY. __________________________

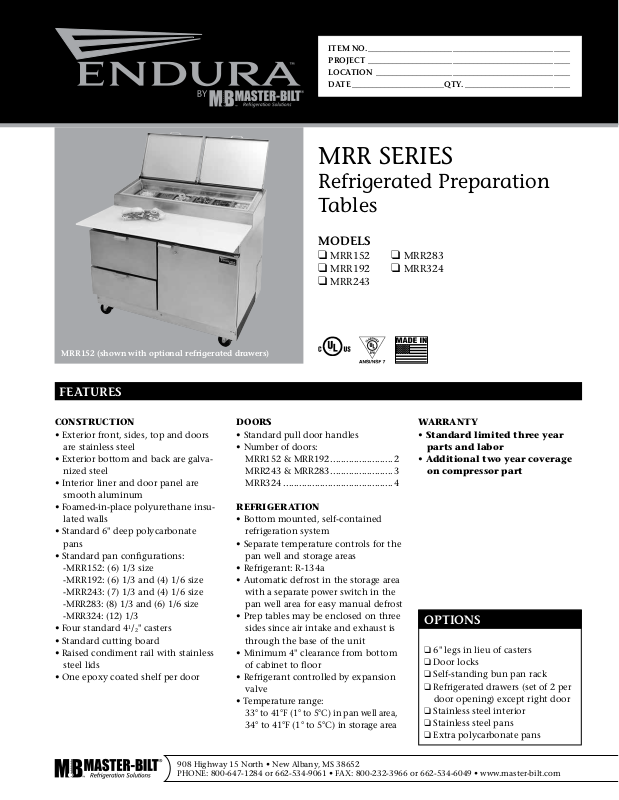

MRR SERIES
Refrigerated Preparation
Tables
MODELS
❑
MRR152 ❑ MRR283
❑ MRR192 ❑ MRR324
❑ MRR243
MRR152 (shown with optional refrigerated drawers)
FEATURES
CONSTRUCTION
• Exterior front, sides, top and doors
are stainless steel
• Exterior bottom and back are galvanized steel
• Interior liner and door panel are
smooth aluminum
• Foamed-in-place polyurethane insulated walls
• Standard 6" deep polycarbonate
pans
• Standard pan configurations:
-MRR152: (6) 1/3 size
-MRR192: (6) 1/3 and (4) 1/6 size
-MRR243: (7) 1/3 and (4) 1/6 size
-MRR283: (8) 1/3 and (6) 1/6 size
-MRR324: (12) 1/3
• Four standard 4
• Standard cutting board
• Raised condiment rail with stainless
steel lids
• One epoxy coated shelf per door
1
/2" casters
DOORS
• Standard pull door handles
• Number of doors:
MRR152 & MRR192 ........................2
MRR243 & MRR283 ........................3
MRR324 ..........................................4
REFRIGERATION
• Bottom mounted, self-contained
refrigeration system
• Separate temperature controls for the
pan well and storage areas
• Refrigerant: R-134a
• Automatic defrost in the storage area
with a separate power switch in the
pan well area for easy manual defrost
• Prep tables may be enclosed on three
sides since air intake and exhaust is
through the base of the unit
• Minimum 4" clearance from bottom
of cabinet to floor
• Refrigerant controlled by expansion
valve
• Temperature range:
33° to 41°F (1° to 5°C) in pan well area,
34° to 41°F (1° to 5°C) in storage area
WARRANTY
• Standard limited three year
parts and labor
• Additional two year coverage
on compressor part
OPTIONS
❑ 6" legs in lieu of casters
❑ Door locks
❑ Self-standing bun pan rack
❑ Refrigerated drawers (set of 2 per
door opening) except right door
❑ Stainless steel interior
❑ Stainless steel pans
❑ Extra polycarbonate pans
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MRR SERIES
REFRIGERATED PREPARATION TABLES
DIMENSIONS (in.) DIMENSIONS (mm)
MODEL
MRR152 473/438 431/21213 889 1105 115 9.1 1/4 1 per door 6 NA 15.0 62.6 420/191
MRR192 593/438 431/21518 889 1105 115 8.5 1/4 1 per door 6 4 19.0 76.8 450/205
MRR243 713/438 431/21822 889 1105 115 8.8 1/3 1 per door 7 4 24.0 90.9 470/214
MRR283 83
MRR324 95
*Depth includes cutting board. **Height includes casters. ***Pans are 6" deep polycarbonate, 2.25 liter capacity.
L D* H** L D* H** 1/3 1/6
3
/438 431/22127 889 1105 115 8.8 1/3 1 per door 8 6 28.0 105.0 480/218
3
/438 431/22432 889 1105 115 8.8 1/3 1 per door 12 NA 32.0 119.2 490/223
VOLTS AMPS
UNIT
H.P.
NO. OF
SHELVES
NO. OF
PANS***
CAP.
CU.
FT.
SHIP
CU.
FT.
SHIP WT.
LB/KG
MODEL MRR152
PLAN VIEW
SIDE VIEW
ELEVATION VIEW
MODEL MRR192
PLAN VIEW
MODEL MRR243
PLAN VIEW
SIDE VIEW
SIDE VIEW
ELEVATION VIEW
ELEVATION VIEW

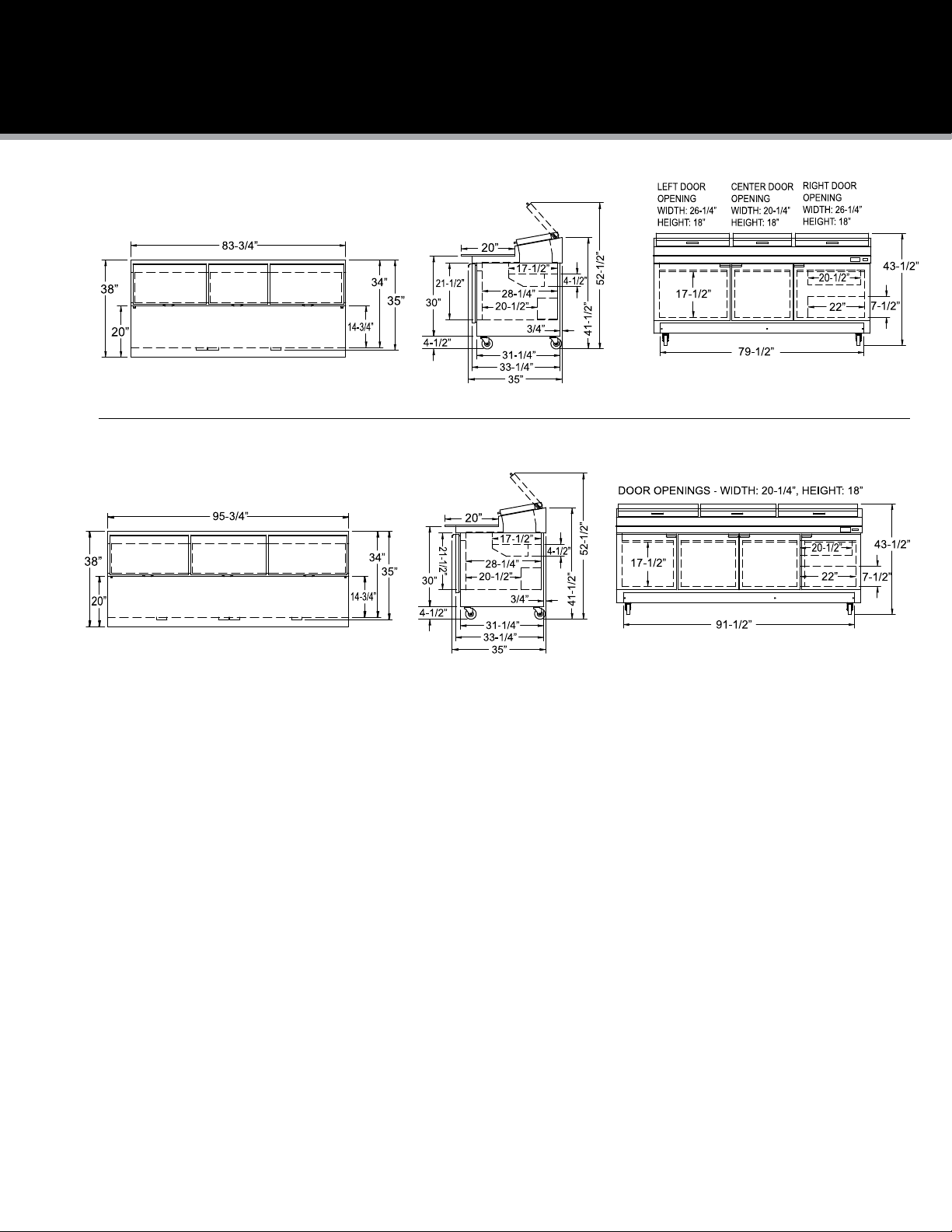

MODEL MRR283
PLAN VIEW
MODEL MRR324
PLAN VIEW
SIDE VIEW
SIDE VIEW
ELEVATION VIEW
ELEVATION VIEW
MRR SERIES
REFRIGERATED PREPARATION TABLES
LISTINGS HOOKUP
Via plug in, 10 foot long flexible
three wire 14/3 cord with molded
plug.
BID SPECIFICATIONS
NEMA 5-15P
Item no. MRR_______________
Provide____________( ) Refrigerated Preparation Table(s),
Master-Bilt model no.
MRR________.
Preparation table's exterior front,
sides, top and doors will be stainless steel while the exterior bottom
and back will be galvanized steel.
The interior liner and door panel
will be smooth aluminum.
Standard features will include
polycarbonate pans, cutting
board, one epoxy-coated shelf per
door and 41/2" casters.
The refrigeration system will
be bottom mounted and selfcontained. The temperature range
will be 33° to 41°F (1° to 5°C) in
pan well area, 34° to 41°F (1° to
5°C) in storage area. System will
also feature automatic defrost in
the storage area with a separate
power switch in the pan well area
for easy manual defrost. There
will also be separate temperature
controls for the pan well and storage areas. Refrigeration sytem will
use R-134a refrigerant. Refrigerant
will be controlled by expansion
valve. Prep tables may be enclosed
on three sides since air intake and
exhaust is through the base of the
unit.
Preparation table to have standard limited three year parts and
labor with additional two year coverage on compressor part.
Preparation table to be UL and
C-UL listed and UL EPH classified.
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
