Kool Star MPWW724 User Manual
ITEM NO. __________________________________________________
PROJECT __________________________________________________
LOCATION ________________________________________________
DATE _______________________QTY. __________________________

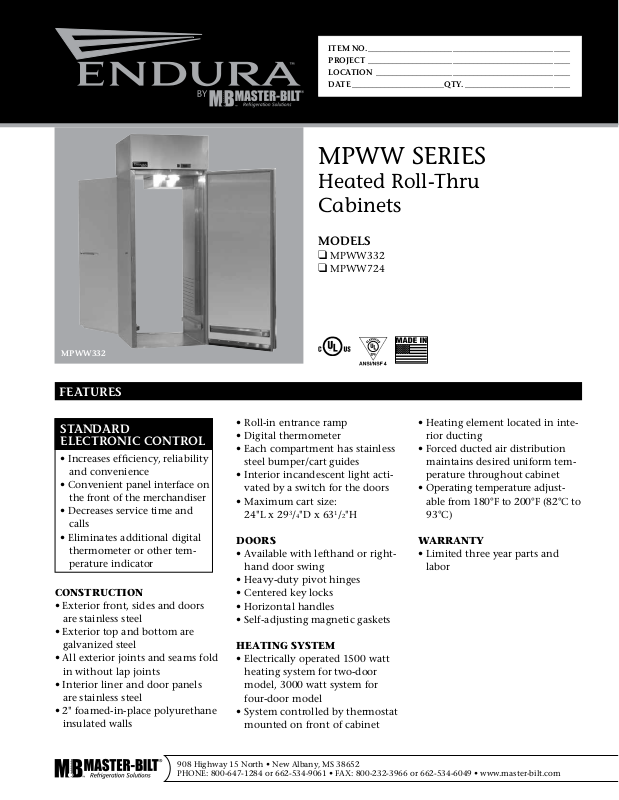

MPWW SERIES
Heated Roll-Thru
Cabinets
MODELS
❑
MPWW332
❑ MPWW724
MPWW332
FEATURES
STANDARD
ELECTRONIC CONTROL
• Increases efficiency, reliability
and convenience
• Convenient panel interface on
the front of the merchandiser
• Decreases service time and
calls
• Eliminates additional digital
thermometer or other temperature indicator
CONSTRUCTION
• Exterior front, sides and doors
are stainless steel
• Exterior top and bottom are
galvanized steel
• All exterior joints and seams fold
in without lap joints
• Interior liner and door panels
are stainless steel
• 2" foamed-in-place polyurethane
insulated walls
• Roll-in entrance ramp
• Digital thermometer
• Each compartment has stainless
steel bumper/cart guides
• Interior incandescent light activated by a switch for the doors
• Maximum cart size:
3
24"L x 29
DOORS
• Available with lefthand or righthand door swing
• Heavy-duty pivot hinges
• Centered key locks
• Horizontal handles
• Self-adjusting magnetic gaskets
HEATING SYSTEM
• Electrically operated 1500 watt
heating system for two-door
model, 3000 watt system for
four-door model
• System controlled by thermostat
mounted on front of cabinet
/4"D x 631/2"H
• Heating element located in interior ducting
• Forced ducted air distribution
maintains desired uniform temperature throughout cabinet
• Operating temperature adjustable from 180°F to 200°F (82°C to
93°C)
WARRANTY
• Limited three year parts and
labor
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MPWW SERIES
HEATED ROLL-THRU CABINETS
DIMENSIONS
(in.)
MODEL
MPWW332 31
MPWW724 631/2391/4843/41613 997 2153
*MPWW724 operates on a minimum of 208 volts. A voltage boosting transformer (part no. 39-01087) must be used when the supply voltage is
less than 208 volts.
MPWW332
PLAN VIEW
L D H L D H
3
/4391/4843/4806 997 2153 115 12.5 1500 2 7 36.4 76.9
MPWW332
ELEVATION
DIMENSIONS
(mm)
VIEW
VOLTS*
115/208-230
MPWW724
PLAN VIEW
HEATER
WAT T -
AMPS
15.2 3000 4 7 78.1 144.9
AGE
NO. OF
DOORS
RAMP
INCLINE
(degrees)
CU. FT.
MPWW724
CAP.
SHIP
CU. FT.
SIDE VIEW
ELEVATION
VIEW
SHIP
WT.
LB/KG
375/170
545/261
(BOTH)
LISTINGS HOOKUP
MPWW332: 10 foot long flexible three wire
12/3 cord with molded plug.
MPWW724: Via plug in, 10 foot long
flexible four wire 208-230v 12/4 cord with
neutral and ground wires and molded plug.
NEMA 5-20P (MPWW332
model)
NEMA L14-20P (MPWW724)
BID SPECIFICATIONS
Item no. MPWW_______________
Provide__________( ) Heated RollThru Cabinet(s), Master-Bilt model no.
MPWW________.
Cabinet will feature stainless steel ex-terior
sides and doors. The exterior top and bottom
will be galvanized steel while the interior
liner and door panels will be stainless steel.
Standard features include an electronic
controller system, stainless steel bumper/cart
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
guides for each compartment and an interior incandescent light activated by switch
for the doors.
Doors will feature heavy-duty pivot hinges, centered key locks, horizontal handles
and self-adjusting magnetic gaskets.
An electrically operated 1500 watt heating system will be standard on two-door
models. A 3000 watt system will be standard on four-door models. The heating
©2015 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
system will be controlled by a thermostat
mounted on the cabinet front. A forced
ducted air distribution system will provide
uniform temperature throughout cabinet.
The operating temperature will be adjustable from 180°F to 200°F (82°C to 93°C).
Cabinet to have standard limited three
year parts and labor warranty.
Cabinet to be UL and C-UL listed and UL
EPH classified.
1333-6/15-web
