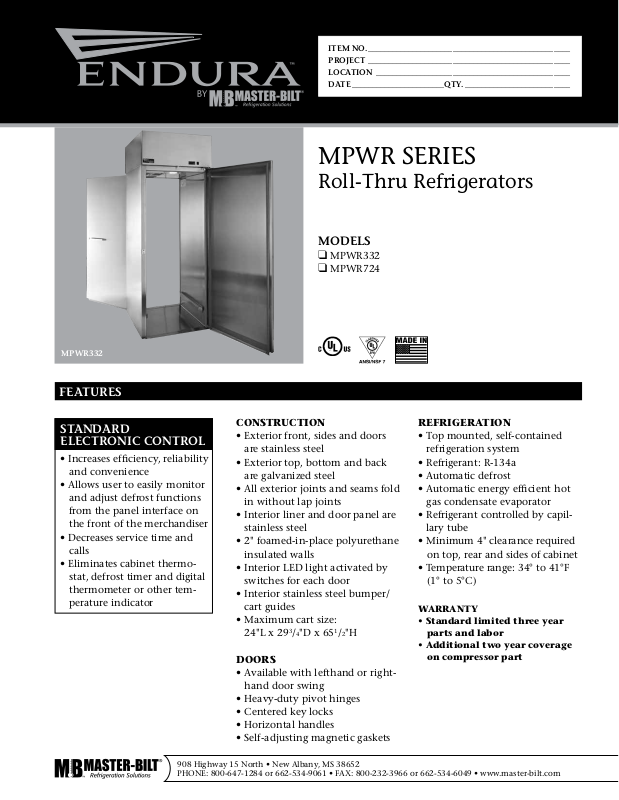

MPWR SERIES
Roll-Thru Refrigerators
MODELS
❑
MPWR332
❑ MPWR724
MPWR332
FEATURES
STANDARD
ELECTRONIC CONTROL
• Increases efficiency, reliability
and convenience
• Allows user to easily monitor
and adjust defrost functions
from the panel interface on
the front of the merchandiser
• Decreases service time and
calls
• Eliminates cabinet thermostat, defrost timer and digital
thermometer or other temperature indicator
CONSTRUCTION
• Exterior front, sides and doors
are stainless steel
• Exterior top, bottom and back
are galvanized steel
• All exterior joints and seams fold
in without lap joints
• Interior liner and door panel are
stainless steel
• 2" foamed-in-place polyurethane
insulated walls
• Interior LED light activated by
switches for each door
• Interior stainless steel bumper/
cart guides
• Maximum cart size:
24"L x 293/4"D x 651/2"H
DOORS
• Available with lefthand or righthand door swing
• Heavy-duty pivot hinges
• Centered key locks
• Horizontal handles
• Self-adjusting magnetic gaskets
REFRIGERATION
• Top mounted, self-contained
refrigeration system
• Refrigerant: R-134a
• Automatic defrost
• Automatic energy efficient hot
gas condensate evaporator
• Refrigerant controlled by capillary tube
• Minimum 4" clearance required
on top, rear and sides of cabinet
• Temperature range: 34° to 41°F
(1° to 5°C)
WARRANTY
• Standard limited three year
parts and labor
• Additional two year coverage
on compressor part
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MPWR SERIES
ROLL-THRU REFRIGERATORS
DIMENSIONS
(in.)
MODEL
MPWR332 31
MPWR724 631/2393/8843/41613 1000 2153 115/208-230 10.4 3/4 4 72.0 154.9
*MPWR724 operates on a minimum of 208 volts. A voltage boosting transformer (part no. 39-01087) must be used when the supply voltage is less
than 208 volts.
L D H L D H
3
/4393/8843/4806 1000 2153 115 7.7 1/3 2 33.0 82.0
DIMENSIONS
(mm)
VOLTS* AMPS
UNIT
H.P.
NO. OF
DOORS
CAP.
CU. FT.
SHIP
CU. FT.
SHIP
WT.
LB/KG
596/271
690/314
MPWR332 PLAN VIEW MPWR724 PLAN VIEW SIDE VIEW - BOTH
LISTINGS HOOKUP
MPWR332: Via plug in, 10 foot long flexible three wire 14/3 cord with molded plug.
MPWR724: Via plug in, 10 foot long
flexible four wire 208-230v 12/4 cord with
neutral and ground wires and molded plug.
NEMA 5-15P (MPWR332
model)
NEMA L14-20P (MPWR724
model)
BID SPECIFICATIONS
Item no. MPWR_______________
Provide____________( ) Roll-Thru
Refrigerator(s), Master-Bilt model no.
MPWR________.
Roll-thru refrigerator will be equipped
with an electronically controlled monitoring system. The exterior front, sides
and doors will be stainless steel while the
exterior top, bottom and back will be galvanized steel. The interior liner and door
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
panel will be stainless steel. An interior
LED light activated by switches for each
door and a digital thermometer.
Doors will feature heavy-duty pivot
hinges and centered key locks with horizontal handles.
The refrigeration system will be top
mounted and self-contained. The refrigerant will be R-134a and the temperature
range will be 34° to 41°F (1° to 5°C). The
refrigeration system will also feature automatic defrost and an automatic energy
efficient hot gas condensate evaporator.
Refrigerant will be controlled by capillary
tube.
Roll-thru to have standard limited three
year parts and labor with additional two
year coverage on compressor part.
Roll-thru to be UL and C-UL listed and
UL EPH classified.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
©2013 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
