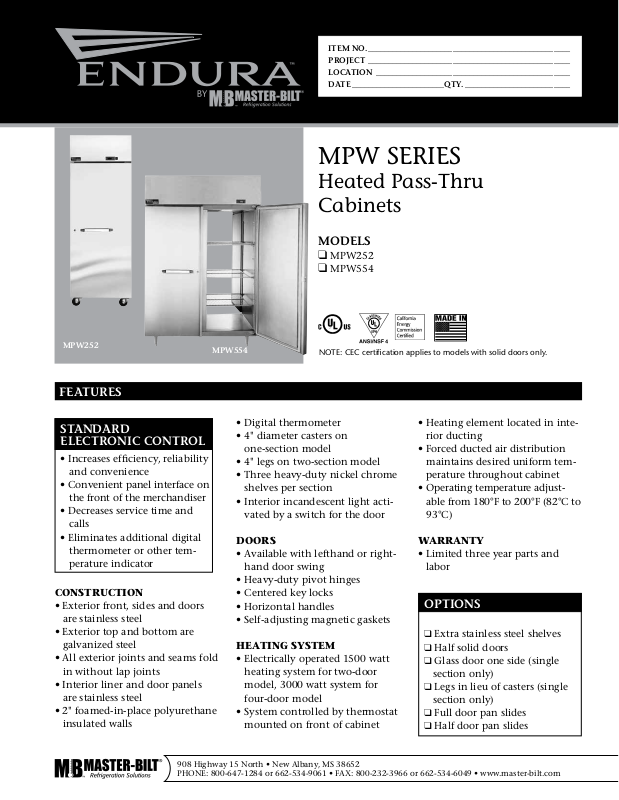

Kool Star MPW554 User Manual
ITEM NO. __________________________________________________
PROJECT __________________________________________________
LOCATION ________________________________________________
DATE _______________________QTY. __________________________
MPW SERIES
Heated Pass-Thru
Cabinets
MODELS
❑
MPW252
❑ MPW554
MPW252
MPW554
FEATURES
STANDARD
ELECTRONIC CONTROL
• Increases efficiency, reliability
and convenience
• Convenient panel interface on
the front of the merchandiser
• Decreases service time and
calls
• Eliminates additional digital
thermometer or other temperature indicator
CONSTRUCTION
• Exterior front, sides and doors
are stainless steel
• Exterior top and bottom are
galvanized steel
• All exterior joints and seams fold
in without lap joints
• Interior liner and door panels
are stainless steel
• 2" foamed-in-place polyurethane
insulated walls
NOTE: CEC certification applies to models with solid doors only.
• Digital thermometer
• 4" diameter casters on
one-section model
• 4" legs on two-section model
• Three heavy-duty nickel chrome
shelves per section
• Interior incandescent light activated by a switch for the door
DOORS
• Available with lefthand or righthand door swing
• Heavy-duty pivot hinges
• Centered key locks
• Horizontal handles
• Self-adjusting magnetic gaskets
HEATING SYSTEM
• Electrically operated 1500 watt
heating system for two-door
model, 3000 watt system for
four-door model
• System controlled by thermostat
mounted on front of cabinet
• Heating element located in interior ducting
• Forced ducted air distribution
maintains desired uniform temperature throughout cabinet
• Operating temperature adjustable from 180°F to 200°F (82°C to
93°C)
WARRANTY
• Limited three year parts and
labor
OPTIONS
❑ Extra stainless steel shelves
❑ Half solid doors
❑ Glass door one side (single
section only)
❑ Legs in lieu of casters (single
section only)
❑ Full door pan slides
❑ Half door pan slides
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MPW SERIES
HEATED PASS-THRU CABINETS
DIMENSIONS
(in.)
MODEL
MPW252 27
MPW554 55 381/4823/41397 972 2102
*Height includes casters or legs. **MPW554 operates on a minimum of 208 volts. A voltage boosting transformer (part no. 39-01087) must be
used when the supply voltage is less than 208 volts.
L D H* L D H*
1
/2381/4811/2699 972 2070 115 12.5 1500 2 3 20L x 28D 25.6 55.2
MPW252
PLAN VIEW
DIMENSIONS
(mm)
MPW252
SIDE VIEW
VOLTS**
115/208-230
HEATER
WAT T -
AMPS
13.7 3000 4 6 20L x 28D 55.7 105.3
AGE
NO. OF
DOORS
NO. OF
SHELVES
MPW554
PLAN VIEW
STANDARD
SHELF SIZE
(in inches)
CAP.
SHIP
CU.
CU.
FT.
FT.
MPW554
SIDE VIEW
SHIP
WT.
LB/KG
350/159
550/250
LISTINGS HOOKUP
CEC certification applies to models with solid
doors only.
MPW252: Via plug in, 10 foot long flexible
three wire 14/3 cord with molded plug.
MPW554: Via plug in, 10 foot long flexible four wire 12/4 cord, 125/250 volt plug
type, with neutral and ground wires and
molded plug.
NEMA 5-20P (MPW252)
NEMA L14-20P (MPW554)
BID SPECIFICATIONS
Item no. MPW______________
Provide________( ) Heated Pass-Thru
Cabinet(s), Master-Bilt model no. MPW
________.
Cabinet will feature stainless steel exterior front, sides, back and doors. The
exterior top and bottom will be galvanized
steel while the interior liner and door panels will be stainless steel.
Standard features include an electronically controlled monitoring system, four-
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
inch casters on one-door model, 4" legs on
two-door model and three nickel chrome
shelves per section.
Doors will feature heavy-duty pivot
hinges, centered key locks, horizontal handles and self-adjusting magnetic gaskets.
An electrically operated 1500 watt heating system will be standard on two-door
models. A 3000 watt system will be standard on four-door models. The heating
system will be controlled by a thermostat
mounted on the cabinet front. A forced
ducted air distribution system will provide
uniform temperature throughout cabinet.
The operating temperature will be adjustable from 180°F to 200°F (82°C to 93°C).
Cabinet to have standard limited three
year parts and labor warranty.
Cabinet to be UL and C-UL listed and UL
EPH classified. Cabinets with solid doors
will also be California Energy Code certified.
©2014 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
1332-10/14-web
