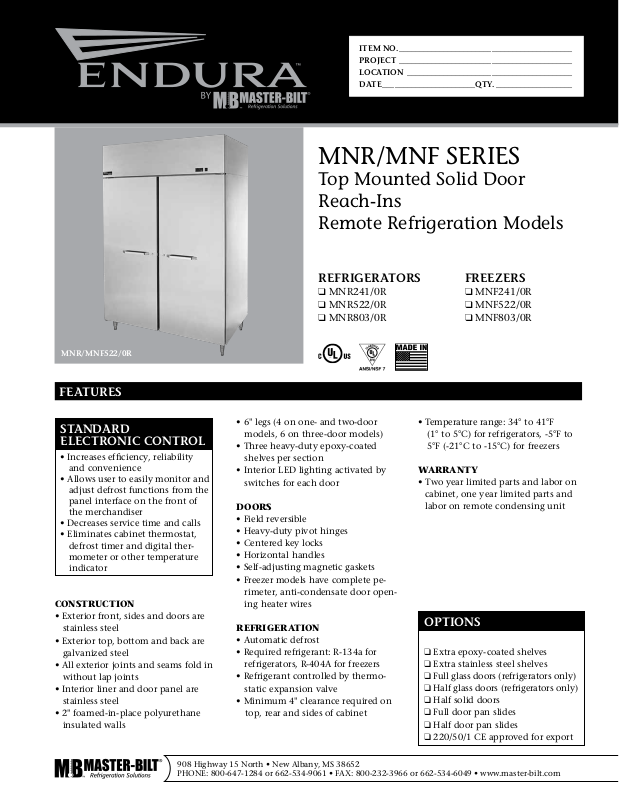

Kool Star MNF803-0R User Manual
ITEM NO. ___________________________________________
PROJECT ___________________________________________
LOCATION _________________________________________
DATE _______________________QTY. ___________________
MNR/MNF SERIES
Top Mounted Solid Door
Reach-Ins
Remote Refrigeration Models
REFRIGERATORS FREEZERS
❑ MNR241/0R ❑ MNF241/0R
❑ MNR522/0R ❑ MNF522/0R
❑ MNR803/0R ❑ MNF803/0R
MNR/MNF522/0R
FEATURES
STANDARD
ELECTRONIC CONTROL
• Increases efficiency, reliability
and convenience
• Allows user to easily monitor and
adjust defrost functions from the
panel interface on the front of
the merchandiser
• Decreases service time and calls
• Eliminates cabinet thermostat,
defrost timer and digital thermometer or other temperature
indicator
CONSTRUCTION
• Exterior front, sides and doors are
stainless steel
• Exterior top, bottom and back are
galvanized steel
• All exterior joints and seams fold in
without lap joints
• Interior liner and door panel are
stainless steel
• 2" foamed-in-place polyurethane
insulated walls
• 6" legs (4 on one- and two-door
models, 6 on three-door models)
• Three heavy-duty epoxy-coated
shelves per section
• Interior LED lighting activated by
switches for each door
DOORS
• Field reversible
• Heavy-duty pivot hinges
• Centered key locks
• Horizontal handles
• Self-adjusting magnetic gaskets
• Freezer models have complete perimeter, anti-condensate door opening heater wires
REFRIGERATION
• Automatic defrost
• Required refrigerant: R-134a for
refrigerators, R-404A for freezers
• Refrigerant controlled by thermostatic expansion valve
• Minimum 4" clearance required on
top, rear and sides of cabinet
• Temperature range: 34° to 41°F
(1° to 5°C) for refrigerators, -5°F to
5°F (-21°C to -15°C) for freezers
WARRANTY
• Two year limited parts and labor on
cabinet, one year limited parts and
labor on remote condensing unit
OPTIONS
❑ Extra epoxy-coated shelves
❑ Extra stainless steel shelves
❑ Full glass doors (refrigerators only)
❑ Half glass doors (refrigerators only)
❑ Half solid doors
❑ Full door pan slides
❑ Half door pan slides
❑ 220/50/1 CE approved for export
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MNR/MNF SERIES
TOP MOUNTED SOLID DOOR REACH-INS
REMOTE REFRIGERATION MODELS
DIMENSIONS
(in.)
MODEL
REFRIGERATORS
MNR241/0R 27
MNR522/0R 55 351/8823/41397 892 2102 115 1.0 MHHZ0051B 1/3 2 6 51.9 105.3
MNR803/0R 821/2351/8823/42096 892 2102 115 1.2 MHHZ0071B 1/2 3 9 79.9 153.4
FREEZERS
MNF241/0R 271/2351/8823/4699 892 2102 115 6.2
MNF522/0R 55 351/8823/41397 892 2102 115
MNF803/0R 821/2351/8823/42096 892 2102 115 9.8
*Height includes 6" legs. **Freezer models' defrost function is regulated through cabinet's electronic controller system. Therefore, defrost timer is
not included with condensing unit.
L D H* L D H*
1
/2351/8823/4699 892 2102 115 .5 MHHZ0041B 1/4 1 3 24.0 55.2
DIMENSIONS
(mm)
VOLTS AMPS
9.0
OPTIONAL
CONDENSING
UNIT**
MHLZ0031B (hermetic),
MCLZ0031(B or C)
(semi-hermetic)
MHLZ0051B (hermetic),
MCLZ0051(B or C)
(semi-hermetic)
MHLZ0071(B or C)
(hermetic),
MCLZ0081(B or C)
(semi-hermetic)
UNIT
CAP.
SHIP
NO. OF
H.P.
DOORS
1/2 1 3 24.0 55.2
3/4 2 6 51.9 105.3
1 3 9 79.9 153.4
NO. OF
SHELVES
CU.
FT.
CU.
FT.
SHIP
WT.
LB/KG
365/166
545/248
750/341
375/170
660/300
805/366
MNR/MNF241/0R
PLAN VIEW
MNR/MNF522/0R
PLAN VIEW
MNR803/MNF803/0R
PLAN VIEW
SIDE VIEW (ALL)
LISTINGS HOOKUP
Hardwire, remote refrigeration.
BID SPECIFICATIONS
Item no. _______________
Provide____________( ) Top Mounted
Solid Door Reach-in(s) Remote Refrigeration Model, Master-Bilt model no. _______.
Reach-in will be equipped with an electronically controlled monitoring system
and will feature stainless steel exterior
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
front, sides and doors. The exterior top,
bottom and back will be galvanized steel
while the interior liner and door panel will
be stainless steel.
Freezers will use R-404A refrigerant,
refrigerators will use R-134a. The temperature range will be 34° to 41°F (1° to 5°C)
©2013 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
for refrigerators, -5°F to 5°F (-21°C to -15°C)
for freezers.
Reach-in will have two year limited parts
and labor on cabinet, one year limited parts
and labor on remote condensing unit.
Reach-in to be UL and C-UL listed and
UL EPH classified.
1417-5/13-web
