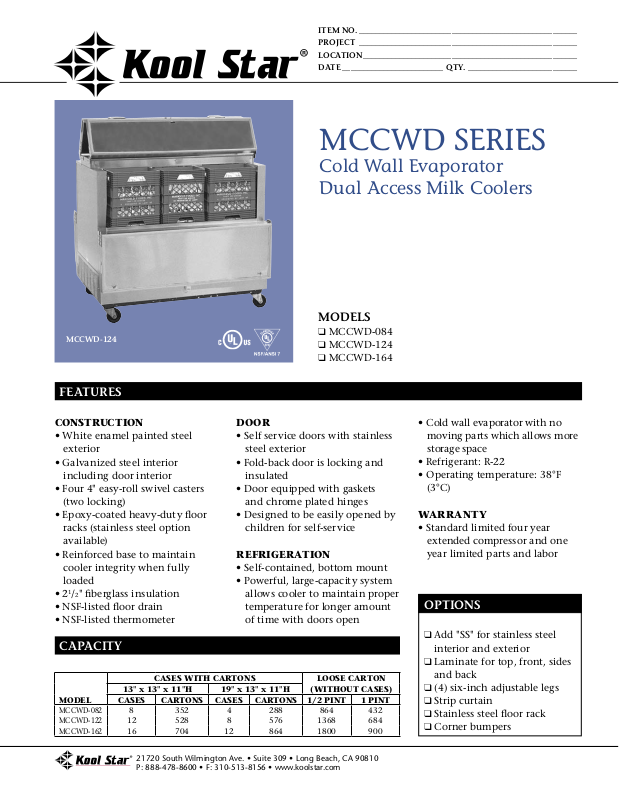

MCCWD SERIES

Cold Wall Evaporator Dual Access Milk Coolers

MODELS

❑ MCCWD-084 ❑ MCCWD-124 ❑ MCCWD-164

FEATURES

CONSTRUCTION

• White enamel painted steel exterior

• Galvanized steel interior including door interior

• Four 4" easy-roll swivel casters (two locking)

• Epoxy-coated heavy-duty oor racks (stainless steel option available)

• Reinforced base to maintain cooler integrity when fully loaded

• 21/2" berglass insulation

• NSF-listed oor drain

• NSF-listed thermometer

CAPACITY

CASES WITH CARTONS

13" x 13" x 11"H 19" x 13" x 11"H

MODEL

MCCWD-082 MCCWD-122 MCCWD-162

CASES CARTONS CASES CARTONS 1/2 PINT 1 PINT

8 352 4 288 864 432 12 528 8 576 1368 684 16 704 12 864 1800 900

DOOR

• Self service doors with stainless steel exterior

• Fold-back door is locking and insulated

• Door equipped with gaskets and chrome plated hinges

• Designed to be easily opened by children for self-service

REFRIGERATION

• Self-contained, bottom mount

• Powerful, large-capacity system allows cooler to maintain proper temperature for longer amount of time with doors open

LOOSE CARTON

(WITHOUT CASES)

• Cold wall evaporator with no moving parts which allows more storage space

• Refrigerant: R-22

• Operating temperature: 38°F (3°C)

WARRANTY

• Standard limited four year extended compressor and one year limited parts and labor

OPTIONS

❑ Add "SS" for stainless steel

interior and exterior

❑ Laminate for top, front, sides

and back

❑ (4) six-inch adjustable legs ❑ Strip curtain ❑ Stainless steel oor rack ❑ Corner bumpers

21720 South Wilmington Ave. • Suite 309 • Long Beach, CA 90810 P: 888-478-8600 • F: 310-513-8156 • www.koolstar.com

TECHNICAL SPECIFICATIONSTECHNICAL SPECIFICATIONS

LISTINGS

HOOKUP

BID SPECIFICATIONS

MCCWD SERIES COLD WALL EVAPORATOR DUAL ACCESS MILK COOLERS

DIMENSIONS

(in.)

MODEL

MCCWD-084 MCCWD-124 MCCWD-164

*Height includes casters.

35 35 44 889 889 1118 115 4.1 1/4 2 12.2 36.7 326/148 49 35 44 1245 889 1118 115 4.8 1/4 3 17.8 49.9 352/160 63 35 44 1600 889 1118 115 5.7 1/4 4 23.5 64.0 484/220

SIDE VIEW MCCWD-084

ELEVATION VIEW

DIMENSIONS

(mm)

VOLTS AMPS

MCCWD-124

ELEVATION VIEW

UNIT

H.P.

NO. OF FLOOR RACKS

CAP.

CU. FT.

SHIP

CU. FT.

MCCWD-164

ELEVATION VIEW

SHIP

WT.

LB/KGL D H* L D H*

Via plug in, 7 foot long exible three wire 16 gauge cord with molded plug.

Item no. MCCWD- ___ ________ ____ Provide______ _______( ) Cold Wall Evaporator Dual Access Milk Cooler(s), Kool Star model no. MCCWD-____ ____.

Milk cooler will be a dual access type and will be constructed of white painted steel on the exterior with galvanized steel interior. Doors to be stainless steel on the exterior with galvanized steel interior. Doors will also be locking and fold-back type. In addition, door will be equipped with gaskets, stainless steel hinges and a

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity. All specications subject to change without notice.

21720 South Wilmington Ave. • Suite 309 • Long Beach, CA 90810 P: 888-478-8600 • F: 310-513-8156 • www.koolstar.com

hold-open feature to secure during serving.

Cooler to be provided with four swivel casters (two locking) and an NSF-listed oor drain and thermometer. Additionally, cooler will contain heavy-duty epoxycoated oor racks and a reinforced base to maintain cooler integrity when fully loaded. Cabinet insulation will consist of 21/2" thick berglass. Door and cabinet top foamed-in-place with polyurethane insulation.

The refrigeration system will be self-contained, bottom mounted with a cold wall evaporator. System will contain R-134A refrigerant. The operating temperature will be 38°F (3°C).

Cooler to have standard limited four year extended compressor warranty and one year limited parts and labor warranty.

Cooler to be UL and C-UL listed as well as UL EPH classied.

NEMA 5-15P
