Kool Star MBSP27-8 User Manual
MBSP48-12
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________

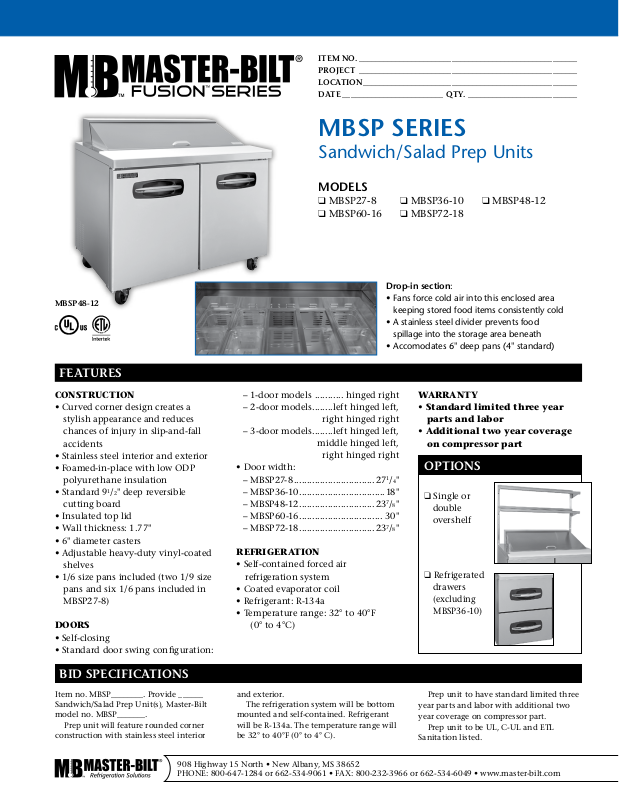

MBSP SERIES
Sandwich/Salad Prep Units
MODELS
❑ MBSP27-8 ❑ MBSP36-10 ❑ MBSP48-12
❑ MBSP60-16 ❑ MBSP72-18
Drop-in section:
• Fans force cold air into this enclosed area
keeping stored food items consistently cold
• A stainless steel divider prevents food
spillage into the storage area beneath
• Accomodates 6" deep pans (4" standard)
FEATURES
CONSTRUCTION
• Curved corner design creates a
stylish appearance and reduces
chances of injury in slip-and-fall
accidents.
• Stainless steel interior and exterior
• Foamed-in-place with low ODP
polyurethane insulation
• Standard 9
cutting board
• Insulated top lid
• Wall thickness: 1.77"
• 6" diameter casters
• Adjustable heavy-duty vinyl-coated
shelves
• 1/6 size pans included (two 1/9 size
pans and six 1/6 pans included in
MBSP27-8)
DOORS
• Self-closing
• Standard door swing configuration:
1
/2" deep reversible
– 1-door models ........... hinged right
– 2-door models........left hinged left,
right hinged right
– 3-door models........left hinged left,
middle hinged left,
right hinged right
• Door width:
– MBSP27-8 ............................... 27
– MBSP36-10 .................................18"
– MBSP48-12 ............................. 23
– MBSP60-16 ................................ 30"
– MBSP72-18 ............................. 23
REFRIGERATION
• Self-contained forced air
refrigeration system
• Coated evaporator coil
• Refrigerant: R-134a
• Temperature range: 32° to 40°F
(0° to 4°C)
1
7
7
/4"
/8"
/8"
WARRANTY
• Standard limited three year
parts and labor
• Additional two year coverage
on compressor part
OPTIONS
❑ Single or
double
overshelf
❑ Refrigerated
drawers
(excluding
MBSP36-10)
BID SPECIFICATIONS
Item no. MBSP________. Provide ______
Sandwich/Salad Prep Unit(s), Master-Bilt
model no. MBSP_______.
Prep unit will feature rounded corner
construction with stainless steel interior
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
and exterior.
The refrigeration system will be bottom
mounted and self-contained. Refrigerant
will be R-134a. The temperature range will
be 32° to 40°F (0° to 4° C).
Prep unit to have standard limited three
year parts and labor with additional two
year coverage on compressor part.
Prep unit to be UL, C-UL and ETL
Sanitation listed.
TECHNICAL SPECIFICATIONS
DIMENSIONS
(in.)
MODEL
MBSP27-8 271/230 421/2699 762 1080 115 3.2 1/5 1 1 (6) 1/6, (2) 1/9 6.8 24.9 212/96
MBSP36-10 363/830 421/2924 762 1080 115 3.6 1/5 2 2 (10) 1/6 9.4 31.4 268/122
MBSP48-12 481/430 421/21226 762 1080 115 7.9 3/8 2 2 (12) 1/6 12.7 42.5 304/138
MBSP60-16 603/830 421/21534 762 1080 115 7.9 3/8 2 2 (16) 1/6 16.0 52.4 344/156
MBSP72-18 72
*Height includes casters.
MBSP27-8
PLAN VIEW
3
/830 421/21838 762 1080 115 9.9 3/8 3 3 (18) 1/6 19.6 61.8 384/175
MBSP36-10
PLAN VIEW
DIMENSIONS
(mm)
MBSP48-12
PLAN VIEW
VOLTS AMPS
UNIT
H.P.
PLAN VIEW
NO. OF
DOORS
NO. OF
SHELVES
MBSP60-16
NO. OF
PANS
CAP.
SHIP
CU.
CU.
FT.
FT.
MBSP72-18
PLAN VIEW
SHIP
WT.
(LB/KG)L D H* L D H*
MBSP27-8
ELEVATION
VIEW
MBSP36-10
ELEVATION
VIEW
MBSP48-12
ELEVATION
VIEW
30"
22-1/4"
20-1/2"
48-1/8"
LISTINGS HOOKUP
All models via plug in, 9 foot long flexible
three wire 14/3 cord with molded plug.
MBSP60-16
ELEVATION
VIEW
12-3/8"
ALL MODELS
SIDE VIEW
MBSP72-18
ELEVATION
VIEW
NEMA 5-15P
2
