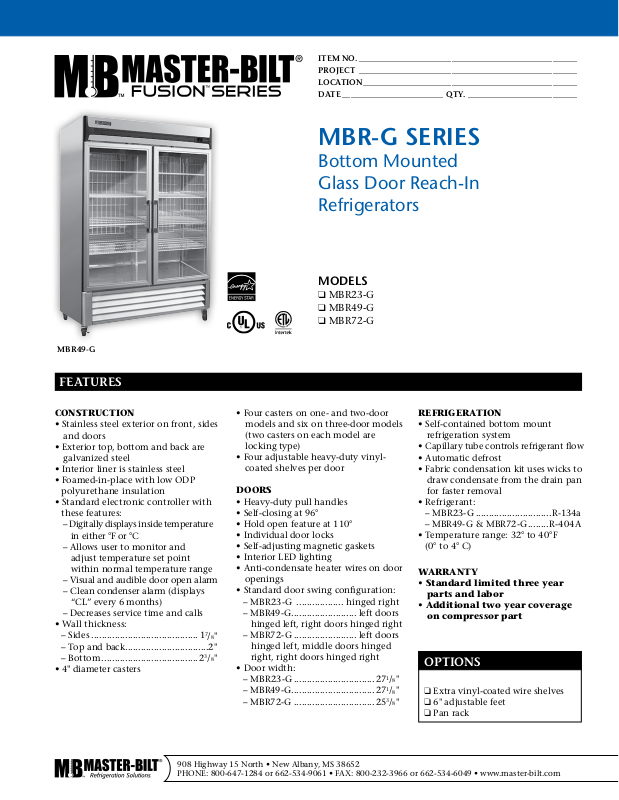

Kool Star MBR23-G User Manual
MBR49-G
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
MBR-G SERIES
Bottom Mounted
Glass Door Reach-In
Refrigerators
MODELS
❑ MBR23-G
❑ MBR49-G
❑ MBR72-G
FEATURES
CONSTRUCTION
• Stainless steel exterior on front, sides
and doors
• Exterior top, bottom and back are
galvanized steel
• Interior liner is stainless steel
• Foamed-in-place with low ODP
polyurethane insulation
• Standard electronic controller with
these features:
– Digitally displays inside temperature
in either °F or °C
– Allows user to monitor and
adjust temperature set point
within normal temperature range
– Visual and audible door open alarm
– Clean condenser alarm (displays
“CL” every 6 months)
– Decreases service time and calls
• Wall thickness:
– Sides ......................................... 1
– Top and back................................2"
– Bottom .....................................2
• 4" diameter casters
7
/8"
3
/8"
• Four casters on one- and two-door
models and six on three-door models
(two casters on each model are
locking type)
• Four adjustable heavy-duty vinylcoated shelves per door
DOORS
• Heavy-duty pull handles
• Self-closing at 96°
• Hold open feature at 110°
• Individual door locks
• Self-adjusting magnetic gaskets
• Interior LED lighting
• Anti-condensate heater wires on door
openings
• Standard door swing configuration:
– MBR23-G .................. hinged right
– MBR49-G......................... left doors
hinged left, right doors hinged right
– MBR72-G ........................ left doors
hinged left, middle doors hinged
right, right doors hinged right
• Door width:
– MBR23-G ...............................27
– MBR49-G................................ 27
– MBR72-G ...............................25
1
1
3
/8"
/8"
/8"
REFRIGERATION
• Self-contained bottom mount
refrigeration system
•
Capillary tube controls refrigerant flow
• Automatic defrost
• Fabric condensation kit uses wicks to
draw condensate from the drain pan
for faster removal
• Refrigerant:
– MBR23-G .............................R-134a
– MBR49-G & MBR72-G ........R-404A
• Temperature range: 32° to 40°F
(0° to 4° C)
WARRANTY
• Standard limited three year
parts and labor
• Additional two year coverage
on compressor part
OPTIONS
❑ Extra vinyl-coated wire shelves
❑ 6" adjustable feet
❑ Pan rack
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MBR-G SERIES
BOTTOM MOUNTED GLASS DOOR REACH-IN
REFRIGERATORS
DIMENSIONS
(in.)
MODEL
MBR23-G 273/8327/8833/4695 835 2127 115 5.0 3/8 1 4 223/4 x 227/823.0 46.1 312/142
MBR49-G
MBR72-G 78 327/8833/41980 835 2127 115 7.6 3/5 3 12 ** 70.0 124.1 675/307
*Depth includes door handle, height includes casters. **LH & RH shelf for 3 section models is 22
27-3/8"
23-5/8"
551/4327/8833/41400 835 2127 115 6.8 3/5 2 8 223/4 x 247/849.0 88.5 497/226
56-11/16"
27-13/16"
MBR23-G
PLAN VIEW
DIMENSIONS
(mm)
55-1/8"
51-3/8"
MBR49-G
PLAN VIEW
VOLTS AMPS
56-11/16"
27-13/16"
UNIT
H.P.
PLAN VIEW
NO. OF
DOORS
78"
74-3/16"
MBR72-G
STANDARD
NO. OF
SHELVES
SHELF SIZE
(in inches)
3
/4" x 227/8", center shelf is 223/4" x 253/4".
55"
26-1/8"
CAP.
CU.
FT.
SHIP
CU.
FT.
32-7/8"
29"
25"
SHIP
WT.
(LB/KG)L D* H* L D* H*
60-13/16"
77-13/16"
SIDE VIEW
LISTINGS
HOOKUP
Via plug in, 9.8 foot long flexible three wire
14/3 cord with molded plug.
NEMA 5-15P
BID SPECIFICATIONS
Item no. MBR_______-G. Provide ______
Bottom Mounted Glass Door Reach-in
Refrigerator(s), Master-Bilt model no.
MBR_______-G.
Reach-in will feature rounded corner
construction with stainless steel interior
and exterior. Top, bottom and back will
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
be galvanized steel. Reach-in will also be
equipped with an electronically controlled
monitoring system with door alarm function.
The refrigeration system will be bottom
mounted and self-contained. Reach-in will
use R-134a. The temperature range will be 32°
to 40°F (0° to 4° C).
Reach-in to have standard limited three
year parts and labor with additional two year
coverage on compressor part.
Reach-in to be ENERGY STAR qualified, UL,
C-UL and ETL sanitation listed.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
©2015 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
1464-4/15-web
