Kool Star MBPT44 User Manual

MBPT67

ITEM NO. ______________________________________________________

PROJECT ______________________________________________________

LOCATION _____________________________________________________

DATE _________________________ QTY. ___________________________

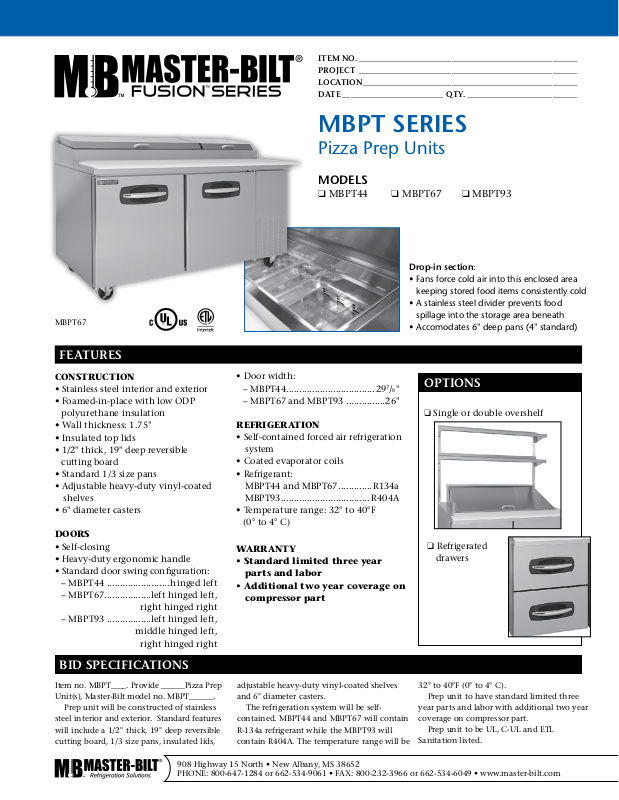

MBPT SERIES

Pizza Prep Units

MODELS

❑ MBPT44 ❑ MBPT67 ❑ MBPT93

Drop-in section:

• Fans force cold air into this enclosed area
keeping stored food items consistently cold

• A stainless steel divider prevents food
spillage into the storage area beneath

• Accomodates 6" deep pans (4" standard)

FEATURES

CONSTRUCTION

• Stainless steel interior and exterior

• Foamed-in-place with low ODP
polyurethane insulation

• Wall thickness: 1.75"

• Insulated top lids

• 1/2" thick, 19" deep reversible
cutting board

• Standard 1/3 size pans

• Adjustable heavy-duty vinyl-coated

shelves

• 6" diameter casters

DOORS

• Self-closing

• Heavy-duty ergonomic handle

• Standard door swing configuration:

– MBPT44 ........................ hinged left

– MBPT67 ..................left hinged left,

right hinged right

– MBPT93 .................left hinged left,

middle hinged left,
right hinged right

• Door width:

– MBPT44.................................. 29

– MBPT67 and MBPT93 ...............26"

REFRIGERATION

• Self-contained forced air refrigeration
system

• Coated evaporator coils

• Refrigerant:

MBPT44 and MBPT67 ............. R134a

MBPT93 .................................. R404A

• Temperature range: 32° to 40°F

(0° to 4° C)

WARRANTY

• Standard limited three year
parts and labor

• Additional two year coverage on
compressor part

7

/8"

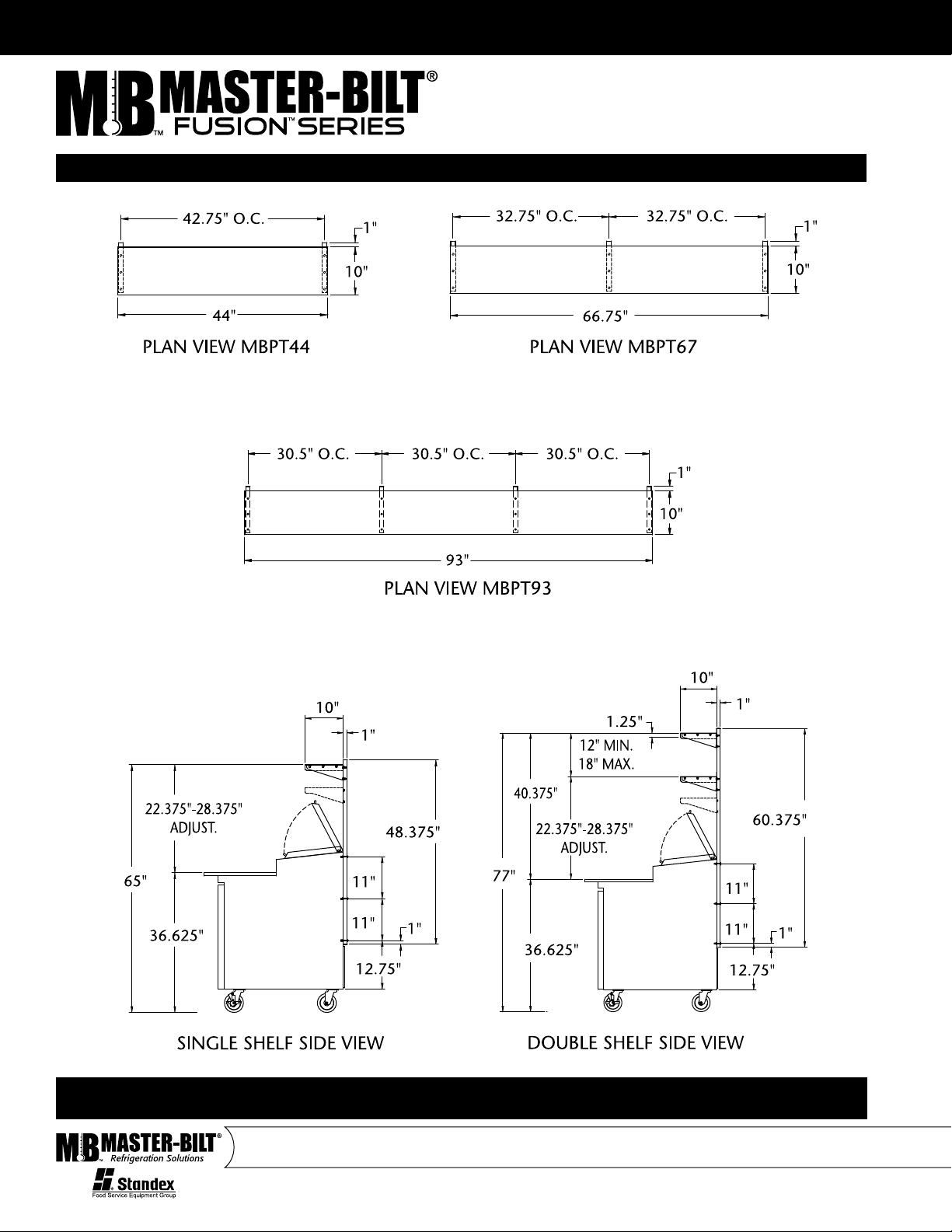

OPTIONS

❑ Single or double overshelf

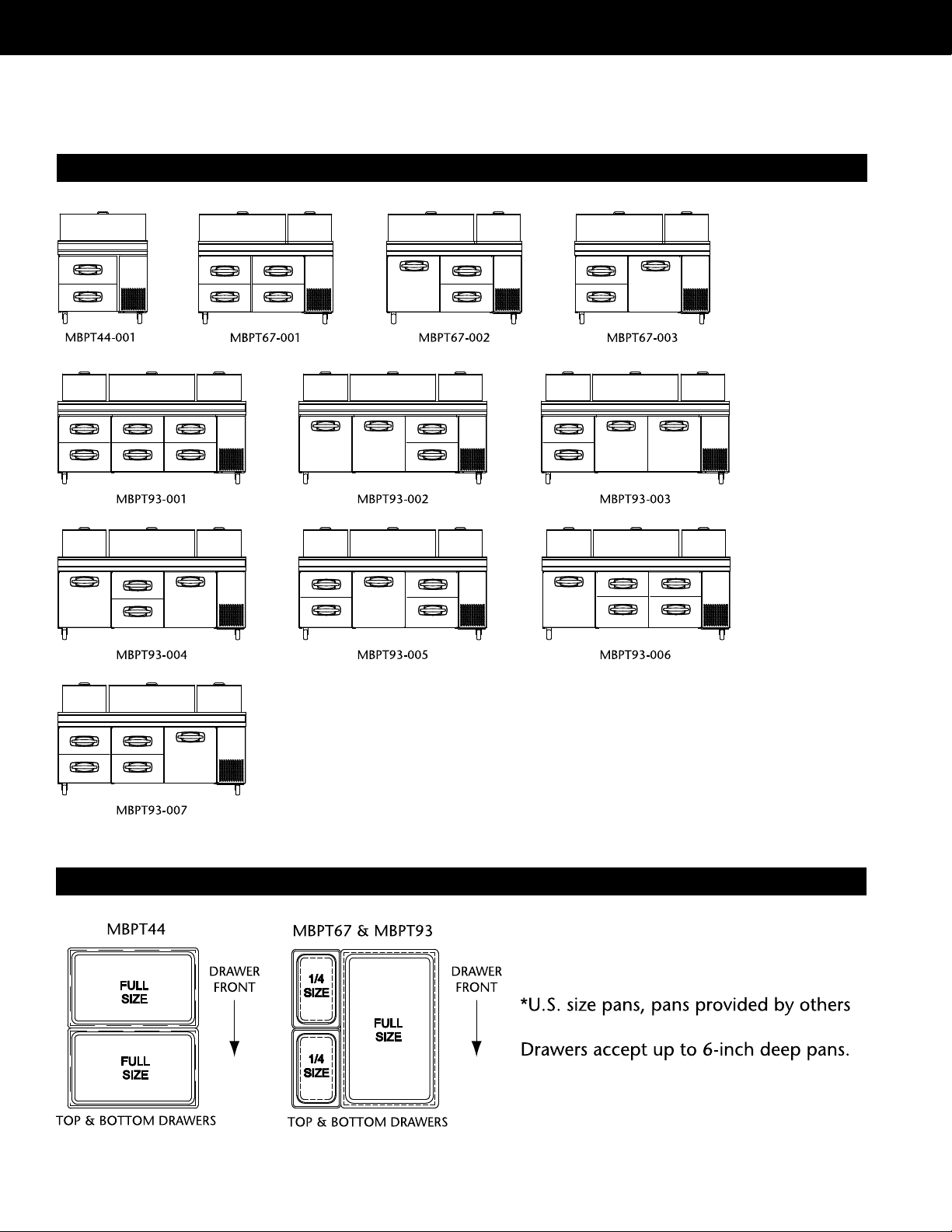

❑ Refrigerated

drawers

BID SPECIFICATIONS

Item no. MBPT____. Provide ______Pizza Prep
Unit(s), Master-Bilt model no. MBPT______.

Prep unit will be constructed of stainless
steel interior and exterior. Standard features
will include a 1/2" thick, 19" deep reversible
cutting board, 1/3 size pans, insulated lids,

908 Highway 15 North • New Albany, MS 38652
PHONE: [phone] or 662-534-9061 • FAX: [phone] or 662-534-6049 • www.master-bilt.com

adjustable heavy-duty vinyl-coated shelves
and 6" diameter casters.

The refrigeration system will be self­contained. MBPT44 and MBPT67 will contain
R-134a refrigerant while the MBPT93 will
contain R404A. The temperature range will be

32° to 40°F (0° to 4° C).

Prep unit to have standard limited three
year parts and labor with additional two year
coverage on compressor part.

Prep unit to be UL, C-UL and ETL
Sanitation listed.

TECHNICAL SPECIFICATIONS

DIMENSIONS

(in.)

MODEL

MBPT44 443/8361/2427/81127 927 1089 115 6.5 3/8 1 2 (6) 1/3 9.7 43.2 309/140
MBPT67 67 361/2427/81702 927 1089 115 6.5 3/8 2 4 (9) 1/3 17.8 64.4 548/249
MBPT93 93

*Depth includes cutting board. **Height includes casters.

1

/4361/2427/82369 927 1089 115 7.5 1/2 3 6 (12) 1/3 27.2 89.0 698/317

MBPT44 PLAN VIEW

DIMENSIONS

(mm)

UNIT

NO. OF

VOLTS AMPS

H.P.

DOORS

MBPT44 ELEVATION VIEW

NO. OF

SHELVES

NO. OF

PANS

35-1/2"

18-7/8"

1/2"

CAP.

CU.

FT.

15-1/8"

36-1/8"

3-1/2"

32-1/8"

SHIP

CU.

FT.

(LB/KG)L D* H** L D* H**

12-3/4"

28-1/4"

5"

SHIP

WT.

54-5/8"

41-7/8"

MBPT67 PLAN VIEW

MBPT93 PLAN VIEW

HOOKUP

All models via plug in, 9 foot long flexible
three wire 14/3 cord with molded plug.

MBPT67 ELEVATION VIEW

MBPT93 ELEVATION VIEW

NEMA 5-15P

2

SIDE VIEW ­ALL MODELS
