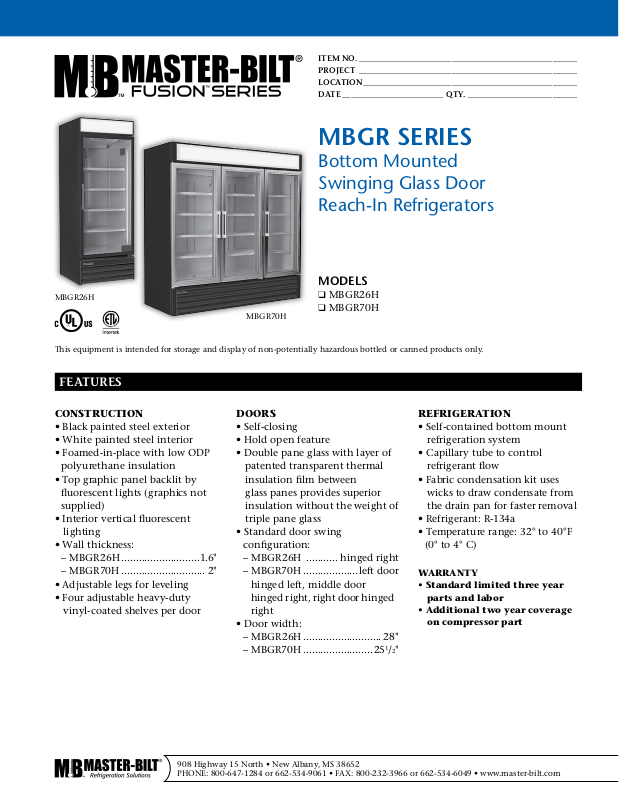

Kool Star MBGR26H User Manual
ITEM NO. ______________________________________________________
PROJECT ______________________________________________________
LOCATION _____________________________________________________
DATE _________________________ QTY. ___________________________
MBGR SERIES
Bottom Mounted
Swinging Glass Door
Reach-In Refrigerators
MODELS
MBGR26H
MBGR70H
This equipment is intended for storage and display of non-potentially hazardous bottled or canned products only.
❑ MBGR26H
❑ MBGR70H
FEATURES
CONSTRUCTION
• Black painted steel exterior
• White painted steel interior
• Foamed-in-place with low ODP
polyurethane insulation
• Top graphic panel backlit by
fluorescent lights (graphics not
supplied)
• Interior vertical fluorescent
lighting
• Wall thickness:
– MBGR26H ...........................1.6"
– MBGR70H ............................. 2"
• Adjustable legs for leveling
• Four adjustable heavy-duty
vinyl-coated shelves per door
DOORS
• Self-closing
• Hold open feature
• Double pane glass with layer of
patented transparent thermal
insulation film between
glass panes provides superior
insulation without the weight of
triple pane glass
• Standard door swing
configuration:
– MBGR26H ........... hinged right
– MBGR70H ...................left door
hinged left, middle door
hinged right, rig ht door hi nged
right
• Door width:
– MBGR26H ........................... 28"
– MBGR70H ........................25
1
/2"
REFRIGERATION
• Self-contained bottom mount
refrigeration system
• Capillary tube to control
refrigerant flow
• Fabric condensation kit uses
wicks to draw condensate from
the drain pan for faster removal
• Refrigerant: R-134a
• Temperature range: 32° to 40°F
(0° to 4° C)
WARRANTY
• Standard limited three year
parts and labor
• Additional two year coverage
on compressor part
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
TECHNICAL SPECIFICATIONS
MBGR SERIES
BOTTOM MOUNTED SWINGING GLASS DOOR
REACH-IN REFRIGERATORS
DIMENSIONS
(in.)
MODEL
MBGR26H 281/2331/479 724 845 2007 115 3.9 1/3 1 4 24.2 x 23.1 24.0 45.8 353/160
MBGR70H 78 33 791/21981 838 2019 115 11.9 3/5 3 12 25.2 x 22
*Depth includes door handle.
DIMENSIONS
(mm)
VOLTS AMPS
UNIT
H.P.
NO. OF
DOORS
NO. OF
SHELVES
STANDARD
SHELF SIZE
(in inches)
(center),
22 x 22.1
(left, right)
CAP.
SHIP
CU.
CU.
FT.
72.0 130.9 696/316
FT.
SHIP
WT.
(LB/KG)L D* H L D* H
MBGR26H
PLAN VIEW
MBGR26H
SIDE VIEW
MBGR70H
PLAN VIEW
MBGR70H
SIDE VIEW
LISTINGS HOOKUP
All models via plug in, 9.8 foot long
flexible three wire 14/3 cord with molded
plug.
This equipment is intended for storage
and display of non-potentially hazardous
bottled or canned products only.
NEMA 5-15P
BID SPECIFICATIONS
Item no. MBGR________. Provide ______
Bottom Mounted Glass Door Reach-in(s),
Master-Bilt model no. MBGR_______.
Reach-in will be constructed of black
painted steel exterior and white painted steel
interior. Standard features will include vinyl-
NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.
All specifications subject to change without notice.
coated welded wire shelves and doors with
double pane glass.
The refrigeration system will be bottom
mounted and self-contained. Refrigerant will
be R-134A. The temperature range will be 32°
to 40°F (0° to 4° C).
Reach-in to have standard limited three
year parts and labor with additional two year
coverage on compressor part.
Reach-in to be UL, C-UL and ETL
Sanitation listed.
908 Highway 15 North • New Albany, MS 38652
PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com
©2014 Master-Bilt Products, an unincorporated division of Standex International Corporation. All rights reserved. Printed in U.S.A.
1354-7/14-web
