Kontron VX3905 User Manual

Page 1
» VX3905 «
3U VPX PCI Express and Ethernet Switch User's Guide
CA.DT.A89-3e - October 2012
If it's embedded, it's Kontron.
Page 2
Preface
Publication Title: VX3905 User's Guide
Rev. Brief Description of Changes Date of Issue
3e Describe the microcontroller function and the VPX P1/P2 single
ended pins evolution.
Update the default manufacturing PCIe switch EEPROM content
2e Add of option: Ethernet only 11-2011
1e Update of sections 1.2 - Ordering Information and 1.4 - Firmware
Settings
0e Initial Issue (Preliminary) 07-2011
VX3905 User's Guide
Doc. ID: CA.DT.A89-3e
10-2012
07-2011
Copyright © 2012 Kontron AG. All rights reserved. All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Kontron and the Kontron logo and all other trademarks or registered trademarks are the property of their respective owners and are recognized. Specifications are subject to change without notice.
Page i CA.DT.A89-3e
Page 3
VX3905 User's Guide
Preface
Proprietary Note
This document contains information proprietary to Kontron. It may not be copied or transmitted by any means, disclosed to others, or stored in any retrieval system or media without the prior written consent of Kontron or one of its authorized agents.
The information contained in this document is, to the best of our knowledge, entirely correct. However, Kontron cannot accept liability for any inaccuracies or the consequences thereof, or for any liability arising from the use or application of any circuit, product, or example shown in this document.
Kontron reserves the right to change, modify, or improve this document or the product described herein, as seen fit by Kontron without further notice.
Trademarks
This document may include names, company logos and trademarks, which are registered trademarks and, therefore, proprietary to their respective owners.

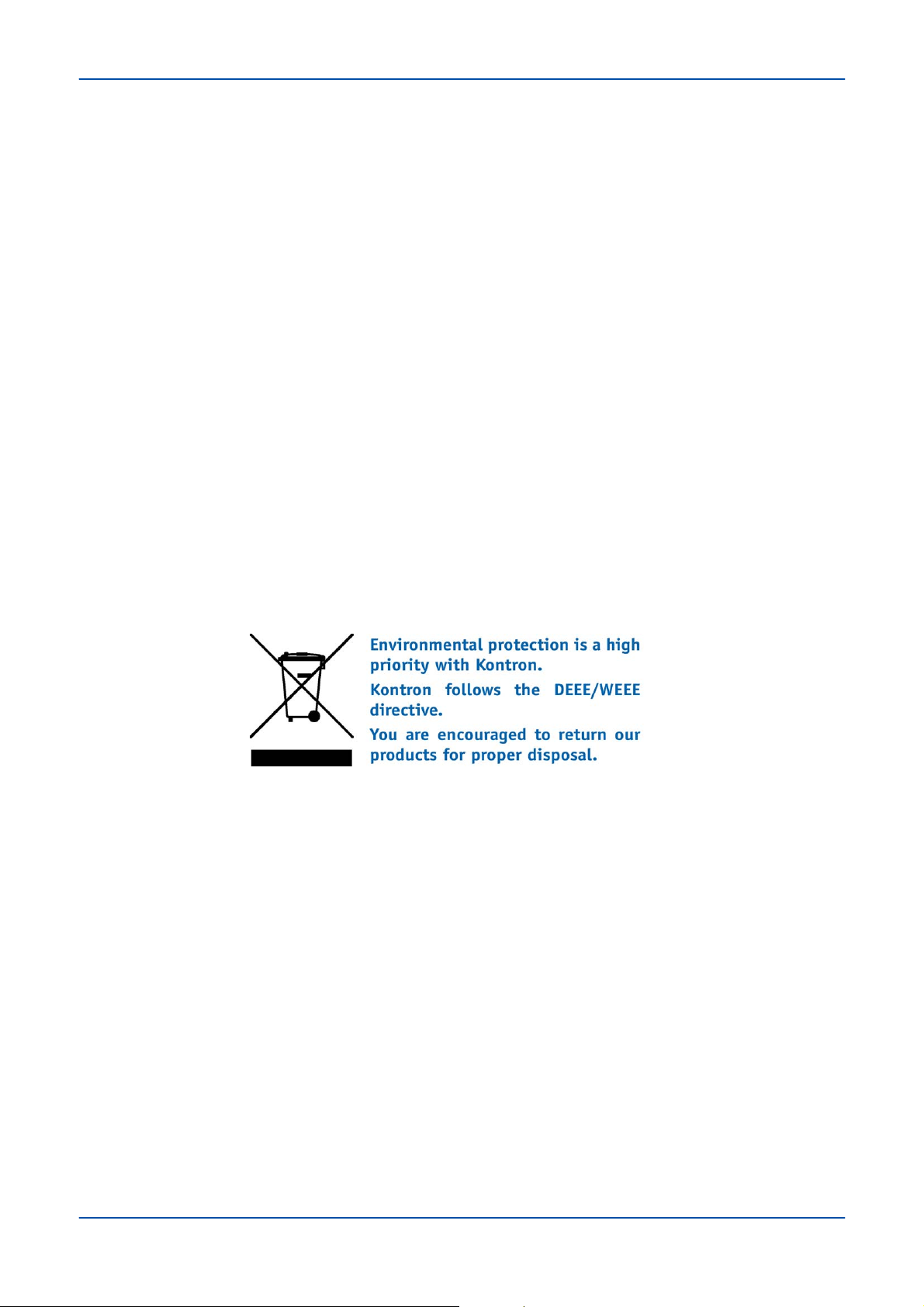

Environmental Protection Statement
This product has been manufactured to satisfy environmental protection requirements where possible. Many of the components used (structural parts, printed circuit boards, connectors, batteries, etc.) are capable of being recycled.
Final disposition of this product after its service life must be accomplished in accordance with applicable country, state, or local laws or regulations.
The Waste Electrical and Electronic Equipment (WEEE) Directive aims to:
> reduce waste arising from electrical and electronic equipment (EEE)
> make producers of EEE responsible for the environmental impact of their products, especially when they
become waste
> encourage separate collection and subsequent treatment, reuse, recovery, recycling and sound
environmental disposal of EEE
> improve the environmental performance of all those involved during the lifecycle of EEE
CA.DT.A89-3e Page ii
Page 4
Preface
VX3905 User's Guide
Conventions
This guide uses several types of notice: Note, Caution, ESD.
Note: this notice calls attention to important features or instructions.
Caution: this notice alert you to system damage, loss of data, or risk of personal injury.
ESD: This banner indicates an Electrostatic Sensitive Device.
All numbers are expressed in decimal, except addresses and memory or register data, which are expressed in hexadecimal. The prefix `0x' shows a hexadecimal number, following the `C' programming language convention.
The multipliers `k', `M' and `G' have their conventional scientific and engineering meanings of *103, *106 and *10 respectively. The only exception to this is in the description of the size of memory areas, when `K', `M' and `G' mean *210, *220 and *230 respectively.
9
When describing transfer rates, `k' `M' and `G' mean *103, *106 and *109 not *210 *220 and *230.
In PowerPC terminology, multiple bit fields are numbered from 0 to n, where 0 is the MSB and n is the LSB. PCI and CompactPCI terminology follows the more familiar convention that bit 0 is the LSB and n is the MSB.
Signal names ending with an asterisk (*) or a hash (#) denote active low signals; all other signals are active high.
Signal names follow the PICMG 2.0 R3.0 CompactPCI Specification and the PCI Local Bus 2.3 Specification.
For Your Safety
Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.
High Voltage Safety Instructions
Warning!
All operations on this device must be carried out by sufficiently skilled personnel only.
Caution, Electric Shock!
Before installing a not hot-swappable Kontron product into a system always ensure that your mains power is switched off. This applies also to the installation of piggybacks. Serious electrical shock hazards can exist during all installation, repair and maintenance operations with this product. Therefore, always unplug the power cable and any other cables which provide external voltages before performing work.
Page iii CA.DT.A89-3e
Page 5
VX3905 User's Guide
Preface
Special Handling and Unpacking Instructions
ESD Sensitive Device!
Electronic boards and their components are sensitive to static electricity. Therefore, care must be taken during all handling operations and inspections of this product, in order to ensure product integrity at all times
Do not handle this product out of its protective enclosure while it is not used for operational purposes unless it is otherwise protected.
Whenever possible, unpack or pack this product only at EOS/ESD safe work stations. Where a safe work station is not guaranteed, it is important for the user to be electrically discharged before touching the product with his/her hands or tools. This is most easily done by touching a metal part of your system housing.
It is particularly important to observe standard anti-static precautions when changing piggybacks, ROM devices, jumper settings etc. If the product contains batteries for RTC or memory backup, ensure that the board is not placed on conductive surfaces, including anti-static plastics or sponges. They can cause short circuits and damage the batteries or conductive circuits on the board.
General Instructions on Usage
In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the device, which are not explicitly approved by Kontron and described in this manual or received from Kontron’s Technical Support as a special handling instruction, will void your warranty.
This device should only be installed in or connected to systems that fulfill all necessary technical and specific environmental requirements. This applies also to the operational temperature range of the specific board version, which must not be exceeded. If batteries are present, their temperature restrictions must be taken into
account.
In performing all necessary installation and application operations, please follow only the instructions supplied
by the present manual.
Keep all the original packaging material for future storage or warranty shipments. If it is necessary to store or
ship the board, please re-pack it as nearly as possible in the manner in which it was delivered.
Special care is necessary when handling or unpacking the product. Please consult the special handling and unpacking instruction on the previous page of this manual.
CA.DT.A89-3e Page iv
Page 6
Table Of Contents
VX3905 User's Guide
Table Of Contents
Chapter 1 - General Presentation 1.................................................
1.1 Product Overview 1................................................................
1.2 Ordering Information 2..............................................................
1.3 Technical Specification 3............................................................
1.3.1 Power 3.......................................................................
1.3.2 Mechanics 3...................................................................
1.3.3 Environmental Specifications 3...................................................
1.3.4 Reliability 4....................................................................
1.4 Firmware Settings 5................................................................
1.4.1 Default Ethernet EEPROM switch setting 5.........................................
1.4.2 Default PCIe EEPROM switch setting 5............................................
Chapter 2 - Installation 7...........................................................
2.1 Safety Requirements 7..............................................................
2.2 VX3905 Identification 8.............................................................
2.3 VX3905 Configuration 9.............................................................
2.3.1 SW1 Microswitch Description 9...................................................
2.3.2 SW2 Microswitch Description 10...................................................
2.3.3 SW3 Microswitch Description 10...................................................
2.3.4 SW4 Microswitch Description 11...................................................
2.4 VX3905 Initial Installation Procedures 12...............................................
2.5 Standard Removal Procedures 13.....................................................
Chapter 3 - Functional Description 14................................................
3.1 Ethernet Switch 15..................................................................
3.2 PCI Express Switch 16...............................................................
3.3 Board Interfaces 18..................................................................
3.3.1 Status LEDs 18..................................................................
3.3.2 Front Panel Ports 19.............................................................
3.3.2.1 Copper Uplinks 19....................................................
3.3.2.2 PCIe x4 cable connector 20...........................................
3.3.3 Backplane Connectors 21.........................................................
3.3.3.1 P0 Connector 22.....................................................
3.3.3.2 P1 Connector 23.....................................................
3.3.3.3 P2 Connector 26.....................................................
3.4 Microcontroller Function 29...........................................................
Page v CA.DT.A89-3e
Page 7
VX3905 User's Guide
Table Of Contents
List Of Figures
Figure 1: VX3905 Simplified Block Diagram 1..................................................

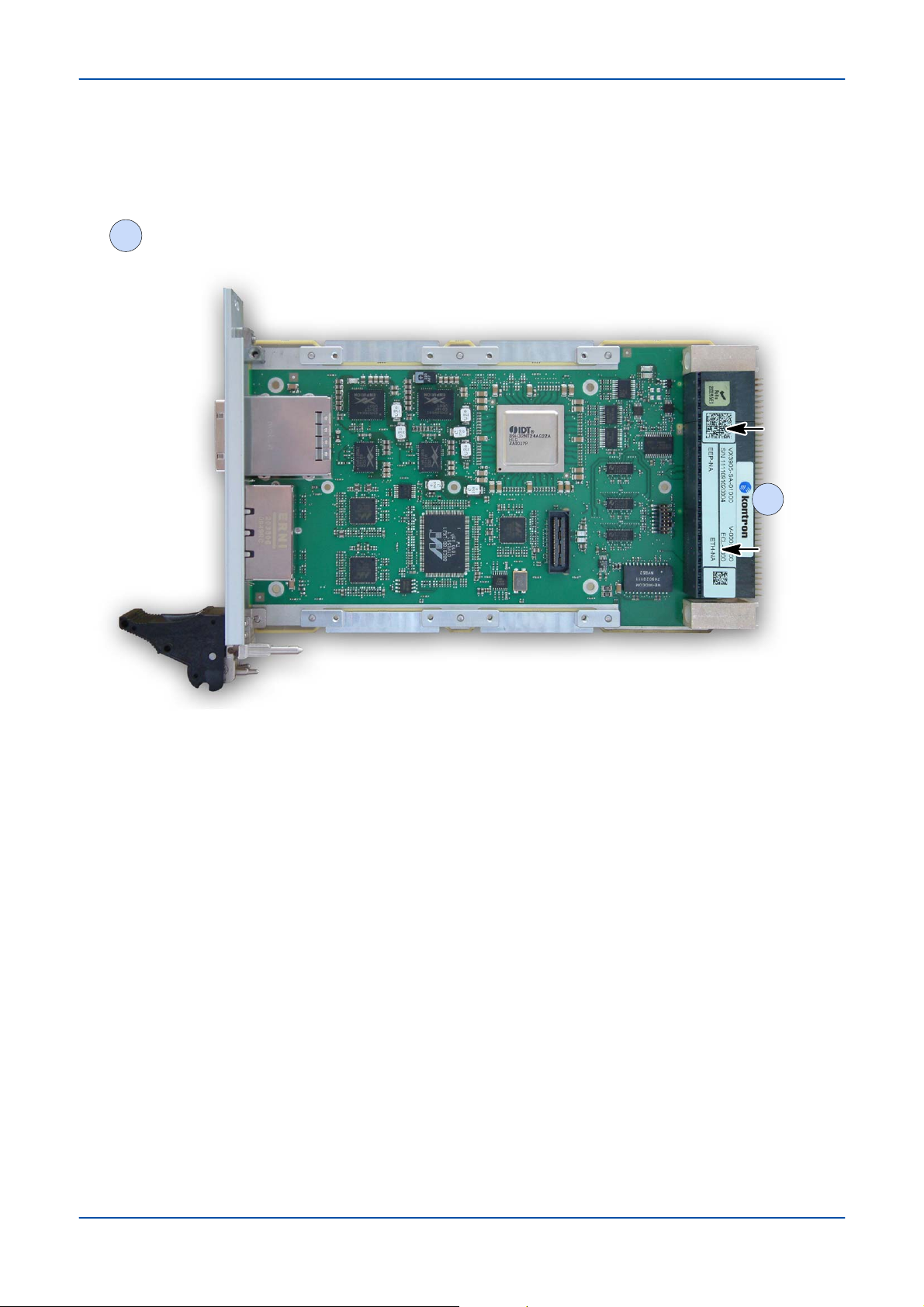

Figure 2: VX3905 Identification (Top Side) 8...................................................

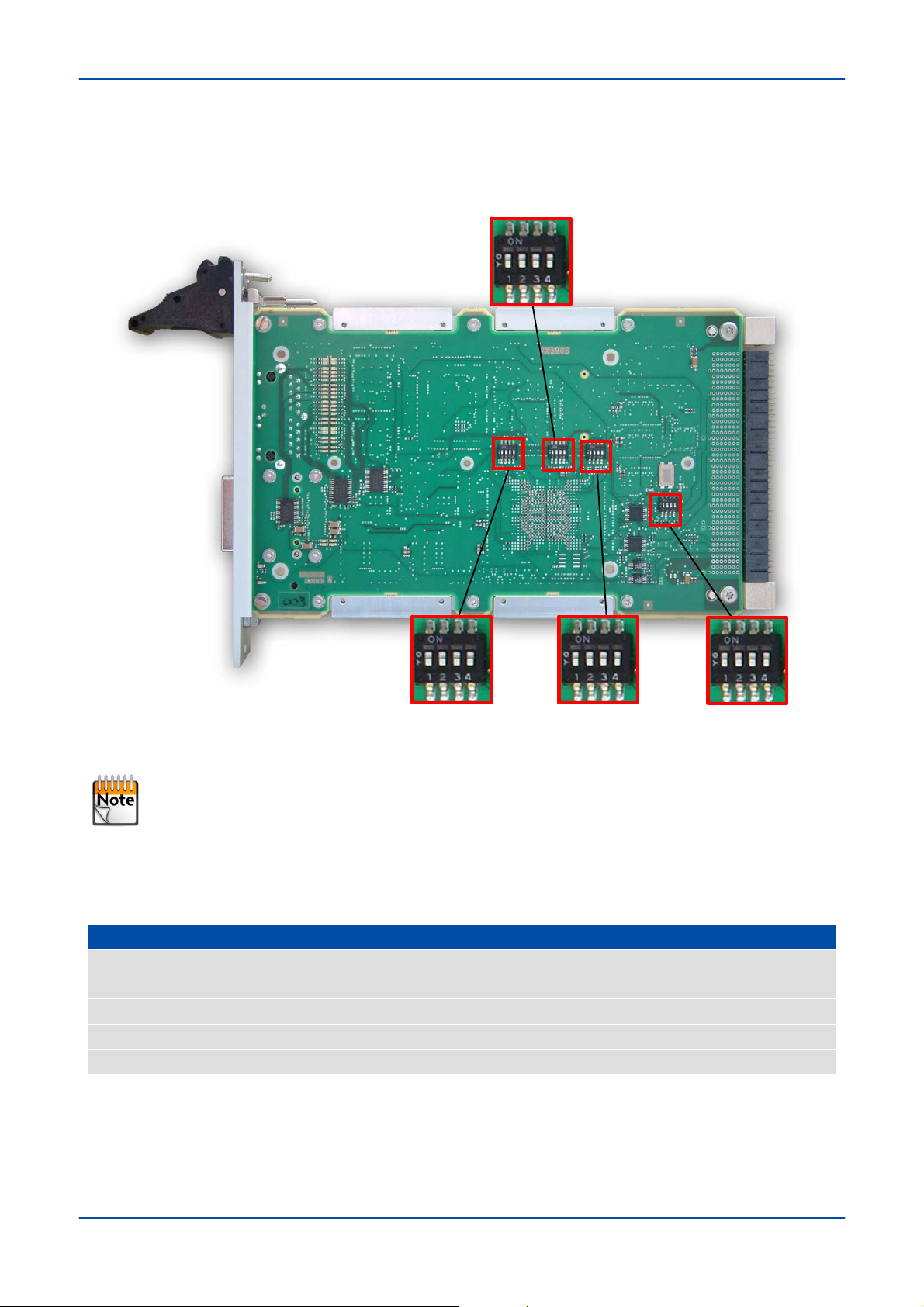

Figure 3: Microswitches Location 9...........................................................
Figure 4: Block Diagram VX3905 14...........................................................
Figure 5: Front Panel Status LEDs of the VX3905 18............................................

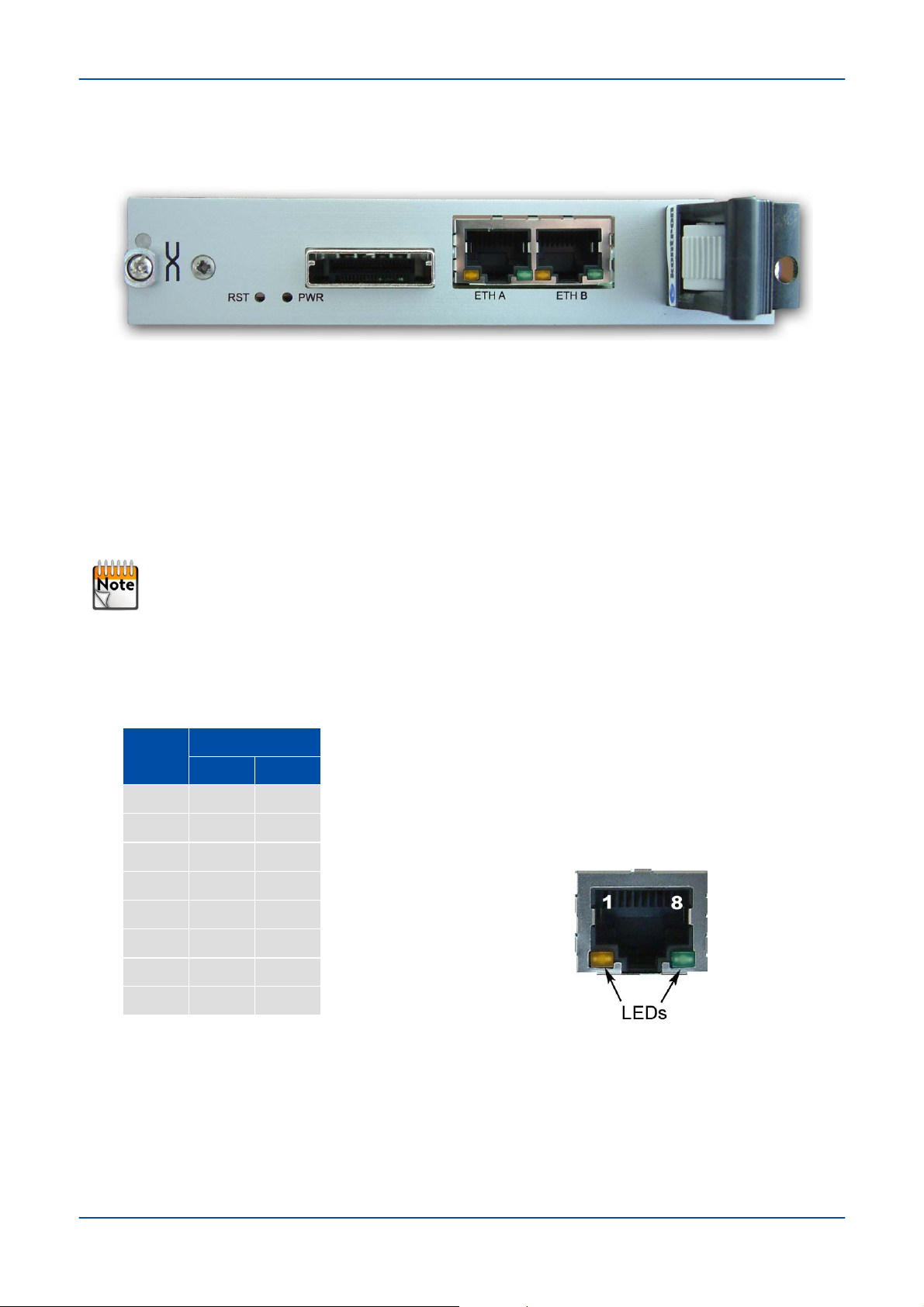

Figure 6: Front Panel Ports of the VX3905 19...................................................
Figure 7: Copper Uplinks Connector 19........................................................
Figure 8: Backplane Connectors 21............................................................

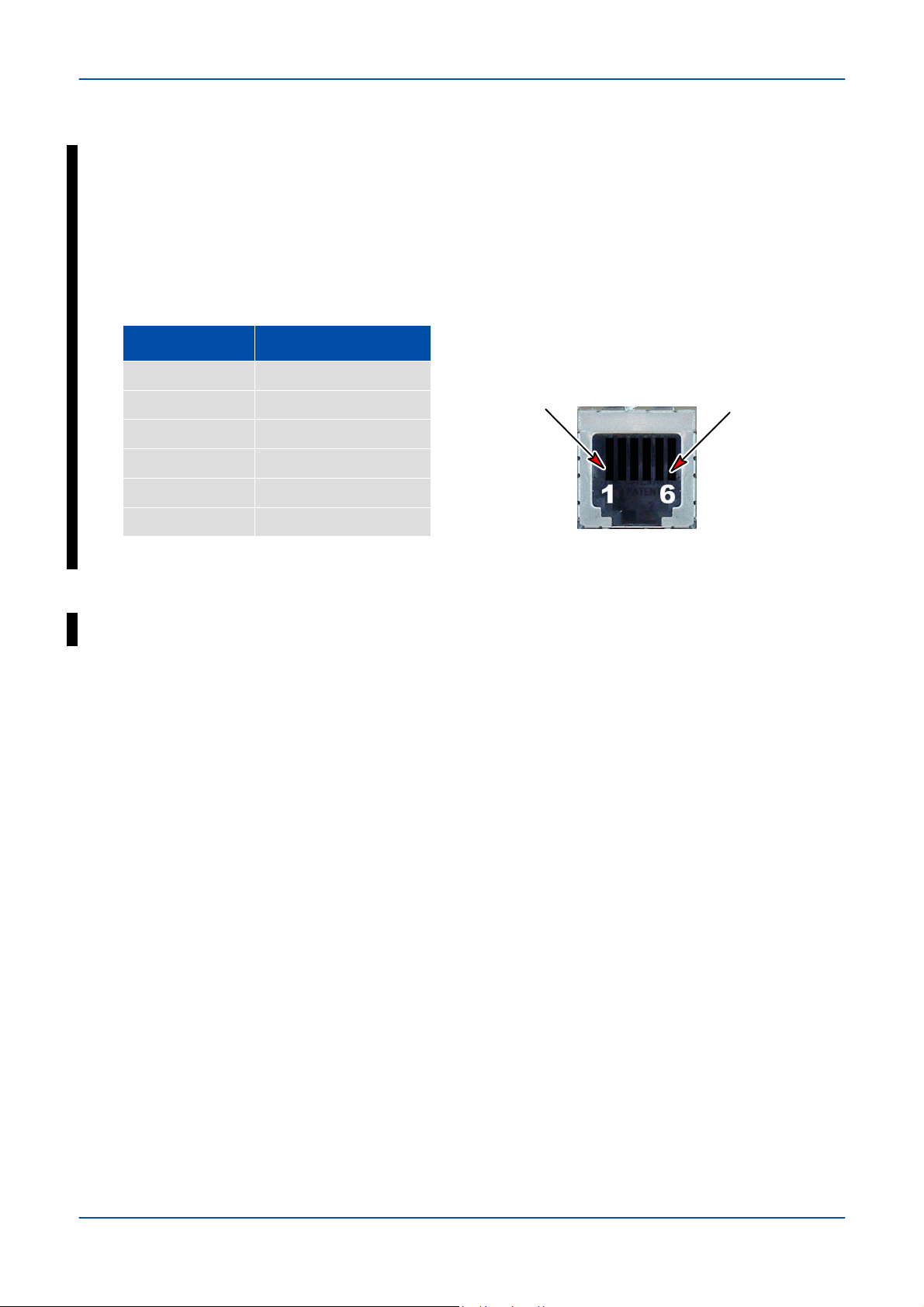

Figure 9: Serial Connector 29.................................................................
CA.DT.A89-3e Page vi
Page 8
Table Of Contents
VX3905 User's Guide
List Of Tables
Table 1: Environmental Specifications 3.......................................................
Table 2: VX3905 MTBF 4...................................................................
Table 3: SW1 Microswitch Description 9......................................................
Table 4: SW2 Microswitch Description 10......................................................
Table 5: SW3 Microswitch Description 10......................................................
Table 6: SW4 Microswitch Description 11......................................................
Table 7: 88E6185 Port Mapping 15............................................................
Table 8: PCIe Switch Port Mapping 17.........................................................
Table 9: Usage of GPIOs 17..................................................................
Table 10: Cooper Uplinks Connector Pin Assignment 19..........................................
Table 11: Ethernet LEDs Signification 20.......................................................
Table 12: PCIe Cable Interface Pin Assignment 20..............................................
Table 13: VPX Connector P0 Wafer Assignment 22..............................................
Table 14: VPX Connector P0 Signal Definition 22................................................
Table 15: VPX Connector P1 Wafer Assignment (Rear I/O type 0) 23..............................
Table 16: VPX Connector P1 Signal Definition 24................................................
Table 17: VPX Connector P1 pin assignment changes depending on rear I/O type order code 25......
Table 18: VPX Connector P2 Wafer Assignment (Rear I/O type 0) 26..............................
Table 19: VPX Connector P2 Signal Definition 27................................................
Table 20: VPX Connector P2 pin assignment changes depending on rear I/O type order code 28......
Table 21: Serial Connector Pin Assignment 29..................................................
Page vii CA.DT.A89-3e
Page 9
VX3905 User's Guide
General Presentation

Chapter 1 - General Presentation

1.1 Product Overview

The VX3905 is a standard 3U OpenVPX Fabric featuring PCI Express switching and unmanaged Gigabit Ethernet switching. It is compliant with OpenVPX slot profile SLT3-SWH-6F6U-14.4.1 and module profile MOD3-SWH-6F6U-16.4.1-3 while offering additional configuration options.
The module is available in air cooling and conduction cooling environments from 0°C/55°C to -40°C/+85°C. It can be used for switching Ethernet and/or PCie express protocols in a 3U OpenVPX environment, but is also adequate in an hybrid 6U/3U environment where it can be used to switch PCIe and Ethernet ports of 6U payloads.
The basic product configuration on the VPX connectors is for switching from the backplane 6 PCIe gen2 x4 ports and 6 1000BASE-BX Ethernet 1G serdes ports. The front panel includes 2 1000BASE-T Ethernet RJ45 inter faces connected to the Ethernet switch and one x4 PCIe standard cable connector (downstream port) attached to the PCIe switch. Moreover, one 1000BASE-T Ethernet link is available on the rear on user defined pins of P2 VPX connector.
Additional configuration flexibility accessible by the user includes defining the rear PCIe lanes as x2 ports or x1 ports instead of x4 ports, thereby increasing the number of available ports for a given number of lanes. It is also possible to partition the PCIe switch in multiple smaller independent switches to accommodate multiple root com plex controlling their own PCIe adapters on a standard centralized backplane topology.
When needed, some dedicated ordering codes are defined to increase the number of PCIe lanes on the back plane from 24 up to 32, while lowering the number of the Ethernet ports available. In the same philosophy, some PCIe ports on the rear VPX connectors could be replaced by a PCIe common reference clock generator and/or by SATA incoming links when it is desirable to host an onboard Hard Disk Drive on the VPX switch module.

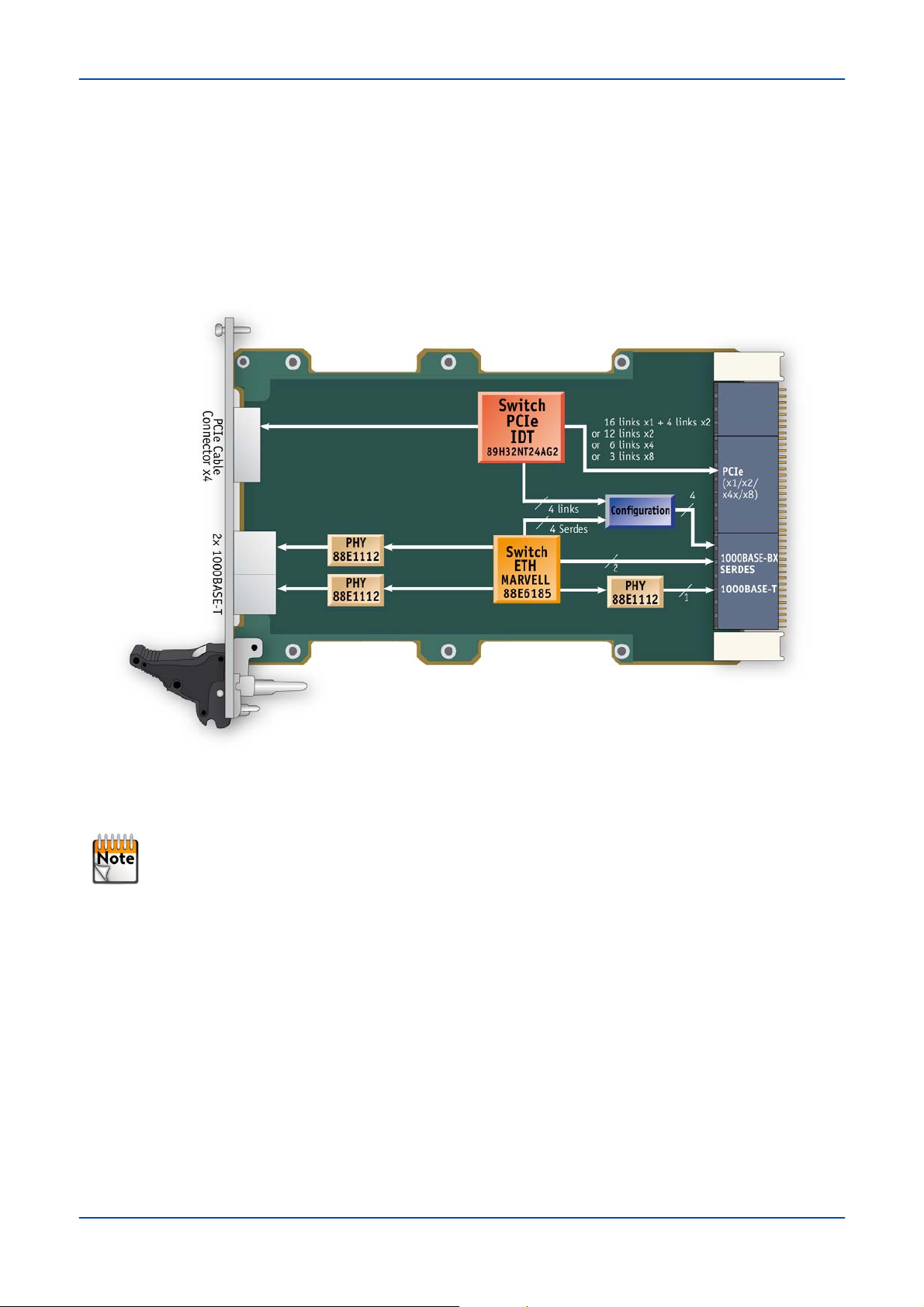

A simplified bloc diagram of the VX3905 architecture in the basic configuration is shown at Figure 1.
Figure 1: VX3905 Simplified Block Diagram
CA.DT.A89-3e Page 1
Page 10
General Presentation

1.2 Ordering Information

Order code definition
DESCRIPTION Code VX3905- SA - 0 1 0 0 0
SA WA RA RC
Environment Class :
Standard (Air)
Extended Temperature
Rugged Convection Cooled
Rugged Conduction Cooled
REDI Covers X X 0
Front Panel
4HP Front Panel (0.8 inch)
5HP Front Panel (1 inch)
No Front Panel
Rear IO Type
24*PCIe Lanes/6*1000BASE-BX/1*1000BASE-T
28*PCIe Lanes/2*1000BASE-BX/1*1000BASE-T
32*PCIe Lanes/no Ethernet ports
22*PCIe Lanes/2*SATA Links/6
*1000BASE-BX/1*1000BASE-T
20*PCIe Lanes/8*CCLK/6*1000BASE-BX/1
*1000BASE-T
18*PCIe Lanes/8*CCLK/2*SATA Links/6*
1000BASE-BX/1*1000BASE-T
no PCIe lanes/6*1000BASE-BX/1*1000BASE-T
X
X
XXX
X
X
XSA
X
X
X
VX3905 User's Guide
WA
RA
RC
0
1
N
0
1
2
S
A
B
E
Reserved
Reserved
Coating X (*) (*) (*) V Add V suffix only when not default
(*) Default
Preferred order code: VX3905-SA-01000
Whenever possible, the preferred order code should be used. Otherwise, minimum deviation from the preferred order code should apply, and availability should be checked.
Page 2 CA.DT.A89-3e
Page 11
VX3905 User's Guide
General Presentation

1.3 Technical Specification

1.3.1 Power

Supply voltages:
> 5 Volts only
Power consumption of the VX3905:
> Idle (no links): 11W
> Typical: 14W
> Maximum: 20W

1.3.2 Mechanics

> 3U VPX board occupying 1 slot
> 100 mm (H) x 160 mm (D)
> The SA Air-Cooled board uses standard VPX front panel (0.8 inch or 1 inch depending on order code).
> Weight: SA build 250g, RC build 280g

1.3.3 Environmental Specifications

ENVIRONMENTAL SPECIFICATIONS
SA - Standard Commercial RC - Rugged Conduction-Cooled
Conformal Coating Optional Standard
Airflow 1 m/s ( 2.6 CFM) N.A.
Temperature VITA 47-Class AC1 VITA 47-Class CC4
Cooling Method Convection Conduction
Operating 0°C to +55°C -40°C to +85°C
Storage -45°C to +85°C -45°C to +85°C
Vibration Sine (Operating) 2g / 20-500 Hz
acceleration / frequency range
Random VITA 47-Class V1 VITA 47-Class V3
Shock (Operating) 20g / 11 ms
peak accel. / shock duration half sine
Altitude (Operating) -1,640 to 60,000 ft -1,640 to 60,000 ft
Relative Humidity 90% non-condensing
95% non-condensing when coated
5g / 20-2,000 Hz acceleration / frequency range
40g / 20 ms peak accel. / shock duration half sine
95% non-condensing
Table 1: Environmental Specifications
CA.DT.A89-3e Page 3
Page 12
General Presentation
VX3905 User's Guide

1.3.4 Reliability

The predicted MTBF according MIL-HDBK217F-2 standard are:
GB NS ARW AIC
25°C 40°C 25°C 40°C 55°C 40°C
500 937 h 356 933 h 96 444 h 79 248 h 18 484 h 76 663 h
Table 2: VX3905 MTBF
Calculations are made according to the standard MIL-HDBK217F-2 for following types of environment:
> Ground Benign (GB)
> Naval Sheltered (NS),
> Air Rotary Wing (ARW)
> Air Inhabited Cargo (AIC)
Page 4 CA.DT.A89-3e
Page 13
VX3905 User's Guide
General Presentation

1.4 Firmware Settings

The PCie switch and the Ethernet switch devices are highly configurable . Both devices come with a power up default configuration that satisfies most of the applications. The PCie switch includes a number of user settable micro switches to further specify the main operating environments such as PCIe port sizes.
For some applications requiring more precise power up settings, it is possible to program the PCIe switch EEPROM through a software utility provided by Kontron, and running on a Kontron CPU card attached to the upstream PCIe port of the switch.
If you want to proceed to EEPROMs content changes, make sure that during the programmation, the NVMRO (Non Volatile Memory Read Only) signal from the backplane is set to 0. Alternatively, the on board NVMRO micro switch on SW4 can be set to on.

1.4.1 Default Ethernet EEPROM switch setting

The default EEPROM code set at the factory only configures the appropriate Ethernet switch ports as 1000BASE-Bx serdes or 1000BASE-T/SGMII according to the hardware fixed wiring of these ports. The binary content is the following:
# set the port 1, 2, 4, 5, 7, 8, 9 in serdes mode # bit 15:14 to 11 for reg20 # bit 6 to 1 and bit 2:0 to 101 for reg0 # $Id: sweeprom_serdes.xxd,v 1.3 2010/04/28 12:25:34 rod Exp $ 0000000: f6d4 c403 f6c0 0045 ffff

1.4.2 Default PCIe EEPROM switch setting

The default PCIe EEPROM switch setting alters the micro switch configuration by providing the port LEDs I2C address of GPIO expander, for the PCIe switch to update automatically the status LEDs of the ports. It also turn off the front orange LED as an indication that the PCIe switch has correctly downloaded its EEPROM. Finally, it sets Subsystem ID and vendor ID to Kontron IDs. The binary content is the following:
0x0003E000 0x00000008 ;SWCTL register with Register Unlock[3:3] enabled 0x0003F1A8 0x4e404800 ; activate trafic LEDs 0x0003F178 0x00000040 ; set GPIO dir to turn off front orange reset LED 0x0003F174 0x00000040 ; set GPIO value to turn off front orange reset LED 0x000000F4 0x90101059 ; SSID and SSVID values 0x000000C0 0xC803F001 ; Power MGMT capabilities pointing to F0 0x0003E000 0x00000000 ; SWCTL register with Register Unlock[3:3] disabled
CA.DT.A89-3e Page 5
Page 14
General Presentation
VX3905 User's Guide
Kontron can provide a Linux utility named switch_3905_cfg to alter the default PCIe switch EEPROM content. This software is provided "as is" with no support on the specific EEPROM configuration results that could be built. The EEPROM binary files must be generated by the IDT utility PCIeBrowser.
Some examples are provided below to operate the switch_3905_cfg utility:
./switch_3905_cfg --help . Usage ./switch_3905_cfg -E OR -e OR -W [-f <Filename> ] [-c] Options are : [-E ] : Read the content of the EEPROM into a file [-e ] : Displays the EEPROM content into an ASCII format [-W ] : WRITE the content of a binary DATA file into the EEPROM [-f ] : Specify the FILE NAME which will contain the DATA of the EEPROM ( DEFAULT = /tmp/EEPROMBinFile ) [-c ] : Control the validity of the EEPROM content [-d ] : Enable the debug mode
./switch_3905_cfg -E EEPROM data read successfully into file /tmp/EEPROMBinFile
od -x /tmp/EEPROMBinFile 0000000 6aff 00fc 4048 e04e ffe3 ffff ffff ffff 0000020 ffff ffff ffff ffff ffff ffff ffff ffff
./switch_3905_cfg -W -c EEPROM updated from the binary file /tmp/EEPROMBinFile Control successful
Page 6 CA.DT.A89-3e
Page 15
VX3905 User's Guide
Installation

Chapter 2 - Installation

The VX3905 has been designed for easy installation. However, the following standard precautions, installations procedures, and general information must be observed to ensure proper installation and to preclude damage to the board, other system components, or injury to personnel.

2.1 Safety Requirements

The following safety precautions must be observed when installing or operating the VX3905. Kontron assumes no responsibility for any damage resulting from
Due care should be exercised when handling the board due to the fact that the heat sink can get very hot. Do not touch the heat sink when installing or removing the board.
In addition, the board should not be placed on any surface or in any form of storage container until such time as the board and heat sink have cooled down to room temperature.
ESD Equipment!
This VPX board contains electrostatically sensitive devices. Please observe the necessary precautions to avoid damage to your board:
4 Discharge your clothing before touching the assembly. Tools must be discharged before use.
4 When unpacking a static-sensitive component from its shipping carton, do not remove the
component's antistatic packing material until you are ready to install the component in a computer. Just before unwrapping the antistatic packaging, be sure you are at an ESD workstation or grounded. This will discharge any static electricity that may have built up in your body.
4 When transporting a sensitive component, first place it in an antistatic container or packaging.
4 Handle all sensitive components at an ESD workstation. If possible, use antistatic floor pads and
workbench pads.
4 Handle components and boards with care. Don't touch the components or contacts on a board. Hold a
board by its edges or by its metal mounting bracket. Do not handle or store system boards near strong electrostatic, electromagnetic, magnetic, or radioactive fields.
CA.DT.A89-3e Page 7
Page 16
Installation

2.2 VX3905 Identification

The VX3905 boards are identified by labels fitted to the top side.
"Order Code, Variant, Serial Number and E.C. Level" labels (Text and 2D versions available).
A
VX3905 User's Guide
2D
A

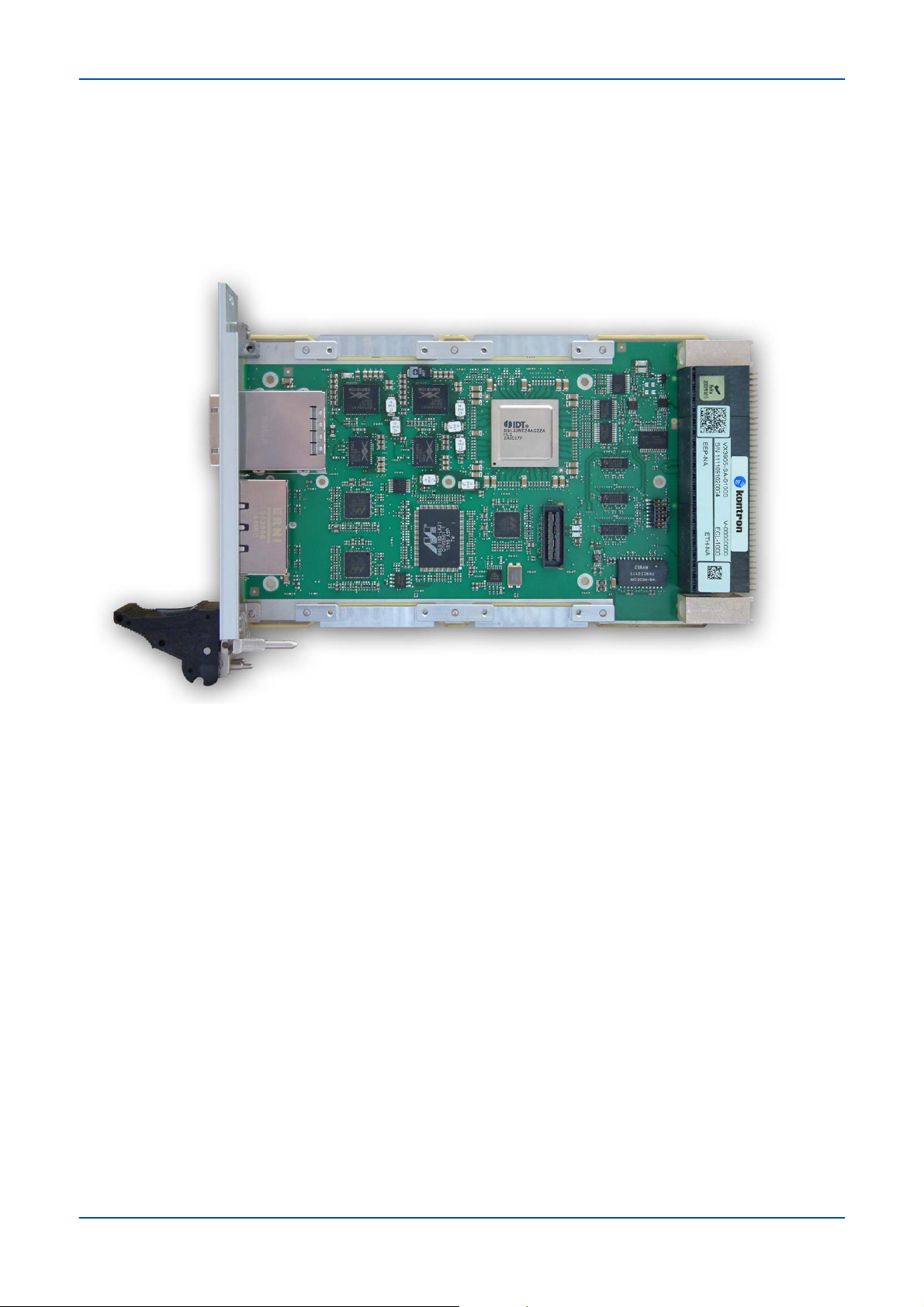

Figure 2: VX3905 Identification (Top Side)
Text
Page 8 CA.DT.A89-3e
Page 17
VX3905 User's Guide

2.3 VX3905 Configuration

Installation
SW4 MicroSwitch
SW3 MicroSwitch SW2 MicroSwitch
Figure 3: Microswitches Location
Microswitches are not used for the Ethernet only option, except SW4.3.

2.3.1 SW1 Microswitch Description

Function Description
1 - Reserved
2 - Reserved Shall be OFF
3 - Reserved Shall be OFF
4 - Reserved Shall be OFF
Table 3: SW1 Microswitch Description
Shall be OFF
SW1 MicroSwitch
CA.DT.A89-3e Page 9
Page 18
Installation

2.3.2 SW2 Microswitch Description

Function Description
SW 2.4 2.3 2.2 2.1
OFF OFF OFF OFF
OFF OFF OFF ON
OFF OFF ON OFF Single PCIe switch partition, use EEPROM content at JUMP 0
OFF OFF ON ON Single PCIe switch partition, use EEPROM content at JUMP 1
Other combinations Reserved
Table 4: SW2 Microswitch Description
when the EEPROM content is used, the switch registers are first configured as per the hardware straps SW3, then the EEPROM content may be used to alter these registers to a different configuration before the switch is ready to operate.
Single PCIe switch partition, ignore EEPROM content.
Use this configuration to ignore the EEPROM content or when there is a doubt on the EEPROM content.
Single PCIe switch partition, use EEPROM content.
Factory default configuration.
VX3905 User's Guide

2.3.3 SW3 Microswitch Description

Function Description
SW 3.4 3.3 3.2 3.1
OFF OFF OFF OFF
OFF OFF ON OFF
ON ON ON OFF
Other combinations
Table 5: SW3 Microswitch Description
All PCIe ports of the switch are x4 (total of 8 switch ports)
All PCIe ports of the switch are x2 (total of 16 switch ports). If used, the PCIe x4 cable port becomes a non standard 2 port x2 cable (with a single set of sideband signals like reset* and com mon reference clock).
16 PCIe ports x1 (P1 wafers 9-16 and P2 wafers 1-8), all other PCIe ports x2.
Reserved; PCIe x8 ports and non uniform port sizes are accessible through programmation of the PCIe EEPROM
Page 10 CA.DT.A89-3e
Page 19
VX3905 User's Guide

2.3.4 SW4 Microswitch Description

Function Description
SW4.1 Reserved, shall be OFF
SW4.2 Reserved, shall be OFF
SW4.3
SW4.4
Table 6: SW4 Microswitch Description
Installation
OFF: write protect of EEPROMs according VPX backplane
NVMRO signal
ON: allow write to EEPROMs
OFF: enable PCIe switch slave i2c interface to be visible on
the VPX (VPX i2c pins P0-B5 for Clock and P0-A5 for Data)
ON: PCIe switch slave i2C interface not connected to VPX This setting can be overridden with software or EEPROM by programming GPIO7 and GPIO8 of the PCIe switch.
CA.DT.A89-3e Page 11
Page 20
Installation
VX3905 User's Guide

2.4 VX3905 Initial Installation Procedures

The following procedures are applicable only for the initial installation of the VX3905 in a system. Procedures for standard removal operations are found in section 2.5 Standard Removal Procedures
To perform an initial installation of the VX3905 in a system proceed as follows:
1. Ensure that the safety requirements indicated in section 2.1 Safety Requirements are observed.
Failure to comply with the instruction below may cause damage to the board or result in improper system operation.
2. Ensure that the board is properly configured for operation in accordance with application requirements before installing. For information regarding the configuration of the VX3905 refer to the CLI Reference Manual.
Care must be taken when applying the procedures below to ensure that neither the VX3905 nor other system boards are physically damaged by the application of these procedures.
3. To install the VX3905 perform the following:
> Ensure that no power is applied to the system before proceeding.
> Carefully insert the board into the slot designated by the application requirements for the board until it
makes contact with the backplane connectors.
DO NOT push the board into the backplane connectors. Use the ejector handles to seat the board into the backplane connectors.
> Using both ejector handles, engage the board with the backplane. When the ejector handles are
locked, the board is engaged.
> Fasten the front panel retaining screws.
> Connect all external interfacing cables to the board as required.
> Ensure that the board and all required interfacing cables are properly secured.
4. The VX3905 is now ready for operation.
Page 12 CA.DT.A89-3e
Page 21
VX3905 User's Guide
Installation

2.5 Standard Removal Procedures

To remove the board proceed as follows:
1. Ensure that the safety requirements indicated in section 2.1 Safety Requirements are observed.
Care must be taken when applying the procedures below to ensure that neither the VX3905 nor other system boards are physically damaged by the application of these procedures.
2. Ensure that no power is applied to the system before proceeding.
3. Disconnect any interfacing cables that may be connected to the board.
4. Unscrew the front panel retaining screws.
Due care should be exercised when handling the board due to the fact that the heat sink can get very hot. Do not touch the heat sink when changing the board.
5. Disengage the board from the backplane by first unlocking the board ejection handles and then by pressing the handles as required until the board is disengaged.
6. After disengaging the board from the backplane, pull the board out of the slot.
7. Dispose of the board as required.
CA.DT.A89-3e Page 13
Page 22
Functional Description

Chapter 3 - Functional Description

The board is composed of the following building blocks:
> Ethernet Switch
> PCI Express Switch
VX3905 User's Guide
Figure 4: Block Diagram VX3905
For clarity, configurations with 32 PCIe lanes on the backplane (no Ethernet), with incomming SATA links, with no PCIe lanes or with PCIe common reference clock generator on the backplane are not represented on the diagram. Please refer to the VPX connector pin assignment tables for these configurations.
Page 14 CA.DT.A89-3e
Page 23
VX3905 User's Guide
Functional Description

3.1 Ethernet Switch

The Gigabit Ethernet switch device is a Marvell 88E6185. The 88E6185 is a 10 port highly integrated multilayer Ethernet switch with the following Features:
> Up to 10 ports, 1 GbE
> 8K MAC address entries with automatic learning and aging
> 802.1Q VLAN support for full 4096 VLAN IDs
Table 7 describes the Ethernet switch port mapping
Ports Connectivity Interface
CH0 Front RJ-45, ETH B 1000BASE-T
CH1 P2 wafer 9 1000BASE-BX
CH2 P2 wafer 10 1000BASE-BX
CH3 Front RJ-45, ETH A 1000BASE-T
CH4 P2 wafer 11 1000BASE-BX
CH5 P2 wafer 12 1000BASE-BX
CH6 P2 wafer 15-16 1000BASE-T
CH7 P2 wafer 13 1000BASE-BX
CH8 P2 wafer 14 1000BASE-BX
CH9 P2 single ended contact 15/13/11/9
(1)
CH9 is available only for VX3905 with minimum EC Level 30000
(1)
1000BASE-BX
Table 7: 88E6185 Port Mapping
CA.DT.A89-3e Page 15
Page 24
Functional Description
VX3905 User's Guide

3.2 PCI Express Switch

The PCI Express switch device is a 89H32NT24AG2 from IDT. It is a 32 lanes 24 ports PCIe gen2 switch device with the following features:
> up to 32 lanes, 24 ports, PCIe gen2 and gen1
> up to 256 Gbits/s switching capacity
> 128 Bytes to 2 KBytes payload size
> low latency cut-through architecture
> port size configurability from x2 to x8 on all lanes, x1 capability on 16 lanes
> supports automatic lane reversal
> automatic per port link width negociation
This section does not apply to the Ethernet only version of VX3905 (rear I/O option E).
Table 8 below describes PCIe switch port mapping.
Switch Device port_lane OpenVPX Signal Name
(1)
PE0_0 PCIE01-0 P1.1
PE0_1 PCIE01-1 P1.2
PE1_0 PCIE01-2 P1.3
PE1_1 PCIE01-3 P1.4
PE2_0 0/1/2/S: PCIE02-0 P1.5
PE2_1 0/1/2/S: PCIE02-1 P1.6
PE3_0 0/1/2/S: PCIE02-2 P1.7
PE3_1 0/1/2/S: PCIE02-3 P1.8
PE23_0 0/1/2/A: PCIE03-0 P1.9
PE22_0 0/1/2/A: PCIE03-1 P1.10
PE21_0 PCIE03-2 P1.11
PE20_0 PCIE03-3 P1.12
PE19_0 PCIE04-0 P1.13
PE18_0 PCIE04-1 P1.14
PE17_0 PCIE04-2 P1.15
PE16_0 PCIE04-3 P1.16
PE15_0 PCIE05-0 P2.1
PE14_0 PCIE05-1 P2.2
PE13_0 PCIE05-2 P2.3
PE12_0 PCIE05-3 P2.4
PE11_0 PCIE06-0 P2.5
PE10_0 PCIE06-1 P2.6
PE9_0 PCIE06-2 P2.7
PE8_0 PCIE06-3 P2.8
VPX Wafer Front PCIe Connector
(1)
Page 16 CA.DT.A89-3e
Page 25
VX3905 User's Guide
Functional Description
Switch Device port_lane
(1)
PE7_1 1/2: PCIE07-0 P2.9
PE7_0 1/2: PCIE07-1 P2.10
PE6_1 1/2: PCIE07-3 P2.11
PE6_0 1/2: PCIE07-4 P2.12
PE5_1 2: PCIE08-0 P2.13 0/1/A/B/S: PCIE08-0
PE5_0 2: PCIE08-1 P2.14 0/1/A/B/S: PCIE08-1
PE4_1 2: PCIE08-2 P2.15 0/1/A/B/S: PCIE08-2
PE4_0 2: PCIE08-3 P2.16 0/1/A/B/S: PCIE08-3
(1): the signal name may be preceded by the rear I/O type order codes when the presence of this signal depends
VPX WaferOpenVPX Signal Name
Front PCIe Connector
(1)
on it.
Table 8: PCIe Switch Port Mapping
The upstream port is always port 0 starting on wafer 1 of VPX connector P1; its width varies depending on the micro-switch settings or the EEPROM content. If the EEPROM content declares more than a single switch partition, there may be multiple upstream ports.
The PCIe switch features 9 General Purpuse Inputs/Outputs (GPIO) accessible from the upstream root complex port. Table 9 below indicates the usage of these GPIOs. By default, all GPIOs are set as high impedance inputs after reset.
GPIO number Description
GPIO 0/1/2: Connected to microwire serial interface of Ethernet switch EEPROM, respectively DO/
DI/CK. May be used to reprogram the default Ethernet EEPROM. The Ethernet section of the VX3905 should be kept in reset while reprogramming the EEPROM, see GPIO 5. The Backplane NVMRO signal or the NVMRO microswitch should allow EEPROM writes. The EEPROM is of type M93S66. The software should manually sequence the microwire signals to perform an access.
GPIO 3/4: Connected respectively to MDIO_CPU/MDC_CPU SMI bus of the ethernet switch. When
used, drive actively 0 or keep in high impedance for getting 1 with the external pull up resistors, for voltage compatibility.
GPIO 5: Ethernet section reset of VX3905. Drive to 0 to activate the reset. Drive 1 or do not drive to
release reset. The card reset from the VPX (SYSRESET* or MASKABLE RESET*) also reset the Ethernet section.
GPIO 6: Input (when not driven): 0 indicates a PCIe cable device is not present; 1 indicates the
presence of a PCIe device on the x4 cable interface.
Output: drive 0 to activate the PCIe cable reset* output. Otherwise, keep high impedance input mode.
GPIO 7/8: Output: drive 0 to disable PCIe switch slave SMB/I2C interface from respectively VPX SMB
0 and 1. Microswitch SW4.4 might also be used to disconnect the PCIe switch slave SMB/I2C interface from the VPX SMB 0.
Output: drive 1 to connect the PCIe switch slave interface SMB/I2C to respectively VPX SMB 0 or 1. Do not drive both GPIO 7 and 8 to 1.
Output high impedance: PCIe switch slave interface SMB/I2C connected to VPX SMB 0 or disconnected according to SW4.4 microswitch.
Input: 1 if the PCIe switch slave interface is connected to SMB 0, respectively SMB 1. 0 otherwise.
When enabled, the PCIe switch slave SMB/I2C interface will have a seven bit I2C address of 0x76 if the slot geographical address bit GA0 indicates an odd slot number, or 0x77 if the slot geographical address bit GA0 indicates an even slot number.
Table 9: Usage of GPIOs
CA.DT.A89-3e Page 17
Page 26
Functional Description

3.3 Board Interfaces

3.3.1 Status LEDs

LEDs
Figure 5: Front Panel Status LEDs of the VX3905
VX3905 User's Guide
Status LEDs
> RST LED: orange LED, ON when the board is in reset state, or when the PCIe x4 cable interface is reset by
software from GPIO 6.
> PWR LED: green LED, ON when the VPX +5V power is present and the internal VX3905 voltages have
reached their normal operating states.
Page 18 CA.DT.A89-3e
Page 27
VX3905 User's Guide
Functional Description

3.3.2 Front Panel Ports

Figure 6: Front Panel Ports of the VX3905
> 2x 10/100/1000BASE-T for GbE front panel Interfaces (RJ45 connectors), see section 3.3.2.1 “Copper
Uplinks” page 19.
> 1 PCIe x4 cable interface, see section 3.3.2.2 “PCIe x4 cable connector” page 20
3.3.2.1 Copper Uplinks
The Ethernet transmission operates using a CAT5 cable with a maximum length of 100 m.
The VX3905-SA supports two 10/100/1000BASE-T RJ45 fabric switch uplinks to the front panel. The switch is connected to the RJ45 connectors with integrated magnetics and status LEDs on the front panel via external PHYs.
The RJ-45 connectors have the following pin assignment.
PIN
1 I/O BI_DA+
2 I/O BI_DA-
3 I/O BI_DB+
4 I/O BI_DC+
5 I/O BI_DC-
6 I/O BI_DB-
7 I/O BI_DD+
1000BASE-T
I/O SIGNAL
Speed Link/Activity
8 I/O BI_DD-
Table 10: Cooper Uplinks Connector Pin Assignment
CA.DT.A89-3e Page 19
Figure 7: Copper Uplinks Connector
Page 28
Functional Description
Ethernet LEDs Signification
VX3905 User's Guide
STATUS SPEED LED
Yellow
Ethernet Link is not established OFF OFF
10/100 Mbps Ethernet Link Established ON ON
Ethernet Link Activity BLINK BLINK
1000 Mbps Ethernet Link Established OFF ON
Ethernet Link Activity OFF BLINK
ACTIVITY LED
Green
Table 11: Ethernet LEDs Signification
3.3.2.2 PCIe x4 cable connector
The PCIe cable interface is compliant with PCI Express External Cabling Specification Revision 1.0, for x4 width interface. It is a 38 pin connector, the pin assignment is shown in Table 12 below. The function is not available when the rear I/O ordering code is 2. This connector is not present on the Ethernet only version of VX3905.
A B
1 GND GND
2 PCIE08-TD3+ PCIE08-RD3+
3 PCIE08-TD3- PCIE08-RD3-
4 GND GND
5 PCIE08-TD2+ PCIE08-RD2+
6 PCIE08-TD2- PCIE08-RD2-
7 GND GND
8 PCIE08-TD1+ PCIE08-RD1+
9 PCIE08-TD1- PCIE08-RD1-
10 GND GND
11 PCIE08-TD0+ PCIE08-RD0+
12 PCIE08-TD0- PCIE08-RD0-
13 GND GND
14 PCIE08-CLK+ PWR
15 PCIE08-CLK- PWR
16 GND GND
17 GND GND
18 CPRSNT* N.C.
19 CPWRON CPERST*
Table 12: PCIe Cable Interface Pin Assignment
Page 20 CA.DT.A89-3e
Page 29
VX3905 User's Guide
Functional Description

3.3.3 Backplane Connectors

The complete 3U VPX connector configuration comprises three connectors named P0 to P2.
> P0: 8-wafer 7-row connector.
> P1 to P2: 16-wafer 7-row differential connectors.
P0
P1
Figure 8: Backplane Connectors
P2
CA.DT.A89-3e Page 21
Page 30
Functional Description
3.3.3.1 P0 Connector
P0 Wafer Assignment
VX3905 User's Guide
P0
Wafer
1 NC
2 NC
3 +5V +5V +5V NC +5V +5V +5V
4 SMB1 CLK SMB1 DAT GND NC
5 N.C.
6 N.C.
7 N.C.
8 GND N.C.
CASE GND
* signal active when low
ROW G ROW F ROW E ROW D ROW C ROW B ROW A
(+12V)
(+12V)
(GAP*)
(GA3*)
(TCK)
NC
(+12V)
NC
(+12V)
N.C.
(GA4*)
N.C.
(GA2*)
GND PCIe_CLK+
(REF_CLK-)
NC
(+12V)
NC
(+12V)
GND N.C.
GND N.C.
(TDO)
N.C.
(REF_CLK+)
NC NC
NC NC
(-12V_AUX)
(3V3_AUX)
(-12V_AUX)
PCIe_CLK+
(TDI)
GND N.C.
NC
(+3V3)
(+3V3)
GND SYSRESET* NVMRO
GND SMB0 CLK SMB0 DAT
GND N.C.
(+3V3)
NC
(+3V3)
(GA1*)
GND N.C.
(TMS)
N.C.
(AUX_CLK-)
(AUX_CLK+)
NC
(+3V3)
NC
(+3V3)
GA0*
N.C.
(TRST*)
GND
Table 13: VPX Connector P0 Wafer Assignment
P0 Signal Definition
MNEMONIC SIGNAL DEFINITION
+5V +5 Volts DC power (VS3 VPX supply)
GA0* Geographical Address Pin 0, used to determined slave i2c address of PCIe switch
GND Ground
N.C. (Signal) Not Connected, (Signal) is the VPX/OpenVPX standard signal on this pin
NVMRO Non-Volatile Memory Read Only. When asserted (logical 1), prevents any non-volatile
memory from being updated.
PCIe_CLK+/- 100 MHz PCIe Common Reference Clock Input, optional
SMB0 System Management Bus 0, I2C protocol
SMB1 System Management Bus 1, I2C protocol
SYSRESET* System Reset. Input and open collector output.
Table 14: VPX Connector P0 Signal Definition
Page 22 CA.DT.A89-3e
Page 31
VX3905 User's Guide
Functional Description
3.3.3.2 P1 Connector
P1 Wafer Assignment
Depending on the manufacturing option Rear I/O type, the P1 wafer assigment differs.
Table 15 details the P1 wafer assignment Rear I/O type 0 standard OpenVPX default option: VITA65 slot profile SLT3-SWH-6F6U-14.4.1 and module profile MOD3-SWH-6F6U-16.4.1-3.
Table 17 list the P1 pin assignment changes when another configuration is used.
P1
Wafer
1
2 GND PCIE01-TD1- PCIE01-TD1+ GND PCIE01-RD1- PCIE01-RD1+ GND
3
4 GND PCIE01-TD3- PCIE01-TD3+ GND PCIE01-RD3- PCIE01-RD3+ GND
5
6 GND PCIE02-TD1- PCIE02-TD1+ GND PCIE02-RD1- PCIE02-RD1+ GND
7
8 GND PCIE02-TD3- PCIE02-TD3+ GND PCIE02-RD3- PCIE02-RD3+ GND
9
10 GND PCIE03-TD1- PCIE03-TD1+ GND PCIE03-RD1- PCIE03-RD1+ GND
11
ROW G ROW F ROW E ROW D ROW C ROW B ROW A
N.C.
(GDiscrete1)
N.C.
(P1-VBAT)
N.C.
(SYS-CON*)
N.C.
(Reserved)
MSMBCLK
(UD)
MSMBDAT
(UD)
GND PCIE01-TD0- PCIE01-TD0+ GND PCIE01-RD0- PCIE01-RD0+
GND PCIE01-TD2- PCIE01-TD2+ GND PCIE01-RD2- PCIE01-RD2+
GND PCIE02-TD0- PCIE02-TD0+ GND PCIE02-RD0- PCIE02-RD0+
GND PCIE02-TD2- PCIE02-TD2+ GND PCIE02-RD2- PCIE02-RD2+
GND PCIE03-TD0- PCIE03-TD0+ GND PCIE03-RD0- PCIE03-RD0+
GND PCIE03-TD2- PCIE03-TD2+ GND PCIE03-RD2- PCIE03-RD2+
12 GND PCIE03-TD3- PCIE03-TD3+ GND PCIE03-RD3- PCIE03-RD3+ GND
(UD)
Reset*
(1)
GND PCIE04-TD0- PCIE04-TD0+ GND PCIE04-RD0- PCIE04-RD0+
GND PCIE04-TD2- PCIE04-TD2+ GND PCIE04-RD2- PCIE04-RD2+
13
14 GND PCIE04-TD1- PCIE04-TD1+ GND PCIE04-RD1- PCIE04-RD1+ GND
15
16 GND PCIE04-TD3- PCIE04-TD3+ GND PCIE04-RD3- PCIE04-RD3+ GND
CASE GND
* signal active when low
Ethreset*
Maskable
Table 15: VPX Connector P1 Wafer Assignment (Rear I/O type 0)
CA.DT.A89-3e Page 23
Page 32
Functional Description
VX3905 User's Guide
MNEMONIC SIGNAL DEFINITION
PCIExx-TDyy+/­PCIExx-RDyy+/-
MaskableReset* Optional reset input for this module. May be left unconnected if not used. Same effect as
EthReset* Copy of the internal Reset* signal applied to the Ethernet switch and PHYs.
MSMBCLK, MSMBDAT
N.C. (Signal) Not Connected, (Signal) is the VPX/OpenVPX standard signal on this pin
(UD) Pin defined as User Defined by the VPX/OpenVPX standard
GND Ground
Reserved Reserved. Do not connect.
PCI Express transmit and receive differential pairs as seen from the point of view of the VX3905. These ports are numbered as x4 PCIe ports as described in the OpenVPX standard. When the switch is configured for x2 operation, then each xx port is replaced by two ports made of the first two lanes followed the two last lanes. In a similar principle, the ports can be configured as x8. For x1 operation, only lanes belonging to wafer 9 to 16 have the capabilities to operate as 8 x1 ports, the first 8 lanes remaining in x2 mode at least.
SYSRESET* P0 input. Unlike SYSRESET*, MaskableReset* is generally not bussed across backplane slots, allowing individual card reset.
Copy of VX3905 internal Master I2C bus of the PCIe switch device. May be used to duplicate PCIe activity LEDs on the rear, or to implement other utility fonctions controlled by the PCIe switch on its master I2C interface, such as PCIe hot swap signalling.
Table 16: VPX Connector P1 Signal Definition
The P1 connector is not equipped on the Ethernet only version of VX3905 (rear I/O option E)
Page 24 CA.DT.A89-3e
Page 33
VX3905 User's Guide
Functional Description
Table 17 below describes changes superseding P1 pin assignment of Table 15 for rear I/O type order codes A, B or S only.
P1
Wafer
1
2
3
4
5 A/B: CCLK0- A/B: CCLK0+ A/B: CCLK1- A/B: CCLK1+
6 A/B: CCLK2- A/B: CCLK2+ A/B: CCLK3- A/B: CCLK3+
7 A/B: CCLK4- A/B: CCLK4+ A/B: CCLK5- A/B: CCLK5+
8 A/B: CCLK6- A/B: CCLK6+ A/B: CCLK7- A/B: CCLK7+
9 B/S: SATA0T- B/S: SATA0T+ B/S: SATA0R- B/S: SATA0R+
10 B/S: SATA1T- B/S: SATA1T+ B/S: SATA1R- B/S: SATA1R+
11
12
13
14
ROW G ROW F ROW E ROW D ROW C ROW B ROW A
15
16
CASE GND
Table 17: VPX Connector P1 pin assignment changes depending on rear I/O type order code
It is recommended to use the SATA link 0 when using the SATA carrier option B or S.
CA.DT.A89-3e Page 25
Page 34
Functional Description
VX3905 User's Guide
3.3.3.3 P2 Connector
P2 Wafer Assignment
Depending on the manufacturing option Rear I/O type the P2 wafer assignment differs.
Table 18 details the P2 wafer assignment Rear I/O type 0 standard OpenVPX default option: VITA65 slot profile SLT3-SWH-6F6U-14.4.1 and module profile MOD3-SWH-6F6U-16.4.1-3.
Table 20 list the P2 pin assignment changes when another configuration is used
P2
Wafer
1
2 GND PCIE05-TD1- PCIE05-TD1+ GND PCIE05-RD1- PCIE05-RD1+ GND
3
4 GND PCIE05-TD3- PCIE05-TD3+ GND PCIE05-RD3- PCIE05-RD3+ GND
5
6 GND PCIE06-TD1- PCIE06-TD1+ GND PCIE06-RD1- PCIE06-RD1+ GND
7
8 GND PCIE06-TD3- PCIE06-TD3+ GND PCIE06-RD3- PCIE06-RD3+ GND
9
10 GND ETH5-TD- ETH5-TD+ GND ETH5-RD- ETH5-RD+ GND
11
12 GND ETH3-TD- ETH3-TD+ GND ETH3-RD- ETH3-RD+ GND
13
ROW G ROW F ROW E ROW D ROW C ROW B ROW A
(UD)
(UD)
(UD)
(UD)
(UD)
(UD)
(UD)
(1)
(1)
(2)
(2)
(2)
GND PCIE05-TD0- PCIE05-TD0+ GND PCIE05-RD0- PCIE05-RD0+
GND PCIE05-TD2- PCIE05-TD2+ GND PCIE05-RD2- PCIE05-RD2+
GND PCIE06-TD0- PCIE06-TD0+ GND PCIE06-RD0- PCIE06-RD0+
GND PCIE06-TD2- PCIE06-TD2+ GND PCIE06-RD2- PCIE06-RD2+
GND ETH6-TD- ETH6-TD+ GND ETH6-RD- ETH6-RD1+
GND ETH4-TD- ETH4-TD+ GND ETH4-RD- ETH4-RD+
GND ETH2-TD- ETH2-TD+ GND ETH2-RD- ETH2-RD+
RXD_RS232
TXD_RS232
ETH_MDIO
ETH_MDC
ETHBXCH9_RX-
ETHBXCH9_RX+
ETHBXCH9_TX-
14 GND ETH1-TD- ETH1-TD+ GND ETH1-RD- ETH1-RD+ GND
ETHBXCH9_TX+
15
16 GND
CASE GND
* signal active when low
(1)
This single ended pin function is available only for vx3905 with minimum EC Level 30000.
(2)
ETHBXCH9 1000BaseBX additionnal channel is availabe only for vx3905 with minimum EC Level 30000
(UD)
(2)
GND
ETH01-DD-
(UD)
ETH01-DB-
(UD)
ETH01-DD+
(UD)
ETH01-DB+
(UD)
GND
GND
ETH01-DC-
(UD)
ETH01-DA-
(UD)
ETH01-DC+
(UD)
ETH01-DA+
(UD)
GND
Table 18: VPX Connector P2 Wafer Assignment (Rear I/O type 0)
The P2 connector signals related to PCIe are not implemented on the Ethernet only version of VX3905 (rear I/O option E).
Page 26 CA.DT.A89-3e
Page 35
VX3905 User's Guide
MNEMONIC SIGNAL DEFINITION
PCIExx-TDyy+/­PCIExx-RDyy+/-
ETHx-TD+/-
ETHx-RD+/-
Eth01-DA/DB/
DC/DD+/-
ETH_MDIO /
ETH_MDC
N.C. (Signal) Not Connected, (Signal) is the VPX/OpenVPX standard signal on this pin
(UD) Pin defined as User Defined by the VPX/OpenVPX standard
GND Ground
Reserved Reserved. Do not connect.
PCI Express transmit and receive differential pairs as seen from the point of view of the VX3905. These ports are numbered as x4 PCIe ports as described in the OpenVPX standard. When the switch is configured for x2 operation, then each xx port is replaced by two ports made of the first two lanes followed the two last lanes. In a similar principle, the ports can be configured as x8. For x1 operation, only lanes belonging to wafer 1 to 8 have the capabilities to operate as 8 x1 ports.
Ethernet 1000Base-BX serdes transmit and receive differential pairs as seen from the point of view of the VX3905.
Ethernet 1000Base-T differential pairs
Standard SMI bus driven by the Ethernet switch to configure its PHYs
Functional Description
Table 19: VPX Connector P2 Signal Definition
CA.DT.A89-3e Page 27
Page 36
Functional Description
VX3905 User's Guide
Table 20 below describes changes superseding P2 pin assignment of Table 18 for rear I/O type order codes 1 or 2 only
P2
Wafer
1
2
3
4
5
6
7
8
9
10
11
12
ROW G ROW F ROW E ROW D ROW C ROW B ROW A
1/2:PCIE07-
TD1-
1/2:PCIE07-
TD3-
1/2:PCIE07-
TD0-
1/2:PCIE07-
TD1+
1/2:PCIE07-
TD2-
1/2:PCIE07-
TD3+
1/2:PCIE07-
TD0+
1/2:PCIE07-
TD2+
1/2:PCIE07-
RD1-
1/2:PCIE07-
RD3-
1/2:PCIE07-
RD0-
1/2:PCIE07-
RD1+
1/2:PCIE07-
RD2-
1/2:PCIE07-
RD3+
1/2:PCIE07-
RD0+
1/2:PCIE07-
RD2+
13
14
15
16
CASE GND
* signal active when low
2:PCIE08-
TD1-
2:PCIE08-
TD3-
2:PCIE08-
TD0-
2:PCIE08-
TD1+
2:PCIE08-
TD2-
2:PCIE08-
TD3+
Table 20: VPX Connector P2 pin assignment changes depending on rear I/O type order code
4 When using rear I/O type order code of 2, the front panel PCIe express cable is not connected.
4 When using rear I/O type 1 or 2, the signal quality of PCIE08 lanes (and to a lesser extent of PCIE07
lanes) on the VPX P2 connector may not be as good as for the remaining lanes of the VPX connector, because of additional rear I/O type multiplexing and trace lengths. Operation at gen1 speed should not be impacted. Operation margin at gen2 speed may depend on the length and routing quality on the backplane.
2:PCIE08-
TD0+
2:PCIE08-
TD2+
2:PCIE08-
RD1-
2:PCIE08-
RD3-
2:PCIE08-
RD0-
2:PCIE08-
RD1+
2:PCIE08-
RD2-
2:PCIE08-
RD3+
2:PCIE08-
RD0+
2:PCIE08-
RD2+
Page 28 CA.DT.A89-3e
Page 37
VX3905 User's Guide
Functional Description

3.4 Microcontroller Function

For VX3905 with a minimum EC level of 30000, a microcontroller is available to program the port mirroring func tion of the switch from a simplified EIA-232 RX/TX interface operating at 115200 Bauds. The asynchronous link operates with 8-bit data, 1 start bit and 1 stop bit.
The EIA-232 RX and TX signals are available on the VPX P2 connector. When the card type is E (Ethernet only switch), the serial link is also available on the front panel as an RJ-11 connector with the pin assignment descri bed below.
PIN SIGNAL
1 NC
2 Shell
3 TXD
4 RXD
5 GND
6 NC
Table 21: Serial Connector Pin Assignment
For more details about the user commands available from the firmware, please refer to document FT.DT.988, "VX3905 Ethernet Switch Firmware User Manual".
Pin 1
Figure 9: Serial Connector
Pin 6
CA.DT.A89-3e Page 29
Page 38
MAILING ADDRESS TELEPHONE AND E-MAIL
Kontron Modular Computers S.A.S. +33 (0) 4 98 16 34 00 150 rue Marcelin Berthelot - BP 244 sales@kontron.com ZI TOULON EST support-kom-sa@kontron.com 83078 TOULON CEDEX - France
For further information about other Kontron products, please visit our Internet web site:
www.kontron.com.
Loading...
