1/ Scope
This documentation addendum is provided as a supplement to the main TRACe LoRa-MQTT user’s guide reference SD.DT.G74. It details the
use of the 4G modem option of the LoRaWAN gateway TRACe LoRa-MQTT. The order code for the gateway with this option is TRACELoRaMQTT-EU-2 or TRACE-LoRaMQTT-US-2 depending on the region (a -C suffix is added if the secure Cloud broker option is ordered). The 4G
modem option has to be specified at the time of the ordering of the gateway.
4G Modem option: Addendum to TRACe LoRa-MQTT User’s guide - D207700-V1.0
www.kontron.com
// 9
2/ Function
This option adds a 4G modem connectivity to the TRACe LoRa-MQTT base product which offers, by default, a wired Ethernet connection. The
TCP/IP MQTT messages can then transit through a 4G wireless link to reach the MQTT server.
The modem is an LTE modem Cat6 , 4G/3G, including LTE advanced. A SIM slot is available to host the MiniSIM module provided by the
telecom operator selected by the customer.
4G Modem option: Addendum to TRACe LoRa-MQTT User’s guide - D207700-V1.0
www.kontron.com
// 10
3/ Antennas and SIM card installation
Two antennas are provided for LTE modem operation and should be connected to the SMA positions A4 and A6, as shown in the figure below
on the right side.
A SIM card of format MiniSIM, provided by the telecom operator, must be inserted from the maintenance face of the TRACe-LoRaMQTT. To
access the maintenance connectors, the maintenance plate must first be unscrewed. The maintenance plate is located on the opposite face of
the operational face featuring the main antennas, power supply and Ethernet connectors. The figures below show how to insert the MiniSIM
card. Once the SIM is inserted, the maintenance plate must be screwed back on the maintenance face.
4G Modem option: Addendum to TRACe LoRa-MQTT User’s guide - D207700-V1.0
www.kontron.com
// 11
4/ Software setup of the 4G modem
Use the procedure described in the TRACe LoRa-MQTT user’s guide SD.DT.G74 to log in as root in the Linux operating system hosting the LoRaMQTT gateway. Then perform the following steps illustrated below.
A- Open the new mobile broadband connection wizard
B- Set up a Mobile Broadband Connection overview
C- Choose a country
4G Modem option: Addendum to TRACe LoRa-MQTT User’s guide - D207700-V1.0
www.kontron.com
// 12

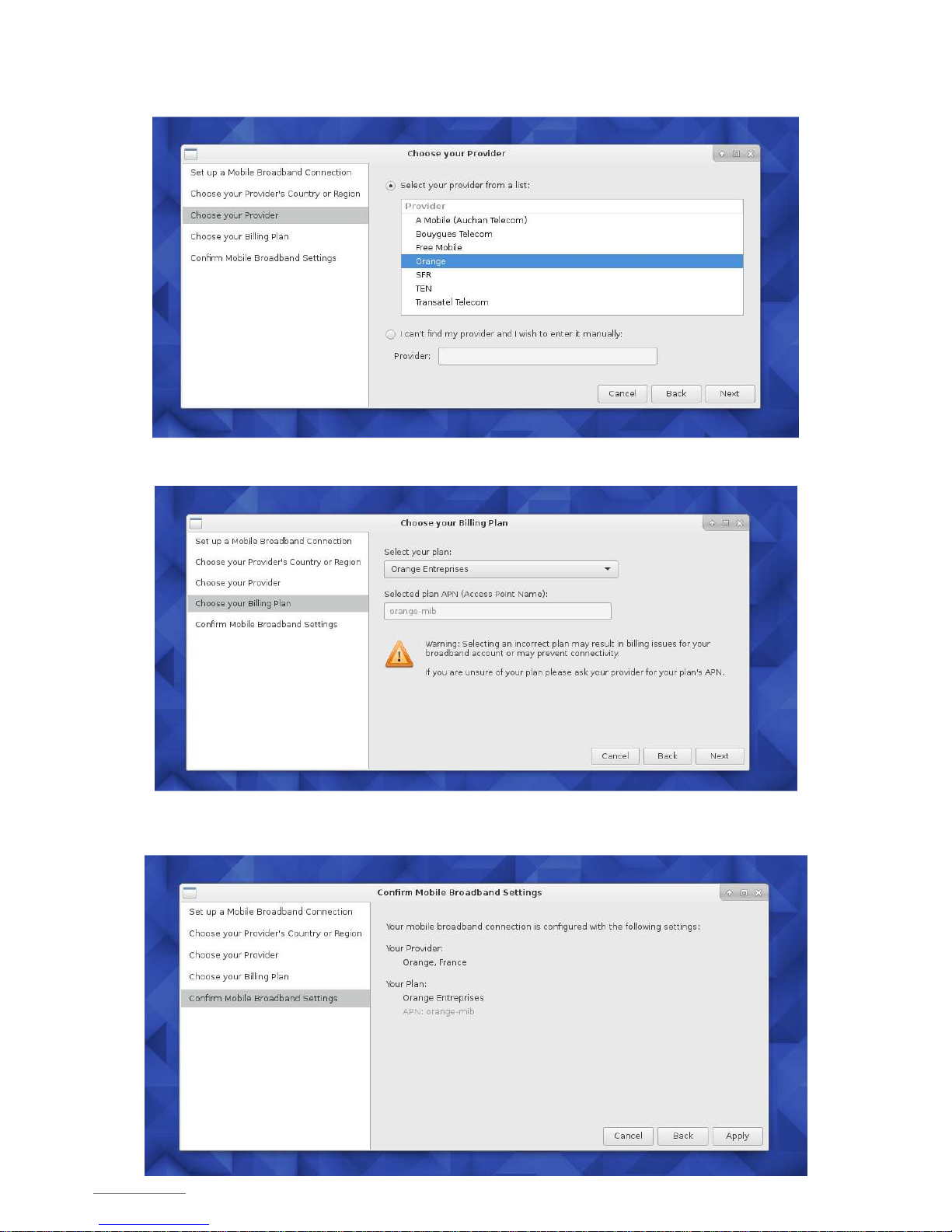

D-
Select the telecom provider of your SIM card
E- Choose a billing plan
F- Confirm mobile broadband settings, hit apply if correct
4G Modem option: Addendum to TRACe LoRa-MQTT User’s guide - D207700-V1.0
www.kontron.com
// 13
G-
Check 4G modem connectivity
