KTT20-pITX
User Manual
52 pgs1.49 Mb0
User Manual
56 pgs1.22 Mb0

Kontron KTT20-pITX User Manual

Download
KTT20/pITX
KTD-S0044-G
The pulse of innovation
User Information
Table of Contents
» Table of Contents «
1 User Information .....................................................................................1
1.1 About This Document ................................................................................................................. 1
1.2 Copyright Notice ....................................................................................................................... 1
1.3 Trademarks .............................................................................................................................. 1
1.4 Standards ................................................................................................................................ 1
1.5 Warranty.................................................................................................................................. 1
1.6 Life Support Policy.....................................................................................................................2
1.7 Technical Support......................................................................................................................2
2 Introduction ...........................................................................................3
2.1 pITX Embedded Line Family ......................................................................................................... 3
2.2 KTT20/pITX Overview..................................................................................................................3
3 Specifications .........................................................................................4
3.1 Functional Specifications ............................................................................................................4
3.2 Block Diagram........................................................................................................................... 6
3.3 Mechanical Specifications ........................................................................................................... 7
3.4 Electrical Specifications..............................................................................................................7
3.5 Real-Time Clock Battery ..............................................................................................................8
3.6 Environmental Specifications....................................................................................................... 8
3.7 MTBF.......................................................................................................................................9
4 Equipment Design Rule ........................................................................... 10
5 Getting Started...................................................................................... 10
6 Connector Locations............................................................................... 11
6.1 I/O Connector Definitions ......................................................................................................... 12
7 Graphics Processing Unit ......................................................................... 13
7.1 DVI-I® Connector..................................................................................................................... 13
7.2 LVDS Flat Panel Connector......................................................................................................... 14
7.3 Connecting a Flat Panel ............................................................................................................ 15
7.4 Flat Panel Power Jumper ........................................................................................................... 15
7.5 Backlight ............................................................................................................................... 16
7.5.1 Power Connector Backlight Pins ..................................................................................................................16
7.5.2 LVDS Connector Backlight Pins....................................................................................................................17
7.5.3 External Backlight Voltage Parameter...........................................................................................................17
User Information
Table of Contents
8 USB Interface........................................................................................ 18
8.1 Standard Connector ................................................................................................................. 18
8.2 Extension Connectors............................................................................................................... 18
8.3 Limitations............................................................................................................................. 19
8.4 USB Client Interface................................................................................................................. 19
9 LAN Controller....................................................................................... 20
9.1 Connector .............................................................................................................................. 20
10 Serial Interface...................................................................................... 21
10.1 Connector.............................................................................................................................. 21
10.2 Serial Console......................................................................................................................... 21
11 Audio Interface ..................................................................................... 22
11.1 Audio Hardware Features .......................................................................................................... 22
11.2 Analog Connector .................................................................................................................... 22
11.3 Digital Connector (S/PDIF) ........................................................................................................ 22
11.4 Speaker Connector................................................................................................................... 23
11.4.1 Speaker Hardware Features ........................................................................................................................23
12 Secure Digital and Multimedia Card............................................................ 24
12.1 Connector .............................................................................................................................. 24
13 PCI Express® Interface............................................................................. 25
13.1 Connector .............................................................................................................................. 25
14 Digital I/O Interface ............................................................................... 27
14.1 Multifunction Overview............................................................................................................. 27
14.2 Electrical Specifications............................................................................................................ 28
14.3 Connector 1............................................................................................................................ 29
14.4 Connector 2............................................................................................................................ 30
15 Power Supply ........................................................................................ 32
15.1 DC Power Connector ................................................................................................................. 32
15.2 External Power Connector ......................................................................................................... 32
15.3 Default Power Configuration ...................................................................................................... 33
15.4 Power Front Panel Header ......................................................................................................... 34
15.4.1 Power LED ...............................................................................................................................................34
15.5 Onboard Status LEDs ................................................................................................................ 35
15.6 Real-Time Clock Battery Connector.............................................................................................. 35
16 Crisis Management or Custom Firmware ...................................................... 36
User Information
Table of Contents
Appendix A: System Resources ............................................................................38
A.1 Memory Area .......................................................................................................................... 38
A.2 I
2CTM
Bus ................................................................................................................................ 38
Appendix B: Mechanical Dimensions .................................................................... 39
Appendix C: Connector Overview.......................................................................... 40
C.1 Mating Connectors................................................................................................................... 40
C.2 Pinout Tables .......................................................................................................................... 41
Appendix D: Reference Documents....................................................................... 44
Appendix E: Certifications .................................................................................. 45
Appendix F: Document Revision History ................................................................ 48
KTD-S0044-G Page 1 User Information
1 User Information
1.1 About This Document
This document provides information about products from KONTRON Technology A/S and/or its subsidiaries. No warranty of suitability, purpose or fitness is implied. While every attempt has been made to ensure that the information in this document is accurate the information contained within is supplied “as-is” - no liability is taken for any inaccuracies. Manual is subject to change without prior notice. KONTRON assumes no responsibility for the circuits, descriptions and tables indicated as far as patents or other rights of third parties are concerned.
1.2 Copyright Notice
Copyright © 2012 - 2013, KONTRON Technology A/S, ALL RIGHTS RESERVED. No part of this document may be reproduced or transmitted in any form or by any means, electronically or mechanically, for any purpose without the express written permission of KONTRON Technology A/S.
1.3 Trademarks
Brand and product names are trademarks or registered trademarks of their respective owners.
1.4 Standards
KONTRON Technology A/S is certified to ISO 9000 standards.
1.5 Warranty
This product is warranted against defects in material and workmanship for the warranty period from the date of shipment. During the warranty period KONTRON Technology A/S will at its discretion decide to repair or replace defective products. Within the warranty period the repair of products is free of charge as long as warranty conditions are observed. The warranty does not apply to defects resulting from improper or inadequate maintenance or handling by the buyer, unauthorized modification or misuse, operation outside of the product’s environmental speci­fications or improper installation or maintenance. KONTRON Technology A/S will not be responsible for any defects or damages to third party products that are caused by a faulty KONTRON Technology A/S product.
KTD-S0044-G Page 2 User Information
1.6 Life Support Policy
KONTRON Technology's products are not for use as critical components in life support devices or systems without express written approval of the general manager of KONTRON Technology A/S. As used herein: Life support devices or systems are devices or systems which a) are intended for surgical implant into body or b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labelling, can be reasonably expected to result in significant injury to the user. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.
1.7 Technical Support
Please consult our web site at http://www.kontron.com/support for the latest product documentation, utilities, drivers and support contacts
or use the special e-mail address sbc-support@kontron.com for a technical problem. In any case you can always contact your board supplier for technical support. Before contacting support please be prepared to provide as much information as possible: Board identification:
S
S
S
System environment:
S
S
S
Type Part number (find PN on label) Serial number (find SN on label)
O/S type and version Driver origin and version Attached hardware (drives, USB devices, LCD panels ...)
KTD-S0044-G Page 3 Introduction
2 Introduction
2.1 pITX Embedded Line Family
Each pITX is a member of the 2.5" SBC family of KONTRON Technology A/S based on the Pico-ITXTM specifi­cation (only mechanical outer dimensions) from the S pITX embedded line modules are characterized by the same front-line pinouts and interfaces for reset logic and simple power supply, 2 x USB, LAN, Audio, GPIOs, DVI features allow to use of the same chassis over the whole product line and maximize design reuse. These homogeneous features facilitate easy upgrades within the pITX embedded line product family.
2.2 KTT20/pITX Overview
Please refer to the following matrix to choose the product that suits your needs best.
mall Form Factor Special Interest Group (SFF-SIG).
®
and LVDS interface. These embedded line family
Article Number SDRAM Size NAND Flash LVDS Interface
03004-0505-10-0 512 MByte
03004-1005-10-0 1 GByte


KTD-S0044-G Page 4 Specifications
3 Specifications
3.1 Functional Specifications
System on Chip (SoC): NVIDIA® Tegra® 250
S
Dual Cortex-A9 multi-processing ARM® cores up to 900 MHz core frequency
S
ARMv7 instruction set
S
32 kB data and 32 kB instruction L1 cache per core
S
Shared 1 MB L2 cache
S
DDR2 memory interface up to DDR2-667 with maximum size of 1 GB
S
NAND flash controller with 8/16 bit data interface
S
One SPITM flash controller
S
Three USB ports (EHCI) with one client interface (only two ports available)
S
Audio-Video Processor (AVP, GeForce® GPU) with a dual display controller
S
Integrated audio controller (AC'97 and Inter-IC Sound, called IIS or I2S)
S
One Secure Digital / MultiMedia Card (SD/MMC) controller with four instances
S
Some pins are useable as GPIOs (max. 24 x 3.3V and 16 x 1.8V GPIOs) or as special function pins (e.g. keyboard functionality)
S
Five UARTs with 16450/550 compatible mode (only three UARTs available)
Onchip NAND Flash Controller
S
Supports PIO and DMA mode access
S
Programmable error correction capability
Onchip SPITM Flash Controller
S
Supports FIFO and DMA mode access
S
Maximum transfer rate of 52 Mbits/s
Onchip Universal Serial Bus (USB)
S
All ports are capable to handle USB 2.0 (EHCI)
S
One port supports only USB client functionality
S
Supports USB 1.1 low and full speed devices without a companion USB 1.1 host controller
KTD-S0044-G Page 5 Specifications
Onchip Graphics Processing Unit (GPU)
S
Ultra low power GPU up to 333 MHz internal clock and 8 cores
S
Two independent display controllers support 2D/3D graphics rendering
S
720p Video Encode Processor to deliver HD video streams
S
OpenGL® ES 2.0 support
S
DVI® interface (max. 1920x1080 pixel)
S
Low Voltage Differential Signaling (LVDS) flatpanel interface supports 18/24 bit color depth with a maximal resolution of 1680x1050 pixel (only single channel possible)
S
Full hardware acceleration of following video decode standards: H.264, MPEG4 and VC1
Onchip Audio Subsystem
S
Codec interface realize the Inter-IC Sound (I2S) specification
S
The audio codec supports a maximal resolution of 24 bit with 96 kHz sample rate
Onchip SD/MMC Controller
S
Only 4 bit data bus width
S
Supports FIFO and DMA mode access
S
Supports SDMEM/SDIO specification V2.0 up to 50/25 MHz interface speed
S
Supports MMC specification V4.3 up to 52 MHz interface speed
S
Supports CE-ATA Digital Protocol specification V1.1 up to 52 MHz interface speed
S
Supports eSD specification V2.1
S
Supports e.MMC devices
Fast Ethernet (USB connection): SMSC® LAN9514
S
Fully compliant with IEEE802.3®/802.3u®
S
Supports 10BASE-T and 100BASE-TX
S
Full and half duplex mode with flow control
USB Hub (USB connection): SMSC® LAN9514
S
Four additional USB 2.0 (EHCI) ports
S
Supports USB 1.1 low and full speed devices
Temperature Monitoring (I2CTM connection): ADT7461A
S
One onchip thermal sensor and one remote temperature sensor (SoC)
KTD-S0044-G Page 6 Specifications
3.2 Block Diagram
KTT20/pITX
LVDS
3.3 V
1.8 V
Audio
Codec
WM8903
2 x Speaker
Driver
WM9001
DVI_
Graphic Controller
GPIOs + I2C
+ SPI +
SDIO
GPIOs or Keyboard
Audio
Controller
J1600
J1700
J2001
J1300
J1800
J1801
Transmitter
SN75LVDS83
Temp.
Sensor
ADT7461
I2C
Controller
SoC
NVIDIA Tegra 250
UARTs
2 x RS232
Transceiver
TRS3253
EEPROM
24C08
SD/MMC
Controller
PCI Express
Port
TPS658621
SDRAM
Controller
NAND Flash
Controller
SPI Flash Controller
USB
Controller
PMU
RTC
USB Hub
USB Hub / LAN
SMSC LAN9514
Ethernet
CMOS Battery
512 MB / 1 GB
SDRAM
512 MByte
NAND Flash
4 MByte
SPI Flash
Client Port
Fast
J600
J1401
DDR2-
J1900
Dual Port
J2301
J2302
J2303
J1802
S/PDIF
J2202
J2201
J2200
USB
PCI Express
J2300
J2100
KTD-S0044-G Page 7 Specifications
3.3 Mechanical Specifications
Dimensions
³ Pico-ITX ³ Height approx. 23 mm
TM
form factor 100 x 72 mm ±0.2 mm (complete with all connectors 100 x 79 mm)
3.4 Electrical Specifications
Supply Voltage
³ 5V DC ± 5%
Supply Voltage Ripple
³ Maximum 100mV peak to peak 0 – 20 MHz
Supply Current (Linux®)
The power consumption test uses a tool to stress the CPU (100% load) and at the same time another tool to
®
generate a high graphic throughput. The boards were tested with a DVI keyboard & mouse and a 16 GByte USB key as boot device.
monitor (SXGA resolution), USB
Variant: 512 MB SDRAM Variant: 1 GB SDRAM
Full Load Idle Deep Sleep Full Load Idle Deep Sleep
[A] [W] [A] [W] [A] [W] [A] [W] [A] [W] [A] [W]
tbd. tbd. tbd. tbd. tbd. tbd. tbd. tbd. 0.31 3.72 0.07 0.85
KTD-S0044-G Page 8 Specifications
3.5 Real-Time Clock Battery
³ Voltage range: +2.4V - +3.6V (typ. +3.0V) ³ Typical current: 5μA @ +3.0V
Lithium battery precautions
CAUTION!
Danger of explosion if battery is incorrectly re­placed. Replace only with same or equivalent t ype recommended by manufacturer. Dispose of used batteries according to the manufacturer’s instruc­tions.
ATTENTION!
Risque d'explosion avec l'échange inadéquat de la batterie. Remplacement seulement par le même ou un type équivalent recommandé par le producteur. L'évacuation des batteries usagées conformément à des indications du fabricant.
ADVARSEL!
Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
VARNING!
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.
VORSICHT!
Explosionsgefahr bei unsachgemäßem Aust ausch der Batterie. Ersatz nur durch den selben oder einen vom Hersteller empfohlenen gleichwertigen Typ. Entsorgung gebrauchter Batterien nach Anga­ben des Herstellers.
PRECAUCION!
Peligro de explosión si la batería se sustituye incorrectamente. Sustituya solamente por el mismo o tipo equivalente recomendado por el fabricante. Disponga las baterías usadas según las instrucciones del fabricante.
ADVARSEL!
Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner.
VAROITUS!
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan lalteval­mistajan suosittelemaan tyyppiln. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
3.6 Environmental Specifications
Temperature
Operating (with original KONTRON heat-sink):
³ Ambient temperature: 0 to +60°C
Non operating:
³ Ambient temperature: -40 to +85°C
Note: 1) It is the customer's responsibility to provide sufficient airflow around each of the components to keep them within the
allowed temperature range.
1)
KTD-S0044-G Page 9 Specifications
Humidity
³ Operating: 10% to 90% (non condensing) ³ Non operating: 5% to 95% (non condensing)
Restriction of Hazardous Substances (RoHS)
All boards in the pITX embedded line product family are RoHS compliant.
3.7 MTBF
The following MTBF (Mean Time Between Failure) values were calculated using a combination of manufac­turer’s test data, if the data was available, and a Bellcore calculation for the remaining parts. The Bellcore calculation used is 'method 1 case 1'. In that particular method the components are assumed to be operating at a 50% stress level in a 40°C ambient environment and the system is assumed to have not been burned in. Manufacturer’s data has been used wherever possible. The manufacturer’s data, when used, is specified at 50°C, so in that sense the following results are slightly conservative. The MTBF values shown below are for a 40°C in an office or telecommunications environment. Higher temperatures and other envi­ronmental stresses (extreme altitude, vibration, salt water exposure, etc.) cause lower MTBF values.
³ System MTBF (hours): 243526
Note: Fans usually shipped with KONTRON Technology A/S products have 50.000-hour typical operating life. The above esti-
mation assumes no fan but a passive heat sinking arrangement. Estimated RTC battery life (as opposed to battery failures) is not included in the MTBF calculation. The RTC battery lifetime has to be considered separately. Battery life depends on both temperature and operating conditions. When the KONTRON unit has external power; the only battery drain is from leakage paths.
KTD-S0044-G Page 10 Equipment Design Rule
4 Equipment Design Rule
If you want to change software features, repair a corrupted bootloader or for service purposes analyze the operating system serial output you should provide the following two interfaces:
Serial interface UARTC/UART3 on connector J2202
USB client interface on connector J1900
5 Getting Started
Getting started with the KTT20/pITX is easy. Take the following steps:
Connect a DVI® monitor to the DVI® connector.
Plug a keyboard and/or mouse to the USB connector(s).
Attach a microSDTM card or a USB key to the corresponding connector, e.g. with a Linux® ope-
rating system.
Connect the power supply to the KTT20/pITX power supply connector.
Turn on the board by shortening the power button pins on power front panel header (J900)
for minimal two seconds.
KTD-S0044-G Page 11 Connector Locations
S
6 Connector Locations
Note: Use this picture for pin 1 identification - not the drawings in the individual chapters.
Top View
peaker
J1801
Panel Power
J1701
Audio
J1800
optional
External
Power
J401
USB Client
J1900
USB
J2303
USB
J2302
mPCIe
J2100
GPIO1
J1300
UARTA
J2200
UARTB
J2201
GPIO2
J2001
LVDS
J1700
UARTC
J2202
Bottom View
microSD
J1401
Pin 1
LAN
J2300
Frontpanel
J900
DVI
J1600
Recovery
J1400
USB
J2301
Power
J400
S/PDIF
J1802
Battery
J600
KTD-S0044-G Page 12 Connector Locations
6.1 I/O Connector Definitions
The following sections provide pin definitions and detailed description of all onboard connectors. The connector definitions use the following notation:
Column Name Description
Pin
Signal
Type
Ioh/Iol
The abbreviation tbd. is used for specifications which are not available yet or which are not sufficiently specified by the component vendors.
Shows the pin numbers in the connector.
The mnemonic name of the signal at the current pin. The notation “#” states that the signal is active low.
AI: Analogue Input
AO: Analogue Output
I: Digital Input
IO: Digital Input / Output
IOD: Input / Open-Drain output
O: Digital Output
OD: Output, open-Drain
DSO: Differential Signaling Output with complementary signals on two paired wires
DSI: Differential Signaling Input with complementary signals on two paired wires
DSIO: Differential Signaling Input / Output (combined DSO and DSI)
PWR: PoWeR supply or ground reference pins
NC: Not Connected
Additional notations:
-50 +5.0V signal voltage level, e.g. I-50
-33 +3.3V signal voltage level, e.g. O-33
-18 +1.8V signal voltage level, e.g. IO-18
Ioh: Typical current in mA flowing out of an output pin through a grounded load while the output voltage has high level.
Iol: Typical current in mA flowing into an output pin from a VCC connected load while the output voltage has low level.
KTD-S0044-G Page 13 Graphics Processing Unit
7 Graphics Processing Unit
The graphics accelerator supports a HDMI®/DVI® interface with Full HD resolution and a variety of LCD panels with single clock, color depths of 18/24 bit and resolutions up to WSXGA.
7.1 DVI-I
®
Connector
The DVI® interface is available through the standard 29 pin DVI-I® connector J1600.
Header Pin Signal Description Type
9
1
17
C3 C4
C1 C2
1 TMDS2- TMDS data 2 (negative) DSO-33
2 TMDS2+ TMDS data 2 (positive) DSO-33
3 GND Ground PWR
4 N.C. Not connected NC
5 N.C. Not connected NC
6 DDC_CLK DDC clock IO-50
7 DDC_DATA DDC data IO-50
8 N.C. Not connected NC
9 TMDS1- TMDS data 1 (negative) DSO-33
10 TMDS1+ TMDS data 1 (positive) DSO-33
11 GND Ground PWR
12 N.C. Not connected NC
13 N.C. Not connected NC
14
15 GND Ground PWR
16 TMDS_HPD Hotplug detect I-50
17 TMDS0- TMDS data 0 (negative) DSO-33
18 TMDS0+ TMDS data 0 (positive) DSO-33
19 GND Ground PWR
20 N.C. Not connected NC
21 N.C. Not connected NC
22 GND Ground PWR
23 TMDS_CLK+ TMDS clock (positive) DSO-33
24 TMDS_CLK- TMDS clock (negative) DSO-33
C1 N.C. Not connected NC
C2 N.C. Not connected NC
C3 N.C. Not connected NC
C4 N.C. Not connected NC
C5 GND Ground PWR
VCC5 1)
Power +5V PWR
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
KTD-S0044-G Page 14 Graphics Processing Unit
7.2 LVDS Flat Panel Connector
The J1700 connector (40 pins) provides the LVDS interface for flat panels on the top side of the board. A prototype cable with open ends is available (part number 821515).
Header Pin Signal Description Type
1 - 5
6 GND Ground PWR
7
8 GND Ground PWR
9
10
11 - 12 N.C. Not connected NC
13 BKLTADJ Brightness control (0V to +5V) AO
14 VCCENA Panel power enable (PANELVCC signal) O-33/O-50
15 BKLTON Backlight on/off O-50
16 GND Ground PWR
17 FTX0- First channel data 0 output (negative) DSO-33
18 FTX0+ First channel data 0 output (positive) DSO-33
19 FTX1- First channel data 1 output (negative) DSO-33
20 FTX1+ First channel data 1 output (positive) DSO-33
21 FTX2- First channel data 2 output (negative) DSO-33
22 FTX2+ First channel data 2 output (positive) DSO-33
23 FTXC- First channel clock output (negative) DSO-33
24 FTXC+ First channel clock output (positive) DSO-33
25 FTX3- First channel data 3 output (negative) DSO-33
26 FTX3+ First channel data 3 output (positive) DSO-33
27 - 28 GND Ground PWR
29 - 32 N.C. Not connected NC
33
34
35 SPICLK SPITM clock signal O-18
36 SPISDO SPITM serial data output O-18
37 SPISDI SPITM serial data input I-18
38 SPICS# SPITM chip select O-18
39 - 40 GND Ground PWR
VDD 1)
VCC5 1)
PANELVCC 1)
PANELVCC 1)
PANELVCC 1)
VCC5 1)
Backlight voltage PWR
Power +5V PWR
Panel power +3.3V or +5V PWR
Panel power +3.3V or +5V PWR
Panel power +3.3V or +5V PWR
Power +5V PWR
KTD-S0044-G Page 15 Graphics Processing Unit
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
Warning: Check jumper J1701 (Panel Power) for correct settings for your panel – not doing so might cause permanent damage to
your panel.
7.3 Connecting a Flat Panel
Check if you have the correct panel cable. Inspect the cable for damages. Disconnect the
power from your system.
Check jumper J1701 for correct panel voltage (Pos. 1-2 = +3.3V 2-3 = +5V).
Connect an external power supply for the correct backlight voltage (except the power supply
complies with the backlight voltage).
Connect the cable to the flat panel connector J1700 on the KTT20/pITX and connect the other
end to your display.
Switch on the power supply and activate/save the desired settings with help of the U-Boot
bootloader (for further details see the 'Software Guide' chapter 'U-Boot Setup'). Switch off the power supply.
Switch on the power supply. If you only see a blank screen contact your distributor for tech-
nical support.
7.4 Flat Panel Power Jumper
J1701
KTD-S0044-G Page 16 Graphics Processing Unit
7.5 Backlight
Backlight is available through the connector J1700. The backlight voltage can be supplied from the on­board +5V voltage if you set one or two short circuit jumper on connector J401. For backlight voltages differing from +5V use pin 9 and/or 11 on connector J401 to supply the backlight (pins 7 and 8 represent the associated ground, identical with board ground).
7.5.1 Power Connector Backlight Pins
The following table is an extract of the J401 connector overview. For further details about pin 1 see chapter 'Default Power Configuration'.
Pin Signal Description Type
9
10
11
12
7 GND Backlight ground PWR
8 GND Backlight ground PWR
VDD 1)
VCC5 1)
VDD 1)
VCC5 1)
Onboard +5V
backlight voltage
(with short circuit jumper)
12
External backlight voltage input PWR IN
Onboard power +5V PWR
External backlight voltage input PWR IN
Onboard power +5V PWR
External Backlight Power Supply
2
1
20
19
+
Backlight Voltage
--
GND
20
OR
19
System
Backlight
Top view
CAUTION!
If you use an external backlight power supply do not forget the three
System links (pin 13 to 18) otherwise the board does not start.
KTD-S0044-G Page 17 Graphics Processing Unit
7.5.2 LVDS Connector Backlight Pins
The following table is an extract of the J1700 connector overview.
Pin Signal Description Type
1 - 5
6 and 8 GND Ground
VDD 1)
Normal backlight voltage
PWR
PWR
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
7.5.3 External Backlight Voltage Parameter
Parameter Min. Typ. Max. Units
Backlight voltage +5.0 +12.0 +15.0 V
Continuous current fixed power +5V tbd. A
Continuous current per pin
on connector J401
0.5 A
KTD-S0044-G Page 18 USB Interface
8 USB Interface
The USB interface comes with five USB ports which follow the EHCI specification (USB 2.0 compliant). You can expand the amount of USB connections by adding external hubs. Two ports are available on a standard connector and more ports on three extension connectors. All ports support USB 1.1 low and full speed devices without a companion USB 1.1 host controller.
8.1 Standard Connector
Two USB ports are available through the standard USB connector J2301 (8 pins).
Header Pin Signal Description Type
1
5
1
2 USB0- USB port 0 (negative) DSIO-33
3 USB0+ USB port 0 (positive) DSIO-33
4 GND Ground PWR
5
6 USB1- USB port 1 (negative) DSIO-33
7 USB1+ USB port 1 (positive) DSIO-33
8 GND Ground PWR
VCC5 1)
VCC5 1)
Power +5V PWR
Power +5V PWR
8.2 Extension Connectors
The other USB ports are available through the extension connectors J1900, J2302 and J2303 (4 pins). If you want a standard USB interface connector an adapter cable is required (KAB-USB-2, part number 96054-0000-00-2). Important
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
: The connector J1900 provides only the USB client functionality.
Header Pin Signal Description Type
1 GND Ground PWR
2 USBn+ USB port n (positive) DSIO-33
3 USBn- USB port n (negative) DSIO-33
4
VCC5 1)
Power +5V PWR
KTD-S0044-G Page 19 USB Interface
8.3 Limitations
The contacts for USB devices are protected and suitable to supply USB devices with a maximum input current of 500mA. Do not supply external USB devices with higher power dissipation through these pins.
8.4 USB Client Interface
The connector J1900 provides the client interface. You need the client functionality for changing the bootloader or update a corrupted bootloader. Together with the recovery pin (see chapter 'Crisis Mana­gement') and dedicated software on a desktop computer as well as a standard USB cable (both ends with Type-A connector) and a special KONTRON USB adapter cable (KAB-USB-2, part number 96054-0000-00-2) the upload is easy.
KAB-USB-2
Typical Configuration
KTD-S0044-G Page 20 LAN Controller
9 LAN Controller
The KTT20/pITX uses a SMSC® LAN9514 Fast Ethernet LAN controller which supports 10/100 Base-T inter­faces. The controller auto-negotiates the management of a 10 or 100 Mbps connection. Additionally you can boot up the board via a network connection from a PXE server.
9.1 Connector
The LAN interface is available through the standard RJ45 connector J2300 (8 pins).
Header Pin Signal Description Type
1
1 TXD+ 10/100 transmit (positive) DSO
2 TXD- 10/100 transmit (negative) DSO
3 RXD+ 10/100 receive (positive) DSI
4 GND Ground (shield) PWR
5 GND Ground (shield) PWR
6 RXD- 10/100 receive (negative) DSI
7 GND Ground (shield) PWR
8 GND Ground (shield) PWR
KTD-S0044-G Page 21 Serial Interface
10 Serial Interface
Three serial ports provide asynchronous serial communication with RS-232 interfaces. They are 16450/ 16550 UART compatible and support 16-byte FIFO buffers for transfer rates from 50 Baud to 115.2 kBaud. Following the connector assignment:
J2200 x UARTA/UART1 J2201 x UARTB/UART2 J2202 x UARTC/UART3
10.1 Connector
The serial ports are available through the connectors J2200, J2201 and J2202 (5 pins).
Header Pin Signal Description Type
1 TXD Transmit serial data O
2 RXD Receive serial data I
3 RTS# Request to send O
4 CTS# Clear to send I
5 GND Ground (shield) PWR
10.2 Serial Console
Most operating systems have a defined serial console. The KTT20/pITX uses the third serial port (UARTC/ UART3) on connector J2202 for this purpose. Normally the serial console needs only three signal lines (TXD, RXD and GND). The serial port is assigned to the environment variables stdin, stdout and stderr. If you use U-Boot as bootloader you can interact with U-Boot via a USB keyboard and a standard terminal program on a desktop computer. The following overview shows the default serial settings:
S
Baudrate 115 kBaud
S
Data bits 8
S
Stop bits 1
S
Parity No
KTD-S0044-G Page 22 Audio Interface
11 Audio Interface
The SoC supports an Inter-IC Sound (I2S) codec with 24 bit resolution and 96 kHz sample rate (the maximum rate of 96 kHz only unidirectional). The analogue-to-digital part of the codec uses 24 bit, 128x oversampled sigma-delta ADCs. The digital-to-analogue part contains two 24 bit sigma-delta DACs. The interface includes LINE OUT, LINE IN, MICROPHONE IN and a digital S/PDIF output.
11.1 Audio Hardware Features
Parameter Values Units
Output resolution (LINE OUT, S/PDIF) 16/20/24 bit
Output sample rate (LINE OUT, S/PDIF) 44.1/48/96 kHz
Output signal-to-noise ratio (LINE OUT) 96 dB
Input resolution (LINE IN) 16/20/24 bit
Input sample rate (LINE IN) 44.1/48/96 kHz
Input signal-to-noise ratio (LINE IN) 92 dB
11.2 Analog Connector
The analog audio interface uses the connector J1800 (6 pins). A prototype adapter cable (open ended) is deliverable (KAB-SOUND-CMP-2, part number 96063-0000-00-1).
Header Pin Signal Description Type
1 LINE_IN_L Line input left AI
2 MIC_IN Microphone input AI
3 LINE_IN_R Line input right AI
4 LINE_OUT_L Line output left AO
5 GND Ground PWR
6 LINE_OUT_R Line output right AO
11.3 Digital Connector (S/PDIF)
The digital audio output is available through the connector J1802 (2 pins).
Header Pin Signal Description Type
1 SPDIF_OUT S/PDIF output O-33
1
2 GND Ground PWR
KTD-S0044-G Page 23 Audio Interface
11.4 Speaker Connector
The audio codec also supports a speaker driver interface. With both speaker drivers it is possible to realize a passive stereo loudspeaker system. The drivers have a thermal shutdown feature. If the junction tempe-
0
rature exceeds approximately 150 through the connector J1801 (4 pins).
Header Pin Signal Description Type
11.4.1 Speaker Hardware Features
C then the output will be disabled. The speaker interface is available
1 SPK_R# Speaker right (negative) AO
2 SPK_R Speaker right (positive) AO
3 SPK_L# Speaker left (negative) AO
4 SPK_L Speaker left (positive) AO
Parameter Values Units
Maximal output power
Output signal-to-noise ratio 97 db
Speaker mode Class D
1 @ 8Ω
W
KTD-S0044-G Page 24 Secure Digital and Multimedia Card
12 Secure Digital and Multimedia Card
The SD/MMC interface uses only a microSDTM card socket. The controller supports the SD specification revi­sion 2.0 (implies the SDSC and SDHC families) and the MMC specification revision 4.3. The data bus width accounts four bits, the SD transfer rate can be up to 50 MHz and MMC rate up to 52 MHz.
12.1 Connector
The microSDTM card socket is named J1401 (8 pins).
Header Pin Signal Description Type
1
1 DATA2 Data bit 2 IO-33
2 CD / DATA3 Card detect / Data bit 3 IO-33
3 CMD Command line IO-33
4
5 CLK Clock O-33
6 GND Ground PWR
7 DATA0 Data bit 0 IO-33
8 DATA1 Data bit 1 IO-33
VCC3 1)
Power +3.3V PWR
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
KTD-S0044-G Page 25 PCI Express® Interface
1
13 PCI Express
®
Interface
NVIDIAs® Tegra® 250 supports the PCI Express® specification 1.1 with 2.5 GT/s (GigaTransfers/s - identical with Gigabits/s by one lane). One port with one lane is provided for free usage. KONTRON Technology A/S cannot guarantee that all available cards on the market function smoothly.
13.1 Connector
The mini PCI Express® port is available through the connector J2100 (52 pins).
Header Pin Signal Description Type Pin Signal Description Type
1 WAKE# Wake event I-33 2
3 N.C. Not connected NC 4 GND Ground PWR
5 N.C. Not connected NC 6
7 CLKREQ# PCIe® clock request I-33 8 N.C. Not connected NC
9 GND Ground PWR 10 N.C. Not connected NC
11 PE_CLK- PCIe® clock (neg.) DSO 12 N.C. Not connected NC
13 PE_CLK+ PCIe® clock (pos.) DSO 14 N.C. Not connected NC
15 GND Ground PWR 16 N.C. Not connected NC
17 N.C. Not connected NC 18 GND Ground PWR
19 N.C. Not connected NC 20 W_DISABLE# Wireless disable O-33
21 GND Ground PWR 22 PE_RST# PCIe® reset O-33
23 PE_RX- PCIe® receive (neg.) DSI 24
25 PE_RX+ PCIe® receive (pos.) DSI 26 GND Ground PWR
27 GND Ground PWR 28
29 GND Ground PWR 30 I2C_CLK I2CTM clock O-33
31 PE_TX- PCIe® transmit (neg.) DSO 32 I2C_DATA I2CTM data IO-33
33 PE_TX+ PCIe® transmit (pos.) DSO 34 GND Ground PWR
35 GND Ground PWR 36 USB- USB port (neg.) DSIO-33
37 GND Ground PWR 38 USB+ USB port (pos.) DSIO-33
39
41
43 GND Ground PWR 44 N.C. Not connected NC
45 N.C. Not connected NC 46 N.C. Not connected NC
47 N.C. Not connected NC 48
49 N.C. Not connected NC 50 GND Ground PWR
51 N.C. Not connected NC 52
VCC3 1)
VCC3 1)
Power +3.3V PWR 40 GND Ground PWR
Power +3.3V PWR 42 N.C. Not connected NC
VCC3 1)
VCC1 1)
VCC3 1)
VCC1 1)
VCC1 1)
VCC3 1)
Power +3.3V PWR
Power +1.5V PWR
Power +3.3V PWR
Power +1.5V PWR
Power +1.5V PWR
Power +3.3V PWR
KTD-S0044-G Page 26 PCI Express® Interface
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
CAUTION!
The PCI Express® USB port uses the same lines as the standard USB port
on the external connector J2303. Do not use both ports at the same time.
KTD-S0044-G Page 27 Digital I/O Interface
14 Digital I/O Interface
The digital I/O interface is a subset of a multifunction part from NVIDIAs® Tegra® 250 SoC. Most of the I/O pins have additional functionalities which can be changed by software using two I/O connectors with different signal voltages.
14.1 Multifunction Overview
The following table informs about the dependencies.
I/O Pin NVIDIA® Label Second Function Voltage Connector
GPIO0 R.05 Keyboard row 5
GPIO1 R.06 Keyboard row 6
GPIO2 R.07 Keyboard row 7
GPIO3 S.00 Keyboard row 8
GPIO4 S.01 Keyboard row 9
GPIO5 S.02 Keyboard row 10
GPIO6 S.04 Keyboard row 12
GPIO7 S.05 Keyboard row 13
GPIO8 Q.00 Keyboard column 0
GPIO9 Q.01 Keyboard column 1
GPIO10 Q.02 Keyboard column 2
GPIO11 Q.03 Keyboard column 3
GPIO12 Q.04 Keyboard column 4
GPIO13 Q.05 Keyboard column 5
GPIO14 Q.06 Keyboard column 6
GPIO15 Q.07 Keyboard column 7
GPIO16 B.02 I2CTM clock
GPIO17 B.03 I2CTM data
GPIO18 T.02 SPI1TM MOSI
GPIO19 T.03 SPI1TM MISO
GPIO20 B.04 SPI1TM clock
GPIO21 B.05 SPI1TM chip select
GPIO22 T.04 ---------
GPIO23 D.05 SDIO2 command line
GPIO24 L.00 SDIO2 data 0
GPIO25 L.01 SDIO2 data 1
GPIO26 L.02 SDIO2 data 2
GPIO27 L.03 SDIO2 data 3
GPIO28 L.04 SDIO2 data 4
GPIO29 L.05 SDIO2 data 5
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
1.8V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J1300
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
KTD-S0044-G Page 28 Digital I/O Interface
GPIO30 D.06 ---------
GPIO31 D.07 ---------
GPIO32 T.00 SDIO2 clock
GPIO33 T.01 ---------
GPIO34 H.01 ---------
GPIO35 I.05 ---------
GPIO36 L.06 SDIO2 data 6
GPIO37 L.07 SDIO2 data 7
GPIO38 A.00 ---------
GPIO39 D.02 ---------
GPIO40 BB.01 ---------
GPIO41 J.07 ---------
14.2 Electrical Specifications
Digital Inputs
Parameter Min. Typ. Max. Units
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
J2001
Digital Outputs
I/O Voltage 1.8V
Input LOW voltage +0.4 V
Input HIGH voltage +1.4 1.8 +2.3 V
I/O Voltage 3.3V
Input LOW voltage +0.8 V
Input HIGH voltage +2.5 3.3 +3.8 V
General
Input rate (U-Boot) tbd. kHz
Parameter Min. Typ. Max. Units
I/O Voltage 1.8V
Output LOW voltage +0.3 V
Output HIGH voltage +1.5 +1.8 V
I/O Voltage 3.3V
Output LOW voltage +0.5 V
Output HIGH voltage +2.8 +3.3 V
General
Output LOW/HIGH current tbd. mA
Switching rate (U-Boot) tbd. kHz
KTD-S0044-G Page 29 Digital I/O Interface

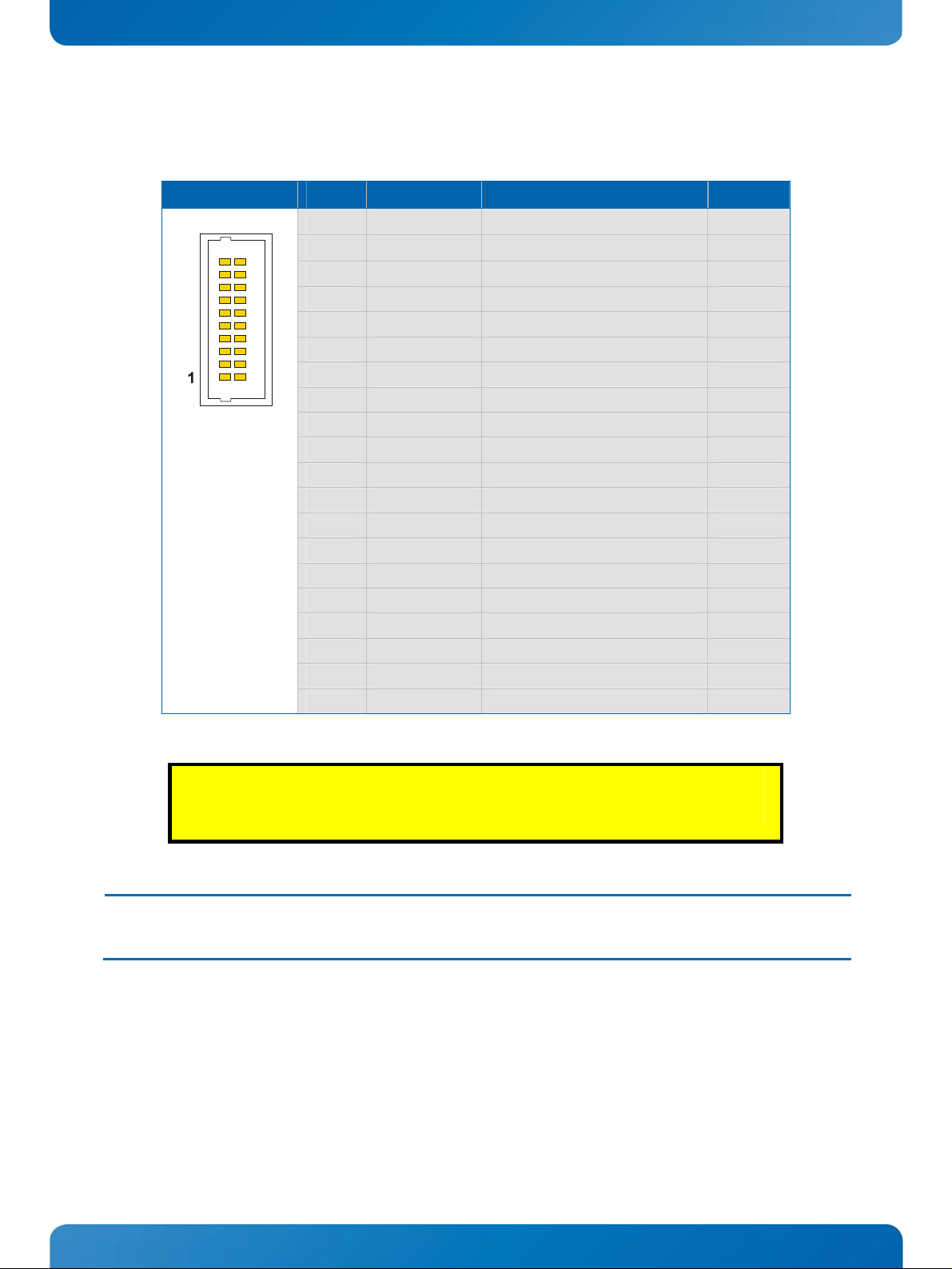

14.3 Connector 1
The digital I/O interface with I/O voltage 1.8V is available through the connector J1300 (20 pins).
Header Pin Signal Description Type
Do not use signal voltages above 1.8V. All I/O signals are unprotected against overvoltage.
1
2
3 GPIO0 I/O R.05 or keyboard row 5 IO-18
4 GPIO1 I/O R.06 or keyboard row 6 IO-18
5 GPIO2 I/O R.07 or keyboard row 7 IO-18
6 GPIO3 I/O S.00 or keyboard row 8 IO-18
7 GPIO4 I/O S.01 or keyboard row 9 IO-18
8 GPIO5 I/O S.02 or keyboard row 10 IO-18
9 GPIO6 I/O S.04 or keyboard row 12 IO-18
10 GPIO7 I/O S.05 or keyboard row 13 IO-18
11 GPIO8 I/O Q.00 or keyboard column 0 IO-18
12 GPIO9 I/O Q.01 or keyboard column 1 IO-18
13 GPIO10 I/O Q.02 or keyboard column 2 IO-18
14 GPIO11 I/O Q.03 or keyboard column 3 IO-18
15 GPIO12 I/O Q.04 or keyboard column 4 IO-18
16 GPIO13 I/O Q.05 or keyboard column 5 IO-18
17 GPIO14 I/O Q.06 or keyboard column 6 IO-18
18 GPIO15 I/O Q.07 or keyboard column 7 IO-18
19 GND Ground PWR
20 GND Ground PWR
VCC1 1)
VCC1 1)
CAUTION!
Power +1.8V PWR
Power +1.8V PWR
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
KTD-S0044-G Page 30 Digital I/O Interface
14.4 Connector 2
The digital I/O interface with I/O voltage 3.3V uses the connector J2001 (40 pins). A prototype cable with open ends is available (part number 821515).
Header Pin Signal Description Type
1 - 2 GND Ground PWR
3 GPIO17 I/O B.03 or I2CTM data IO-33
4 GPIO16 I/O B.02 or I2CTM clock IO-33
5 - 6
7 GPIO19 I/O T.03 or SPI1TM MISO IO-33
8 GPIO18 I/O T.02 or SPI1TM MOSI IO-33
9 GPIO20 I/O B.04 or SPI1TM clock IO-33
10 GPIO21 I/O B.05 or SPI1TM chip select IO-33
11 - 12 GND Ground PWR
13 GPIO23 I/O D.05 or SDIO2 command line IO-33
14 GPIO22 I/O T.04 IO-33
15 GPIO25 I/O L.01 or SDIO2 data 1 IO-33
16 GPIO24 I/O L.00 or SDIO2 data 0 IO-33
17 GPIO27 I/O L.03 or SDIO2 data 3 IO-33
18 GPIO26 I/O L.02 or SDIO2 data 2 IO-33
19 GPIO29 I/O L.05 or SDIO2 data 5 IO-33
20 GPIO28 I/O L.04 or SDIO2 data 4 IO-33
21 GPIO31 I/O D.07 IO-33
22 GPIO30 I/O D.06 IO-33
23 GPIO33 I/O T.01 IO-33
24 GPIO32 I/O T.00 or SDIO2 clock IO-33
25 - 26
27 - 28 GND Ground PWR
29 GPIO34 I/O H.01 IO-33
30 GPIO35 I/O I.05 IO-33
31 GPIO36 I/O L.06 or SDIO2 data 6 IO-33
32 GPIO39 I/O D.02 IO-33
33 GPIO37 I/O L.07 or SDIO2 data 7 IO-33
34 GPIO38 I/O A.00 IO-33
35 GPIO40 I/O BB.01 IO-33
36 GPIO41 I/O J.07 IO-33
37 - 38
39 - 40 GND Ground PWR
VCC3 1)
VCC3 1)
VCC3 1)
Power +3.3V PWR
Power +3.3V PWR
Power +3.3V PWR
KTD-S0044-G Page 31 Digital I/O Interface
CAUTION!
Do not use signal voltages above 3.3V. All I/O signals are unprotected against overvoltage.
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
Attention: The KONTRON Board Support Packages (BSPs) do not support most of the second functionality (e.g. keyboard input).
KTD-S0044-G Page 32 Power Supply
1
15 Power Supply
The KTT20/pITX SBC has a power input voltage range from +4.75V to +5.25V DC. All other voltages are generated onboard (e.g. +3.3V / +1.8V system voltage).
15.1 DC Power Connector
The power supply is injected through the connector J400 (3 pins, DC power jacket 2.1mm).
Header Pin Signal Description
1
2 GND Ground
3 GND Ground
VCC_IN 1)
DC power supply input +5V
15.2 External Power Connector
The connector J401 (20 pins) can also be used to power the board instead of the round power jacket. In any case the green sections should be connected together (pin 13 with pin 14, pin 15 with pin 16 and pin 17 with pin 18).
Header Pin Signal Description Type
12
1920
1 GND Ground PWR
2 GND Ground PWR
3 I2C_SDA I2CTM data IO-50
4 I2C_SCL I2CTM clock IO-50
5 RSVD Reserved for future use ---
6 RSVD Reserved for future use ---
7 GND Ground PWR
8 GND Ground PWR
9
10 VCC5 Onboard power +5V PWR
11
12 VCC5 Onboard power +5V PWR
13
14 VCC5 Onboard power +5V PWR
15
16 VCC5 Onboard power +5V PWR
17
18 VCC5 Onboard power +5V PWR
19 N.C. Not connected NC
20 N.C. Not connected NC
VDD 1)
VDD 1)
VCC_IN 1)
VCC_IN 1)
VCC_IN 1)
External backlight voltage input PWR IN
External backlight voltage input PWR IN
DC power supply input +5V PWR IN
DC power supply input +5V PWR IN
DC power supply input +5V PWR IN
KTD-S0044-G Page 33 Power Supply
n
T
A
Warning: Do not overload the onboard system voltage +3.3V resp. 1.8V (microSDTM card socket, digital I/O connector). The maxi-
mum current should not exceed 250mA.
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
15.3 Default Power Configuration
In the delivery state the three short circuit jumpers are set (DC power jacket configuration). As far as possible all three pins should be used (each VCC_IN and VCC) to minimize the current load per pin.
op view
DC Power Jacket Configuratio
(short circuit jumper needed)
12
OR
20
19
System
External Power Supply Configuration
20
19
Power Supply Input ( )
only +5V
+
TTENTION
Pin 1 differs from normal position
2
1
--
GNDVCC
CAUTION!
If you use an external power supply do not use another voltage then +5V DC.
KTD-S0044-G Page 34 Power Supply
0
C
onne
cto

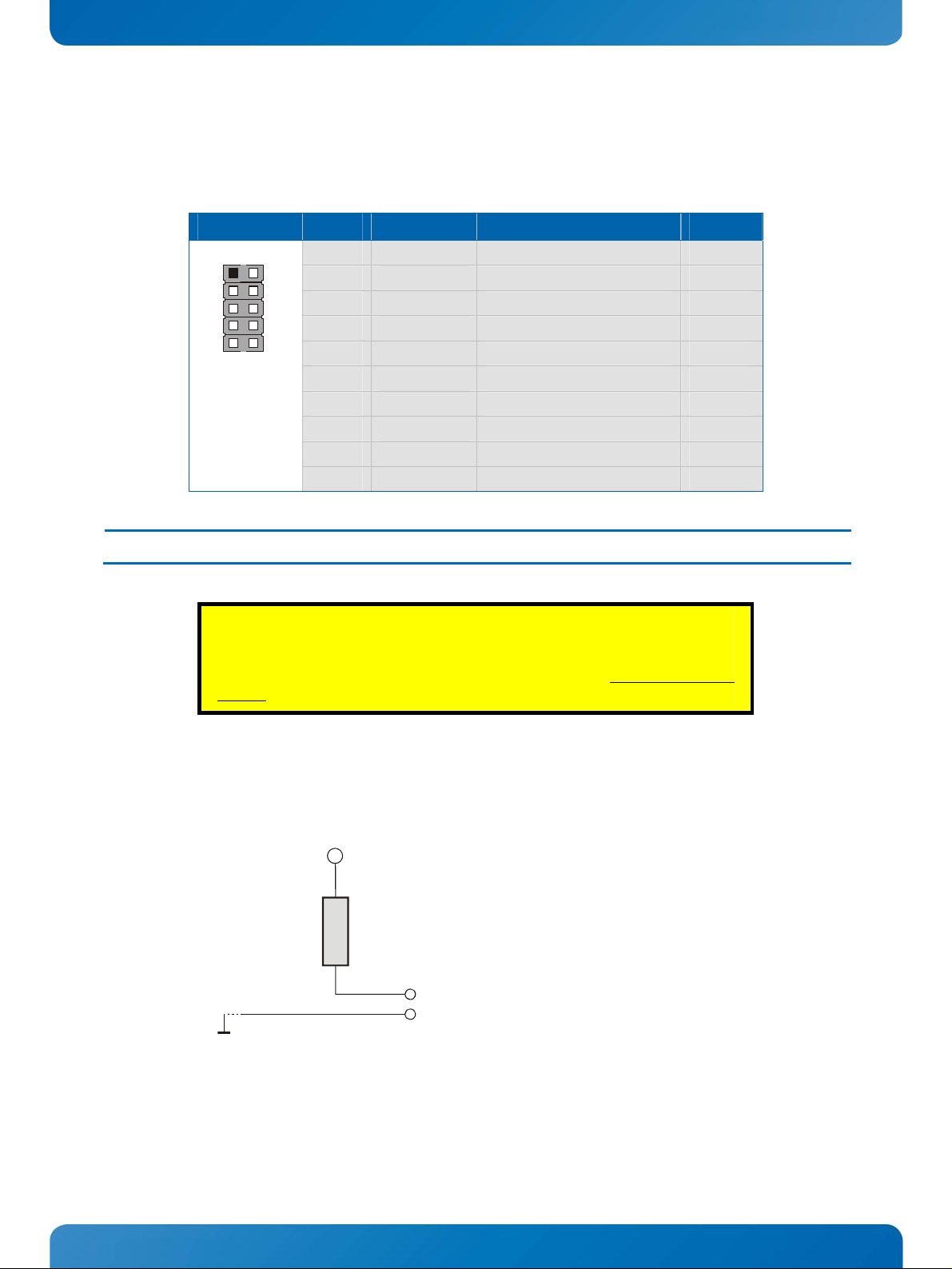

15.4 Power Front Panel Header
The power button and other power signals are available through the pin header J900 (10 pins).
Header Pin Signal Description Type
1 2
91
Note: 1) The label PWR_BTN (power button) is identical with NVIDIAs® 'ONKEY' button.
1 RST_BTN+ Reset button (positive) I-18
2 PWR_BTN+ Power button (positive) I-18
3 RST_BTN- Reset button (negative) = GND PWR
4 PWR_BTN- Power button (negative) = GND PWR
5 POWER_LED- Power LED (negative) = GND PWR
6 RSVD Reserved ---
7 POWER_LED+ Power LED (positive) O-33 / PWR
8 RSVD Reserved ---
9 RSVD Reserved ---
10 RSVD Reserved ---
CAUTION!
If you apply a discrete logic circuit instead the standard buttons to control the reset respectively power button inputs then you should use open drain outputs
without a pullup resistor.
15.4.1 Power LED
The following picture illustrates the onboard wiring.
Power LED -
+3.3V
Power LED +
220R
r
+
-
KTD-S0044-G Page 35 Power Supply
2
15.5 Onboard Status LEDs
15.6 Real-Time Clock Battery Connector
An external battery is only needed if time and date should be saved when the board turns off. The battery interface uses the pin header J600 (2 pins).
Header Pin Signal Description Type
1
Note: 1) To protect the external power lines of peripheral devices make sure that
- the wires have the right diameter to withstand the maximum available current.
- to enclosure of the peripheral device fulfills the fire-protecting conditions of IEC/EN 60950.
1 GND Ground PWR
2
VBAT3 1)
Battery input voltage +3V PWR IN
1
2
J600
KTD-S0044-G Page 36 Crisis Management or Custom Firmware
16 Crisis Management or Custom Firmware
If the board does not boot up or in the case of custom firmware usage (for example the replacement of the
TM
KONTRON bootloader) you can overwrite the content of the SPI
S
A desktop PC with a Windows® or Linux® operating system
S
A special NVIDIA® USB driver (only Windows®)
S
One USB Type A cable and the KONTRON adaptor cable KAB-USB-2
S
Two pushbuttons or one pushbutton and one jumper or something similar
S
An actual bootloader image file
For the next step you should create a link from the KTT20/pITX client port to a desktop PC (see chapter 'USB Client Interface'). Make sure that you have the power cable plugged-in. Then connect the pushbuttons or a pushbutton/jumper combination to the pin header J1400 (button or jumper) and J900 (button).
flash. The following parts are necessary:
J900
J1400
To set the board into recovery mode first the pushbutton J1400 (if you use two buttons) and then the pushbutton J900 must be pressed until the LEDs go on.
KTD-S0044-G Page 37 Crisis Management or Custom Firmware
If not already done install the special USB driver on the desktop PC. Open the device manager to check the driver activity. After some seconds you must see the entry USB Client Port Driver (CPD). The last step
®
includes the download of the bootloader image file with NVIDIAs 'KTT20/pITX Software Guide' chapter 'NVFLASH Download Tool'.
NVFLASH tool. For further details see the
KTD-S0044-G Page 38 Appendix A: System Resources
Appendix A: System Resources
A.1 Memory Area
The first 512 MB or 1 GB of SDRAM involve the working memory. All registers of the Tegra® 250 processor are memory-mapped. Do not write to the register range if you have no knowledge about the register function.
Memory Range Used for Available Comment
00000000h - 3FFFFFFFh External SDRAM Yes
40000000h - 4003FFFFh Internal RAM (IRAM) No Normally do not access the IRAM
50000000h - FFFFFFFFh Processor register No
A.2 I2CTM Bus
The KTT20/pITX uses two I2CTM busses. Only one bus is available on a peripheral connector. The other bus cannot be used for external devices.
I2CTM Address NVIDIA® Label Device Comment
68h / 69h Z.06 / Z.07 Power management unit
98h / 99h Z.06 / Z.07 Temperature sensor
A0h / A1h Z.06 / Z.07 Identification EEPROM
34h / 35h T.05 / T.06 Audio controller 16 bit access
KTD-S0044-G Page 39 Appendix B: Mechanical Dimensions
Appendix B: Mechanical Dimensions
3,0
4x 3,2
2x 2,6
72
69,1
50,0
0
11,7
97,0100
25,8
3,0
0
0
8,6
24,7
27,9
60,4
66,6
81,8
88,9
KTD-S0044-G Page 40 Appendix C: Connector Overview
Appendix C: Connector Overview
C.1 Mating Connectors
The table notes mating connectors.
Identifier Mating Connector Comment
J401
J1300
HIROSE DF20F-2830SCFA or comp.)
J1700
J1800
J1801
J1802
J1900
J2302 - J2303
J2001
J2200 - J2202
(SAMTEC FFSD-20-D-XX-01-N or comp.)
(SAMTEC FFSD-20-D-XX-01-N or comp.)
2.0 mm 20 pin
(HIROSE DF11-20DS-2C**)
1.0 mm 20 pin
(HIROSE DF20A-20DS-1C +
1.27 mm 40 pin
1.25 mm 6 pin
(MOLEX 51021-0600 or comp.)
1.25 mm 4 pin
(MOLEX 51021-0400 or comp.)
1.25 mm 2 pin
(MOLEX 51021-0200 or comp.)
1.25 mm 4 pin
(MOLEX 51021-0400 or comp.)
1.27 mm 40 pin
1.25 mm 5 pin
(MOLEX 51021-0500 or comp.)
external power connector
GPIO connector 1
for LVDS interface
for analog audio interface
for speaker interface
for S/PDIF support
for USB adapter
GPIO connector 2
for serial interfaces
KTD-S0044-G Page 41 Appendix C: Connector Overview
C.2 Pinout Tables
Pin DVI-I® J1600 LVDS J1700 PCIe® J2100 GPIO 2 J2001
1 TMDS2- VDD WAKE# GND 2 TMDS2+ VDD VCC3 GND 3 GND VDD N.C. GPIO17 4 N.C. VDD GND GPIO16 5 N.C. VDD N.C. VCC3 6 DDC_CLK GND VCC1 VCC3 7 DDC_DATA VCC5 CLKREQ# GPIO19 8 RSVD GND N.C. GPIO18
9 TMDS1- VCC3/VCC5 GND GPIO20 10 TMDS1+ VCC3/VCC5 N.C. GPIO21 11 GND N.C. PE_CLK- GND 12 N.C. N.C. N.C. GND 13 N.C. BKLTADJ PE_CLK+ GPIO23 14 VCC5 VCCENA N.C. GPIO22 15 GND BKLTON GND GPIO25 16 TMDS_HPD GND N.C. GPIO24 17 TMDS0- FTX0- N.C. GPIO27 18 TMDS0+ FTX0+ GND GPIO26 19 GND FTX1- N.C. GPIO29 20 N.C. FTX1+ W_DISABLE# GPIO28 21 N.C. FTX2- GND GPIO31 22 GND FTX2+ PE_RST# GPIO30 23 TMDS_CLK+ FTXC- PE_RX- GPIO33 24 TMDS_CLK- FTXC+ VCC3 GPIO32
25 / C1 RSVD FTX3- PE_RX+ VCC3 26 / C2 RSVD FTX3+ GND VCC3 27 / C3 RSVD GND GND GND 28 / C4 RSVD GND VCC1 GND 29 / C5 GND N.C. GND GPIO34
30 N.C. I2C_CLK GPIO35 31 N.C. PE_TX- GPIO36 32 N.C. I2C_DATA GPIO39 33 VCC3/VCC5 PE_TX+ GPIO37 34 VCC5 GND GPIO38 35 SPICLK GND GPIO40 36 SPISDO USB- GPIO41 37 SPISDI GND VCC3 38 SPICS# USB+ VCC3 39 GND VCC3 GND 40 GND GND GND 41 VCC3 42 N.C. 43 GND 44 N.C. 45 N.C. 46 N.C. 47 N.C. 48 VCC1 49 N.C. 50 GND 51 N.C. 52 VCC3
KTD-S0044-G Page 42 Appendix C: Connector Overview
Pin
1 VCC1.8 GND RST_BTN+ 2 VCC1.8 GND PWR_BTN+ 3 GPIO0 I2C_SDA RST_BTN­4 GPIO1 I2C_SCL PWR_BTN­5 GPIO2 RSVD POWER_LED­6 GPIO3 RSVD RSVD 7 GPIO4 GND POWER_LED+ 8 GPIO5 GND RSVD
9 GPIO6 VDD RSVD 10 GPIO7 VCC5 RSVD 11 GPIO8 VDD 12 GPIO9 VCC5 13 GPIO10 VCC_IN 14 GPIO11 VCC5 15 GPIO12 VCC_IN 16 GPIO13 VCC5 17 GPIO14 VCC_IN 18 GPIO15 VCC5 19 GND N.C. 20 GND N.C.
GPIO 1
J1300
Pin
1 TXD+ VCC5 GND
2 TXD- USB0- USBn+
3 RXD+ USB0+ USBn-
4 GND GND VCC5
5 GND VCC5
6 RXD- USB1-
7 GND USB1+
8 GND GND
LAN
J2300
Pin
1 DATA2 TXD GND
2 CD / DATA3 RXD VBAT3
3 CMD RTS#
4 VCC3 CTS#
5 CLK GND
6 GND
7 DATA0
8 DATA1
microSDTM Socket
J1401
External Power
J401
USB Standard
J2301
Serial Ports
J2200 - J2202
Power Front Header
J900
USB Extension
J1900/J2302/J2303
Battery
J600
KTD-S0044-G Page 43 Appendix C: Connector Overview
Pin
1 LINE_IN_L SPK_R# SPDIF_OUT
2 MIC_IN SPK_R GND
3 LINE_IN_R SPK_L#
4 LINE_OUT_L SPK_L
5 GND
6 LINE_OUT_R
Audio
J1800
Speaker
J1801
S/PDIF
J1802
KTD-S0044-G Page 44 Appendix D: Reference Documents
Appendix D: Reference Documents
KONTRON Technology A/S can't guarantee the availability of internet addresses.
Document Internet Address
NVIDIA® Development http://developer.nvidia.com/tools/Development
Tegra® 2 Technical Reference Manual http://developer.nvidia.com/tegra-2-technical-reference-manual
Linux® for Tegra® http://developer.nvidia.com/linux-tegra
Digital Visual Interface (DVI®) http://www.ddwg.org
Open LVDS Display Interface Standard Spec. (Open LDITM) http://www.national.com/analog/displays/open_ldi
IEEE 802.3® Specification (Ethernet) http://standards.ieee.org/getieee802
Universal Serial Bus Specification (USB) http://www.usb.org/developers/docs
SDTM Specification (SD Card) http://www.sdcard.org/developers/tech/sdio/sdio_spec
KTD-S0044-G Page 45 Appendix E: Certifications
Appendix E: Certifications
KTD-S0044-G Page 46 Appendix E: Certifications
KTD-S0044-G Page 47 Appendix E: Certifications
KTD-S0044-G Page 48 Appendix F: Document Revision History
Appendix F: Document Revision History
Revision Date Author Changes
S0044-G 02/12/13 M. Hüttmann Added UL certification and chapter 'Mechanical Dimensions'
S0044-F 02/04/13 M. Hüttmann Changed some minor USB client text passages, added Appendix D
S0044-E 11/13/12 M. Hüttmann All pictures replaced for hardware version 2.00
S0044-D 10/26/12 M. Hüttmann Pin 1 marks replaced. Some other little changes
S0044-C 09/25/12 M. Hüttmann New KONTRON design. Charger chapter removed and new external power
connector added. Connector drawing removed and connector picture added. In all tables TYPE column added. PCI Express chapter added
S0044-B 07/05/12 M. Hüttmann CRT interface removed
S0044-A 06/07/12 M. Hüttmann Added chapter 'Equipment Design Rule' and some mating connectors, remove
'Video In' as second functionality of GPIOs (replaced with SDIO2)
S0044-0 05/09/12 M. Hüttmann Created preliminary manual
Corporate Offices
Europe, Middle East & Africa
Oskar-von-Miller-Str. 1 85386 Eching/Munich Germany Tel.: +49 (0)8165/ 77 777 Fax: +49 (0)8165/ 77 219
info@kontron.com
North America
14118 Stowe Drive Poway, CA 92064-7147 USA Tel.: +1 888 294 4558 Fax: +1 858 677 0898
info@us.kontron.com
Asia Pacific
17 Building,Block #1,ABP 188 Southern West 4th Ring Road Beijing 100070, P.R.China Tel.: + 86 10 63751188 Fax: + 86 10 83682438
info@kontron.cn
POWERED BY
NVIDIA® TEGRA®
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
