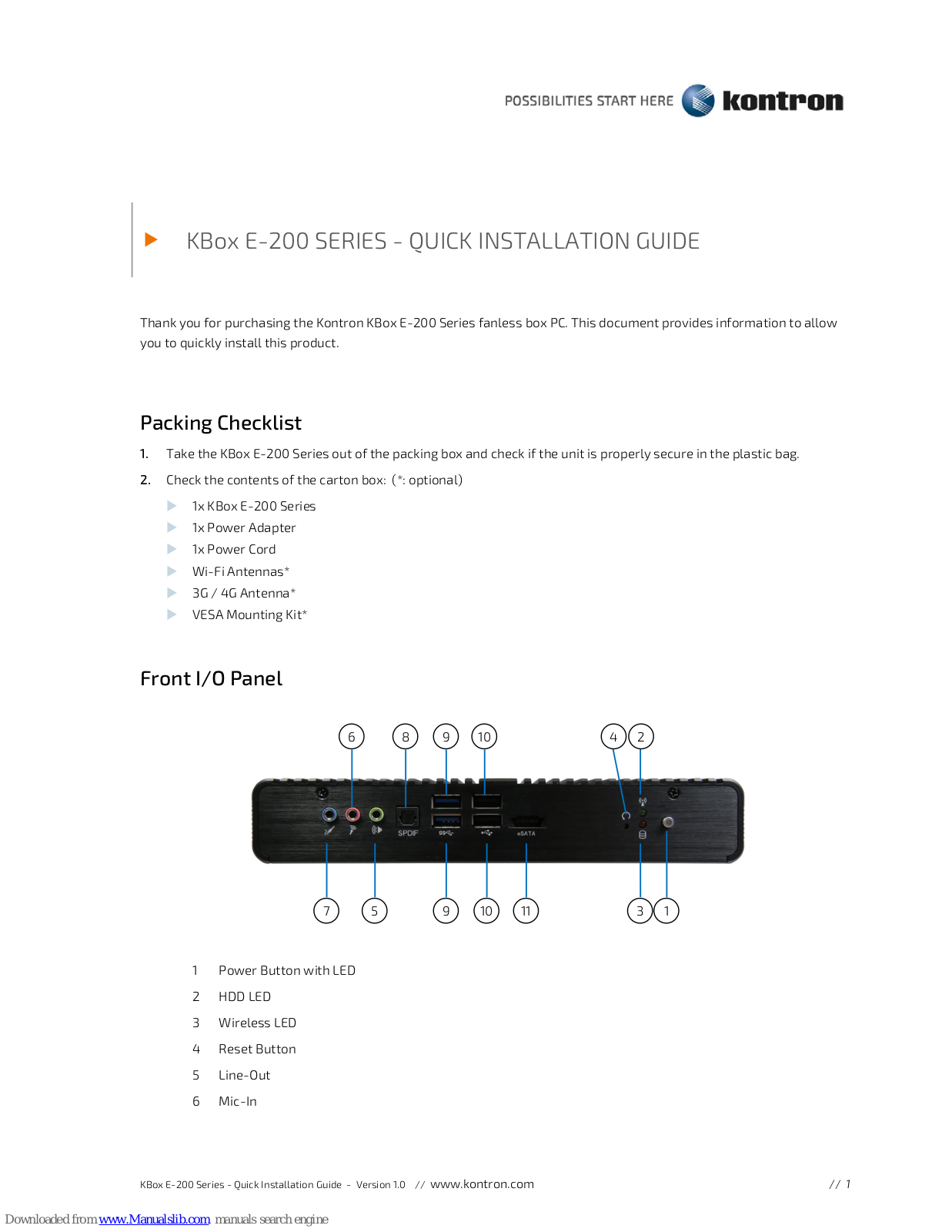

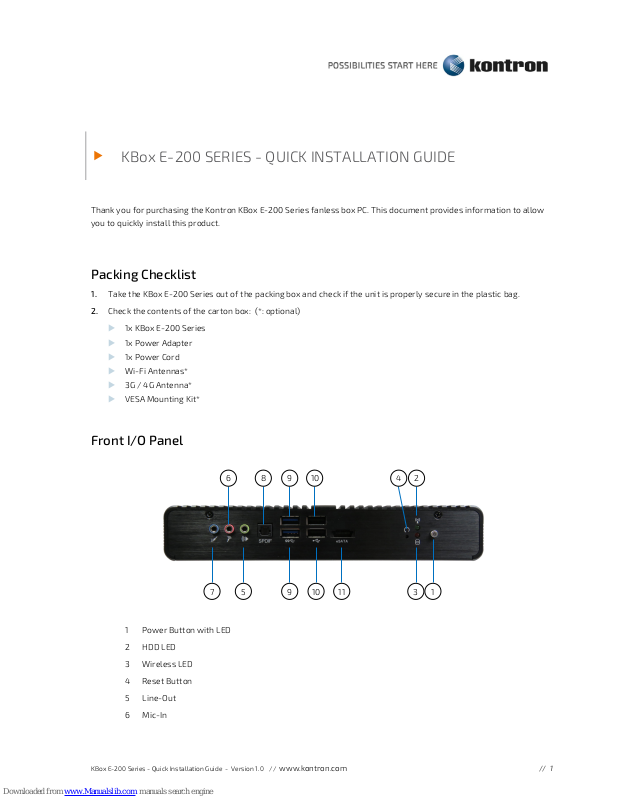

KBox E-200 Series - Quick Installation Guide - Version 1.0 // www.kontron.com // 1
KBox E-200 SERIES - QUICK INSTALLATION GUIDE
Thank you for purchasing the Kontron KBox E-200 Series fanless box PC. This document provides information to allow
you to quickly install this product.
Packing Checklist
1. Take the KBox E-200 Series out of the packing box and check if the unit is properly secure in the plastic bag.
2. Check the contents of the carton box: (*: optional)
1x KBox E-200 Series
1x Power Adapter
1x Power Cord
Wi-Fi Antennas*
3G / 4G Antenna*
VESA Mounting Kit*
Front I/O Panel
1 Power Button with LED
2 HDD LED
3 Wireless LED
4 Reset Button
5 Line-Out
6 Mic-In
1
2 3 6
5 7
4
8 9 10
11 10
9
Page 2

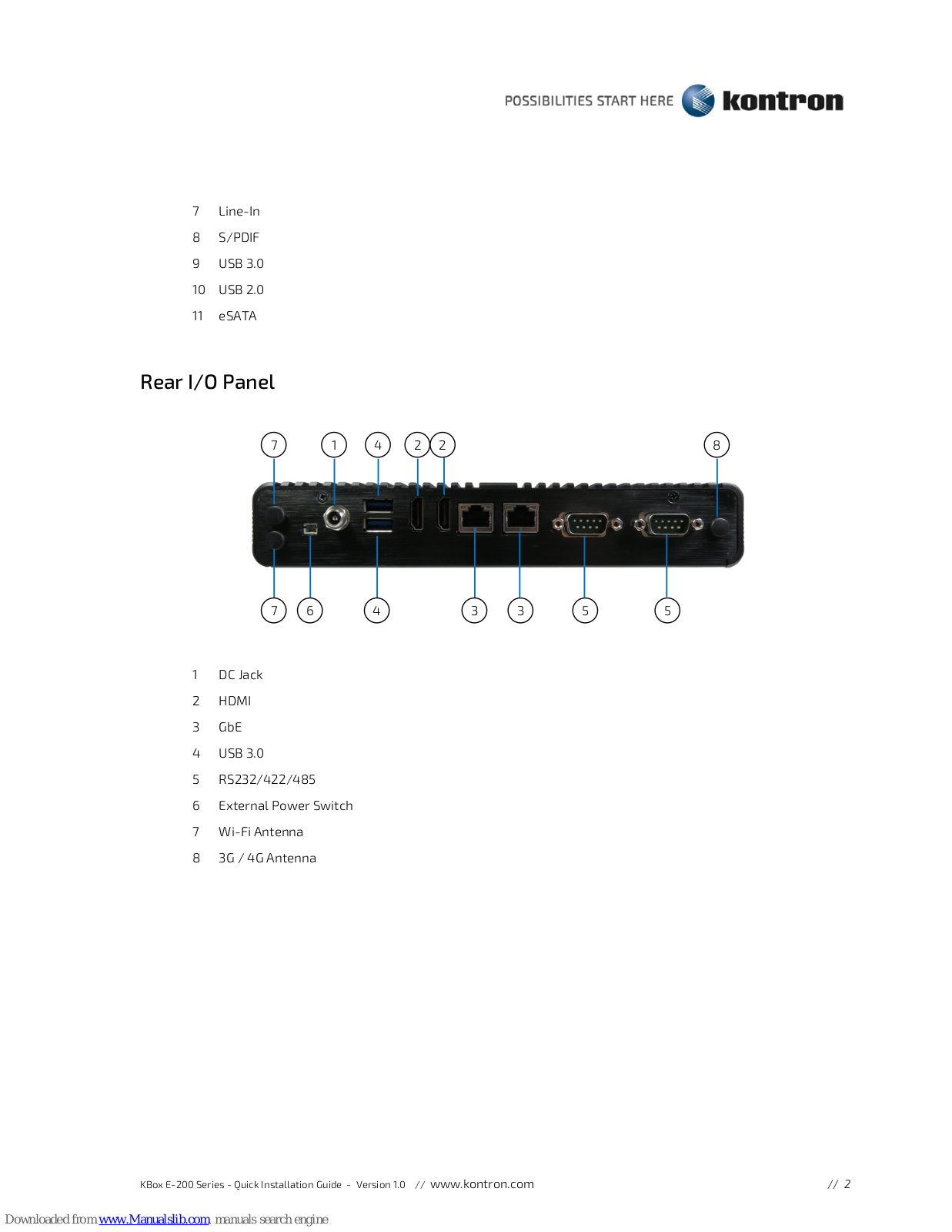

KBox E-200 Series - Quick Installation Guide - Version 1.0 // www.kontron.com // 2
7 Line-In
8 S/PDIF
9 USB 3.0
10 USB 2.0
11 eSATA
Rear I/O Panel
1 DC Jack
2 HDMI
3 GbE
4 USB 3.0
5 RS232/422/485
6 External Power Switch
7 Wi-Fi Antenna
8 3G / 4G Antenna
6
1
4
2 2
3
4
3 5 5
7 8
7
