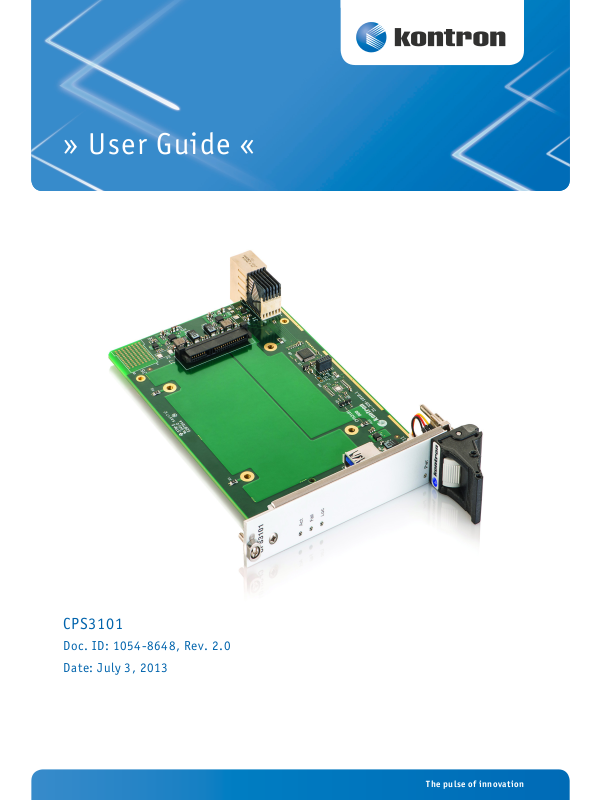

» User Guide «
CPS3101
Doc. ID: 1054-8648, Rev. 2.0
Date: July 3, 2013
D R A F T — F O R I N T E R N A L U S E O N L Y
The pulse of innovation
User Guide
Revision History
Publication Title: CPS3101 User Guide
Doc. ID: 1054-8648
Rev. Brief Description of Changes Date of Issue
1.0 Initial issue 6-Jun-2013
2.0 General update 3-Jul-2013
CPS3101
Imprint
Kontron Europe GmbH may be contacted via the following:
MAILING ADDRESS TELEPHONE AND E-MAIL
Kontron Europe GmbH +49 (0) 800-SALESKONTRON
Sudetenstraße 7 sales@kontron.com
D - 87600 Kaufbeuren Germany
For further information concerning other Kontron products, please visit our Internet website:
www.kontron.com.
Disclaimer
Copyright © 2013 Kontron AG. All rights reserved. All data is for information purposes only and not
guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate;
however, no responsibility is assumed for inaccuracies. Kontron and the Kontron logo and all other
trademarks or registered trademarks are the property of their respective owners and are recognized.
Specifications are subject to change without notice.
www.kontron.com
D R A F T — F O R I N T E R N A L U S E O N L Y
2
User Guide
CPS3101
Contents
Revision History ..........................................................................................................2
Imprint .....................................................................................................................2
Disclaimer ..................................................................................................................2
Contents ....................................................................................................................3
Tables .......................................................................................................................4
Warranty ....................................................................................................................5
Proprietary Note ..........................................................................................................5
Trademarks ................................................................................................................5
Environmental Protection Statement ................................................................................5
1 Introduction ....................................................................................... 6
1.1 Board Overview ........................................................................................... 6
1.2 Board Diagrams........................................................................................... 6
1.2.1 Functional Block Diagram .............................................................................. 6
1.2.2 Front Panel ................................................................................................ 7
1.2.3 Board Layout .............................................................................................. 7
1.3 Technical Specification ................................................................................. 8
1.4 Standards .................................................................................................. 9
1.5 Related Publications..................................................................................... 9
2 Functional Description ......................................................................... 10
2.1 Board Interfaces......................................................................................... 10
2.1.1 Front Panel LEDs......................................................................................... 10
2.1.2 USB Interface ............................................................................................ 10
2.1.3 SATA Interface ........................................................................................... 10
2.1.4 CompactPCI Serial Interface .......................................................................... 10
3 Installation ....................................................................................... 11
3.1 Safety ...................................................................................................... 11
3.2 General Instructions on Usage ....................................................................... 11
3.3 Board Installation ...................................................................................... 12
3.3.1 Hot Swap Insertion ..................................................................................... 12
3.3.2 Hot Swap Removal ...................................................................................... 12
3.4 2.5” SATA HDD/SSD Installation..................................................................... 12
3.5 USB Device Installation................................................................................ 12
D R A F T — F O R I N T E R N A L U S E O N L Y
www.kontron.com
3
User Guide
CPS3101
Tables
1 CPS3101 Main Specifications ..................................................................................8
2 Standards ..........................................................................................................9
3 Additional Standards for Boards Ordered with Ruggedized Service ................................... 9
4 Related Publications .............................................................................................9
5 Front Panel LEDs Functions .................................................................................. 10
Figures
1 CPS3101 Functional Block Diagram ........................................................................ 7
2 4 HP CPS3101 Front Panel .................................................................................... 8
3 4 HP CPS3101 Board Layout (Top View) ................................................................... 8
www.kontron.com
D R A F T — F O R I N T E R N A L U S E O N L Y
4
User Guide
CPS3101
Warranty
This Kontron product is warranted against defects in material and workmanship for the warranty period
from the date of shipment. During the warranty period, Kontron will at its discretion decide to repair
or replace defective products.
Within the warranty period, the repair of products is free of charge as long as warranty conditions are
observed.
The warranty does not apply to defects resulting from improper or inadequate maintenance or handling
by the buyer, unauthorized modification or misuse, operation outside of the product’s environmental
specifications or improper installation or maintenance.
Kontron will not be responsible for any defects or damages to other products not supplied by Kontron
that are caused by a faulty Kontron product.
Proprietary Note
This document contains information proprietary to Kontron. It may not be copied or transmitted by any
means, disclosed to others, or stored in any retrieval system or media without the prior written consent
of Kontron or one of its authorized agents.
The information contained in this document is, to the best of our knowledge, entirely correct. However, Kontron cannot accept liability for any inaccuracies or the consequences thereof, or for any liability
arising from the use or application of any circuit, product, or example shown in this document.
Kontron reserves the right to change, modify, or improve this document or the product described herein, as seen fit by Kontron without further notice.
Trademarks
This document may include names, company logos and trademarks, which are registered trademarks
and, therefore, proprietary to their respective owners.
Environmental Protection Statement
This product has been manufactured to satisfy environmental protection requirements where possible.
Many of the components used (structural parts, printed circuit boards, connectors, etc.) are capable
of being recycled.
Final disposition of this product after its service life must be accomplished in accordance with applicable country, state, or local laws or regulations.
www.kontron.com
D R A F T — F O R I N T E R N A L U S E O N L Y
5
User Guide
Front
CompactPCI
Serial
Onboard Power Supplies
12 V
USB 3.0
P6
optional,
for mechanical stability
P1
Hot Swap Handle
Power Enable
Pwr LED
SATA LEDs
2.5" SATA
HDD/SSD
site
SATA 6 Gb/s
SATA
Redriver
SATA 6G
SGPIO
Decoder
USB 3.0
Type A
onboard USB
connector
SGPIO
USB 3.0
USB 3.0
Redriver
USB 3.0
Fail
Locate
Activity
SATA
SGPIO
CPS3101
1 Introduction
1.1 Board Overview

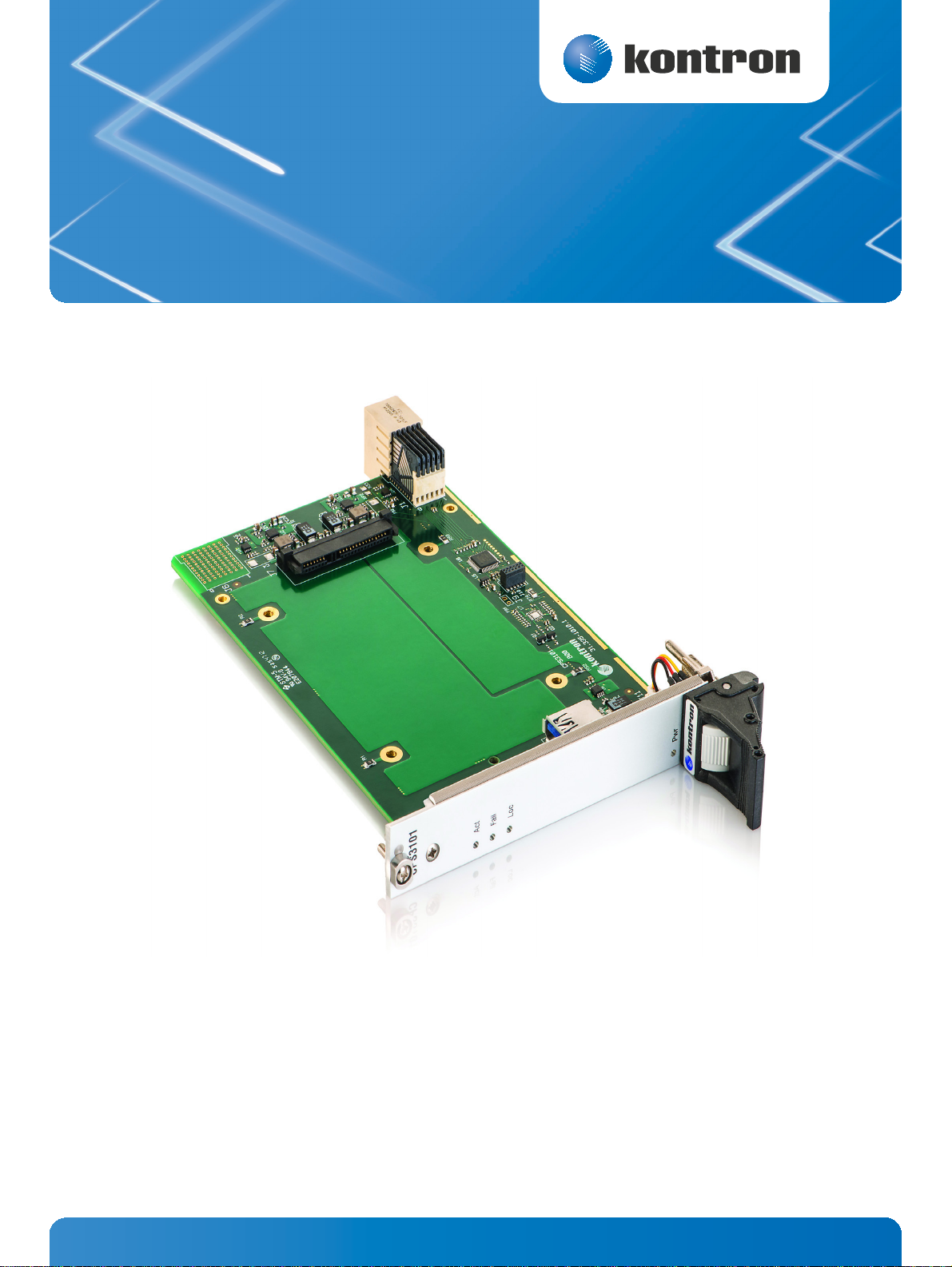

The CPS3101 is a 3U CompactPCI® Serial carrier board that provides support for one 2.5” SATA HDD or
SSD with transfer rates up to 6 Gb/s. The CPS3101 is equipped with an onboard USB 3.0 connector for
connection to system-internal USB devices. To ensure maximum signal integrity on the SATA interface
and the USB interface, a SATA/SAS redriver and an USB 3.0 redriver have been implemented on the
CPS3101.
The complete board design is optimized for best shock and vibration resistance and offers a servicefriendly implementation.
1.2 Board Diagrams
The following diagrams provide additional information concerning board functionality and component
layout.
1.2.1 Functional Block Diagram

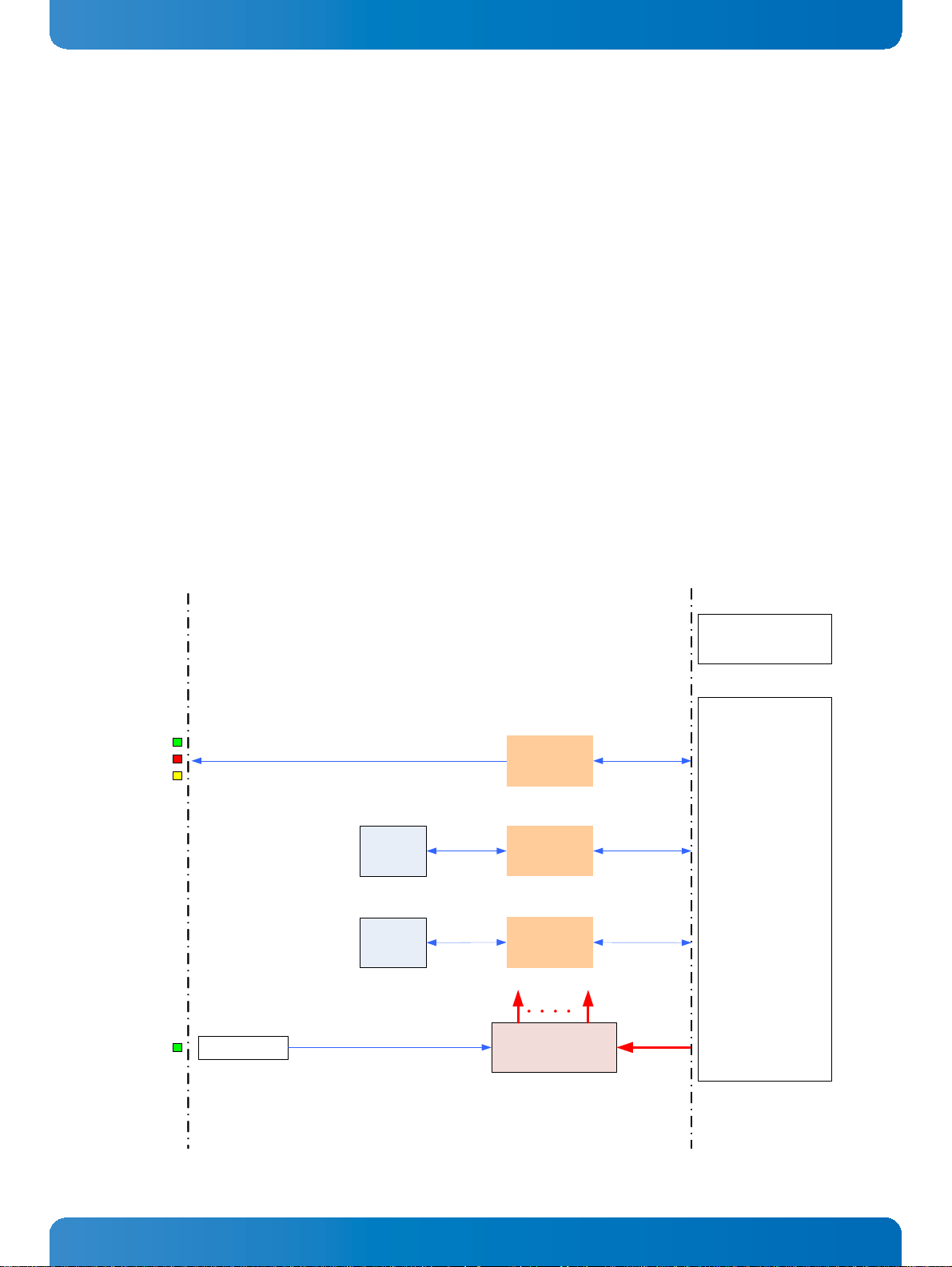

Figure 1: CPS3101 Functional Block Diagram
www.kontron.com
D R A F T — F O R I N T E R N A L U S E O N L Y
6
1.2.2 Front Panel
CPS3101
Act
Fail
Loc
Pwr
SATA LEDs
Act (green): Activity of the HDD/SSD
Fail (red): Failure Status of the HDD/SSD
Loc (yellow): Locates the HDD/SSD in a RAID array
Power Status LED
Pwr (green): Power Status of the CPS3101
P1
P6
(opt.)
J7
J8
Act LED
Fail LED
Loc LED
Pwr LED
2.5“ SATA HDD/SSD
Figure 2: 4 HP CPS3101 Front Panel
User Guide
CPS3101
1.2.3 Board Layout
Figure 3: 4 HP CPS3101 Board Layout (Top View)
D R A F T — F O R I N T E R N A L U S E O N L Y
www.kontron.com
7
1.3 Technical Specification
Table 1: CPS3101 Main Specifications
FEATURES SPECIFICATIONS
USB One USB 3.0 interface on type A connector, J8
SATA One SATA 6 Gb/s interface on standard SATA connector, J7, for connecting a SATA
2.5” HDD/SSD
CompactPCI Serial CompactPCI Serial interface on connector P1:
» Compliant with PICMG® CPCI-S.0 R 1.0 CompactPCI® Serial Specification
» Support for the following interfaces:
»1 x SATA 6 Gb/s
Onboard Interfaces
Hot Swap Hot swap handle with integrated hot swap switch for shutting down the power sup-
Hot
Swap
Front Panel LEDs SATA LEDs:
LEDs
Mechanical 3U, 4 HP, CompactPCI Serial-compliant form factor
Power Consumption approx. 0.6 W (without hard disk or USB device connected)
Power Supply +12V DC in accordance with the CompactPCI® Serial Specification
Temperature Range Operational: 0°C to +60°C Standard
General
Climatic Humidity 93% RH at 40 °C, non-condensing (acc. to IEC 60068-2-78)
Dimensions 100 mm x 160 mm
Board Weight 135 grams
»1 x USB 3.0
»SGPIO
One optional CompactPCI Serial connector P6 for increased mechanical stability
plies in order to safely remove the CPS3101 from the system
» Act (green): Activity of the HDD/SSD
» Fail (red): Failure Status of the HDD/SSD
» Loc (yellow): Locates the HDD/SSD in a RAID array
Power Status LEDs:
» Pwr (green): Power Status of the CPS3101
Storage: -40°C to +85°C Without hard disk
User Guide
CPS3101
-40°C to +85°C Extended
www.kontron.com
D R A F T — F O R I N T E R N A L U S E O N L Y
8
User Guide
CPS3101
1.4 Standards
This product complies with the requirements of the following standards.
Table 2: Standards
TYPE ASPECT STANDARD
CE Emission EN55022, EN50121-3-2, EN61000-6-3
Immission EN55024, EN50121-3-2, EN61000-6-2
Electrical Safety EN60950-1
Mechanical Mechanical Dimensions IEEE 1101.10
Environmental Climatic Humidity IEC60068-2-78
WEEE
RoHS 2 Directive 2011/65/EU
In addition, boards ordered with the ruggedized service comply with the following standards as well.
Table 3: Additional Standards for Boards Ordered with Ruggedized Service
Directive 2002/96/EC
Waste electrical and electronic equipment
Restriction of the use of certain hazardous sub-
stances in electrical and electronic equipment
TYPE ASPECT STANDARD REMARKS
Environmental Vibration
(Sinusoidal)
Single Shock IEC60068-2-27
IEC60068-2-6
IEC61131-2
IEC61131-2
Ruggedized version test parameters:
9-150 (Hz) frequency range
1 (g) acceleration
1 (oct/min) sweep rate
10 cycles/axis
3 axis
Ruggedized version test parameters:
15 (g) acceleration
11 (ms) shock duration half sine
3 number of shocks per direction (total: 18)
6 directions
5 (s) recovery time
Note: Customers desiring to perform further environmental testing of the CPS3101 must contact
Kontron for assistance prior to performing any such testing.
Boards without conformal coating must not be exposed to a change of temperature which
can lead to condensation, as it may cause irreversible damage especially when the board
is powered up again.
Kontron does not accept any responsibility for damage to products resulting from destructive environmental testing.
1.5 Related Publications
The following publications contain information relating to this product.
Table 4: Related Publications
PRODUCT PUBLICATION
CompactPCI Serial Systems
All Kontron products Product Safety and Implementation Guide, ID 1021-9142
www.kontron.com
PICMG® CPCI-S.0 R 1.0 CompactPCI® Serial Specification
D R A F T — F O R I N T E R N A L U S E O N L Y
9
