Kontron 886LCD-M/ATX, 886LCD-M/Flex, 886LCD-M/mITX User Manual

Download

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 1 of 80

User Manual

for the Mother Boards:

886LCD-M/Flex

886LCD-M/mITX

886LCD-M/ATX

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 2 of 80

Document revision history.

Revision Date By Comment

I June 2nd, 2006 MLA

Updated the “Processor Support Table”. IDE connector table: pull-up/down resistors corrected.

H May 9th, 2006 MLA

Chapter 8.7.2 Double information removed. Removed: “SW Watchdog currently not supported by BIOS” Added: Video Memory size. Feature Connector info.

G March 19th, 2006 MLA

Connector List updated. COM port position on 886LCD-M/mITX corrected. Pictures in chapter 4.1 are updated.

F March 3rd, 2006 MLA

UDMA133 support removed. Audio Bracket connector: Line In and MIC position exchanged. Audio Connector added info. COMB and COMD position exchanged and COM ports renamed. Connector List updated. BIOS Configuration updated. Minor corrections/additions

E May. 24th, 2005 PJA/MLA Major revision. BIOS information added. D Dec. 20th, 2004 PJA 886LCD-M/ATX information added C Dec. 13th, 2004 PJA 886LCD-M/mITX information added A Sept. 27th, 2004 MLA Many correction and added information, but still preliminary

0.1 June 14th, 2004 PJA First preliminary manual version.

No part of this document may be reproduced or transmitted in any form or by any means, electronically or mechanically, for any purpose, without the express written permission of KONTRON Technology A/S.

Trademark Acknowledgement:

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer:

KONTRON Technology A/S reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Specifications listed in this manual are subject to change without notice. KONTRON Technology assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright, or mask work rights to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise specified. Applications that are described in this manual are for illustration purposes only. KONTRON Technology A/S makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 3 of 80

Life Support Policy

KONTRON Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL OF THE GENERAL MANAGER OF KONTRON Technology A/S.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

KONTRON Technology Technical Support and Services

If you have questions about installing or using your KONTRON Technology Product, check this User’s Manual first – you will find answers to most questions here. To obtain support, please contact your local Distributor or Field Application Engineer (FAE).

Before Contacting Support: Please be prepared to provide as much information as possible:

 CPU Board

1. Type.

2. Part-number (Number starting with “53”).

3. Serial Number.

 Configuration

1. CPU Type, Clock speed.

2. DRAM Type and Size.

3. BIOS Revision (Find the Version Info in the BIOS Setup in the Kontron Section).

4. BIOS Settings different than Default Settings (Refer to the Software Manual).

 System

1. O/S Make and Version.

2. Driver Version numbers (Graphics, Network, and Audio).

3. Attached Hardware: Harddisks, CD-rom, LCD Panels etc.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 4 of 80

Table of contents:

INTRODUCTION.....................................................................................................................................7

2. INSTALLATION PROCEDURE..............................................................................................................8

2.1 Installing the board............................................................................................................................8

2.2 Requirement according to EN60950................................................................................................9

3. SYSTEM SPECIFICATION...................................................................................................................10

3.1 Component main data .....................................................................................................................10

3.2 Processor support table..................................................................................................................13

3.3 System Memory support.................................................................................................................13

3.4 System overview..............................................................................................................................14

3.5 886LCD-M Power Distribution & Power State Map ......................................................................15

3.6 Power Consumption........................................................................................................................17

3.6.1 Test system configuration........................................................................................................... 17

3.6.2 Measured Power Consumption, Net...........................................................................................17

3.6.3 Power Consumption, Total .........................................................................................................18

3.6.4 Minimum recommended power supply specifications ................................................................ 18

3.6.5 Recommended Power Supply specifications .............................................................................18

3.7 886LCD-M Clock Distribution .........................................................................................................19

4. CONNECTOR DEFINITIONS................................................................................................................21

4.1 Connector layout..............................................................................................................................22

4.1.1 886LCD-M/Flex...........................................................................................................................22

4.1.2 886LCD-M/ATX ..........................................................................................................................23

4.1.3 886LCD-M/mITX.........................................................................................................................24

4.2 Power Connector (ATXPWR)..........................................................................................................25

4.3 Keyboard and PS/2 mouse connectors.........................................................................................26

4.3.1 Stacked MINI-DIN keyboard and mouse Connector (MSE & KBD) ........................................... 26

4.3.2 keyboard and mouse pin-row Connector (KBDMSE)................................................................. 26

4.4 Display Connectors.........................................................................................................................27

4.4.1 CRT Connector (CRT)................................................................................................................27

4.4.2 LVDS Flat Panel Connector (LVDS)...........................................................................................28

4.4.3 AGP/DVO connector...................................................................................................................29

4.5 Parallel ATA harddisk interface......................................................................................................33

4.5.1 IDE Hard Disk Connector (IDE_P) .............................................................................................34

4.5.2 IDE Hard Disk Connector (IDE_S) .............................................................................................34

4.5.3 IDE Hard Disk Connector (IDE_S2) ...........................................................................................35

4.5.4 CF Connector (CF) .....................................................................................................................36

4.6 Serial ATA harddisk interface.........................................................................................................37

4.6.1 SATA Hard Disk Connector (SATA0, SATA1) ...........................................................................37

4.7 Printer Port Connector (PRINTER).................................................................................................38

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 5 of 80

4.8

Serial Ports.......................................................................................................................................39

4.8.1 Com1 (Port1) DB9 Connector. ...................................................................................................39

4.8.2 Com2, Com3 & Com4 Pin Header Connectors..........................................................................39

4.9 Ethernet connectors........................................................................................................................40

4.9.1 Ethernet connector 1 (ETHER1).................................................................................................40

4.9.2 Ethernet connector 2/3 (ETHER2/3)...........................................................................................41

4.10 USB Connector (USB)..................................................................................................................42

4.10.1 USB Connector 0/2 (USB0/2).....................................................................................................42

4.11 Audio Connector ..........................................................................................................................43

4.11.1 Audio Line-in, Line-out and Microphone..................................................................................... 43

4.11.2 CD-ROM Audio input (CDROM).................................................................................................43

4.11.3 AUDIO Header (AUDIO_HEAD).................................................................................................44

4.12 Fan connectors , FAN_PROC and FAN_SYS. ...........................................................................45

4.13 The Clear CMOS Jumper, Clr-CMOS. .........................................................................................45

4.14 LPC connector (unsupported). ...................................................................................................45

4.15 Front Panel connector (FRONTPNL)..........................................................................................46

4.16 Intruder Connector (INT)..............................................................................................................46

4.17 Feature Connector (FEATURE)...................................................................................................47

4.17.1 PCI Slot Connector .................................................................................................................... 48

4.17.2 Signal Description –PCI Slot Connector..................................................................................... 49

4.17.3 886LCD-M PCI IRQ & INT routing..............................................................................................50

5. ONBOARD CONNECTORS .................................................................................................................51

6. SYSTEM RESSOURCES......................................................................................................................52

6.1 Memory map.....................................................................................................................................52

6.2 PCI devices.......................................................................................................................................52

6.3 Interrupt Usage ................................................................................................................................52

6.4 I/O Map ..............................................................................................................................................54

6.5 DMA Channel Usage........................................................................................................................54

7. OVERVIEW OF BIOS FEATURES.......................................................................................................55

7.1 System Management BIOS (SMBIOS / DMI)..................................................................................55

7.2 Legacy USB Support.......................................................................................................................55

8. BIOS CONFIGURATION / SETUP .......................................................................................................56

8.1 Introduction......................................................................................................................................56

8.2 Main Menu.........................................................................................................................................56

8.3 Advanced Menu................................................................................................................................57

8.3.1 Advanced settings – CPU Configuration ....................................................................................57

8.3.2 Advanced settings – IDE Configuration......................................................................................58

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 6 of 80

8.3.3 Advanced settings – LAN Configuration..................................................................................... 60

8.3.4 Advanced settings – Floppy Configuration.................................................................................61

8.3.5 Advanced settings – SuperIO Configuration ..............................................................................62

8.3.6 Advanced settings – Hardware Health Configuration ................................................................63

8.3.7 Advanced settings – Voltage Monitor ......................................................................................... 64

8.3.8 Advanced settings – ACPI Configuration ...................................................................................64

8.3.9 Advanced settings – General ACPI Configuration .....................................................................65

8.3.10 Advanced settings – Advanced ACPI Configuration ..................................................................66

8.3.11 Advanced settings – Remote Access Configuration ..................................................................67

8.3.12 Advanced settings – USB Configuration ....................................................................................68

8.3.13 Advanced settings – USB Mass Storage Device Configuration.................................................69

8.4 PCIPnP Menu....................................................................................................................................70

8.5 Boot Menu.........................................................................................................................................71

8.5.1 Boot – Boot Settings Configuration ............................................................................................71

8.6 Security Menu...................................................................................................................................73

8.7 Chipset Menu....................................................................................................................................74

8.7.1 Advanced Chipset Settings – Intel Montara-GML NorthBridge Configuration ...........................74

8.7.2 Advanced Chipset Settings – SouthBridge Configuration..........................................................75

8.8 Power Menu......................................................................................................................................76

8.9 Exit Menu..........................................................................................................................................77

8.10 AMI BIOS Beep Codes .................................................................................................................78

9. OS SETUP.............................................................................................................................................79

10. WARRANTY..........................................................................................................................................80

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 7 of 80

1. Introduction

This manual describes the 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX boards made by KONTRON Technology A/S. The boards will also be denoted 886LCD family if no differentiation is required.

All boards are to be used with the Intel® Pentium® M & Intel Celeron® M Processors.

Use of this manual implies a basic knowledge of PC-AT hard- and software. This manual is focused on describing the 886 Board’s special features and is not intended to be a standard PC-AT textbook.

New users are recommended to study the short installation procedure stated in chapter 3 before switchingon the power.

All configuration and setup of the CPU board is either done automatically or by the user in the CMOS setup menus. Except for the CMOS Clear jumper, no jumper configuration is required.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 8 of 80

2. Installation procedure

2.1 Installing the board

To get the board running, follow these steps. In some cases the board shipped from KONTRON Technology has CPU, DDR DRAM and Cooler mounted. In this case Step 2-4 can be skipped.

1. Turn off the power supply.

2. Insert the DIMM DDR 184pin DRAM module(s). Be careful to push it in the slot(s) before locking the

tabs. For a list of approved DDR DRAM modules contact your Distributor or FAE (list under preparation). DDR333, DIMM 184pin DRAM modules are supported.

3. Install the processor. The CPU is keyed and will only mount in the CPU socket in one way. Use the

handle to open/ close the CPU socket. Intel Pentium M and Celeron M processors (Banias processors) are supported.

4. Use heat paste or adhesive pads between CPU and cooler and connect the Fan electrically to the

FAN_PROC connector.

5. Insert all external cables for hard disk, keyboard etc. except for flat panel. A CRT monitor must be

connected in order to change CMOS settings to flat panel support. To achieve UDMA-66/100

performance on the IDE interface, 80poled UDMA cables must be used. If using the IDE_S2 connector

care should be taken in correct orientation when attaching the female cable. The cables that KONTRON provide do not have a key. There is possibility of damage to the HDD or PCB if the cable is not orientated correctly.

6. Connect power supply to the board by the ATXPWR connector.

7. Turn on the power on the ATX power supply.

8. The PWRBTN_IN must be toggled to start the Power supply; this is done by shorting pins 16

(PWRBTN_IN) and pin 18 (GND) on the FRONTPNL connector (see Connector description). A “normally open” switch can be connected via the FRONTPNL connector.

9. Enter the BIOS setup by pressing the “F2” key during boot up. Refer to the Software Manual (under

preparation) for details on BIOS setup. Enter Advanced Menu / CPU Configuration / Intel SpeedStep Tech. and set this option to “Maximum Performance”.

Note: To clear all CMOS settings, including Password protection, move the CMOS_CLR jumper (with or without

power) for approximately 1 minute. Alternatively turn off power and remove the battery for 1 minute, but be careful to orientate the battery corretly when reinserted.

Note: If the Audio Amplifiers shall be used to generate up to 3W on one or more of the

Audio ouput channels, then make sure that sufficent airflow is around the Audio Amplifier. The Amplifier has integrated Thermal Protection and will not be damaged even though the airflow is insufficient for normal operation.

Warning: Do not use Power Supply without 3.3V monitoring watchdog, which is

standard feature in ATX Power Supplies. Running the board without 3.3V connected will damage the board after a few minutes.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 9 of 80

2.2 Requirement according to EN60950

Users of 886LCD boards should take care when designing chassis interface connectors in order to fulfill the EN60950 standard:

Lithium Battery precautions:

CAUTION!

Danger of explosion if battery is incorrectly

replaced.

Replace only with same or equivalent type

recommended by manufacturer.

Dispose of used batteries according

to the manufacturer’s instructions.

VORSICHT!

Explosionsgefahr bei unsachgemäßem Austausch

der Batterie.

Ersatz nur durch den selben oder einen vom

Hersteller empfohlenen gleichwertigen Typ.

Entsorgung gebrauchter Batterien nach

Angaben des Herstellers.

ADVARSEL!

Lithiumbatteri – Eksplosionsfare ved fejlagtig

håndtering.

Udskiftning må kun ske med batteri

af samme fabrikat og type.

Levér det brugte batteri tilbage til leverandøren.

ADVARSEL

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende

type anbefalt av apparatfabrikanten.

Brukte batterier kasseres i henhold til fabrikantens

instruksjoner.

VARNING

Explosionsfara vid felaktigt batteribyte.

Använd samma batterityp eller en ekvivalent

typ som rekommenderas av apparattillverkaren.

Kassera använt batteri enligt fabrikantens

instruktion.

VAROITUS

Paristo voi räjähtää, jos se on virheellisesti

asennettu.

Vaihda paristo ainoastaan laltevalmistajan

suosittelemaan

tyyppiln. Hävitä käytetty paristo valmistajan

ohjeiden

mukaisesti.

When an interface/connector has a VCC (or other power) pin, which is directly connected to a power plane like the VCC plane:

To protect the external power lines of peripheral devices the customer has to take care about:

• That the wires have the right diameter to withstand the maximum available power.

• That the enclosure of the peripheral device fulfils the fire protecting requirements of IEC/EN 60950.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 10 of 80

3. System specification

3.1 Component main data

The table below summarises the features of the 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX embedded motherboards.

Form factor

886LCD-M/Flex: Flex-ATX (190,50millimeters by 228,60millimeters) 886LCD-M/ATX: ATX (190,50millimeters by 304,00millimeters) 886LCD-M/mITX: mini ITX (170.18millimeters by 170.18millimeters)

Processor

• Support for Intel Pentium M and Celeron M Processors in mPGA478 socket with

400MHz system bus.

• Banias (0.13um) and Dothan (0.09um) family processors.

Memory

• /Flex and /ATX: 2x184pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets.

• /mITX: 1x184pin DDR SDRAM Dual Inline Memory Module (DIMM) socket.

• Support for DDR 266/333 (PC2100/PC2700)

• Support for up to 2GB of system memory (/Flex and /ATX)

• Support for up to 1GB of system memory (/mITX)

• ECC support depend on Intel

Chipset

Intel 855GME Chipset consisting of:

• Intel® 855GME Chipset Graphics and Memory Controller Hub (GMCH)

• Intel® 6300ESB I/O Controller Hub (ICH)

• 4 Mbit Firmware Hub (FWH)

Video

• Intel Extreme Graphics 2 controller

• Shared Video Memory up to 64MB

• Analog Display Support, 350-MHz integrated 24-bit RAMDAC with support for

analogue monitors up to 2048x1536 at 75 Hz

• Digital Video Out Port (DVOB & DVOC) support, dot clock up to 165-MHz

DVI DVO ADD and CRT DVO ADD supported. LVDS DVO ADD cards currently not supported

• Single or dual channel LVDS panel support (18/ 24bit OpenLDI / SPWG) up to UXGA

panel resolution

• Dual independent pipe support, Mirror and Dual independent display support

Tri-view support through LVDS interface, DVO B/C port, and CRT

CRT – LVDS supported CRT - DVO/ Add card supported LVDS - DVO/ Add card supported

• AGP 2.0, 1.5V connector (DVO B/C muxed w/ AGP) supporting 1x, 2x, and 4x AGP

cards or an AGP Digital Display (ADD) card

Audio

Audio, AC97 version 2.3 subsystem using the Realtek ALC655 codec

• Audio Amplifier

o /FLEX and /ATX: 4x3W o /mITX: 2x3W

• Line-out

• CDROM in

• SPDIF Interface (Surround)

• Microphone

Onboard speaker

I/O Control

Winbond W83627THF LPC Bus I/O Controller

Peripheral interfaces

• Four USB 2.0 ports

• Four Serial ports (RS232). Note: Intel 6300ESB Serial port FIFO (COM C+D) is not

standard compliant. May cause issues with specific SW.

• One Parallel port, SPP/EPP/ECP / Floppy (optional floppy with special cabling)

• Two Serial ATA 150 IDE interfaces, ATA Mode 6 not supported due to Intel Chipset

restrictions.

• Two Parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support

• PS/2 keyboard and mouse ports

(continued)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 11 of 80

LAN Support

3x 10/100/1000Mbits/s LAN subsystem using Realtek RTL8110SB-32 LAN controllers or

1x / 3x 10/100Mbits/s LAN subsystem using Realtek RTL8100C LAN controllers depending on board configuration. PXE and RPL netboot supported. Wake On LAN (WOL) supported (on ETH1 only).

BIOS

• Kontron Technology / AMI BIOS (core version)

• Support for Advanced Configuration and Power Interface (ACPI 1.0, 2.0), Plug and

Play

o Suspend To Ram o Suspend To Disk o Intel Speed Step

• Secure CMOS/ OEM Setup Defaults

• “Always On” BIOS power setting

• RAID Support (RAID modes 0 and 1)

Instantly Available PC Technology

• Support for PCI Local Bus Specification Revision 2.2

• Suspend to RAM support

Expansion Capabilities

• SMBus routed to FEATURE connector

• LPC Bus routed to LPC connector

• DDC Bus routed to LVDS connector

• 8 x GPIOs (General Purpose I/Os) routed to FEATURE connector

• PCI Bus routed to PCI slot(s) (PCI Local Bus Specification Revision 2.2)

Hardware Monitor Subsystem

• Smart Fan control system, support Thermal® and Speed® cruise for three onboard

Fan control connectors: FAN_PROC, FAN_SYS and FEATURE

• Three thermal inputs: CPU die temperature, System temperature and External

temperature input routed to FEATURE connector.

• Voltage monitoring

• Intrusion detect input

SMI violations (BIOS) on HW monitor not supported. Supported by API (Windows).

Operating Systems Support

• Win2000

• WinXP

• Win98 (USB2.0, ACPI S4 not supported)

• Win2003

• WinXP Embedded (limitations may apply)

• WinCE.net (limitations may apply)

• Linux: Feodora Core 3, Suse 9.2 (limitations may apply)

(continued)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 12 of 80

Environmental Conditions

Operating:

0°C – 60°C operating temperature (forced cooling). It is the customer’s responsibility to provide sufficient airflow around each of the components to keep them within allowed temperature range. 10% - 90% relative humidity (non-condensing)

Storage:

-20°C – 70°C 5% - 95% relative humidity (non-condensing)

Electro Static Discharge (ESD) / Radiated Emissions (EMI):

All Peripheral interfaces intended for connection to external equipment are ESD/ EMI protected. EN 61000-4-2:2000 ESD Immunity EN55022:1998 class B Generic Emission Standard.

Safety:

UL 60950-1:2003, First Edition CSA C22.2 No. 60950-1-03 1st Ed. April 1, 2003 Product Category: Information Technology Equipment Including Electrical Business Equipment Product Category CCN: NWGQ2, NWGQ8 File number: E194252

Theoretical MTBF:

199,799hours (22,8years) , Calculation based on Telcordia SR-332 method.

Restriction of Hazardeous Substances (RoHS):

All boards in the 886LCD-M family is planned for RoHS compliance.

Capacitor utilization:

No Tantal capacitors on board Only Japanese brand Aluminium capacitors rated for 100degrees Celsius used on board

Battery

Exchangeable 3.0V Lithium battery for onboard Real Time Clock and CMOS RAM.

Manufacturer Toshiba / Part-number CR2032.

Approximate 5 years retention.

CAUTION: Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 13 of 80

3.2 Processor support table.

The 886LCD-M/mITX, -/Flex and /ATX are designed to support the following PGA (478 pins) processors:

Intel® Pentium® M Processor, Dothan 90 nm process, FSB 400MHz with 2 MB L2 cache Intel® Pentium® M Processor, Banias 130 nm process, FSB 400MHz with 1 MB L2 cache Intel®Celeron® M Processor, Dothan 90 nm process, FSB 400MHz with 1 MB L2 cache Intel®Celeron® M Processor, Banias 130 nm process, FSB 400MHz with 512 kB L2 cache

Processor Brand Clock

Speed

Processor

Number

sSpec no. Thermal

Guideline

Embedded

Intel® Pentium® M, 90nm 2.1 GHz 765 SL7V3 21.0 W No

2.0 GHz 755 SL7EM 21.0 W No

1.8 GHz 745 SL7EN 21.0 W Yes

1.7 GHz 735 SL7EP 21.0 W No

1.6 GHz 725 SL7EG 21.0 W No

1.5 GHz 715 SL7GL 21.0 W No

Intel® Pentium® M, 130nm 1.7 GHz ? SL6N5 24.5 W No

1.6 GHz ? SL6FA 24.5 W Yes

1.5 GHz 705 SL6F9 24.5 W No

1.4 GHz ? SL6F8 22.0 W No

1.3 GHz ? SL6N4 22.0 W No

Intel® Celeron® M, 90nm

1.5 GHz 370 ? 21.0 W Yes

1.4 GHz 360 SL7LS 21.0 W No

Intel® Celeron® M, 130nm 1.5 GHz 340 SL7ME 24.5 W No

1.3 GHz 320 SL6N7 24.5 W Yes

1.2 GHz 310 SL6N7 24.5 W No

The 886LCD-M/mITX(BGA) is a version including an Intel Mobile Celeron ULV 800 MHz BGA CPU (0 L2).

3.3 System Memory support

The 886LCD-M/Flex and 886LCD-M/ATX boards have two onboard DIMM sockets (886LCD-M/mITX equipped with one DIMM socket only) and support the following memory features:

• 2.5V (only) 184-pin DDR SDRAM DIMMs with gold-plated contacts

• Supports up to two (one on mITX) single-sided and/or double-sided DIMMs (four rows populated)

with unbuffered PC1600/PC2100/PC2700 DDR-SDRAM (with or without ECC(depends on Intel))

• Supports 64 Mbit, 128 Mbit, 256 Mbit and 512 Mbit technologies for x8 and x16 width devices.

• Maximum of 2 Gbytes system (1GB on mITX) memory by using 512 Mbit technology devices

(double sided)

• Supports 200 MHz, 266 MHz, and 333 MHz DDR devices

• 64-bit data interface (72-bit with ECC(depends on Intel))

The installed DDR SDRAM should support the Serial Presence Detect (SPD) data structure. This allows the BIOS to read and configure the memory controller for optimal performance. If non-SPD memory is used, the BIOS will attempt to configure the memory settings, but performance and reliability may be impacted.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 14 of 80

Intel

Processor M

Banias

& Dothan

Intel

855GME

Intel

ICH(S)

HPI

HUB link 1.5

LVDS 24 bit

DVO/

AGP

VGA

1x184 pins

DDR33 3

ECC supor t

SI O

Wi nbond

W83267

THF

4 Mbi t

LPC

FLASH

LPC

PCI

2. 2

32 bit

MHz

PCI

2. 2

32 bit

MHz

PCI

2. 2

32 bit

MHz

PCI 2.2 32 bit, 33MHz

10/ 100/

1GbE

PCI-X 32 bit, 66MHz

10/ 100/

1GbE

10/ 100/

1GbE

AC97

RTL655

ampli fi er3Wamplifier

Rear L+R

COM

Header

COM

Header

COM

Header

ATA10 0

SATA150

Internal

USB

Exter nal

USB

AC97

KBD MS ELPT

1x184 pins

DDR333

ECC supor t

PCI

2. 2

32 bit

MHz

PCI

2. 2

32 bit

MHz

PCI

2. 2

32 bit

MHz

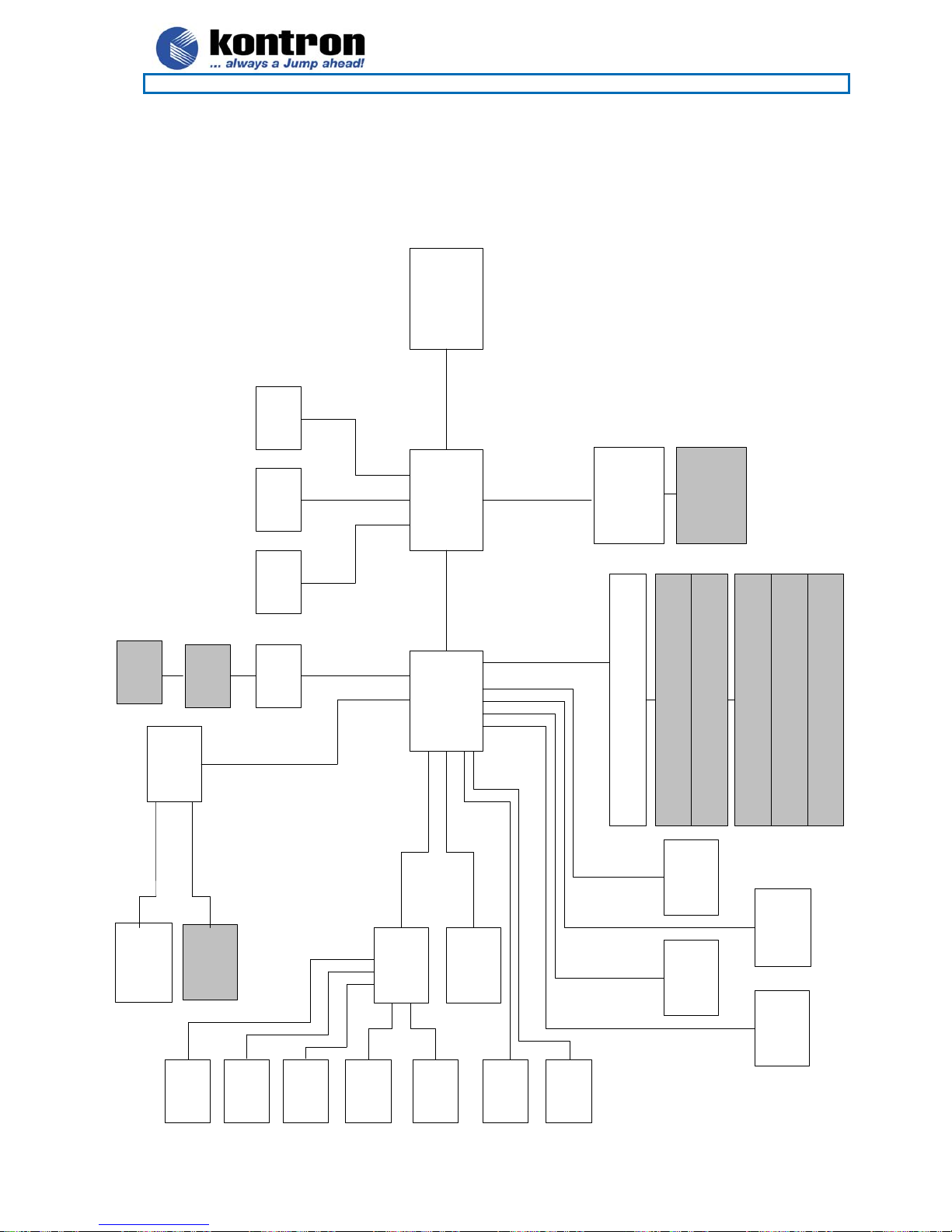

3.4 System overview

The block diagram below shows the architecture and main components of the 886LCD boards. The two key components on the board are the Intel

855GME and Intel® 6300ESB (ICH(S)) Embedded Chipsets. Components shown shaded are optional depending on board type (886LCD-M/Flex, /ATX or /mITX) and variants of the board.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 15 of 80

LDO Regulator

Ref. U1SS

ATX PSU

Ref.: ATXPWR

+V5_ALWAYS +V5S +V3.3S VCC12 VCC-12

+V3.3ALWAYS

LDO Regulator

Ref. U2SS

+V1.5ALWAYS

LDO Regulator

Ref. U3SS

+V1.8S

DC/DC

regulator

Ref.:

COREREG

+VCC_CORE

DC/DC

regulator

Ref.:

VCCPREG

+V1.2S

+V1.5S

LDO regulator

Ref.:

VCCPAMP

+VCCP

DC/DC

regulator

Ref.:

ACPICTRL

+V2.5

+V1.25S

MOSFET SWITCH

Ref.: 1SD, 7SD

+V5_DUAL

MOSFET SWITCH

Ref.: 1SD, 7SD

+V3.3_DUAL

VCC-12

VCC12

Battery or

+V3.3_ALWAY

Ref.: BT1II

+V_RTC

3.5 886LCD-M Power Distribution & Power State Map

(continued)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 16 of 80

Processor

Ref.:

BANIAS_

USB

connectors

Ref.:

USB_ETH,

FRONTPNL

Audio

Amplifiers

Ref.:

U1A1, U1A2

DDR Memory

Ref.:

DDRX

Ethernet

Controllers

Ref.:

ETH1

COM drivers

Ref.:

COMXDRV

LPT port

Ref.:

CRT_COMA_L

PT_

BIOS Flash

Ref.: FWH

KBD / MSE

Ref.:

KBD_MSE

+VCC_CORE +VCCP

+VCCP

+V1.8S

+V1.2S +V1.5S

+V2.5

AC97 Codec

Ref.:

Codec

North Bridge

Ref.:

GMCH_

+V3.3S

+V3.3S +V1.5S +VCCP

+V_RTC

+V5_ALWAYS

South Bridge

Ref.:

ICHS_

+V3.3_ALWAYS

+V3.3_DUAL

+V5S

+V1.5_ALWAYS

+V2.5

+V1.25S

+V3.3S

+V5S

VCC12

+V1.5S

AGP

Ref.: AGP

+V3.3_ALWAYS

PCI slots

Ref.:

PCIX

+V5S

VCC12

VCC-12

+V3.3S

+V3.3_ALWAYS

+V3.3_DUAL

Ethernet

Controllers

Ref.:

ETH2, ETH3

+V3.3S

+V5S

VCC12

VCC-12

+V5_DUAL

+V5_DUAL+V3.3S

VCC12

+V3.3S

+V5S

+V3.3S

VCC12

VCC-12

+V_RTC

+V1.8S

+VCC_CORE

+V1.2S

+V1.5S

+VCCP

+V2.5 +V1.25S

+V5_DUAL

+V3.3_DUAL +V5_ALWAYS +V3.3ALWAYS +V1.5ALWAYS

X X X X X X X X X X X X X X X X X

N/A N/A N/A N/A N/A N/A N/A N/A N/A

N/A

X X X X X

N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 17 of 80

3.6 Power Consumption

This section lists a summary of the power consumption of the 886LCD-M Boards. For additional details, please refer to the Power Supply Characteristics document available from Kontron Technology.

The idle/full power consumption of the 886LCD-M is measured under:

1- DOS prompt idle/full CPU load.

2- WindowsXP idle/full CPU load.

3.6.1 Test system configuration

The following items were used in the test setup:

1. 886LCD-M/Flex board (710180-4500) with 256MB SDRAM (333MHz) EZ128DDR16M168-333INF.

2. Pentium-M 1600/400Mhz (1MB Cache) CPU.

3. Standard Pentium-4 active CPU cooler.

4. PS/2 keyboard & mouse.

5. CRT.

6. Primary Master HD (Fujitsu MPG3102AT 10.24GB).

7. ATX PSU (Antec 550W)

8. Tektronix TDS 620B, P6243 probes

9. Fluke Current Probe 80i-100S AC/DC

10. Ethernet Ports 1, 2, 3 are enabled (10/100/1000MB LAN).

3.6.2 Measured Power Consumption, Net

886LCD-M board (3x1GB LAN) with: Pentium M 1600/400MHz (1MB L2 Cache), 256MB DDR RAM (333MHz)

Power State Net Current (I) Power (W) DOS FULL LOAD

+5VDC 4.560A 22.8W

+3.3VDC 2.568A 8.7W

DOS IDLE

+5VDC 4.028A 20.3W

+3.3VDC 2.532A 8.6W

+12VDC 0.424A 4.6W

ACPI S1

+5VDC 1.758A 8.8W

+3.3VDC 2.560A 8.8W

ACPI S3

+5VSB 1.007A 5.16W

ACPI S4

+5VSB 1.007A 4.95W

ACPI S5

+5VSB 0.892A 4.6W

WINDOWS XP IDLE

+5VDC 2.212A 11.1W

+3.3VDC 2.720A 8.7W

WINDOWS XP FULL LOAD

+5VDC 4.704A 23.7W

+3.3VDC 2.572A 8.7W

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 18 of 80

3.6.3 Power Consumption, Total

886LCD-M board (3x1GB LAN) with Pentium M 1600/400MHz (1MB L2 Cache), 256MB DDR RAM (333MHz)

Power State CPU Speed Power consumption

Full load 1600Mhz 37.0W Idle 1600Mhz 24.4W ACPI S1 1600Mhz 22.2W ACPI S3 1600Mhz 5.16W ACPI S4 1600Mhz 4.95W ACPI S5 1600Mhz 4.60W

886LCD-M board (3x1GB LAN) with Intel Mobile Celeron 600/400MHz (0MB L2 Cache) BGA, 256MB DDR RAM (333MHz)

Power State CPU Speed Power consumption

Full load 600Mhz 28.4W Idle 600Mhz 22.8W ACPI S1 600Mhz 21.6W ACPI S3 600Mhz 5.16W ACPI S4 600Mhz 4.95W ACPI S5 600Mhz 4.60W

3.6.4 Minimum recommended power supply specifications

Note: Minimum recommended power supply specifications do not include attachment of AUDIO Speakers

(AMP-out), USB, AGP, PCI devices. If these devices are added to the board, additional power requirements must be taken into account. Refer to the “Detailed Device Power consumption” section.

Net Current (I) Peak Current

+5VDC 8.0A 40.0A(3ms) +3.3VDC 4.0A 14.0A(3ms) +12VDC 0.6A 6.0A(4ms) +5VSB 1.2A 3.5A(14ms)

-12 VDC 0.2A 1.0A(4ms)

-5VDC N/A N/A

3.6.5 Recommended Power Supply specifications

Note: Recommended power supply specifications, includes attachment of COM, Fan, 4xAudio Speakers

4/8ohm, USB, AGP, PCI devices.

Net Current (I) Peak Current

+5VDC 18.0A 50.0A(3ms) +3.3VDC 7.0A 20.0A(3ms) +12VDC 6.0A 8.0A(4ms) +5VSB 2.0A 5.0A(14ms)

-12 VDC 0.5A 1.0A(4ms)

-5VDC N/A N/A

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 19 of 80

14.318 MHz

Ref.: Q1C

VR_PWRGD_CK#

Processor

Ref.: Banias_

CLK_CPU_BCLK & CLK_CPU_BCLK#

CLK_I TP_CPU & CLK_ ITP_ CPU#

CLK_MCH_BCLK & CLK_MCH_BCL K#

HOST CLOCK PAI RS

100MHz

Clock Generat or

Ref.:CLKGEN

SATA CLOCK PAI R

100MHz

CLK100P_SATA & CLK100P_SATA#

AGP, GMCH, ICHS, PCIX

North Br idge

Ref.: GMCH_

South Bri dge

Ref.: ICHS_

66MHz

CLK_3V66_PCIX

AGP

Ref.: AGP

CK_66M_AGP

CLK_ MCH66

CLK_ I CHPCI

CLK_PCI _ SLX

PCI, LPC, FWH, SIO

33MHz

PCI Sl ots

Ref.: PCIX

BI OS FL ASH

Ref.: FWH

Super I /O

Ref.: LPCIO

CLK_ I CHPCI

CLK_ FWHPCI

CLK_SI OPCI

48MHz

DREFCLK

48MCLK

48MHz

Clock buf fer

Ref . :

CLKGEN48M

CLK_I CH14

14.318MHz

AC97

CODEC

Ref. : Codec

CLK_CODEC

DREFSSCLK

66MHz

3.7 886LCD-M Clock Distribution

(continued)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 20 of 80

North Bridge

Re f.: GMCH_

South Bridge

Re f.: IC H S_

Super I/O

Re f.: LPC IO

Clock buffer

Ref.:

CLKGEN48M

CLK_SIO48

CLK_ICH48S

CLK_ICH48

AC97

CODEC

Re f.: C ode c

M_CLK_DDRX & M_CLK_DDRX#

DDR Memory

Re f.: D D R 0,

DDR1

LVDS

Interface

Re f.: LV D S

LVDS_CLKX & LVDS_CLKX#

LVDS_DDCPCLK

DAC_DDCACLK

CRT VGA

Ref.:

CRT_COMA

_LPT_

AC97_BITCLK

KBCLK#

MSCLK#

MSE/KBD

Ref.:

KBD_MSE

Real Time

Clock

32.768

Re f.: Q1II

ETHERNET

controllers

Re f.: E TH#

PXPCLKO#

25 MHz

Re f.: Y 1EX

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 21 of 80

4. Connector Definitions

The following sections provide pin definitions and detailed description of all on-board connectors. . The connector definitions follow the following notation:

Column

name

Description

Pin Shows the pin-numbers in the connector. The graphical layout of the connector definition

tables is made similar to the physical connectors.

Signal The mnemonic name of the signal at the current pin. The notation “XX#” states that the signal

“XX” is active low.

Type AI : Analog Input.

AO : Analog Output.

I : Input, TTL compatible if nothing else stated.

IO : Input / Output. TTL compatible if nothing else stated.

IOT : Bi-directional tristate IO pin.

IS : Schmitt-trigger input, TTL compatible.

IOC : Input / open-collector Output, TTL compatible.

NC : Pin not connected.

O : Output, TTL compatible.

OC : Output, open-collector or open-drain, TTL compatible.

OT : Output with tri-state capability, TTL compatible.

LVDS: Low Voltage Differential Signal.

PWR : Power supply or ground reference pins.

Ioh: Typical current in mA flowing out of an output pin through a grounded load, while the

output voltage is > 2.4 V DC (if nothing else stated).

Iol: Typical current in mA flowing into an output pin from a VCC connected load, while the output voltage is < 0.4 V DC (if nothing else stated).

Pull U/D On-board pull-up or pull-down resistors on input pins or open-collector output pins.

Note Special remarks concerning the signal.

The abbreviation TBD is used for specifications which are not available yet or which are not sufficiently

specified by the component vendors.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 22 of 80

4.1 Connector layout

4.1.1 886LCD-M/Flex

PCI SLOT 3

FRONTPNL

IDE_S2

COM1

(

Port1

)

CRT

ETHER1

USB0

MSE KBD

PRINTER / FLOPPY

GP/DVO

ATXPWR

PCI SLOT 1

FAN_PROC

LINE-IN

LINE-OUT

MIC

PCI SLOT 2

DDR0 DDR1

IDE_P

IDE_S

ETHER2 ETHER3

FAN_SYS

SATA1

SATA0

FEATURE

LVDS

COM2 (Port2)

COM3 (SIO Port1)

INT

CDROM

Clr-CMOS

LPC

KBDMSE

COM4 (SIO Port2)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 23 of 80

4.1.2 886LCD-M/ATX

PCI SLOT 3

FRONTPNL

IDE_S2

COM1 (Port1)

CRT

ETHER1

USB0

MSE

KBD

PRINTER / FLOPPY

GP/DVO

ATXPWR

PCI SLOT 1

FAN_PROC

LINE-IN

LINE-OUT

MIC

PCI SLOT 2

DDR0 DDR1

IDE_S

IDE_P

ETHER2 ETHER3

FAN_SYS

SATA1

SATA0

FEATURE

LVDS

INT

CDROM

Clr-CMOS

PCI SLOT 4

PCI SLOT 5

PCI SLOT 6

LPC

KBDMSE

COM2 (Port2)

COM3 (SIO Port1)

COM4 (SIO Port2)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 24 of 80

4.1.3 886LCD-M/mITX

FEATURE

IDE_P

COM1 (Port1)

CRT

ETHER1

USB0 USB2

MSE KBD

PRINTER / FLOPPY

GP/DVO

ATXPWR

PCI

FAN_PROC

LINE-IN

LINE-OUT

MIC

DDR0

IDE_S2

ETHER2 ETHER3

FAN_SYS

SATA1

SATA0

FRONTPNL LVDS

CDROM

Clr-CMOS

LPC

CF (backside of 886LCD-M/mITX)

KBDMSE

COM2 (Port2)

COM3 (SIO Port1)

COM4 (SIO Port2)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 25 of 80

4.2 Power Connector (ATXPWR)

The 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX is designed to be supplied from a standard ATX power supply.

Power Connector 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX

Note

Pull

U/D Ioh/Iol Type Signal

Signal Type Ioh/Iol

Pull U/D Note

- - PWR +12V 10 20 5V PWR - -

- - PWR SB5V 9 19 5V PWR - - 4K7 - I P_OK 8 18 -5V PWR - - 1

- - PWR GND 7 17 GND PWR - -

- - PWR 5V 6 16 GND PWR - -

- - PWR GND 5 15 GND PWR - -

- - PWR 5V 4 14 PSON# OC - -

- - PWR GND 3 13 GND PWR - -

- - PWR 3V3 2 12 -12V PWR - -

- - PWR 3V3 1 11 3V3 PWR - -

Note: -5V supply is not used onboard.

The requirements to the supply voltages are as follows (also refer to ATX specification version 2.03):

Supply Min Max Tolerance

3V3 3.14V 3.46V +/-5%

5V 4.75V 5.25V +/-5%

SB5V 4.75V 5.25V +/-5%

+12V 11.4V 12.6V +/-5%

–12V –13.2V –10.8V +/-10%

Control signal description:

Signal Description

P_OK Active high signal from the power supply indicating that the 5V and 3V3 supplies are within

operating limits. It is strongly recommended to use an ATX supply with the 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX boards, in order to implement the supervision of the 5V and 3V3 supplies. These supplies are not supervised onboard the 886LCD-M/Flex, 886LCDM/ATX and 886LCD-M/mITX boards.

PS_ON# Active low open drain signal from the board to the power supply to turn on the power supply

outputs. Signal must be pulled high by the power supply.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 26 of 80

4.3 Keyboard and PS/2 mouse connectors

Attachment of a keyboard or PS/2 mouse adapter can be done through the stacked PS/2 mouse and keyboard connector (MSE & KBD).

Both interfaces utilize open-drain signaling with on-board pull-up.

The PS/2 mouse and keyboard is supplied from 5V_STB when in standby mode in order to enable keyboard or mouse activity to bring the system out from power saving states. The supply is provided through a 1.1A resetable fuse.

4.3.1 Stacked MINI-DIN keyboard and mouse Connector (MSE & KBD)

Note

Pull U/D Ioh/Iol Type Signal

Signal Type Ioh/Iol

Pull U/D Note

- - - NC 6 5MSCLK IOC TBD 4K7

- - PWR 5V/SB5V 4 3 GND PWR - -

- - - NC 2 1 MSDAT IOC TBD 4K7

- NC 6 5KBDCLK IOC TBD 4K7

- - PWR 5V/SB5V 4 3 GND PWR - -

- - - NC 2 1 KBDDAT IOC TBD 4K7

Signal Description – Keyboard & and mouse Connector (MSE & KBD), see below.

4.3.2 keyboard and mouse pin-row Connector (KBDMSE)

Signal

Type

Ioh/Iol

Pull

U/D

Note

1 KBDCLK IOC TBD 4K7 2 KBDDAT IOC TBD 4K7 3 MSCLK IOC TBD 4K7 4 MSDAT IOC TBD 4K7 5 5V/SB5V PWR - - 6 GND PWR - -

Signal Description – Keyboard & and mouse Connector (KBDMSE).

Signal Description

MSCLK Bi-directional clock signal used to strobe data/commands from/to the PS/2 mouse.

MSDAT Bi-directional serial data line used to transfer data from or commands to the PS/2 mouse.

KDBCLK Bi-directional clock signal used to strobe data/commands from/to the PC-AT keyboard.

KBDDAT Bi-directional serial data line used to transfer data from or commands to the PC-AT keyboard.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 27 of 80

4.4 Display Connectors

The 886LCD board family provides onboard two basic types of interfaces to a display: Analog CRT interface and a digital interface typically used with flat panels. The digital interface to flat panels can be achieved through the onboard LVDS dual channel interface and/or the DVO port available on the AGP connector.

4.4.1 CRT Connector (CRT)

Note

Pull U/D Ioh/Iol Type Signal

Signal Type Ioh/Iol

Pull

U/D Note

6 ANA-GND PWR - -

/75R * A0 RED 1 11 NC - - - 7 ANA-GND PWR - - /75R * A0 GREEN 2 12 DDCDAT IO TBD 560R 8 ANA-GND PWR - - /75R * A0 BLUE 3 13 HSYNC O TBD 9 5V PWR - - 1

- - - NC 4 14 VSYNC O TBD 10 DIG-GND PWR - -

- - PWR DIG-GND 5 15 DDCCLK IO TBD 560R

Note 1: The 5V supply in the CRT connector is fused by a 1.1A reset-able fuse.

Signal Description - CRT Connector:

Signal Description

HSYNC CRT horizontal synchronization output.

VSYNC CRT vertical synchronization output.

DDCCLK Display Data Channel Clock. Used as clock signal to/from monitors with DDC interface.

DDCDAT Display Data Channel Data. Used as data signal to/from monitors with DDC interface.

RED Analog output carrying the red color signal to the CRT. For 75 Ohm cable impedance.

GREEN Analog output carrying the green color signal to the CRT. For 75 Ohm cable impedance.

BLUE Analog output carrying the blue color signal to the CRT. For 75 Ohm cable impedance.

DIG-GND Ground reference for HSYNC and VSYNC.

ANA-GND Ground reference for RED, GREEN, and BLUE.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 28 of 80

4.4.2 LVDS Flat Panel Connector (LVDS)

Note Type Signal Pin Signal Type Note

Max. 0.5A PWR +12V 1 2 +12V PWR Max. 0.5A Max. 0.5A PWR +12V 3 4 +12V PWR Max. 0.5A Max. 0.5A PWR +12V 5 6 GND PWR Max. 0.5A Max. 0.5A PWR +5V 7 8 GND PWR Max. 0.5A Max. 0.5A PWR LCDVCC 9 10 LCDVCC PWR Max. 0.5A 4K7Ω, 3.3V OT DDC CLK 11 12 DDC DATA OT 4K7Ω, 3.3V

3.3V level OT BKLTCTL 13 14 VDD ENABLE OT 3.3V level

3.3V level OT BKLTEN# 15 16 GND PWR Max. 0.5A LVDS LVDS A0- 17 18 LVDS A0+ LVDS LVDS LVDS A1- 19 20 LVDS A1+ LVDS LVDS LVDS A2- 21 22 LVDS A2+ LVDS LVDS LVDS ACLK- 23 24 LVDS ACLK+ LVDS LVDS LVDS A3- 25 26 LVDS A3+ LVDS Max. 0.5A PWR GND 27 28 GND PWR Max. 0.5A LVDS LVDS B0- 29 30 LVDS B0+ LVDS LVDS LVDS B1- 31 32 LVDS B1+ LVDS LVDS LVDS B2- 33 34 LVDS B2+ LVDS LVDS LVDS BCLK- 35 36 LVDS BCLK+ LVDS LVDS LVDS B3- 37 38 LVDS B3+ LVDS Max. 0.5A PWR GND 39 40 GND PWR Max. 0.5A

Signal Description – LVDS Flat Panel Connector:

Signal Description

LVDS A0..A3 LVDS A Channel data

LVDS ACLK LVDS A Channel clock

LVDS B0..B3 LVDS B Channel data

LVDS BCLK LVDS B Channel clock

BKLTCTL Backlight control (1), PWM signal to implement voltage in the range 0-3.3V

BKLTEN# Backlight Enable signal (active low) (2)

VDD ENABLE Output Display Enable.

LCDVCC VCC supply to the flat panel. This supply includes power-on/off sequencing.

The flat panel supply may be either 5V DC or 3.3V DC depending on the CMOS configuration. Maximum load is 1A at both voltages.

DDC CLK DDC Channel Clock

DDC DATA DDC Channel Data

Note 1) Windows API (version Hwmon_KTAPI ver 4.5 or newer) is available to operate the BKLTCTL signal.

Some Inverters has a limited voltage range 0- 2.5V for this signal. If voltage is > 2.5V the Inverter might latch up. Some Inverters generates noise to the BKLTCTL signal and this noise can make the lvds transmision fail resulting in corrupted picture on the display. By adding 1K Ohm resistor in series with this signal and mounted in the Inverter end of the cable kit the noise is limited and picture is stabil.

Note 2) If the Backlight Enable is required to be active high then make the BIOS Chipset setting: Backlight

Signal Inversion = Enabled.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 29 of 80

4.4.3 AGP/DVO connector

Note Type Signal PIN Signal Type Note

OVRCNT B1 A1 +12V PWR PWR +5V B2 A2 TYPEDET PWR +5V B3 A3 RSVD USB+ B4 A4 USB- PWR GND B5 A5 GND PWR INTB B6 A6 INTA AGPCLK B7 A7 RST- GREQ B8 A8 GGNT PWR +3.3V B9 A9 +3.3V PWR ST0 B10 A10 ST1 ST2 B11 A11 RSVD I RBF B12 A12 PIPE I PWR GND B13 A13 GND PWR RSVD B14 A14 WBF I I ADD_ID0 B15 A15 ADD_ID1 I PWR +3.3V B16 A16 +3.3V PWR I ADD_ID2 B17 A17 ADD_ID3 I I ADD_RS B18 A18 ADD_RS PWR GND B19 A19 GND PWR I ADD_ID4 B20 A20 ADD_ID5 I I ADD_ID6 B21 A21 ADD_ID7 I RSVD B22 A22 RSVD PWR GND B23 A23 GND PWR PWR 3V3AUX B24 A24 RSVD PWR +3.3V B25 A25 +3.3V PWR DVOC_Fld/Stl B26 A26 DVOBC_Intr- DVOC_D10 B27 A27 DVOC_D11 PWR +3.3V B28 A28 +3.3V PWR DVOC_D8 B29 A29 DVOC_D9 DVOC_D6 B30 A30 DVOC_D7 PWR GND B31 A31 GND PWR DVOC_Clk+ B32 A32 DVOC_Clk- DVOC_D4 B33 A33 DVOC_D5 PWR +1.5V B34 A34 +1.5V PWR DVOC_D2 B35 A35 DVOC_D3 DVOC_D0 B36 A36 DVOC_D1 PWR GND B37 A37 GND PWR DVOC_Hsync B38 A38 DVOC_Blank- ADD_RS B39 A39 DVOC_Vsync PWR +1.5V B40 A40 +1.5V PWR M_I2CClk B41 A41 M_DVI_Data

M_I2CData B46 A46 M_DVI_Clk PWR +1.5V B47 A47 M_DDCData GPERR B48 A48 PME PWR GND B49 A49 GND PWR GSERR B50 A50 ADD_Detect DVOB_Blank- B51 A51 M_DDCClk PWR +1.5V B52 A52 +1.5V PWR DVOB_Fld/Stl B53 A53 DVOBC_ClkInt DVOB_D10 B54 A54 DVOB_D11 PWR GND B55 A55 GND PWR DVOB_D8 B56 A56 DVOB_D9 DVOB_D6 B57 A57 DVOB_D7 PWR +1.5V B58 A58 +1.5V PWR DVOB_Clk+ B59 A59 DVOB_Clk- DVOB_D4 B60 A60 DVOB_D5 PWR GND B61 A61 GND PWR DVOB_D2 B62 A62 DVOB_D3 DVOB_D0 B63 A63 DVOB_D1 PWR +1.5V B64 A64 +1.5V PWR DVOB-Vsync B65 A65 DVOB_Hsync VREFCG B66 A66 VREFGC

The AGP buffers operate only in 1.5V mode (not 3.3-V tolerant). The AGP interface supports 1x/2x/4x AGP signaling and 2x/4x Fast Writes.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 30 of 80

Signal Description – AGP Connector:

Signal Description

Address

PIPE#

Pipelined Read: This signal is asserted by the AGP master to indicate a full width address is to

be enqueued on by the target using the AD bus. One address is placed in the AGP request queue on each rising clock edge while PIPE# is asserted. When PIPE# is deasserted no new requests are queued across the AD bus.

During SBA Operation: This signal is not used if SBA (Side Band Addressing) is selected. During FRAME# Operation: This signal is not used during AGP FRAME# operation. PIPE# is a sustained tri-state signal from masters (graphics controller), and is an input to the

GMCH

ADD_ID[7:0] Side-band Address: These signals are used by the AGP master (graphics controller) to pass

address and command to the GMCH. The SBA bus and AD bus operate independently. That is, transactions can proceed on the SBA bus and the AD bus simultaneously.

During PIPE# Operation: These signals are not used during PIPE# operation. During FRAME# Operation: These signals are not used during AGP FRAME#

operation. NOTE: When sideband addressing is disabled, these signals are isolated (no external/internal pull-ups are required).

Flow control

RBF# Read Buffer Full: Read buffer full indicates if the master is ready to accept previously requested

low priority read data. When RBF# is asserted the GMCH is not allowed to initiate the return low priority read data. That is, the GMCH can finish returning the data for the request currently being serviced. RBF# is only sampled at the beginning of a cycle. If the AGP master is always ready to accept return read data then it is not required to implement this signal.

During FRAME# Operation: This signal is not used during AGP FRAME# operation.

WBF# Write-Buffer Full: indicates if the master is ready to accept Fast Write data from the GMCH.

When WBF# is asserted the GMCH is not allowed to drive Fast Write data to the AGP master. WBF# is only sampled at the beginning of a cycle. If the AGP master is always ready to accept

fast write data then it is not required to implement this signal.

During FRAME# Operation: This signal is not used during AGP FRAME# operation.

AGP Status

ST[2:0] Status: Provides information from the arbiter to an AGP Master on what it may do. ST[2:0] only

have meaning to the master when its GNT# is asserted. When GNT# is deasserted these signals have no meaning and must be ignored.

ST[2:0 Meaning 000 Previously requested low priority read data is being returned to the master 001 Previously requested high priority read data is being returned to the master 010 The master is to provide low priority write data for a previously queued write command 011 The master is to provide high priority write data for a previously queued write command 100 Reserved 101 Reserved 110 Reserved 111 The master has been given permission to start a bus transaction. The master may queue AGP requests by asserting PIPE# or start a PCI transaction by asserting FRAME#.

AGP Strobes

ADSTB[0] Address/Data Bus Strobe-0: provides timing for 2x and 4x data on AD[15:0] and C/BE[1:0]#

signals. The agent that is providing the data will drive this signal.

ADSTB#[0] Address/Data Bus Strobe-0 Complement: With AD STB0, forms a differential strobe pair that

provides timing information for the AD[15:0] and C/BE[1:0]# signals. The agent that is providing the data will drive this signal.

ADSTB[1] Address/Data Bus Strobe-1: Provides timing for 2x and 4x data on AD[31:16] and C/BE[3:2]#

signals. The agent that is providing the data will drive this signal.

ADSTB#[1] Address/Data Bus Strobe-1 Complement: With AD STB1, forms a differential strobe pair that

provides timing information for the AD[15:0] and C/BE[1:0]# signals in 4X mode. The agent that is providing the data will drive this signal.

SBSTB

Sideband Strobe: Provides timing for 2x and 4x data on the SBA[7:0] bus. It is driven by the

AGP master after the system has been configured for 2x or 4x sideband address mode.

SBSTB# Sideband Strobe Complement: The differential complement to the SB_STB signal. It is used to

provide timing 4x mode.

(continued)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 31 of 80

AGP/PCI Signals-Semantics

FRAME# G_FRAME: Frame.

During PIPE# and SBA Operation: Not used by AGP SBA and PIPE# operations. During Fast Write Operation: Used to frame transactions as an output during Fast

Writes. During FRAME# Operation: G_FRAME# is an output when the GMCH acts as an initiator on the AGP Interface. G_FRAME# is asserted by the GMCH to indicate the beginning and duration of an access. G_FRAME# is an input when the GMCH acts as a FRAME#-based AGP target. As a FRAME#-based AGP target, the GMCH latches the C/BE[3:0]# and the AD[31:0] signals on the first clock edge on which GMCH samples FRAME# active.

IRDY# G_IRDY#: Initiator Ready.

During PIPE# and SBA Operation: Not used while enqueueing requests via AGP SBA and

PIPE#, but used during the data phase of PIPE# and SBA transactions. During FRAME# Operation: G_IRDY# is an output when GMCH acts as a FRAME#-based AGP initiator and an input when the GMCH acts as a FRAME#- based AGP target. The assertion of G_IRDY# indicates the current FRAME#-based AGP bus initiator's ability to complete the current data phase of the transaction. During Fast Write Operation: In Fast Write mode, G_IRDY# indicates that the AGP-compliant master is ready to provide all write data for the current transaction. Once G_IRDY# is asserted for a write operation, the master is not allowed to insert wait states. The master is never allowed to insert a wait state during the initial data transfer (32 bytes) of a write transaction. However, it may insert wait states after each 32-byte block is transferred.

TRDY# G_TRDY#: Target Ready.

During PIPE# and SBA Operation: Not used while enqueueing requests via AGP SBA and

PIPE#, but used during the data phase of PIPE# and SBA transactions. During FRAME# Operation: G_TRDY# is an input when the GMCH acts as an AGP initiator and is an output when the GMCH acts as a FRAME#-based AGP target. The assertion of G_TRDY# indicates the target’s ability to complete the current data phase of the transaction. During Fast Write Operation: In Fast Write mode, G_TRDY# indicates the AGP compliant target is ready to receive write data for the entire transaction (when the transfer size is less than or equal to 32 bytes) or is ready to transfer the initial or subsequent block (32 bytes) of data when the transfer size is greater than 32 bytes. The target is allowed to insert wait states after each block (32 bytes) is transferred on write transactions.

STOP# G_STOP#: Stop.

During PIPE# and SBA Operation: This signal is not used during PIPE# or SBA operation. During FRAME# Operation: G_STOP# is an input when the GMCH acts as a FRAME#-based

AGP initiator and is an output when the GMCH acts as a FRAME#- based AGP target. G_STOP# is used for disconnect, retry, and abort sequences on the AGP interface.

DEVSEL# G_ DEVSEL#: Device Select.

During PIPE# and SBA Operation: This signal is not used during PIPE# or SBA operation. During FRAME# Operation: G_DEVSEL#, when asserted, indicates that a FRAME#-based

AGP target device has decoded its address as the target of the current access. The GMCH asserts G_DEVSEL# based on the DDR SDRAM address range being accessed by a PCI initiator. As an input, G_DEVSEL# indicates whether the AGP master has recognized a PCI cycle to it.

REQ# G_REQ#: Request.

During SBA Operation: This signal is not used during SBA operation. During PIPE# and FRAME# Operation: G_REQ#, when asserted, indicates that the AGP

master is requesting use of the AGP interface to run a FRAME#- or PIPE#-based operation.

GNT# G_GNT#: Grant.

During SBA, PIPE# and FRAME# Operation: G_GNT#, along with the information on the

ST[2:0] signals (status bus), indicates how the AGP interface will be used next. Refer to the AGP Interface Specification, Revision 2.0 for further explanation of the ST[2:0] values and their

meanings.

AD[31:0] G_AD[31:0]: Address/Data Bus.

During PIPE# and FRAME# Operation: The G_AD[31:0] signals are used to transfer both

address and data information on the AGP interface. During SBA Operation: The G_AD[31:0] signals are used to transfer data on the AGP interface.

(continued)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 32 of 80

CBE#[3:0] Command/Byte Enable.

During FRAME# Operation: During the address phase of a transaction, the G_CBE[3:0]#

signals define the bus command. During the data phase, the G_CBE[3:0]# signals are used as byte enables. The byte enables determine which byte lanes carry meaningful data. The commands issued on the G_CBE# signals during FRAME#-based AGP transactions are the same G_CBE# command described in the PCI 2.2 specification. During PIPE# Operation: When an address is enqueued using PIPE#, the C/BE# signals carry

command information. The command encoding used during PIPE#- based AGP is different than

the command encoding used during FRAME#-based AGP cycles (or standard PCI cycles on a PCI bus).

During SBA Operation: These signals are not used during SBA operation.

PAR Parity.

During FRAME# Operation: G_PAR is driven by the GMCH when it acts as a FRAME#-based

AGP initiator during address and data phases for a write cycle, and during the address phase for a read cycle. G_PAR is driven by the GMCH when it acts as a FRAME#-based AGP target during each data phase of a FRAME#-based AGP memory read cycle. Even parity is generated across G_AD[31:0] and G_CBE[3:0]#.

During SBA and PIPE# Operation: This signal is not used during SBA and PIPE# operation.

Hub Interface signals

HL[10:0] Packet Data: Data signals used for HI read and write operations.

HLSTB Packet Strobe: One of two differential strobe signals used to transmit or receive packet data

over HI.

HLSTB# Packet Strobe Complement: One of two differential strobe signals used to transmit or receive

packet data over HI.

Clocks

CLKIN Input Clock: 66-MHz, 3.3-V input clock from external buffer DVO/Hub interface.

DVOBCLK

DVOBCLK#

Differential DVO Clock Output: These pins provide a differential pair reference clock that can

run up to 165-MHz. DVOBCLK corresponds to the primary clock out. DVOBCLK# corresponds to the primary complementary clock out. DVOBCLK and DVOBCLK# should be left as NC (“Not Connected”) if the DVO B port is not implemented.

DVOCCLK

DVOCCLK#

Differential DVO Clock Output: These pins provide a differential pair reference clock that can

run up to 165-MHz. DVOCCLK corresponds to the primary clock out. DVOCCLK# corresponds to the primary complementary clock out. DVOCCLK and DVOCCLK# should be left as NC (“Not Connected”) if the DVO C port is not implemented.

DVOBCCLKINT DVOBC Pixel Clock Input/Interrupt: This signal may be selected as the reference input to

either dot clock PLL (DPLL) or may be configured as an interrupt input. A TV-out device can provide the clock reference. The maximum input frequency for this signal is 85 -MHz. DVOBC Pixel Clock Input: When selected as the dot clock PLL (DPLL) reference input, this clock reference input supports SSC clocking for DVO LVDS devices. DVOBC Interrupt: When configured as an interrupt input, this interrupt can support either DVOB or DVOC. DVOBCCLKINT needs to be pulled down if the signal is NOT used.

DPMS

Display Power Management Signaling: This signal is used only in mobile systems to act as the

DREFCLK in certain power management states(i.e. Display Power Down Mode); DPMS Clock is used to refresh video during S1-M. Clock Chip is powered down in S1-M. DPMS should come from a clock source that runs during S1-M and needs to be 1.5 V. So, an example would be to use a 1.5-V version of SUSCLK from ICH4-M.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 33 of 80

4.5 Parallel ATA harddisk interface

Two parallel ATA harddisk controllers are available on the board – a primary and a secondary controller. Standard 3½” harddisks or CD-ROM drives may be attached to the primary and secondary controller board by means of the 40 pin IDC connectors, IDE_P and IDE_S. The secondary controller is shared between the IDE_S connector and the IDE_S2 connector, which is intended for 2½” harddisks. The harddisk controllers support Bus master IDE, ultra DMA 33/66/100 MHz and standard operation modes.

The signals used for the harddisk interface are the following:

Signal Description

DA*2..0 Address lines, used to address the I/O registers in the IDE hard disk.

HDCS*1..0# Hard Disk Chip-Select. HDCS0# selects the primary hard disk.

D*15..8 High part of data bus.

D*7..0 Low part of data bus.

IOR*# I/O Read.

IOW*# I/O Write.

IORDY*# This signal may be driven by the hard disk to extend the current I/O cycle.

RESET*# Reset signal to the hard disk. The signal is similar to RSTDRV in the PC-AT bus.

HDIRQ* Interrupt line from hard disk. Routed by the SiS630 chipset to PC-AT bus interrupt.

CBLID* This input signal (CaBLe ID) is used to detect the type of attached cable: 80-wire cable

when low input and 40-wire cable when 5V via 10Kohm (pull-up resistor).

DDREQ* Disk DMA Request might be driven by the IDE hard disk to request bus master access to

the PCI bus. The signal is used in conjunction with the PCI bus master IDE function and is not associated with any PC-AT bus compatible DMA channel.

DDACK*# Disk DMA Acknowledge. Active low signal grants IDE bus master access to the PCI bus.

HDACT*# Signal from hard disk indicating hard disk activity. The signal level depends on the hard

disk type, normally active low. The signals from primary and secondary controller are routed together through diodes and passed to the connector FEATURE.

All of the above signals are compliant to [4]. “*” is “A” for primary and “B” for secondary controller. The pinout of the connectors are defined in the following sections.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 34 of 80

4.5.1 IDE Hard Disk Connector (IDE_P)

This connector can be used for connection of two primary IDE drives.

Note

Pull U/D

Ioh/Iol Type Signal PIN Signal Type Ioh/Iol

Pull

U/D

Note

- TBD O RESETA# 1 2 GND PWR - -

- TBD IO DA7 3 4 DA8 IO TBD -

- TBD IO DA6 5 6 DA9 IO TBD -

- TBD IO DA5 7 8 DA10 IO TBD -

- TBD IO DA4 9 10 DA11 IO TBD -

- TBD IO DA3 11 12 DA12 IO TBD -

- TBD IO DA2 13 14 DA13 IO TBD -

- TBD IO DA1 15 16 DA14 IO TBD -

- TBD IO DA0 17 18 DA15 IO TBD -

- - PWR GND 19 20 KEY - - -

- - I DDRQA 21 22 GND PWR - -

- TBD O IOWA# 23 24 GND PWR - -

- TBD O IORA# 25 26 GND PWR - - 4K7 - I IORDYA 27 28 GND PWR - -

- - O DDACKA# 29 30 GND PWR - - 8K2 - I HDIRQA 31 32 NC - - -

- TBD O DAA1 33 34 CBLIDA# I -

- TBD O DAA0 35 36 DAA2 O TBD -

- TBD O HDCSA0# 37 38 HDCSA1# O TBD -

- - I HDACTA# 39 40 GND PWR - -

4.5.2 IDE Hard Disk Connector (IDE_S)

This connector can be used for connection of up till two secondary IDE drive(s), but only if no drive(s) is installed via IDE_S2 socket. The IDE_S is not available on the 886LCD-M/mITX.

Note

Pull U/D

Ioh/Iol Type Signal PIN Signal Type Ioh/Iol

Pull

U/D

Note

- TBD O RESETB# 1 2 GND PWR - -

- TBD IO DB7 3 4 DB8 IO TBD -

- TBD IO DB6 5 6 DB9 IO TBD -

- TBD IO DB5 7 8 DB10 IO TBD -

- TBD IO DB4 9 10 DB11 IO TBD -

- TBD IO DB3 11 12 DB12 IO TBD -

- TBD IO DB2 13 14 DB13 IO TBD -

- TBD IO DB1 15 16 DB14 IO TBD -

- TBD IO DB0 17 18 DB15 IO TBD -

- - PWR GND 19 20 KEY - - -

- - I DDRQB 21 22 GND PWR - -

- TBD O IOWB# 23 24 GND PWR - -

- TBD O IORB# 25 26 GND PWR - - 4K7 - I IORDYB 27 28 GND PWR - -

- - O DDACKB# 29 30 GND PWR - - 8K2 - I HDIRQB 31 32 NC - - -

- TBD O DAB1 33 34 CBLIDB# I -

- TBD O DAB0 35 36 DAB2 O TBD -

- TBD O HDCSB0# 37 38 HDCSB1# O TBD -

- - I HDACTB# 39 40 GND PWR - -

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 35 of 80

4.5.3 IDE Hard Disk Connector (IDE_S2)

This connector (44-pin 2.0 mm pitch) can be used for connection of up till two secondary IDE drives, but only if no drive(s) is installed via IDE_S socket.

Note

Pull U/D

Ioh/Iol Type Signal PIN Signal Type Ioh/Iol

Pull

U/D

Note

- TBD O RESETB# 1 2 GND PWR - -

- TBD IO DB7 3 4 DB8 IO TBD -

- TBD IO DB6 5 6 DB9 IO TBD -

- TBD IO DB5 7 8 DB10 IO TBD -

- TBD IO DB4 9 10 DB11 IO TBD -

- TBD IO DB3 11 12 DB12 IO TBD -

- TBD IO DB2 13 14 DB13 IO TBD -

- TBD IO DB1 15 16 DB14 IO TBD -

- TBD IO DB0 17 18 DB15 IO TBD -

- - PWR GND 19 20 NC - - -

- - I DDRQB 21 22 GND PWR - -

- TBD O IOWB# 23 24 GND PWR - -

- TBD O IORB# 25 26 GND PWR - - 4K7 - I IORDYB 27 28 GND PWR - -

- - O DDACKB# 29 30 GND PWR - - 8K2 - I HDIRQB 31 32 NC - - -

- TBD O DAB1 33 34 CBLIDB# I

- TBD O DAB0 35 36 DAB2 O TBD -

- TBD O HDCSB0# 37 38 HDCSB1# O TBD -

- - I HDACTB# 39 40 GND PWR - -

- - PWR VCC 41 42 VCC PWR - -

- - PWR GND 43 44 NC - - -

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 36 of 80

4.5.4 CF Connector (CF)

This connector is mounted on the backside of the 886LCD-M/mITX only. If a Compact Flash Disk is used, then no IDE drive can be connected to the IDE_S2 connector. The socket support DMA/UDMA modules.

Note

Pull U/D Ioh/Iol Type Signal

Signal Type Ioh/Iol

Pull

U/D

Note

2 - TBD IO DB3 2 1 GND PWR - - 1

- TBD IO DB5 4 3 DB4 IO TBD -

- TBD IO DB7 6 5 DB6 IO TBD -

- - PWR GND 8 7 HDCSB0# O TBD -

- - PWR GND 10 9 GND PWR - -

- - PWR GND 12 11 GND PWR - -

- - PWR GND 14 13 5V PWR - -

- - PWR GND 16 15 GND PWR - -

- - O DAB2 18 17 GND PWR - -

- - O DAB0 20 19 DAB1 O - -

- TBD IO D1 22 21 DB0 IO TBD -

- - - NC 24 23 DB2 IO TBD -

- - - NC 26 25 NC - - -

- TBD IO DB12 28 27 DB11 IO TBD -

- TBD IO DB14 30 29 DB13 IO TBD -

- TBD O HDCSB# 32 31 DB15 IO TBD -

- TBD O IORB# 34 33 CBLIDB I

- - PWR 5V 36 35 IOWB# O TBD -

- - PWR 5V 38 37 IRQB I - 8K2 HDACTB# 40 39 GND PWR - - 4K7 - I IORDYB# 42 41 RESETB# -

- - O DDACKB# 44 43 DDRQB I - -

- - - NC 46 45 NC - - -

- TBD IO DB9 48 47 DB8 IO TBD -

1 - - PWR GND 50 49 DB10 IO TBD - 2

Note 1: Pin is longer than average length of the other pins. Note 2: Pin is shorter than average length of the other pins.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 37 of 80

4.6 Serial ATA harddisk interface

Two serial ATA harddisk controllers are available on the board – a primary controller (SATA0) and a secondary controller (SATAB).

4.6.1 SATA Hard Disk Connector (SATA0, SATA1)

SATA0:

Signal

Type Ioh/Iol

Pull U/D Note

Key

1 GND PWR - - 2 SATA0 TX+ 3 SATA0 TX- 4 GND PWR - - 5 SATA0 RX- 6 SATA0 RX+ 7 GND PWR - -

The signals used for the primary Serial ATA harddisk interface are the following:

Signal Description

SATA0 RX+

SATA0 RX-

Host transmitter differential signal pair

SATA0 TX+

SATA0 TX-

Host receiver differential signal pair

All of the above signals are compliant to [4].

SATA1:

Signal

Type Ioh/Iol

Pull U/D Note

Key

1 GND PWR - - 2 SATA1 TX+ 3 SATA1 TX- 4 GND PWR - - 5 SATA1 RX- 6 SATA1 RX+ 7 GND PWR - -

The signals used for the secondary Serial ATA harddisk interface are the following:

Signal Description

SATA1 RX+

SATA1 RX-

Host transmitter differential signal pair

SATA1 TX+

SATA1 TX-

Host receiver differential signal pair

All of the above signals are compliant to [4].

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 38 of 80

4.7 Printer Port Connector (PRINTER).

The printer port connector is provided in a standard DB25 pinout. The signal definition in standard printer port mode is as follows:

Note

Pull U/D Ioh/Iol Type

Signal

Signal Type Ioh/Iol

Pull

U/D Note

2K2 (24)/24 OC(O) STB# 1

14 AFD# OC(O) (24)/24 2K2 2K2 24/24 IO PD0 2 15 ERR# I - 2K2 2K2 24/24 IO PD1 3 16 INIT# OC(O) (24)/24 2K2 2K2 24/24 IO PD2 4 17 SLIN# OC(O) (24)/24 2K2 2K2 24/24 IO PD3 5 18 GND PWR - - 2K2 24/24 IO PD4 6 19 GND PWR - - 2K2 24/24 IO PD5 7 20 GND PWR - - 2K2 24/24 IO PD6 8 21 GND PWR - - 2K2 24/24 IO PD7 9 22 GND PWR - - 2K2 - I ACK# 10 23 GND PWR - - 2K2 - I BUSY 11 24 GND PWR - - 2K2 - I PE 12 25 GND PWR - -

2K2 - I SLCT 13

The interpretation of the signals in standard Centronics mode (SPP) with a printer attached is as follows:

Signal Description

PD7..0 Parallel data bus from PC board to printer. The data lines are able to operate in PS/2

compatible bi-directional mode.

SLIN# Signal to select the printer sent from CPU board to printer.

SLCT Signal from printer to indicate that the printer is selected.

STB# This signal indicates to the printer that data at PD7..0 are valid.

BUSY Signal from printer indicating that the printer cannot accept further data.

ACK# Signal from printer indicating that the printer has received the data and is ready to accept

further data.

INIT# This active low output initializes (resets) the printer.

AFD# This active low output causes the printer to add a line feed after each line printed.

ERR# Signal from printer indicating that an error has been detected.

PE# Signal from printer indicating that the printer is out of paper.

The printer port additionally supports operation in the EPP and ECP mode as defined in [3].

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 39 of 80

4.8 Serial Ports

Four RS232C serial ports are available on the 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX.

The typical interpretation of the signals in the COM ports is as follows:

Signal Description

TxD Transmitte Data, sends serial data to the communication link. The signal is set to a marking

state on hardware reset when the transmitter is empty or when loop mode operation is initiated.

RxD Receive Data, receives serial data from the communication link.

DTR Data Terminal Ready, indicates to the modem or data set that the on-board UART is ready to

establish a communication link.

DSR Data Set Ready, indicates that the modem or data set is ready to establish a communication

link.

RTS Request To Send, indicates to the modem or data set that the on-board UART is ready to

exchange data.

CTS Clear To Send, indicates that the modem or data set is ready to exchange data.

DCD Data Carrier Detect, indicates that the modem or data set has detected the data carrier.

RI Ring Indicator, indicates that the modem has received a telephone-ringing signal.

The connector pinout for each operation mode is defined in the following sections.

4.8.1 Com1 (Port1) DB9 Connector.

4.8.2 Com2, Com3 & Com4 Pin Header Connectors.

The pinout of Serial ports Com2 (Port2), Com3 (SIO Port1) and Com4 (SIO Port2) is as follows:

Note

Pull U/D Ioh/Iol Type

Signal

Signal Type Ioh/Iol

Pull

U/D Note

- I DCD 1 2 DSR I -

- I RxD 3 4 RTS O -

- O TxD 5 6 CTS I -

- O DTR 7 8 RI I -

- - PWR GND 9 10 5V PWR - - 1

Note 1: 5V supply is shared with supply pins in Com2/Com3/Com4 headers. The common fuse is 1.1A.

If the DB9 adapter (ribbon cable) is used, the DB9 pinout will be identical to the pinout of Serial Com1

Note

Pull U/D Ioh/Iol Type Signal

Signal Type Ioh/Iol

Pull

U/D Note

- - PWR GND 5

9 RI I - /5K

- O DTR 4 8 CTS I - /5K

- O TxD 3 7 RTS O - /5K - I RxD 2 6 DSR I - /5K

/5K - I DCD 1

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 40 of 80

4.9 Ethernet connectors.

The 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX boards supports 3 channels of 10/100/1000Mb Ethernet.

In order to achieve the specified performance of the Ethernet port, Category 5 twisted pair cables must be used with 10/100MB and Category 5E, 6 or 6E with 1Gb LAN networks.

The signals for the Ethernet ports are as follows:

Signal Description

MDI[0]+

MDI[0]-

In MDI mode, this is the first pair in 1000Base-T, i.e. the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX.

In MDI crossover mode, this pair acts as the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX.

MDI[1]+

MDI[1]-

In MDI mode, this is the second pair in 1000Base-T, i.e. the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX.

In MDI crossover mode, this pair acts as the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX.

MDI[2]+

MDI[2]-

In MDI mode, this is the third pair in 1000Base-T, i.e. the BI_DC+/- pair.

In MDI crossover mode, this pair acts as the BI_DD+/- pair.

MDI[3]+

MDI[3]-

In MDI mode, this is the fourth pair in 1000Base-T, i.e. the BI_DD+/- pair.

In MDI crossover mode, this pair acts as the BI_DC+/- pair.

Note: MDI = Media Dependent Interface.

4.9.1 Ethernet connector 1 (ETHER1)

Ethernet connector 1 is mounted together with USB Ports 0 and 2.

The pinout of the RJ45 connector is as follows:

Signal PIN Type Ioh/Iol Note

MDI0+

MDI0-

MDI1+

MDI1-

MDI2+

MDI2-

MDI3+

MDI3-

8 7654321

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 41 of 80

4.9.2 Ethernet connector 2/3 (ETHER2/3)

The two Ethernet channels in ETHER2/3 are supported by two discrete Ethernet controllers (RTL8110SB) connected to the onboard PCI bus.

This connector is not supported on the Engineering sample boards.

The pinout of the RJ45’s connector are as follows:

Signal PIN Type Ioh/Iol Note

MDI0+

MDI0-

MDI1+

MDI1-

MDI2+

MDI2-

MDI3+

MDI3-

8 7654321

1 2345678

MDI0+

MDI0-

MDI1+

MDI1-

MDI2+

MDI2-

MDI3+

MDI3-

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 42 of 80

4.10 USB Connector (USB)

The 886LCD-M/Flex, 886LCD-M/ATX and 886LCD-M/mITX contains two USB (Universal Serial Bus) ports UHCI Host Controllers. Each Host Controller includes a root hub with two separate USB ports each, for a total of 4 USB ports.

The USB Host Controllers support the standard Universal Host Controller Interface (UHCI) Specification, Rev 1.1. All 4 USB ports support both USB1.0 and USB2.0 signaling.

Over-current detection on all four USB ports is supported.

USB Port 0 and 2 are supplied on the combined ETHER1, USB0, USB2 connector. USB Ports 1 and 3 are supplied on the FRONTPNL connector; please refer to the FRONTPNL connector section for the pin-out.

USB Port 2 supports USB Legacy mode.

4.10.1 USB Connector 0/2 (USB0/2)

USB Ports 0 and 2 are mounted together with ETHER1 ethernet port.

Note

Pull

U/D Ioh/Iol Type

Signal

Type Ioh/Iol

Pull U/D Note

1 2 3 4

1 - - PWR 5V/SB5V GND PWR - -

/15K 0.25/2 IO USB0- USB0+ IO 0.25/2 /15K

1 2 3 4

1 - - PWR 5V/SB5V GND PWR - -

/15K 0.25/2 IO USB2- USB2+ IO 0.25/2 /15K

Note 1: The 5V supply for the USB devices is on-board fused with a 1.5A reset-able fuse. The supply is

common for the two channels. SB5V is supplied during power down to allow wakeup on USB device activity. In order to meet the requirements of USB v.1.1 standard, the 5V input supply must be at least 5.00V.

Signal Description

USB0+ USB0-

USB2+ USB2-

Differential pair works as Data/Address/Command Bus.

USB5V 5V supply for external devices. Fused with 1.5A reset-able fuse.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 43 of 80

4.11 Audio Connector

4.11.1 Audio Line-in, Line-out and Microphone

Audio Line-in, Line-out and Microphone are available in the stacked audio jack connector.

IN Signal Type Note

TIP Line in – Left IA 1

RING Line in – Right IA 1

SLEEVE GND PWR

TIP Line out – Left OA

RING Line out – Right OA

SLEEVE GND PWR

TIP MIC 1 IA 1, 2

RING MIC 2 IA 1, 2

SLEEVE GND PWR 2

Note 1: Signals are shorted to GND internally in the connector, when jack-plug not inserted. Note 2: Microphone is not supported on Engineering board samples

4.11.2 CD-ROM Audio input (CDROM)

CD-ROM audio input may be connected to this connector. It may also be used as a secondary line-in signal.

PIN Signal Type Ioh/Iol Pull

U/D

Note

1 CD_Left IA - - 2 CD_GND IA - - 3 CD_GND IA - - 4 CD_Right IA - -

Signal Description

CD_Left

CD_Right

Left and right CD audio input lines or secondary Line-in.

CD_GND Analogue GND for Left and Right CD.

(This analogue GND is not shorted to the general digital GND on the board).

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 44 of 80

4.11.3 AUDIO Header (AUDIO_HEAD)

Note

Pull U/D

Ioh/

Iol

Type Signal PIN Signal Type

Ioh/

Iol

Pull U/D

Note

AMP-LFE-OUT 1 2 AMP-CEN-OUT AAGND 3 4 AAGND SPKR_OUT_L 5 6 SPKR_OUT_R AAGND 7 8 AAGND SURR-OUT-L 9 10 SURR-OUT-R NC 11 12 NC AAGND 13 14 AAGND F-FRONT-MIC1 15 16 F-FRONT-MIC2 AAGND 17 18 AAGND F-AUX-IN-L 19 20 F-AUX-IN-R F-MONO-OUT 21 22 AAGND

- - PWR GND 23 24 F-SPDIF-IN F-SPDIF-OUT 25 26 GND PWR - -

Signal Description Amplifier Note

SPKR_OUT_L Front Speakers (Speaker Out Left). 3W

SPKR_OUT_R Front Speakers (Speaker Out Right). 3W

SURR-OUT-L Rear Speakers (Surround Out Left). no Select 4 or 5.1 speakers **

SURR-OUT-R Rear Speakers (Surround Out Right). no Select 4 or 5.1 speakers **

AMP-CEN-OUT Center Speaker (Center Out channel). 3W * Select 5.1 speakers **

AMP-LFE-OUT Subwoofer Speaker (Low Freq. Effect Out). 3W * Select 5.1 speakers **

F-MONO-OUT Speaker Phone Output no

NC No connection ---

F-FRONT-MIC1 Dedicated MIC Input 1 for Frontpanel MIC --- F-FRONT-MIC2 Dedicated MIC Input 2 for Frontpanel MIC ---

F-AUX-IN-L AUX Left Channel input ---

F-AUX-IN-R AUX Right Channel input ---

F-SPDIF-IN S/PDIF Input ---

F-SPDIF-OUT S/PDIF Output --- Enable SPDIF ***

AAGND Audio Analogue ground ---

* Not amplified on 886LCD-M/mITX. ** In the Realtek Audio Driver *** In the Realtek Audio Driver (XP only). Also enable SPDIF in Player (if used).

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 45 of 80

4.12 Fan connectors , FAN_PROC and FAN_SYS.

The FAN_PROC is used for connection of the active cooler for the CPU. The FAN_SYS can be used to power, control and monitor a fan for chassis ventilation etc.

Signal

Type Ioh/Iol

Pull U/D

Note

1 SENSE PWR - 4K7 2 12V PWR - - 3 GND PWR - -

Signal description:

Signal Description

12V +12V supply for fan, can be turned on/off or modulated (PWM) by the chipset.

A maximum of 800 mA can be supplied from this pin.

SENSE Tacho signal from the fan for supervision. The signals shall be generated by an open

collector transistor or similar. On board is a pull-up resistor 4K7 to +12V. The signal has to be pulses, typically 2 Hz per rotation.

4.13 The Clear CMOS Jumper, Clr-CMOS.

The Clr-CMOS Jumper is used to clear the CMOS content.

↑ CPU location ↑

No Jumper installed 1 2 3 (Pin numbers)

Jumper normal position

•

Jumper in Clear CMOS position

•

To clear all CMOS settings, including Password protection, move the CMOS_CLR jumper (with or without power on the system) for approximately 1 minute.

Alternatively if no jumper is available, turn off power and remove the battery for 1 minute, but be careful to orientate the battery corretly when reinserted.

4.14 LPC connector (unsupported).

Note

Pull U/D Ioh/Iol Type

Signal

Type Ioh/Iol

Pull U/D Note

- - PWR GND 1 2 LPCCLK

- - PWR GND 3 4 LPC AD0 LPC FRAME# 5 6 LPC AD1 INT SERIQ 7 8 LPC AD2 LPC DRQ#1 9 10 LPC AD3

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 46 of 80

4.15 Front Panel connector (FRONTPNL).

Note

Pull U/D Ioh/Iol Type

Signal

Type Ioh/Iol

Pull U/D Note

USB13_5V 1 2 USB13_5V USB1- 3 4 USB3- USB1+ 5 6 USB3+

- - PWR GND 7 8 GND PWR - -

- - - NC 9 10 NC - - -

- - PWR +5V 11 12 +5V PWR - - OC HD_LED 13 14 SUS_LED OC

- - PWR GND 15 16 PWRBTN_IN# RSTIN# 17 18 GND PWR - - SB3V3 19 20 NC - - - AGND 21 22 AGND SPKR_OUT_L 23 24 SPKR_OUT_R

Signal Description

USB13_5V

+5V supply for the USB devices on USB Port 1 and 3 is on-board fused with a 1.5A reset-able fuse. The supply is common for the two channels. SB5V is supplied during power down to allow wakeup on USB device activity.

USB1+

USB1-

Universal Serial Bus Port 1 Differentials: Bus Data/Address/Command Bus.

USB3+

USB3-

Universal Serial Bus Port 3 Differentials: Bus Data/Address/Command Bus.

+5V

Maximum load is 1A or 2A per pin if using IDC connectorfladkabel or crimp terminals respectively.

HD_LED Hard Disk Activity LED.

SUS_LED Suspend Mode LED

PWRBTN_IN# Power Button In. Toggle this signal low to start the ATX PSU and boot the board.

RSTIN# Reset Input. Pull low to reset the board.

SPKR_OUT_L Speaker Out Left channel, amplified, 3W

SPKR_OUT_R Speaker Out Right channel, amplified, 3W

SB3V3 Standby 3.3V voltage

AGND Analogue Ground for Audio

4.16 Intruder Connector (INT)

This connector is available on the 886LCD-M/Flex only, however please notice that the INTRUDER function is also available on the Feature connector.

Signal

Type Ioh/Iol

Pull U/D

Note

1 GND PWR - - 2 INTRUDER# I - 100K 3 GND PWR - -

INTRUDER detect: May be used to detect if the system case has been opened. This signal’s status is readable, so it may be used like a GPI when the Intruder switch is not needed.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 47 of 80

4.17 Feature Connector (FEATURE)

Note

Pull U/D Ioh/Iol Type

Signal

Type Ioh/Iol

Pull U/D Note

2 100K/ - I INTRUDER# 1 2 GND PWR - -

EXT_ISAIRQ# 3 4 EXT_SMI# I PWR_OK 5 6 SB5V PWR - -

- - PWR +3V3 7 8 EXT_BAT PWR - -

- - PWR +5V 9 10 GND PWR - - IOT GPIO0 11 12 GPIO1 IOT IOT GPIO2 13 14 GPIO3 IOT IOT GPIO4 15 16 GPIO5 IOT IOT GPIO6 17 18 GPIO7 IOT

- - PWR GND 19 20 FAN3OUT FAN3IN 21 22 +12V PWR - - TEMP3IN 23 24 VREF

- - PWR GND 25 26 IRRX IRTX 27 28 GND PWR - -

1 2K7/ SMBC 29 30 SMBD 2K7/ 1

Note 1: Pull-up to 3V3 supply Note 2: Pull-up to RTC-Voltage

Signal Description

INTRUDER#

INTRUDER, may be used to detect if the system case has been opened. This signal’s status is readable, so it may be used like a GPI when the Intruder switch is not needed.

EXT_ISAIRQ# EXTernal ISA IRQ, (active low input) can activate standard AT-Bus IRQ-interrupt.

EXT_SMI# External SMI, (active low input) signal can activate SMI interrupt.

PWR_OK PoWeR OK, signal is high if no power failures is detected.

SB5V StandBy +5V supply.

+3V3 Max. load is 0.75A (1.5A < 1 sec.)

EXT_BAT

(EXTernal BATtery) the + terminal of an external primary cell battery can be connected to this pin. The – terminal of the battery shall be connected to GND (etc. pin 10). The external battery is protected against charging and can be used with or without the on board battery installed. The external battery voltage shall be in the range: 2.5 - 4.0 V DC.

+5V Max. load is 0.75A (1.5A < 1 sec.)

GPIO0..7

General Purpose Inputs / Output. These Signals may be controlled or monitored through the use of the KONTRON API (Application Programming Interface) available for Win98, WinXP and Win2000.

FAN3OUT

FAN 3 speed control OUTput. This analogue voltage output signal can be used to control the Fan’s speed. The output has 16 values in the range from 0 – 5V. For more information please look into the datasheet for the Winbond I/O controller W83627.

FAN3IN FAN3 Input. 0V to +5V amplitude Fan 3 tachometer input.

+12V Max. load is 0.75A (1.5A < 1 sec.)

TEMP3IN

Temperature sensor 3 input. (Recommended: Transistor 2N3904, having emitter connected to GND (pin 25), collector and basis shorted and connected to pin23 (Temp3In). Further a resistor 30K/1% shall be connected between pin 23 and pin 24 (Vref).

VREF Voltage REFerence, reference voltage to be used with TEMP3IN input.

IRRX IR Receive input (IrDA 1.0, SIR up to 1.152K bps)

IRTX IR Transmit output (IrDA 1.0, SIR up to 1.152K bps)

SMBC SMBus Clock signal

SMBD SMBus Data signal

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 48 of 80

4.17.1 PCI Slot Connector

Terminal

Note Type Signal

S C

Signal Type Note

PWR -12V F01 E01 TRST# O O TCK F02 E02 +12V PWR PWR GND F03 E03 TMS O I TDO F04 E04 TDI O PWR +5V F05 E05 +5V PWR PWR +5V F06 E06 INTA# I I INTB# F07 E07 INTC# I I INTD# F08 E08 +5V PWR I REQ2# F09 E09 CLKC O I REQ3# F10 E10 +5V (I/O) PWR OT GNT2# F11 E11 CLKD O PWR GND F12 E12 GND PWR PWR GND F13 E13 GND PWR O CLKA F14 E14 GNT3# OT PWR GND F15 E15 RST# O O CLKB F16 E16 +5V (I/O) PWR PWR GND F17 E17 GNT0# OT I REQ0# F18 E18 GND PWR PWR +5V (I/O) F19 E19 REQ1# I IOT AD31 F20 E20 AD30 IOT IOT AD29 F21 E21 +3.3V PWR PWR GND F22 E22 AD28 IOT IOT AD27 F23 E23 AD26 IOT IOT AD25 F24 E24 GND PWR PWR +3.3V F25 E25 AD24 IOT IOT C/BE3# F26 E26 GNT1# OT IOT AD23 F27 E27 +3.3V PWR PWR GND F28 E28 AD22 IOT IOT AD21 F29 E29 AD20 IOT IOT AD19 F30 E30 GND PWR

PWR +3.3V F31 E31 AD18 IOT

IOT AD17 F32 E32 AD16 IOT IOT C/BE2# F33 E33 +3.3V PWR PWR GND F34 E34 FRAME# IOT IOT IRDY# F35 E35 GND PWR PWR +3.3V F36 E36 TRDY# IOT IOT DEVSEL# F37 E37 GND PWR PWR GND F38 E38 STOP# IOT IOT LOCK# F39 E39 +3.3V PWR IOT PERR# F40 E40 SDONE IO PWR +3.3V F41 E41 SB0# IO IOC SERR# F42 E42 GND PWR PWR +3.3V F43 E43 PAR IOT IOT C/BE1# F44 E44 AD15 IOT IOT AD14 F45 E45 +3.3V PWR PWR GND F46 E46 AD13 IOT IOT AD12 F47 E47 AD11 IOT IOT AD10 F48 E48 GND PWR PWR GND F49 E49 AD09 IOT

SOLDER SIDE COMPONENT SIDE

IOT AD08 F52 E52 C/BE0# IOT IOT AD07 F53 E53 +3.3V PWR PWR +3.3V F54 E54 AD06 IOT IOT AD05 F55 E55 AD04 IOT IOT AD03 F56 F56 GND PWR PWR GND F57 E57 AD02 IOT IOT AD01 F58 E58 AD00 IOT PWR +5V (I/O) F59 E59 +5V (I/O) PWR IOT ACK64# F60 E60 REQ64# IOT PWR +5V F61 E61 +5V PWR PWR +5V F62 E62 +5V PWR

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 49 of 80

4.17.2 Signal Description –PCI Slot Connector

SYSTEM PINS

CLK

Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the rising edge of CLK and all other timing parameters are defined with respect to this edge. PCI operates at 33 MHz.

RST#

Reset is used to bring PCI-specific registers, sequencers, and signals to a consistent state. What effect RST# has on a device beyond the PCI sequencer is beyond the scope of this specification, except for reset states of required PCI configuration registers. Anytime RST# is asserted, all PCI output signals must be driven to their benign state. In general, this means they must be asynchronously tri-stated. SERR# (open drain) is floated. REQ# and GNT# must both be tri-stated (they cannot be driven low or high during reset). To prevent AD, C/BE#, and PAR signals from floating during reset, the central resource may drive these lines during reset (bus parking) but only to a logic low level–they may not be driven high. RST# may be asynchronous to CLK when asserted or deasserted. Although asynchronous, deassertion is guaranteed to be a clean, bounce-free edge. Except for configuration accesses, only devices that are required to boot the system will respond after reset.

ADDRESS AND DATA

AD[31::00]

Address and Data are multiplexed on the same PCI pins. A bus transaction consists of an address phase followed by one or more data phases. PCI supports both read and write bursts. The address phase is the clock cycle in which FRAME# is asserted. During the address phase AD[31::00] contain a physical address (32 bits). For I/O, this is a byte address; for configuration and memory, it is a DWORD address. During data phases AD[07::00] contain the least significant byte (lsb) and AD[31::24] contain the most significant byte (msb). Write data is stable and valid when IRDY# is asserted and read data is stable and valid when TRDY# is asserted. Data is transferred during those clocks where both IRDY# and TRDY# are asserted.

C/BE[3::0]#

Bus Command and Byte Enables are multiplexed on the same PCI pins. During the address phase of a transaction, C/BE[3::0]# define the bus command. During the data phase C/BE[3::0]# are used as Byte Enables. The Byte Enables are valid for the entire data phase and determine which byte lanes carry meaningful data. C/BE[0]# applies to byte 0 (lsb) and C/BE[3]# applies to byte 3 (msb).

PAR

Parity is even parity across AD[31::00] and C/BE[3::0]#. Parity generation is required by all PCI agents. PAR is stable and valid one clock after the address phase. For data phases, PAR is stable and valid one clock after either IRDY# is asserted on a write transaction or TRDY# is asserted on a read transaction. Once PAR is valid, it remains valid until one clock after the completion of the current data phase. (PAR has the same timing as AD[31::00], but it is delayed by one clock.) The master drives PAR for address and write data phases; the target drives PAR for read data phases.

INTERFACE CONTROL PINS

FRAME#

Cycle Frame is driven by the current master to indicate the beginning and duration of an access. FRAME# is asserted to indicate a bus transaction is beginning. While FRAME# is asserted, data transfers continue. When FRAME# is deasserted, the transaction is in the final data phase or has completed.

IRDY#

Initiator Ready indicates the initiating agent’s (bus master’s) ability to complete the current data phase of the transaction. IRDY# is used in conjunction with TRDY#. A data phase is completed on any clock both IRDY# and TRDY# are sampled asserted. During a write, IRDY# indicates that valid data is present on AD[31::00]. During a read, it indicates the master is prepared to accept data. Wait cycles are inserted until both IRDY# and TRDY# are asserted together.

TRDY#

Target Ready indicates the target agent’s (selected device’s) ability to complete the current data phase of the transaction. TRDY# is used in conjunction with IRDY#. A data phase is completed on any clock both TRDY# and IRDY# are sampled asserted. During a read, TRDY# indicates that valid data is present on AD[31::00]. During a write, it indicates the target is prepared to accept data. Wait cycles are inserted until both IRDY# and TRDY# are asserted together.

STOP#

Stop indicates the current target is requesting the master to stop the current transaction.

LOCK#

Lock indicates an atomic operation that may require multiple transactions to complete. When LOCK# is asserted, non-exclusive transactions may proceed to an address that is not currently locked. A grant to start a transaction on PCI does not guarantee control of LOCK#. Control of LOCK# is obtained under its own protocol in conjunction with GNT#. It is possible for different agents to use PCI while a single master retains ownership of LOCK#. If a device implements Executable Memory, it should also implement LOCK# and guarantee complete access exclusion in that memory. A target of an access that supports LOCK# must provide exclusion to a minimum of 16 bytes (aligned). Host bridges that have system memory behind them should implement LOCK# as a target from the PCI bus point of view and optionally as a master.

IDSEL

Initialization Device Select is used as a chip select during configuration read and write transactions.

DEVSEL#

Device Select, when actively driven, indicates the driving device has decoded its address as the target of the current access. As an input, DEVSEL# indicates whether any device on the bus has been selected.

(continued)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 50 of 80

ARBITRATION PINS (BUS MASTERS ONLY)

REQ#

Request indicates to the arbiter that this agent desires use of the bus. This is a point to point signal. Every master has its own REQ# which must be tri-stated while RST# is asserted.

GNT#

Grant indicates to the agent that access to the bus has been granted. This is a point to point signal. Every master has its own GNT# which must be ignored while RST# is asserted. While RST# is asserted, the arbiter must ignore all REQ# lines since they are tri-stated and do not contain a valid request. The arbiter can only perform arbitration after RST# is deasserted. A master must ignore its GNT# while RST# is asserted. REQ# and GNT# are tri-state signals due to power sequencing requirements when 3.3V or 5.0V only add-in boards are used with add-in boards that use a universal I/O buffer.

ERROR REPORTING PINS.

The error reporting pins are required by all devices and maybe asserted when enabled

PERR#

Parity Error is only for the reporting of data parity errors during all PCI transactions except a Special Cycle. The PERR# pin is sustained tri-state and must be driven active by the agent receiving data two clocks following the data when a data parity error is detected. The minimum duration of PERR# is one clock for each data phase that a data parity error is detected. (If sequential data phases each have a data parity error, the PERR# signal will be asserted for more than a single clock.) PERR# must be driven high for one clock before being tri-stated as with all sustained tri-state signals. There are no special conditions when a data parity error may be lost or when reporting of an error may be delayed. An agent cannot report a PERR# until it has claimed the access by asserting DEVSEL# (for a target) and completed a data phase or is the master of the current transaction.

SERR#

System Error is for reporting address parity errors, data parity errors on the Special Cycle command, or any other system error where the result will be catastrophic. If an agent does not want a non-maskable interrupt (NMI) to be generated, a different reporting mechanism is required. SERR# is pure open drain and is actively driven for a single PCI clock by the agent reporting the error. The assertion of SERR# is synchronous to the clock and meets the setup and hold times of all bused signals. However, the restoring of SERR# to the deasserted state is accomplished by a weak pullup (same value as used for s/t/s) which is provided by the system designer and not by the signaling agent or central resource. This pull-up may take two to three clock periods to fully restore SERR#. The agent that reports SERR#s to the operating system does so anytime SERR# is sampled asserted.

INTERRUPT PINS (OPTIONAL).

Interrupts on PCI are optional and defined as “level sensitive,” asserted low (negative true), using open drain output drivers. The assertion and deassertion of INTx# is asynchronous to CLK. A device asserts its INTx# line when requesting attention from its device driver. Once the INTx# signal is asserted, it remains asserted until the device driver clears the pending request. When the request is cleared, the device deasserts its INTx# signal. PCI defines one interrupt line for a single function device and up to four interrupt lines for a multi-function device or connector. For a single function device, only INTA# may be used while the other three interrupt lines have no meaning.

INTA#

Interrupt A is used to request an interrupt.

INTB#

Interrupt B is used to request an interrupt and only has meaning on a multi-function device.

INTC#

Interrupt C is used to request an interrupt and only has meaning on a multi-function device.

INTD#

Interrupt D is used to request an interrupt and only has meaning on a multi-function device.

4.17.3 886LCD-M PCI IRQ & INT routing

Board type Slot IDSEL INTA INTB INTC INTD 886LCD-M/mITX

1 AD16 INT_PIRQ#E INT_PIRQ#F INT_PIRQ#G INT_PIRQ#H

886LCD-M/FLEX

1 AD16 INT_PIRQ#E INT_PIRQ#F INT_PIRQ#G INT_PIRQ#H

2 AD17 INT_PIRQ#F INT_PIRQ#G INT_PIRQ#H INT_PIRQ#E

3 AD18 INT_PIRQ#G INT_PIRQ#H INT_PIRQ#E INT_PIRQ#F

886LCD-M/ATX

1 AD16 INT_PIRQ#E INT_PIRQ#F INT_PIRQ#G INT_PIRQ#H

2 AD17 INT_PIRQ#F INT_PIRQ#G INT_PIRQ#H INT_PIRQ#E

3 AD18 INT_PIRQ#G INT_PIRQ#H INT_PIRQ#E INT_PIRQ#F

4 AD19 INT_PIRQ#H INT_PIRQ#E INT_PIRQ#F INT_PIRQ#G

5 AD20 INT_PIRQ#D INT_PIRQ#C INT_PIRQ#B INT_PIRQ#A

6 AD21 INT_PIRQ#C INT_PIRQ#B INT_PIRQ#A INT_PIRQ#D

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 51 of 80

5. Onboard Connectors

Onboard Connectors Mating Connectors Connector

Manufacturer Type no. Manufacturer Type no.

FAN_SYS, Molex 22-23-2031 AMP 1375820-3

FAN_PROC

INT

KBDMSE Molex 22-23-2061 Molex 22-01-2065

CDROM Foxconn HF1104E Molex 50-57-9404

Molex 70543-0038

SATA0 Molex 67491-0020 Molex 67489-8005

SATA1 Kontron KT 821035 (cable kit)

ATXPWR FoxConn HM2510E Molex 39-01-2205

COM2 Foxconn HL20051 Molex 90635-1103

COM3 Kontron KT 821017 (cable kit)

COM4

AUDIO_HEAD Molex 87831-2620 Molex 51110-2651

Kontron KT 821043 (cable kit)

FRONTPNL Foxconn HL20121 Molex 90635-1243

Kontron KT 821042 (cable kit)

FEATURE Molex 87831-3020 Molex 51110-3051

Kontron KT 821041 (cable kit)

IDE_P Foxconn HL20201-UD2 Kontron KT 821018 (cable kit)

IDE_S

IDE_S2 Foxconn HS5522V AMP 2-111623-5

Kontron KT 821010 (cable kit)

LVDS Don Connex C44-40CAT-A Don Connex A32-40-C-G-B-1

Kontron KT 821018 (cable kit)

Kontron KT 821155 (cable kit)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 52 of 80

6. System Ressources

6.1 Memory map

Address range (hex) Size Description

00000000- 0007FFFF 512 Kbytes Conventional memory 00080000- 0009FBFF 127 Kbyte Extended conventional memory 0009FC00- 0009FFFF 1 Kbyte Extended BIOS data 000A0000- 000AFFFF 64 Kbytes 885GME VGA Controller, Video memory and BIOS 000B0000- 000BFFFF 64 Kbytes 885GME VGA Controller, Video memory and BIOS 000C0000- 000CC5FF 49 Kbytes 885GME VGA Controller, Video memory and BIOS 000CC800- 000CD7FF 4 Kbytes Realtek 8169 Ethernet Controller D0000000- DFFFFFFF 0xFFFFFFF 885GME Processor I/O Controller E8000000- EFFFFFFF 0x7FFFFFF 885GME VGA Controller F0000000- F7FFFFFF 0x7FFFFFF 885GME VGA Controller FF7FF400- FF7FF4FF 0xFF Realtek 8169 Ethernet Controller FF7FF800- FF7FF8FF 0xFF Realtek 8169 Ethernet Controller FF7FFC00- FF7FFCFF 0xFF Realtek 8169 Ethernet Controller FF980000- FF9FFFFF 0x7FFFF 885GME VGA Controller FFA7B000- FFA7B00F 0xF PCI System Peripheral FFA7B400- FFA7B7FF 0x3FF USB Controller FFA7B800- FFA7B8FF 0xFF Realtek AC97 Audio FFA7BC00- FFA7BDFF 0x1FF Realtek AC97 Audio FFA7FC00- FFAFFFFF 0x803FF Ultra SATA Controller FFA80000- FFAFFFFF 0x7FFFF 885GME VGA Controller FFB00000- FFEFFFFF 0x3FFFFF Intel 82802 Firmware Hub Device FFF00000- FFFFFFFF 1 Mbyte Intel 82802 Firmware Hub Device

6.2 PCI devices

Bus # Device # Function # Vendor ID Device ID IDSEL Chip Device Function

0 0 0 8086h 3580h AD11 6300ESB Host bridge 0 0 1 8086h 3584h 6300ESB I/O Controller 0 0 3 8086h 3585h 6300ESB I/O Controller 0 1 0 8086h 3581h AD12 6300ESB Pci to Pci bridge 0 2 0 8086h 3582h AD13 6300ESB VGA controller 0 2 1 8086h 3582h 6300ESB Display controller 0 28 0 8086h 25AEh AD39 6300ESB Pci to Pci bridge 0 29 0 8086h 25A9h AD40 6300ESB USB 0 29 1 8086h 25AAh 6300ESB USB 0 29 4 8086h 25ABh 6300ESB Watchdog timer 0 29 5 8086h 25ACh 6300ESB APIC 0 29 7 8086h 25ADh 6300ESB USB 0 30 0 8086h 244Eh AD41 6300ESB Pci to Pci bridge 0 31 0 8086h 25A1h AD42 6300ESB ISA Bridge 0 31 1 8086h 25A2h 6300ESB IDE Controller 0 31 2 8086h 25A3h 6300ESB IDE Controller 0 31 3 8086h 25A4h 6300ESB SMBus 0 31 5 8086h 25A6h 6300ESB Audio 0 * - - - * - PCI slot #1 0 * - - - * - PCI slot #2 0 * - - - * - PCI slot #3 0 * - - - * - PCI slot #4 2 1 0 10ECh 8169h AD12 RTL8110 Ethernet 2 2 0 10ECh 8169h AD13 RTL8110 Ethernet 2 3 0 10ECh 8169h AD14 RTL8110 Ethernet

* Values are dynamically selected in BIOS. Note: All PCI slots for the 886LCD-M boards supports PCI BUS Mastering.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 53 of 80

6.3 Interrupt Usage

IRQ

Onboard system parity errors and IOCHCHK signal activation

Onboard Timer 0 Interrupt

Onboard Keyboard Interrupt

Used for Cascading IRQ8-IRQ15

May be used by onboard Serial Port A

May be used by onboard Serial Port B / IrDA Port

May be used by onboard Serial Port C

May be used by onboard Serial Port D

May be used by onboard SATA controller

May be used by onboard Parallel Port

May be used by onboard Floppy disk Controller

Used by onboard Real Time Clock Alarm

May be used by onboard P/S 2 support

Used for Onboard co-processor support

May be used by primary harddisk controller

May be used by secondary harddisk controller

May be used for onboard Sound System

May be used by onboard USB controller

May be used by onboard Ethernet controller 1

May be used by onboard Ethernet controller 2

May be used by onboard Ethernet controller 3

May be used by onboard VGA Controller

May be used by onboard SMBus Controller

Available on PCI slots as IRQA-IRQD depending on selections in the BIOS

Notes

NMI

•

IRQ0

•

IRQ1

•

IRQ2

•

IRQ3

• • • •

•

1, 2

IRQ4

• • • •

•

1, 2

IRQ5

•

1, 2

IRQ6

• • • •

•

1, 2

IRQ7

•

1, 2

IRQ8

•

IRQ9

• • • •

•

1, 2

IRQ10

• • • •

•

1, 2

IRQ11

• • • •

•

1, 2

IRQ12

•

IRQ13

•

IRQ14

•

IRQ15

•

IRQ16

• •

IRQ17

•

IRQ18

•

IRQ19

•

IRQ20

IRQ21

IRQ22

IRQ23

•

IRQ24

•

IRQ25

•

IRQ26

•

Notes:

1. Availability of the shaded IRQs depends on the setting in the BIOS. According to the PCI Standard, PCI Interrupts IRQA-IRQD can be shared.

2. These interrupt lines are managed by the PnP handler and are subject to change during system initialisation.

3. IRQ16 to IRQ26 are APIC interrupts

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 54 of 80

6.4 I/O Map

Address (hex) Size Description

0020- 0021 1 Programmable interrupt controller

0040- 0043 4 System Timer

0060- 0060 1 Standard keyboard

0061- 0061 1 System speaker

0070- 0071 2 System CMOS/Real time clock

0170- 01F7 8 Secondary Parallel ATA IDE Channel

01F0- 01F7 8 Primary Parallel ATA IDE Channel

02E8- 02EF 8 Comport 4

02F8- 02FF 8 Comport 2

0378- 037F 8 Printer Port

03B0- 03BB 12 855GME VGA Controller

03C0- 03DF 32 855GME VGA Controller

03E8- 03EF 8 Comport 3

03F8- 03FF 8 Comport 1

0CF8- 0CFF 8 PCI Bus

D000- D0FF 256 Realtek 8169 Ethernet Controller

D000- DFFF 4096 PCI standard PCI-to-PCI brigde

D400- D4FF 256 Realtek 8169 Ethernet Controller

D800- D8FF 256 Realtek 8169 Ethernet Controller

E000- E01F 32 Standard Universal PCI to USB Host Controller

E080- E09F 32 Standard Universal PCI to USB Host Controller

E400- E41F 32 PCI System Management Bus

E480- E4BF 32 Realtek AC97 Audio

E800- E8FF 256 Realtek AC97 Audio

EC00- EC07 8 855GME VGA Controller

FC00- FC07 8 Primary Serial ATA IDE Channel

FC08- FC0F 8 Secondary Serial ATA IDE Channel

6.5 DMA Channel Usage

DMA Channel Number Data Width System Ressources

0 8 or 16 bits Available 1 8 or 16 bits Available 2 8 or 16 bits Available 3 8 or 16 bits Available 4 8 or 16 bits DMA Controller 5 16 bits Available 6 16 bits Available 7 16 bits Available

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 55 of 80

7. Overview of BIOS features

This Manual section details specific BIOS features for the 886LCD-M boards. The 886LCD-M boards are based on the AMI BIOS core version 8.10 with Kontron BIOS extensions.

7.1 System Management BIOS (SMBIOS / DMI)

SMBIOS is a Desktop Management Interface (DMI) compliant method for managing computers in a managed network.

The main component of SMBIOS is the Management Information Format (MIF) database, which contains information about the computing system and its components. Using SMBIOS, a system administrator can obtain the system types, capabilities, operational status, and installation dates for system components.

The MIF database defines the data and provides the method for accessing this information. The BIOS enables applications such as third-party management software to use SMBIOS.

The BIOS stores and reports the following SMBIOS information:

• BIOS data, such as the BIOS revision level

• Fixed-system data, such as peripherals, serial numbers, and asset tags

• Resource data, such as memory size, cache size, and processor speed

• Dynamic data, such as event detection and error logging

Non-Plug and Play operating systems, such as Windows NT*, require an additional interface for obtaining the SMBIOS information. The BIOS supports an SMBIOS table interface for such operating systems. Using this support, an SMBIOS service-level application running on a non-Plug and Play operating system can obtain the SMBIOS information.

The 886LCD-M Boards supports reading certain MIF specific details by the Windows API. Refer to the API section in this manual for details.

7.2 Legacy USB Support

Legacy USB support enables USB devices such as keyboards, mice, and hubs to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB. By default, Legacy USB support is set to Enabled.

Legacy USB support operates as follows:

1. When you apply power to the computer, legacy support is disabled.

2. POST begins.

3. Legacy USB support is enabled by the BIOS allowing you to use a USB keyboard to enter and configure the BIOS Setup program and the maintenance menu.

4. POST completes.

5. The operating system loads. While the operating system is loading, USB keyboards and mice are recognized and may be used to configure the operating system. (Keyboards and mice are not recognized during this period if Legacy USB support was set to Disabled in the BIOS Setup program.)

6. After the operating system loads the USB drivers, all legacy and non-legacy USB devices are recognized by the operating system, and Legacy USB support from the BIOS is no longer used.

To install an operating system that supports USB, verify that Legacy USB support in the BIOS Setup program is set to Enabled and follow the operating system’s installation instructions.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 56 of 80

8. BIOS Configuration / Setup

8.1 Introduction

The BIOS Setup is used to view and configure BIOS settings for the 886LCD-M board. The BIOS Setup is accessed by pressing the DEL key after the Power-On Self-Test (POST) memory test begins and before the operating system boot begins. The Menu bar look like this:

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

The available keys for the Menu screens are as:

8.2 Main Menu

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

System Overview AMIBIOS

Version : 08.00.10 Build Date: 10/25/05 ID : 886LCD23 PCB ID : 14 Serial # : 00374708 PCB ID : 63650000

Processor

Type : Intel(R) Pentium(R) M Processor 1600 MHz Speed : 600MHz

System Memory

Size : 1016MB Speed : 333MHz

System Time [10:18:15] System Date [Mon 02/03/2006]

Use [ENTER], [TAB] or [SHIFT-TAB] to select a field.

Use [+] or [-] to configure system Time.

<- Select Screen || Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

Main Menu Selections

You can make the following selections. Use the sub menus for other selections.

Feature Options Description

System Time HH:MM:SS Set the system time.

System Date MM/DD/YYYY Set the system date.

Function Key Description

<←> or <→> Select Screen

<↑> or <↓> Select Item

<+> or <-> Change Field

<Tab> Select Field

<F1> General Help <F10> Save and Exit <Esc> Exits the Menu

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 57 of 80

8.3 Advanced Menu

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Advanced Settings

> > > > > > > > > >

Warning: Setting wrong values in below sections May cause system to malfunction.

CPU Configuration IDE Configuration LAN Configuration Floppy Configuration SuperIO Configuration Hardware Health Configuration Voltage Monitor ACPI Configuration Remote Access Configuration USB Configuration

Configure CPU.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

8.3.1 Advanced settings – CPU Configuration

BIOS SETUP UTILITY

Advanced

Configure advanced CPU settings

Module Version – 11.05

Manufacturer: Intel Brand String: Intel (R) Pentium(R) M processor 1600M Frequency : 600MHz FSB Speed : 400MHz

Cache L1 : 32 KB Cache L2 : 1024 KB

Intel(R) SpeedStep(tm) tech. [Automatic]

Maximum: CPU Speed is set to maximum. Minimum: CPU Speed is set to minimum. Automatic: CPU speed controlled by Operating system. Disabled: Default CPU speed.

<- Select Screen || Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Intel(R) SpeedStep(tm) tech.

Maximum Speed, Minimum Speed, Automatic, Disabled

Select the operation mode of the CPU. To ensure full performance of the CPU, use the Maximum Speed setting.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 58 of 80

8.3.2 Advanced settings – IDE Configuration

BIOS SETUP UTILITY

Advanced

IDE Configuration

IDE Configuration [P-ATA Only]

S-ATA Running Enhanced [Yes] P-ATA Channel Selection [Both] S-ATA Ports Definition [P0-3

./P1-4th]

Configure S-ATA as RAID [No]

Primary IDE Master : [Hard Disk] Primary IDE Slave : [Not Detected] Secondary IDE Master : [Not Detected] Secondary IDE Slave : [Not Detected] Third IDE Master : [Not Detected] Third IDE Slave : [Not Detected] Fourth IDE Master : [Not Detected] Fourth IDE Slave : [Not Detected]

ATA(PI) 80Pin Cable Detection [Host & Device] P-ATA1 Cable Detection force [Disabled] P-ATA2 Cable Detection force [Disabled] Hard Disk Write Protect [Disabled] IDE Detect Time Out (Sec) [35]

Select IDE Mode.

P-ATA Only: 4 P-ATA & 2 S-ATA

S-ATA Only: 2 S-ATA

P-ATA & S-ATA 2 P-ATA & 2 S-ATA

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

IDE Configuration Disable,

P-ATA Only,

S-ATA Only, P-ATA & S-ATA

Setup the configuration of the hard drive interfaces

When P-ATA & S-ATA mode is selected:

Feature Options Description

Combined Mode Option

P-ATA 1st Channel,

S-ATA 1st Channel

Setup the configuration of the hard drive interfaces

S-ATA Ports Definition

P0-Master/P1-Slave,

P0-Slave/P1-Master

Select physical ports (P0/P1) to be Master/Slave or Slave/Master

When S-ATA only mode is selected:

Feature Options Description

S-ATA Ports Definition

P0-1st./P1-2nd.,

P0-2nd./P1-1st.

Select physical ports (P0/P1) to be 1st./2nd. or 2nd./1st.

When P-ATA only mode is selected:

Feature Options Description

S-ATA Running Enhanced Mode

Yes,

Setup the S-ATA interface to be running in enhanced mode or legacy mode

P-ATA Channel Selection Primary, Secondary,

Both

Setup the active IDE channels

S-ATA Ports Definition

P0-3

./P1-4

P0-4

./P1-3rd

Select physical ports (P0/P1) to be 3

rd/4th

th/3rd

Configure S-ATA as RAID

No,

Yes

Only available when "P-ATA Only" is selected. Note: Install the driver via USB-Floppy connected to USB port 2 (lower conn.)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 59 of 80

BIOS SETUP UTILITY

Advanced

Primary IDE Master

Device :Hard Disk Vendor :ST340014A Size :40.0GB LBA Mode :Supported Block Mode :16Sectors PIO Mode :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T. :Supported

Type [Auto] LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode [Auto] DMA Mode [Auto] S.M.A.R.T. [Auto] 32Bit Data Transfer [Disabled]

Select the type of devices connected to the system

<- Select Screen || Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Type Not Installed,

Auto,

CDROM, ARMD

Select the type of device installed

LBA/Large Mode Disabled,

Auto

Enabling LBA causes Logical Block Addressing to be used in place of Cylinders, Heads, and Sectors.

Block (Multi-Sector Transfer) Disabled,

Auto

Select if the device should run in Block mode

PIO Mode

Auto,

0, 1, 2, 3, 4

Selects the method for transferring the data between the hard disk and system memory. The Setup menu only lists those options supported by the drive and platform.

DMA Mode

Auto, SWDMA0,

SWDMA1, SWDMA2, MWDMA0, MWDMA1, MWDMA2, UDMA0, UDMA1, UDMA2, UDMA3, UDMA4, UDMA5

Selects the Ultra DMA mode used for moving data to/from the drive. Autotype the drive to select the optimum transfer mode.

Note: To use UDMA Mode 2, 3, 4 and 5 with a device, the harddisk cable used MUST be UDMA66/100 cable (80-conductor cable).

S.M.A.R.T.

Auto,

Disabled, Enabled

Select if the Device should be monitoring itself (Self-Monitoring, Analysis and Reporting Technology System)

32Bit Data Transfer

Disabled,

Enabled

Select if the Device should be using 32Bit data Transfer

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 60 of 80

Feature Options Description

ATA(PI) 80Pin Cable Detection

Host & Device,

Host, Device

Select the mechanism for detecting 80Pin ATA Cable

P-ATA1 Cable Detection Force

Disable,

40Pin, 80Pin

Force the board to operate as if a 40Pin ATA cable or 80Pin ATA cable is installed on the Primary channel

P-ATA2 Cable Detection Force

Disable,

40Pin, 80Pin

Force the board to operate as if a 40Pin ATA cable or 80Pin ATA cable is installed on the Primary channel

Hard Disk Write Protect

Disable,

Enabled

Enable write protection on HDDs, only works when it is accessed through the BIOS

IDE Detect Time Out (Sec)

0, 5, 10, 15, 20, 25, 30, 35

Select the time out value when the BIOS is detecting ATA/ATAPI Devices

8.3.3 Advanced settings – LAN Configuration

BIOS SETUP UTILITY

Advanced

LAN Configuration

ETH1 Configuration [With RPL/PXE boot]

MAC Address : 00E0F4000001 ETH2 Configuration [Enabled] MAC Address : 00E0F4000002 ETH3 Configuration [Enabled] MAC Address : 00E0F4000003

Control of Ethernet Devices and RPL/PXE boot

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

ETH1 Configuration Disabled,

Enabled,

With RPL/PXE boot

Select if you want to enable the LAN adapter, or if you want to activate the RPL/PXE boot rom

ETH2 Configuration Disabled,

Enabled,

With RPL/PXE boot

Select if you want to enable the LAN adapter, or if you want to activate the RPL/PXE boot rom

ETH3 Configuration Disabled,

Enabled,

With RPL/PXE boot

Select if you want to enable the LAN adapter, or if you want to activate the RPL/PXE boot rom

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 61 of 80

8.3.4 Advanced settings – Floppy Configuration

BIOS SETUP UTILITY

Advanced

Floppy Configuration

Floppy A [Disabled]

Floppy B [Disabled]

Select the type of floppy drive connected to the system

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Floppy A

Disabled,

360KB,

1.2MB, 720KB,

1.44MB,

2.88MB

Select Floppy device installed in the system using the LPT->Floppy cable

Floppy B

Disabled,

360KB,

1.2MB, 720KB,

1.44MB,

2.88MB

Select Floppy device installed in the system using the LPT->Floppy cable

Notes: Enter SuperIO Configuration and enable Onboard Floppy Controller. Parallel port can not be used if Onboard Floppy Controller is enabled.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 62 of 80

8.3.5 Advanced settings – SuperIO Configuration

BIOS SETUP UTILITY

Advanced

Configure Win627THF Super IO Chipset

OnBoard Floppy Controller [Disabled]

Serial Port1 Address [3F8/IRQ4] Serial Port2 Address [2F8/IRQ3] Serial Port2 Mode [Normal] Parallel Port Mode [378] Parallel Port Mode [Normal] Parallel Port IRQ [IRQ7] ICH SIO Serial Port1 Addresse [Disabled] ICH SIO Serial Port2 Addresse [Disabled]

Enable onboard Floppy Controller for use at parallel port

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

OnBoard Floppy Controller

Disabled,

Enabled

Enable or disable the Floppy Controller

Serial Port1 Address Disabled,

3F8/IRQ4,

3E8/IRQ4, 3E8/IRQ6, 3E8/IRQ10, 2E8/IRQ11

Select the BASE I/O addresse and IRQ.

(The available options depends on the setup for the the other Serial Ports).

Serial Port2 Address Disabled,

2F8/IRQ3,

2E8/IRQ3, 3E8/IRQ6, 3E8/IRQ10, 2E8/IRQ11

Select the BASE I/O addresse and IRQ.

(The available options depends on the setup for the the other Serial Ports).

Serial Port2 Mode

Normal, IRDA, ASK IR

Select Mode for Serial Port2

Parallel Port Address

Disabled,

378, 278, 3BC

Select the I/O address for the LPT.

NOTE: you cannot enable the floppy

controller and parallel port at the same time!

Parallel Port Mode

Normal, Bi-Directional,

EPP, ECP

Select the mode that the parallel port will operate in

EPP Version 1.9,

1.7

Setup with version of EPP you want to run on the parallel port

ECP Mode DMA Channel DMA0, DMA1, DMA3 Select a DMA channel

Parallel Port IRQ IRQ5, IRQ7 Select a IRQ

ICH SIO Serial Port1 Address

Disabled,

3E8/IRQ6, 3E8/IRQ10, 2E8/IRQ11

Select the BASE I/O addresse and IRQ.

(The available options depends on the setup for the the other Serial Ports).

ICH SIO Serial Port2 Address

Disabled,

3E8/IRQ6, 3E8/IRQ10, 2E8/IRQ11

Select the BASE I/O addresse and IRQ.

(The available options depends on the setup for the the other Serial Ports).

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 63 of 80

8.3.6 Advanced settings – Hardware Health Configuration

BIOS SETUP UTILITY

Advanced

Hardware Health Event Monitoring

System Temperature :37ºC/98ºF

CPU Temperature :43ºC/109ºF External Temperature Sensor :N/A

Fan1 Speed :Fail Fan Cruise Control [Disabled] Fan2 Speed :2537 RPM Fan Cruise Control [Thermal] Fan Setting [45°C/113°F] Fan3 Speed :2164 Fan Cruise Control [Speed] Fan Setting [2177 RPM]

Watchdog Function [Disabled]

Disable = Full Speed

Thermal: Does regulate fan speed according to specified temperature

Speed: Does regulate according to specified RTM

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Fan Cruise Control

Disabled,

Thermal, Speed

Select how the Fan shall operate.

When set to Thermal, the Fan will start to run at the CPU die temperature set below.

When set to Speed, the Fan will run at the Fixed speed set below.

Fan Settings 1406-5625 RPM,

30°-75°C

The fan can operate in Thermal mode or in a fixed fan speed mode

Feature Options Description

Watchdog

Disabled,

16 seconds, 38 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes

Adjust the amounts of boot time allowed before system reset occurs. Software must disable or reload timer. Disable, IO 869h BIT3 Init value 861h = 4-3Fh = 2.4 – 38 sec Reload, write to 860h

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 64 of 80

8.3.7 Advanced settings – Voltage Monitor

BIOS SETUP UTILITY

Advanced

Voltage Monitor

Requested Core :1.484 V

VcoreA :1.431 V

VcoreB :1.483 V +3.3Vin :3.290 V +5Vin :4.985 V +12Vin :12.016 V

-12Vin :Good +5VSB :5.012 V

Enable Hardware Health Monitoring Device.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

8.3.8 Advanced settings – ACPI Configuration

BIOS SETUP UTILITY

Advanced

ACPI Settings

> >

ACPI Aware O/S [Yes]

General ACPI Configuration Advanced ACPI Configuration

Enable Hardware Health Monitoring Device.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

ACPI Aware O/S

Yes,

Select if your O/S supports ACPI

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 65 of 80

8.3.9 Advanced settings – General ACPI Configuration

BIOS SETUP UTILITY

Advanced

General ACPI Configuration

Suspend mode [S1 & S3 (STR)] Repost Video on S3 Resume [No] S4BIOS Support [Disabled]

Select the ACPI state used for System Suspend.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Suspend mode S1 (POS) only,

S1&S3 (STR)

Select the ACPI state used for System Suspend

Repost Video on S3 Resume

No,

Yes

Determines whether to invoke VGA BIOS post on S3/STR resume

S4BIOS Support

Disabled,

Enabled

Determines if you want to support S4 power state

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 66 of 80

8.3.10 Advanced settings – Advanced ACPI Configuration

BIOS SETUP UTILITY

Advanced

Advanced ACPI Configuration

ACPI 2.0 Features [No] ACPI APIC support [Enabled] APIC ACPI SCI IRQ [Disabled] AMI OEMB table [Enabled] Headless mode [Disabled]

Enable RSDP pointers to 64-bit Fixed System Description Tables.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

ACPI 2.0 Features

No,

Yes

Enable/ Disable ACPI 2.0 features

ACPI APIC support

Enabled,

Disabled

Setup if the APIC controller should be supported in the ACPI code

APIC ACPI SCI IRQ Enabled,

Disabled

Enable/ Disable APIC ACPI SCI IRQ

AMI OEMB table

Enabled,

Disabled

Enable/ Disable AMI OEMB table

Headless mode Enabled,

Disabled

Enable/ Disable Headless mode

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 67 of 80

8.3.11 Advanced settings – Remote Access Configuration

BIOS SETUP UTILITY

Advanced

Configure Remote Access type and parameters

Remote Access [Enabled]

Serial port number [ICH COM1] Serial Port Mode [115200 8,n,1] Flow Control [None] Redirection [Always]

Terminal Type [ANSI] VT-UTF8 Combo Key Support [Disabled]

Enable RSDP pointers to 64-bit Fixed System Description Tables.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature

Options Description

Remote Access

Disabled,

Enabled

Allows you to see the screen over the comport interface, in a terminal window

Serial port number SIO Port1,

SIO Port2

Setup which comport that should be used for communication

Serial Port Mode 115200 8 n 1,

57600 8 n 1, 38400 8 n 1, 19200 8 n 1, 9600 8 n 1

Select the serial port speed

Flow Control None, Hardware,

Software

Select Flow Control for serial port

Redirection After BIOS POST Disabled, Boot Loader,

Always

How long shall the BIOS send the picture

over the serial port Terminal Type ANSI, VT100, VT-UTF8 Select the target terminal type VT-UTF8 Combo Key Support Disabled, Enabled Setup VT-UTF8 Combo Key

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 68 of 80

8.3.12 Advanced settings – USB Configuration

BIOS SETUP UTILITY

Advanced

USB Configuration

Module Version – 2.24.0-7.4

USB Devices Enabled : 1 Drive

USB Function [All USB Ports] Legacy USB Support [Enabled] USB 2.0 Controller [Enabled] USB 2.0 Controller Mode [HiSpeed]

USB Mass Storage Device Configuration

Enables USB host controllers.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

USB Function Disabled,

2 USB Ports,

All USB Ports

Select the USB ports you want to enabled

Legacy USB Support Disabled,

Enabled,

Auto

Support for legacy USB Keyboard

USB 2.0 Controller

Enabled,

Disabled

Setup the USB 2 controller (480Mbps)

USB 2.0 Controller Mode

FullSpeed,

HiSpeed

Configures the USB 2.0 controller in HiSpeed (480Mbps) or FullSpeed (12Mbps)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 69 of 80

8.3.13 Advanced settings – USB Mass Storage Device Configuration

BIOS SETUP UTILITY

Advanced

USB Mass Storage Device Configuration

USB Mass Storage Reset Delay [20 Sec]

Device #1 JetFlash TS256MJF2L Emulation Type [Auto]

Enables USB host controllers.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

USB Mass Storage Reset Delay 10 Sec,

20 Sec,

30 Sec, 40 Sec

Number of seconds the BIOS waits for the USB device after start unit command

Emulation Type

Auto,

Floppy, Forced FDD, Hard Disk, CDROM

Setup the emulation type for the USB device

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 70 of 80

8.4 PCIPnP Menu

BIOS SETUP UTILITY

PCIPnP

Advanced PCI/PnP Settings

Warning: Setting wrong values in below sections

May cause system to malfunction.

Plug & Play O/S [No] PCI Latency Timer [64] Allocate IRQ to PCI VGA [Yes] PCI IDE BusMaster [Enabled] PCI Raiser Support [Disabled] Disable Unsed PCI Clocks [Auto] Spread Spectrum Mode [Disabled]

PCI Slot-1 IRQ Preference [Auto]

NO: lets the BIOS configure all the devices in the system. YES: lets the operating system configure Plug and Play (PnP) devices not required for boot if your system has a Plug and Play operating system.

<- Select Screen || Select Item +- change option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Plug & Play O/S

No,

Yes

Select if you have a PnP O/S

PCI Latency Timer 32,

64,

96, 128, 160, 192, 224, 248

Value in units of PCI clocks for PCI device latency timer register

Allocate IRQ to PCI VGA

Yes,

Assigns IRQ to PCI VGA card

PCI IDE BusMaster

Enabled,

Disabled

Setup PCI bus mastering for read/write to IDE drives

PCI Raiser Support

Disabled,

PCI Slot3, PCI Slot2, PCI Slot1

Setup if you are using a PCI Raiser card to get one more PCI Slot (Vertical)

Disable Unused PCI Clocks

Auto,

Disables PCI clocks if no PCI card is detected

Spread Spectrum

Disabled,

Enabled

A technique for spreading the signal bandwidth over a wide range of frequencies to lower Radiated Emission

PCI Slot-1 IRQ Preference

Auto

5, 6, 7, 9, 10, 11

Manual IRQ selection does not guarantee PCI slot device will be configured with choice. WARNING: Selected IRQ will not be allowed for other devices.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 71 of 80

8.5 Boot Menu

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Boot Settings

Boot Settings Configuration

Boot Device Priority

Auto adjust Boot Priority [Yes] Removable Devices 1st [No] Force Boot Device [Disabled] Hide Removable Devices [No] Execute Embedded Firmware [Disabled]

Configure Settings during System Boot.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

8.5.1 Boot – Boot Settings Configuration

BIOS SETUP UTILITY

Boot

Boot Settings

Quick Boot [Enabled] Quiet Boot [Disabled] Bootup Num-Lock [On] PS/2 Mouse Support [Auto] Halt on [All, But Keyboard] Hit ‘DEL’ Message Display [Enabled] Interrupt 19 Capture [Disabled]

Configure Settings during System Boot.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Quick Boot

Enabled,

Disabled

Allows BIOS to skip certain test while booting

Quiet Boot

Disabled,

Enabled, Enabled & Maintain

Shows boot logo instead of POST screen

Bootup Num-Lock

Off, On

Select Power-on state for numlock

PS/2 Mouse Support Disabled,

Enabled,

Auto

Select support for PS/2 Mouse

Halt on *

Disabled,

All But Keyboard

Wait for F1 key to be pressed if error. If no keyboard present post will continue

Hit ‘DEL’ Message Display Disabled,

Enabled

Display the message or not

Interrupt 19 Capture

Disabled,

Enabled

Allows option ROMs to trap interrupt 19

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 72 of 80

* List of errors:

<INS> Pressed Timer Error Interrupt Controller-1 error Keyboard/Interface Error Primary Master Hard Disk Error S.M.A.R.T HDD Error Cache Memory Error DMA Controller Error Resource Conflict PCI I/O conflict PCI ROM conflict PCI IRQ conflict

PCI IRQ routing table error Halt on Invalid Time/Date NVRAM Bad Static Resource Conflict

PCI I/O conflict

PCI ROM conflict

Feature Options Description

Auto adjust Boot Priority

Yes, No

If Yes then eg. USB devices will be placed first in the boot Device Priority Menu when booting.

Removable Devices 1st

No,

Yes

Should removable USB devices get first boot priority when inserted

Force Boot Device

Disabled,

Primary IDE Master, Primary IDE Slave, Secondary IDE Master, Secondary IDE Slave, Third IDE Master, Forth IDE Master, Network

Does overwrite current boot setting. Device must be in the boot priority menu though. If the device fails to boot, the system will not try other devices.

Hide Removable Devices

No, Yes

Hide Removable Devices in BBS POPUP menu (F11)

Execute Embedded Firmware

Disabled,

Enabled

Execute OEM software if embedded into BIOS. (Default MemTest-86)

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 73 of 80

8.6 Security Menu

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Security Settings

Supervisor Password :Installed User Password :Installed

Change Supervisor Password Change User Password Clear User Password

Boot Sector Virus Protection [Disabled]

Hard Disk Security

Primary Master HDD User Password Primary Slave HDD User Password Secondary Slave HDD User Password

Install or Change the password.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Change Supervisor Password Password Change the Supervisor Password Change User Password Password Change the User Password Clear User Password Ok,

Cancel

Clears the User Password

Boot Sector Virus Protection Enabled,

Disabled

Will write protect the MBR when the BIOS is used to access the harddrive

HDD Password Password Locks the HDD with a password, the user

needs to type the password on power on

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 74 of 80

8.7 Chipset Menu

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Advanced Chipset Settings

> >

Warning: Setting wrong values in below sections may cause system to malfunction.

Intel Montara-GML NorthBridge Configuration SouthBridge Configuration

Boot Type: [CRT+LFP] Backlight Signal Inversion [Disabled] LCDVCC Voltage [5V] EDID Support [Enabled] LVDS [LM201U03] DVO [N/A]

Intel Montara-GML NorthBridge chipset configuration options.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

8.7.1 Advanced Chipset Settings – Intel Montara-GML NorthBridge Configuration

BIOS SETUP UTILITY

Chipset

Configure advanced settings for NorthBrigde

Primary Video Device [Auto] Graphics Mode Select [Enabled, 8MB] IGD – Device 2,Function 1: [Enabled]

Select which graphics controller to use as the primary boot device.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Primary Video Device Internal,

External PCI, External AGP,

Auto

Select which graphics controller to use as the primary boot device

Graphics Mode Select Disabled, 1MB, 4MB,

8MB, 16MB, 32MB

Select the amount of system memory used by the internal graphics device

IGD – Device 2, Function 1 Disabled,

Enabled

Setup the multimonitor function

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 75 of 80

8.7.2 Advanced Chipset Settings – SouthBridge Configuration

BIOS SETUP UTILITY

Chipset

IOAPIC [Enabled] Extended IOAPIC [Enabled] OnBoard AC’97 Audio [Enabled] OnBoard Amplifier [Enabled]

Enable / Disable the ICH4 IOAPIC function.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

IOAPIC

Disabled, Enabled

Setup the ICHS IOAPIC function

Extended IOAPIC

Disabled, Enabled

Setup the extended mode of ICHS IOAPIC

OnBoard AC’97 Audio

Disabled, Enabled

Setup the onboard audio

OnBoard Amplifier

Disabled, Enabled

Use the OnBoard Amplifier on lineout

Feature Options Description

Boot Type VBIOS Default,

CRT,

LFP, CRT+LFP, EFP, TV, CRT+EFP, CRT+TV, EFP+EFP2, EFP+TV

Setup type of boot screen

Backlight Signal Inversion Disabled,

Enabled

Select the signal polarity

LCDVCC Voltage

3.3V,

Setup the LCD Voltage

LVDS Panels Chose the connected LVDS panel DVO DVO Chip Select the DVO connection

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 76 of 80

8.8 Power Menu

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

ADVANCED SMI ENABLE CONTROLS

Power Management/APM [Enabled] Power Button Mode [On/Off]

ADVANCED RESUME EVENT CONTROLS

USB Controller Resume [Disabled] PME Resume [Disabled] RI Resume [Disabled]

RTC Resume [Enabled] RTC Alarm Data [11] RTC Alarm Time [11:11:11]

PS/2 Kbd/Mouse S4/S5 Wake [Disabled] S3-S5 Keyboard Hotkey [Any key]

AC Power Loss Restart [Off]

Enable/Disable SMI based power management and APM support.

<- Select Screen || Select Item +- Change Option F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Power Management/APM Disabled,

Enabled

Setup the SMI/APM support

Power Button Mode

On/Off,

Suspend

Select Power button functionality

USB Controller Resume

Disabled,

Enabled

Lets the USB devices wake up from sleep state

PME/WOL

Disabled,

Enabled

Allow PME/WOL to wake from sleep states

RI Resume

Disabled,

Enabled

Allow RI/Modem to wake from sleep states

RTC Resume Enabled,

Disabled

Let the board start up on a specific date and time

RTC Alarm Date Every Day,

1-31

Setup the date you want the board to start

RTC Alarm Time HH:MM:SS Setup the time you want the board to start PS/2 Kbd/Mouse S4/S5

Wake

Disabled,

Enabled

When disabled the board can wake from S1 and S3, and when enabled it can also wake from S4 and S5

S3-S5 Keyboard Hotkey

Any key,

Space, Enter, Sleep button

Setup the key that can wake up the board

AC Power Loss Restart

Off,

On, Previous State

Select whether or not to restart the system after AC

power loss: Off keeps the power off until the power button is pressed. On restores power to the computer. Previous State restores the previous

power state before power loss occurred.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 77 of 80

8.9 Exit Menu

BIOS SETUP UTILITY

Main Advanced PCIPnP Boot Security Chipset Power Exit

Exit Options

Save Changes and Exit Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults

Halt on invalid Time/Date [Enabled] Secure CMOS [Disabled]

Exit system setup after saving the changes.

F10 Key can be used for this operation.

<- Select Screen || Select Item Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Feature Options Description

Save Changes and Exit Ok,

Cancel

Exit system setup after saving the changes

Discard Changes and Exit Ok,

Cancel

Exit system setup without saving any changes

Discard Changes Ok,

Cancel

Discards changes done so far to any of the setup questions

Load Optimal Defaults Ok,

Cancel

Load Optimal Default values for all the setup questions

Load Failsafe Defaults Ok,

Cancel

Load Failsafe Default values for all the setup questions

Halt on invalid Time/Date

Enabled,

Disabled

Shall the BIOS halt and wait for a keypress when the cmos is corrupted

Secure CMOS

Disabled,

Enabled

Enable will store the current CMOS in the BIOS flash rom, this will maintain the settings even if the battery is failing

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 78 of 80

8.10 AMI BIOS Beep Codes

Boot Block Beep Codes:

Number of

Beeps

Description

1 Insert diskette in floppy drive A:

2 ‘AMIBOOT.ROM’ file not found in root directory of diskette in A:

3 Base Memory error

4 Flash Programming successful

5 Floppy read error

6 Keyboard controller BAT command failed

7 No Flash EPROM detected

8 Floppy controller failure

9 Boot Block BIOS checksum error

10 Flash Erase error

11 Flash Program error

12 ‘AMIBOOT.ROM’ file size error

13 BIOS ROM image mismatch (file layout does not match image present in flash device)

POST BIOS Beep Codes:

Number of

Beeps

Description

1 Memory refresh timer error.

2 Parity error in base memory (first 64KB block)

3 Base memory read/write test error

4 Motherboard timer not operational

5 Processor error

6 8042 Gate A20 test error (cannot switch to protected mode)

7 General exception error (processor exception interrupt error)

8 Display memory error (system video adapter)

9 AMIBIOS ROM checksum error

10 CMOS shutdown register read/write error

11 Cache memory test failed

Troubleshooting POST BIOS Beep Codes:

Number of

Beeps

Troubleshooting Action

1, 2 or 3 Reseat the memory, or replace with known good modules.

4-7, 9-11 Fatal error indicating a serious problem with the system. Consult your system manufacturer.

Before declaring the motherboard beyond all hope, eliminate the possibility of interference by a malfunctioning add-in card. Remove all expansion cards except the video adapter.

• If beep codes are generated when all other expansion cards are absent, consult your system manufacturer’s technical support.

• If beep codes are not generated when all other expansion cards are absent, one of the addin cards is causing the malfunction. Insert the cards back into the system one at a time until the problem happens again. This will reveal the malfunctioning card.

8 If the system video adapter is an add-in card, replace or reseat the video adapter. If the

video adapter is an integrated part of the system board, the board may be faulty.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 79 of 80

9. OS setup

Use the Setup.exe files for all relevant drivers. The drivers can be found on the 886LCD-M Driver CD or they can be downloaded from the homepage www.kontron-emea.com

Note: When installing/using ADD cards like ADD-DVI or ADD-LVDS it's possible that the OS start up without any connected display(s) active. If you are able to pass the "Log On to Windows" etc. by entering the password etc. without actually see the picture on the dispaly and If the Hot Keys have not been disabled in the Extreme Graphic driver then the following key combinations you can select a connected display:

<Ctrl><Alt><F1> enables the CRT (on board) <Ctrl><Alt><F3> enables the LVDS (on board) <Ctrl><Alt><F4> enables display conneted to the ADD card.

886LCD-M Family

KTD-00474-I Public User Manual Date: 2006-06-02 Page 80 of 80

10. Warranty

KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, KONTRON Technology will, at its sole option, repair or replace the product with a similar product. Replacement Product or parts may include remanufactured or refurbished parts or components.

The warranty does not cover:

1. Damage, deterioration or malfunction resulting from:

A. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product. B. Repair or attempted repair by anyone not authorized by KONTRON Technology. C. Causes external to the product, such as electric power fluctuations or failure. D. Normal wear and tear. E. Any other causes which does not relate to a product defect.

2. Removal, installation, and set-up service charges.

Exclusion of damages:

KONTRON TECHNOLOGY LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. KONTRON TECHNOLOGY SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THEIR POSSIBILITY OF SUCH DAMAGES.

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

3. ANY CLAIM AGAINST THE CUSTOMER BY ANY OTHER PARTY.

Kontron 886LCD-M/ATX, 886LCD-M/Flex, 886LCD-M/mITX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
