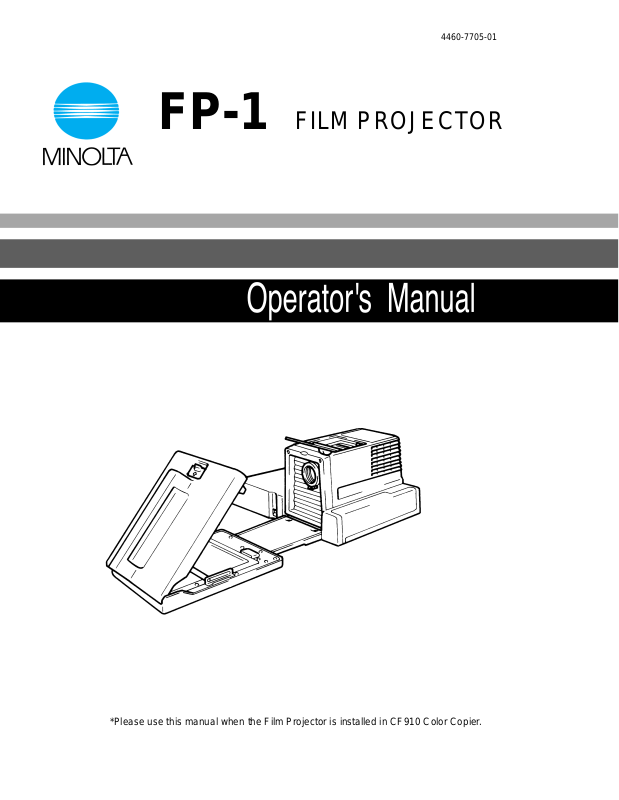

FP-1

FILM PROJECTOR

*Please use this manual when the Film Projector is installed in CF910 Color Copier.

Thank you for choosing Minolta. This operator’s manual explains how to operate theFilm Projector. It also givessometroubleshootingtips

as well as general precautions to be observed when operating the Film Projector. To ensure the best performance and effective use of your Film Projector, read this manual carefully until

you familiarize yourself thoroughly w ith its operation and features. After you have read through the manual, keep it for ready reference.

Please use this manual as a quick and h andy reference tool for immediately clarifying any questions which may arise.

FOR USA/CANADA

WARNING This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

The design and production of this unit conforms to FCC Regulations, and any changes or modifications must be registered with the FCC and are subject to FCC control. Any changes made by the purchaser or user without first contacting the manufacturer will be subject to penalty under FCC regulations.

FCC-F01

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

IC-04

Legal Restrictions on Copying

Certain types of documents must never be copied by the copier for the purpose or with the intent to pass copies of such documents off as the original. The following is not a complete list but is meant to be used as a guide to responsible copying.

Financial Instruments

•Personal Checks

•Travelers Checks

•Money Orders

•Certificates of Deposit

•Bonds or other Certificates of Indebtedness

•Stock Certificates

Legal Documents

•Food Stamps

•Postage Stamps (canceled or uncanceled)

•Checks or Drafts drawn by Government Agencies

•Internal Revenue Stamps (canceled or uncanceled)

•Passports

•Immigration Papers

•Motor Vehicle Licenses and Titles

•House and Property Titles and Deeds

General

•Identification Cards, Badges, or Insignias

•Copyrighted Works without permission of the copyright owner

In addition, it is prohibited under any circumstances Art without permission of the copyright owner.

When in doubt about the nature of a document, consult with legal counsel.

to copy domestic or foreign currencies or Works of

Contents

1. Parts Identification

Parts Identification ..................................................................................................................... 1

2. Accessory Identification

Accessory Identification............................................................................................................. 2

3.GettingtoKnowtheBasics

Types of Film and Correct Holders for Placement .................................................................... 3

When Making Copies................................................................................................................. 3

Operating Precautions ................................................................................................................ 4

4. Operation Flow

Operation Flow........................................................................................................................... 5

5. Setting up the Projector

Setting up the Projector.............................................................................................................. 6

6. Making Copies From Film

Making Copies From Film ......................................................................................................... 7

Setting the Projector Adjustment ............................................................................................. 10

Using a Different Type of Film / Performing Shading Again.................................................. 11

Shutting Down the Projector.................................................................................................... 11

7. Troubleshooting Tips

Copy Image Problems.............................................................................................................. 12

Faulty Shading.......................................................................................................................... 12

Faulty Symptoms...................................................................................................................... 13

Making the Film Standard........................................................................................................ 13

Adjusting Focus........................................................................................................................ 14

Cleaning ................................................................................................................................... 15

8. Specifications

Specifications........................................................................................................................... 16

9. Function Combination Matrix

Function Combination Matrix.................................................................................................. 17

10. Description of Paper Size and Zoom Ratio Table

Description of Paper Size and Zoom Ratio Table.................................................................... 19

iii

1. Parts Identification

Parts Identification

Film Holder Slot

Place the Holder in this slot.

Filter Slot

Place the Filter (Posi/Nega) in this slot.

Film Loading Cover

Open when placing the Film Holder and Filter in position. (Keep this cover closed when the Film Projector is not in use to prevent entry of dust and dirt.)

Power Cord

Plug the Power Cord into a power outlet when you use the Film Projector.

Ground

Lens Cover

Open when installing the Mirror Unit. (Keep this cover closed when the Film Projector is not in use to prevent entry of dust and dirt.)

Mirror Unit

Refracts light from the Film Projector to project the image onto the copier glass.

Fresnel Lens

Raise when loading medium or large format film.

1144O205AA

Accessories Storage Area

Keep accessories stored in this area. (Do not store any other items other than the accessories.)

Film Holder Loading Lever

Push this lever to the left while loading the Film Holder.

Focus Adjustment Lever

Use when adjusting focus manually.

Power Switch

Useto turn the Projector ON or OFF.

2. Accessory Identification

Accessory Identification

Film Holder

Place the film in this holder, which comes in three versions:

• Strip Film Holder

Accommodates up to six sheets of strip film.

• Mount Film Holder

Accommodates up to five sheets of positive mount film.

• Glass Mount Film Holder

Accommodates up to five sheets of positive glass mount film.

Lock Lever

This lever is used to secure the film placed in the Film Holder.

Spare Mount

Usewhenmakingyour own film standard.

Film Standard

Use when shading negative film. ISO-100 film from the following three manufacturers is available:

• Fuji Photo Film Co., Ltd.

• Agfa-Gevaert N. V.

• Eastman Kodak Co. Load the Film Standard in the Strip Film Holder.

Positioning Sheet

Place this sheet on the Original Glass of the copier when loading medium or large format film. Cut the sheet to the correct size of the film.

• If two or more Positioning Sheets are necessary, make

copies of the sheet on 11” × 14” or 11” × 17” paper. Copying on thick paper makes the job easier.

1144O206AA

Blower Brush

Blows dust and dirt off the lens and glass surface.

Filter (Posi = positive; Nega = negative)

Use the appropriate filter suited to the film being used (positive/negative).

1144O224AA

3.GettingtoKnowtheBasics

The following pages explain basic information about using the Film Projector.

Types of Film and Correct Holders for Placement

Holder

Film Type/Size

Mount Film

Holder

Strip Film

Holder

Glass Mount

Film Holder

Original Glass

35 mm mount film ××× 35 mm glass mount film ×× × 35 mm strip film ×× Brownie ××× 6 × 6-cm ××× 4 × 5” ××× Max. size (approx. 5-3/4”×8-1/2”) ×××

: This film can be used for this Holder.

× : This film cannot be used for this Holder.

NOTES

Observe the following precautions to protect the film.

• Do not use the same film for more than 30 min.

• Avoid using or storing film at a site with a temperature exceeding 30°C.

• If the film is precious, duplicate it before use.

• Remove the film from its protective bag before use.

Useful Tips

- Types of Film -

• Positive film: When viewed with back light, the light and dark areasof Positive film appear just as they look on the print.

• Negative film: When viewed with back light, the light areas appear dark and the dark areas appear light (the opposite of Positive film).

• Slide positive film: 35 mm positive film placed in a slide mount.

• Glass mount film: It has the same configuration as the slide film except that the film is coveredwith glass.

When Making Copies

<35 mm film>

Mount film (using the Mount Film Holder)

Film image size

to be copied

Copy size

(in full size mode):

Equivalent to

Invoice size

Approx.

21.5 mm

Approx. 121 mm

Approx. 33 mm

Approx. 185 mm

1144O637CA

1144O639CA

Strip film (using the Strip Film Holder)

Approx. 23 mm

Approx. 34 mm

1144O638CA

Approx. 129 mm

Approx. 191 mm

1144O640CA

3. Getting to Know the Basics

Useful Tips

• To enlarge the film image area being copied, use the Glass Mount Film Holder and adjust the focus

using the Focus Adjusting Lever. Adjusting Focus ☞ p. 14

• 35 mm strip film can also be copied from the Original Glass, without using the Mount Holder. In this case if the max. size is used, up to approx. 20 frames can be copied in a single copy run.

The image of the film that can be copied is approx. 1 mm inside the frame on the Positioning Sheet as shown below.

Film Size

Approx.

1mm

Positioning Sheet Frame

60 × 45 mm 60 × 60 mm 60 × 70 mm 60 × 80 mm 60 × 90 mm

Approx. 1mm

Approx.

1154O017AA

4” × 5”

1mm

Operating Precautions

• Do not shut off the Projector light. If an object is placed between the Projector and Mirror Unit, the Projector is unable to project the correct image.

• Do not jolt the Projector during operation. If the Projector is jolted (opening and closing a door or cover will produce a shock), especially after shading, the Projector is unable to project the correct image. If jolted, perform shading once again.

• If the Panel Reset key is pressed while you are using the Projector, it cancels all functions set for the Projector.

• Keep the Film Standards, Filter, Lens, Holders, Mirror Unit, and Original Glass away from dust and dirt. Dust and dirt on any of these parts can make the copy look dirty. Cleaning ☞ p. 15

4. Operation Flow

Operation Flow

Setting up the Projector. ☞ p. 6

Select Projector mode. On the Basic screen, touch the key.Projector

Select the type and size of film.

35 mm Film

Select the type of Holder.

Positive film

Place the Filter (Posi) in position.

Touch .Shading

Load the film.

35 mm Film

Load the film in the correct Film Holder.

Other Sizes

Select the size of the film.

Negative film

Place the Filter (Nega) in position.

Place the Film Standard appropriate for the film type.

Other Sizes

Cut out an opening of the size of the film in the Positioning Sheet and place it on the copier’s Original Glass.

Place the film in the opening in the Positioning Sheet.

Select the paper size.

NOTE

Select the zoom ratio.

Press the Start key to start the copy cycle.

Select the next operation.

Touch .

Toselectanewfilmtype.........................Touch .

Toperformshadingagain.........................Touch .

Tomakeacopyfromthesamefilmtype.............Touch .

ToshutdowntheProjector........................Touch .

Projector

When placing negative film, remove the Holder in which the Film Standard has been placed.

Change Settings Change Settings

End

5. Setting up the Projector

Setting up the Projector

Plug the Power Cord of the Projector into the

power outlet and turn ON the Power Switch .

NOTES

• Use a power outlet with a capacity of AC 115V

and 5A or more. If using the same power outlet which the copier uses, it should have a capacity of AC 115V and 20A or more.

• Be sure to make ground connection.

Gently swing down the Lens Cover.

Lens Cover

1144O207AA

Mount the Mirror Unit to the Projector,

aligning the holes in the bottom of the Mirror Unit with the positioning pins provided inside the Lens Cover.

Slide the tab on the Mirror Unit in the

direction of the arrow and open the Mirror Unit.

1144O209AA

NOTE

DO NOT touch the Fresnel Lens and glass surfaces of the Mirror Unit. A dirty copy will result if they are stained with fingerprints, dust and dirt. Cleaning ☞ p. 15

MirrorUnit 1144O208AA

6. Making Copies From Film

Making Copies From Film

Touch the key.

If the Projector is ready, touch .

SettinguptheProjector☞ p. 6

Projector

1154P461CA

<35 mm Film>

Select the Holder type.

<Other Sizes> Select the film size.

Maximum Size (Max. Frame): 5-3/4” × 8-1/2”

1154P432CA

1154P433CA

1154P450CA

Select the type and size of the film and then

touch .

1154P431CB

Useful Tip

The 35 mm strip film can be copied from the Original Glass. In this case, select

Other Sizes

The type (positive or negative) and size (35 mm or any other size) of the film selected determine the operating procedures that follow.

Touch .

Put in the Posi Filter.

Posi Filter

1144O210AA

6. Making Copies From Film

<Negative Film> Put in the Nega Filter.

Nega Filter

1144O210AA

Place the Film Standard appropriate for the film in the Strip Film Holder.

Film Standard

1144O212AA

Touch .

The lamp turns On and the shading sequence

Shading

starts.

Load the film.

<35 mm Film> Load the film in the correct Film H older and lower the top cover of the holder into the locked position.

Bottom

Back

Top Cover

Top

Front

1144O214AA

Mount Film

NOTE

If the Film Standard appropriate for the film is not available, make a new film standard. ☞ p. 13

Push the Holder Loading Lever t o the left and insert the Film Holder. Align the * mark on the Holder with the loading position.

Holder Loading Lever

1144O213AA

Top Cover

1144O215AA

Push the Holder Loading Lever to the left and insert the Film Holder. Slide it up and down to align the film position.

Holder Loading Lever

1144O217AA

NOTE

For strip film, face the front side of the film down (the side which you see film numbers reversed between right and left is facing up) and align the break of the film with that of the Holder.

6. Making Copies From Film

<Other Sizes> Cut out a piece of the Positioning Sheet the size of the film and place it on the Original Glass.

Positioning Sheet

1144O211AA

Raise the Fresnel Lens and place the film in the cutout in the Positioning Sheet.

Fresnel Lens

Film

1144O218AA

Select the paper size and touch .

If you want to use the Manual Bypass Tray, see the Operator’s Manual of the copier separately provided. ☞ p. 3-11

Touch .

Use the or keys to set the zoom

ratio.

Zoom

▼

▲

1154P473EA

1154P474EA

NOTES

• Face the front side of the film down and press the Fresnel Lens against the film.

• When placing negative film, remove the Holder in which the Film Standard has been placed.

Touch .

Paper

1154P471EA

Useful Tip

When the key is t ouched, the image will be enlarged to fit in the entire surface of the copy paper selected for use.

14 15

Scale to Page

Touch .

Touch or as necessary.

Touch .

Density

Lighter Darker

1154P475EA

6. Making Copies From Film

Setting the Projector Adjustment

Set the number of copies to be made and

press the Start key.

You can also use the Color Adjust and Digital Art functions. See the Operator’s Manual of the copier separately provided. ☞ pp. 3-30, 4-15

NOTES

• When setting Digital Art functions using the Film Projector, you cannot set X/Y Zoom, Image Repeat, Multi-Page Enlargement, and Postcard.

• When the Film Projector is being used, it is possible to adjust the Projector using the

Projector Adjustment

the Touch Panel.

key that appears on

Touch .

Touch the or

you want to adjust.

Color Adjust

Projector Adjustment

Negative Film

Positive Film

keyto select the color which

1154P455CA

Touch the or key to fine-adjust the

image density.

Touch .

+ –

1154P456CA

1154P469CA

6. Making Copies From Film

Using a Different Type of Film / Performing Shading Again

Touch .

Touch and then touch

Projector

Change Settings

1154P461CA

Shutting Down the Projector

Touch .

Touch and then touch .

Projector

1154P461CA

End OK

The screen now allows you to reselect the

type and size of film.

1154P437CB

1154P431CB

1154P438CB

Return the Mirror Unit, Holder and any

other parts used and close the Lens Cover.

1144O220AA

Turn OFF the Power Switch of the Projector.

NOTE

Do not unplug the PowerCord.

7. Troubleshooting Tips

Copy Image Problems

Blurred image

• The film is probably not in the correct position. Reload the film.

• Adjust focus. ☞ p. 14

Part of the image is missing.

• Only limited sizes of film can be copied. When placing the film, make sure all of the areas to be copied are in position. (See “When Making Copies” for the film image size to be copied and copy size. ☞ p. 3)

Useful Tip

Use the Glass Mount Film Holder because the mounted film will make the copy image slightly larger via focus adjustment.

Lines on the copy

• The Film Standard, Filter, Lens, Holder,Mirror Unit or Original Glass may be dirty with dust. Clean the surface. ☞ p. 15

• The Mirror Unit may have been jolted. Perform shading once again. ☞ p. 11

Too light or dark image

The type of film (positive or negative) may not match with the type of Filter installed (Posi or Nega).

☞Install the correct Filter according to the type

of film and start the steps over beginning with shading. ☞ p. 11

Faulty Shading

If the Projector fails to perform shading correctly, the message “Check for correct Filter, Film Standard (Negative only), and retry SHADING.” appears on the Touch Panel. Try the following before touching .

• When making copies from 35 mm positive film, the shading has been performed with the film loaded. ☞ Remove the Film Holder and perform

shading with nothing loaded in the Projector.

• Shading has been attempted with the Fresnel Lens in the raised position when large-size film (other sizes) is being used. ☞ Lower the Fresnel Lens and then perform

shading again.

Shading

NOTES

• Black lines can occur along the edges of the image depending o n the placement of the film and Holder. This is the resultof the frame of the Holder or edge of the film being projected.

• Fine streaks can occur on the bright areas of the copy image when negative film is copied. If this is the case, the second shading will not correct the problem.

Bands of uneven density

The Projector reads the subtle conditions of the film surface. Change the position of the film as follows.

• Raise and lower the top cover of the holder.

• Move the film placed in position.

• Turn the film upside down (but don’t turn it over).

• The light from the Projector is being cut off.

☞ Ensure that nothing blocks the light between

the Projector and Mirror Unit or cuts off the light from the Projector.

• The Mirror Unit is not in position.

☞ Reinstall the Mirror Unit correctly.

If all of these procedures do not correct the problem, see “Faulty Symptoms” that follows on page 13.

7. Troubleshooting Tips

Faulty Sy mptoms

• The copier cannot be set into the Projector mode.

• The Projector lamp does not l ight up.

• The Projector lamp remains lit and will not go out.

• A blank sheet of paper is fed out of the copier when negative film is used.

• A solid black copy is produced when positive film is used.

These symptoms are a result of the following;

• The optical fiber cable is loose. ☞ Turn OFF the copier as well as the Projector.

Reconnect the optical fiber cable and then turn the copier and Projector ON.

• The Projector Power Switch is OFF or the Power Cord is unplugged. ☞ Turn the copier OFF. Plug in the Power Cord

of the Projector and turn the copier and projector ON.

• The lamp is out. ☞ Call your Tech. Rep. and have him/her

replace the lamp.

Making the Film Standard

• Cut off an unexposed frame of the negative film and place it in the Spare Mount to make a new Film Standard.

Unexposed Frame

1144O221AA

• The copier or Projector is not operating.

☞ Call your Tech. Rep.

7. Troubleshooting Tips

Adjusting Focus

Place a blank sheet of paper on the Original

Glass under the Mirror Unit.

Touch the key on the Basic

screen.

Touch .

Projector

Manual Focus

1154P461CA

Use the image projected on the blank sheet

of paper to adjust the focus with the Focus Adjusting Lever.

1144O219AA

Touch .

Touch and remove the blank sheet of

paper.

DONE

1154P440CA

Touch .

START

1154P462CB

NOTE

Focus can be adjusted only for 35 mm film.

1154P439CA

7. Troubleshooting Tips

Cleaning

Dust and dirt on any of the following parts will produce a bad copy . Use the Blower Brush provided to remove dust and dirt.

• Film Standard

• Filter

•Holder

1144O223AA

•Lens

• Holder and Filter Slots

• Cleaning the Projector Housing ☞ Wipe the surface clean with a soft cloth.

• Cleaning the Original Glass ☞ Wipe the surface of the Original Glass clean

with a soft, dry cloth.

1144O026AA

1144O222AA

•MirrorUnit

1144O304AA

NOTE

If the Lens, Mirror, or Holder glass surfaces are stained with fingerprints, wipe the surfaces clean with a commercially available lens cloth.

8. Specifications

Specifications

Film Projector FP-1

Type Mounted to the right of copier Projection Modes Projector mode

Back Light mode

Film Size Brownie, 4” × 5”,max.5-3/4”× 8-1/2” Film Type 35 mm film, Brownie, 6 × 6cm,4”× 5” Focus Adjustment Possible Power Requirements AC 115V (different from copier’s) Max. Power Consumption 185 W or less Dimensions Projector: 11-3/4” (W) × 17-1/2” (D) × 8-1/4” (H)

Mirror Unit: 11-3/4” (W) × 9-1/4” (D) × 2” (H)

Mass Projector: 22 lbs. or less

Mirror Unit: 11 lbs. or less

9. Function Combination Matrix

Function Combination Matrix

Functions Set First

Basic

Paper Zoom

Den-

sity

1-sided

Orig.

Input Output

2-sided

Orig.

▲

Book Finishing Auxiliary

Create

Functions Set First

Paper

Zoom

Basic

Density

1-sided

Orig.

2-sided

Orig.

Book

▲

Finishing

Input Output

Auxiliary

Color Adjust

Monotone Background Color Neg. Pos. Reverse Color Separation X/Y Zoom

Create

Image Repeat Multi-Page Enlargmt. Mirror Image

Postcard Photo Mode Film Projector Auto Color Full Color Black Interrupt Centering

Auto Paper TraySelection Manual Feed Auto Size Zoom Ratio Background Level Image Density

▲▲▲▲▲▲

11 12 1 [2in1] 21 22 12[2in1]

▲▲

Book 1 Book 2 Non-Sort Sort Group Staple Frame Erase File Margin Cover OHP Interleaving

▲

Color Adjust

Monotone

Background Color

Neg. Pos. Reverse

Color Separation

X/Y Zoom

Auto Paper

TraySelection

Manual Feed

Auto Size

Zoom Ratio

Background Level

Image Density

✦✦✦❍❍❍❍J ❍❍ JJ✦✦❍❍❍❍❍❍✦✦❍❍❍❍❍✦✦✦❍✦✦✦❍❍❍❍❍ ✦ ✦❍❍❍❍❍ J ❍❍JJ❍ J ❍❍❍❍❍❍✦✦❍❍❍❍❍❍✦✦❍✦✦✦❍❍❍❍❍ ✦✦ ❍❍❍❍❍E ❍❍EE❍ E ❍ EEE❍❍AB❍❍❍❍❍❍✦✦❍✦✦✦❍❍❍❍❍ ✦❍❍ ✦❍❍❍❍❍❍❍❍✦✦❍❍❍❍❍❍❍❍❍❍❍❍❍✦✦✦❍✦✦✦❍❍❍❍❍ ❍❍❍✦ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍✦✦✦❍✦✦✦❍❍❍❍❍ ❍❍❍❍❍ ✦❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍✦✦❍❍❍❍❍ ❍❍❍❍❍✦ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍F ❍❍❍❍❍❍❍❍❍✦✦❍❍❍❍❍ ❍❍❍❍❍❍❍ ✦✦✦✦✦✦✦❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍

JJE❍❍❍❍✦ ✦✦✦✦✦✦❍❍❍❍❍❍✦✦❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍✧❍ ❍❍❍❍❍❍❍✦✦ ✦✦✦✦✦❍❍❍❍❍❍✦❍❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍❍❍ ❍❍❍❍❍❍❍✦✦✦ ✦✦✦✦❍❍❍❍❍❍❍❍❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍❍❍

JJE❍❍❍❍✦✦✦✦ ✦✦✦❍❍❍❍❍❍✦✦❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍✧❍

JJE❍❍❍❍✦✦✦✦✦ ✦✦❍❍❍❍❍❍✦✦❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍✧❍ E ❍❍E ❍❍❍✦✦✦✦✦✦ ✦❍❍❍H ❍❍✦✦❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍❍❍ EJEE❍❍❍✦✦✦✦✦✦✦ ❍❍❍H ❍❍✦✦❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍✧❍

❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍ ✦✦✦❍❍❍C ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍ ❍❍✦❍❍❍❍❍❍❍❍❍❍❍❍✦ ✦✦❍❍❍C ❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍❍❍ ❍❍✦❍❍❍❍❍❍❍❍❍❍❍❍✦✦ ✦❍❍❍C ❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍❍❍ ❍❍✦❍❍❍❍❍❍❍❍❍❍❍❍✦✦✦ ❍●❍C ❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍❍❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍ ❍❍❍❍❍❍❍❍❍✦✦❍✦✦✦❍❍❍❍❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍●❍ ❍❍❍❍❍❍❍✦✦✦❍✦✦✦❍❍❍❍H

E ❍ A ❍❍❍❍❍EE❍ EEEE❍❍❍❍❍❍ ✦❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍✧❍ E ❍ B ❍❍❍❍❍E ❍❍EEEECCEE❍❍✦ ❍❍❍❍✦❍✦✦❍✦✦✦❍❍❍✧❍

❍❍❍❍❍F ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍ D ❍❍D ❍❍❍❍❍✦✦❍❍D ❍❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍D ✦❍✦❍❍❍❍❍✦✦✦✦✦❍❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍✦ ❍✦❍❍❍❍❍✦✦✦❍✦❍❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍ ❍❍❍❍❍❍✦✦❍❍❍❍❍ ❍❍❍❍❍❍❍❍EEEEEEE❍ EEE❍❍EED✦✦❍ ❍✦✦❍✦✦✦✦✦✦✧❍ E ❍❍EG❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍E ❍❍❍❍❍❍❍ ✦✦❍✦✦✦❍❍❍❍❍ ❍❍❍E ❍❍❍❍EEEEEEE❍ EEEEEEE❍❍❍❍✦✦ ✦❍✦✦✦❍❍❍✧H ❍❍❍EG❍❍❍EEEEEEE❍ EEEEEEE❍❍❍❍✦✦✦ ❍✦✦✦❍❍❍✧H ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍ ❍✦✦❍❍❍❍❍

EE❍ EEEE❍ EEEEEEE❍ EEEEEEEEEEEEEEEE ✧ E ❍❍❍✧H E ❍❍❍❍❍❍❍EEEEEEE❍ EEEEEEE❍❍EEEEEE❍ EE✧❍❍✧H

✧❍❍❍❍E ❍❍E ✧✧✧✧✧✧❍❍❍✧❍❍EE❍❍❍❍❍✧✧✧❍✧✧ ✧❍❍✧H ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍✦✦❍✦❍❍❍❍❍✦✦ ✦✦❍❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍✦❍❍✦❍❍❍❍❍❍❍✦ ✦❍❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍D ✦✦❍✦❍❍❍❍❍✦✦✦✦ ❍❍ ❍❍❍❍❍❍❍❍E ❍❍EE❍ E ❍ EEE❍❍EE❍❍❍❍❍❍❍❍❍❍❍E ❍❍❍ ❍ ❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍ I ❍❍❍❍❍❍❍❍ II❍ I ✦✦❍❍❍❍

11▲12▲1 [2in1]▲21▲22▲12[2in1]▲Book 1▲Book 2

Non-Sort

Sort

Group

Staple

Frame Erase

File Margin

Cover

OHP Interleaving

Image Repeat

Photo Mode

Film Projector

Auto Color

Full Color

Black

Multi-Page Enlargmt.

Mirror Image

Postcard

Interrupt

Centering

9. Function Combination Matrix

❍ : The functions can be combined.

● : The functions can be combined (though a miscopy could result). ✧ : The functions cannot be combined. (The function set first takes precedence.) ✦ : The functions cannot be combined. (The function set last takes precedence.)

A : Cover r equires that paper be loaded in the Manual Bypass Table, meaning that it does not allow

manual bypass copying.

B : OHP Interleaving requires that OHP transparencies be loaded in the Manual Bypass Table,

meaning that it does not allow manual bypass copying.

C : In OHP Interleaving, Sort is automatically selected if the “# o f Handouts to be produced” is set

to “Yes” and Non-Sort is automatically selected if the “# o f Handouts to be produced” is set to “No”.

D : In Monotone, Black or Black of Color Separation, only the following Color Adjust functions

can be adjusted: Sharpness, Brightness, and Contrast under “Basic” and Sharpness, Density, Contrast, and Color Balance (for Monotone only) under “Professional.”

E : These functions cannot be set last (as the display does not provide keys for setting if you go the

other way around.)

F : The function set last takes precedence between “Image Density” of “Density” and “Red,”

“Green,” “Blue,” or “Density” of “Color Adjust.” G : The zoom ratio can be set only through “Zoom Ratio (%).” H : Setting is possible, but the function set first takes precedence.

I : Setting is possible, but the function set last takes precedence. J : Only CF Paper can be used for 2-sided copies.

10. Description of Paper Size and Zoom Ratio Table

Description of Paper Size and Zoom Ratio Table

Paper Size

Name Size (Metric) Size (Inch)

A3 297 mm × 420 mm 11-3/4” × 16-1/2” B4 257 mm × 364 mm 10” × 14-1/4” A4 210 mm × 297 mm 8-1/4” × 11-3/4” B5 182 mm × 257 mm 7-1/4” × 10” A5 148 mm × 210 mm 5-3/4” × 8-1/4” B6 128 mm × 182 mm 5” × 7-1/4” A6 105 mm × 148 mm 4-1/4” × 5-3/4”

POST CARD 100 mm × 148 mm 4” × 5-3/4”

Name Size (Inch) Size (Metric)

LEDGER 11” × 17” 279 mm × 432 mm 11” × 14” 11” × 14” 279 mm × 356 mm COMPUTER 10-1/8” × 14” 257 mm × 356 mm 10” × 14” 10” × 14” 254 mm × 356 mm 9-1/4” × 14” 9-1/4” × 14” 236 mm × 356 mm LEGAL 8-1/2” × 14” 216 mm × 356 mm FOOLSCAP GOVERNMENT LEGAL 8-1/2” × 13” 216 mm × 330 mm FOOLSCAP 8” × 13” 203 mm × 330 mm FOOLSCAP 8-2/3” × 13” 220 mm × 330 mm FOOLSCAP FOLIO 8-1/4” × 13” 210 mm × 330 mm 8-1/4” × 11-3/4” 8-1/4” × 11-3/4” 210 mm × 301 mm LETTER 8-1/2” × 11” 216 mm × 279 mm GOVERNMENT LETTER 8” × 10-1/2” 203 mm × 267 mm QUARTO 8” × 10” 203 mm × 254 mm STATEMENT INVOICE 5-1/2” × 8-1/2” 140 mm × 216 mm

Zoom Ratio Table (Original Size to Copy Paper Size)

Original Size Copy Paper Size Zoom Ratio

297 × 420 mm 11-3/4” × 16-1/2”

210 × 297 mm 8-1/4” × 11-3/4”

148 × 210 mm 5-3/4” × 8-1/4”

105 × 148 mm 4-1/4” × 5-3/4”

257 × 364 mm 10” × 14-1/4”

182 × 257 mm 7-1/4” × 10”

128 × 182 mm 5” × 7-1/4”

Metric Areas

A4 ×0.707 A5 ×0.500 B4 ×0.866 B5 ×0.610 A5 ×0.707 A6 ×0.500 B5 ×0.866 B6 ×0.610 A3 ×1.414 B4 ×1.224 A6 ×0.707 B6 ×0.866 A4 ×1.414 A3 ×2.000 B4 ×1.733 B5 ×1.224 A4 ×2.000 A5 ×1.414 B5 ×1.733 B6 ×1.224 A4 ×0.816 A5 ×0.577 B5 ×0.707 B6 ×0.500 A3 ×1.154 A5 ×0.816 A6 ×0.577 B6 ×0.707 A3 ×1.640 A4 ×1.154 B4 ×1.414 A6 ×0.816 A4 ×1.640 A5 ×1.154 B4 ×2.000 B5 ×1.414

Original Size Copy Paper Size Zoom Ratio

11” × 17”

279.4 × 431.8 mm

11” × 15”

279.4 × 381 mm

11” × 14”

279.4 × 355.6 mm

Legal

8-1/2” × 14”

215.9 × 355.6 mm

Foolscap

8-1/2” × 13”

215.9 × 330.2 mm

Letter

8-1/2” × 11”

215.9 × 279.4 mm

Invoice

5-1/2” × 8-1/2”

139.7 × 215.9 mm

Zoom Ratio = Copy Paper Size Original Size

1”(inch) = 25.4 mm 1mm = 0.0394” (inch)

Inch Areas

11” × 14” ×0.823

Legal ×0.772

Foolscap ×0.764

Letter ×0.647

Invoice ×0.500

11” × 14” ×0.933

Legal ×0.772

Foolscap ×0.772

Letter ×0.733

Invoice ×0.500

Legal ×0.772

Foolscap ×0.772

Letter ×0.772

Invoice ×0.500

Foolscap ×0.928

Letter ×0.785

Invoice ×0.607

11” × 17” ×1.214

Letter ×0.846

Invoice ×0.647 11” × 17” ×1.294 11” × 14” ×1.076

Invoice ×0.647 11” × 17” ×1.294 11” × 14” ×1.272

11” × 17” ×2.000 11” × 14” ×1.647

Legal ×1.545

Foolscap ×1.529

Letter ×1.294

1998. 10

1998 MINOLTA CO., LTD.

Printed in Japan

The information contained in this manual is subject to change without notice to incorporate improvements made on the product or products the manual covers.

Minolta Co., Ltd.

Image Information Products Marketing Headquarters

3-13, 2-Chome, Azuchi-Machi, Chuo-ku, Osaka 541-8556, Japan

Konica Minolta FP-1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
