bizhub C10P User’s Guide

A00V-9574-00A

Trademarks

KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered trademarks of KONICA MINOLTA HOLDINGS, INC.

PageScope and bizhub are registered trademarks or trademarks of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC

All other trademarks and registered trademarks are the property of their respective owners.

Copyright © 2006 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., Marunouchi Center Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights Reserved. This document may not be copied, in whole or part, nor transferred to any other media or language, without written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

Notice

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make changes to this guide and to the equipment described herein without notice. Considerable effort has been made to ensure that this guide is free of inaccuracies and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. makes no warranty of any kind including, but not limited to, any implied warranties of mer chantability and fitness for a particular purpose with regard to this guide. KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for, or liability for, errors contained in this guide or for incidental, special, or consequential damages arising out of the furnishing of this guide, or the use of this guide in operating the equipment, or in connection with the performance of the equipment when so operated.

SOFTWARE LICENSE AGREEMENT

This package contains the following materials provided by Konica Minolta Business Technologies, Inc. (KMBT): software included as part of the printing system, the digitally-encoded machine-readable outline data encoded in the special format and in the encrypted form (“Font Programs”), other software which runs on a computer system for use in conjunction with the Printing Software (“Host Software”), and related explanatory written materials (“Documenta tion”). The term “Software” shall be used to describe Printing Software, Font Programs and/or Host Software and also include any upgrades, modified versions, additions, and copies of the Software. The Software is being licensed to you under the terms of this Agreement. KMBT grants to you a non-exclusive sublicense to use the Software and Documentation, provided that you agree to the following:

1. You may use the Printing Software and accompanying Font Programs for imaging to the licensed output device(s), solely for your own internal business purposes.

2. In addition to the license for Font Programs set forth in Section 1 (“Printing Software”) above, you may use Roman Font Programs to reproduce weights, styles, and versions of letters, numerals, characters and symbols (“Typefaces”) on the display or monitor for your own internal business purposes.

3. You may make one backup copy of the Host Software, provided your backup copy is not installed or used on any computer. Notwithstanding the above restrictions, you may install the Host Software on any number of computers solely for use with one or more printing systems running the Printing Software.

4. You may assign its rights under this Agreement to an assignee of all of Licensee’s right and interest to such Software and Documentation (“Assignee”) provided you transfer to Assignee all copies of such Software and Documentation Assignee agrees to be bound by all of the terms and conditions of this Agreement.

5. You agree not to modify, adapt or translate the Software and Documentation.

6. You agree that you will not attempt to alter, disassemble, decrypt, reverse engineer or decompile the Software.

7. Title to and ownership of the Software and Documentation and any reproductions thereof shall remain with KMBT and its Licensor.

8. Trademarks shall be used in accordance with accepted trademark practice, including identification of the trademark owner’s name. Trademarks can only be used to identify printed output produced by the Software. Such use of any trademark does not give you any rights of ownership in that trademark.

9. You may not rent, lease, sublicense, lend or transfer versions or copies of the Software that the Licensee does not use, or Software contained on any unused media, except as part of the permanent transfer of all Software and Documentation as described above.

10. In no event will KMBT or its licensor be liable to you for any consequential, incidental INDIRECT, PUNITIVE or special damages, including any lost profits or lost saving, even if KMBT has been advised of the possibility of such damages, or for any claim by any third party. KMBT or its licensor disclaims all warranties with regard to the software, express or implied, including, without limitation implied warranties of merchantability, fitness for a par ticular purpose, title and non-infringement of third party rights. Some states or jurisdictions do not allow the exclusion or limitation of incidental, consequential or special damages, so the above limitations may not apply to you.

11. Notice to Government End Users: The Software is a “commercial item,” as that term is defined at 48 C.F.R.2.101, consisting of “commercial computer software” and “commercial computer software documentation,” as such terms are used in 48 C.F.R. 12.212. Consis tent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4, all U.S. Government End Users acquire the Software with only those rights set forth herein.

12. You agree that you will not export the Software in any form in violation of any applicable laws and regulations regarding export control of any countries.

About Adobe Color Profile

ADOBE SYSTEMS INCORPORATED COLOR PROFILE LICENSE AGREEMENT

NOTICE TO USER: PLEASE READ THIS CONTRACT CAREFULLY. BY USING ALL OR ANY PORTION OF THE SOFTWARE YOU ACCEPT ALL THE TERMS AND CONDITIONS OF THIS SOFTWARE YOU ACCEPT ALL THE TERMS AND CONDITIONS OF THIS AGREE MENT. IF YOU DO NOT AGREE WITH THE TERMS OF THIS AGREEMENT, DO NOT USE THE SOFTWARE.

1. DEFINITIONS In this Agreement, “Adobe” means Adobe Systems Incorporated, a Delaware corporation, located at 345 Park Avenue, San Jose, California 95110. "Software" means the software and related items with which this Agreement is provided.

2. LICENSE Subject to the terms of this Agreement, Adobe hereby grants you the worldwide, non-exclusive, nontransferable, royalty-free license to use, reproduce and publicly display the Software. Adobe also grants you the rights to distribute the Software only (a) as embed ded within digital image files and (b) on a standalone basis. No other distribution of the Software is allowed; including, without limitation, distribution of the Software when incorpo rated into or bundled with any application software. All individual profiles must be referenced by their ICC Profile description string. You may not modify the Software. Adobe is under no obligation to provide any support under this Agreement, including upgrades or future versions of the Software or other items. No title to the intellectual property in the Soft ware is transferred to you under the terms of this Agreement. You do not acquire any rights to the Software except as expressly set forth in this Agreement.

3. DISTRIBUTION If you choose to distribute the Software, you do so with the understanding that you agree to defend, indemnify and hold harmless Adobe against any losses, dam ages or costs arising from any claims, lawsuits or other legal actions arising out of such distribution, including without limitation, your failure to comply with this Section 3. If you distribute the Software on a standalone basis, you will do so under the terms of this Agree ment or your own license agreement which (a) complies with the terms and conditions of this Agreement; (b) effectively disclaims all warranties and conditions, express or implied, on behalf of Adobe; (c) effectively excludes all liability for damages on behalf of Adobe; (d) states that any provisions that differ from this Agreement are offered by you alone and not Adobe and (e) states that the Software is available from you or Adobe and informs licens ees how to obtain it in a reasonable manner on or through a medium customarily used for software exchange. Any distributed Software will include the Adobe copyright notices as included in the Software provided to you by Adobe.

4. DISCLAIMER OF WARRANTY Adobe licenses the Software to you on an “AS IS” basis. Adobe makes no representation as to the adequacy of the Software for any particular pur pose or to produce any particular result. Adobe shall not be liable for loss or damage arising out of this Agreement or from the distribution or use of the Software or any other materials. ADOBE AND ITS SUPPLIERS DO NOT AND CANNOT WARRANT THE PER FORMANCE OR RESULTS YOU MAY OBTAIN BY USING THE SOFTWARE, EXCEPT FOR ANY WARRANTY, CONDITION, REPRESENTATION OR TERM TO THE EXTENT TO WHICH THE SAME CANNOT OR MAY NOT BE EXCLUDED OR LIMITED BY LAW APPLICABLE TO YOU IN YOUR JURISDICTION, ADOBE AND ITS SUPPLIERS MAKE NO WARRANTIES, CONDITIONS, REPRESENTATIONS OR TERMS, EXPRESS OR IMPLIED, WHETHER BY STATUTE, COMMON LAW, CUSTOM, USAGE OR OTHER WISE AS TO ANY OTHER MATTERS, INCLUDING BUT NOT LIMITED TO NONINFRINGEMENT OF THIRD PARTY RIGHTS, INTEGRATION, SATISFACTORY QUALITY OR FITNESS FOR ANY PARTICULAR PURPOSE. YOU MAY HAVE ADDITIONAL RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION. The provisions of Sec tions 4, 5 and 6 shall survive the termination of this Agreement, howsoever caused, but this shall not imply or create any continued right to use the Software after termination of this Agreement.

5. LIMITATION OF LIABILITY IN NO EVENT WILL ADOBE OR ITS SUPPLIERS BE LIABLE TO YOU FOR ANY DAMAGES, CLAIMS OR COSTS WHATSOEVER OR ANY CONSE QUENTIAL, INDIRECT, INCIDENTAL DAMAGES, OR ANY LOST PROFITS OR LOST SAVINGS, EVEN IF AN ADOBE REPRESENTATIVE HAS BEEN ADVISED OF THE POS SIBILITY OF SUCH LOSS, DAMAGES, CLAIMS OR COSTS OR FOR ANY CLAIM BY ANY THIRD PARTY. THE FOREGOING LIMITATIONS AND EXCLUSIONS APPLY TO THE EXTENT PERMITTED BY APPLICABLE LAW IN YOUR JURISDICTION. ADOBE'S AGGREGATE LIABILITY AND THAT OF ITS SUPPLIERS UNDER OR IN CONNECTION WITH THIS AGREEMENT SHALL BE LIMITED TO THE AMOUNT PAID FOR THE SOFT WARE. Nothing contained in this Agreement limits Adobe’s liability to you in the event of death or personal injury resulting from Adobe’s negligence or for the tort of deceit (fraud). Adobe is acting on behalf of its suppliers for the purpose of disclaiming, excluding and/or limiting obligations, warranties and liability as provided in this Agreement, but in no other respects and for no other purpose.

6. TRADEMARKS Adobe and the Adobe logo are the registered trademarks or trademarks of Adobe in the United States and other countries. With the exception of referential use, you will not use such trademarks or any other Adobe trademark or logo without separate prior written permission granted by Adobe.

7. TERM This Agreement is effective until terminated. Adobe has the right to terminate this Agreement immediately if you fail to comply with any term hereof. Upon any such termina tion, you must return to Adobe all full and partial copies of the Software in your possession or control.

8. GOVERNMENT REGULATIONS If any part of the Software is identified as an export controlled item under the United States Export Administration Act or any other export law, restriction or regulation (the “Export Laws”), you represent and warrant that you are not a citizen, or otherwise located within, an embargoed nation (including without limitation Iran, Iraq, Syria, Sudan, Libya, Cuba, North Korea, and Serbia) and that you are not otherwise prohibited under the Export Laws from receiving the Software. All rights to use the Software are granted on condition that such rights are forfeited if you fail to comply with the terms of this Agreement.

9. GOVERNING LAW This Agreement will be governed by and construed in accordance with the substantive laws in force in the State of California as such laws are applied to agree ments entered into and to be performed entirely within California between California residents. This Agreement will not be governed by the conflict of law rules of any jurisdiction or the United Nations Convention on Contracts for the International Sale of Goods, the appli cation of which is expressly excluded. All disputes arising out of, under or related to this Agreement will be brought exclusively in the state Santa Clara County, California, USA.

10. GENERAL You may not assign your rights or obligations granted under this Agreement without the prior written consent of Adobe. None of the provisions of this Agreement shall be deemed to have been waived by any act or acquiescence on the part of Adobe, its agents, or employees, but only by an instrument in writing signed by an authorized signa tory of Adobe. When conflicting language exists between this Agreement and any other agreement included in the Software, the terms of such included agreement shall apply. If either you or Adobe employs attorneys to enforce any rights arising out of or relating to this Agreement, the prevailing party shall be entitled to recover reasonable attorneys’ fees. You acknowledge that you have read this Agreement, understand it, and that it is the complete and exclusive statement of your agreement with Adobe which supersedes any prior agree ment, oral or written, between Adobe and you with respect to the licensing to you of the Software. No variation of the terms of this Agreement will be enforceable against Adobe unless Adobe gives its express consent, in writing, signed by an authorized signatory of Adobe.

ICC Profile for TOYO INK Standard Color on Coated paper

(TOYO Offset Coated 2.0)

This ICC Profile (TOYO Offset Coated 2.0) characterizes Japanese offset press on Coated paper and is fully compatible with ICC profile format.

About “TOYO INK Standard Color on Coated paper”

This is the standard for color reproduction of sheet-fed offset press on Coated paper made by TOYO INK MFG.CO., LTD. (“TOYO INK”). This standard is made from printing test with using TOYO INK’s sheet-fed offset printing inks and TOYO INK’s own printing conditions. “TOYO INK Standard Color on Coated paper” is compatible with “JAPAN COLOR”.

Agreement

1. The reproduction of images on a printer or a monitor using this ICC Profile do not completely match the TOYO INK Standard Color on Coated paper.

2. Any and all copyrights of this ICC Profile shall remain in TOYO INK; therefore you shall not transfer, provide, rent, distribute, disclose, or grant any rights in this ICC Profile to any third party without the prior written consent of TOYO INK.

3. In no event will TOYO INK its directors, officers, employees or agents be liable to you for any consequential or incidential, either direct or indirect, damages(including damages for loss of business profits, business interruption, loss of business information, and the like)arising out of the use or inability to use this ICC Profile.

4. TOYO INK shall not be responsible for answering any question related to this ICC Profile.

5. All company names and product names used in this document is the trademarks or registered trademarks of their respective holder.

This ICC Profile made by GretagMacbeth ProfileMaker and granted TOYO INK certain license to distribute by GretagMacbeth AG.

TOYO Offset Coated 2.0 © TOYO INK MFG. CO., LTD. 2004

For EU member states only

This symbol means: Do not dispose of this product together with your household waste!

Please contact the Local Authority for appropriate disposal instructions. In the case of a new device being purchased, the used one can also be given to our dealer for appropriate disposal. Recycling of this product will help to conserve natural resources and prevent potential negative consequences for the environment and human health caused by inappropriate waste handling.

This product complies with RoHS (2002/95/EC) directive.

1 Introduction .......................................................................................................1

Getting Acquainted with Your Printer 2

Space Requirements 2 Printer Parts 3

Front View 3 Rear View 4 Front View with Options 4 Rear View with Options 4

2 About the Software ...........................................................................................5

Software Utilities CD-ROM 6

PostScript Drivers 6 PCL Drivers 6 PPD Files 7 Utilities 7

System Requirements 9 Selecting Driver Options/Defaults (for Windows) 10

Windows XP/Server 2003/2000/NT 4.0 10

Uninstalling the Printer Driver (for Windows) 11 Displaying Printer Driver Settings (for Windows) 12

Contents

Windows XP/Server 2003 12 Windows 2000/NT 4.0 12

Using the PostScript and PCL Printer Driver 13

Common Buttons 13

OK 13 Cancel 13 Apply 13 Help 13 Easy Set 14 Paper View 14 Printer View 14 Watermark View 14 Quality View 14

Default 14 Advanced Tab (PostScript Printer Driver Only) 15 Basic Tab 15 Layout Tab 15 Cover Page Tab 16 Overlay Tab 16 Watermark Tab 16 Quality Tab 17 Version Tab 17

3 Using the Status Monitor (Windows Only) ....................................................19

Working with the Status Monitor 20

Introduction 20 Operating Environment 20 Opening the Status Monitor 20 Using the Status Monitor 20

Recognizing Status Monitor Alerts 21 Recovering from a Status Monitor Alert 21 Closing the Status Monitor 21

4 Printer Control Panel and Configuration Menu ............................................23

About the Control Panel 24

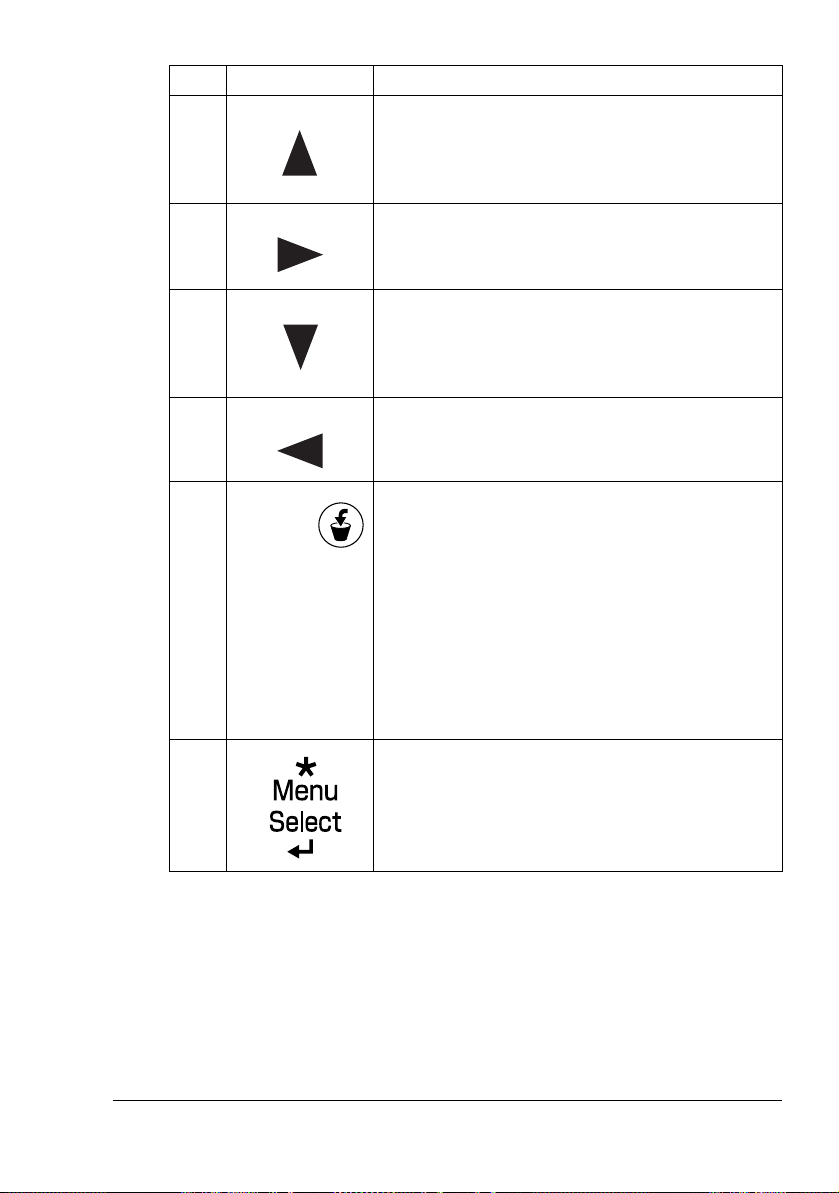

Control Panel Indicators and Keys 24 Toner Supply Indicators 26

Configuration Menu Overview 27

Main Menu 27 PROOF/PRINT MENU 28 Entering the Password 29 PRINT MENU 30 PAPER MENU 31 QUALITY MENU 35 INTERFACE MENU 38

Contents ii

SYSTEM DEFAULT MENU 42 SERVICE MENU 47 LANGUAGE MENU 47

5 Using Media .....................................................................................................49

Media Specifications 50 Media Types 51

Plain Paper 51 Thick Stock 52 Envelopes 53 Labels 54 Letterhead 55 Postcards 55 Transparencies 56 Glossy Stock 57 What Is the Guaranteed Imageable (Printable) Area? 58

Imageable Area—Envelopes 58

Page Margins 58

Loading Media 59

Tray 1 (Multipurpose Tray) 59

Loading Plain Paper 59 Other Media 61 Loading Envelopes 62 Loading Labels/Postcard/Thick Stock/Glossy Stock and Transparency 66

Tray 2 67

Loading Plain Paper 67

Duplexing 71 Output Tray 72 Media Storage 73

6 Replacing Consumables ................................................................................ 75

Replacing Consumables 76

About Toner Cartridges 76

Replacing a Toner Cartridge 78 Replacing the Drum Cartridge 83 Replacing the Backup Battery 86

7 Maintaining the Printer ...................................................................................91

Maintaining the Printer 92 Cleaning the Printer 94

Exterior 94 Interior 95

Cleaning the Media Feed Roller and Laser Lens 95

Cleaning the Duplex Option Feed Rollers 98

Cleaning the Media Feed Rollers for Tray 2 99

Storing the Printer 100

Contents

iii

8 Troubleshooting ............................................................................................103

Introduction 104 Printing a Configuration Page 104 Preventing Media Misfeeds 105 Understanding the Media Path 106 Clearing Media Misfeeds 106

Media Misfeed Messages and Clearing Procedures 107

Clearing a Media Misfeed in the Printer 107 Clearing a Media Misfeed From Tray 2 112 Clearing a Media Misfeed from the Duplex Option 114

Solving Problems with Media Misfeeds 116 Solving Other Problems 119 Solving Problems with Printing Quality 123 Status, Error, and Service Messages 129

Standard Status Messages 129 Error Messages (Warning) 130 Error Messages (Operator Call) 132 Service Messages 134

9 Installing Accessories ..................................................................................135

Introduction 136 Antistatic Protection 136 Dual In-Line Memory Module (DIMM) 137

Required Memory during Printing 137 Installing a DIMM 137

Hard Disk 140

Installing a Hard Disk 140

Duplex Option 143

Installing the Duplex Option 143

Tray 2 147

Installing Tray 2 147

A Appendix ........................................................................................................149

Safety Specifications 150 Technical Specifications 150

Printer 150 Consumable Life Expectancy Chart 153

Our Concern for Environmental Protection 154

What is an ENERGY STAR product? 154

Contents iv

Introduction

Getting Acquainted with Your Printer

Space Requirements

To ensure easy operation, consumable replacement and maintenance, adhere to the recommended space requirements detailed below.

630 mm (24.8")

970 mm (38.2")

100 mm (3.9")

854 mm (33.6")

430 mm (16.9")

Front View

115.8mm

100 mm (3.9")

349 mm (13.7")

(4.56")

753.8 mm (29.7")

100 mm

(3.9")

854 mm (33.6")

" The options appear shaded in the above illustration.

560.8 mm (22.1")

771.0 mm (30.4")

Side View

100 mm (3.9")

Getting Acquainted with Your Printer2

Printer Parts

The following drawings illustrate the parts of your printer referred to throughout this guide, so please take some time to become familiar with them.

Front View

1—Output tray

2—Front cover

3—Control panel

4—Tray 1 (Multipurpose

tray)

5—Power switch

6—Top cover

7—Transfer belt unit

8—Fuser unit

9—Fuser separator levers

10—Drum cartridge

11—Toner cartridge carousel

(containing 4 toner cartridges: C, M, Y and K)

12—Toner cartridge

Getting Acquainted with Your Printer

Rear View

1—USB port

2—Parallel port

3—10Base-T/100Base-TX

(IEEE 802.3) Ethernet Interface port

Front View with Options

1—Tray 2

Rear View with Options

1—Duplex option

Getting Acquainted with Your Printer4

About the

Software

Software Utilities CD-ROM

PostScript Drivers

Operating System Use/Benefit

Windows XP/Server 2003/2000 These drivers give you access to all of

the printer features, including finish ing and advanced layout. See also “Displaying Printer Driver Settings (for Windows)” on page 12.

" A specific PPD file has been prepared for applications (such as Page-

Maker and Corel Draw) that require that a PPD file be specified when printing. When specifying a PPD file while printing on Windows XP, Server 2003, 2000 and NT 4.0, use the specific PPD file provided on the Soft ware Utilities CD-ROM.

PCL Drivers

Operating System Use/Benefit

Windows XP/Server 2003/2000 These drivers give you access to all of Windows NT 4.0

the printer features, including finishing and advanced layout. See also “Displaying Printer Driver Settings (for Windows)” on page 12.

Software Utilities CD-ROM6

PPD Files

Operating System Use/Benefit

Macintosh OS 9/X These files are required in order to

Linux

use the printer driver for each operat ing system. For details of the Macintosh and Linux printer drivers, refer to the bizhub C10P Reference Guide on the Documentation CD-ROM.

" For details on the installation of the Windows printer drivers, refer to

the bizhub C10P Installation Guide on the Documentation CD-ROM.

Utilities

Utility Use/Benefit

Download Manager (Windows XP/Server 2003/2000/NT

4.0, Macintosh OS 10.2.x or later)

Crown Print Monitor for Windows Using the TCP/IP protocol, print jobs

Status Monitor (Windows only) The current status of the printer in

This utility, which can be used only if the optional hard disk is installed, enables fonts and overlay data to be downloaded to the printer hard disk. For details, refer to the Download Managers online help for all of the functions.

can be sent directly to the printer. For details, refer to the bizhub C10P Ref erence Guide on the Documentation CD-ROM.

addition to the status of consumables and error information can be viewed. For details, refer to “Using the Status Monitor (Windows Only)” on page 19.

Software Utilities CD-ROM

Utility Use/Benefit

PageScope Net Care Printer management functions such as

status monitoring and network settings can be accessed. For details, refer to the PageScope Net Care Quick Guide on the Documentation CD-ROM.

PageScope Web Connection With a Web browser, the status of

printers can be checked, and the various settings can be changed. For details, refer to the bizhub C10P Reference Guide on the Documentation CD-ROM.

PageScope Network Setup Using the TCP/IP and IPX protocols,

basic network printer settings can be specified. For details, refer to the PageScope Network Setup User Manual on the Documentation CD-ROM.

PageScope Plug and Print This utility automatically detects a new

printer connected to the network and creates a print object on the Windows print server. For details, refer to the PageScope Plug and Print Quick Guide on the Documentation CD-ROM.

PageScope NDPS Gateway This network utility enables printers

and KONICA MINOLTA multifunctional products to be used in an NDPS envi ronment. For details, refer to the PageScope NDPS Gateway User Manual on the Documentation CD-ROM.

Software Utilities CD-ROM8

System Requirements

 Personal computer

– Pentium 2: 400 MHz (Pentium 3: 500 MHz or higher is recommended) – Power Mac G3 or later (G4 or later is recommended) – Intel Core Duo (iMac or MacBook Pro) or later

 Operating System

– Microsoft Windows XP Home Edition/Professional (Service Pack 1 or

later), Windows Windows NT 4.0 (Service Pack 6 or later)

Server 2003, Windows 2000 (Service Pack 4 or later),

" The 64-bit driver supports x64 operating systems running on AMD64

or Intel Pentium 4 with EM64T platforms.

– Mac OS 9 (9.1 or later) – Mac OS X (10.2 or later), Mac OS X Server (10.2 or later) – Red Hat Linux 9.0, SuSE Linux 8.2

 Free hard disk space

– Approximately 128 MB of free hard disk space for printer driver and

Status Monitor

– Approximately 128 MB of free hard disk space for image processing

 RAM

128 MB or more than OS recommendation

 CD-ROM/DVD drive

 I/O interface

– 10Base-T/100Base-TX (IEEE 802.3) Ethernet interface port – USB Revision 2.0 and USB Revision 1.1 compliant port – IEEE 1284 compatible parallel port

" For details on the Macintosh and Linux printer drivers, refer to the

bizhub C10P Reference Guide on the Documentation CD-ROM.

System Requirements

Selecting Driver Options/Defaults (for Windows)

Before you start working with your printer, you are advised to verify/change the default driver settings. Also, in case you have options installed, you should “declare” the options in the driver.

Windows XP/Server 2003/2000/NT 4.0

1 Choose the driver’s properties as follows:

– (Windows XP/Server 2003)

From the Start menu, choose Printers and Faxes to display the Printers and Faxes directory. Right-click the KONICA MINOLTA

bizhub C10P PCL6 or KONICA MINOLTA bizhub C10P PS printer icon and choose Properties.

– (Windows 2000/NT 4.0)

From the Start menu, choose Settings and then Printers to display the Printers directory. Right-click the KONICA MINOLTA bizhub C10P PCL6 or KONICA MINOLTA bizhub C10P PS printer icon and choose Properties.

" PostScript printer driver for Windows NT 4.0 is not supported.

2 If you have installed options, proceed with the next step. Otherwise, skip

to step 9.

3 Select the Configure tab. 4 Check that the installed options are correctly listed. If not, proceed with

the next step. Otherwise, continue with step 8.

5 Click the Refresh to automatically configure installed options.

" The Refresh is available only if bi-directional communication is

available with the printer; otherwise it is grayed out.

6 From the Device Options list, select an option, one at a time, and then

select Enable or Disable from the Settings menu.

" If Printer Memory is selected, select 128 MB, 256 MB, 384 MB or

640 MB, according to the installed memory. The factory default setting is 128 MB.

7 Click Apply.

" Depending on the version of the operating system, Apply may not

appear. If this is the case, continue with the next step.

Selecting Driver Options/Defaults (for Windows)10

" With Windows NT 4.0, right-click the KONICA MINOLTA bizhub

C10P PCL6 printer icon in the Printers directory, and then click Document Defaults. Skip to step 10.

8 Select the General tab. 9 Click Printing Preferences.

The Printing Preference dialog box appears.

10 Select the default settings for your printer, such as the default media for-

mat you use, on the appropriate tabs.

11 Click Apply. 12 Click OK to exit from the Print preference dialog box. 13 Click OK to exit from the Properties dialog box.

Uninstalling the Printer Driver (for Windows)

This section describes how to uninstall the KONICA MINOLTA bizhub C10P printer driver if necessary.

1 Close all applications. 2 Open the Printers directory.

– (Windows XP/Server 2003)

From the Start menu, choose Printers and Faxes to display the Printers and Faxes directory.

– (Windows 2000/NT 4.0)

From the Start menu, choose Settings and then Printers to display the Printers directory.

3 Right-click the KONICA MINOLTA bizhub C10P PCL6 or KONICA

MINOLTA bizhub C10P PS printer icon and choose Delete.

4 Click Yes to verify the driver deletion.

" When using Windows /NT 4.0, Skip to Step 8.

5 (Windows XP/Server2003/2000) Select File / Server Properties from the

menu.

6 (Windows XP/Server2003/2000) Go to the Driver tab and select KONICA

MINOLTA bizhub C10P PCL6 or KONICA MINOLTA bizhub C10P PS driver and then click on Remove.

7 (Windows XP/Server2003/2000) Click Yes to verify the driver removal.

Uninstalling the Printer Driver (for Windows)

8 Restart your computer. 9 The KONICA MINOLTA bizhub C10P printer driver will be uninstalled from

your computer.

Displaying Printer Driver Settings (for Windows)

Windows XP/Server 2003

1 From the Start menu, choose Printers and Faxes to display the Printers

and Faxes directory.

2 Right-click the KONICA MINOLTA bizhub C10P PCL6 or KONICA

MINOLTA bizhub C10P PS printer icon and choose Printing Prefer-

ences.

Windows 2000/NT 4.0

1 From the Start menu, point to Settings, and then click Printers to display

the Printers directory.

2 Display the printer driver settings:

 Windows 2000—Right-click the KONICA MINOLTA bizhub C10P

PCL6 or KONICA MINOLTA bizhub C10P PS printer icon and choose Printing Preferences.

 Windows NT 4.0—Right-click the KONICA MINOLTA bizhub C10P

PCL6 printer icon and choose Document Defaults.

Displaying Printer Driver Settings (for Windows)12

Using the PostScript and PCL Printer Driver

Common Buttons

The buttons described below appear on each tab.

Click to exit the Properties dialog box, saving any changes made.

Cancel

Click to exit the Properties dialog box without saving any changes made.

Apply

Click to save all changes without exiting the Properties dialog box.

" Depending on the version of the operating system, Apply may not

appear.

Help

Click to view the help.

Using the PostScript and PCL Printer Driver

Easy Set

To save the current settings, enter a name, and then click Save. Afterward, the saved settings can be selected from the drop-down list. To change the registered setting, click Edit.

Select Defaults from the drop-down list to reset the functions in all tabs to their default values.

 Name: Type in the name of the settings to be saved.

 Comment: Add a simple comment to the settings to be saved.

 Sharing: Specify whether or not the settings to be saved can be used by

other users logged onto the computer.

Paper View

Click the button to display a sample of the page layout in the figure area.

" This button does not appear on the Advanced, Watermark, Quality

and Version tabs.

Printer View

Click the button to display an image of the printer (with all installed options) in the figure area.

" This button does not appear on the Advanced and Version tabs.

Watermark View

Click this button to display a preview of the watermark.

" This button only appears when the Watermark tab is selected.

Quality View

Click this button to display a sample of the settings selected in the Quality tab.

" This button only appears when the Quality tab is selected.

Default

Click this button to reset the settings to their defaults.

" This button does not appear on the Advanced and Version tabs.

Using the PostScript and PCL Printer Driver14

Advanced Tab (PostScript Printer Driver Only)

The Advanced Tab allows you to

 Specify the PostScript output method

 Specify whether or not the error messages of a print job are printed

 Print a mirror image

 Specify whether or not the application can directly output PostScript data

Basic Tab

The Basic Tab allows you to

 Specify the orientation of the media

 Specify the size of the original document

 Select the output media size

 Zoom (expand/reduce) documents

 Specify the paper source

 Specify the type of media

 Specify the number of copies

 Turn on/off job collation

 Save a print job on the printer and print it later (Job Retention)

 Save a confidential job on the printer and protect it with a password

 Print a single copy for proofing

 Send a notification by e-mail when printing is finished

 Specify user information such as e-mail addresses and passwords

Layout Tab

The Layout Tab allows you to

 Print several pages of a document on the same page (N-up printing)

 Specify booklet printing

 Rotate the print image 180 degrees

 Specify duplex printing

 Specify whether or not blank pages are printed (PCL printer driver only)

 Adjust the binding margin (PCL printer driver only)

 Adjust the printing position (PCL printer driver only)

Using the PostScript and PCL Printer Driver

Cover Page Tab

The Cover Page Tab allows you to

 Print front and back cover pages and separator pages

 Specify the paper tray that contains the paper for the front and back cover

pages and separator pages

Overlay Tab

" Be sure to use overlays with print jobs with a paper size and orienta-

tion that matches the overlay form. In addition, if settings have been specified for “N-up” or “Booklet” in the printer driver, the overlay form cannot be adjusted to match the specified settings.

The Overlay Tab allows you to

 Select the form to use

 Add or delete overlay files

 Launch Download Manager to download a form (PostScript printer driver

only)

" Download Manager Application should be installed earlier.

 Create a form (PCL printer driver only)

 Specify that the document and form are printed overlapping (PCL printer

driver only)

 Display the form information (PCL printer driver only)

 Print the form on All Pages, First Page, Even Pages and Odd Pages

 Place the form in back of the document or in front on the printed docu-

ment (PCL printer driver only)

Watermark Tab

The Watermark Tab allows you to

 Select the watermark to be used

 Create, edit or delete watermarks

 Print the watermark on the background

 Lighten the density of the watermark

 Print the watermark on only the first page

 Print the watermark repeatedly throughout the all pages

Using the PostScript and PCL Printer Driver16

Quality Tab

The Quality Tab allows you to

 Switch between color and grayscale printing

 Specify the printer color settings (Quick Color)

 Specify the resolution for the printout

 Specify the format of fonts that are to be downloaded

 Print using the printer’s fonts

Version Tab

The Version Tab allows you to view information about the printer driver.

Using the PostScript and PCL Printer Driver

Using the PostScript and PCL Printer Driver18

Using the Status

Monitor

(Windows Only)

Working with the Status Monitor

Introduction

The Status Monitor shows information about the current status of the printer.

The Status Monitor can be installed from the Software Utilities CD-ROM.

For details on the installation, refer to the bizhub C10P Reference Guide on the Documentation CD-ROM.

Operating Environment

The Status Monitor can be used on computers running Windows XP/ Server 2003/2000/NT 4.0 connected to the printer using the Ethernet connection.

Opening the Status Monitor

Use one of the following steps to open the Status Monitor:

 Windows XP/Server 2003—From the Start menu, choose All Pro-

grams, KONICA MINOLTA, and then Status Monitor. Double-click the Status Monitor icon displayed in the taskbar.

 Windows 2000/NT 4.0—From the Start menu, choose Programs, KON-

ICA MINOLTA, and then Status Monitor. Double-click the Status Monitor icon displayed in the taskbar.

Using the Status Monitor

Status Tab

 Select Printer—Selects the printer whose status is displayed. In addition,

the messages that appear in the message window of the selected printer are displayed.

 Graphic—Shows a graphic representation of the printer and indicates

where the problem is. The printer graphics will highlight the location error on the printer.

 Advanced Options—Click Advanced Options to display the Advanced

Options dialog box. From the Advanced Options dialog box, select whether the Status Monitor automatically starts when the operating system is started.

 Printer Alerts—Displays text messages that alert you of conditions such

as low toner.

Working with the Status Monitor20

 Recovery Instructions—Provides you with explanations of what you

need to do in order to correct problems and recover from error conditions.

Consumables Tab

Displays the usage status (approximate percentage remaining) of each toner consumables.

 Refresh—Rechecks the supplies and displays their status.

" Click Help to display windows containing explanations of the Status

Monitor functions. Refer to this help for detailed information.

Recognizing Status Monitor Alerts

When the Status Monitor detects a printing problem, the icon on the Windows task bar changes from green (normal) to yellow (warning), orange or red (error), depending on the severity of the printer problem.

Recovering from a Status Monitor Alert

When the Status Monitor notifies you of a printing problem, double-click its icon on the Windows task bar to open the Status Monitor. The Status Monitor identifies what type of error has occurred.

Closing the Status Monitor

Click Close to close the Status Monitor window. To exit Status Monitor, right-click the Status Monitor icon in the taskbar, and then click Exit.

Recognizing Status Monitor Alerts

Printer Control

Panel and

Configuration

About the Control Panel

Ready Error

Select

Cancel

KCM

YToner

Ready

Error

The control panel, located on the top of the printer, allows you to direct the printer’s operation. In addition, it displays the current status of the printer, including any condition that needs your attention.

1 2

MESSAGE WINDOW

Control Panel Indicators and Keys

No. Indicator Off On

1 The printer is not ready

to accept data.

2 No problem. The printer requires

Error

The printer is ready to accept data.

operator attention (usually accompanied by a status message in the message window.)

About the Control Panel24

No. Key Function

Cancel

3  Moves up in the menu structure

 Within a menu choice that is changeable char-

acter by character, scrolls upward through the available characters

4  Moves right in the menu structure

 Moves right through the available menu

choices

5  Moves down in the menu structure.

 Within a menu choice that is changeable char-

acter by character, scrolls downward through the available characters

6  Moves left in the menu structure

 Moves left through the available menu choices

7  Cancels the currently displayed menu choice

 Allows you to cancel one or all print jobs that

are currently being printed or processed:

1. Press the Cancel key.

2. Press the Right or Left keys to select either

JOB CANCEL/CURRENT JOB or JOB CANCEL/ALL JOBS

8  Enters the menu system

About the Control Panel

3. Press the Select key. The print job(s) is (are) cancelled.

 Moves down in the menu structure

 Selects the displayed menu choice

Toner Supply Indicators

Toner M C K

The indicators shown below will appear, indicating the amount of toner that remains in the yellow (Y), magenta (M), cyan (C), and black (K) toner car tridges.

IDLE

About the Control Panel26

Configuration Menu Overview

The bizhub C10P configuration menu accessible from the control panel is structured as shown below.

Main Menu

IDLE

PROOF/PRINT MENU

PRINT MENU

PAPER MENU

QUALITY MENU

INTERFACE MENU

SYSTEM DEFAULT

SERVICE MENU

LANGUAGE

" * This menu item appears only if an optional hard disk is installed.

Configuration Menu Overview

PROOF/PRINT MENU

" This menu item appears only if an optional hard disk is installed.

With this menu item, print jobs that were set to be saved on the hard disk by using Job Retention on the Basic tab of the printer driver can be printed or deleted.

" All factory default values are shown in bold.

MENU PROOF/PRINT MENU

“User name”

SECURED “Job name”

PIN XXXX**

COPIES

DELETE

PIN XXXX**

PROOF/PRINT “Job name”

COPIES

DELETE

PRINT/HOLD “Job name”

COPIES

DELETE

STORED “Job name”

COPIES

" * If no jobs have been stored on the hard disk, NO STORED JOBS

appears. ** In order to print or delete a secured job, enter the four-digit password specified from the printer driver. For details on entering the password, refer to “Entering the Password” on page 29.

DELETE

Configuration Menu Overview28

Entering the Password

In order to print or delete a secured job, the four-digit password specified from the printer driver must be entered. Follow the procedure described below to type in the four-digit password specified from the printer driver.

1 Press the Up and Down keys to increase or decrease the first digit of the

password.

2 Press the Right key to move the cursor to the next digit. 3 Press the Up and Down keys to increase or decrease the second digit of

the password.

4 Continue these steps until all four digits of the password are specified. 5 Press the Menu/Select key.

The PRINT/DELETE selection screen appears.

" If an incorrect password is entered, INVALID ENTRY appears and

the screen for entering the password appears again.

Configuration Menu Overview

PRINT MENU

With this menu, printer information, such as the configuration page and the demo page, can be printed.

PRINT MENU

MENU MAP

CONFIGURATION

STATISTICS PAGE

FONT LIST

DIRECTORY LIST

POSTSCRIPT

PCL

" All factory default values are shown in bold.

MENU MAP

CONFIGURATION

STATISTICS PAGE

FONT LIST POST

DIRECTORY LIST

Settings

Prints the menu map.

Settings

Prints the configuration page.

Settings

Prints the statistics page such as the number of pages printed.

SCRIPT

PCL

Settings

Prints the directory list of the hard disk and flash.

YES/NO

Settings

Prints the PostScript font list.

Settings

Prints the PCL font list.

YES/NO

" If the hard disk drive is not installed, only the flash

directory list is printed.

Configuration Menu Overview30

PAPER MENU

With this menu, the media used for printing can be managed.

PAPER MENU

INPUT TRAY

DUPLEX

ORIENTATION

PAGE RECOVERY

TRAY 1 MODE

TRAY 1

TRAY 2

CUSTOM SIZE

AUTO CONTINUE

TRAY CHAINING

MAP

MEDIA SIZE

MEDIA TYPE

MEDIA SIZE

MEDIA TYPE

WIDTH (xx)

LENGTH (xx)

MODE

" * This menu item appears only if the duplex option is installed.

** These menu items appear only if the optional lower feeder unit is installed.

Configuration Menu Overview

LOGICAL TRAY 0

LOGICAL TRAY 9

" All factory default values are shown in bold.

INPUT TRAY

TRAY 1 MODE

TRAY 1 MEDIA

Settings

When printing from Tray 1, select whether the paper size and paper type set from the printer driver or the

MEDIA SIZE and MEDIA TYPE settings set by

selecting in the control panel have priority.

If AUTO is selected, the printer driver settings have priority during printing.

If CASSETTE is selected, printing is performed when the printer driver settings and the control panel settings are all the same.

SIZE

AUTO/CASSETTE

PAPER MENU/INPUT TRAY/TRAY 1

Settings

Select the setting for the size of paper loaded into Tray 1.

LETTER/LEGAL/ EXECTIVE/A4/A5/ B5(JIS)/B5(ISO)/GOVT LETTER/STATEMENT/ FOLIO/SP FOLIO/UK QUARTO/FOOLSCAP/GOVT LEGAL/ENV# 10/ENV C5/ENV C6/ENV DL/ENV MONARCH/ENV CHOU#3/ ENV CHOU#4/JPOST/KAI 16/32K/JPOST-D/16K/ ENV YOU#4/PHOTO SIZE /CUSTOM

MEDIA TYPE

" The default setting for North

America is setting for all other regions is

Settings

Select the setting for the type of paper loaded into Tray 1.

Configuration Menu Overview32

LETTER. The default

A4.

PLAIN PAPER/ TRANSPARENCY/LABEL/ LETTERHEAD/ENVELOPE/ POSTCARD/THICK/ GLOSSY

TRAY 2 MEDIA

SIZE

MEDIA TYPE

CUSTOM SIZE

WIDTH (xx)

LENGTH (xx)

Settings

Select the setting for the size of paper loaded into Tray 2.

LETTER/A4

" The default setting for North

America is setting for all other regions is A4.

Settings

Select the setting for the type of paper loaded into Tray 2.

Settings

Specify the width of the custom-sized paper loaded into Tray 1.

LETTER. The default

PLAIN PAPER/ LETTERHEAD

92-216 mm (3.63-8.50 in.)

" On the model for North America,

the settings appear in inches and the menu item appears as

WIDTH(IN). On the models for

all other regions, the settings appear in millimeters and the menu item appears as

WIDTH(MM).

Settings

Specify the length of the custom-sized paper loaded into Tray 1.

148-356 mm (5.83-14.01 in.)

AUTO CONTINUE

Settings

Select whether or not printing continues if the size or type of paper in the selected paper tray is different from the size or type of paper for the print job.

Configuration Menu Overview

" On the model for North America,

the settings appear in inches and the menu item appears as

LENGTH(IN). On the models for

all other regions, the settings appear in millimeters and the menu item appears as

LENGTH(MM).

OFF/ON

DUPLEX

TRAY CHAINING

Settings

If YES is selected and the specified paper tray runs out of paper during printing, a paper tray loaded with paper of the same size is automatically selected so printing can continue.

If NO is selected and the specified paper tray runs out of paper, printing stops.

YES/NO

MAP MODE Settings ON/OFF

Select whether or not the Tray Mapping function is used.

LOGICAL TRAY 0-9

Settings PHYSICAL TRAY 1/

PHYSICAL TRAY 2

Specify whether jobs received from another manufacturer's printer driver are printed using Tray 1 or Tray 2.

PHYSICAL TRAY 2 is the default only

for

LOGICAL TRAY 2. The default for

all other logical trays is

TRAY 1

Settings

If OFF is selected, duplex printing is not possible.

If LONGEDGE is selected, the pages will be printed on both sides of the paper for long-edge binding.

OFF/SHORTEDGE/LONGEDGE

PHYSICAL

ORIENTATION

PAGE RECOVERY

If SHORTEDGE is selected, the pages will be printed on both sides of the paper for short-edge binding.

Settings

Specify the orientation of the media.

Settings

Select whether or not the page is printed again after recovering from a paper misfeed.

If ON is selected, the page that was misfed is printed again.

If OFF is selected, printing continues with the next page without printing the misfed page.

PORTRAIT/LANDSCAPE

ON/OFF

Configuration Menu Overview34

QUALITY MENU

With this menu, settings for the print quality can be specified.

QUALITY MENU

REPLACE TONER

TONER LOW ACTION

TONER OUT ACTION

AIDC

DENSITY CONTROL

BLACK

CYAN

MAGENTA

YELLOW

REQUEST AIDC

MODE

BLACK

CYAN

MAGENTA

YELLOW

Configuration Menu Overview

" All factory default values are shown in bold.

REPLACE TONER

TONER LOW ACTION

TONER OUT ACTION

BLACK

CYAN

MAGENTA

YELLOW

Settings

When set to YES, Toner low indication will show up on the control panel when one or more toner cartridges reach to the low condition.

Settings

When set to CONTINUE, printing continues even if the toner cartridge is empty.

When set to STOP, printing stops when the toner cartridge is empty.

Settings

When YES is selected, the carousel rotates to the black toner cartridge, so that it can be replaced.

For details on replacing the toner cartridge, refer to “Replacing a Toner Cartridge” on page 78.

Settings

When YES is selected, the carousel rotates to the cyan toner cartridge, so that it can be replaced.

For details on replacing the toner cartridge, refer to “Replacing a Toner Cartridge” on page 78.

Settings

When YES is selected, the carousel rotates to the magenta toner cartridge, so that it can be replaced.

For details on replacing the toner cartridge, refer to “Replacing a Toner Cartridge” on page 78.

Settings

When YES is selected, the carousel rotates to the yellow toner cartridge, so that it can be replaced.

For details on replacing the toner cartridge, refer to “Replacing a Toner Cartridge” on page 78.

YES/NO

YES / NO

STOP/CONTINUE

Configuration Menu Overview36

AIDC REQUEST

AIDC

MODE

DENSITY

BLACK

CONTROL

CYAN

MAGENTA

Settings

If YES is selected, image adjustments are performed.

Settings

If ON is selected, the image adjustments are applied.

If OFF is selected, image adjustments are not applied.

Settings

Adjust the density of the black toner to one of five levels.

If 1 is selected, the density is at its lightest level. If 5 is selected, the density is at its darkest level.

Settings

Adjust the density of the cyan toner to one of five levels.

If 1 is selected, the density is at its lightest level. If 5 is selected, the density is at its darkest level.

Settings

Adjust the density of the magenta toner to one of five levels.

NO/YES

ON/OFF

1/2/3/4/5

If 1 is selected, the density is at its lightest level. If 5 is selected, the density is at its darkest level.

YELLOW

Settings

Adjust the density of the yellow toner to one of five levels.

If 1 is selected, the density is at its lightest level. If 5 is selected, the density is at its darkest level.

Configuration Menu Overview

1/2/3/4/5

INTERFACE MENU

With this menu, interface settings can be specified.

" Restart the printer after changing settings in the ETHERNET menu.

INTERFACE MENU

ETHERNET

TCPIP

IPX/SPX

ETHERTALK

ETHERNET SPEED

ENABLE

DHCP/BOOTP

IP ADDRESS

DEFAULT ROUTER

SUBNET MASK

ENABLE HTTP

ENABLE AUTO IP

FRAME TYPE

NAME

NAME2

PS PROTOCOL

Configuration Menu Overview38

NETZONE

NETZONE2

USB

ENABLE

JOB TIMEOUT

PARALLEL

ACTIVE I/F

JOB TIMEOUT

" All factory default values are shown in bold.

ETHERNET

TCPIP ENABLE

DHCP/ BOOTP

IP ADDRESS

Settings

If YES is selected, TCP/IP is enabled.

If NO is selected, TCP/IP is disabled.

Settings

Select whether or not the IP address is automatically acquired.

If YES is selected, the IP address is automatically acquired.

If NO is selected, the IP address is not automatically acquired.

Setting

Set the IP address for this printer on the network.

Use the Up, Down, Left, and Right keys to specify the value.

YES/NO

192.168.1.2

DEFAULT ROUTER

Configuration Menu Overview

If the IP address is manually specified,

DHCP/BOOTP is automatically set to NO.

Setting

Specify the IP address of the router if one is on the network. Use the Up, Down, Left, and Right keys to specify the value.

192.168.1.2

SUBNET MASK

ENABLE HTTP

ENABLE AUTO IP

IPX/SPX FRAME

TYPE

ETHER

NAME

TALK

NAME2

Setting

Specify the subnet mask for the network. Use the Up, Down, Left, and Right keys to specify the value.

Setting

Specify whether or not HTTP is used.

If YES is selected, the Web page provided to the printer by the built-in HTTP server is enabled.

If NO is selected, the Web page cannot be used.

Setting

Select whether or not the IP address is automatically acquired when DHCP/ BOOTP and PING, ARP are not functioning or when there is no response.

If NO is selected, the IP address is not automatically acquired.

If YES is selected, the IP address is automatically acquired.

Settings

0.0.0.0

YES/NO

AUTO/802.2/802.3/

ETHER II/SNAP

Specify the protocol used with NetWare.

Settings

Specify the name of the printer for finding printers with Macintosh EtherTalk.

The printer name can contain a maximum of 16 characters.

Settings

Specify the name of the printer for finding printers with Macintosh EtherTalk.

The printer name can contain a maximum of 16 characters.

bizhub C10P

Configuration Menu Overview40

ETHERNET SPEED

PS PROTOCOL

USB ENABLE

JOB TIMEOUT

PARALLEL

ACTIVE I/F

JOB TIMEOUT

Settings

Specify the interface to be used. An Ethernet and parallel connection cannot be used at the same time.

NET ZONE

NET ZONE2

Settings

Specify the Macintosh EtherTalk zone.

The zone name can contain a maximum of 16 characters.

Settings

Specify the Macintosh EtherTalk zone.

The zone name can contain a maximum of 16 characters.

AUTO/100 FULL DUPLEX/ 100 HALF DUPLEX/ 10 FULL DUPLEX/ 10 HALF DUPLEX

Specify the transmission speed for the network and the transmission method for bi-directional transmission.

Settings

Select whether PostScript jobs are received in the binary format or the quoted format.

Settings

If YES is selected, USB is enabled. If NO is selected, USB is disabled.

Settings

Specify the length of time (in seconds) until the print job being received is timed out when USB is being used.

Settings

Specify the length of time (in seconds) until the print job being received is timed out when Parallel is being used.

BINARY/QUOTED BINARY

YES/NO

0-60-999

0-30-999

ETHERNET/PARALLEL

Configuration Menu Overview

SYSTEM DEFAULT MENU

With this menu, settings can be specified to adjust the operation of the printer, such as the time until the machine enters Energy Saver mode.

SYSTEM DEFAULT

PRINT QUALITY

COLOR MODE

EMULATIONS

STARTUP OPTIONS

DATE & TIME

ENERGY SAVER

ENERGY SAVER MGT

SECURITY

DEFAULT

AUTO DEFAULT

POSTSCRIPT

PCL

START PAGE

SYSSTART

CONFIG

ERROR PAGE

LINE TERMINATION

FONT

ENABLE

SET PASSWORD

PITCH SIZE

FONT NUMBER

POINT SIZE

SYMBOL SET

Configuration Menu Overview42

CAPTURE PRT JOB

FORMAT

RESTORE/SAVE

FORMAT FLASH

FORMAT DISK

RESTORE FACTORY

SAVE CUSTOM

RESTORE CUSTOM

" * These menu items appear only if an optional hard disk is installed.

** This menu item appears only on 120 V units.

" All factory default values are shown in bold.

PRINT QUAL ITY

COLOR MODE

EMULATIONS

Settings

Select the image quality for prints.

Settings

Specify whether printing is in full color or grayscale.

DEFAULT

HIGH/STANDARD

COLOR/GRAYSCALE

Settings

AUTOMATIC/POSTSCRIPT/PCL5/ PCL XL/HEX DUMP/PDF

Specify the printer control language.

If AUTO is selected, the printer automatically selects the printer control language from the data stream.

AUTO DEFAULT

POSTSCRIPT

Settings

Select the printer description language when it cannot be identified from the data and set to

AUTOMATIC.

ERROR PAGE

Configuration Menu Overview

PCL5/POSTSCRIPT

DEFAULT is

Settings

Select whether or not an error page is printed when a PostScript error occurs.

ON/OFF

STARTUP OPTIONS

PCL LINE

TERMI NATION

FONT PITCH

START PAGE

Settings

Select whether or not a startup page is printed when the printer is turned on.

Settings

CR=CR LF=CRLF/ CR=CR LF=LF/ CR=CRLF LF=LF/ CR=CRLF LF=CRLF

Select the definitions of the CR/LF codes in the PCL language.

SIZE

FONT NUMBER

POINT SIZE

SYMBOL SET

Settings

Specify the bitmap font size in the PCL language.

Settings

Specify the font used with the PCL language.

The font numbers that appear correspond to the PCL font list. For details on printing the font list, refer to MENU” on page 30.

Settings

Specify the outline font size in the PCL language.

Specify the symbol set used with the PCL language.

The default setting is PC8.

44-1000-9999

0-32767

“PRINT

400-120099975

NO/YES

If YES is selected, the startup page is printed when the printer is turned on.

If NO is selected, the startup page is not printed.

Configuration Menu Overview44

DATE & TIME

ENERGY SAVER

ENERGY SAVER MGT

SYSSTART

Settings

Set the date and time on the hard disk’s time-of-day (TOD) clock.

The settings appear in the following order: year, month, day:hour, minutes, seconds.

Settings

Specify the length of time until the machine enters Energy Saver mode.

This menu item appears only when ENERGY SAVER is set to

ON.

Settings

Select whether or not the PostScript format definitions file is applied when the printer is turned on.

If YES is selected, the PostScript format definitions file is applied.

If NO is selected, the PostScript format definitions file is not applied.

yyyymmdd:hhmmss

15 MINUTES/30 MINUTES/1 HOUR/ 2 HOURS

NO/YES

" 2 HOURS is displayed only on 120 V units.

Settings

If ON is selected, the machine will enter Energy Saver mode.

If OFF is selected, the machine will not enter Energy Saver mode.

ON/OFF

" This menu item is displayed only on 120 V units.

Configuration Menu Overview

SECU-

CONFIG ENABLE

RITY

CAPTURE PRT JOB

Settings

Select whether or not received print jobs are saved on the hard disk.

If OFF is selected, print jobs are not saved on the hard disk.

If ON is selected, received print jobs are saved on the hard disk without being printed.

If PRINT is selected, received print jobs are printed and saved on the hard disk.

FORMAT FORMAT

FLASH

SET PASS WORD

Settings

Select whether or not the menus are protected with a password.

If ON is selected, all menus are protected with a password.

Settings

Specify the password for displaying the menus. The specified password is applied only if

ENABLE

The password can contain a maximum of 16 characters.

OFF/ON

SYSADMIN

SECURITY/CONFIG/

is set to ON.

OFF/ON/PRINT

Settings

Select whether or not to initialize the flash RAM.

NO/YES

FORMAT DISK

If YES is selected, the flash RAM is initialized.

Settings

Select whether or not to initialize the hard disk.

If YES is selected, the hard disk is initialized.

NO/YES

Configuration Menu Overview46

RESTORE /SAVE

RESTORE FACTORY

SAVE CUSTOM

RESTORE CUSTOM

Settings

Select whether or not all menu items are reset to their initial settings.

If YES is selected, all menu items are reset to their initial settings.

Settings

Select whether or not all changed menu settings are saved.

If YES is selected, all changes are saved.

Settings

Select whether or not menu items are reverted to the previously saved settings.

If YES is selected, the menu items revert to the previously saved settings.

NO/YES

SERVICE MENU

With this menu, the service representative can adjust the printer and perform maintenance operations. This menu cannot be used by the user.

LANGUAGE MENU

ENGLISH/FRANCAIS/ DEUTSCH/ESPANOL/ ITALIANO/PORTUGES/

The display language of the message window can be changed to the required language.

The default setting is English.

CESKY/JAPANESE

Configuration Menu Overview

Configuration Menu Overview48

Using Media

Media Specifications

What types and sizes of media can I load?

Media Media Size Tray* Duplex

Inch Millimeter

A4 8.2 x 11.7 210.0 x 297.0 1/2 Yes

A5 5.9 x 8.3 148.0 x 210.0 1 No

B5 (JIS) 7.2 x 10.1 182.0 x 257.0 1 No

B5 (ISO) 6.9 x 9.8 176.0 x 250.0 1 No

Executive 7.25 x 10.5 184.0 x 267.0 1 No

Folio 8.3 x 13.0 210.0 x 330.0 1 Yes

Foolscap 8.0 x 13.0 203.2 x 330.2 1 Yes

Kai 16 7.3 x 10.2 185.0 x 260.0 1 No

16K 7.7 x 10.6 195.0 x 270.0 1 No

32K 5.1 x 7.3 130.0 x 185.0 1 No

Legal 8.5 x 14.0 215.9 x 355.6 1 Yes

Government Legal 8.5 x 13.0 216.0 x 330.0 1 Yes

Letter 8.5 x 11.0 215.9 x 279.4 1/2 Yes

SP Folio 8.5 x 12.69 215.9 x 322.3 1 Yes

Government Letter 8.0 x 10.5 203.2 x 266.7 1 No

Statement 5.5 x 8.5 140.0 x 216.0 1 No

UK Quarto 8.0 x 10.0 203.2 x 254.0 1 No

Japanese Postcard 3.9 x 5.8 100.0 x 148.0 1 No

Japanese Postcard-D 5.8 x 7.9 148.0 x 200.0 1 No

Envelope C5 6.4 x 9.0 162.0 x 229.0 1 No

Envelope C6 4.5 x 6.4 114.0 x 162.0 1 No

Envelope Com10 4.125 x 9.5 104.7 x 241.3 1 No

Envelope DL 4.3 x 8.7 110.0 x 220.0 1 No

Envelope Monarch 3.875 x 7.5 98.4 x 190.5 1 No

Envelope Chou #3 4.7 x 9.2 120.0 x 235.0 1 No

Envelope Chou #4 3.5 x 8.1 90.0 x 205.0 1 No

Envelope You #4 4.1 x 9.3 105.0 x 235.0 1 No

Photo Size 4x6"/10x15 4.0 x 6.0 102.0 x 152.0 1 No

Thick Stock, Glossy —Only supported for letter, A4, or smaller media.

Custom Size, Minimum 3.6 x 5.9 92.0 x 148.0 1 No**

Custom Size, Maximum 8.5 x 14.0 216.0 x 356.0 1 Yes

Notes: * Tray 1 = Multipurpose

Tray 2 = Plain paper only

** The minimum possible size for duplex printing is 92.0 x 276.0 mm

(3.63 x 10.87").

" For custom sizes, use the printer driver to specify the settings within

the ranges shown in the above table.

Media Specifications50

Media Types

Before purchasing a large quantity of special media, do a trial print with the same media and check the print quality.

Keep media on a flat, level surface in its original wrapper until it is time to load it. For a list of approved media, refer to printer.konicaminolta.com.

Plain Paper

Capacity Tray 1 Up to 200 sheets, depending on the paper

weight

Tray 2 Up to 500 sheets, depending on the paper

weight

Orientation Face up Driver

Media Type Weight 60 to 90 g/m² (16 to 24 lb bond) Duplexing See page 50 for supported sizes.

Use plain paper that is

 Suitable for plain paper laser printers, such as standard or recycled office

paper.

Note

Do not use the media types listed below. These could cause poor print quality, media misfeeds, or damage to the printer.

Plain paper

DO NOT use media that is

 Coated with a processed surface (such as carbon paper, digitally gloss-

coated media, and colored paper that has been treated)

 Carbon backed

 Unapproved iron-on transfer media (such as heat-sensitive paper,

heat-pressure paper, and heat-press transfer paper)

 Cold-water-transfer paper

 Pressure sensitive

 Designed specifically for inkjet printers (such as superfine paper, glossy

film, and postcards)

 Already been printed on by another printer, copier, or fax machine

 Dusty

 Wet (or damp)

Media Types

" Keep media between 35% and 85% relative humidity. Toner does

not adhere well to moist or wet paper.

 Layered

 Adhesive

 Folded, creased, curled, embossed, warped, or wrinkled

 Perforated, three-hole punched, or torn

 Too slick, too coarse, or too textured

 Different in texture (roughness) on the front and back

 Too thin or too thick

 Stuck together with static electricity

 Composed of foil or gilt; too luminous

 Heat sensitive or cannot withstand the fusing temperature (180°C

[356°F])

 Irregularly shaped (not rectangular or not cut at right angles)

 Attached with glue, tape, paper clips, staples, ribbons, hooks, or buttons

 Acidic

 Any other media that is not approved

Thick Stock

Paper thicker than 90 g/m2 (24 lb bond) is referred to as thick stock. Test all thick stock to ensure acceptable performance and to ensure that the image does not shift.

Capacity Tray 1 Up to 50 thick stock sheets, depending on

their thickness

Tray 2 Not supported

Orientation Face up Driver

Media Type Weight 91 to 163 g/m² (25 to 43 lb) Duplexing Not supported

Thick

" 43 lb bond is also referred to as 90 lb index stock.

Media Types52

DO NOT use thick stock that is

 Mixed with any other media in the trays (as this will cause printer misfeed-

ing)

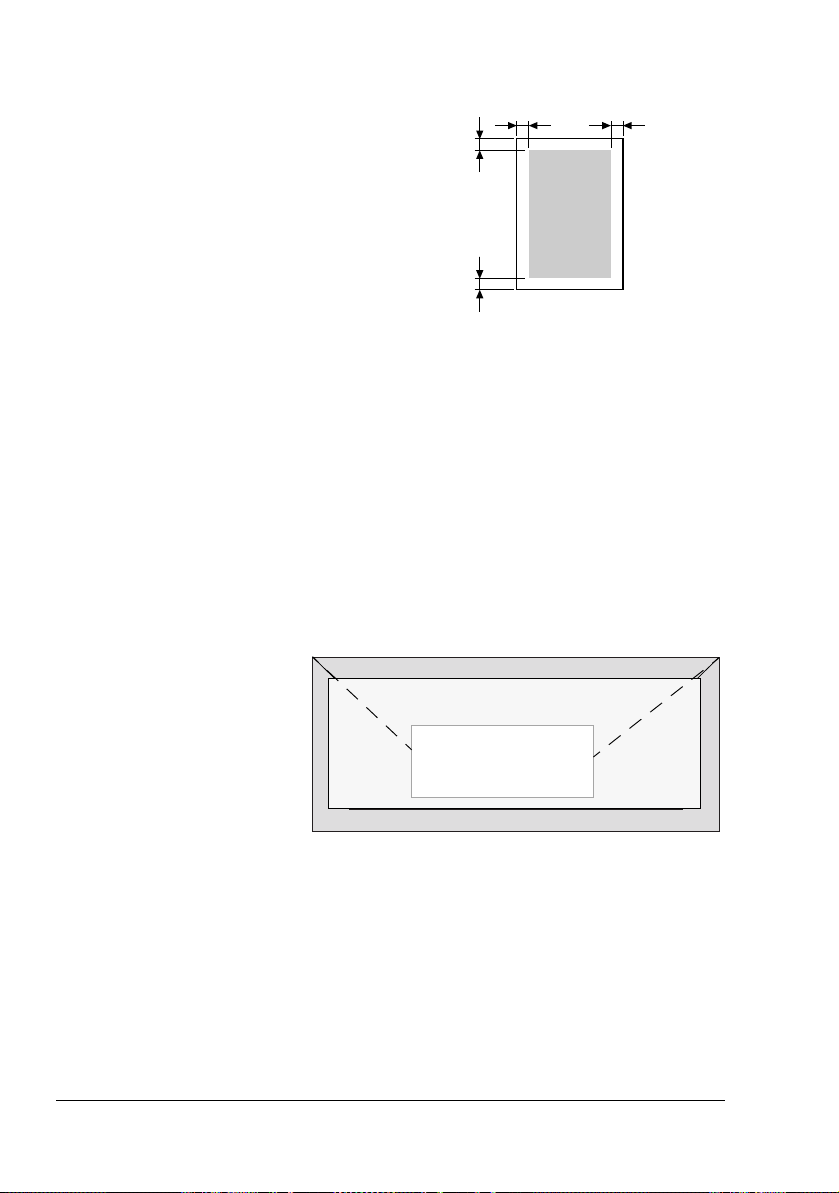

Envelopes

Print on the front (address) side only. Some parts of the envelope consist of three layers of paper—the front, back, and flap. Anything printed in these layered regions may be lost or faded.

Capacity Tray 1 Up to 10 envelopes, depending on their

thickness

Tray 2 Not supported

Orientation Face up Driver

Media Type Weight 60 to 163 g/m² (16 to 43 lb bond) Duplexing Not supported

Use envelopes that are

Envelope

 Common office envelopes approved for laser printing with diagonal joints,

sharp folds and edges, and ordinary gummed flaps

" Because the envelopes pass through heated rollers, the gummed

area on the flaps may seal. Using envelopes with emulsion-based glue avoids this problem.

 Approved for laser printing

 Dry

DO NOT use envelopes that have

 Sticky flaps

 Tape seals, metal clasps, paper clips, fasteners, or peel-off strips for seal-

ing

 Transparent windows

 Too rough of a surface

 Material that will melt, vaporize, offset, discolor, or emit dangerous fumes

 Been presealed

Media Types

Labels

A sheet of labels consists of a face sheet (the printing surface), adhesive, and a carrier sheet:

 The face sheet must follow the plain paper specification.

 The face sheet surface must cover the entire carrier sheet, and no adhe-

sive should come through on the surface.

You can print continuously with label sheets. However, this could affect the media feed, depending on the media quality and printing environment. If problems occur, stop the continuous printing and print one sheet at a time.

Try printing your data on a sheet of plain paper first to check placement. Check your application documentation for more information on printing labels.

Capacity Tray 1 Up to 50 label sheets, depending on their

thickness

Tray 2 Not supported

Orientation Face up Driver

Media Type Weight 60 to 163 g/m² (16 to 90 lb) Duplexing Not supported

Use label sheets that are

 Recommended for laser printers

DO NOT use label sheets that

 Have labels that easily peel off or have parts of the label already removed

 Have backing sheets that have peeled away or have exposed adhesive

Label

" Labels may stick to the fuser, causing them to peel off and media

misfeeds to occur.

 Are precut or perforated

Do not use

Shiny backed paper

OK to use

Full-page labels (uncut)

Media Types54

Letterhead

Try printing your data on a sheet of plain paper first to check placement.

Capacity Tray 1 Up to 50 sheets, depending on their size and

thickness

Tray 2 Not supported

Orientation Face up Driver

Media Type Weight 60 to 90 g/m² (16 to 24 lb bond) Duplexing See page 50 for supported sizes (face up—top of page first).

Letterhead

Postcards

Try printing your data on a sheet of plain paper first to check placement.

Capacity Tray 1 Up to 50 postcards, depending on their

thickness

Tray 2 Not supported

Orientation Face up Driver

Media Type Weight 60 to 163 g/m² (16 to 90 lb) Duplexing Not supported

Postcard

Media Types

Use postcards that are

 Approved for laser printers

DO NOT use postcards that are

 Coated

 Designed for inkjet printers

 Precut or perforated

 Preprinted or multicolored

" If the postcard is warped, press on the warped

area before putting it in Tray 1.

 Folded or wrinkled

Transparencies

" Do not fan transparencies before loading them. Resulting static elec-

tricity may cause printing errors.

" If you touch the face of the transparencies with your bare hands, print

quality may be affected.

" Keep the printer path clean. Transparencies are especially sensitive to

a dirty media path. If there are shadows on either the top or the bottom of the sheets, see chapter 7, “Maintaining the Printer” .

" Remove transparencies as soon as possible from the output tray to

avoid static buildup.

You can print continuously with transparencies. However, this could affect the media feed, depending on the media quality, static buildup, and printing environment.

Try printing your data on a sheet of plain paper first to check placement.

Media Types56

" If you have problems feeding 50 sheets, try loading only 1–10 sheets

at a time. Loading a large number of transparencies at one time may cause static buildup, causing feeding problems.

Capacity Tray 1 Up to 50 transparencies, depending on their

thickness

Tray 2 Not supported

Orientation Face up Driver

Media Type Duplexing Not supported

Transparency

" Always first test a small quantity of a particular type of transparency.

Use transparencies that are

 Approved for laser printing

DO NOT use transparencies that

 Have static electricity that will cause them to stick together

 Are specified for inkjet printers only

Glossy Stock

Test all glossy stock to ensure acceptable performance and to ensure that the image does not shift.

Capacity Tray 1 Up to 50 glossy sheets, depending on their

thickness

Tray 2 Not supported

Orientation Face up Driver

Media Type Weight 60 to 90 g/m² (16 to 24 lb) Duplexing Not supported

DO NOT use glossy stock that is

Glossy

 Mixed with any other media in the trays (as this will cause printer misfeed-

ing)

 Specified for inkjet printers only

Media Types

What Is the Guaranteed Imageable (Printable) Area?

The printable area on all media sizes is up to 4 mm (0.157") from the edges of the media.

Each media size has a specific imageable area, the maximum area on which the printer can print clearly and without distortion.

This area is subject to both hardware limits (the physical media size and the margins required by the printer) and software constraints (the amount of memory available for the full-page frame buffer). The guaranteed imageable (printable) area for all media sizes is the page size minus 4 mm (0.157") from all edges of the media.

Printable

a = 4 mm (0.157")

Area

" When printing in color on legal-size media, the bottom margin is

17.0 mm (0.669").

" When printing on glossy stock, the top margin is 10 mm (0.394").

Imageable Area—Envelopes

Envelopes have a nonguaranteed imageable area that varies with envelope type.

" The envelope

print orientation is determined by your application.

Nonimageable area 4 mm (0.157")

Nonguaranteed area

Guaranteed

area

Page Margins

Margins are set through your application. Some applications allow you to set custom page sizes and margins while others have only standard page sizes and margins from which to choose. If you choose a standard format, you may lose part of your image (due to imageable area constraints). If you can cus tom-size your page in your application, use those sizes given for the imageable area for optimum results.

Media Types58

Loading Media

How do I load media?

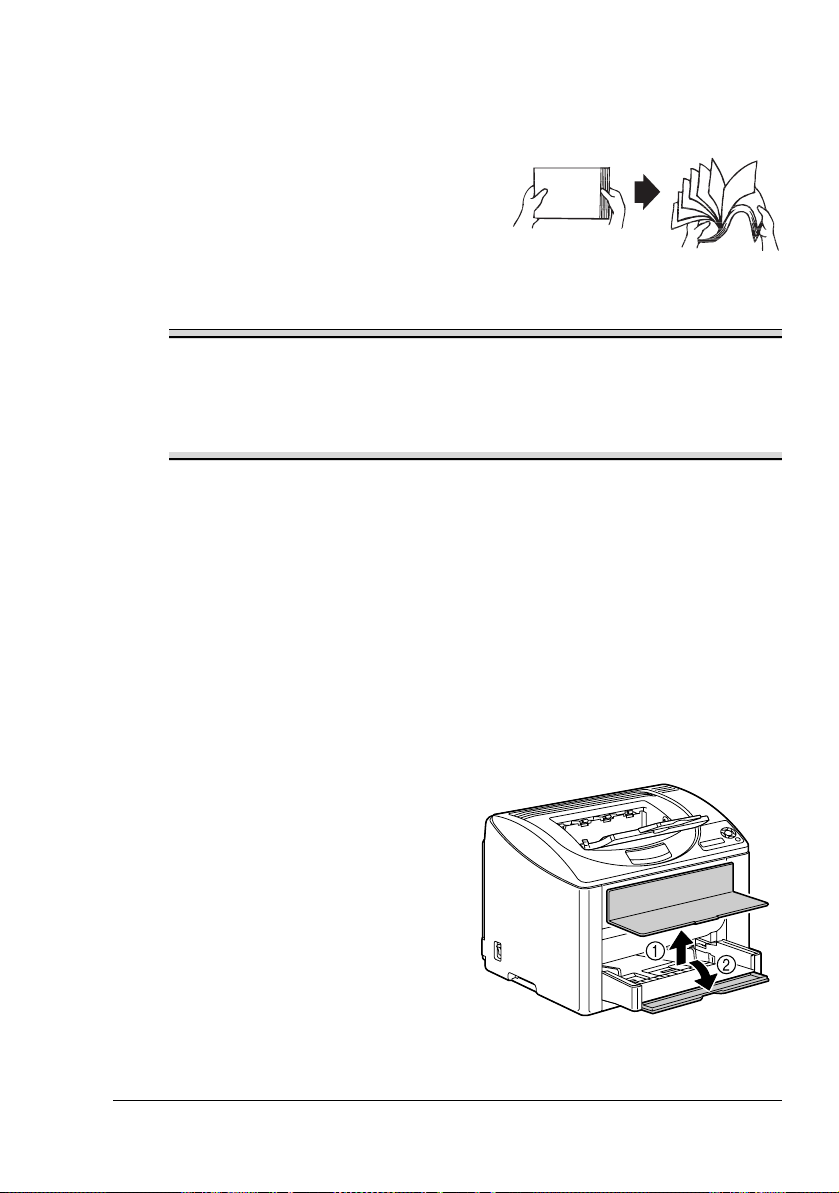

Take off the top and bottom sheets of a ream of paper. Holding a stack of approx imately 200 sheets at a time, fan the stack to prevent static buildup before inserting it in a tray.

" Do not fan transparencies.

Note

Although this printer was designed for printing on a wide range of media types, it is not intended to print exclusively on a single media type except plain paper. Continuous printing on media other than plain paper (such as envelopes, labels, thick stock, or transparencies) may adversely affect print quality or reduce engine life.

When refilling media, first remove any media remaining in the tray. Stack it with the new media, even the edges, then reload it.

Do not mix media of different types and sizes, as this will cause media misfeeds.

Tray 1 (Multipurpose Tray)

For details on the types and sizes of media that can be printed from Tray 1, refer to “Media Specifications” on page 50.

Loading Plain Paper

1 Remove the lid from Tray 1, and

then open the front panel of Tray

Loading Media

2 Slide the media guides to pro-

vide more space between them.

3 Load the paper face up in the

tray.

" Do not load paper above

the M mark. Up to 200 sheets (80 g/m2 [22 lb]) of plain paper can be loaded into the tray at one time.

Loading Media60

4 Slide the media guides against

the edges of the paper.

5 Close the front panel of Tray 1

tray, and then reattach the lid.

Other Media

When loading media other than plain paper, set the media mode (for example, Envelope, Glossy, Label, Thick Stock or Transparency) in the driver for optimum print quality.

Loading Media

Loading Envelopes

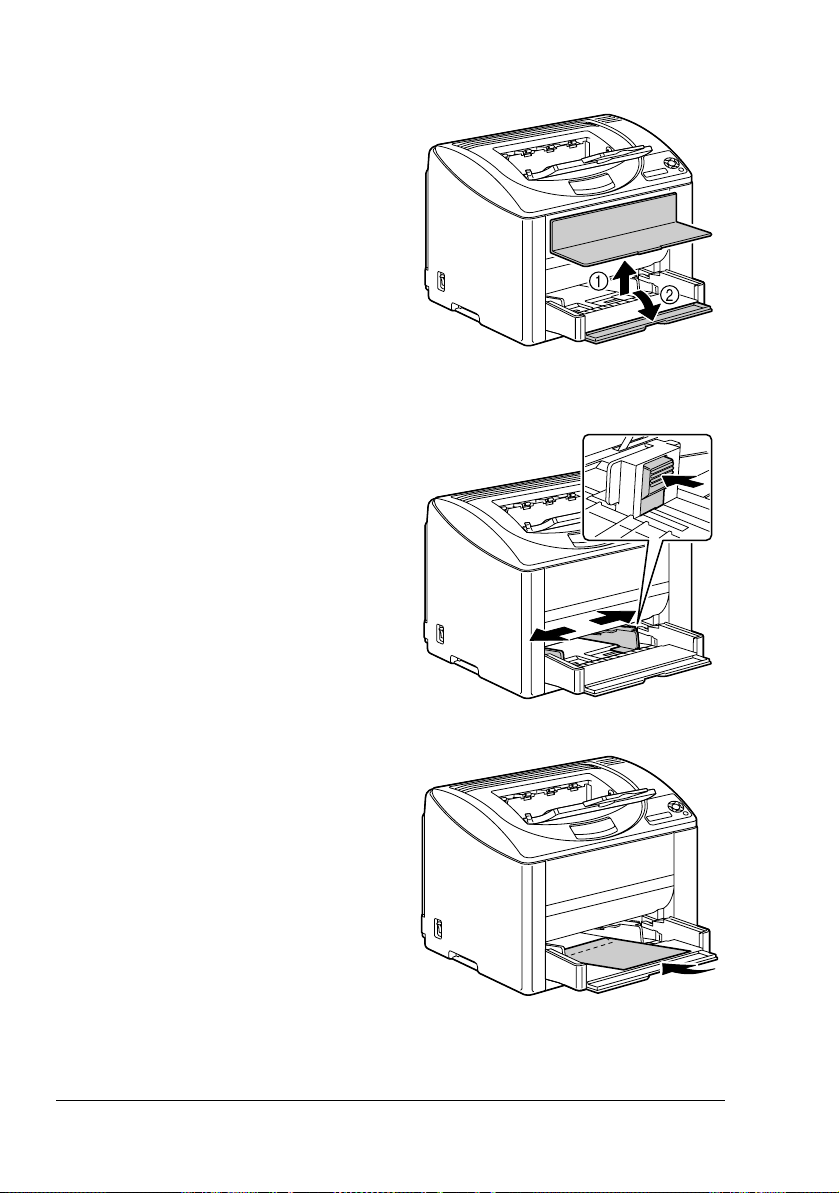

1 Remove the lid from Tray 1, and

then open the front panel of Tray 1.

2 Remove any media from the tray. 3 Slide the media guides to pro-

vide more space between them.

4 Load the envelopes flap side

down in the tray.

" Before loading enve-

lopes, press them down to make sure that all air is removed, and make sure that the folds of the flaps are firmly pressed; other wise the envelopes may become wrinkled or a media misfeed may occur.

" Up to 10 envelopes can be loaded into the tray at one time.

Loading Media62

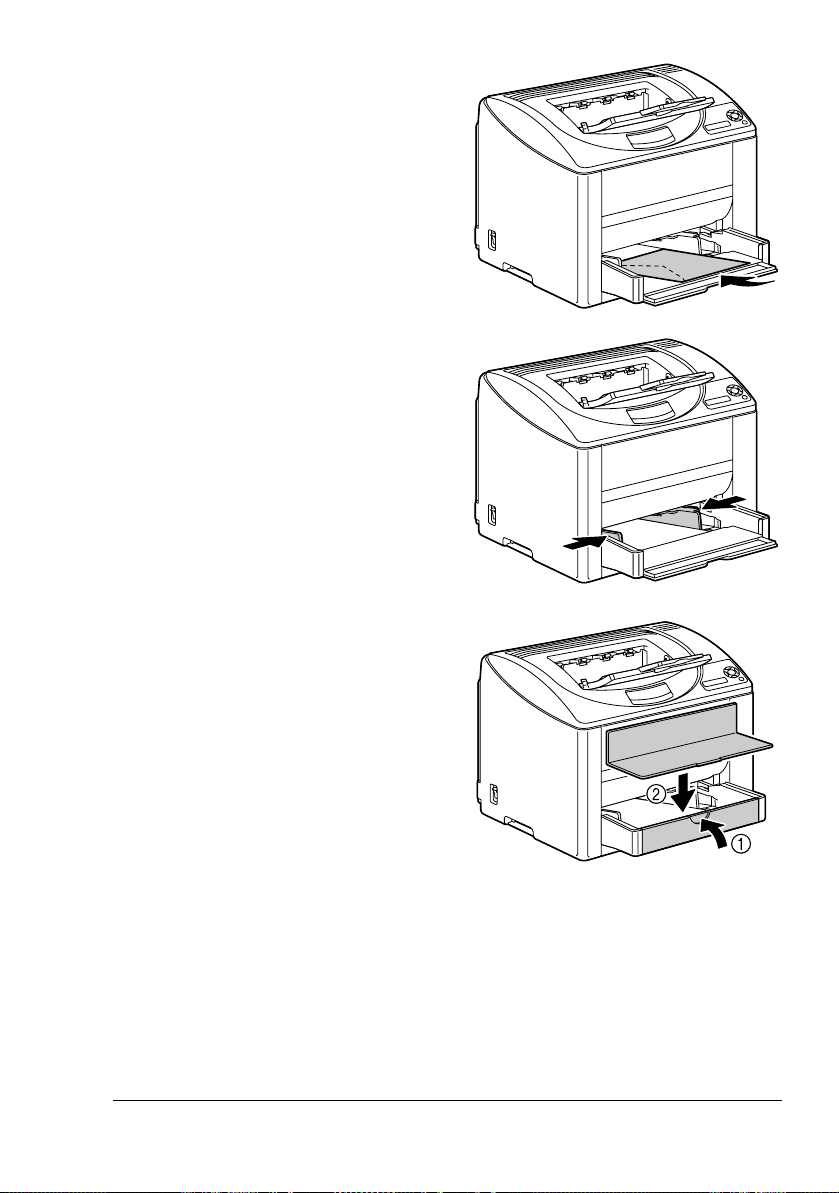

" For envelopes with the

flap along the long edge, load the envelopes with the flap toward the left of the printer.

5 Slide the media guides against

the edges of the envelopes.

6 Close the front panel of Tray 1

tray, and then reattach the lid.

Loading Media

7 Pull the lever, and then open the

top cover.

" If there is paper in the

output tray, remove it. Fold up the output tray before opening the top cover.

" Do not touch the transfer

belt.

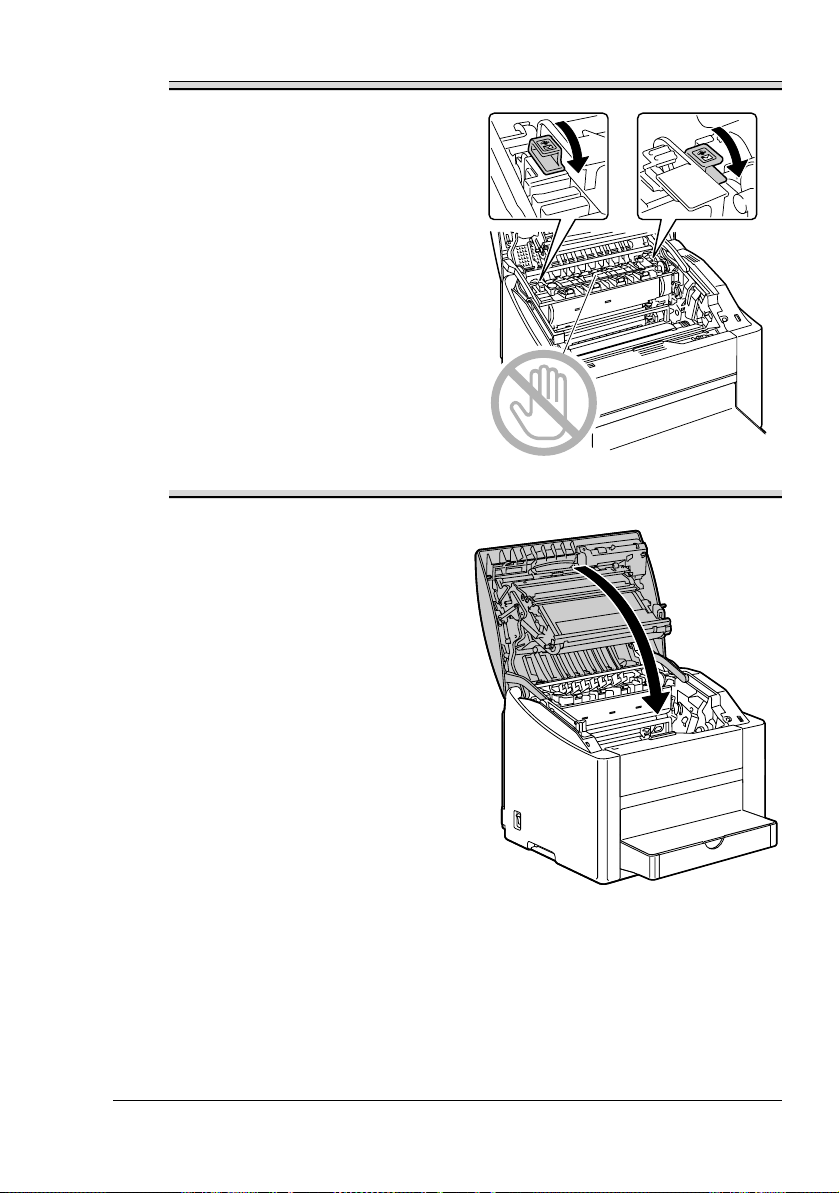

8 Raise the fuser separator levers

on the fuser unit.

Loading Media64

Note

Since a media misfeed or decreased print quality may occur, be sure to return the levers on the fuser unit to the setting for plain paper before printing on media other than envelopes.

9 Carefully close the top cover.

" Before printing on media

other than envelopes, be sure to move the fuser separator levers on the fuser unit to its original position.

Loading Media

Loading Labels/Postcard/Thick Stock/Glossy Stock and Transparency

1 Remove the lid from Tray 1, and

then open the front panel of

Tray

2 Remove any media from the tray. 3 Slide the media guides to pro-

vide more space between them.

4 Load the media face up in the

tray.

" Up to 50 sheets can be

loaded into the tray at one time.

Loading Media66

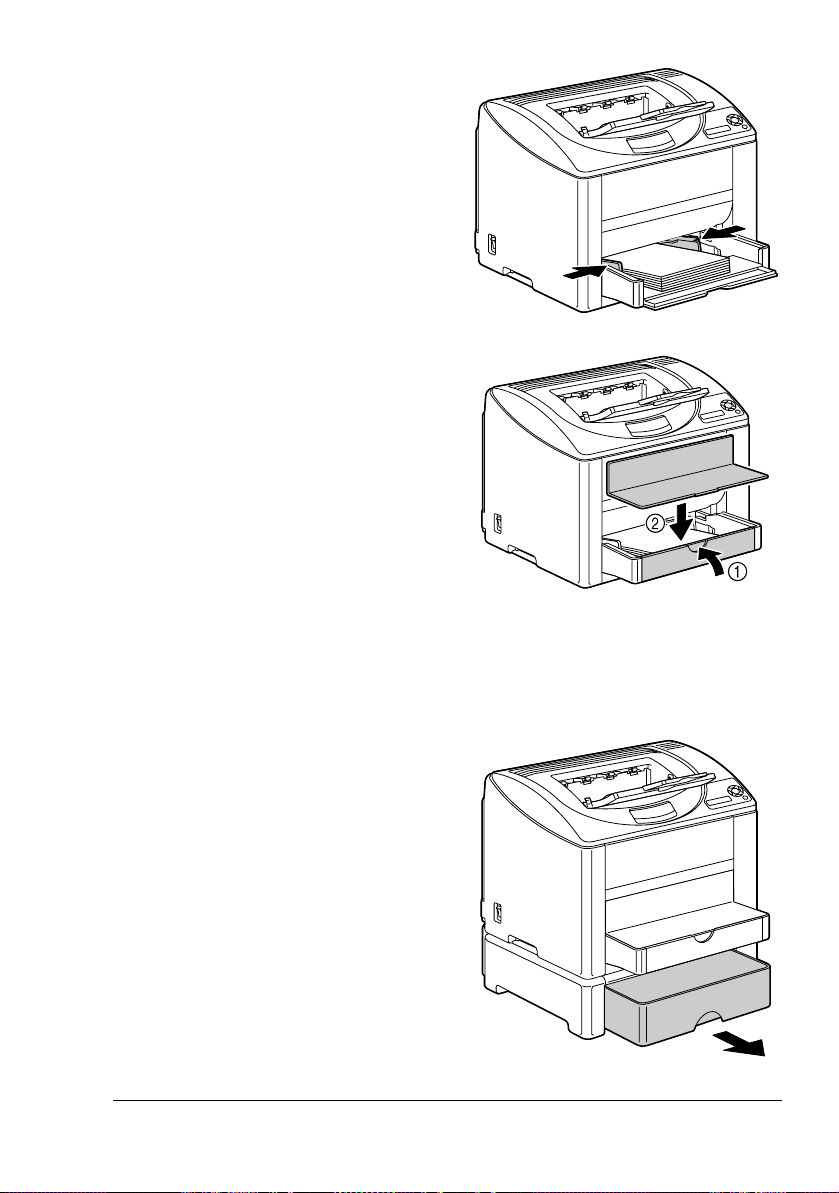

5 Slide the media guides against

the edges of the media.

6 Close the front panel of Tray 1

tray, and then reattach the lid.

Tray 2

Loading Plain Paper

1 Pull out Tray 2 as far as possi-

ble.

Loading Media

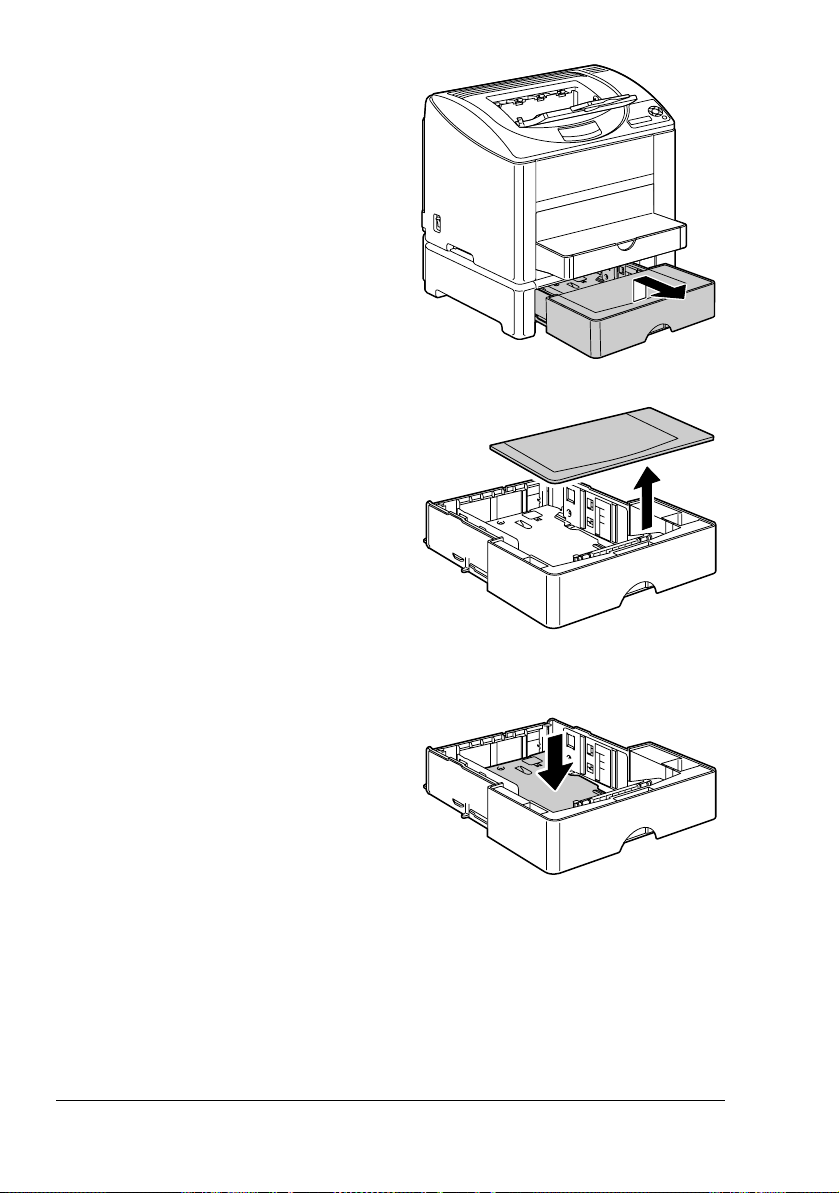

2 Lift up Tray 2 to remove it.

3 Remove the lid from Tray 2.

4 Press down the media pressure

plate to lock it into place.

Loading Media68

5 Load the paper face up in the

tray.

" Do not load above the

100% line. Up to 500 sheets (80 g/m plain paper can be loaded into the tray at one time.

6 Reattach the lid to Tray 2.

[22 lb]) of

100%

Loading Media

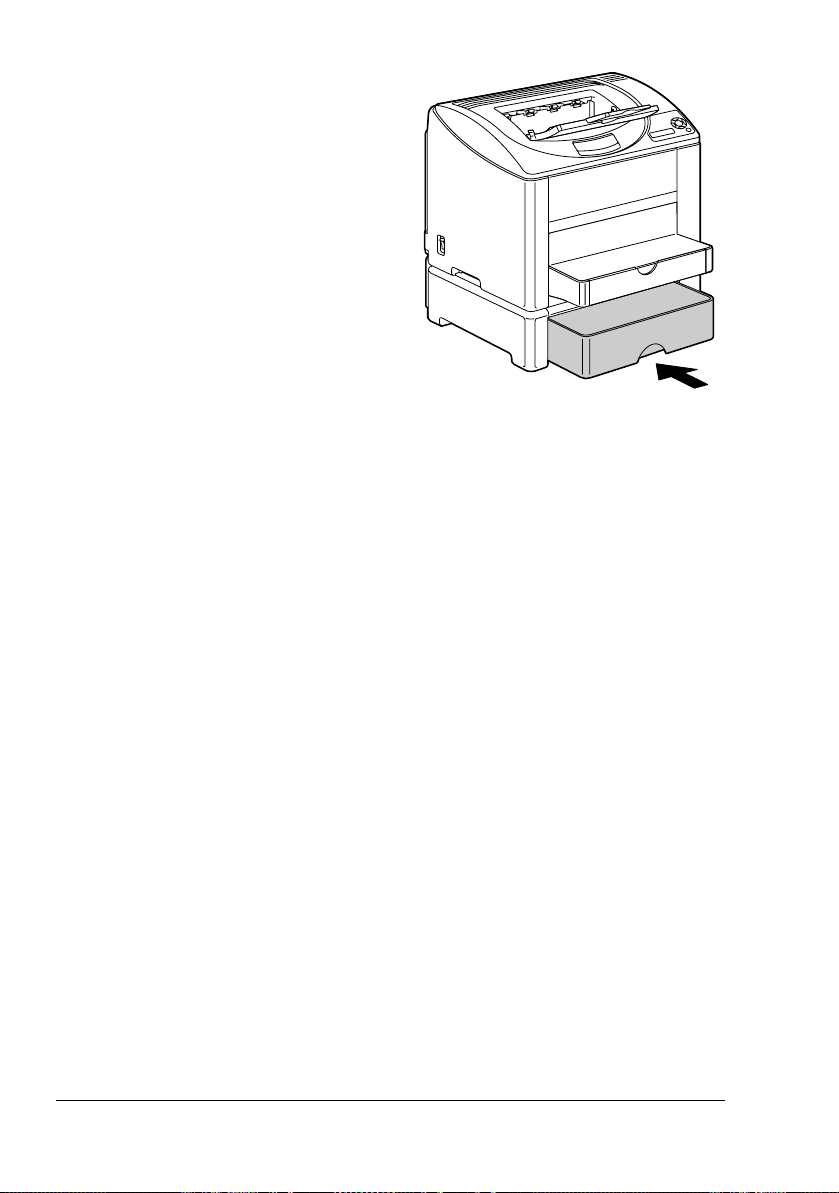

7 Reinsert Tray 2 into the printer.

Loading Media70

Duplexing

Select paper with high opacity for duplex (double sided) printing. Opacity refers to how effectively paper blocks out what is written on the opposite side of the page. If the paper has low opacity (high translucency), then the printed data from one side of the page will show through to the other side. Check your application for margin information. For best results, print a small quantity to make sure the opacity is acceptable.

Duplex (Double sided) printing can be done automatically with the duplex option installed and selected.

Note

Only plain paper, 60–90 g/m2 (16–24 lb bond) can be autoduplexed. See “Media Specifications” on page 50.

Duplexing envelopes, labels, transparencies, or glossy is not supported.

How do I autoduplex?

You should verify that the duplex option is physically installed on the printer to successfully duplex the job.

Check your application to determine how to set your margins for duplex printing.

The following Binding Position settings are available.

Duplexing

If “Short Edge” is selected, the pages will be laid out to flip

at the top.

If “Long Edge” is selected, the pages will be laid out to flip at the sides.

In addition, if “N-up” has been set to “Booklet”, autoduplex printing is performed.

The following Order settings are available when “Booklet” is selected.

If “Left Binding” is selected, the pages can be folded as a left-bound booklet.

If “Right Binding” is selected, the pages can be folded as a right-bound booklet.

1 Load plain paper into the tray. 2 From the printer driver, specify the layout for duplex printing. 3 Click OK.

" With autoduplexing, the back side is printed first, and then the front

side is printed.

Output Tray

All printed media is output to the face-down output tray on top of the printer. This tray has a capacity of approximately 200 sheets (A4/Letter) of 80 g/m (22 lb) paper.

" If the media is stacked too high in the output tray, your printer may

experience media misfeeds, excessive media curl, or static buildup.

" Remove transparencies as soon as possible from the output tray to

avoid static buildup.

Output Tray72

Media Storage

How do I store media?

 Keep media on a flat, level surface in its original wrapper until it is time to

load it.

Media that has been stored for a long time out of its packaging may dry up too much and cause misfeeding.

 If media has been removed from its wrapper, place it in its original pack-

aging and store in a cool, dark place on a level surface.

 Avoid moisture, excessive humidity, direct sunlight, excessive heat (above

35°C [95°F]), and dust.

 Avoid media leaning against other objects or placing it in an upright posi-

tion.

Before using stored media, do a trial print and check print quality.

Media Storage

Media Storage74

Replacing

Consumables

Replacing Consumables

Note

Failure to follow instructions as outlined in this manual could result in voiding your warranty.

About Toner Cartridges

Your printer uses four toner cartridges: black, yellow, magenta, and cyan. Handle the toner cartridges carefully to avoid spilling toner inside the printer or on yourself.

" Install only new toner cartridges in your printer. If a used toner car-

tridge is installed, the indicator message will not clear and the supplies status in the Status Display will not be updated.

" The toner is nontoxic. If you get toner on your skin, wash it off with

cool water and a mild soap. If you get toner on your clothes, lightly dust them off as best as you can. If some toner remains on your clothes, use cool, not hot water, to rinse the toner off.

CAUTION

If you get toner in your eyes, wash it out immediately with cool water and consult a doctor.

Note

Do not use refilled toner cartridges or unapproved toner cartridges. Any damage to the printer or quality problems caused by a refilled toner cartridge or unapproved toner cartridge will void your warranty. No technical support is provided to recover from these problems.

Replacing Consumables76

When replacing a toner cartridge, refer to the following table. For optimum print quality and performance, use only approved KONICA MINOLTA toner cartridges for your specific printer type, as listed in the table below. If you open the top cover, you can find your printer type and the toner cartridge part numbers on the consumables reorder label inside your printer.

Printer Typ e

AM A00V-015

EU A00V-025

Printer Part Number

Toner Cartridge Type Toner Cartridge

High-Capacity Toner Cartridge - Black (K) A00W-864

High-Capacity Toner Cartridge - Yellow (Y) A00W-865

High-Capacity Toner Cartridge - Magenta (M) A00W-866

High-Capacity Toner Cartridge - Cyan (C) A00W-867

High-Capacity Toner Cartridge - Black (K) A00W-874

High-Capacity Toner Cartridge - Yellow (Y) A00W-875

High-Capacity Toner Cartridge - Magenta (M) A00W-876

High-Capacity Toner Cartridge - Cyan (C) A00W-877

Part Number

Keep toner cartridges:

 In their packaging until you’re ready to install them.

 In a cool, dry location away from sunlight (due to heat).

The maximum storage temperature is 35° C (95° F) and the maximum storage humidity is 85% (noncondensing). If the toner cartridge is moved from a cold place to a warm, humid place, condensation may occur, degrading print quality. Allow the toner to adapt to the environment for about one hour before use.

 Level during handling and storage.

Do not hold, stand or store cartridges on their ends or turn them upside down; the toner inside the cartridges may become caked or unequally distributed.

 Away from salty air and corrosive gases such as aerosols.

Replacing Consumables

Replacing a Toner Cartridge

Note

Be careful not to spill toner while replacing a toner cartridge. If toner spills, immediately wipe it off with a soft, dry cloth.

If TONER OUT ACTION on the QUALITY/TONER OUT ACTION menu is set to STOP, the message REPLACE X TONER (where “X” represents the color of the toner) appears when a toner cartridge becomes empty. Follow the steps below to replace the toner cartridge.

" If TONER OUT ACTION on the QUALITY/TONER OUT ACTION

menu is set to CONTINUE, the message X EMPTY appears.

1 Check the message window to see which color of toner is empty.

Perform the operation described below to automatically rotate the carousel to move the toner cartridge for the specified color, so that it can be replaced.

Press Key Until Display Reads

REPLACE X TONER or X EMPTY

MENU PRINT MENU

If the hard disk drive is installed, the

PROOF/PRINT MENU appears.

× 2 (or × 3)

Press until appropriate

color (X) is displayed.

MENU QUALITY MENU

REPLACE TONER

BLACK

Replacing Consumables78

Press Key Until Display Reads

PLEASE WAIT

Then, it displays OPEN

DOOR AND/REPLACE X TONER

2 Pull the lever, and then open the

top cover.

" If there is paper in the

output tray, remove it. Fold up the output tray before opening the top cover.

" Do not touch the transfer

belt.

3 Open the front cover and check

that the toner cartridge to be replaced has rotated to the exchange position.

Replacing Consumables

" You can identify the toner cartridge by the color of the handle and

by the letter molded into the handle: C (cyan), M (magenta), Y (yellow) and K (black).

4 Pull the handle on the toner car-

tridge toward you, and then pull the toner cartridge up to remove it.

" Do not manually rotate

the toner cartridge carou sel. In addition, do not rotate the carousel with force; otherwise it may be damaged.

Note

Dispose of the empty toner cartridge according to your local regulations. Do not burn the toner cartridge.

5 Prepare a new toner cartridge. 6 Shake the cartridge a few times

to distribute the toner.

" Make sure that the toner

roller cover is securely attached before shaking the toner cartridge.

Replacing Consumables80

7 Remove the cover from the

toner roller.

" Do not touch or scratch

the toner roller.

8 Align the shaft on each end of

the toner cartridge with its holders, and then insert the cartridge.

" Before inserting the toner

cartridge, make sure that the color of the toner car tridge to be installed is the same as the label on the toner cartridge carou sel.

9 Press down on the toner car-

tridge until it snaps into place.

Replacing Consumables

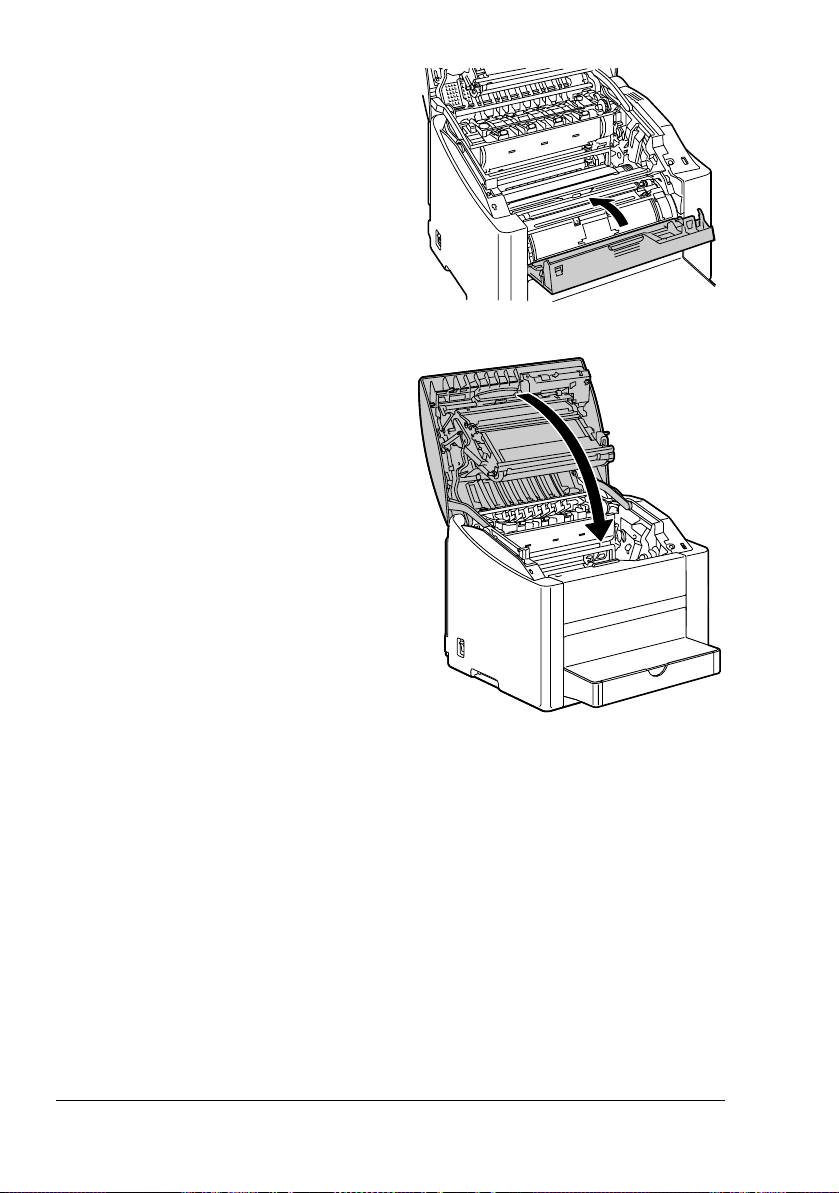

10 Close the front cover.

11 Carefully close the top cover.

" The printer must complete a calibration cycle (less than 2 minutes)

after the toner cartridge has been replaced. If you open the top cover before the message repeats the calibration cycle.

IDLE appears, the printer stops and

Replacing Consumables82

Replacing the Drum Cartridge

1 Pull the lever, and then open the

top cover.

" If there is paper in the

output tray, remove it. Fold up the output tray before opening the top cover.

" Do not touch the transfer

belt.

2 Carefully pull out the drum car-

tridge.

Note

Dispose of the used drum cartridge according to your local regulations. Do not burn the drum cartridge.

Replacing Consumables

3 Prepare a new drum cartridge.

" Do not touch the PC

drum on the drum car tridge.

4 Install the new drum cartridge.

Replacing Consumables84

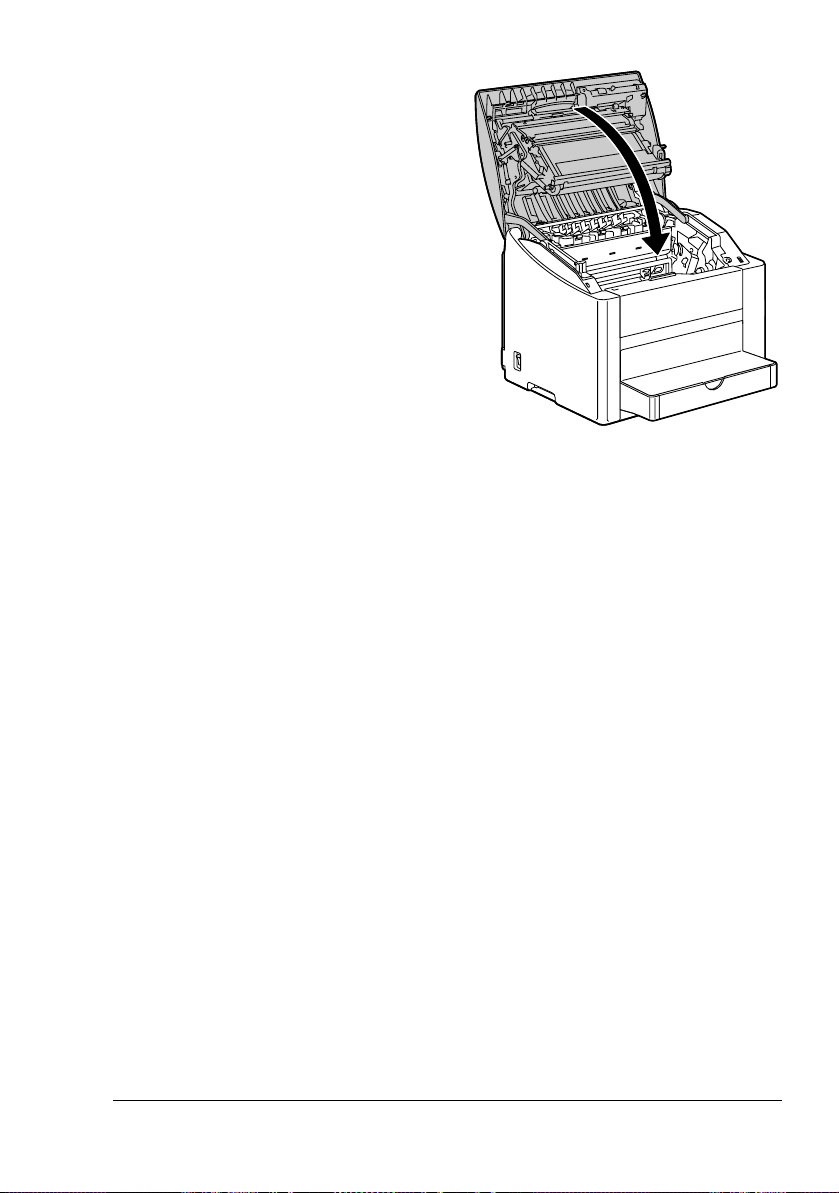

5 Carefully close the top cover.

" The printer must complete a calibration cycle (less than 2 minutes)

after the drum cartridge has been replaced. If you open the top cover before the message repeats the calibration cycle.

IDLE appears, the printer stops and

Replacing Consumables

Replacing the Backup Battery

If the backup battery is dead, the printer’s date and time cannot be retained. Follow the procedure described below to replace the backup battery.

Note

It’s very important to protect the printer controller board and any associated circuit boards from electrostatic damage. Before performing this procedure, review the antistatic caution on always handle circuit boards by the edges only.

Page 136. In addition,

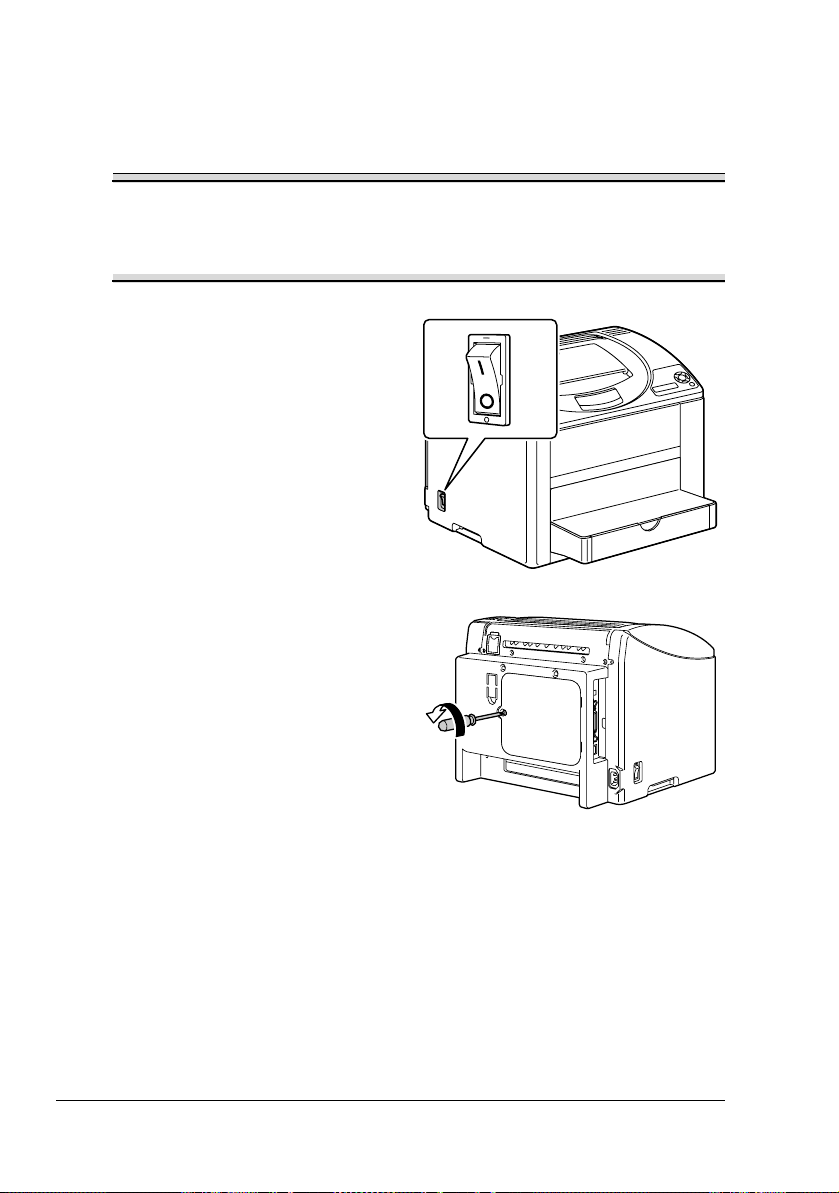

1 Turn off the printer and discon-

nect the power cord and interface cables.

" If the duplex option is

installed, remove it.

2 Using a screwdriver, remove the

screw on the back of the printer.

Replacing Consumables86

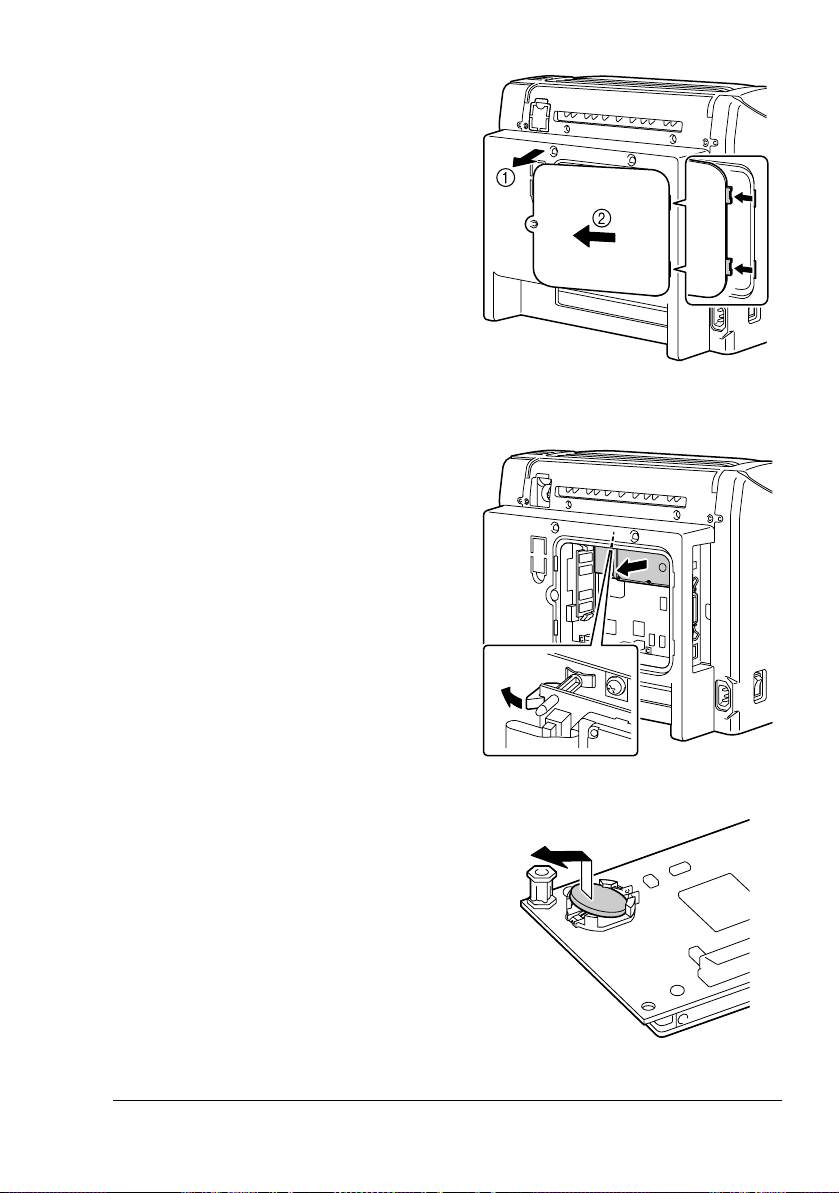

3 Remove the rear panel.

" Since there are two

hooks on the right side of the panel, remove the rear panel by slightly pull ing the left side of the panel toward you, then sliding the panel off to the left.

4 While holding the tab on the

hard disk mounting pin slid to the left, remove the hard disk.

5 Remove the backup battery from

the back of the hard disk.

Replacing Consumables

6 Install a new backup battery.

" When installing the new

backup battery, make sure that the + side faces up.

7 Attach the hard disk to the

printer controller board.

8 Reinstall the panel and tighten the screw.

" If you removed the duplex option in step1, reinstall it.

9 Reconnect all interface cables.

Replacing Consumables88

Konica Minolta C10P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Getting Acquainted with Your Printer

Space Requirements

Printer Parts

Front View

Rear View

Front View with Options

Rear View with Options

Software Utilities CD-ROM

PostScript Drivers

PCL Drivers

PPD Files

Utilities

System Requirements

Selecting Driver Options/Defaults (for Windows)

Windows XP/Server 2003/2000/NT 4.0

Uninstalling the Printer Driver (for Windows)

Displaying Printer Driver Settings (for Windows)

Windows XP/Server 2003

Windows 2000/NT 4.0

Using the PostScript and PCL Printer Driver

Common Buttons

Cancel

Apply

Help

Easy Set

Paper View

Printer View

Watermark View

Quality View

Default

Advanced Tab (PostScript Printer Driver Only)

Basic Tab

Layout Tab

Cover Page Tab

Overlay Tab

Watermark Tab

Quality Tab

Version Tab

Working with the Status Monitor

Introduction

Operating Environment

Opening the Status Monitor

Using the Status Monitor

Recognizing Status Monitor Alerts

Recovering from a Status Monitor Alert

Closing the Status Monitor

About the Control Panel

Control Panel Indicators and Keys

Toner Supply Indicators

Configuration Menu Overview

Main Menu

PROOF/PRINT MENU

Entering the Password

PRINT MENU

PAPER MENU

QUALITY MENU

INTERFACE MENU

SYSTEM DEFAULT MENU

SERVICE MENU

LANGUAGE MENU

Media Specifications

Media Types

Plain Paper

Thick Stock

Envelopes

Labels

Letterhead

Postcards

Transparencies

Glossy Stock

What Is the Guaranteed Imageable (Printable) Area?

Page Margins

Tray 1 (Multipurpose Tray)

Loading Plain Paper

Loading Media
