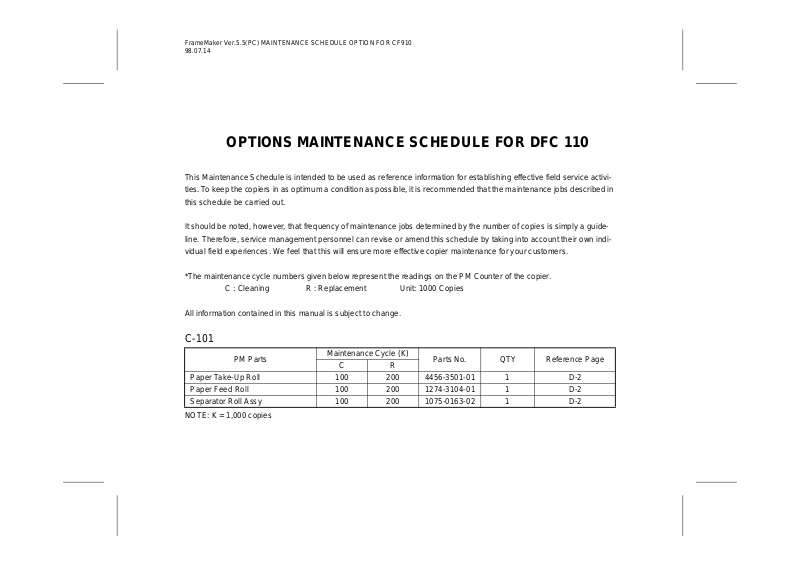

OPTIONS MAINTENANCE SCHEDULE FOR DFC 110
This Maintenance Schedule is intended to be used as reference information for establishing effective field service activities. To keep th e c opi e rs in as optimum a cond it ion as possib le, it i s recommende d that the mai nt en ance jobs des cribed in
this schedule be carried out.
It should be noted, however, that frequency of maintenance jobs determined by the number of copies is simply a guideline. Therefore, service management personnel can revise or amend this schedule by taking into account their own individual field experiences. We feel that this will ensure more effective copier maintenance for your customers.
*The maintenance cycle numbers given below represent the readings on the PM Counter of the copier.
C : Cleaning R : Replacement Unit: 1000 Copies
All information contained in this manual is subject to change.
C-101
PM Parts
Paper Take-Up Roll 100 200 4456-3501-01 1 D-2
Paper Feed Roll 100 200 1274-3104-01 1 D-2
Separator Roll Assy 100 200 1075-0163-02 1 D-2
NOTE: K = 1,000 copies
Maintenance Cycle (K)
CR
Parts No. QTY Reference Page
