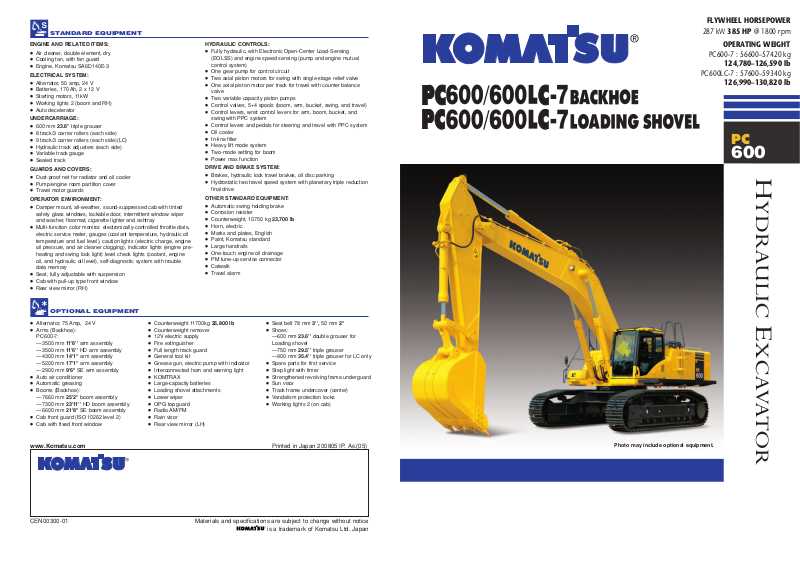

komatsu PC600 SPECIFICATIONS

Download

Page 1

FLYWHEEL HORSEPOWER

287 kW 385 HP @ 1800 rpm

OPERATING WEIGHT

PC600-7 : 56600–57420 kg

124,780–126,590 lb

PC600LC-7 : 57600–59340 kg

126,990–130,820 lb

Photo may include optional equipment.

STANDARD EQUIPMENT

ENGINE AND RELATED ITEMS:

● Air cleaner, double element, dry

● Cooling fan, with fan guard

● Engine, Komatsu SA6D140E-3

ELECTRICAL SYSTEM:

● Alternator, 50 amp, 24 V

● Batteries, 170 Ah, 2 x 12 V

● Starting motors, 11kW

● Working lights 2 (boom and RH)

● Auto decelerator

UNDERCARRIAGE:

● 600 mm 23.6'' triple grouser

● 8 track/3 carrier rollers (each side)

● 9 track/3 carrier rollers (each side)(LC)

● Hydraulic track adjusters (each side)

● Variable track gauge

● Sealed track

GUARDS AND COVERS:

● Dust-proof net for radiator and oil cooler

● Pump/engine room partition cover

● Travel motor guards

OPERATOR ENVIRONMENT:

● Damper mount, all-weather, sound-suppressed cab with tinted safety glass windows, lockable door, intermittent window wiper and washer, floormat, cigarette lighter and ashtray

● Multi-function color monitor, electronically-controlled throttle dials, electric service meter, gauges (coolant temperature, hydraulic oil temperature and fuel level), caution lights (electric charge, engine oil pressure, and air cleaner clogging), indicator lights (engine preheating and swing lock light) level check lights (coolant, engine oil, and hydraulic oil level), self-diagnostic system with trouble data memory

● Seat, fully adjustable with suspension

● Cab with pull-up type front window

● Rear view mirror (RH)

HYDRAULIC CONTROLS:

● Fully hydraulic, with Electronic Open-Center Load-Sensing (EOLSS) and engine speed sensing (pump and engine mutual control system)

● One gear pump for control circuit

● Two axial piston motors for swing with single-stage relief valve

● One axial piston motor per track for travel with counter balance

valve

● Two variable capacity piston pumps

● Control valves, 5+4 spools (boom, arm, bucket, swing, and travel)

● Control levers, wrist control levers for arm, boom, bucket, and

swing with PPC system

● Control levers and pedals for steering and travel with PPC system

● Oil cooler

● In-line filter

● Heavy lift mode system

● Two-mode setting for boom

● Power max function

DRIVE AND BRAKE SYSTEM:

● Brakes, hydraulic lock travel brakes, oil disc parking

● Hydrostatic two travel speed system with planetary triple reduction

final drive

OTHER STANDARD EQUIPMENT:

● Automatic swing holding brake

● Corrosion resister

● Counterweight, 10750 kg 23,700 lb

● Horn, electric

● Marks and plates, English

● Paint, Komatsu standard

● Large handrails

● One-touch engine oil drainage

● PM tune-up service connector

● Catwalk

● Travel alarm

OPTIONAL EQUIPMENT

● Alternator, 75 Amp, 24 V

● Arms (Backhoe):

PC600-7: —3500 mm 11'6'' arm assembly —3500 mm 11'6'' HD arm assembly —4300 mm 14'1'' arm assembly —5200 mm 17'1'' arm assembly —2900 mm 9'6'' SE arm assembly

● Auto air conditioner

● Automatic greasing

● Booms (Backhoe):

—7660 mm 25'2'' boom assembly —7300 mm 23'11'' HD boom assembly —6600 mm 21'8'' SE boom assembly

● Cab front guard (ISO 10262 level 2)

● Cab with fixed front window

● Counterweight 11700kg 25,800 lb

● Counterweight remover

● 12V electric supply

● Fire extinguisher

● Full length track guard

● General tool kit

● Grease gun, electric pump with indicator

● Interconnected horn and warning light

● KOMTRAX

● Large-capacity batteries

● Loading shovel attachments

● Lower wiper

● OPG top guard

● Radio AM/FM

● Rain visor

● Rear view mirror (LH)

● Seat belt 78 mm 3'', 50 mm 2''

● Shoes:

—600 mm 23.6'' double grouser for Loading shovel —750 mm 29.5'' triple grouser —900 mm 35.4'' triple grouser for LC only

● Spare parts for first service

● Step light with timer

● Strengthened revolving frame underguard

● Sun visor

● Track frame undercover (center)

● Vandalism protection locks

● Working lights 2 (on cab)

www.Komatsu.com Printed in Japan 200805 IP. As.(05)

CEN00300-01 Materials and specifications are subject to change without notice

is a trademark of Komatsu Ltd. Japan

600

HYDRAULIC EXCAVATOR

Page 2

PC600-7 Series Hydraulic Excavator

Productivity Features

●

Large digging force

High operation efficiency with large digging force in rugged work sites

●

Large size bucket

The wide and shallow contour facilitates loading.

●

Heavy lift mode

The heavy lift mode increases the lifting force by 8%.

ALK

-A

ROUND

Harmony with Environment

● Low emission engine Powerful turbocharged and aftercooled Komatsu SA6D140E-3 engine provides 287 kW 385 HP.

See page 4.

Large Comfortable Cab

● Low noise and vibration with cab damper mounting

● Large-capacity cab with narrow corner posts provides

improved visibility

● Large-capacity air conditioner (optional)

● Pressurized cab prevents external dust from entering

See page 8.

Easy Maintenance

● Replacement interval is extended for new hydraulic filter.

See page 7.

PC 600-7

HYDRAULIC EXCAVATOR

FLYWHEEL HORSEPOWER 287 kW 385 HP @ 1800 rpm

OPERATING WEIGHT

PC600-7

56600 – 57420 kg

124,780 – 126,590 lb

PC600LC-7

57600 – 59340 kg

126,990 – 130,820 lb

●

Two-mode setting for boom

Switch selection allows either powerful digging or smooth boom operation.

●

Fuel consumption

with Economy Mode.

●

Large drawbar pull and steering force

●

Power Max Function

This function temporarily increases digging force for added power in tough situations.

●

Excellent Swing Performance

provides excellent swing performance on slope.

See pages 4 and 5.

provide excellent mobility.

is reduced 12%

Excellent Reliability and Durability

Photo may include optional equipment.

●

Strengthened boom and arm

cross-sections and reliable welding for maximum strength and reliability. (optional)

●

Reinforced buckets

against wear and impacts. (optional)

●

Face seals

formance, are used for the hydraulic hoses.

, which have excellent sealing per-

are highly resistant

have large

Protected hydraulic circuit

The cool-running hydraulic system is protected with the most extensive filtration system available, including a high pressure in-line filter for each main pump.

●

Sturdy guards

damage from rocks.

●

Highly Reliable Electronic Devices

Exclusively designed electronic devices have passed severe testing.

- Controller - Sensors - Connectors

- Heat resistant wiring

See page 6.

shield the travel motors against

Large handrail, step and catwalk

provide easy access to the engine and hydraulic equipment.

See page 7.

Advanced monitor features

● Machine condition can be checked with Equipment Management Monitoring System (EMMS).

● Two working modes combine with heavy lift mode for maximum productivity. See page 5.

Page 3

PC600-7

HYDRAULIC EXCAVATOR

RODUCTIVITY

EATURES

High Production and Low Fuel Consumption

Engine

The PC600-7 gets its exceptional power and work capacity from its Komatsu SA6D140E-3 engine. Output is 287 kW 385 HP providing more hydraulic power. In addition, the fuel consumption is reduced by 12% when using Economy Mode.

Large Digging Force

Thanks to the high engine output and an excellent hydraulic system, this machine demonstrates powerful digging force.

Large Drawbar Pull and Steering Force

Since the machine has a large drawbar pull and a high steering force, it demonstrates excellent mobility even when it is being used on inclined sites.

Excellent Swing Performance

Twin-swing motor system of PC600-7 provides excellent swing performance on slope.

Excellent Machine Stability

Large machine weight and wide track gauge provide excellent machine stability.

Large Bucket Capacity

Large capacity bucket has large and shallow contour offers easy loading. PC600-7: 2.0 - 3.1 m (with SE attachment: 3.5 m34.58 yd3)tank capacity (2750

ltr 726.6 U.S. gal)

2.62 - 4.05 yd

Working Mode Selection

Multi-Function

Hydraulics

Unique two-pump system assures smooth compound movement of the work equipment. OLSS (Open Center Load Sensing System) controls all pumps for efficient engine power use. This system also reduces hydraulic loss during operation.

Active and Economy mode

The PC600-7 excavator is equipped with two working modes. Each mode is designed to match engine speed, pump speed, and system pressure to the current application, giving the operator flexibility to match equipment performance to the job at hand.

Working Mode Application Advantage

Heavy Lift Mode

Gives the operator 10% more lifting force on the boom when needed for handling rock or heavy lifting applications.

Active

Mode ● Fast cycle times

Economy

Mode ● Good fuel economy

● Maximum production/power

● Good cycle times

Two Working Modes

Heavy Lift Mode

Color Monitor

Two Settings for the Boom

Smooth mode provides easy operation for gathering blasted rock and

scraping operations. When maximum digging force is needed, switch to power mode for more effective excavating.

Boom raised

Smooth mode

Power Max Function

This function temporarily increases digging force by 8% for added power in tough situations.

Excellent Underfoot Digging Performance

The operability of the underfoot area, just below the operators cab, is excellent. This makes grading, leveling, rolling, carrying, and scraping soil in the underfoot area easy.

Automatic Two-Speed Travel

Travel speed automatically shifted from high to low speed according to the pressure of travel.

Power mode

EMMS (Equipment Management Monitoring System)

1. Monitor Function Controller monitors engine oil level, coolant temperature, battery charge air-filter restriction, etc. The controller finds any abnormality and displays it on the LCD.

2. Maintenance Monitor Function informs replacement time of oil and filters on LCD when the replacement interval is reached.

3. Trouble Data Memory Function stores machine abnormalities (error codes) in the monitor for effective trouble shooting.

Photo may include optional equipment.

Page 4

PC600-7

HYDRAULIC EXCAVATOR

ELIABILITY

EATURES

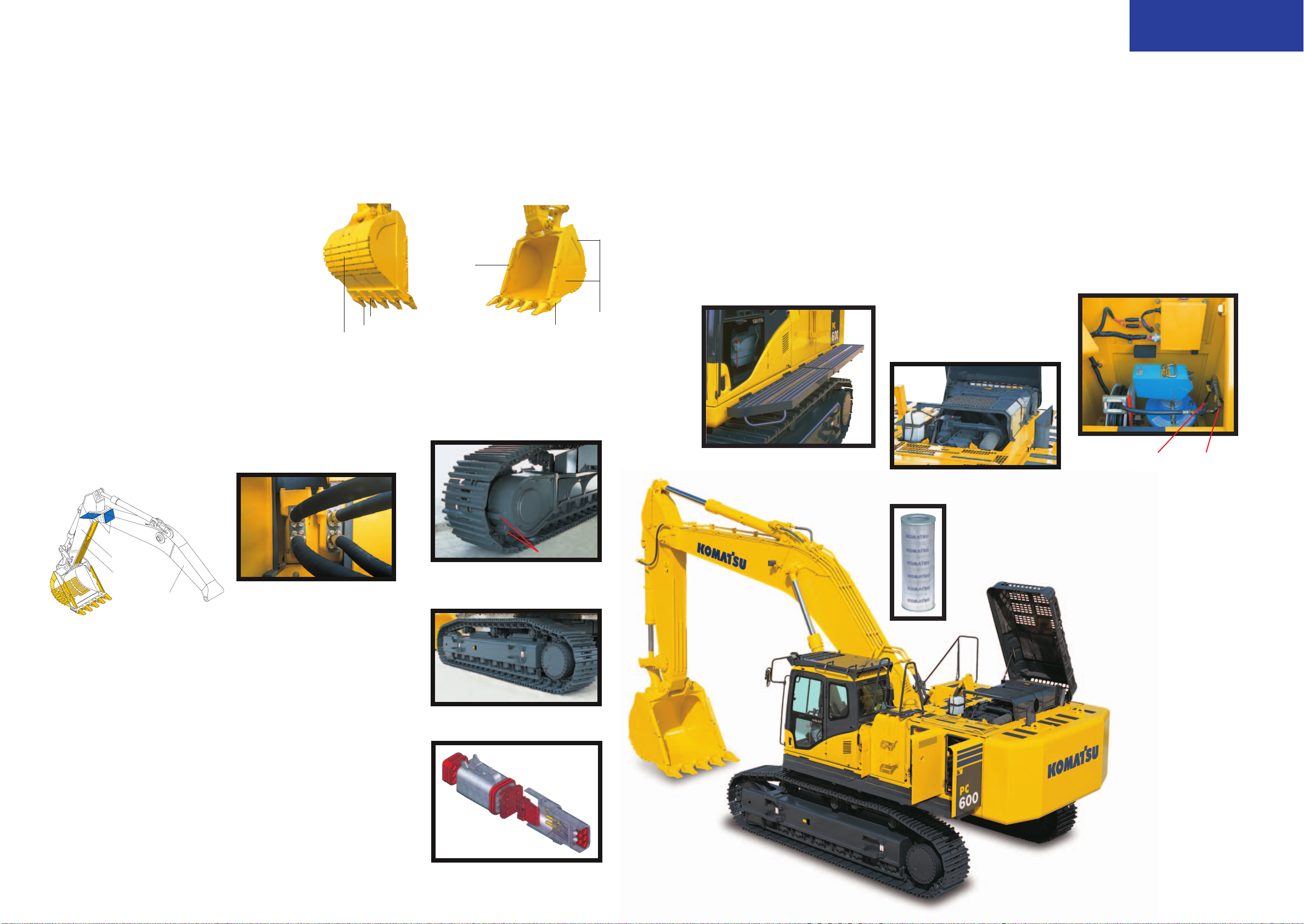

Excellent Reliability and Durability

Reinforced Bucket (optional)

PC600-7 bucket is designed exclusively for quarry use

and is higher strength for impact and wear. It is highly

resistant against wear and impact and demonstrates high

performance and reliability. Combined with the saddling

type side shroud and the corner teeth, the life of the buck-

et has been greatly improved.

Strengthened Boom and Arm

(optional)

Thanks to the large cross-sectional

structure employing a high tensile

strength steel with a thick plate, parti-

tion wall, etc., the boom and arm

exhibit excellent durability and are

highly resistant to bends and twists.

Partition wall

Wide width arm

Arm dent preventive plate

Large cross-sectional structure boom

O-Ring Face Seal

The hydraulic hose seal method has

been changed from a conventional

taper seal to an O-ring seal. This pro-

vides improved sealing performance

during vibration.

Frame Structure

The revolving frame and center frame

mount are no welding structure so that

force is transmitted directly to the thick

plate of the frame without passing

through any welding.

High-pressure In-Line Filtration

The PC600-7 has the most extensive

filtration system available, providing

in-line filters as standard equipment.

An in-line filter in the outlet port of

each main hydraulic pump reduces

failures caused by contamination.

Metal Guard Rings

Metal guard rings protect all the

hydraulic cylinders and improve

reliability.

Heat-Resistant Wiring

Heat-resistant wiring is utilized for the

engine electric circuit and other major

component circuits.

Circuit Breaker

With the circuit breaker, the machine

can be easily restarted after repair.

Lip shroud

Corner tooth

Bottom plate made of duplex wear plates

Sturdy Undercarriage

The undercarriage is strengthened to

provide excellent reliability and durabil-

ity when working on rocky ground or

blasted rock.

Sturdy guards shield the travel motors and piping against damage from rocks. (Rock protectors are optional.)

Track roller guard (full length) (optional)

Side shroud (2 pieces per each side)

Exclusive adaptor for the corner tooth

Rock protectors

Side panel reinforcement plate

EATURES

AINTENANCE

Easy Maintenance

Komatsu designed the PC600-7 for easy service access.

Wide Catwalk

Wide walkway for maintenance is provided around the engine and hydraulic components, allowing easy access to inspection and maintenance points.

Footing Over Engine

Since a step is being installed to a section above the engine, daily inspections of the engine and its neighborhood can be conducted easily. Also, a protection cover is being adopted to prevent direct touch of hands to the high temperature sections such as the turbocharger.

Reduced Maintenance Costs

Hydraulic oil filter

replacement is extended

from 500 to 1000 hours.

Motorized Grease Gun Equipped with Hose Reel (optional)

Greasing is made easy with the electric

motorized grease gun and indicator.

Indicator

KOMTRAX

The KOMTRAX system monitors

machine condition, operating status,

operating location, etc., and provides

timely notification of any machine prob-

lems.

Since data is transmitted via satellite

communication system, secure data

communication is possible from any

operating site including a quarry or a

mine, further improving machine relia-

bility.

(There are some countries where

System (optional)

this feature is not in service.

Please consult Komatsu dis-

tributor for availability.)

Grease gun

DT-type connectors seal tight and

have higher reliability.

Photo may include optional equipment.

Page 5

PC600-7

HYDRAULIC EXCAVATOR

NVIRONMENT

ORKING

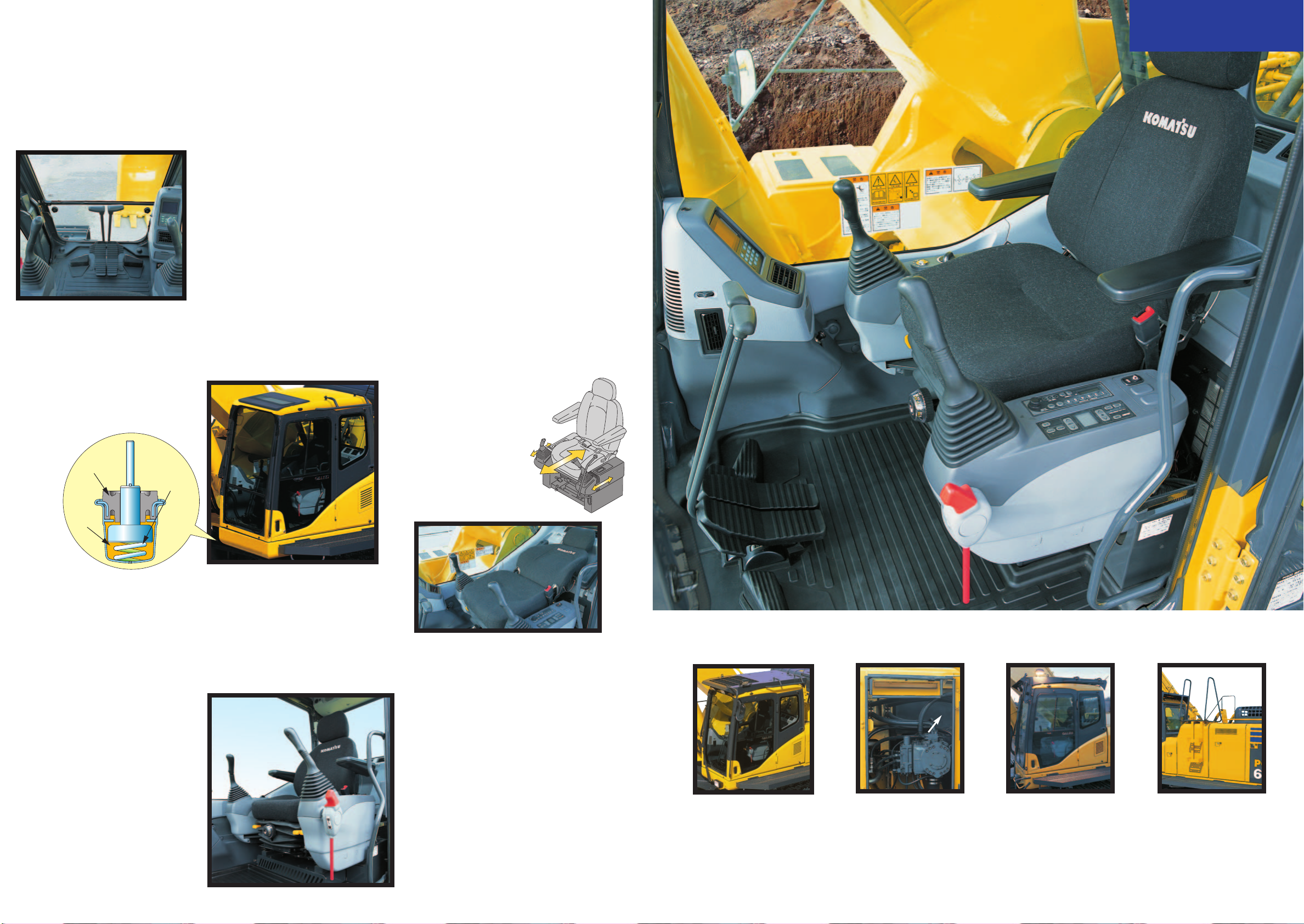

The cab interior is spacious and provides a

comfortable working environment…

Large Comfortable Cab

Superb Visibility

The PC600-7’s large capacity cab and increased glass area provide superb front visibility.

Cab Mounts

The new cab damper mounting reduces vibration and noise at operator’s seat.

Rubber

Spring

Low Noise Design

The noise levels at the operator’s ear are decreased by improving the cab mounts and cab sealing performance.

Multi-Position Controls

The multi-position, pressure proportional control levers allow the operator to work in comfort while maintaining precise control. A double-slide mechanism allows the seat and controllers to move together or independently, allowing the operator to position the controllers for maximum productivity and comfort.

Silicon Oil

Suspension seat

The suspension seat has been improved to reduce and absorb vibration transmitted to the operator. Rigidity adjustment, fore and aft sliding, as well as up and down adjustment is available to accommodate the body-build of operators.

Seat with headrest fully reclined

Pressurized Cab

The optional air conditioner, air filter, and a higher internal air pressure (6 mm Aq

0.24" in Aq) prevent external dust from entering the cab.

Cab with fixed front window (optional)

( )

Internal air pressure : 10 mm Aq 0.39" in Aq

Automatic Air Conditioner (Optional)

A 6,900 kcal air conditioner is utilized. The bi-level control function keeps the operator's head and feet cool and warm respectively. This improved air flow function keeps the inside of the cab comfortable throughout the year.

Safety Features

Rigid and Safe Operator's Cab

OPG top guard (optional) Single sheet fixed glass (optional) See-through skylight equipped with a sun shade (optional) Additional head lamp (optional) Lower wiper (optional) Horn interconnected with warning light (optional)

Engine/pump room partition

prevents oil from spraying on the engine if a hydraulic hose should burst.

Step light with timer (optional)

provides light for about one minute to allow the operator to get off the machine safely.

Seat belt shown in photo is optional.

Large handrails and wide catwalk are provided

around revolving frame for easier and safer access to engine and hydraulic components.

Photo may include optional equipment.

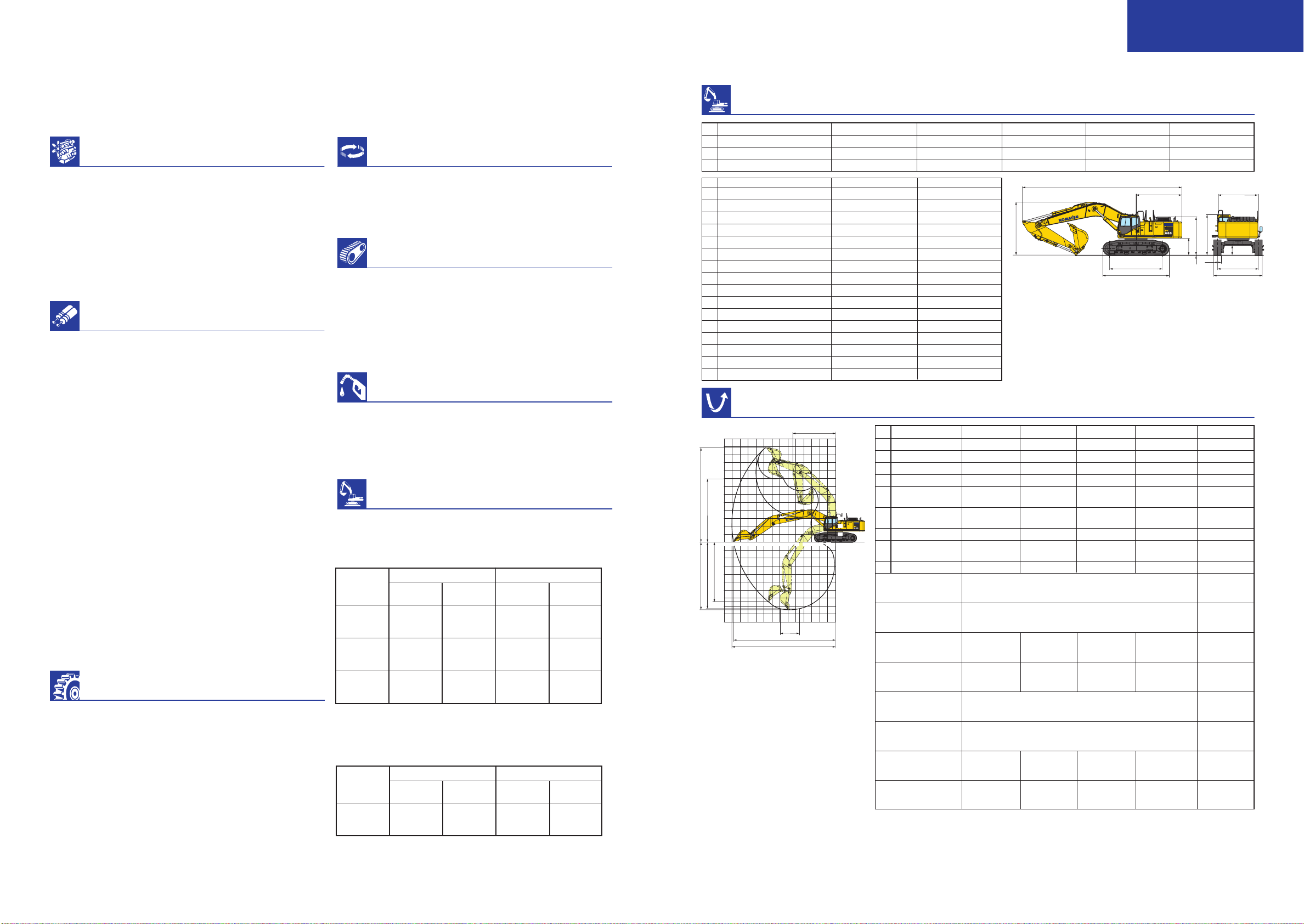

Page 6

PC600-7

HYDRAULIC EXCAVATOR

Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Komatsu SA6D140E-3

Type . . . . . . . . . . . . . . . . . . . . 4-cycle, water-cooled, direct injection

Aspiration . . . . . . . . . . . . . . . . . . . . . . Turbocharged and aftercooled

Number of cylinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Bore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 mm 5.51"

Stroke. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165 mm 6.50"

Piston displacement . . . . . . . . . . . . . . . . . . . . . . . . . 15.24 ltr 930 in

Flywheel horsepower . . . . . . . . . . . . . . 287 kW 385 HP @ 1800 rpm

Governor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . All-speed, electronic

Type . . . . . . . . . . . . . . . . . . . . . . . Open-center load-sensing system

Number of selectable working modes . . . . . . . . . . . . . . . . . . . . . . . 2

Main pump:

Maximum flow:

Sub-pump for control circuit. . . . . . . . . . . . . . . . . . . . . . . Gear pump

Hydraulic motors:

Relief valve setting:

Hydraulic cylinders:

Steering control . . . . . . . . . . . . . . . . . . . . . . . Two levers with pedals

Drive method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fully hydrostatic

Travel motor . . . . . . . . . . . . . . . . . Axial piston motor, in-shoe design

Reduction system . . . . . . . . . . . . . . . . . . Planetary double reduction

Maximum drawbar pull . . . . . . . . . . . . . 415kN 42300 kg 93,250 lb

Gradability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70%

Maximum travel speed

Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic lock

Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Oil disc brake

PECIFICATIONS

(SAE J1349)

Type . . . . . . . . . . . . . . . . . . . . . . . Variable-capacity piston pumps

Pumps for. . . . . . . . Boom, arm, bucket, swing, and travel circuits

Main . . . . . . . . . . . . . . . . . . . . . 2 x 410 ltr/min 2 x 108 U.S. gpm

Travel. . . . . . . . . . . . . . . 2 x axial piston motor with parking brake

Swing . . . . . . . . . . 2 x axial piston motor with swing holding brake

Implement circuits

Backhoe . . . . . . . . . . . . . . . . . . 31.9 MPa 325 kgf/cm

Loading shovel . . . . . . . . . . . . . 29.4 MPa 300 kgf/cm24,270 psi

Travel circuit . . . . . . . . . . . . . . . 34.3 MPa 350 kgf/cm24,980 psi

Swing circuit . . . . . . . . . . . . . . . 25.5 MPa 260 kgf/cm23,700 psi

Heavy lift circuit * . . . . . . . . . . . . 34.3 MPa 350 kgf/cm24,980 psi

Pilot circuit . . . . . . . . . . . . . . . . . . 2.9 MPa 30 kgf/cm2430 psi

* Only Backhoe

Number of cylinders—bore x stroke Backhoe

Boom . . . . . . . . . . . . . . . . 2 – 185 mm x 1725 mm 7.3" x 67.9"

Arm . . . . . . . . . . . . . . . . . 1 – 200 mm x 2045 mm 7.9" x 80.5"

Bucket : STD . . . . . . . . . . 1 – 185 mm x 1425 mm 7.3" x 56.1"

Low. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.0 km/h 1.9 mph

High . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9 km/h 3.0 mph

PECIFICATIONS

ENGINE

HYDRAULIC SYSTEM

for 2.9m 9.6" Arm . . . . 1 – 185 mm x 1610 mm 7.3" x 63.4"

DRIVES AND BRAKES

QUIPMENTIP

4,620 psi

SWING SYSTEM

Driven method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic motor

Swing reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Planetary gear

Swing circle lubrication . . . . . . . . . . . . . . . . . . . . . . . Grease-bathed

Swing lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Oil disc brake

Swing speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.3 rpm

UNDERCARRIAGE

Center frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . H-leg frame

Track frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Box-section

Track chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sealed

Track adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulic

No. of shoes . . . . . . . . . . . . . . . . . . . . . . . . 49 each side (PC600-7)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 each side (PC600LC-7)

No. of carrier rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 each side

No. of track rollers . . . . . . . . . . . . . . . . . . . . . 8 each side (PC600-7)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 each side (PC600LC-7)

COOLANT AND LUBRICANT

CAPACITY (REFILLING)

Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 880 ltr 232.5 U.S. gal

Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 ltr 15.1 U.S. gal

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 ltr 9.8 U.S. gal

Final drive, each side . . . . . . . . . . . . . . . . . . . 10 ltr 2.6 U.S. gal

Swing drive . . . . . . . . . . . . . . . . . . . . . . . . 2 x 13 ltr 2 x 3.4 U.S. gal

Hydraulic tank . . . . . . . . . . . . . . . . . . . . . . . 360 ltr 95.0 U.S. gal

OPERATING WEIGHT (APPROXIMATE)

BACKHOE

Operating weight, including 7660 mm 25'2" boom, 3500 mm 11' 6" arm, SAE heaped 2.7 m33.53 yd3backhoe bucket, operator, lubricant, coolant, full fuel tank, and the standard equipment.

PC600-7 PC600LC-7

Shoes Weight Pressure Weight Pressure

Triple grouser

600 mm 1.02 kgf/cm

23.6"

750 mm 57420 kg

29.5" 126,590 lb

900 mm 59340 kg

35.4" 130,820 lb

LOADING SHOVEL

Operating weight, including 4000 mm 13'1" boom, 3000 mm 9'10" arm, 4.0 m35.2 yd3heaped bucket, operator, lubricants, coolant, full fuel tank and standard equipment.

Shoes Weight Pressure Weight Pressure

Double grouser

600 mm 1.10 kgf/cm

23.6"

Operating Ground Operating Ground

56600 kg

124,780 lb

– – 0.67 kgf/cm

Operating Ground Operating Ground

61100 kg

134,700 lb

100.0 kPa

14.5 psi

81.6 kPa

0.83 kgf/cm

11.8 psi

PC600-7 PC600LC-7

108 kPa

15.6 psi

57600 kg

126,990 lb

58480 kg

128,930 lb

62200 kg

137,130 lb

0.97 kgf/cm

0.79 kgf/cm

1.05 kgf/cm

95.0 kPa

13.8 psi

77.2 kPa

11.2 psi

65.3 kPa

9.5 psi

103 kPa

14.9 psi

DIMENSIONS

Boom 7660 mm 25'2" 7660 mm 25'2" 7660 mm 25'2" 7300 mm 23'11" 6600 mm 21'8"

Arm 3500 mm 11'6" 4300 mm 14'1" 5200 mm 17'1" 3500 mm 11'6" 2900 mm 9'6"

A Overall length 12810 mm 42'0" 12730 mm 41'9" 12435 mm 40'10" 12440 mm 40'10" 11830 mm 38'10"

B Overall height (to top of boom) 4300 mm 14'1" 4655 mm 15'3" 5235 mm 17'2" 4280 mm 14'1" 4600 mm 15'1"

C Overall width 3900 mm 12'10" 3900 mm 12'10"

D Overall height (to top of cab) 3290 mm 10'10" 3290 mm 10'10"

E Ground clearance, counterweight 1365 mm 4'6" 1365 mm 4'6"

F Ground clearance (minimum) 780 mm 2'7" 780 mm 2'7"

G Tail swing radius 3800 mm 12'6" 3800 mm 12'6"

H Track length on ground 4250 mm 13'11" 4600 mm 15'1"

I Track length 5340 mm 17'6" 5690 mm 18'8"

J Track gauge 2590 mm 8'6" 2590 mm 8'6"

K Track gauge when expanded 3300 mm 10'10" 3300 mm 10'10"

L Width of crawler 3190 mm 10'6" 3190 mm 10'6"

M Width of crawler when expanded 3900 mm 12'10" 3900 mm 12'10"

N Shoe width 600 mm 23.6" 600 mm 23.6"

O Grouser height 37 mm 1.5" 37 mm 1.5"

P Machine cab height 3070 mm 10'1" 3070 mm 10'1"

Q Machine cab width 3195 mm 10'6" 3195 mm 10'6"

R Distance, swing center to rear end 3675 mm 12'1" 3675 mm 12'1"

WORKING RANGE

1 2 3 4 5 6 7 8 9 10 11 12 13 14

2440 8'

G F

PC600-7 PC600LC-7

Boom 7660 25'2" 7660 25'2" 7660 25'2" 7300 23'11" 6600 21'8"

Arm 3500 11'6" 4300 14'1" 5200 17'1" 3500 11'6" 2900 9'6"

A Max. digging height 11880 39'0" 12180 40'0" 12560 41'3" 11475 37'8" 11140 36'7"

B Max. dumping height 7960 26'1" 8245 27'1" 8600 28'3" 7650 25'1" 7210 23'8"

C Max. digging depth 8490 27'10" 9275 30'5" 10225 33'7" 8165 26'9" 7060 23'2"

D Max. vertical wall

digging depth 7510 24'8" 8375 27'6" 9275 30'5" 6660 21'10" 5630 18'6"

E Max. digging depth

of cut for 8' level 8360 27'5" 9175 30'1" 10125 33'3" 8030 26'4" 6910 22'8"

F Max. digging reach 13020 42'9" 13740 45'1" 14630 48'0" 12615 41'5" 11550 37'11"

G Max. digging reach

at ground level 12800 42'0" 13555 44'6" 14435 47'4" 12385 40'8" 11300 37'1"

H Min. swing radius 5370 17'7" 5385 17'8" 5510 18'1" 5090 16'8" 4670 15'4"

Bucket digging force 264 kN 289 kN

(SAE) 26900 kgf 29500 kgf

Bucket digging force 285 kN 312 kN at power max. 29100 kgf 31770 kgf

(SAE) 64,150 lbf 70,040 lb

Arm crowd force 222 kN 194 kN 170 kN 222 kN 260 kN

(SAE) 22600 kgf 19800 kgf 17300 kgf 22600 kgf 26500 kgf

Arm crowd force 238 kN 209 kN 182 kN 238 kN 280 kN at power max 24300 kgf 21300 kgf 18600 kgf 24300 kgf 28500 kgf

(SAE) 53,570 lb 46,960 lb 41,010 lb 53,570 lb 62,830 lb

Bucket digging force 294 kN 336 kN

(ISO) 30000 kgf 34300 kgf

Bucket digging force 317 kN 362 kN at power max. 32300 kgf 36900 kgf

(ISO) 71,210 lb 81,350 lb

Arm crowd force 228 kN 202 kN 176 kN 228 kN 272 kN

(ISO) 23300 kgf 20600 kgf 17900 kgf 23300 kgf 27700 kgf

Arm crowd force 246 kN 218 kN 189 kN 246 kN 293 kN at power max 25100 kgf 22200 kgf 19300 kgf 25100 kgf 29900 kgf

(ISO) 55,340 lb 48,940 lb 42,550 lb 55,340 lb 65,920 lb

59,300 lb 65,040 lb

49,820 lb 43,650 lb 38,140 lb 49,820 lb 58,420 lb

66,140 lb 75,620 lb

51,370 lb 45,410 lb 39,460 lb 51,370 lb 61,070 lb

G,R

J,K

C,L,M

Unit: mm ft in

1110

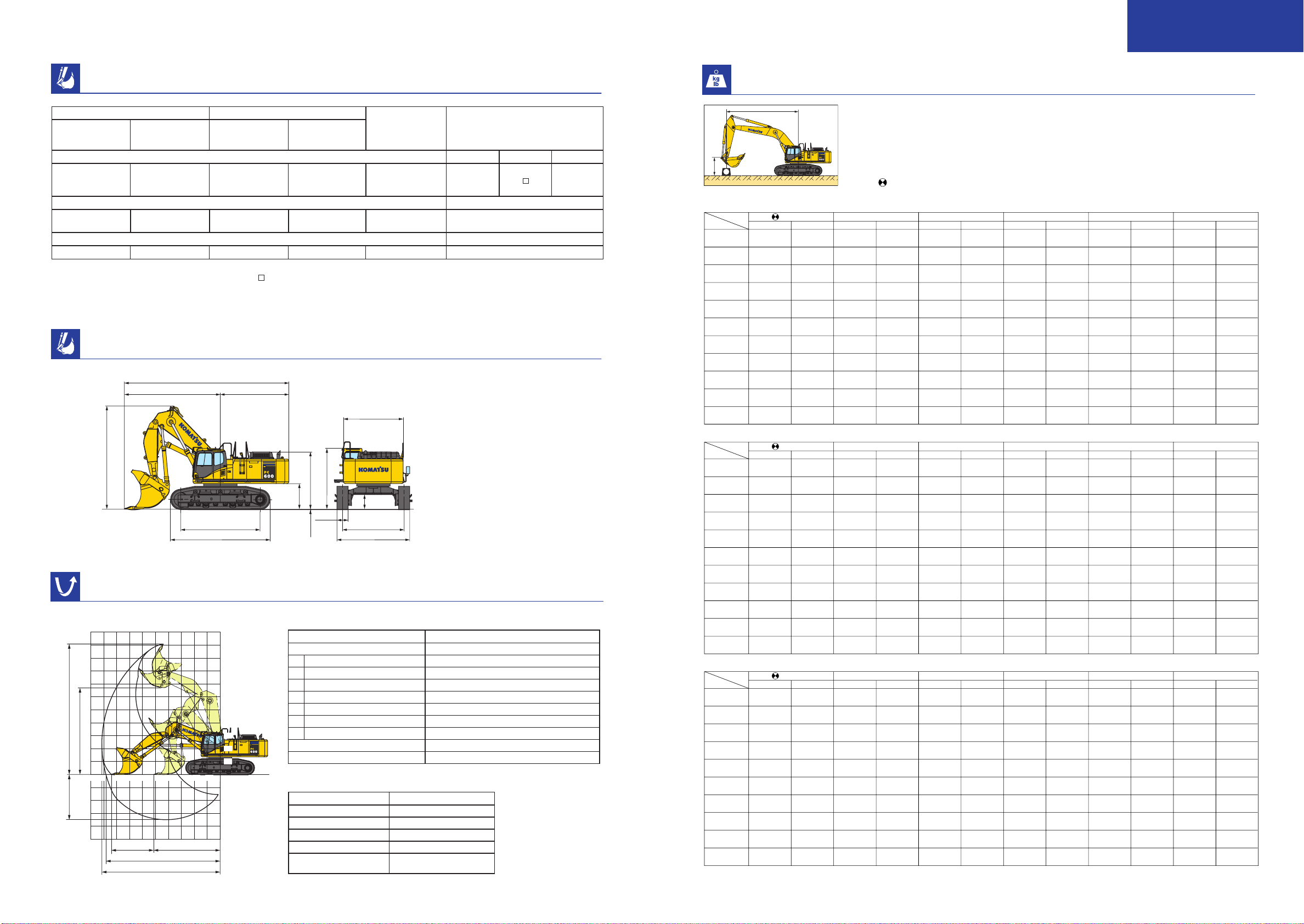

Page 7

PC600-7

HYDRAULIC EXCAVATOR

BACKHOE BUCKET AND ARM COMBINATION

BUCKET CAPACITY (HEAPED) WIDTH

With Side Without Side WEIGHT

SAE, PCSA CECE shrouds, Side cutters shrouds, Side cutters (with side cutters) ARM LENGTH

3 yd3

mm in mm in kg lb m ft in

use with 7.66m 25'2" boom 3.5 11'6" 4.3 14'1" 5.2 17'1"

2.0 2.62 1.8 2.35 1430 56.3" 1250 49.2" 2200 4,850 

2.3 3.01 2.1 2.75 1580 62.2" 1400 55.1" 2382 5,250  —

2.7 3.53 2.4 3.14 1780 70.1" 1600 63.0" 2505 5,220  ——

use with 7.3m 23'11" HD boom 3.5 11'6" HD arm

2.8 3.66 2.5 3.27 1870 73.6" 1870 73.6" 2981 6,570 

3.1 4.05 2.8 3.66 2000 78.7" 2000 78.6" 3100 6,830 

use with 6.6m 21'8" SE boom 2.9 9'6" SE arm

These charts are based on over-side stability with fully loaded bucket at maximum reach.  : General purpose use, density up to 1.8 t/m

3,000 lb/yd3: General purpose use, density up to 1.5 t/m32,500 lb/yd

— : Not useable



: Bucket lip width

LOADING SHOVEL DIMENSIONS

8815 28'11"

5140 16'10"

3675 12'1"

R=3800 12'6"

5540 18'2"

4250 13'11"(4600 15'1")

5370 17'7"(5720 18'9")

LOADING SHOVEL WORKING RANGE AND BUCKET SELECTION

1 2 3 4 5 6 7 8 9 10

E D



: Installed to LC crawler



3195 10'6"

3075 10'1"

3295 10'10"

1370 4'6"

790

2'7"

600

23.6"

46 1.8"

3300 10'10" 3900 12'10"

*3190 10'6"

*When retracted

Working Range

Type of bucket Bottom dump

Capacity–heaped 4.0 m

A Max. cutting height 10090 mm 33'1"

B Max. dumping height 6705 mm 22'0"

C Max. digging depth 3495 mm 11'6"

D Max. digging reach 9190 mm 30'2"

E Max. digging reach at ground level 8850 mm 29'0"

F Level crowding distance 3275 mm 10'9"

G Min. crowd distance 5135 mm 16'10"

Bucket digging force 386 kN 39400 kg 86,860 lb

Arm crowd force 338 kN 34500 kg 76,660 lb

5.2 yd

Bucket Selection

Type of bucket Bottom dump

Capacity–heaped 4.0 m35.2 yd

Width 2090 mm 82.3"

Weight 5700 kg 12,570 lb

No. of bucket teeth 6

Recommended uses

General-purpose

digging and loading

LIFTING CAPACITY

PC600-7

A: Reach from swing center B: Bucket hook height C: Lifting capacity

Cf: Rating over front

Cs: Rating over side

: Rating at maximum reach

Boom : 7.66m 25'2", Arm : 3.5m 11'6", Bucket : 2.7m3 3.53cu.yd, Shoes : 600mm 23.6" triple, Heavy-lifting: "OFF" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCfCs

9.1m *8000 *8000

30' *17,600 *17,600

7.6m *7800 *7800 *9250 9050

25' *17,200 *17,200 *20,400 19,900

6.1m *7900 7250 *10150 8950 *11450 *11450

20' *17,400 16,000 *22,400 19,700 *25,300 *25,300

4.6m *8300 6450 *10800 8650 *12700 12100 *15950 *15950 *22450 *22450

15' *18,300 14,200 *23,800 19,000 *28,000 26,600 *35,100 *35,100 *49,500 *49,500

3.0m 8150 6050 11000 8300 *14000 11400 *18200 16350

10' 18,000 13,300 24,200 18,300 *30,800 25,100 *40,100 36,100

1.5m 8000 5900 10650 7950 14400 10800 *19650 15350

5' 17,700 13,000 23,400 17,500 31,800 23,800 *43,300 33,800

0m 8200 6050 10350 7700 13500 9950 *20100 14800 *14500 *14500

0' 18,100 13,300 22,900 17,000 29,800 21,900 *44,300 32,700 *32,000 *32,000

-1.5m 8850 6550 10250 7600 13250 9700 *19550 14650 *22400 *22400 *11950 *11950

-5' 19,500 14,400 22,600 16,700 29,200 21,400 *43,200 32,300 *49,400 *49,400 *26,400 *26,400

-3.0m 10150 7550 10350 7650 13500 9950 *18100 14800 *23150 *23150 *20950 *20950

-10' 22,400 16,600 22,800 16,900 29,800 22,000 *39,900 32,600 *51,000 *51,000 *46,200 *46,200

-4.6m *10400 9550 *11750 10550 *15400 15200 *19450 *19450 *23850 *23850

-15' *22,900 21,000 *25,900 23,300 *34,000 33,500 *42,900 *42,900 *52,600 *52,600

-6.1m *9250 *9250 *10400 *10400 *13550 *13550

-20' *20,500 *20,500 *22,900 *22,900 *29,800 *29,800

Boom : 7.66m 25'2", Arm : 3.5m 11'6", Bucket : 2.7m3 3.53cu.yd, Shoes : 600mm 23.6" triple, Heavy-lifting: "ON" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCfCs

9.1m *8850 *8850

30' *19,500 *19,500

7.6m *8600 *8600 *10200 9050

25' *19,000 *19,000 *22,500 19,900

6.1m *8750 7250 *11350 8950 *12750 12700

20' *19,300 16,000 *25,100 19,700 *28,100 28,000

4.6m 8650 6450 11350 8650 *14150 12100 *17650 *17650 *24750 *24750

15' 19,100 14,200 25,000 19,000 *31,200 26,600 *38,900 *38,900 *54,600 *54,600

3.0m 8150 6050 11000 8300 15050 11400 *20150 16350

10' 18,000 13,300 24,200 18,300 33,200 25,100 *44,500 36,100

1.5m 8000 5900 10650 7950 14400 10800 20750 15350

5' 17,700 13,000 23,400 17,500 31,800 23,800 45,800 33,800

0m 8200 6050 10350 7700 13500 9950 20200 14800 *15900 *15900

0' 18,100 13,300 22,900 17,000 29,800 21,900 44,500 32,700 *35,000 *35,000

-1.5m 8850 6550 10250 7600 13250 9700 20000 14650 *24350 24000 *13100 *13100

-5' 19,500 14,400 22,600 16,700 29,200 21,400 44,100 32,300 *53,700 52,900 *28,900 *28,900

-3.0m 10150 7550 10350 7650 13500 9950 20150 14800 *25750 24400 *22800 *22800

-10' 22,400 16,600 22,800 16,900 29,800 22,000 44,400 32,600 *56,800 53,800 *50,300 *50,300

-4.6m *11750 9550 *13250 10550 *17250 15200 *21750 *21750 *26700 *26700

' *25,900 21,000 *29,200 23,300 *38,000 33,500 *47,900 *47,900 *58,900 *58,900

-15

-6.1m *10550 *10550 *11800 *11800 *15300 *15300

-20' *23,300 *23,300 *26,000 *26,000 *33,700 *33,700

Boom : 7.3m 23'11", Arm : 3.5m 11'6", Bucket : 2.8m

3.66cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "OFF" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCfCs

9.1m *7550 *7550 *8400 *8400

30' *16,600 *16,600 *18,500 *18,500

7.6m *7300 *7300 *10500 *10500

25' *16,200 *16,200 *23,100 *23,100

6.1m *7450 *7450 *10100 8650 *11300 *11300

20' *16,400 *16,400 *22,300 19,100 *24,900 *24,900

4.6m *7850 6800 *10700 8450 *12500 12050 *15550 *15550 *20500 *20500

15' *17,300 15,000 *23,600 18,600 *27,600 26,500 *34,800 *34,300 *45,200 *45,200

3.0m *8550 6300 10850 8150 *13800 11400 *17200 15900 *23350 *23350

10' *18,800 18,900 24,000 17,900 *30,400 25,100 *38,000 35,100 *51,500 *51,500

1.5m 8450 6200 10550 7850 14500 10850 *19450 15600 *15700 *15700

5' 18,800 13,600 23,300 17,300 32,000 23,900 *42,900 34,400 *34,600 *34,600

0m 8700 6350 10300 7600 14100 10450 *20000 15050 *19500 *19500

0' 19,200 14,000 22,700 16,800 31,000 23,000 *44,100 33,200 *43,000 *43,000

-1.5m 9450 6950 10200 7500 13900 10250 *19500 14850 *25950 24400 *14600 *14600

-5' 20,900 15,300 22,500 16,600 30,600 22,600 *43,000 32,700 *57,200 53,800 *32,200 *32,200

-3.0m *10900 8150 *13750 10300 *17900 14950 *23300 *23300 *23850 *23850

-10' *24,000 18,000 *30,300 22,700 *39,500 38,000 *51,300 *51,800 *52,500 *52,500

-4.6m *10650 *10650 *14750 *14750 *19050 *19050 *23900 *23900

-15' *23,500 *23,500 *32,500 *32,500 *42,000 *42,000 *52,700 *52,700

*Load is limited by hydraulic capacity rather than tipping.

Ratings are based on SAE Standard NO. J1097. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load.

Page 8

LIFTING CAPACITYLIFTING CAPACITY

PC600-7

A: Reach from swing center B: Bucket hook height

C: Lifting capacity

Cf: Rating over front

Cs: Rating over side

: Rating at maximum reach

Boom : 7.3m 23'11", Arm : 3.5m 11'6", Bucket : 2.8m3 3.66cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "ON" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCf Cs

9.1m *8400 *8400 *9300 *9300

30' *18,500 *18,500 *20,500 *20,500

7.6m *8150 *8150 *11700 *11700

25' *18,000 *18,000 *25,800 *25,800

6.1m *8300 7700 *11350 8650 *12600 12600

20' *18,300 17,000 *25,000 19,100 *27,800 27,700

4.6m *8700 6800 11200 8450 *13950 12050 *17250 *17250 *22700 *22700

15' *19,200 15,000 24,700 18,600 *80,800 26,500 *38,000 *38,000 *50,000 *50,000

3.0m 8600 6300 10850 8150 15100 11400 *19150 15900 *25450 *25450

10' 18,900 13,900 24,000 17,900 83,300 25,100 *42,300 35,100 *56,100 *56,100

1.5m 8450 6200 10550 7850 14500 10850 21100 15600 *17200 *17200

5' 18,600 13,600 23,300 17,300 32,000 23,900 46,600 34,400 *37,900 37,900

0m 8700 6350 10300 7600 14100 10450 20500 15050 *21300 *21300

0' 19,200 14,000 22,700 16,800 31,000 23,000 45,200 33,200 *46,900 *46,900

-1.5m 9450 6950 10200 7500 13900 10250 20250 14850 *28800 24400 *16000 *16000

-5' 20,900 15,300 22,500 16,800 30,600 22,600 44,700 32,700 *63,400 53,800 *35,200 *35,200

-3.0m 11050 8150 13950 10300 *19950 14950 *25900 24800 *25950 *25950

-10' 24,400 18,000 30,700 22,700 *44,000 33,000 *57,100 54,600 *57,200 *57,200

-4.6m *12050 10700 *16550 15350 *21300 *21300 *26750 *26750

-15' *26,600 23,600 *36,500 33,900 *47,000 *47,000 *59,000 *59,000

Boom : 6.6m 21'8", Arm : 2.9m 9'6", Bucket : 3.5m3 4.58cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "OFF" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCf Cs

9.1m *8750 *8750

30' *19,300 *19,300

7.6m *8300 *8300 *11200 *11200

25' *18,300 *18,300 *24,700 *24,700

6.1m *8300 *8300 *11700 *11700

20' *18,300 *18,300 *25,800 *25,800

4.6m *8600 7600 *11150 8400 *12750 12150 *15350 *15350

15' *19,000 16,800 *24,600 18,500 *28,100 26,800 *33,900 *33,900

3.0m 9300 7050 10850 8150 *13950 11550 *17650 17100 *24700 *24700

10' 20,500 15,600 24,000 17,900 *30,800 25,500 *38,900 37,700 *54,500 *54,500

1.5m 9350 6900 10550 7850 14650 10950 *18750 15250 *27600 25700

5' 20,600 15,200 23,300 17,300 32,300 24,200 *41,400 33,600 *60,900 56,600

0m 9650 7100 10350 7650 14150 10550 *19000 13900 *28100 24650

0' 21,300 15,700 22,800 16,800 31,200 23,200 *41,900 30,600 *61,900 54,400

-1.5m 10600 7800 13950 10350 *19700 14950 *26750 24450 *19100 *19100

-5' 23,400 17,300 30,800 22,800 *43,500 33,000 *59,000 53,900 *42,100 *42,100

-3.0m 11650 9350 *13200 10400 *16800 13850 *23750 *23750 *29900 *29900

-10' 25,700 20,700 *29,200 23,000 *37,100 30,600 *52,300 *52,300 *65,900 *65,900

-4.6m *11100 *11100 *13600 *13600 *18450 *18450 *23950 *23950

-15' *24,400 *24,400 *30,000 *30,000 *40,700 *40,700 *52,800 *52,

Boom : 6.6m 21'8", Arm : 2.9m 9'6", Bucket : 3.5m

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCf Cs

9.1m *9700 *9700

30' *21,400 *21,400

7.6m *9200 *9200 *12500 *12500

25' *20,300 *20,300 *27,500 *27,500

6.1m *9200 8750 *13050 12600

20' *20,200 19,300 *28,800 27,800

4.6m *9550 7600 11150 8400 *14200 12150 *17000 *17000

15' *21,000 16,800 24,600 18,500 *31,300 26,800 *37,500 *37,500

3.0m 9500 7050 10850 8150 15250 11550 *19550 17100 *27250 *27250

10' 21,000 15,600 24,000 17,900 33,600 25,500 *43,100 37,700 *60,100 *60,100

1.5m 9350 6900 10550 7850 14650 10950 20700 15250 *30500 25700

5' 20,600 15,200 23,300 17,300 32,300 24,200 45,600 33,600 *67,200 56,600

0m 9650 7100 10350 7650 14150 10550 19200 13900 *31100 24650

0' 21,300 15,700 22,800 16,800 31,200 23,200 42,400 30,600 *68,500 54,400

-1.5m 10600 7800 13950 10350 20350 14950 *29650 24450 *20850 *20850

-5' 23,400 17,300 30,800 22,800 44,900 33,000 *65,300 53,900 *46,000 *46,000

-3.0m 12600 9350 14050 10400 *18850 13850 *26400 24800 *32450 *32450

-10' 27,800 20,700 31,000 23,000 *41,600 30,600 *58,200 54,600 *71,600 *71,600

-4.6m *12500 *12500 *15300 *15300 *20650 *20650 *26800 *26800

-15' *27,600 *27,600 *33,800 *33,800 *45,500 *45,500 *59,100 *59,100

*Load is limited by hydraulic capacity rather than tipping.

Ratings are based on SAE Standard NO. J1097. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load.

4.58cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "ON" unit: kg lb

800

PC600LC-7

A: Reach from swing center B: Bucket hook height C: Lifting capacity

Cf: Rating over front

Cs: Rating over side

: Rating at maximum reach

Boom : 7.66m 25'2", Arm : 3.5m 11'6", Bucket : 2.7m3 3.53cu.yd, Shoes : 600mm 23.6", Heavylifting: "OFF" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCf Cs

9.1m *8000 *8000

30' *17,600 *17,600

7.6m *7800 *7800 *9250 9250

25' *17,200 *17,200 *20,400 20,400

6.1m *7900 7400 *10150 9100 *11450 *11450

20' *17,400 16,400 *22,400 20,100 *25,300 *25,300

4.6m *8300 6600 *10800 8850 *12700 12300 *15950 *15950 *22450 *22450

15' *18,300 14,600 *23,800 19,500 *28,000 27,200 *35,100 *35,100 *49,500 *49,500

3.0m *8900 6200 *11500 8450 *14000 11650 *18200 16650

10' *19,700 13,600 *25,400 18,700 *30,800 25,600 *40,100 36,800

1.5m 9250 6050 *12100 8150 *14950 11050 *19650 15650

5' 20,400 13,300 *26,600 17,900 *33,000 24,300 *43,300 34,600

0m 9500 6200 12000 7900 *15000 10200 *20100 15150 *14500 *14500

0' 21,000 13,700 26,400 17,400 *33,100 22,400 *44,300 33,400 *32,000 *32,000

-1.5m 10250 6700 11850 7800 *14750 9950 *19550 15000 *22400 *22400 *11950 *11950

-5' 22,600 14,800 26,200 17,200 *32,500 21,900 *43,200 33,000 *49,400 *49,400 *26,400 *26,400

-3.0m *10600 7700 *10850 7850 *13850 10200 *18100 15100 *23150 *23150 *20950 *20950

-10' *23,300 17,000 *23,900 17,300 *30,600 22,500 *39,900 33,300 *51,000 *51,000 *46,200 *46,200

-4.6m *10400 9750 *11750 10800 *15400 *15400 *19450 *19450 *23850 *23850

-15' *22,900 21,500 *25,900 23,800 *34,000 *34,000 *42,900 *42,900 *52,600 *52,600

-6.1m *9250 *9250 *10400 *10400 *13550 *13550

-20' *20,500 *20,500 *22,900 *22,900 *29,800 *29,800

Boom : 7.66m 25'2", Arm : 3.5m 11'6", Bucket : 2.7m

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCs CfCsCfCsCf Cs

9.1m *8850 *8850

30' *19,500 *19,500

7.6m *8600 *8600 *10200 9250

25' *19,000 *19,000 *22,500 20,400

6.1m *8750 7400 *11350 9100 *12750 *12750

20' *19,300 16,400 *25,100 20,100 *28,100 *28,100

4.6m *9150 6600 *12100 8850 *14150 12300 *17650 *17650 *24750 *24750

15' *20,200 14,600 *26,600 19,500 *31,200 27,200 *38,900 *38,900 *54,600 *54,800

3.0m 9400 6200 12600 8450 *15550 11650 *20150 16650

10' 20,700 13,600 27,800 18,700 *34,800 25,600 *44,500 36,800

1.5m 9250 6050 12250 8150 16600 11050 *21800 15650

5' 20,400 13,300 27,000 17,900 36,700 24,300 *48,100 34,600

0m 9500 6200 12000 7900 15700 10200 *22300 15150 *15900 *15900

0' 21,000 13,700 26,400 17,400 34,600 22,400 *49,200 33,400 *35,000 *35,000

-1.5m 10250 6700 11850 7800 15400 9950 *21750 15000 *24350 *24350 *13100 *13100

-5' 22,600 14,800 26,200 17,200 34,000 21,900 *48,000 38,000 *53,700 *53,700 *28,900 *28,900

-3.0m 11750 7700 11950 7850 *15550 10200 *20200 15100 *25750 24900 *22800 *22800

-10' 25,900 17,000 26,400 17,300 *34,300 22,500 *44,500 33,300 *56,800 54,900 *50,300 *50,300

-4.6m *11750 9750 *13250 10800 *17250 15500 *21750 *21750 *26700 *26700

-15' *25,900 21,500 *29,200 23,800 *38,000 34,200 *47,900 *47,900 *5

-6.1m *10550 *10550 *11800 *11800 *15300 *15300

-20' *23,300 *23,300 *26,000 *26,000 *33,700 *33,700

Boom : 7.3m 23'11", Arm : 3.5m 11'6", Bucket : 2.8m

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCs CfCsCfCsCf Cs

9.1m *7550 *7550 *8400 *8400

30' *16,600 *16,600 *18,500 *18,500

7.6m *7300 *7300 *10500 *10500

25' *16,200 *16,200 *23,100 *23,100

6.1m *7450 *7450 *10100 8850 *11300 *11300

20' *16,400 *16,400 *22,300 19,500 *24,900 *24,900

4.6m *7850 6950 *10700 8650 *12500 12250 *15550 *15550 *20500 *20500

15' *17,300 15,300 *23,600 19,000 *27,600 27,000 *34,300 *34,300 *45,200 *45,200

3.0m *8550 6450 *11350 8300 *13800 11600 *17200 16200 *23350 *23350

10' *18,800 14,300 *25,100 18,300 *30,400 25,600 *38,000 35,700 *51,500 *51,500

1.5m *9600 6350 *11900 8000 *14800 11050 *19450 15900 *15700 *15700

5' *21,200 14,000 *26,200 17,700 *32,600 24,400 *42,900 35,100 *34,600 *34,600

0m 10100 6500 11900 7800 *15250 10650 *20000 15350 *19500 *19500

0' 22,200 14,400 26,300 17,200 *33,600 23,500 *44,100 33,800 *48,000 *48,000

-1.5m *10750 7100 *11650 7700 *15000 10500 *19500 15150 *25950 24850 *14600 *14600

-5' *28,800 15,700 *25,700 17,000 *33,100 23,100 *43,000 33,400 *57,200 54,800 *32,200 *32,200

-3.0m *10900 8350 *13750 10550 *17900 15250 *23300 *23300 *23850 *23850

-10' *24,000 18,400 *30,300 23,200 *39,500 33,600 *51,300 *51,300 *52,500 *52,500

-4.6m *10650 *10650 *14750 *14750 *19050 *19050 *23900 *23900

-15' *23,500 *23,500 *32,500 *32,500 *42,000 *42,000 *52,700 *52,700

*Load is limited by hydraulic capacity rather than tipping.

Ratings are based on SAE Standard NO. J1097. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load.

3.53cu.yd, Shoes : 600mm 23.6", Heavylifting: "ON" unit: kg lb

8,900 *58,900

3.66cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "OFF" unit: kg lb

1514

Page 9

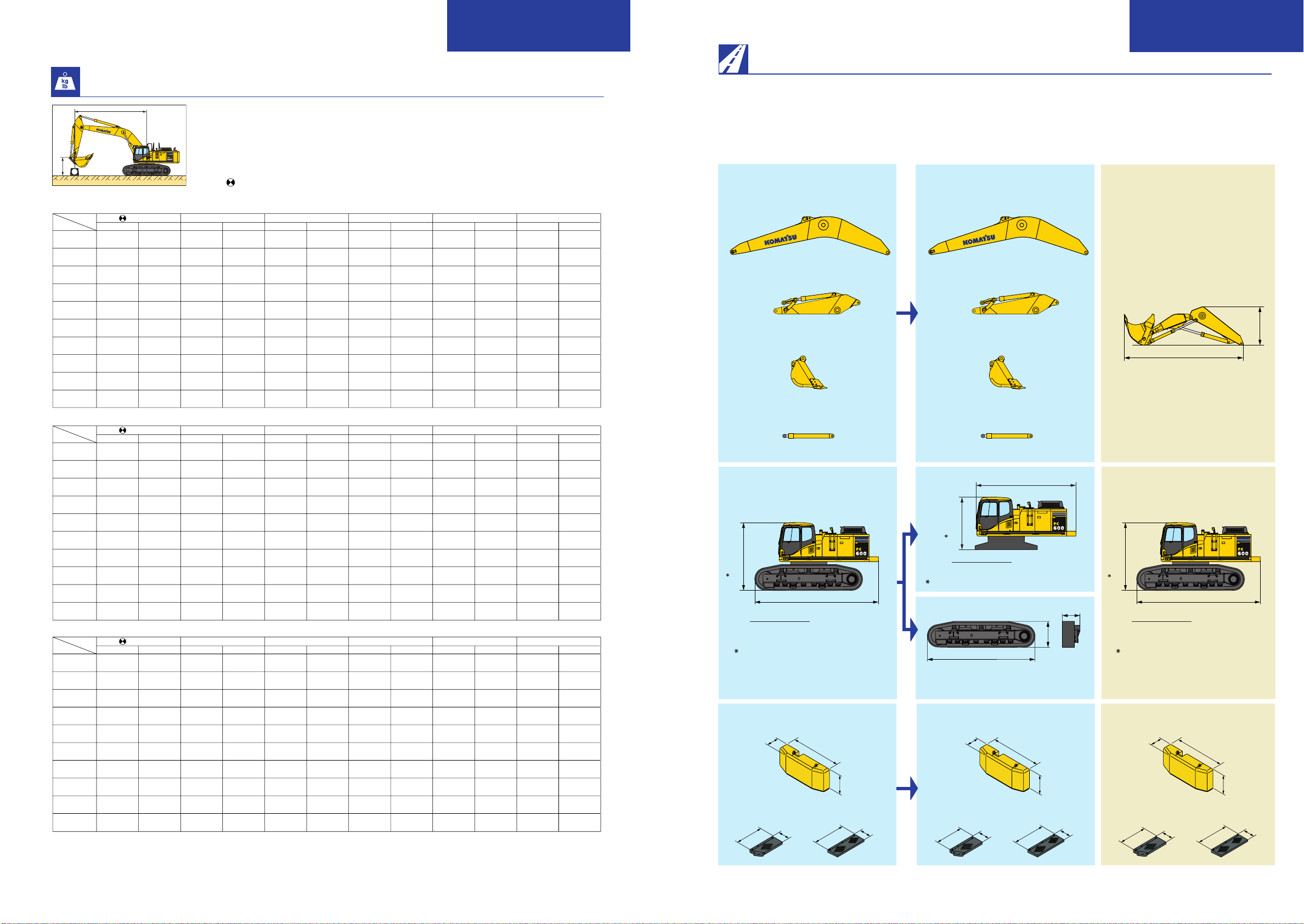

LIFTING CAPACITY

PC600LC-7

A: Reach from swing center B: Bucket hook height C: Lifting capacity

Cf: Rating over front

Cs: Rating over side

: Rating at maximum reach

PC600-7

HYDRAULIC EXCAVATOR

TRANSPORTATION GUIDE

Transportation specifications (length x height x width)

Backhoe

Specs shown include the following equipment: PC600-7 : Boom 7660 mm 25'2", Arm 3500 mm 11'6", Bucket 2.7 m33.53 yd3, Shoes 600 mm 23.6" triple grouser

3 Kits Transportation 4 Kits Transportation

Work equipment assembly (Backhoe) Weight : 12.4 t 13.7 U.S.ton

PC600-7

HYDRAULIC EXCAVATOR

Loading Shovel

Specs shown include the following equipment: PC600-7 : Boom 4000 mm 13'1", Arm 3000 mm 9'10", Bucket 4.0 m35.2 yd3, Shoes 600 mm 23.6" double grouser

3 Kits Transportation

Boom : 7.3m 23'11", Arm : 3.5m 11'6", Bucket : 2.8m3 3.66cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "ON" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCf Cs

9.1m *8400 *8400 *9300 *9300

30' *18,500 *18,500 *20,500 *20,500

7.6m *8150 *8150 *11700 *11700

25' *18,000 *18,000 *25,800 *25,800

6.1m *8300 7850 *11350 8850 *12600 *12600

20' *18,300 17,300 *25,000 19,500 *27,800 *27,800

4.6m *8700 6950 *12000 8650 *13950 12250 *17250 *17250 *22700 *22700

15' *19,200 15,300 *26,400 19,000 *30,800 27,000 *38,000 *38,000 *50,000 *50,000

3.0m *9450 6450 12500 8300 *15350 11600 *19150 16200 *25450 *25450

10' *20,800 14,300 27,500 18,300 *33,900 25,600 *42,300 35,700 *56,100 *56,100

1.5m 9750 6350 12150 8000 *16500 11050 *21600 15900 *17200 *17200

5' 21,600 14,000 26,800 17,700 *36,300 24,400 *47,600 35,100 *37,900 *37,900

0m 10100 6500 11900 7800 16250 10650 *22200 15350 *21300 *21300

0' 22,200 14,400 26,300 17,200 35,900 23,500 *49,000 33,800 *46,900 *46,900

-1.5m 10950 7100 11850 7700 16100 10500 *21700 15150 *28800 24850 *16000 *16000

-5' 24,200 15,700 26,100 17,000 35,400 23,100 *47,800 33,400 *68,400 54,800 *35,200 *35,200

-3.0m *12300 8350 *15400 10550 *19950 15250 *25900 25250 *25950 *25950

-10' *27,100 18,400 *33,900 23,200 *44,000 33,600 *57,100 55,700 *57,200 *57,200

-4.6m *12050 10950 *16550 15650 *21300 *21300 *26750 *26750

-15' *26,600 24,100 *36,500 34,600 *47,000 *47,000 *59,000 *59,000

Boom : 6.6m 21'8", Arm : 2.9m 9'6", Bucket : 3.5m3 4.58cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "OFF" unit: kg lb

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCf Cs

9.1m *8750 *8750

30' *19,300 *19,300

7.6m *8300 *8300 *11200 *11200

25' *18,300 *18,300 *24,700 *24,700

6.1m *8300 *8300 *11700 *11700

20' *18,300 *18,300 *25,800 *25,800

4.6m *8600 7800 *11150 8600 *12750 12400 *15350 *15350

15' *19,000 17,200 *24,600 18,900 *28,100 27,300 *33,900 *33,900

3.0m *9300 7200 *11700 8350 *13950 11800 *17650 17400 *24700 *24700

10' *20,500 15,900 *25,800 18,400 *30,800 26,000 *38,900 38,400 *54,500 *54,500

1.5m *10400 7050 *12150 8050 *14950 11200 *18750 15550 *27600 26150

5' *22,900 15,600 *26,700 17,700 *32,900 24,700 *41,400 34,300 *60,900 57,700

0m 11200 7300 11950 7800 *15400 10750 *19000 14200 *28100 25150

0' 24,600 16,100 26,400 17,300 *33,900 23,700 *41,900 31,300 *61,900 55,500

-1.5m *11650 8000 *15000 10550 *19700 15250 *26750 24950 *19100 *19100

-5' *25,700 17,700 *33,100 23,300 *43,500 33,700 *59,000 55,000 *42,100 *42,100

-3.0m *11650 9600 *13200 10650 *16800 14200 *23750 *23750 *29900 *29900

-10' *25,700 21,100 *29,200 23,500 *37,100 31,300 *52,300 *52,300 *65,900 *65,900

-4.6m *11100 *11100 *13600 *13600 *18450 *18450 *23950 *23950

-15' *24,400 *24,400 *30,000 *30,000 *40,700 *40,700 *52,800 *52,800

Boom : 6.6m 21'8"

A MAX 9.1m 30' 7.6m 25' 6.1m 20' 4.6m 15' 3.0m 10'

B CfCsCfCsCfCsCfCsCfCsCf Cs

9.1m *9700 *9700

30' *21,400 *21,400

7.6m *9200 *9200 *12500 *12500

25' *20,300 *20,300 *27,500 *27,500

6.1m *9200 8900 *13050 12850

20' *20,200 19,700 *28,800 28,300

4.6m *9550 7800 *12500 8600 *14200 12400 *17000 *17000

15' *21,000 17,200 *27,500 18,900 *31,300 27,300 *37,500 *37,500

3.0m *10250 7200 12500 8350 *15550 11800 *19550 17400 *27250 *27250

10' *22,600 15,900 27,600 18,400 *34,200 26,000 *43,100 38,400 *60,100 *60,100

1.5m 10800 7050 12200 8050 *16650 11200 *20900 15550 *30500 26150

5' 23,800 15,600 26,900 17,700 *36,700 24,700 *46,000 34,300 *67,200 57,700

0m 11200 7300 11950 7800 16400 10750 *21200 14200 *31100 25150

0' 24,600 16,100 26,400 17,300 36,100 23,700 *46,800 31,300 *68,500 55,500

-1.5m 12250 8000 16150 10550 *21900 15250 *29650 24950 *20850 *20850

-5' 27,100 17,700 35,600 23,300 *48,300 33,700 *65,300 55,000 *48,000 *46,000

-3.0m *13150 9600 *14850 10650 *18850 14200 *26400 25250 *32450 *32450

-10' *28,900 21,100 *32,700 23,500 *41,600 31,300 *58,200 55,700 *71,600 *71,600

-4.6m *12500 *12500 *15300 *15300 *20650 *20650 *26800 *26800

-15' *27,600 *27,600 *33,800 *33,800 *45,500 *45,500 *59,100 *59,100

*Load is limited by hydraulic capacity rather than tipping.

Ratings are based on SAE Standard NO. J1097. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load.

, Arm : 2.9m 9'6", Bucket : 3.5m3 4.58cu.yd, Shoes : 600mm 23.6", Heavy-lifting: "ON" unit: kg lb

Boom

4.8t : 7920 x 2040 x 1190

5.3U.S.ton : 26'0" x 6'8" x 3'11"

Arm

3.2t : 4870 x 1210 x 480

3.5U.S.ton : 16'0" x 4'0" x 1'7"

Bucket

2.5t : 2040 x 1870 x 1790

2.8U.S.ton : 6'8" x 6'2" x 5'10"

Boom cylinder & Arm cylinder

Total 1.8 t 2.0 U.S.ton

Base machine

)

11'3"

3330 10'11"

( 3440

PC600-7

6170 20'3"

PC600LC-7

Width : 3195 10'6" Weight : PC600-7 33.2t 36.6U.S.ton PC600LC-7 34.2t 37.7U.S.ton

KOMTRAX (optional) with an antenna when mounted KOMTRAX (optional) with an antenna when mounted

Others

Weight : 11.0t 12.1U.S.ton

680 2'3"

Weight : 10.75t 11.8U.S.ton

500 1'8"

6'3"

1910

6340 20'10"

3195

10'6"

2310

7'7"

1330 4'7"

500 1'8"

Boom

4.8t : 7920 x 2040 x 1190

5.3U.S.ton : 26'0" x 6'8" x 3'11"

Arm

3.2t : 4870 x 1210 x 480

3.5U.S.ton : 16'0" x 4'0" x 1'7"

Bucket

2.5t : 2040 x 1870 x 1790

2.8U.S.ton : 6'8" x 6'2" x 5'10"

Boom cylinder & Arm cylinder

Total 1.8 t 2.0 U.S.ton

Upper structure

)

8'7"

2500 8'2"

( 2610

Width : 3195 10'6" Weight :16.8t 18.5U.S.ton

KOMTRAX (optional) with an antenna when mounted

Undercarridge

PC600-7 5340 17'6" PC600LC-7 5690 18'8"

Weight : PC600-7 16.4t [8.2t x 2] 18.1U.S.ton [8.05U.S.ton x 2] : PC600LC-7 17.4t [8.7t x 2] 19.2U.S.ton [9.6U.S.ton x 2]

Others

Weight : 11.0t 12.1U.S.ton

680 2'3"

Weight : 10.75t 11.8U.S.ton

6'3"

1910

500 1'8"

4970 16'4"

3195

10'6"

2310

7'7"

875 2'11"

1260 4'2"

1330 4'7"

500 1'8"

Work equipment assembly (Loading shovel)

Width : 2090 6'10" Weight : 16.2t 17.9U.S.ton

8580 28'2"

Base machine

)

11'3"

3330 10'11"

( 3440

PC600-7

6180 20'3"

PC600LC-7

Width : 3195 10'6" Weight : PC600-7 33.9t 37.4U.S.ton PC600LC-7 35.0t 38.6U.S.ton

Others

Weight : 11.0t 12.1U.S.ton

680 2'3"

Weight : 10.75t 11.8U.S.ton

6'3"

1910

500 1'8"

6360 20'10"

3195

10'6"

7'7"

2310

2830 9'3"

1330 4'7"

500

1'8"
