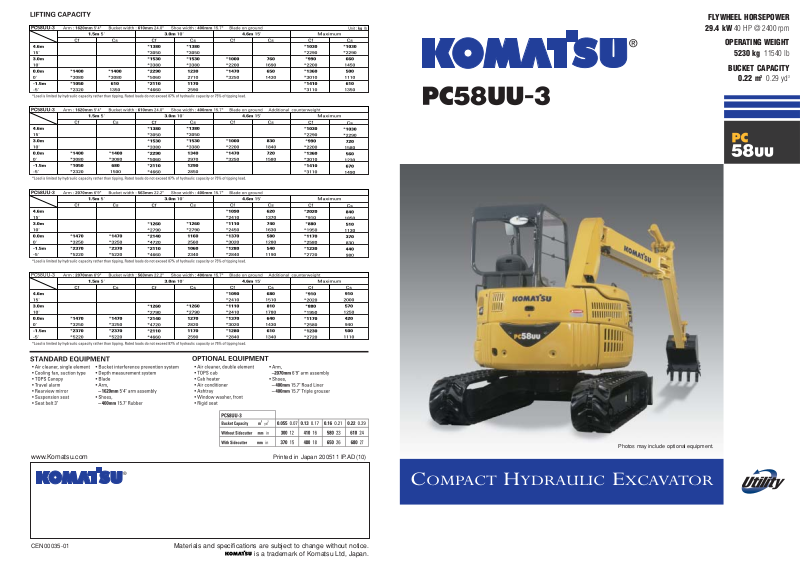

COMPACT HYDRAULIC EXCAVATOR
FLYWHEEL HORSEPOWER
29.4 kW 40 HP @ 2400 rpm
OPERATING WEIGHT
5230 kg 11540 lb
BUCKET CAPACITY
0.22 m
3
0.29 yd
3
Photos may include optional equipment.
www.Komatsu.com Printed in Japan 200511 IP.AD(10)
CEN00035-01
Materials and specifications are subject to change without notice.
is a trademark of Komatsu Ltd, Japan.
Page 2
3
New pressure-compensated CLSS
hydraulic system HydrauMind
Even when 2 or more actuators are
operated simultaneously, the PC58UU-3's
pressure-compensated CLSS system
ensures that each actuator works
according to its control input without
affecting the size of the load. This gives
the operator precise control at all times.
Engine speed sensing=Optimum Power
Power utilized by main pump is adjusted automatically in accordance with the engine speed.
That means this computerized system keeps
engine speed even under high load condition.
Back fill blade
The PC58UU features a standard
back fill blade that can quickly
and conveniently fill trenches and
clear up jobsites.
Higher
lifting capacity
Powerful digging force
Digital Depth Display
Ditching, trenching, or digging is even more efficient
with this automatic depth measurement system.
Informing the operator of dig depth from ground level
(absolute depth) and the depth from any pre-set point
(relative depth) enables work to go much more
smoothly and efficiently. This lessens the need for the
operator to stop operation or leave the cab after each
adjustment, which also increases productivity.
Height Limiter
An adjustable boom height limiter can be set prior to
operation. When the boom reaches the pre-set height
limit, an alarm will sound and the boom automatically
stops. This function can help increase productivity by
letting operators focus more on digging in tight or
confined spaces.
HEIGHT
2
Tight implement swing and
tail swing for superb
operability in confined areas
Road & Bridge Work
Road Construction
Bucket interference prevention system
The bucket automatically stops itself from contact with
the cab/canopy. During operation, an alarm sounds and
the equipment is stopped if
the bucket gets too close to
contact. This feature helps
maintain operator confidence,
which can increase
productivity.
P
RODUCTIVITY
F
EATURES
PC58UU-3
COMPACT HYDRAULIC EXCAVATOR
PC58UU-3 C OMPACT H YDRAULIC E XCAVATOR
Page 3
Control Pattern change Valve (optional)
Whether you are
comfortable with ISO or
SAE control patterns, you
can easily and consciously
change from one to the
other.
The track frame is sloped so
that dirt will not be accumulate
and can be removed easily.
Larger opening reduces fuel
back splash.
Hydraulic hoses built in
Inclining track frame Large fuel filler port with strainer
Thin potentiometer adopted
and built in
One fuel system
inspection
window for fast
and easy
maintenance
5
Easy Daily Check
Air cleaner with easily
replaceable element
Aluminum oil cooler
and radiator are
corrosion resistant and
easy to clean
Battery inspection
window enables instant
check of liquid level
Large and accessible
toolbox
Control valve can be
easily inspected
Window washer tank is
easy to check and refill
Reliability
Greasing intervals
DT connector
Water-resistant DT
connectors are used for the
parts which water will be
splashed over.
Face seal
O-ring face seals having
high sealing performance
are used for the hydraulic
piping joints.
Waterproof seal
Waterproof seal
Waterproof seal
✔
✔
✔
✔
✔
✔
4

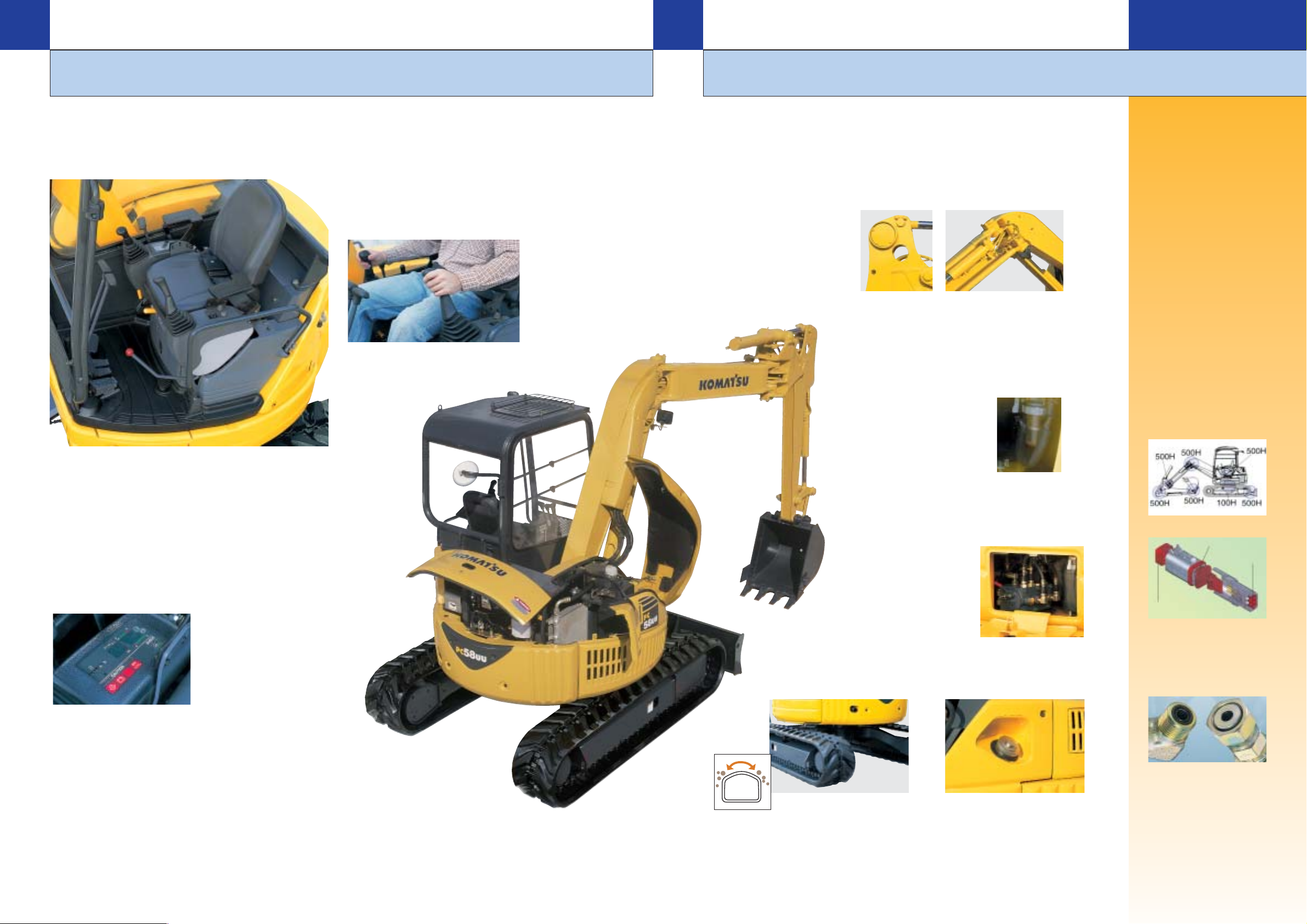

Reclining suspension seat and seatbelt
Easy-to-clean, durability and ability to recline
keeps operator comfortable.
The control lever uses a
fine-response PPC, to
translate even the most
subtle hand signals into
motion. Short lever throw
ensures comfortable
operation.
Engine-neutral-start function
Monitor panel
Spacious and comfortable operator area
Pressure Proportional Control lever
Wide-opening side hood
makes everyday
inspection simpler
Engine hood can be
opened and closed even
in confined areas
O
PERATOR
E
NVIRONMENT
PC58UU-3
COMPACT HYDRAULIC EXCAVATOR
PC58UU-3 C OMPACT H YDRAULIC E XCAVATOR
E
ASY
M
AINTENANCE
Page 4

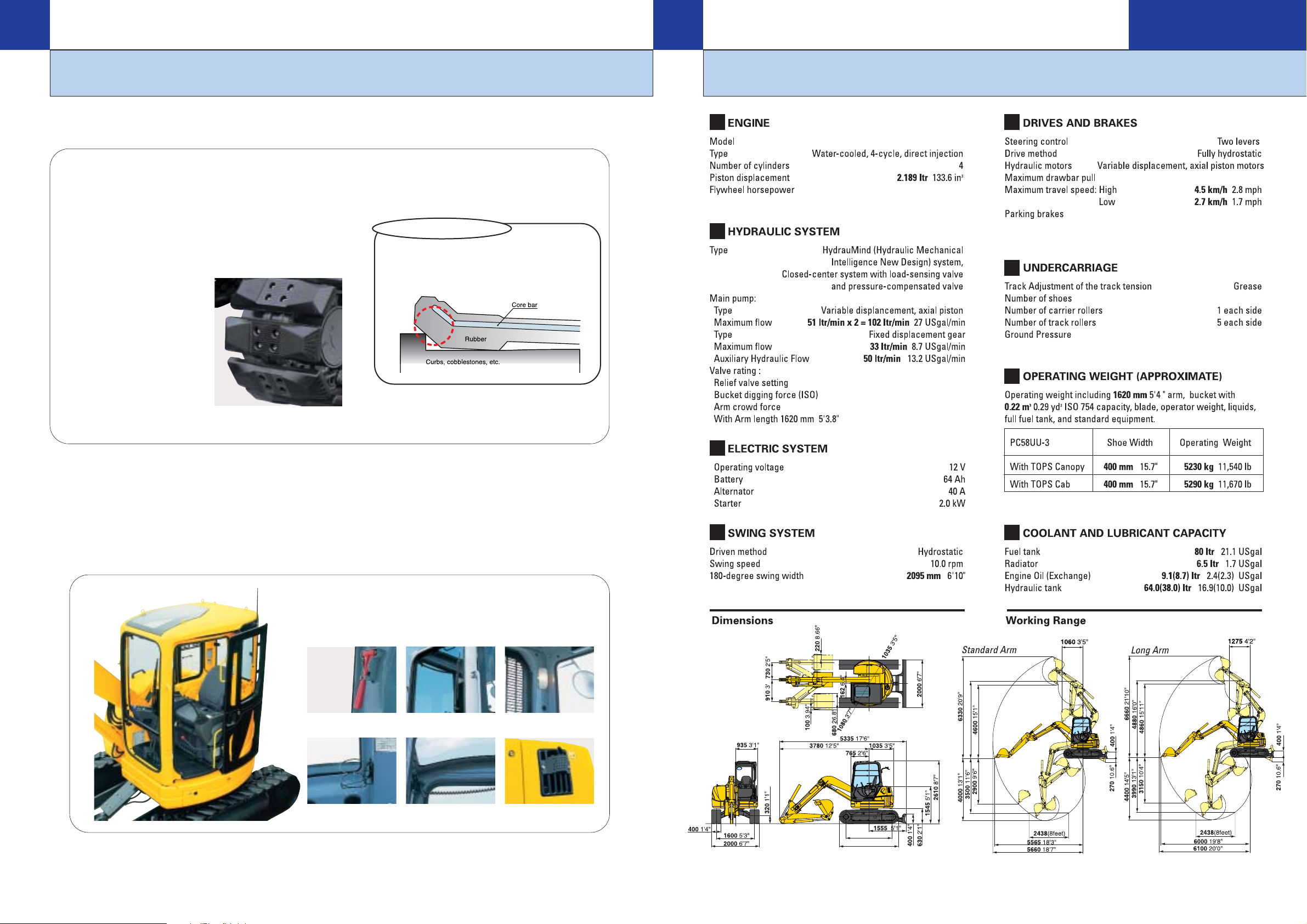

6
TOPS CAB
Upper-rail type sliding door
opens and closes smoothly even in
tight working conditions.
Hammer Window washer, front Room light
Cup holder Coiled cord Upward exhaust pipe
ROADLINER
Rubber thickness has been upgraded using
a new type of core bar, and this section that
is often sheared has been reinforced.
Reinforced type
Ideal performance has been achieved with combining the merits
of rubber and the strengths of steel in the new Road Liner shoes.
Road Liners can last up to twice as long as rubber tracks under
most normal operating conditions.
Similar to all rubber tracks, pavement is not easily damaged.
Replacement is fast and easy.
Wide-ranging cost reductions are
possible by replacing only the
damaged or worn-out shoes,
which differs from the need to
replace a full rubber or steel
track.
7
O
PTION
PC58UU-3
COMPACT HYDRAULIC EXCAVATOR
PC58UU-3 C OMPACT H YDRAULIC E XCAVATOR
S
PECIFICATIONS
Komatsu 4D88E-5
Net 29.4 kW 40 HP @ 2400 rpmISO 9249 / SAE J1349
26.0 MPa 265 kg/cm
39.2 kN 4000 kgf 8820 lb
2
3768 psi
45.6 kN 4650 kgf 10251 lb
Mechanical disc
39 each side
2
30.4 kPa 0.31 kg/cm
4.4 psi
26.0 kN 2650 kgf 5840 lb
4720 15'6"
1980 6'6"
2540 8'4"
