Koldfront CAC8000W User Manual

V2.2-03012018

Casement Window Air

Conditioner

Owner’s Manual

For more information on other great EdgeStar and Koldront products on the web, go to https://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com

CAC8000W

Important Safety Information

Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information.

Warning: The water produced by the window AC is not potable or suitable for drinking. Do not drink the water drained from the unit as it contains contaminates and could make you sick.

Electrical Safety

 Make sure your hands are dry and not wet before operating the unit.  Make sure the unit is properly grounded.  Do not wet the front housing or control panel.  Do not directly spray water on this Air Conditioner.  Do not pull the unit by the cord.  Always turn the unit off and unplug it from the socket when cleaning.  Unplug the unit if it is not going to be used for a long period of time.  Do not operate the unit with a damaged or loose plug and/or socket.  Use only the correct power supply with appropriate amperage.  If the power cord is damaged, it must be replaced by the manufacturer, a service agent, or qualified

technician.

 Do not turn the unit off or on by inserting or pulling the power plug.  Do not modify the power cord length or share the outlet with another appliance.  Do not use this unit with an extension cord and/or adapter plug.  Do not use this unit near flammable gases/combustibles or in close proximity to heating appliances.  During operation do not remove any part of the outside casing.

Electrical Requirements

 A 115 volt (103.5 minimum, 126.5 maximum), 60 Hertz, AC only, 15 Ampere fused electrical supply

is required. A time delay fuse or time delay circuit breaker is also required. A separate circuit, serving only this appliance, MUST be provided.

General Safety

 Do not let people or pets sit or set an object directly in front of air flow.  If a strange sound, smell, or smoke comes from the unit, turn it off and review the troubleshooting

page of this manual.

 Stop operation and unplug unit in the event of a severe storm.  To ensure proper air flow and intake, make sure the air vents are not obstructed.  See instructions for cleaning air filters and how often cleaning should occur.  Do not use strong detergents when cleaning.  Children should be supervised when operating this unit.  Do not allow children to play with the controls or drop any objects into the air outlets or vents.  Do not place objects or let any person sit on top of the unit.  Route the power cord carefully to avoid a tripping hazard.  This unit is intended for domestic home use only. Do not use the window air conditioner for

commercial or industrial use. Any other use may invalidate the warranty.

 Use caution when unpacking and installing the unit as there may be some sharp edges.

Operation of Safety Plug

Your window air conditioner is supplied with a Leakage-Current Detection and Interruption (LCDI) safety plug. This device provides protection to reduce the risk of fire due to arcing faults in the power supply cord. Before using your window air conditioner, follow the instructions below to ensure that the LCDI plug is working properly:

1. Plug the power cord into a grounded outlet.

2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support.

DO NOT USE YOUR WINDOW AIR CONDITIONER IF THE TEST FAILS.

3. Press the RESET button to start using your air conditioner.

Note: Electrical products should not be disposed of with household waste. Please contact your local recycling center for more information on how to recycle electronic waste.

Notes:

 Always make sure the “Reset” button is pushed in for proper operation.  The power supply cord with LCDI plug must be replaced if it fails to reset.  Do not use the TEST and RESET buttons as an ON/OFF switch.

iii

Table of Contents

IMPORTANT SAFETY INFORMATION .......................................................................................................................................................... I

TABLE OF CONTENTS ................................................................................................................................................................................. III

INTRODUCTION ......................................................................................................................................................................................... 1

PARTS IDENTIFICATION ............................................................................................................................................................................. 2

Side View ................................................................................................................................................................................. 2

Front View ............................................................................................................................................................................... 2

PREPARATIONS FOR INSTALLATION .......................................................................................................................................................... 3

WINDOW INSTALLATION INSTRUCTIONS .................................................................................................................................................. 4

Preparing the Unit for Installation ............................................................................................................................................ 4

Installing Air Conditioner Into a Slider Window ......................................................................................................................... 8

Installing Air Conditioner Into a Casement Window .................................................................................................................. 9

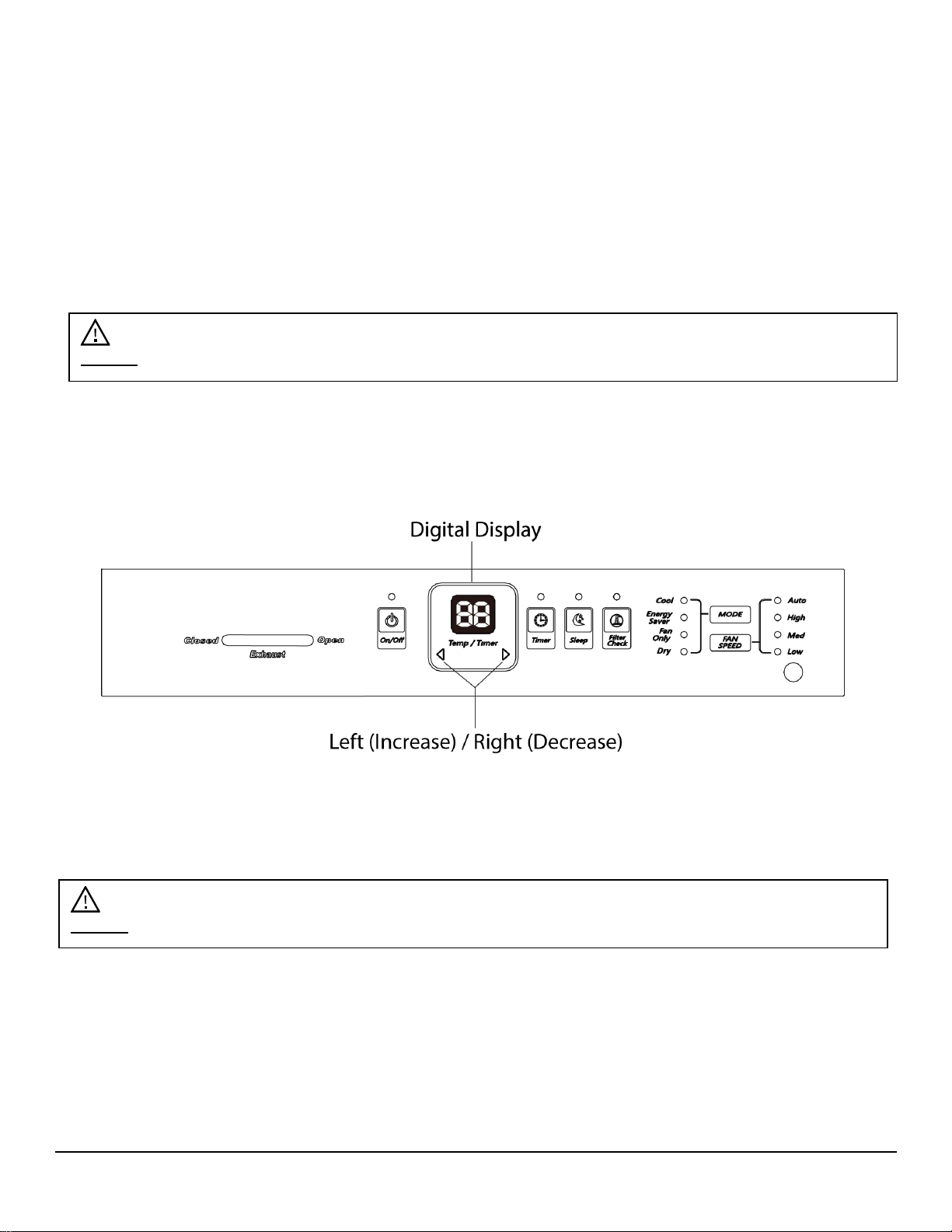

CONTROL PANEL OPERATIONS ................................................................................................................................................................ 10

Using the Control Panel .......................................................................................................................................................... 10

REMOTE OPERATIONS ............................................................................................................................................................................. 13

Installing the Batteries ........................................................................................................................................................... 14

Additional Remote Functions .................................................................................................................................................. 14

MAINTENANCE ........................................................................................................................................................................................ 15

Air Filter Cleaning ................................................................................................................................................................... 15

Cabinet Cleaning .................................................................................................................................................................... 16

NORMAL SOUNDS ................................................................................................................................................................................... 16

ERROR CODES .......................................................................................................................................................................................... 16

ENERGY SAVING GUIDE ........................................................................................................................................................................... 17

SPECIFICATIONS ...................................................................................................................................................................................... 20

EDGESTAR LIMITED WARRANTY .............................................................................................................................................................. 21

Introduction

Thank you for purchasing this Koldfront by EdgeStar casement window air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship.

This manual contains important information regarding the proper installation, use and maintenance of your window air conditioner. Following this manual will ensure that your product will work at its peak performance, efficiency, and safety.

Please save the original product packaging in case you need to safely transport your window air conditioner.

For Your Records:

Please write down the model number and serial number below for future reference. Both numbers are located on the ratings label on the back of your unit and are needed to obtain warranty service. You may also want to staple your receipt to this manual as it is the proof of your purchase, and is also needed for service under your warranty.

Model Number: Serial Number: Date of Purchase: For a more efficient experience, please do the following before contacting customer service:  If you received a damaged product, immediately contact the dealer that sold you the

product.

 Read and follow this instruction manual carefully to help you install, use and maintain your

window air conditioner.

 Read the troubleshooting section of this manual as it will help you diagnose and solve

common issues.

 Visit us on the web at https://www.edgestar.com for product guides, additional

troubleshooting resources and up-to-date information. You can also find an interactive self-diagnostic tool at https://support.edgestar.com. If you need service, our friendly customer service representatives are available via email at service@edgestar.com or by telephone at 1 (866) 319-5473.

Parts Identification

Side View

Front View

CAUTION: Make sure the drain plug is firmly installed before using the unit to prevent leaking.

Preparations for Installation

NOTE: To avoid risk of injury and/or product/property damage, please take the following precautions:

- Two or more people are needed to properly handle and install.

- Use proper lifting and carrying techniques.

- Before installation, make sure to inspect the window and sill to ensure they are able to handle the weight and size of this unit.

- Wearing protective gloves will help to avoid injury from sharp edges.

Before you begin, make sure you have all the parts necessary for installation. If you have multiple windows, choose one that is near an electrical outlet that will be able to

provide sufficient power to your unit. See the power requirements listed on the product label printed on the side or the back of your window air conditioner.

The following measurements are required to properly install the air conditioner.

 15-1/2 inches minimum width  16-1/4 inches maximum width (for casement windows)  21-1/4 inches minimum height (with window panel frame)  20-5/16 inches minimum height (without window panel frame)  39-7/16 inches maximum height

Tools Needed:

• Flat Screwdriver • Phillips Screwdriver • Tape Measure • Level • Scissors • Pencil • Electric Drill

• Fine Tooth Saw

NOTE: You may need to contact your electrician if your room’s circuit is not able to power your unit.

Window Installation Instructions

Preparing the Unit for Installation

Attach the Window Platform to the Window

1. Using the adjustment bolt and the hex flange nut, secure the platform support brace to the window platform. Choose a slot for the adjustment bolt on both the platform and the support brace that will create a 45° angle between the two pieces.

 Place the window platform assembly in the installation window to determine if the

platform sits properly and will provide the proper slope (3/16” (~3°) lower on the outside).

 If the platform does not provide the proper slope, then move the adjustment bolt to

a different slot in the platform and support brace and test again.

2. Measure 8 11/16” from the window jamb and lightly draw a line in pencil.

NOTE: When choosing your window, make sure power supply cord is within 6 feet of a grounded 3-prong outlet. Do not use an extension cord.

NOTE:

 These instructions are for installation in a standard slider or casement window only.  If installing the unit into a casement window, open the window to the maximum amount to allow

for clearance of the cabinet.

 If the window cannot open more than 15 ½” for the cabinet to clear the window, the entire

window can be removed. If this is necessary, contact a professional to ensure proper installation.

Note: If you are planning to use a siding protection board (step 5) on the outside of the house, hold down the window platform flat while testing.

A. Window platform B. Hex flange nut C. Platform support brace D. Adjustable bolt
