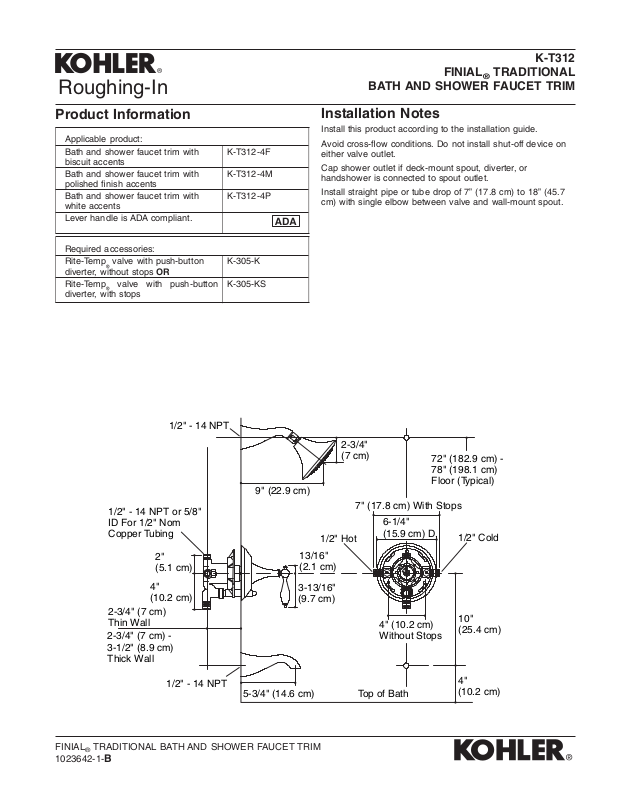

Roughing-In
K-T312
FINIAL
TRADITIONAL
®
BATH AND SHOWER FAUCET TRIM
Product Information
Applicable product:
Bath and shower faucet trim with
biscuit accents
Bath and shower faucet trim with
polished finish accents
Bath and shower faucet trim with
white accents
Lever handle is ADA compliant.
Required accessories:
Rite-Temp
diverter, without stops OR
Rite-Temp
diverter, with stops
valve with push-button
®
valve with push-button
®
K-T312-4F
K-T312-4M
K-T312-4P
K-305-K
K-305-KS
Installation Notes
Install this product according to the installation guide.
Avoid cross-flow conditions. Do not install shut-off device on
either valve outlet.
Cap shower outlet if deck-mount spout, diverter, or
handshower is connected to spout outlet.
Install straight pipe or tube drop of 7” (17.8 cm) to 18” (45.7
cm) with single elbow between valve and wall-mount spout.
1/2" - 14 NPT
1/2" - 14 NPT or 5/8"
ID For 1/2" Nom
Copper Tubing
2"
(5.1 cm)
4"
(10.2 cm)
2-3/4" (7 cm)
Thin Wall
2-3/4" (7 cm) 3-1/2" (8.9 cm)
Thick Wall
1/2" - 14 NPT
9" (22.9 cm)
13/16"
(2.1 cm)
3-13/16"
(9.7 cm)
5-3/4" (14.6 cm)
2-3/4"
(7 cm)
1/2" Hot
72" (182.9 cm) 78" (198.1 cm)
Floor (Typical)
7" (17.8 cm) With Stops
6-1/4"
(15.9 cm) D.
4" (10.2 cm)
Without Stops
Top of Bath
1/2" Cold
10"
(25.4 cm)
4"
(10.2 cm)
FINIAL®TRADITIONAL BATH AND SHOWER FAUCET TRIM
1023642-1-
B
