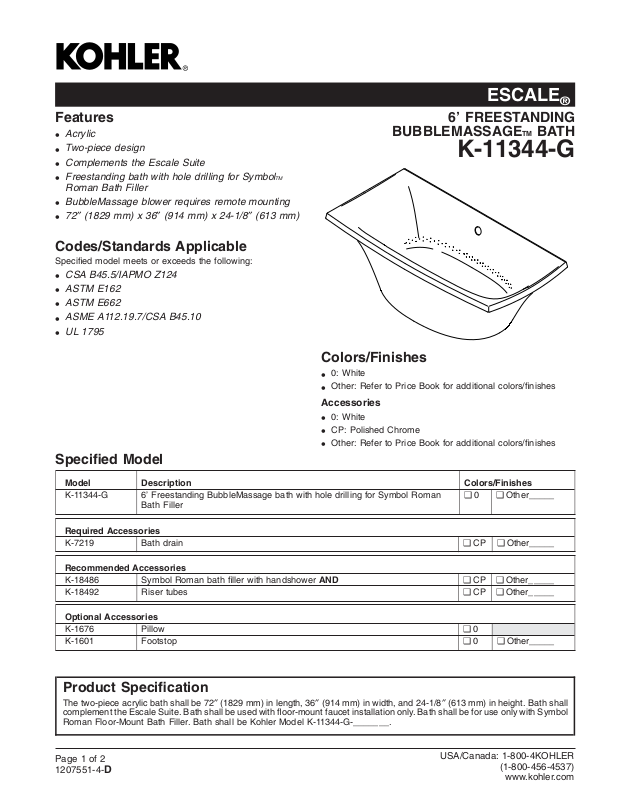

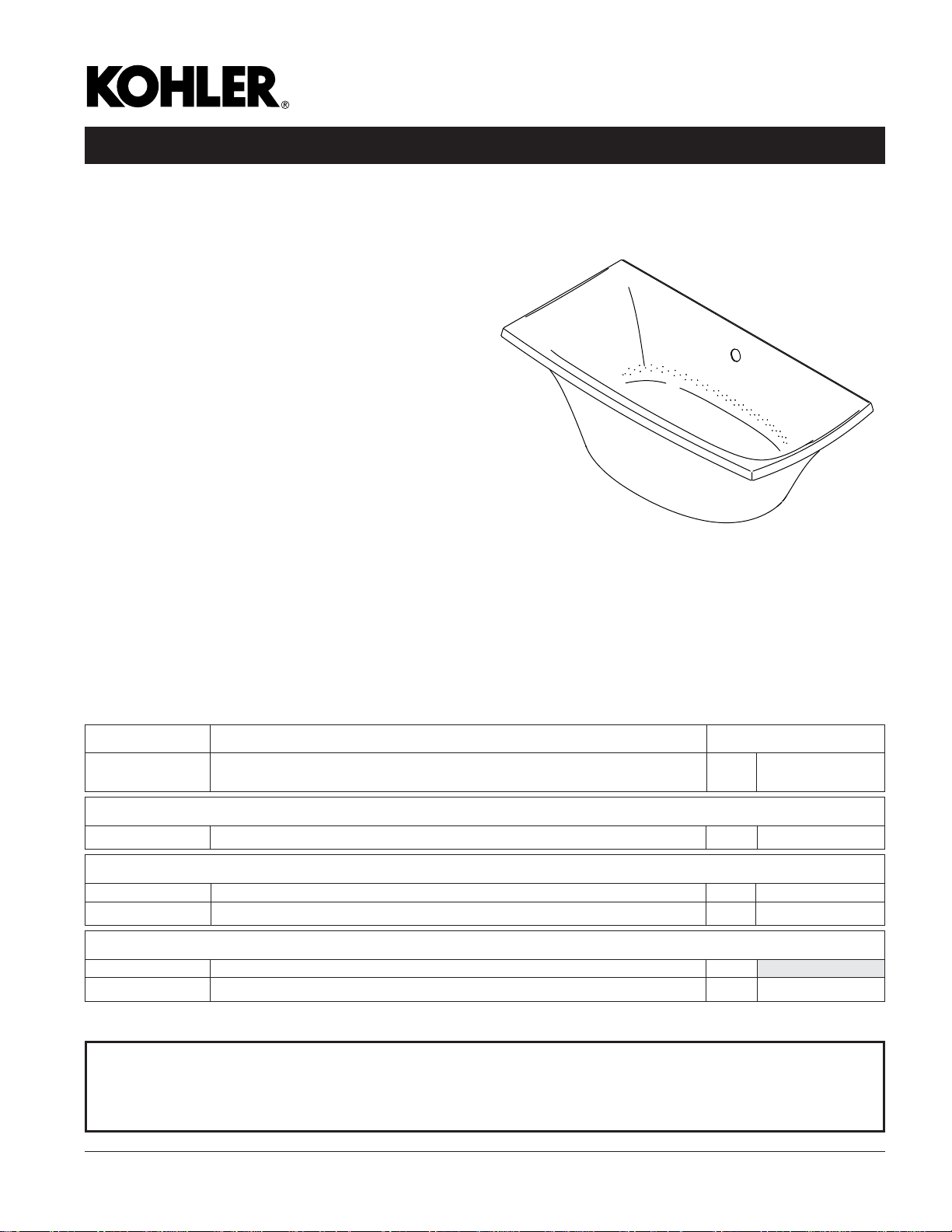

Page 1
ESCALE
®
Features
Acrylic
•
Two-piece design
•
Complements the Escale Suite
•
Freestanding bath with hole drilling for Symbol
•
Roman Bath Filler
BubbleMassage blower requires remote mounting
•
72″ (1829 mm) x 36″ (914 mm) x 24-1/8″ (613 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
ASTM E162
•
ASTM E662
•
ASME A112.19.7/CSA B45.10
•
UL 1795
•
Specified Model
6’ FREESTANDING
BUBBLEMASSAGETM BATH
K-11344-G
TM
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
0: White
•
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-11344-G 6’ Freestanding BubbleMassage bath with hole drilling for Symbol Roman
Bath Filler
Required Accessories
K-7219 Bath drain ❑ CP ❑ Other_____
Recommended Accessories
K-18486 Symbol Roman bath filler with handshower AND ❑ CP ❑ Other_____
K-18492 Riser tubes ❑ CP ❑ Other_____
Optional Accessories
K-1676 Pillow ❑ 0
K-1601 Footstop ❑ 0 ❑ Other_____
❑ 0 ❑ Other_____
Product Specification
The two-piece acrylic bath shall be 72″ (1829 mm) in length, 36″ (914 mm) in width, and 24-1/8″ (613 mm) in height. Bath shall
complement the Escale Suite. Bath shall be used with floor-mount faucet installation only. Bath shall be for use only with Symbol
Roman Floor-Mount Bath Filler. Bath shall be Kohler Model K-11344-G-_______.
Page 1 of 2
1207551-4-
D
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com

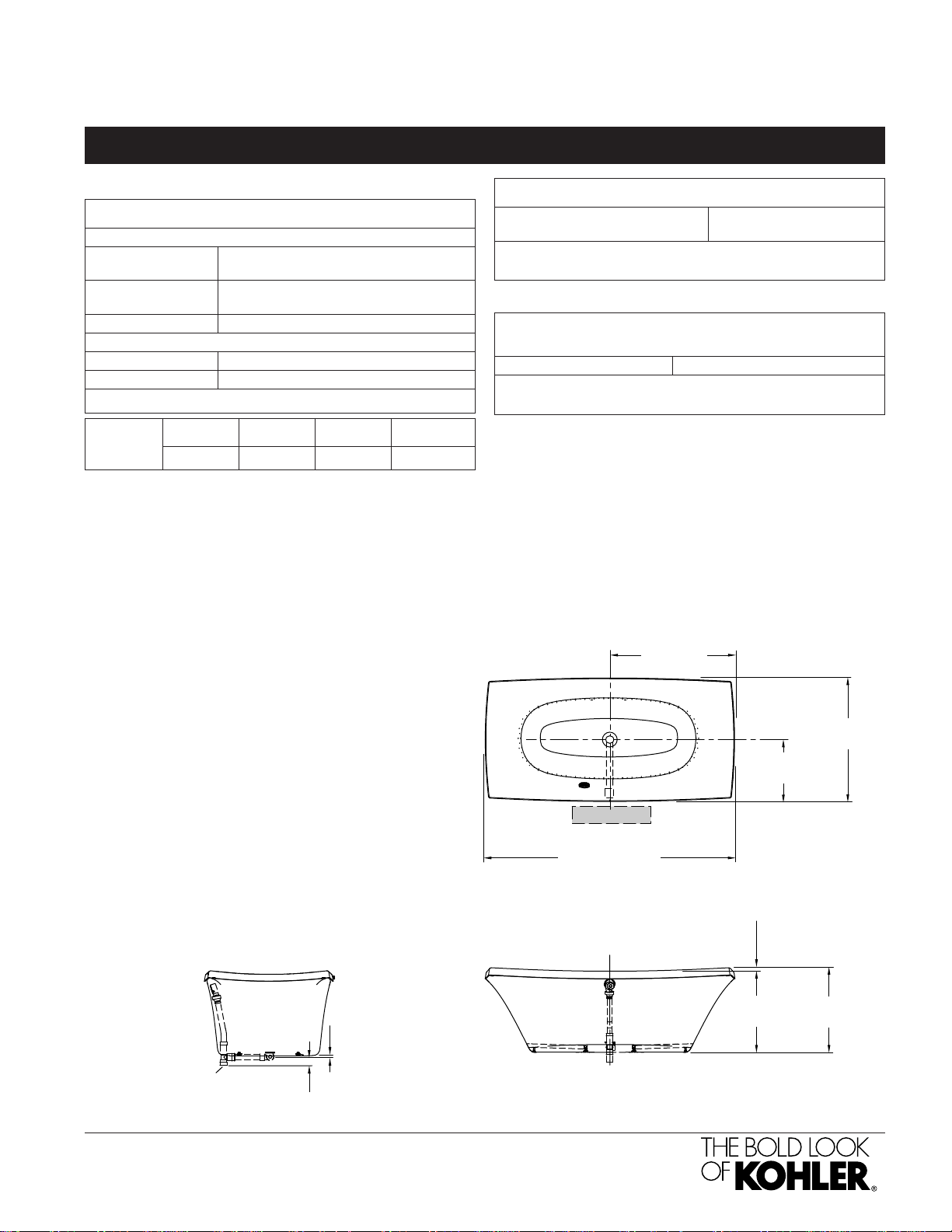

Page 2
ESCALE
®
Technical Information
Fixture*:
Bathing well
Basin area,
bottom
Basin area, top 69-15/16″ (1776 mm) x
Weight 130 lbs (59 kg)
To overflow
Water depth 16-1/2″ (421 mm)
Capacity 71 gal (268.8 L)
* Approximate measurements for comparison only.
46-3/4″ (1187 mm) x
21-5/8″ (549 mm)
34-3/8″ (873 mm)
Recommended spouts and spout locations*:
Area A – floor-mount
installation
*Refer to shaded areas in product diagram for
recommended installation area locations.
K-18486 AND K-18492
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):
Blower motor: 120 V, 15 A, 60 Hz
Blower motor is supplied with a 24″ (610 mm)
grounding-type plug-in cord.
Blower
motor:
Heater V Hz A
300 W 120 60 5
No change in measurements if connected
with drain illustrated. (K-7219)
Installation Notes
Install this product according to the installation guide.
Floor support under bath must provide for a minimum of 41.5
lbs/square foot (202.8 kg/square meter) loading.
BubbleMassage blower requires remote mounting.
36"
(914 mm)
36"
(914 mm)
18"
(457 mm)
A
72" (1829 mm)
1-5/8" (35 mm)
1-1/2" Bath Drain
2-1/4" (57 mm)
Product Diagram
ESCALE®6’ FREESTANDING BUBBLEMASSAGETM BATH
Page2of2
1207551-4-
D
2-1/2"
(64 mm)
21-5/8"
(549 mm)
24-1/8"
(613 mm)
