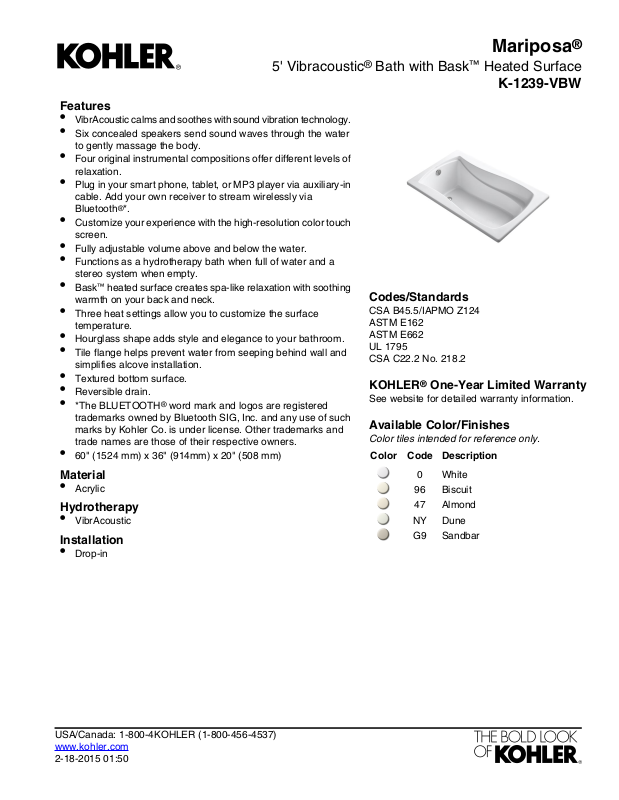

Page 1
5' Vibracoustic® Bath with Bask™ Heated Surface
Features
•
VibrAcoustic calms and soothes with sound vibration technology.
•
Six concealed speakers send sound waves through the water
to gently massage the body.
•
Four original instrumental compositions offer different levels of
relaxation.
•
Plug in your smart phone, tablet, or MP3 player via auxiliary-in
cable. Add your own receiver to stream wirelessly via
Bluetooth®*.
•
Customize your experience with the high-resolution color touch
screen.
•
Fully adjustable volume above and below the water.
•
Functions as a hydrotherapy bath when full of water and a
stereo system when empty.
•
Bask™ heated surface creates spa-like relaxation with soothing
warmth on your back and neck.
•
Three heat settings allow you to customize the surface
temperature.
•
Hourglass shape adds style and elegance to your bathroom.
•
Tile flange helps prevent water from seeping behind wall and
simplifies alcove installation.
•
Textured bottom surface.
•
Reversible drain.
•
*The BLUETOOTH® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Kohler Co. is under license. Other trademarks and
trade names are those of their respective owners.
•
60" (1524 mm) x 36" (914mm) x 20" (508 mm)
Mariposa
®
K-1239-VBW
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
UL 1795
CSA C22.2 No. 218.2
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Material
•
Acrylic
Hydrotherapy
•
VibrAcoustic
Installation
•
Drop-in
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:50
White0
Biscuit96
Almond47
DuneNY
SandbarG9
Page 2

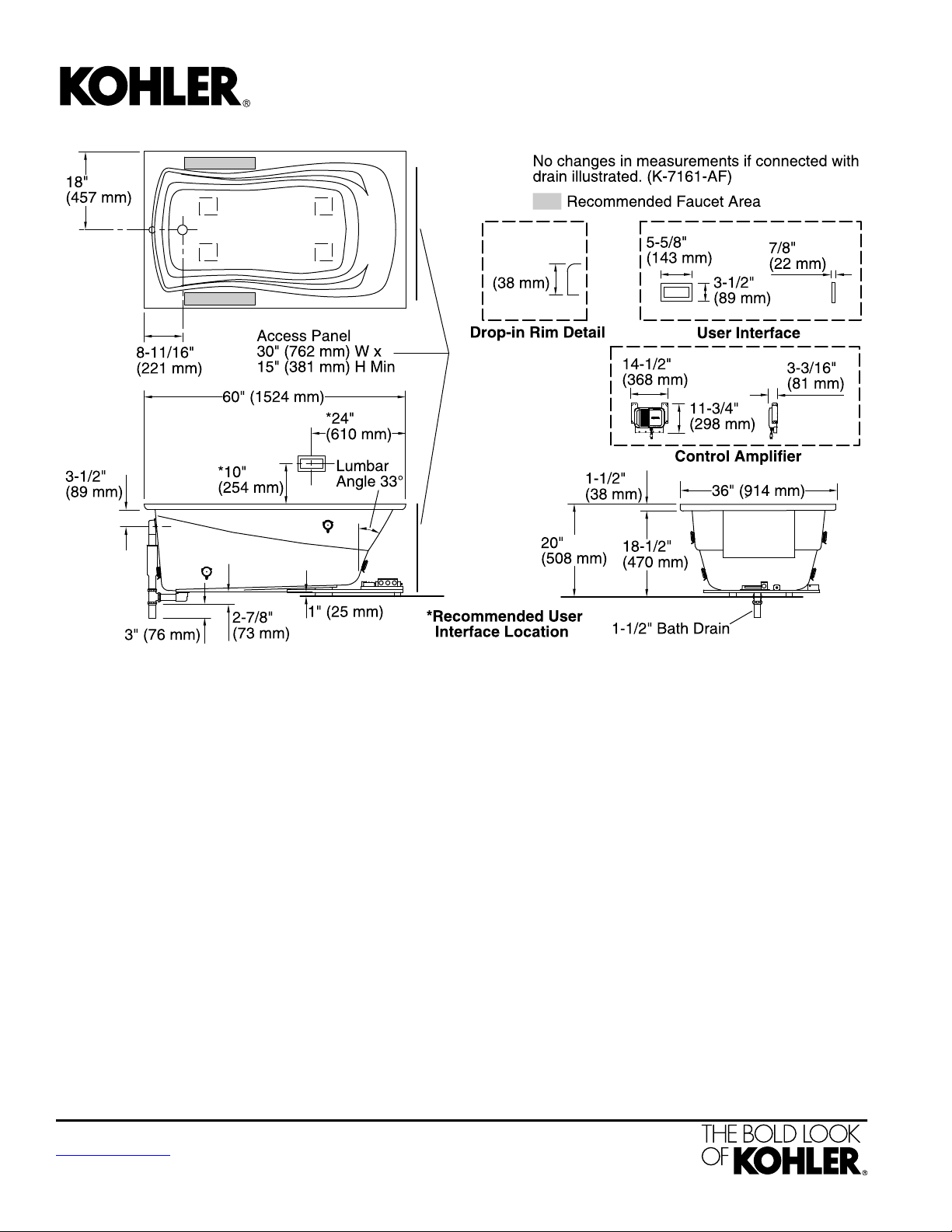

1-1/2"
Mariposa
®
5' Vibracoustic® Bath with Bask™ Heated Surface
K-1239-VBW
Required Electrical Service
One dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD).
120 V, 15 A, 50/60 HzAmplifier, Heater:
Technical Information
All product dimensions are nominal.
Drop-inInstallation:
Electrical rating:
ReversibleDrain location:
46" x 24" (1168 mm x 610 mm)Basin area, bottom:
54" x 24" (1372 mm x 610 mm)Basin area, top:
73 lbs (33.1 kg)Weight:
41.6 lbs/ft² (203.1 kg/m²)Minimum floor load:
14" (356 mm)Water depth:
63 gal (238.5 L)Water capacity:
Drop-in, 58" x 34" (1473 mm x 864 mm)Cutout:
Amplifier: 120 V, 50/60 Hz, 15 W
Heater: 120 V, 1.1 A, 60 Hz, 65 W
Notes
Install this product according to the installation
guide. Ensure that the interface, amplifier, and
transducers are functional before completing the
installation.
Control amplifier fits 16" (406 mm) center studs.
25’ (7.6 m) cables are included.
Locate the bath within 24" (610 mm) of a
GFCI-protected 120 V, 15 A grounded electrical
outlet. A second grounded outlet within the wall
framing must be within 24" (610 mm) of the
planned control amplifier. One electrical service
may be used for the entire bath and related
electrical components.
If installing a rim mount faucet, make sure any
plumbing does not interfere with the drain
overflow before drilling any holes. Consult local
and national codes for minimum air gap
requirements if installing a spout on the faucet
deck.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
www.kohler.com
2-18-2015 01:50
