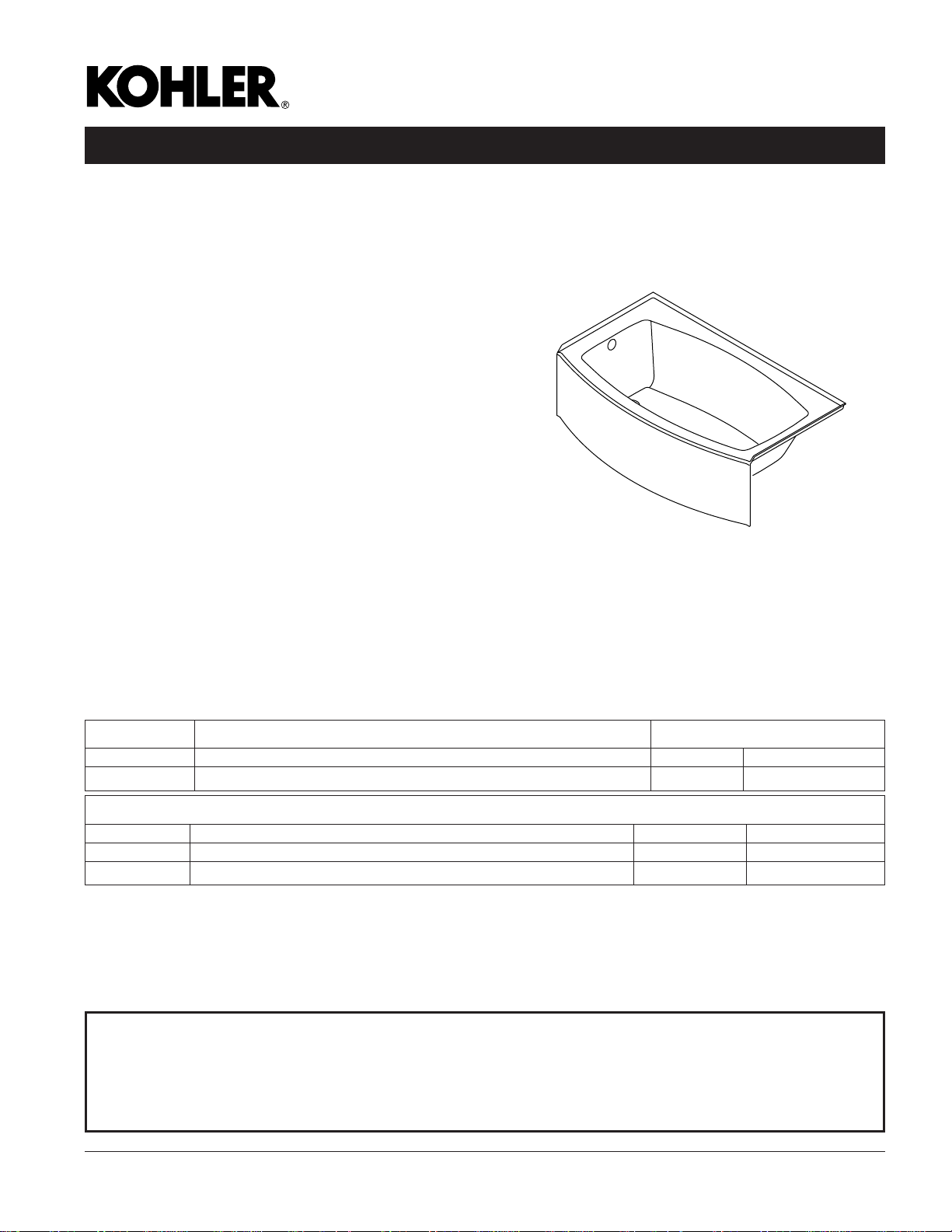

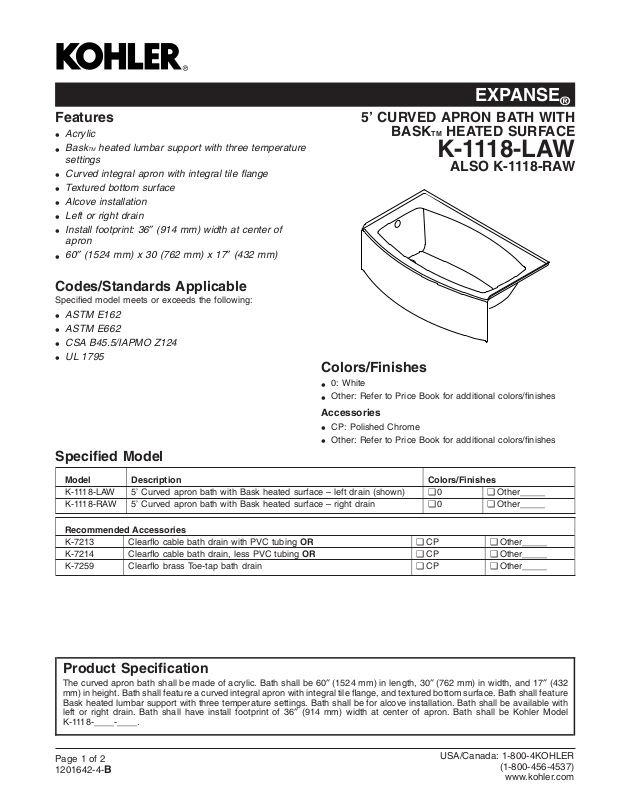

EXPANSE
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
Curved integral apron with integral tile flange
•
Textured bottom surface
•
Alcove installation
•
Left or right drain
•
Install footprint: 36″ (914 mm) width at center of
•
apron
60″ (1524 mm) x 30 (762 mm) x 17″ (432 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASTM E162
•
ASTM E662
•
CSA B45.5/IAPMO Z124
•
UL 1795
•
Specified Model
5’ CURVED APRON BATH WITH
BASKTM HEATED SURFACE
K-1118-LAW
ALSO K-1118-RAW
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description Colors/Finishes
K-1118-LAW 5’ Curved apron bath with Bask heated surface – left drain (shown) ❑ 0 ❑ Other_____
K-1118-RAW 5’ Curved apron bath with Bask heated surface – right drain ❑ 0 ❑ Other_____
Recommended Accessories
K-7213 Clearflo cable bath drain with PVC tubing OR ❑ CP ❑ Other_____
K-7214 Clearflo cable bath drain, less PVC tubing OR ❑ CP ❑ Other_____
K-7259 Clearflo brass Toe-tap bath drain ❑ CP ❑ Other_____
Product Specification
The curved apron bath shall be made of acrylic. Bath shall be 60″ (1524 mm) in length, 30″ (762 mm) in width, and 17″ (432
mm) in height. Bath shall feature a curved integral apron with integral tile flange, and textured bottom surface. Bath shall feature
Bask heated lumbar support with three temperature settings. Bath shall be for alcove installation. Bath shall be available with
left or right drain. Bath shall have install footprint of 36″ (914 mm) width at center of apron. Bath shall be Kohler Model
K-1118-____-____.
Page 1 of 2
1201642-4-
B
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
EXPANSE
®

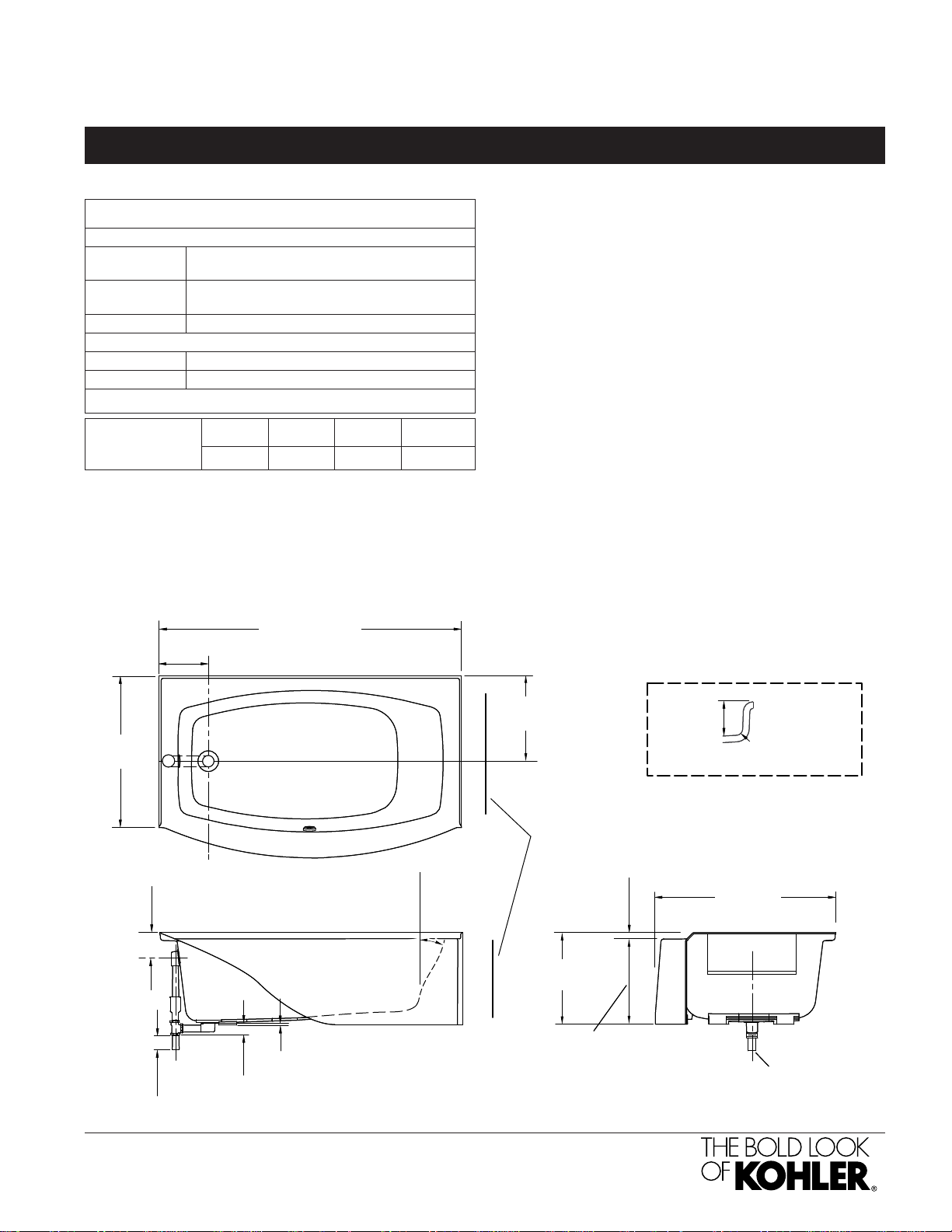

Technical Information
Fixture*:
Bathing well:
Basin area,
bottom
Basin area,
top
Weight 70 lbs (32 kg)
To overflow:
Water depth 12-11/16″ (322 mm)
Capacity 55.6 gal (210.5 L)
*Approximate measurements for comparison only.
Heater: W V HZ A
45-5/16″ (1151 mm) x 25-9/16″ (649 mm)
52-9/16″ (1335 mm) x 28-1/16″ (713 mm)
65 120 60 .5
Installation Notes
Install this product according to the installation guide.
Locate a GFCI-protected 120 V, 15 A, grounded electrical
outlet within 24″ (610 mm) of the bath junction box.
40″ (1016 mm) cable is included.
Floor support under the bath must provide for a minimum of
45 lbs/square foot (219.7 kg/square meter) loading.
30"
(762 mm)
2-1/2"
(64 mm)
3"
(76 mm)
60" (1524 mm)
9-3/4" (248 mm)
2-7/8" (73 mm)
1/2" (13 mm)
Lumbar
Angle
25˚
No change in measurements if connected
with drain illustrated. (K-7213)
16-7/8"
(429 mm)
1-1/4"
(32 mm)
Integral Flange Detail
Access Panel
20" (508 mm) L x 15" (381 mm) H Min
1-1/4"
(32 mm)
18-1/4"
(464 mm)
17"
(432 mm)
3/8"
(10 mm) R.
36"
(914 mm)
1-1/2" Bath Drain
Product Diagram
EXPANSE®5’ CURVED APRON BATH WITH BASKTM HEATED SURFACE
