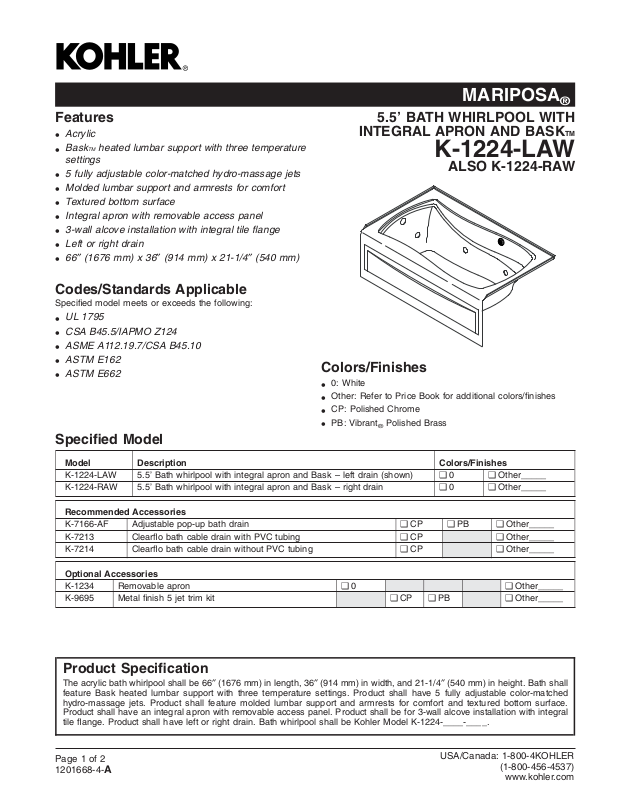

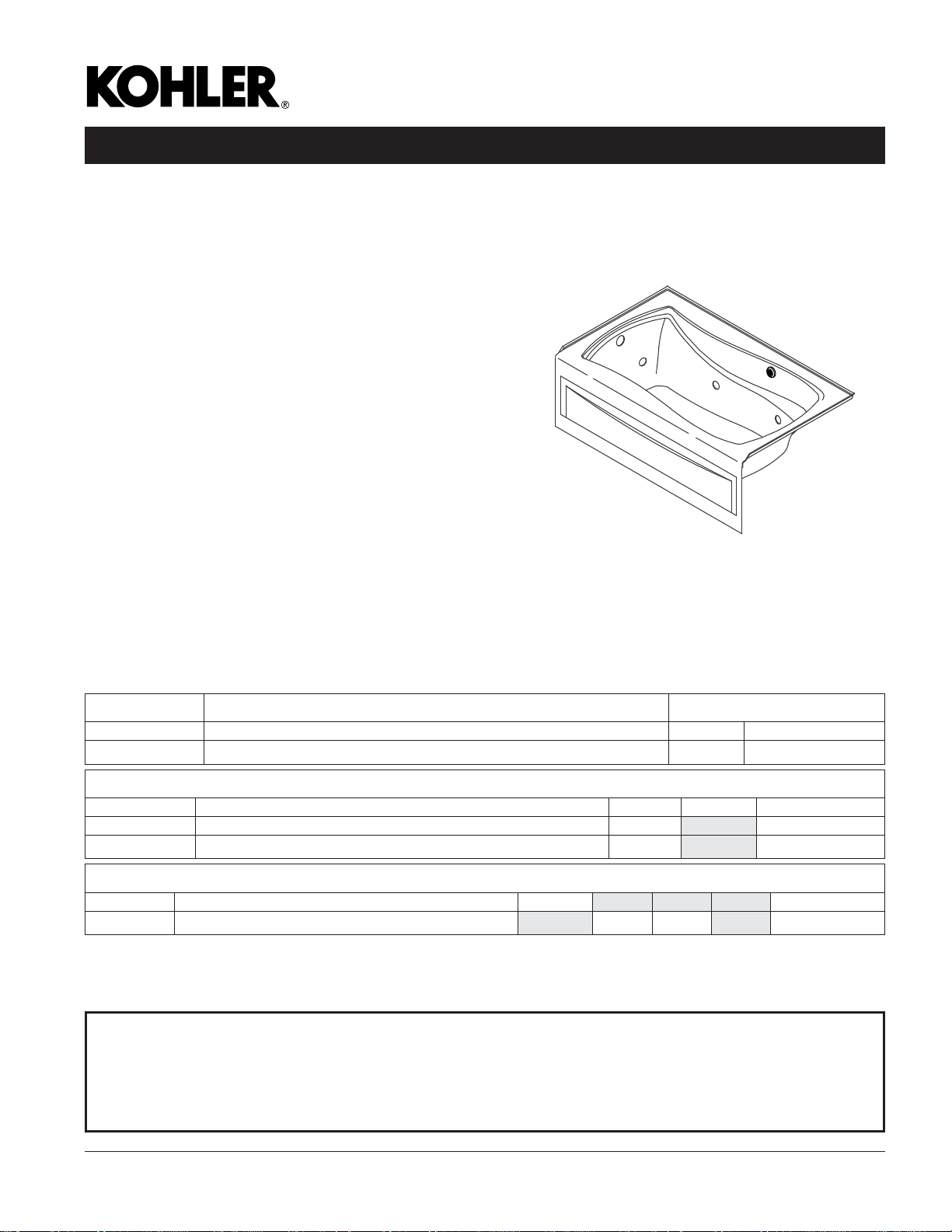

Page 1
MARIPOSA
®
Features
Acrylic
•
TM heated lumbar support with three temperature
Bask
•
settings
5 fully adjustable color-matched hydro-massage jets
•
Molded lumbar support and armrests for comfort
•
Textured bottom surface
•
Integral apron with removable access panel
•
3-wall alcove installation with integral tile flange
•
Left or right drain
•
66″ (1676 mm) x 36″ (914 mm) x 21-1/4″ (540 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
UL 1795
•
CSA B45.5/IAPMO Z124
•
ASME A112.19.7/CSA B45.10
•
ASTM E162
•
ASTM E662
•
Specified Model
5.5’ BATH WHIRLPOOL WITH
INTEGRAL APRON AND BASKTM
K-1224-LAW
ALSO K-1224-RAW
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
Model Description Colors/Finishes
K-1224-LAW 5.5’ Bath whirlpool with integral apron and Bask – left drain (shown) ❑ 0 ❑ Other_____
K-1224-RAW 5.5’ Bath whirlpool with integral apron and Bask – right drain ❑ 0 ❑ Other_____
Recommended Accessories
K-7166-AF Adjustable pop-up bath drain ❑ CP ❑ PB ❑ Other_____
K-7213 Clearflo bath cable drain with PVC tubing ❑ CP ❑ Other_____
K-7214 Clearflo bath cable drain without PVC tubing ❑ CP ❑ Other_____
Optional Accessories
K-1234 Removable apron ❑ 0 ❑ Other_____
K-9695 Metal finish 5 jet trim kit ❑ CP ❑ PB ❑ Other_____
Product Specification
The acrylic bath whirlpool shall be 66″ (1676 mm) in length, 36″ (914 mm) in width, and 21-1/4″ (540 mm) in height. Bath shall
feature Bask heated lumbar support with three temperature settings. Product shall have 5 fully adjustable color-matched
hydro-massage jets. Product shall feature molded lumbar support and armrests for comfort and textured bottom surface.
Product shall have an integral apron with removable access panel. Product shall be for 3-wall alcove installation with integral
tile flange. Product shall have left or right drain. Bath whirlpool shall be Kohler Model K-1224-____-____.
Page 1 of 2
1201668-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Page 2
MARIPOSA
®
Technical Information
Required Electrical Service
Fixture*:
Basin area:
Bathing well, bottom 48″ (1219 mm) x 24″ (610 mm)
Bathing well, top 59″ (1499 mm) x 30″ (762 mm)
Weight 116 lbs 52.6 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 67 gal (254 L)
* Approximate measurements for comparison only.
VHzA
1-speed pump 120 60 7
Heated surface 120 60 0.5
Dedicated circuit required, protected with a Class A
Ground-Fault Circuit-Interrupter (GFCI):
Pump/Control/Heated
surface
120 V, 15 A, 60 Hz
Installation Notes
Install this product according to the installation guide.
Floor support under whirlpool must provide for a minimum of
42 lbs/square foot (205 kg/square meter).
Locate a GFCI-protected 120 V, 15 A, grounded duplex
electrical outlet within 24″ (610 mm) of the bath junction box.
No change in measurements if connected with drain
illustrated. (K-7161-AF)
18"
(457 mm)
3-1/2"
(89 mm)
8-11/16"
(221 mm)
3"
(76 mm)
66" (1676 mm)
2-7/8"
(73 mm)
1" (25 mm)
Recommended Faucet Area
Pump/Control Access
30" (762 mm) W x
15" (381 mm) H Min
Lumbar
Angle 41˚
1-1/4"
(32 mm)
20"
(508 mm)

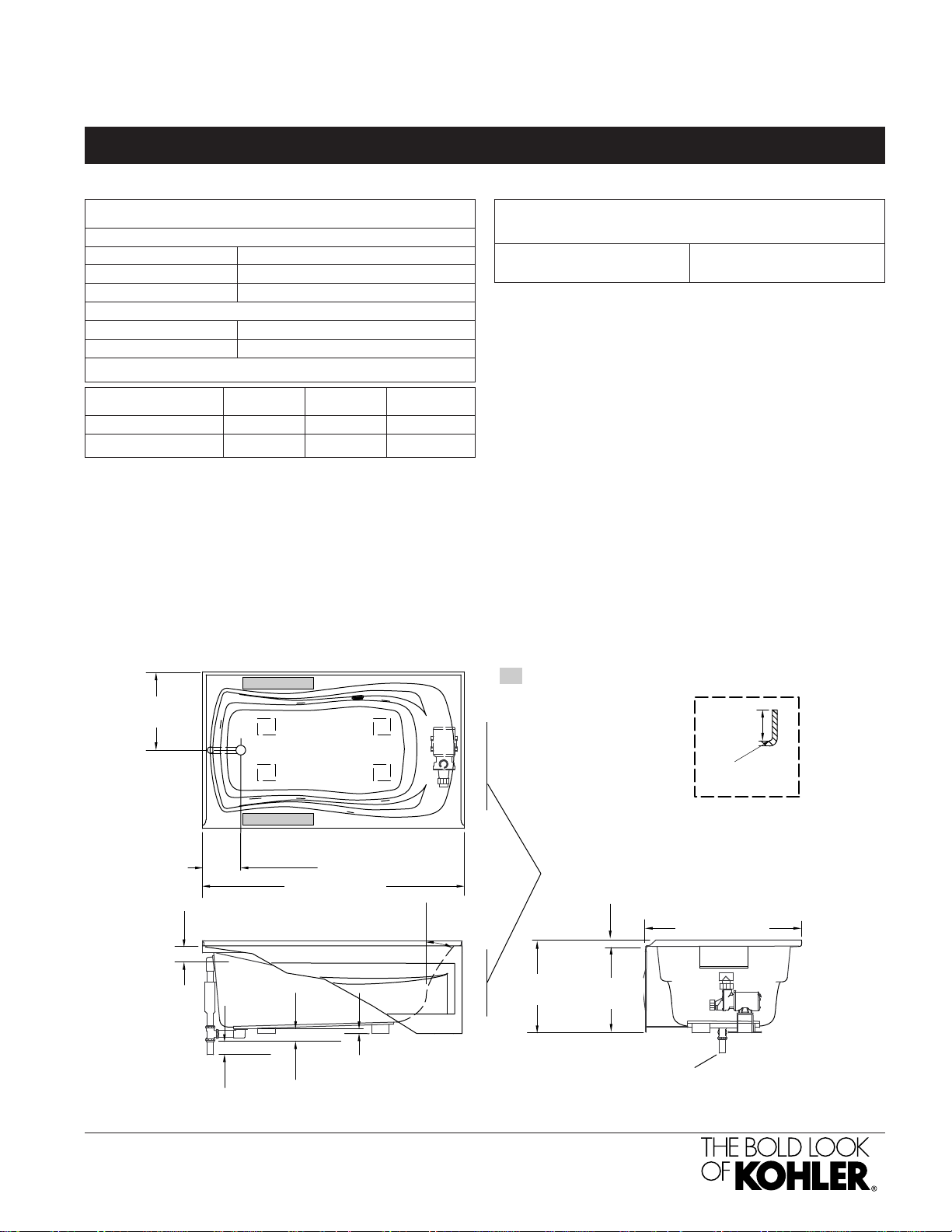

Product Diagram
1-1/4"
(32 mm)
1/2" (13 mm)
R. Max
Integral
Flange Detail
36" (914 mm)
18-3/4"
(476 mm)
1-1/2" Bath Drain
MARIPOSA®5.5’ BATH WHIRLPOOL WITH INTEGRAL APRON AND BASKTM
Page2of2
1201668-4-
A
