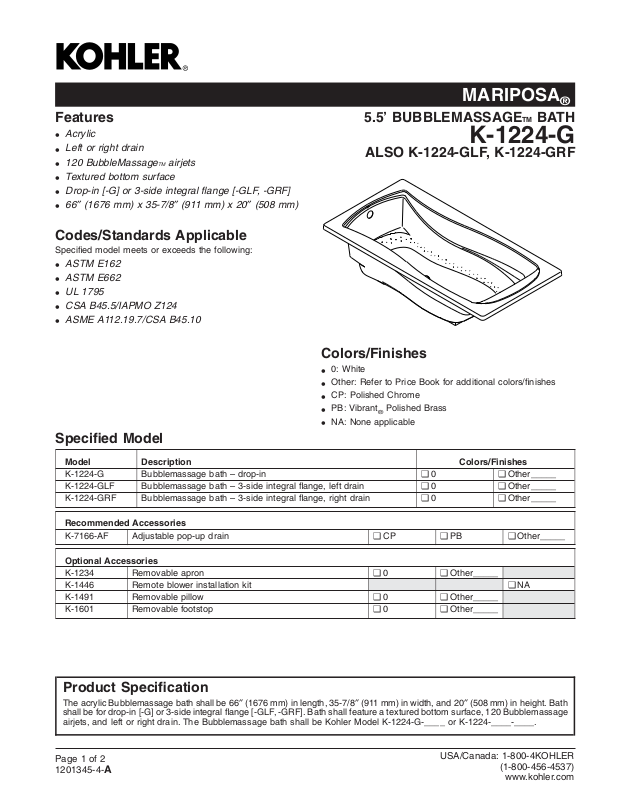

Page 1
MARIPOSA
®
Features
Acrylic
•
Left or right drain
•
120 BubbleMassage
•
Textured bottom surface
•
Drop-in [-G] or 3-side integral flange [-GLF, -GRF]
•
66″ (1676 mm) x 35-7/8″ (911 mm) x 20″ (508 mm)
•
TM airjets
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASTM E162
•
ASTM E662
•
UL 1795
•
CSA B45.5/IAPMO Z124
•
ASME A112.19.7/CSA B45.10
•
Specified Model
5.5’ BUBBLEMASSAGETM BATH
K-1224-G
ALSO K-1224-GLF, K-1224-GRF
Colors/Finishes
0: White
•
Other: Refer to Price Book for additional colors/finishes
•
CP: Polished Chrome
•
PB: Vibrant®Polished Brass
•
NA: None applicable
•
Model Description Colors/Finishes
K-1224-G Bubblemassage bath – drop-in ❑ 0 ❑ Other_____
K-1224-GLF Bubblemassage bath – 3-side integral flange, left drain ❑ 0 ❑ Other_____
K-1224-GRF Bubblemassage bath – 3-side integral flange, right drain ❑ 0 ❑ Other_____
Recommended Accessories
K-7166-AF Adjustable pop-up drain ❑ CP ❑ PB ❑ Other_____
Optional Accessories
K-1234 Removable apron ❑ 0 ❑ Other_____
K-1446 Remote blower installation kit ❑ NA
K-1491 Removable pillow ❑ 0 ❑ Other_____
K-1601 Removable footstop ❑ 0 ❑ Other_____
Product Specification
The acrylic Bubblemassage bath shall be 66″ (1676 mm) in length, 35-7/8″ (911 mm) in width, and 20″ (508 mm) in height. Bath
shall be for drop-in [-G] or 3-side integral flange [-GLF, -GRF]. Bath shall feature a textured bottom surface, 120 Bubblemassage
airjets, and left or right drain. The Bubblemassage bath shall be Kohler Model K-1224-G-____ or K-1224-____-____.
Page 1 of 2
1201345-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Page 2
MARIPOSA
®
Technical Information
Required Electrical Service
Fixture*:
Bathing well:
Basin area, bottom 48″ (1219 mm) x 24″ (610 mm)
Basin area, top 59″ (1499 mm) x 30″ (762 mm)
Weight 100 lbs (45.4 kg)
To overflow:
Water depth 14″ (356 mm)
Capacity 67 gal (253.6 L)
* Approximate measurements for comparison only.
Drop-in cut-out 64″ (1626 mm) x 34″ (864 mm)
Blower
motor:
Heater V Hz A
300 W 120 60 5
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI):
Blower motor: 120 V, 15 A, 60 Hz
Blower motor is supplied with a 24″ (610 mm)
grounding-type plug-in cord.
Installation Notes
Install this product according to the installation guide.
NOTICE: If the blower motor and check valve are
relocated, two access panels are required. Locate one
access panel at the blower motor/control location and the
other at the control box. Locate the blower motor and check
valve together.
Floor support under the bath must provide for a minimum of
86 lbs/square foot (418 kg/square meter) loading.
If used, the optional apron must be installed before the
finished floor and wall materials are installed.
If installing a rim-mount faucet, make sure there is no
interference with drain overflow and circulating system before
drilling any holes. Consult local and national codes for
minimum air gap requirements if installing a spout on the
faucet deck.
No change in measurements with drain
shown. (K-7166-AF)
18"
(457mm)
1-1/2"
(38 mm)
3-1/2"
(89 mm)
10-1/4"
(260 mm)
66" (1676 mm)
Blower Access
20" (508 mm) W x
15" (381 mm) H
20"
(508 mm)
K-1224-G
18-1/2" (470 mm)
Product Diagram
Recommended faucet area.
1-1/4"
(32 mm)
1/2" (13 mm) R.
1-1/2"
(38 mm)
Integral Drop-In Rim Detail
35-7/8"
(911 mm)
21-1/4"
(540 mm)
K-1224-GLF
K-1224-GRF
1" (25 mm)
1-1/2" Bath Drain
2-7/8"
(73 mm)
3" (76 mm)
MARIPOSA®5.5’ BUBBLEMASSAGETM BATH
Page2of2
1201345-4-
A
