MEMOIRS
®
Features
Acrylic
•
VibrAcoustic technology emits sound waves and
•
offers a surround sound experience
Six transducers and a control amplifier with 25’
•
(7.6 m) of wiring
User-friendly high-resolution color touch screen in
•
polished chrome
Molded lumbar support for comfort
•
Drop-in installation
•
Reversible drain
•
66″ (1676 mm) x 42″ (1067 mm) x 22″ (559 mm)
•
Codes/Standards Applicable
Specified model meets or exceeds the following:
CSA B45.5/IAPMO Z124
•
UL 1795
•

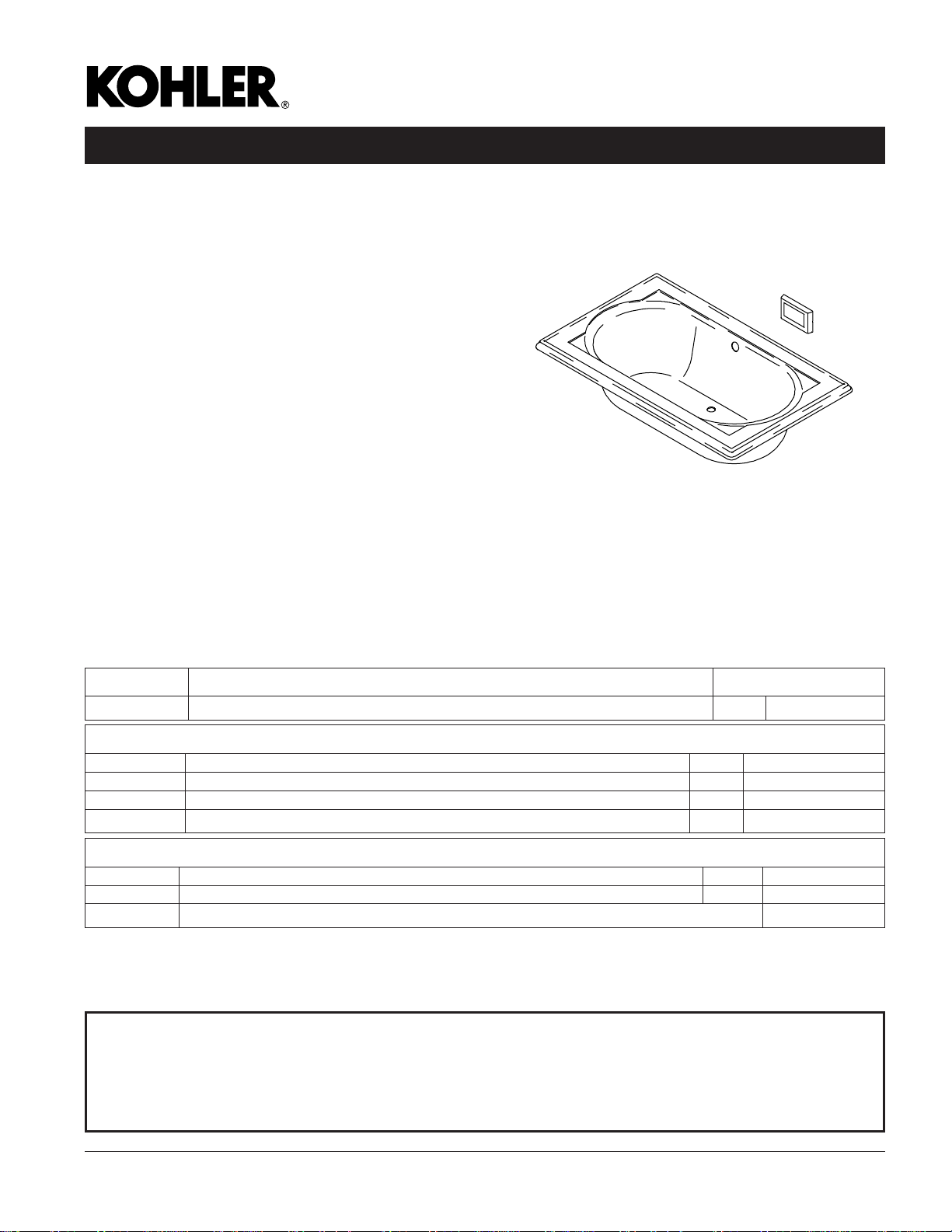

5.5’ VIBRACOUSTIC®DROP-IN BATH
K-1170-VB
Colors/Finishes
0: White
•
CP: Polished Chrome
•
BN: Brushed Nickel
•
Other: Refer to Price Book for additional colors/finishes
•
Specified Model
Model Description Colors/Finishes
K-1170-VB 5.5’ VibrAcoustic drop-in bath ❑ 0 ❑ Other_____
Recommended Accessories
K-7161-AF Pop-up drain - above-the-floor installation OR ❑ CP ❑ Other_____
K-7213 Cable drain with PVC tee and pipe OR ❑ CP ❑ Other_____
K-7214 Cable drain without PVC tee and pipe OR ❑ CP ❑ Other_____
K-7265 Toe-tap drain ❑ CP ❑ Other_____
Optional Accessories
K-1491 Bath pillow ❑ 0 ❑ Other_____
K-1601 Bath footstop ❑ 0 ❑ Other_____
1172315 VibrAcoustic interface mounting plate (non-CP finish) ❑ BN
Product Specification
The acrylic VibrAcoustic bath shall be 66″ (1676 mm) in length, 42″ (1067 mm) in width, and 22″ (559 mm) in height. Bath shall
be for drop-in installation. Bath shall feature VibrAcoustic technology offering a surround sound experience. Bath shall have six
transducers and a control amplifier with 25’ (7.6 m) of wiring. Bath shall feature user-friendly high-resolution color touch screen
in polished chrome. Bath shall have molded lumbar support for comfort. Bath shall feature reversible drain. Bath shall be Kohler
Model K-1170-VB-______.
Page 1 of 2
1201719-4-
USA/Canada: 1-800-4KOHLER
A
(1-800-456-4537)
www.kohler.com
Page 2
MEMOIRS
®
Technical Information
Fixture*:
Bathing well:
Basin area, bottom 42″ (1067 mm) x 27″ (686 mm)
Basin area, top 54″ (1372 mm) x 30″ (762 mm)
Weight 91 lbs (41.3 kg)
To overflow:
Water depth 16″ (406 mm)
Capacity 81 gal (306.6 L)
*Approximate measurements for comparison only.
Drop-in cutout 64-1/2″ (1638 mm) x 40-1/2″ (1029 mm)
Amplifier/control: Power per channel V Hz
15 (rms) W 120 50/60z
Required Electrical Service
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Residual
Current Device (RCD):
Amplifier/control: 120 V, 15 A, 50/60 Hz
Installation Notes
Install this product according to the installation guide.
Control amplifier fits 16″ (406 mm) center studs. A grounded
outlet within the wall framing must be within 24″ (610 mm) of
the planned control amplifier.
Cables are included, 25’ (7.6 m) each.
Floor support under this product must provide for a minimum
of 41 lbs/square foot (200.2 kg/square meter) loading.
If installing a rim-mount faucet, make sure there is no
interference with drain overflow before drilling any holes.
Consult local and national codes for minimum air gap
requirements if installing a spout on the faucet deck.
Ensure that the bath, user interface, amplifier, and
transducers are functional before completing the installation.
11-3/4"
(298 mm)
33" (838 mm)
66" (1676 mm)
*10"
(254 mm)
1-1/2"
Bath Drain
*24"
(610 mm)
3" (76 mm)
Lumbar
Angle 25˚
1-1/16" (27 mm)
No change in measurements if connected with drain
illustrated. (K-7161-AF)
1-7/8"
(48 mm)
5-5/8"
(143 mm)
3-1/2"
7/8"
(22 mm)
(89 mm)
Drop-in Rim
Detail
User Interface
14-1/2"
(368 mm)
11-3/4"
(298 mm)
Control Amplifier
1-7/8" (48 mm)
22"
(559 mm)
*Recommended User
Interface Location
20-1/8"
(511 mm)
42" (1067 mm)
3"
(76 mm)
3-3/16"
(81 mm)
2-7/8"
(73 mm)

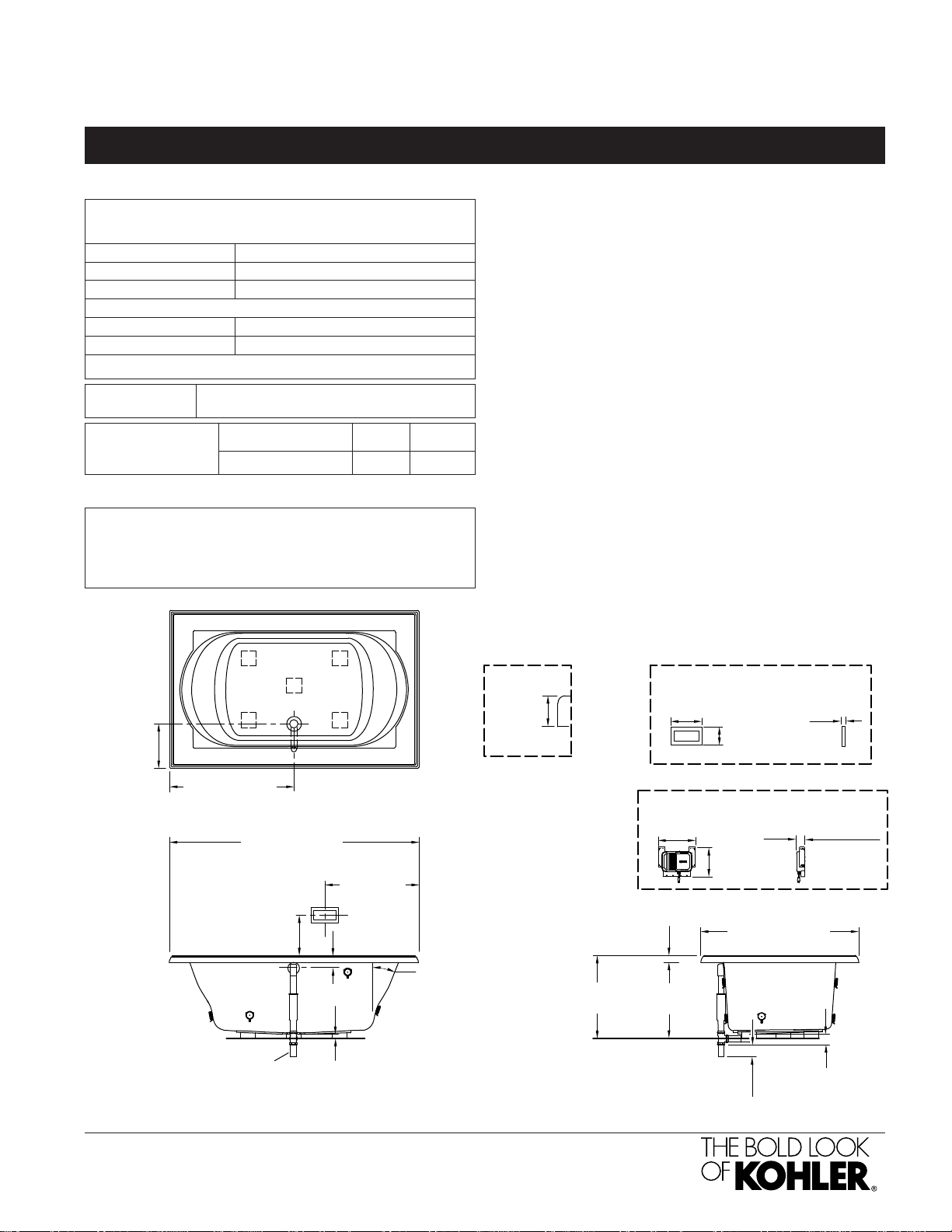

Product Diagram
MEMOIRS®5.5’ VIBRACOUSTIC®DROP-IN BATH
Page2of2
1201719-4-
A
