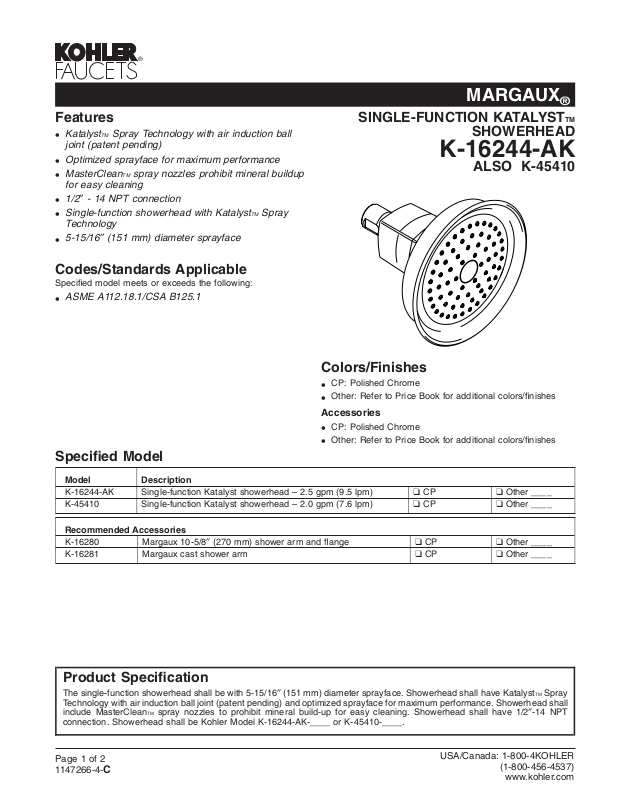

Page 1
MARGAUX
®
Features
Katalyst
•
joint (patent pending)
Optimized sprayface for maximum performance
•
MasterClean
•
for easy cleaning
1/2″ - 14 NPT connection
•
Single-function showerhead with Katalyst
•
Technology
5-15/16″ (151 mm) diameter sprayface
•
TM Spray Technology with air induction ball
TM spray nozzles prohibit mineral buildup
TM Spray
Codes/Standards Applicable
Specified model meets or exceeds the following:
ASME A112.18.1/CSA B125.1
•
Specified Model
SINGLE-FUNCTION KATALYSTTM
SHOWERHEAD
K-16244-AK
ALSO K-45410
Colors/Finishes
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Accessories
CP: Polished Chrome
•
Other: Refer to Price Book for additional colors/finishes
•
Model Description
K-16244-AK Single-function Katalyst showerhead – 2.5 gpm (9.5 lpm) ❑ CP ❑ Other ____
K-45410 Single-function Katalyst showerhead – 2.0 gpm (7.6 lpm) ❑ CP ❑ Other ____
Recommended Accessories
K-16280 Margaux 10-5/8″ (270 mm) shower arm and flange ❑ CP ❑ Other ____
K-16281 Margaux cast shower arm ❑ CP ❑ Other ____
Product Specification
The single-function showerhead shall be with 5-15/16″ (151 mm) diameter sprayface. Showerhead shall have KatalystTM Spray
Technology with air induction ball joint (patent pending) and optimized sprayface for maximum performance. Showerhead shall
include MasterClean
connection. Showerhead shall be Kohler Model K-16244-AK-____ or K-45410-____.
Page 1 of 2
1147266-4-
C
TM spray nozzles to prohibit mineral build-up for easy cleaning. Showerhead shall have 1/2″-14 NPT
USA/Canada: 1-800-4KOHLER
(1-800-456-4537)
www.kohler.com
Page 2
MARGAUX
®
Installation Notes
Install this product according to the installation guide.
1/2" NPT
Ø 5-15/16"
(151 mm)
Product Diagram
5-5/16"
(135 mm)
MARGAUX®SINGLE-FUNCTION KATALYSTTM SHOWERHEAD
Page2of2
1147266-4-
C
