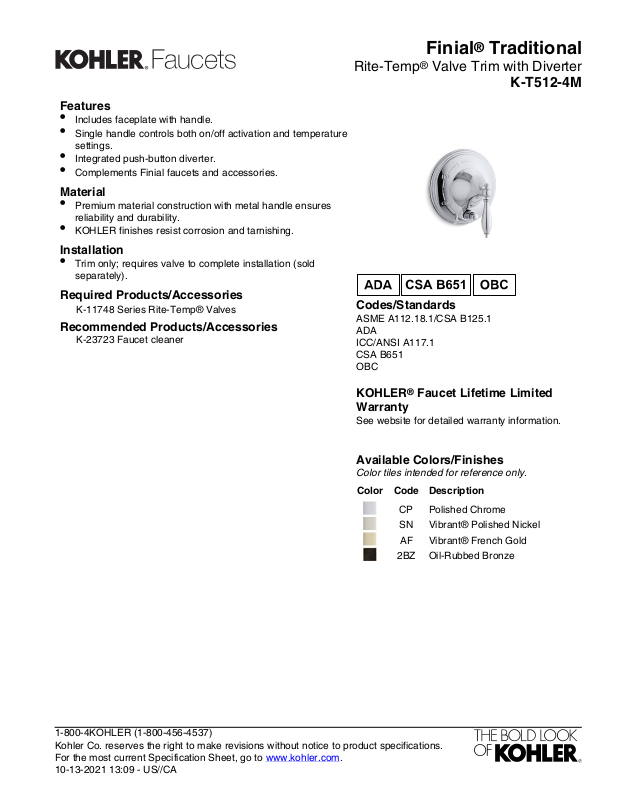

Page 1
Finial® Traditional
Features
•
Includes faceplate with handle.
•
Single handle controls both on/off activation and temperature
settings.
•
Integrated push-button diverter.
•
Complements Finial faucets and accessories.
Material
•
Premium material construction with metal handle ensures
reliability and durability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Trim only; requires valve to complete installation (sold
separately).
Required Products/Accessories
K-11748 Series Rite-Temp® Valves
Recommended Products/Accessories
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
SN Vibrant® Polished Nickel
AF Vibrant® French Gold
2BZ Oil-Rubbed Bronze
Rite-Temp® Valve Trim with Diverter
K-T512-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 13:09 - US//CA
Page 2
Finial® Traditional
Ø 6-1/4" (159 mm)
13/16"
(21 mm)
3-13/16"
(97 mm)
4-9/16" (116 mm)
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
instructions.
Avoid cross-flow conditions. Do not install shutoff device on either valve outlet.
Install straight pipe or tube drop of 7" (178 mm)
to 18" (457 mm) with single elbow between the
valve and wall-mount spout.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
Rite-Temp® Valve Trim with Diverter
K-T512-4M
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
10-13-2021 13:09 - US//CA
