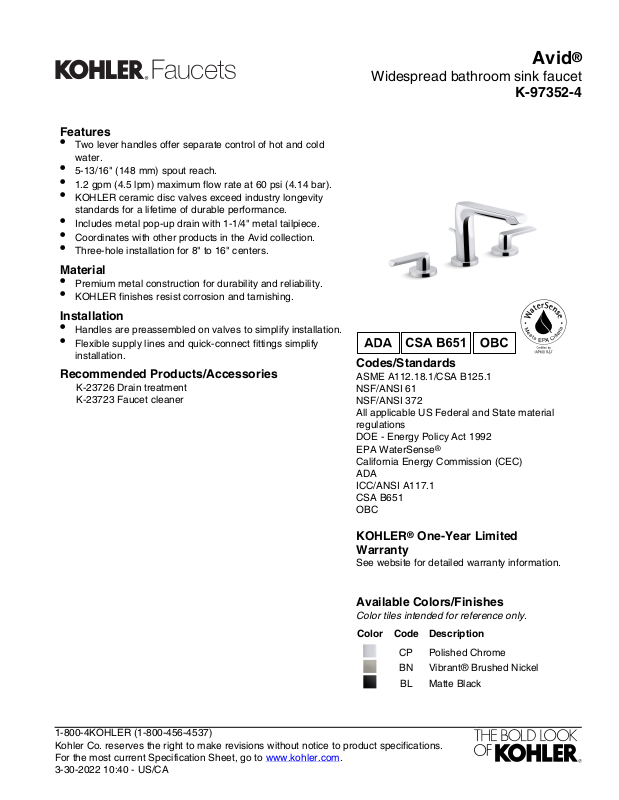

Page 1
Avid
Features
•
Two lever handles offer separate control of hot and cold
water.
•
5-13/16" (148 mm) spout reach.
•
1.2 gpm (4.5 lpm) maximum flow rate at 60 psi (4.14 bar).
•
KOHLER ceramic disc valves exceed industry longevity
standards for a lifetime of durable performance.
•
Includes metal pop-up drain with 1-1/4" metal tailpiece.
•
Coordinates with other products in the Avid collection.
•
Three-hole installation for 8" to 16" centers.
Material
•
Premium metal construction for durability and reliability.
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Handles are preassembled on valves to simplify installation.
•
Flexible supply lines and quick-connect fittings simplify
installation.
Recommended Products/Accessories
K-23726 Drain treatment
K-23723 Faucet cleaner
Codes/Standards
ASME A112.18.1/CSA B125.1
NSF/ANSI 61
NSF/ANSI 372
All applicable US Federal and State material
regulations
DOE - Energy Policy Act 1992
EPA WaterSense
®
California Energy Commission (CEC)
ADA
ICC/ANSI A117.1
CSA B651
OBC
KOHLER® One-Year Limited
Warranty
See website for detailed warranty information.
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
CP Polished Chrome
BN Vibrant® Brushed Nickel
BL Matte Black
®
Widespread bathroom sink faucet
K-97352-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-30-2022 10:40 - US/CA
Page 2
Avid
8-3/16"
(208 mm)
2"
(51 mm)
Max
5-13/16" (148 mm)
5"
(127 mm)
3"
(76 mm)
Ø 2-1/8"
(54 mm)
Ø 2-1/8"
(54 mm)
Ø 1"
(25 mm)
1-9/16"
(40 mm)
4-3/16"
(106 mm)
3/8"
Compression
Fittings
Ø 2-1/8"
(54 mm)
4-1/4"
(108 mm)
3-7/8"
(98 mm)
Pop-Up Drain
1-1/4" OD
1-1/2"
(38 mm)
Max
8" (203 mm) Min
16" (406 mm) Max
Ø 1-1/4"
(32 mm)
Technical Information
All product dimensions are nominal.
Faucet:
Flow rate: 1.2 gal/min (4.5 l/min)
Pressure: 60 psi (4.1 bar)
Valve body: Machined-brass
Drain included: Yes
Drain with overflow: Yes
Spout:
Spout reach: 5-15/16" (151 mm)
Notes
Install this product according to the installation
instructions.
ADA compliant for handles only.
ADA, OBC, CSA B651 compliant when
installed to the specific requirements of these
regulations.
®
Widespread bathroom sink faucet
K-97352-4
1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
3-30-2022 10:40 - US/CA
