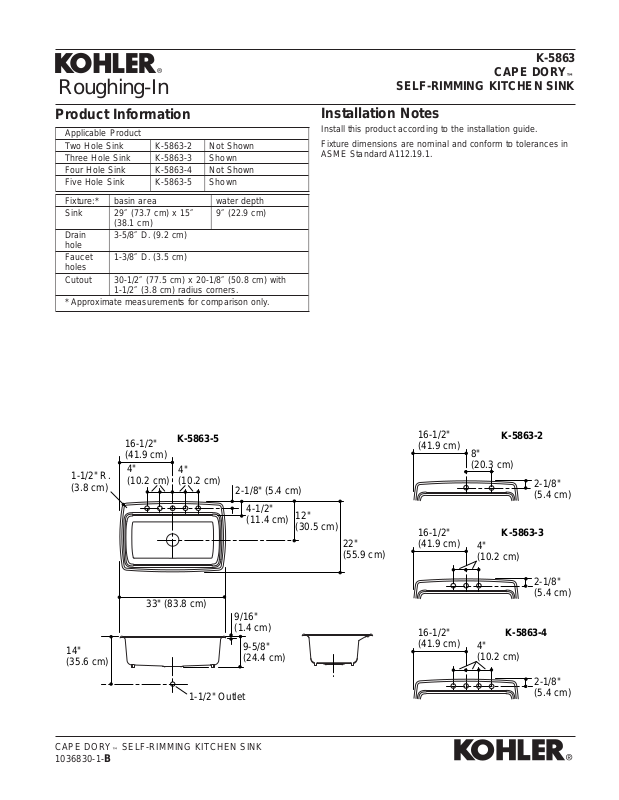

Roughing-In

K-5863

CAPE DORY

™

SELF-RIMMING KITCHEN SINK

Product Information

Applicable Product
Two Hole Sink K-5863-2 Not Shown
Three Hole Sink K-5863-3 Shown
Four Hole Sink K-5863-4 Not Shown
Five Hole Sink K-5863-5 Shown

Fixture:* basin area water depth
Sink 29″ (73.7 cm) x 15″

Drain
hole

Faucet
holes

Cutout 30-1/2″ (77.5 cm) x 20-1/8″ (50.8 cm) with
* Approximate measurements for comparison only.

(38.1 cm)
3-5/8″ D. (9.2 cm)

1-3/8″ D. (3.5 cm)

1-1/2″ (3.8 cm) radius corners.

9″ (22.9 cm)

Installation Notes

Install this product according to the installation guide.
Fixture dimensions are nominal and conform to tolerances in

ASME Standard A112.19.1.

1-1/2" R.
(3.8 cm)

14"
(35.6 cm)

16-1/2"
(41.9 cm)

4"
(10.2 cm)

33" (83.8 cm)

K-5863-5

4"
(10.2 cm)

1-1/2" Outlet

2-1/8" (5.4 cm)

4-1/2"
(11.4 cm)

9/16"
(1.4 cm)

9-5/8"
(24.4 cm)

12"
(30.5 cm)

22"
(55.9 cm)

16-1/2"
(41.9 cm)

16-1/2"
(41.9 cm)

16-1/2"
(41.9 cm)

K-5863-2

8"
(20.3 cm)

2-1/8"
(5.4 cm)

K-5863-3

4"
(10.2 cm)

2-1/8"
(5.4 cm)

K-5863-4

4"
(10.2 cm)

2-1/8"
(5.4 cm)

CAPE DORY™SELF-RIMMING KITCHEN SINK
1036830-1-
