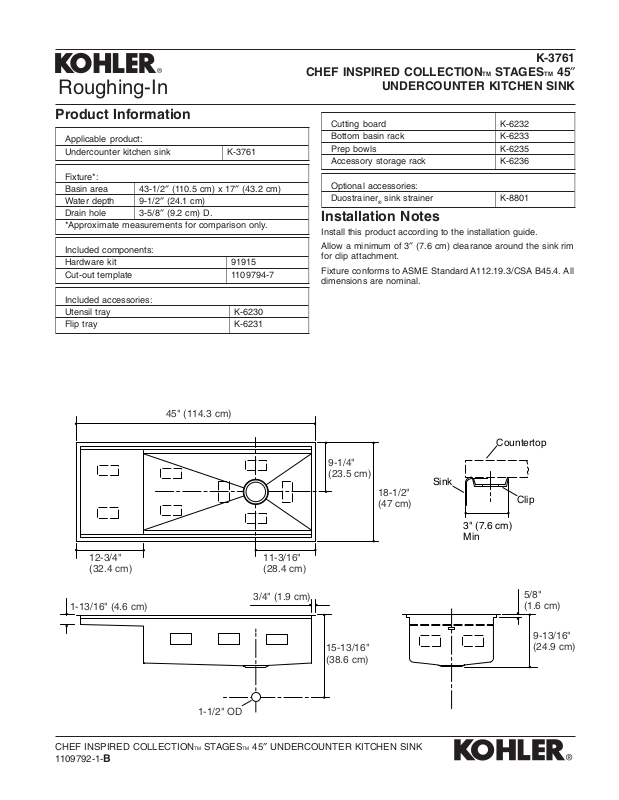

Roughing-In
CHEF INSPIRED COLLECTION
UNDERCOUNTER KITCHEN SINK
K-3761
TM STAGESTM 45″
Product Information
Applicable product:
Undercounter kitchen sink K-3761
Fixture*:
Basin area 43-1/2″ (110.5 cm) x 17″ (43.2 cm)
Water depth 9-1/2″ (24.1 cm)
Drain hole 3-5/8″ (9.2 cm) D.
*Approximate measurements for comparison only.
Included components:
Hardware kit 91915
Cut-out template 1109794-7
Included accessories:
Utensil tray K-6230
Flip tray K-6231
Cutting board K-6232
Bottom basin rack K-6233
Prep bowls K-6235
Accessory storage rack K-6236
Optional accessories:
Duostrainer
sink strainer K-8801
®
Installation Notes
Install this product according to the installation guide.
Allow a minimum of 3″ (7.6 cm) clearance around the sink rim
for clip attachment.
Fixture conforms to ASME Standard A112.19.3/CSA B45.4. All
dimensions are nominal.
12-3/4"
(32.4 cm)
1-13/16" (4.6 cm)
45" (114.3 cm)
11-3/16"
(28.4 cm)
3/4" (1.9 cm)
9-1/4"
(23.5 cm)
15-13/16"
(38.6 cm)
18-1/2"
(47 cm)
Countertop
Sink
Clip
3" (7.6 cm)
Min
5/8"
(1.6 cm)
9-13/16"
(24.9 cm)
1-1/2" OD
CHEF INSPIRED COLLECTIONTM STAGESTM 45″ UNDERCOUNTER KITCHEN SINK
1109792-1-
B
