Homeowners Guide
One-Piece Toilets
K-3324, K-14268
M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de
M corresponden a México (Ej. K-12345M)
Français, page ªFrançais-1º Español, página ªEspañol-1º
1006479-5-A
Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship offers you a rare combination of proven performance and graceful sophistication that will satisfy you for years to come. The dependability and beauty of your Kohler toilet will surpass your highest expectations. We're very proud of our products here at Kohler and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay special attention to the Care and Cleaning instructions.
All information in this manual is based upon the latest product information available at the time of publication. At Kohler, we constantly strive to improve the quality of our products. We reserve the right to make changes in product characteristics, packaging or availability at any time without notice.
Your Kohler Toilet
Your Kohler toilet combines outstanding function, comfort, and performance with remarkable style and class.
This Kohler toilet was designed with our IngeniumTM Flushing System, and uses only 1.6 gallons (6 L) of water for each ¯ush. This ensures that your toilet will provide exceptional performance that is comparable to our previous 3.5 gallon (13.2 L) models. Your toilet exceeds ASME performance standards for low-consumption toilets. It was designed with a large, glazed trapway to keep waste moving without blockage.
Your Kohler toilet with seat features our Comfort HeightTM design for your added comfort. The elongated toilet bowl with seat is ADA compliant.
Crafted from a clay mixture that is ®red at an intense heat to vitrify the clay and fuse the glaze, your Kohler toilet is scratchand abrasion-resistant. Its surface won't stain, discolor, rust, or fade. Every component in your Kohler toilet is speci®cally designed to increase the toilet's useful life.
How to Use This Manual
This manual is designed to help you troubleshoot and repair any problems that may develop with the operation of the toilet. If a problem occurs:
Refer to the Troubleshooting section to determine a probable cause.
1006479-5-A |
2 |
Kohler Co. |
How to Use This Manual (cont.)
Follow the maintenance and repair instructions in this manual to correct the problem.
Check the Service Parts section to determine the part numbers for any replacement parts necessary.
Use the information on the back cover of this manual to contact Kohler Company to order parts, or for help if you cannot correct the problem.
Care and Cleaning
NOTE: See the special instructions before you clean Artist Edition products.
Clean the outside surface of your vitreous china toilet with mild soap and warm water. Wipe the entire surface completely dry with a clean, soft cloth. You may use soft abrasive cleaners when necessary to clean your toilet. Do not use strong abrasive cleaners, as they will scratch and dull the surface. Wipe any splashes of cleaner solutions from plastic or plated surfaces immediately. Use toilet bowl cleaners on the inside of the bowl only.
If the surface becomes excessively dirty, use a general purpose cleaner such as: Fantastik® All Purpose, Lysol® Basin, Tub and Tile Cleaner, Soft Scrub® Multi Purpose, Scrub Free® Disinfectant Bathroom Cleaner, Clorox Clean-Up®, Spic and Span Liquid, Comet® Liquid Bathroom Cleaner, Scrubbing Bubbles® Bathroom Cleaner, Bar Keeper's Friend®, or Bon Ami®.
Over time, hard water deposits may clog toilet rim holes and trapways. To clean, use a commercial cleaner that is recommended for removing hard water deposits. Follow the cleaner manufacturer's instructions.
WARNING: Risk of property or product damage. Do not use in-tank cleaners in your toilet. Products containing chlorine (calcium hypochlorite) can seriously damage ®ttings in the tank. This damage can cause leakage and property damage.
Kohler Company shall not be responsible or liable for any tank ®tting damage caused by the use of cleaners containing chlorine (calcium hypochlorite).
For Artist Edition toilets: Do not use bristle brushes or abrasive sponges to clean the surface of your Artist Edition toilet. They will scratch the decorated surface. Gold and Platinum used on decorative products are like ®ne jewelry. Use only warm water to clean, and dry
Kohler Co. |
3 |
1006479-5-A |
Care and Cleaning (cont.)
with a soft cloth. Do not let cleaners sit or soak on Artist Edition surfaces. Rinse and wipe the toilet surface to prevent soap buildup. If the surface of your Artist Edition toilet becomes excessively dirty, use Glass Plus® or a liquid dish soap with water.
Toilet Seats: Avoid using abrasive cleaners, detergents, disinfectants or cleaning products in aerosol cans.
Do not allow abrasive chemicals or cosmetics (such as ®ngernail polish or aftershave) to come in contact with the toilet seat, as they can damage the ®nish.
Use a soft sponge or cloth to clean the toilet seat. Rinse the seat clean and dry with a soft towel. Let the seat air dry and ensure that the hinge area dries completely.
Clean the seat with dishwashing liquid and water or with any of the following products: Gel Gloss®, Scrub Free® Mildew Stain Remover, Formula 409® All Purpose Cleaner, Mr. Clean® Lemon Fresh, Cinch®, Glass Plus®, or Fantastik® All Purpose.
Painted wood seats require special care and cleaning. Use only mild a detergent such as dishwashing soap.
1006479-5-A |
4 |
Kohler Co. |
Threaded Rod
Water
Line
Adjust the Water Level
Adjust the tank water level to the marked waterline.
Rotate the threaded rod clockwise to raise the water level or counterclockwise to lower the water level as needed.
Periodically check for leaks for several days following the installation.
Troubleshooting Guide
Troubleshooting Tips
NOTE: This troubleshooting guide is for general aid only. For warranty service, contact your dealer or wholesale distributor.
Troubleshooting Table |
|
|
|
Symptoms |
Recommended Action |
|
|
1. Poor ¯ush. |
A. |
Adjust the tank water level to match the |
|
|
|
waterline. |
|
|
B. |
Fully open the water supply shut-off |
|
|
|
valve. |
|
|
C. |
Clear obstructions from the trapway, jet, or |
|
|
|
bowl rim holes. |
|
|
D. Clear obstructions in the soil pipe or vent |
||
|
|
pipe. |
|
|
|
|
|
|
|
|
|
Kohler Co. |
|
5 |
1006479-5-A |
Troubleshooting Guide (cont.)
Symptoms |
Recommended Action |
2.No ¯ush. A. Reconnect the ¯apper chain to the trip
lever or ¯ush valve.
B.Adjust the ¯apper chain assembly to remove excessive slack.
3.The ®ll valve turns A. Adjust the ¯apper chain for proper slack
on/off by itself |
so the ¯apper is not held off the ¯ush |
without the toilet |
valve seat. |
being ¯ushed, or it |
|
runs, allowing |
|
water to enter the |
|
tank. |
|
B. |
Clean or replace the ¯apper if it is worn, |
|
dirty, or misaligned with the ¯ush valve |
|
seat, or if the ¯ush valve seat is damaged. |
|
Replace the ¯ush valve seal or ¯ush valve. |
C. |
Clean the ®ll valve seat/seat washer of |
|
debris, or replace the piston/seat washer |
|
assembly. |
D. Replace the ®ll valve if the valve ¯oat |
|
|
sinks. |
E.Adjust the tank water level if it is too high.
4.Long tank ®ll A. Fully open the water supply shut-off
cycle. valve.
B.Clean the valve inlet, valve head, or supply line. Flush the lines.
5.Noisy tank ®ll A. Partially close the water supply shut-off
cycle. |
valve if the water pressure to the toilet is |
|
too high. Check the toilet performance |
|
following any such adjustment. |
|
B. Remove dirt or obstructions from the |
|
valve head. Flush the lines. |
One-Year Limited Warranty
For the U.S.A. and Canada Only
KOHLER® plumbing ®xtures, faucets and ®ttings are warranted to be free of defects in material and workmanship for one year from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection discloses any such defects occurring in normal usage within one year after installation. Kohler Co. is not responsible for removal or installation costs.
1006479-5-A |
6 |
Kohler Co. |
One-Year Limited Warranty (cont.)
To obtain warranty service, contact Kohler Co. either through your Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing Kohler Co., Attn.: Customer Service Department, 444 Highland Drive, Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from within Mexico.
Implied warranties including that of merchantability and ®tness for a particular purpose are expressly limited in duration to the duration of this warranty, Kohler Co. disclaims any liability for special, incidental or consequential damages. Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages so these limitations and exclusions may not apply to you. This warranty gives you speci®c legal rights. You may also have other rights which vary from state/province to state/province.
This is our exclusive written warranty.
Notes:
1.There may be variation in color ®delity between catalog images and actual plumbing ®xtures.
2.Kohler Co. reserves the right to make changes in product characteristics, packaging or availability at any time with out notice.
COPYRIGHT © 1999, 2000, 2001, 2002 BY KOHLER CO.
Kohler Co. |
7 |
1006479-5-A |

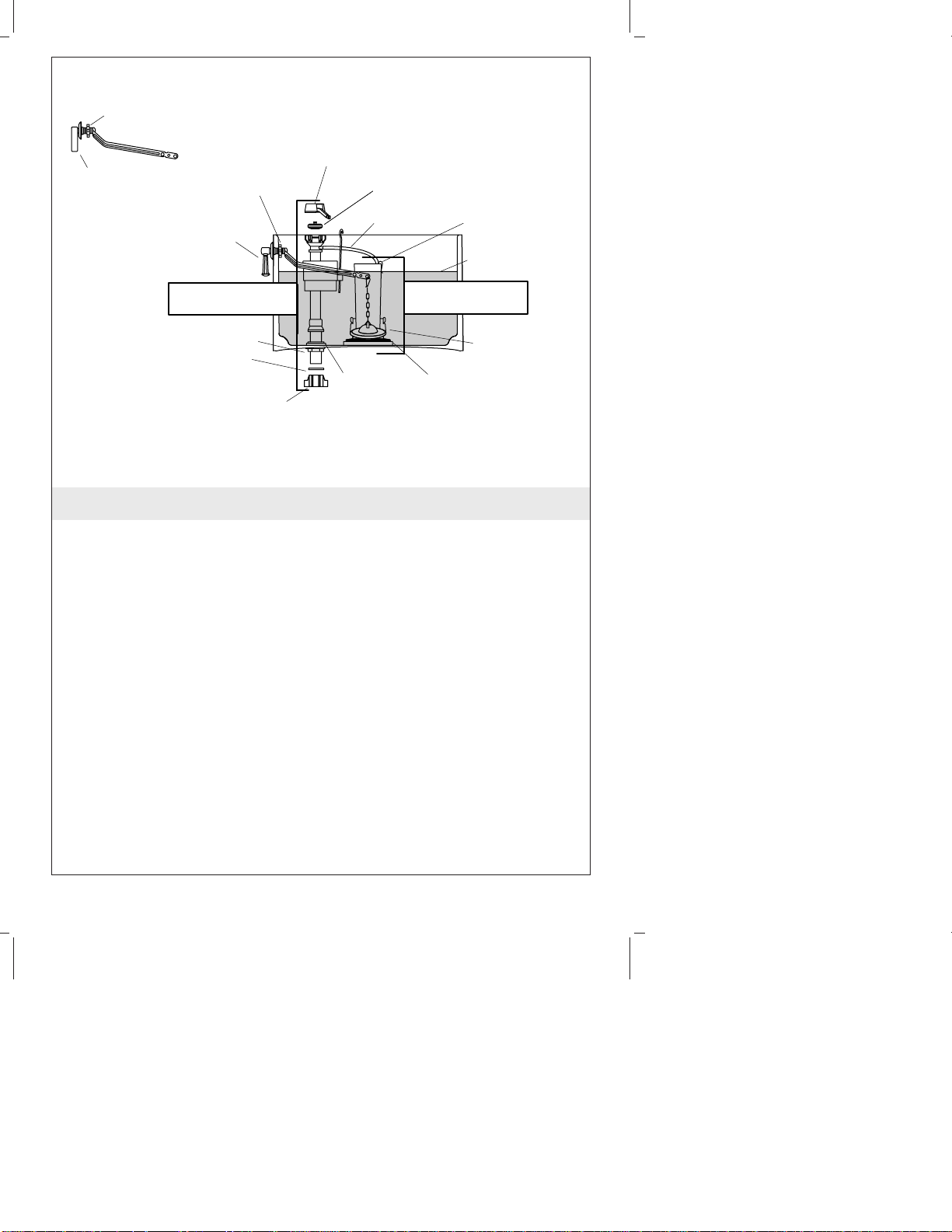

78132 |
|
|
|
|
Nut |
|
|
|
|
|
|
83451 |
|
|
|
|
Valve Head |
|
|
85085** |
78132 |
56094 |
|
|
Trip Lever Kit |
Nut |
Seal |
|
|
|
|
52156 |
51261 |
|
1006495** |
Hose |
|
Clip |
|
|
|
|
||
Trip Lever Kit |
|
|
|
|
|
|
|
|
Waterline |
|
87296 |
|
87998 |
|
|
Fill Valve |
|
Flush Valve |
|
|
84678 |
|
|
|
|
Locknut |
|
|
85655 |
|
42398 |
|
|
Flapper |
|
|
|
|
|
|
Washer |
85307 |
|
83996 |
|
|
|
||
|
42397 |
Washer |
|
Gasket |
|
|
|
|
|
|
Nut |
|
|
|
|
**Finish/color code required. |
|
|
|
Service Parts |
|
|
|
|
