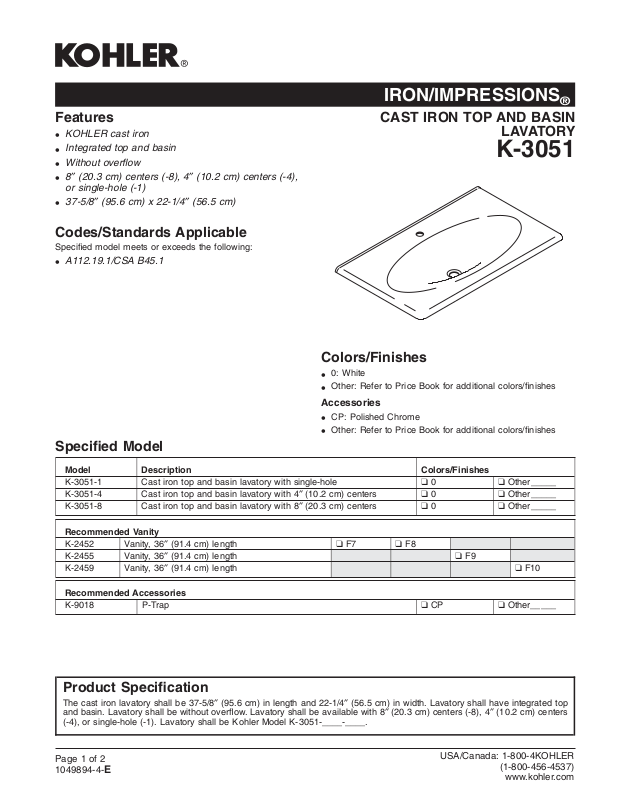

IRON/IMPRESSIONS

Features

KOHLER cast iron

•

Integrated top and basin

•

Without overﬂow

• 8″ (20.3 cm) centers (-8), 4″ (10.2 cm) centers (-4),

•

or single-hole (-1) 37-5/8″ (95.6 cm) x 22-1/4″ (56.5 cm)

•

Codes/Standards Applicable

Speciﬁed model meets or exceeds the following:

A112.19.1/CSA B45.1

•

Speciﬁed Model

CAST IRON TOP AND BASIN

LAVATORY

K-3051

Colors/Finishes

0: White

•

Other: Refer to Price Book for additional colors/ﬁnishes

•

Accessories

CP: Polished Chrome

•

Other: Refer to Price Book for additional colors/ﬁnishes

•

Model Description Colors/Finishes

K-3051-1 Cast iron top and basin lavatory with single-hole ❑ 0 ❑ Other_____ K-3051-4 Cast iron top and basin lavatory with 4″ (10.2 cm) centers ❑ 0 ❑ Other_____ K-3051-8 Cast iron top and basin lavatory with 8″ (20.3 cm) centers ❑ 0 ❑ Other_____

Recommended Vanity

K-2452 Vanity, 36″ (91.4 cm) length ❑ F7 ❑ F8 K-2455 Vanity, 36″ (91.4 cm) length ❑ F9 K-2459 Vanity, 36″ (91.4 cm) length ❑ F10

Recommended Accessories

K-9018 P-Trap ❑ CP ❑ Other_____

Product Speciﬁcation

The cast iron lavatory shall be 37-5/8″ (95.6 cm) in length and 22-1/4″ (56.5 cm) in width. Lavatory shall have integrated top and basin. Lavatory shall be without overﬂow. Lavatory shall be available with 8″ (20.3 cm) centers (-8), 4″ (10.2 cm) centers (-4), or single-hole (-1). Lavatory shall be Kohler Model K-3051-____-____.

Page 1 of 2 1049894-4-

USA/Canada: 1-800-4KOHLER

(1-800-456-4537)

www.kohler.com

IRON/IMPRESSIONS

Technical Information

Fixture*: Basin area 32″ (81.3 cm) x

Water depth 4-1/2″ (11.4 cm) Drain hole 1-3/4″ (4.4 cm) D. * Approximate measurements for comparison only.

Holes K-3051-1 K-3051-4 K-3051-8 Spout 1-3/8″

(3.5 cm)

Faucet 1-3/16″

13-7/8″ (35.2 cm)

1-1/8″ (2.9 cm)

(3 cm)

1-1/8″ (2.9 cm)

1-3/8″ (3.5 cm)

Installation Notes

NOTE: When selecting a faucet for this lavatory, ensure the

faucet has a spout reach of 4-1/2″ (11.4 cm) to 5″ (12.7 cm) and has a spout height of 3″ (7.6 cm) to 6″ (15.2 cm).

Install this product according to the installation guide.

Product does not have an overﬂow.

3-15/16" (10 cm)

12-1/8" (30.8 cm)

8" (20.3 cm)

37-5/8" (95.6 cm)

3/4" (1.9 cm)

3/8" Hot

4" (10.2 cm)

K-3051-8

1-1/4" OD

3/8" Cold

4-1/8" (10.5 cm)

12-1/8" (30.8 cm)

22-1/4" (56.5 cm)

6-1/2" (16.5 cm)

14" (35.6 cm)

K-3051-1

3-15/16" (10 cm)

K-3051-4

4" (10.2 cm)

3-15/16" (10 cm)

Product Diagram

IRON/IMPRESSIONS®CAST IRON TOP AND BASIN LAVATO RY Page2of2

1049894-4-
