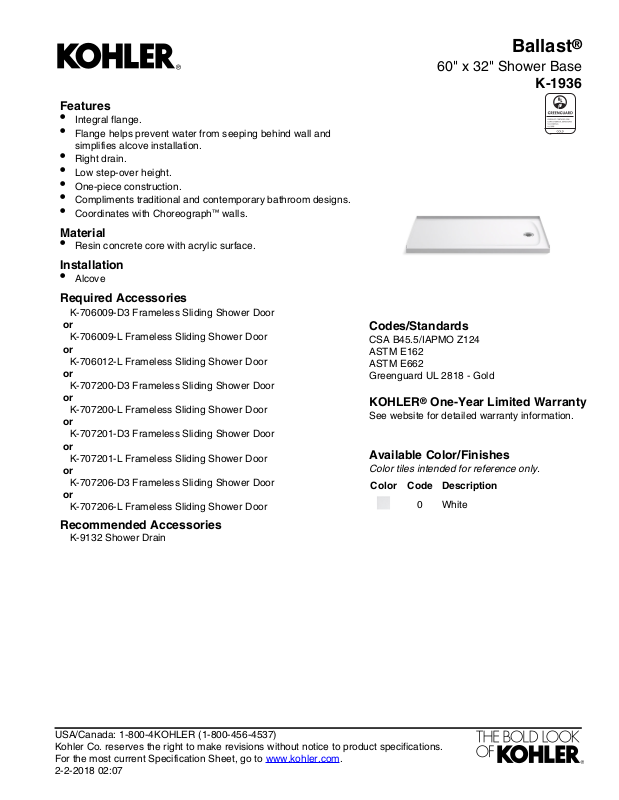

Kohler K19360 Specifications
Features
•
Integral flange.
•
Flange helps prevent water from seeping behind wall and
simplifies alcove installation.
•
Right drain.
•
Low step-over height.
•
One-piece construction.
•
Compliments traditional and contemporary bathroom designs.
•
Coordinates with Choreograph™ walls.
Material
•
Resin concrete core with acrylic surface.
Installation
•
Alcove
Required Accessories
K-706009-D3 Frameless Sliding Shower Door
or
K-706009-L Frameless Sliding Shower Door
or
K-706012-L Frameless Sliding Shower Door
or
K-707200-D3 Frameless Sliding Shower Door
or
K-707200-L Frameless Sliding Shower Door
or
K-707201-D3 Frameless Sliding Shower Door
or
K-707201-L Frameless Sliding Shower Door
or
K-707206-D3 Frameless Sliding Shower Door
or
K-707206-L Frameless Sliding Shower Door
Ballast
®
60" x 32" Shower Base
K-1936
Codes/Standards
CSA B45.5/IAPMO Z124
ASTM E162
ASTM E662
Greenguard UL 2818 - Gold
KOHLER® One-Year Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
White0
Recommended Accessories
K-9132 Shower Drain
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-2-2018 02:07
Flange Detail
Ballast
®
60" x 32" Shower Base
K-1936
Technical Information
All product dimensions are nominal.
3-Wall AlcoveInstallation:
RightDrain location:
128 lbs (58.1 kg)Weight:
Notes
Measure your actual product for rough-in details.
Install this product according to the installation
instructions.
CAUTION: Risk of property damage and personal
injury. Using this product without a shower door
may cause water damage and may create a wet
and potentially dangerous environment. Install a
shower door with this product.
A shower door with a bottom track is required for
this receptor. Kohler Co. shall not be responsible
for problems encountered due to the installation
and use of other manufacturer's shower doors.
Refer to Kohler Fixtures Price Book for complete
list of required shower doors for this product.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
2-2-2018 02:07
