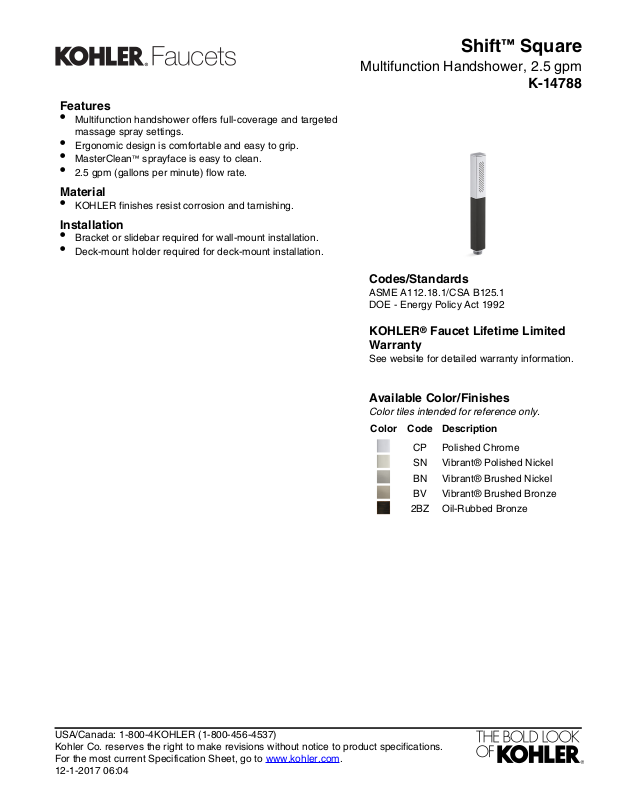

Kohler K14788CP Specifications
Features
•
Multifunction handshower offers full-coverage and targeted
massage spray settings.
•
Ergonomic design is comfortable and easy to grip.
•
MasterClean™ sprayface is easy to clean.
•
2.5 gpm (gallons per minute) flow rate.
Material
•
KOHLER finishes resist corrosion and tarnishing.
Installation
•
Bracket or slidebar required for wall-mount installation.
•
Deck-mount holder required for deck-mount installation.
Shift™ Square
Multifunction Handshower, 2.5 gpm
K-14788
Codes/Standards
ASME A112.18.1/CSA B125.1
DOE - Energy Policy Act 1992
KOHLER® Faucet Lifetime Limited
Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
DescriptionCodeColor
Polished ChromeCP
Vibrant® Polished NickelSN
Vibrant® Brushed NickelBN
Vibrant® Brushed BronzeBV
Oil-Rubbed Bronze2BZ
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-1-2017 06:04
Shift™ Square
Multifunction Handshower, 2.5 gpm
K-14788
Technical Information
All product dimensions are nominal.
Notes
Install this product according to the installation
guide.
Plumbing codes may require an atmospheric
vacuum breaker (such as the KOHLER K-9660)
be installed in-line to handshowers. Consult with
local plumbing codes.
NOTE: Handshower contains flow regulating
check valve for backflow prevention.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
12-1-2017 06:04
